SPECIFICATIONS

BOM list service: Support Bom List

Board Type: Single Board Computers (SBC)

Brand Name: NONE

D/C: New and Original

Description: Raspberry Pi 4 Model B Development Boards

Embedded: No

Function: Mini Computer

Mfg. Date Code: Original New

Model Number: Raspberry Pi 4 Model B

Module/Board Type: Development Boards

More Details: Please Consult Us

Origin: Mainland China

Place of Origin: China

Series: Single Board Computer

Type: Development Board



Products Description

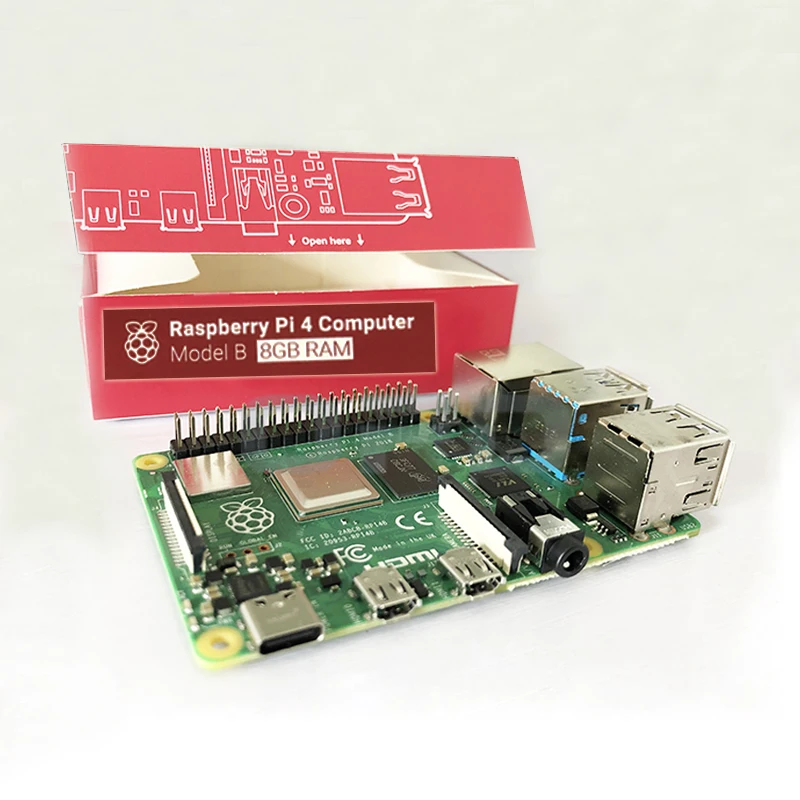

2023 Raspberry Pi 4 Model B

1GB 2GB 4GB 8GB RAM

Mini Development Boards

Original Raspberry Pi 0 Zero 2 3B Pi4 Pi4B 5 Mini Computer

All in stock

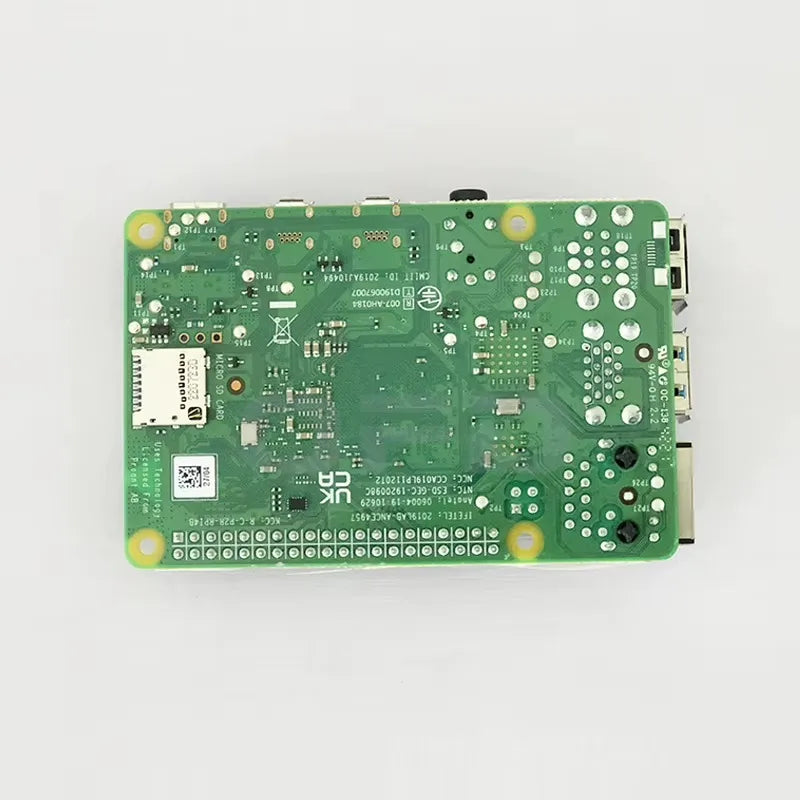

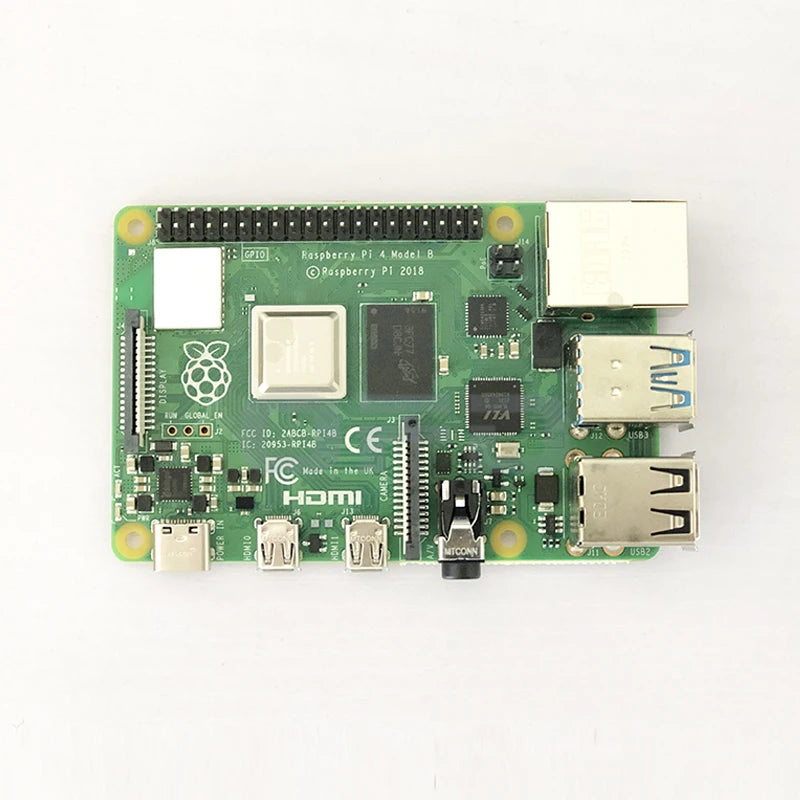

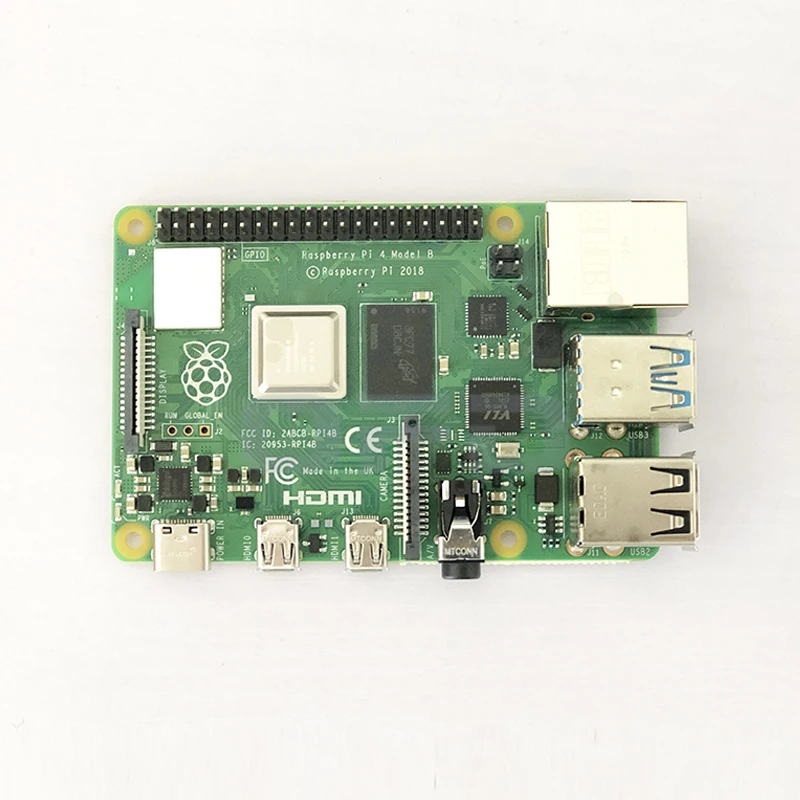

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.

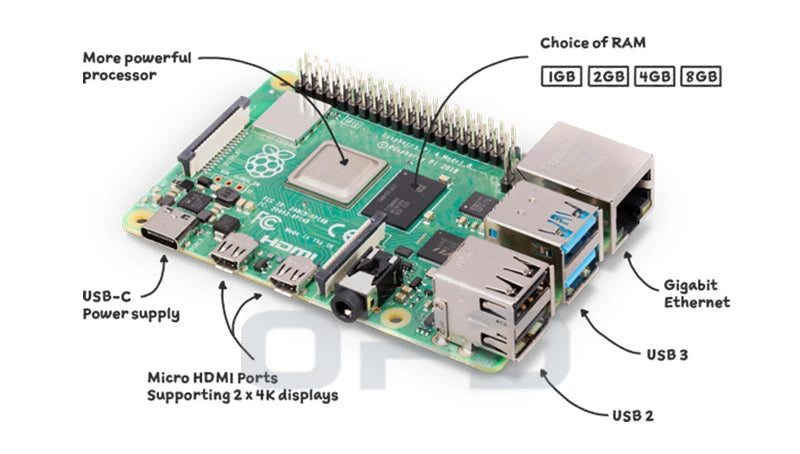

This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, BLE 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).



The dual-band wireless LAN and BLE have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.





Model	Raspberry Pi 4 Model B
Processor	Broad-com BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory	1GB, 2GB, 4GB or 8GB LPDDR4    (depending on model) with on-die ECC
Connectivity	2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, BLE 5.0, BLE Gigabit Ethernet 2 × USB 3.0 ports 2 × USB 2.0 ports.
GPIO	Standard 40-pin GPIO header (fully backwards-compatible with previous boards)
Video & sound	2 × micro HD MI ports (up to 4Kp60 supported) 2-lane MIPI DSI display port 2-lane MIPI CSI camera port 4-pole stereo audio and composite video port
Multimedia	H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
SD card support	Micro SD card slot for loading operating system and data storage
Input power	5V DC via USB-C connector (minimum 3A1 ) 5V DC via GPIO header (minimum 3A1 ) Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
Operating temperature	0°C to +50°C
Production lifetime	The Raspberry Pi 4 Model B will remain in production until at least January 2026.











Product Name	Development Board	Model	Raspberry Pi 4 Model B
D/C，Brands	Please contact us to confirm.			Customised pakage	Available
BOM Service	Provide quick price list quotation service Whether you are selecting your existing products from our catalog or seeking engineering help, you can discuss your purchasing needs with us.			Bom Service	Available Bom List
Main products	Integrated Circuit ICs, Microcontrollers and Processors, FPGA, Transistors, Mosfet, IGBT, Diodes, LEDs, Regulators, Optocouplers, Crystal Oscillators, Other ICs, Resistors, Fuses, Capacitors, Potentiometers, Inductors, PCB& PCBA, Electronic Modules Kits, Development Board Kits, Wireless & RF Modules, Communication Module, DIY Accessories, Connectors & Terminals, Cables, Wires, Sensors, Relays, Switches, Touch Panel, PLC & Expansion Module, BOM List Services etc. Please tell me the “BOM List” or “Manufacturer Part Number” or "other purchasing requirements", We will quote for you !
MOQ and Price	Q: Does the price of current product fluctuate frequently? We monitors the inventory quantity and price of global electronic component in real time, and regularly update the price data of current products. You can view the current product prices of electronic components to provide a basis for your purchasing decisions, Or contact us now for the latest quote. If you want to know more, please contact us, we will answer patiently all your questions! Original brand, fast delivery, welcome to send inquiry to me !

Flagship Series



Model B indicates the presence of an Ethernet port. Model A indicates a lower-cost model in a smaller form factor with no Ethernet port, reduced RAM, and fewer USB ports to limit board height.

Model	SoC	Memory	GPIO	Connectivity
Raspberry Pi 5	BCM2712 (2GB version uses BCM2712D0)	2GB 4GB 8GB	40-pin GPIO header	* 2× micro HDMI * 2× USB 2.0 * 2× USB 3.0 * 2× CSI/DSI combined camera/display ports * single-lane PCIe FFC connector * UART connector * RTC battery connector * four-pin JST-SH PWM fan connector * Gigabit (1Gb/s) Ethernet RJ45 with PoE+ support * 2.4/5GHz dual-band 802.11ac Wi-Fi 5 (300Mb/s) * Bluetooth 5, Bluetooth Low Energy (BLE) * microSD card slot * USB-C power (5V, 5A (25W) or 5V, 3A (15W) with a 600mA peripheral limit)
Raspberry Pi 400	BCM2711	4GB	40-pin GPIO header	* 2× micro HDMI * USB 2.0 * 2× USB 3.0 * Gigabit (1Gb/s) Ethernet RJ45 * 2.4/5GHz dual-band 802.11ac Wi-Fi (120Mb/s) * Bluetooth 5, Bluetooth Low Energy (BLE) * microSD card slot * USB-C power (5V, 3A (15W))
Raspberry Pi 4 Model B	BCM2711	1GB 2GB 4GB 8GB	40-pin GPIO header	* 2× micro HDMI * 2× USB 2.0 * 2× USB 3.0 * CSI camera port * DSI display port * 3.5mm AV jack * Gigabit (1Gb/s) Ethernet RJ45 with PoE+ support * 2.4/5GHz dual-band 802.11ac Wi-Fi (120Mb/s) * Bluetooth 5, Bluetooth Low Energy (BLE) * microSD card slot * USB-C power (5V, 3A (15W))
Raspberry Pi 3 Model A+	BCM2837b0	512 MB	40-pin GPIO header	* HDMI * USB 2.0 * CSI camera port * DSI display port * 3.5mm AV jack * 2.4/5GHz dual-band 802.11ac Wi-Fi (100Mb/s) * Bluetooth 4.2, Bluetooth Low Energy (BLE) * microSD card slot * micro USB power
Raspberry Pi 3 Model B+	BCM2837b0	1GB	40-pin GPIO header	* HDMI * 4× USB 2.0 * CSI camera port * DSI display port * 3.5mm AV jack * 300Mb/s Ethernet RJ45 with PoE support * 2.4/5GHz dual-band 802.11ac Wi-Fi (100Mb/s) * Bluetooth 4.2, Bluetooth Low Energy (BLE) * microSD card slot * micro USB power
Raspberry Pi 3 Model B	BCM2837	1 GB	40-pin GPIO header	* HDMI * 4× USB 2.0 * CSI camera port * DSI display port * 3.5mm AV jack * 100Mb/s Ethernet RJ45 * 2.4GHz single-band 802.11n Wi-Fi (35Mb/s) * Bluetooth 4.1, Bluetooth Low Energy (BLE) * microSD card slot * micro USB power
Raspberry Pi 2 Model B	BCM2836 (in version 1.2, switched to BCM2837)	1 GB	40-pin GPIO header	* HDMI * 4× USB 2.0 * CSI camera port * DSI display port * 3.5mm AV jack * 100Mb/s Ethernet RJ45 * microSD card slot * micro USB power
Raspberry Pi Model A+	BCM2835	256MB 512MB	40-pin GPIO header	* HDMI * USB 2.0 * CSI camera port * DSI display port * 3.5mm AV jack * microSD card slot * micro USB power
Raspberry Pi Model B+	BCM2835	512MB	40-pin GPIO header	* HDMI * 4× USB 2.0 * CSI camera port * DSI display port * 3.5mm AV jack * 100Mb/s Ethernet RJ45 * microSD card slot * micro USB power
Raspberry Pi Model A	BCM2835	256MB	26-pin GPIO header	* HDMI * USB 2.0 * CSI camera port * DSI display port * 3.5mm audio jack * RCA composite video * SD card slot * micro USB power
Raspberry Pi Model B	BCM2835	256MB 512MB	26-pin GPIO header	* HDMI * 2× USB 2.0 * CSI camera port * DSI display port * 3.5mm audio jack * RCA composite video * 100Mb/s Ethernet RJ45 * SD card slot * micro USB power

Packaging & Delivery

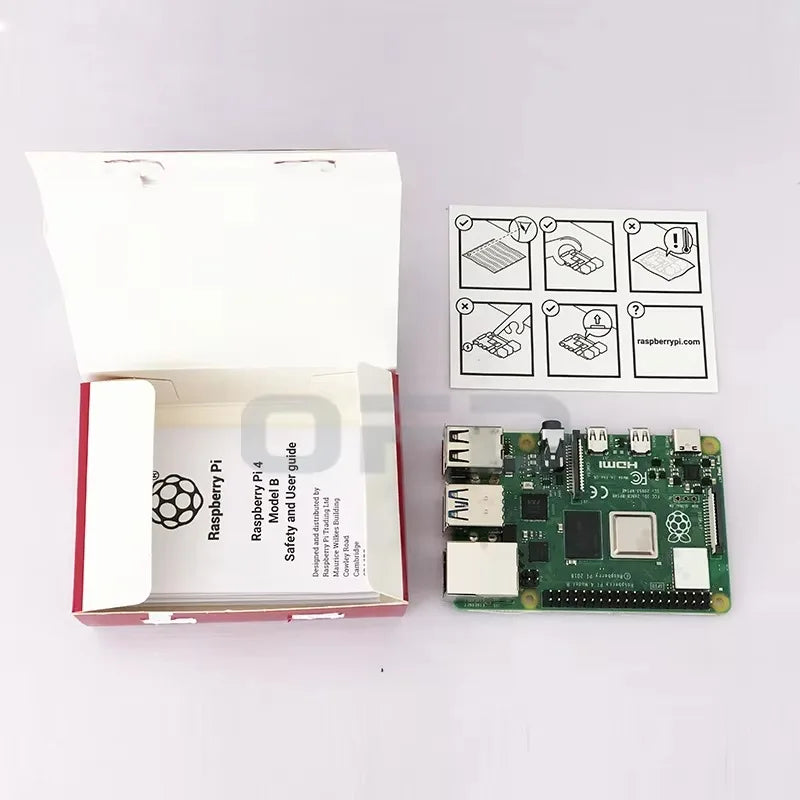

1. Every item has its factory original package, We will take photos and send it to our customer to confirm before shipment. 2. Separate each item with high-quality pearl foam paper and shockproof bubble paper. 3. Put the items into a carton box for international transportation, Stick a fragile sticker, and write the name of the customer on the carton box. In order to store and organize it, we also provide you with a variety of packaging methods, such as anti -static plastic bags, anti-static plastic boxes, pallet packaging, carton, etc. We can also customize packaging according to your needs.
