SPECIFICATIONS
Battery Included: no
Brand Name: RPI,OEING
Certification: CE
Chipset: Raspberry Pi 4 Model B
Description: RPI board
High-concerned chemical: none
Interface: RCA Output
Interface 1: TF Card Support
Interface 2: USB2.0
Intergrated Feature: WiFi 802.11b/g/n
Intergrated Feature,: 10/100Mbps
Model Number: raspberry Pi 4, Raspberry Pi 4
Origin: Mainland China
Place of Origin: United Kingdom
Processor Brand: BROA DCOM
Semi-finishedproduct: No
Type: Development Board, Embedded System Development Boards
If you have any questions, Please contact our customer service:
WhatsApp：+86 13361293650
Email：mytkj014@163.com

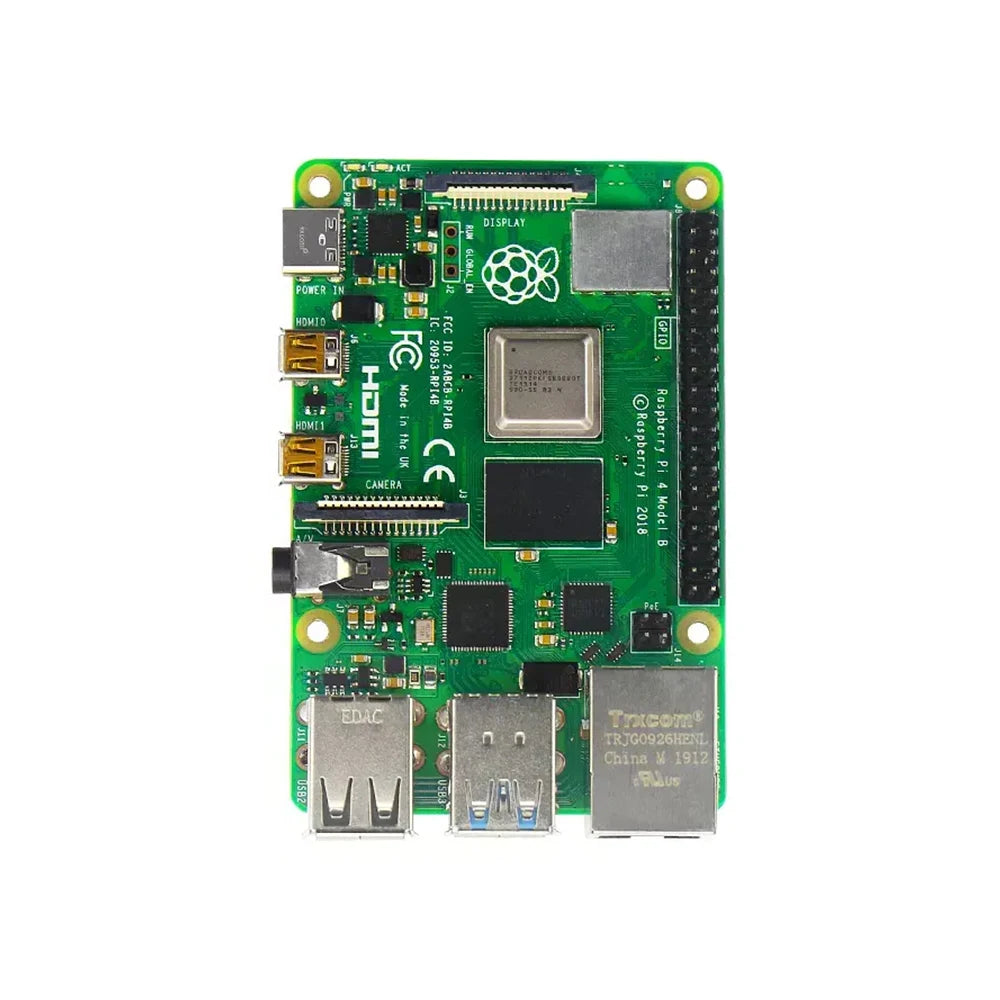

Raspberry Pi 4 Model B Pi4 4b 1GB 2GB 4GB 8GB RAM Starter Kit Board 1g 2g 4g 8g Computer Mini Pc Model B Pi4b 2 Gb 4 Gb 8 Gb
Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x 86 PC systems.
This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HD MI ports, hardware video decode at up to 4Kp60, up to 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).
The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.
|
Processor:
|
Broad-com BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
|
|
Memory:
|
1GB, 2GB, 4GB or 8GB LPDDR4 (depending on model) with on-die ECC
|
|
Connectivity:
|
2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE Gigabit Ethernet
2 × USB 3.0 ports
2 × USB 2.0 ports.
|
|
GPIO:
|
Standard 40-pin GPIO header
(fully backwards-compatible with previous boards)
|
|
Video & sound:
|
2 × micro HD MI ports (up to 4Kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
|
|
Multimedia:
|
H.265 (4Kp60 decode);
H.264 (1080p60 decode, 1080p30 encode);
OpenGL ES 3.0 graphics
|
|
SD card support:
|
Micro SD card slot for loading operating system and data storage
|
|
Input power:
|
5V DC via USB-C connector (minimum 3A1 )
5V DC via GPIO header (minimum 3A1 )
Power over Ethernet (PoE)–enabled
(requires separate PoE HAT)
|
|
Operating temperature:
|
0°C to +50°C
|
|
Production lifetime:
|
The Raspberry Pi 4 Model B will remain in production until at least January 2026.
|
