SPECIFICATIONS

Accessory Type: Power Adapter

Battery Included: no

Brand Name: Tytion

Choice: yes

Compatible With: Raspberry Pi 4B

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

Note: The delivery does not include the Raspberry Pi 4B and Memory card,(not include lithium battery, Recommended Size 70mm x 41mm x 9.5)  .

For screen drivers and instructions, please contact customer service，Or Leave a comment email address we will send to you the drivers and instructions.

product description:

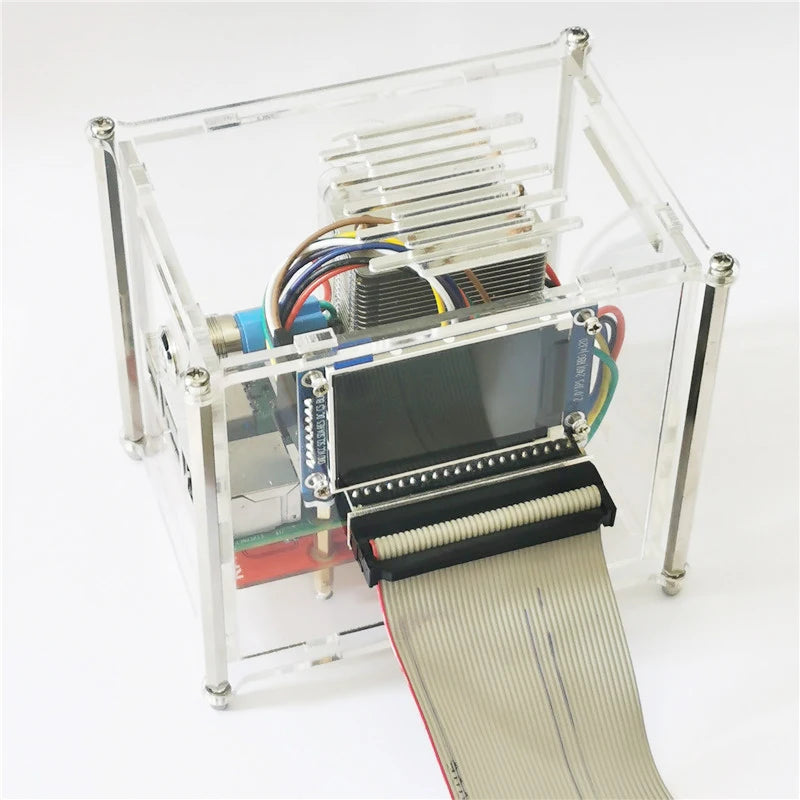

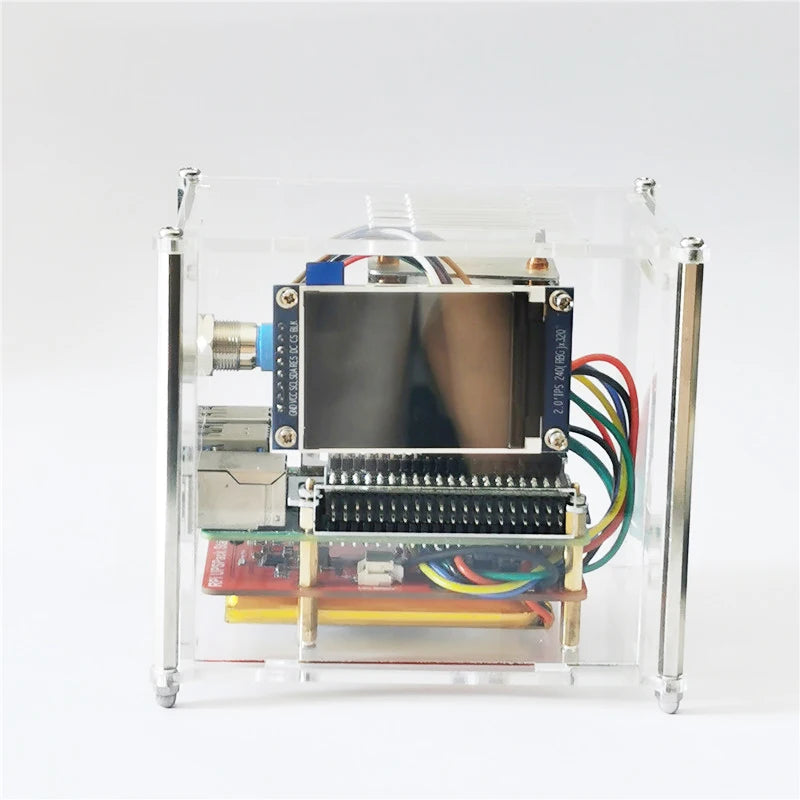

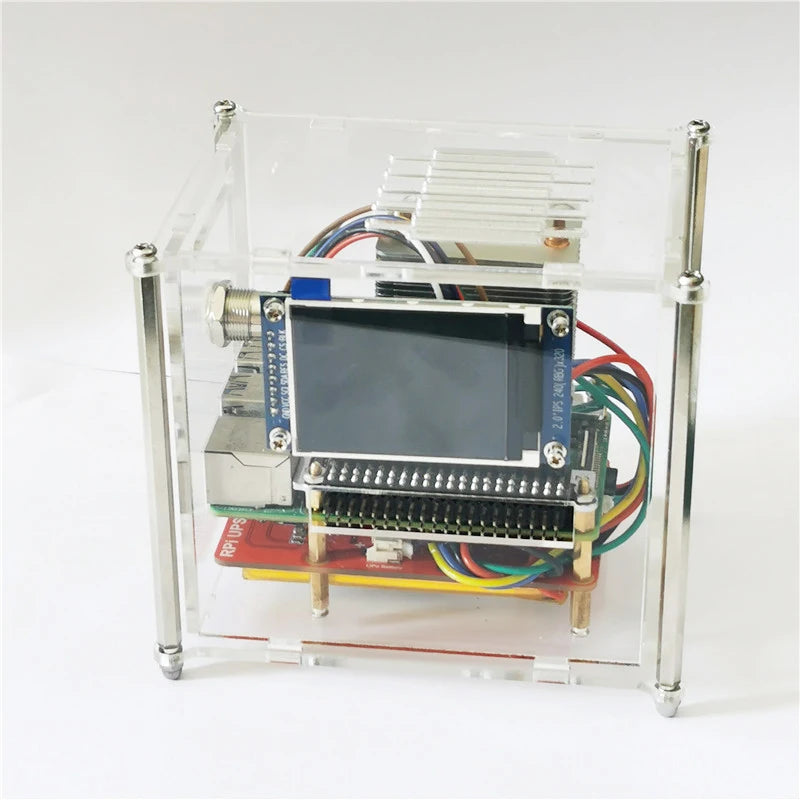

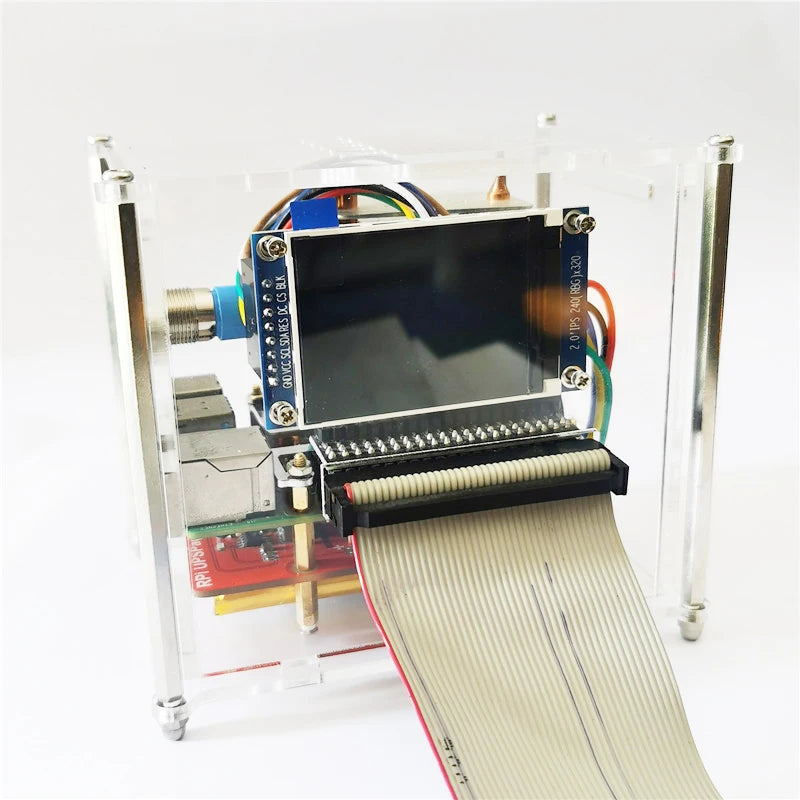

An ICE tower cooling fan for Raspberry Pi 4B, plus lithium battery UPS uninterruptible power supply, specially customized acrylic shell kit. The kit is equipped with a 2-inch IPS high-resolution (240*320) LCD screen and a 12MM metal self-locking switch, which solves the problem that the Raspberry Pi generates a lot of heat, the switch is inconvenient, and the Raspberry Pi files are damaged due to sudden power failure. Beauty and practicality are forgotten. The acrylic shell is made of high-quality imported acrylic material with high light transmittance, which will not cover up the brilliance of the RGB ICE itself, but add flexibility to it.

LCD screen product features:

The product is equipped with a 2-inch IPS LCD screen, and the money is not displayed if the program is not installed. After the program is installed, it starts to run automatically, and can monitor the running status of the Raspberry Pi and UPS uninterruptible power supply in real time, including CPU, RAM, DISK, and UPS operation. Status, clock function and network status monitoring.

Shell product features:

Material: imported acrylic

Size: length 10.7CM* width 7.8CM* height 9.6CM

Color: Transparent (Note: The double-sided protective film of the acrylic sheet needs to be torn off before installation)

Shell Applicable Model: Raspberry Pi 4B

Fan product features:

PTB composite material, 7 pages fan, with LED, aluminum copper composite material, 5MM copper tube, small and light

Power: 0.4W@5V 0.08A

UPS uninterruptible power supply features:

UPS V3P can realize the function of automatic and safe shutdown of the Raspberry Pi before the power failure does not restart and the battery is exhausted. And when the external power is restored, the UPS board will automatically charge. When the battery is charged to a certain level, the UPS will automatically turn on the power of the Raspberry Pi.

Battery capacity: not include lithium battery ( Recommended Size 70mm x 41mm x 9.5)

Input interface: Type-C

Output current: 5V 3A

External power failure, Pi continues to supply power (without restart): support

Hardware on-off switch: yes

GPIO power supply interface and UART, halt signal signal interface: yes

Lithium battery power statistics: support

Boot low voltage detection: support

Power adapter abnormality detection (power failure time detection)

USB-A socket output voltage detection

Automatically notify shutdown before battery runs out: Supported

After a power failure, the program starts automatically: support (without manual intervention, the program starts)

After a power failure, the UPS automatically switches to sleep mode: support

EXT BTN interface: support PH2.0 4P self-locking switch with LED

Protocol version number: V3.2 (and later, the latest factory)

Communication IO port: The STA interface of the UPS motherboard is connected to the Raspberry Pi GPIO18 (BCM18)

Communication protocol: level mode

Software compatibility: level detection method

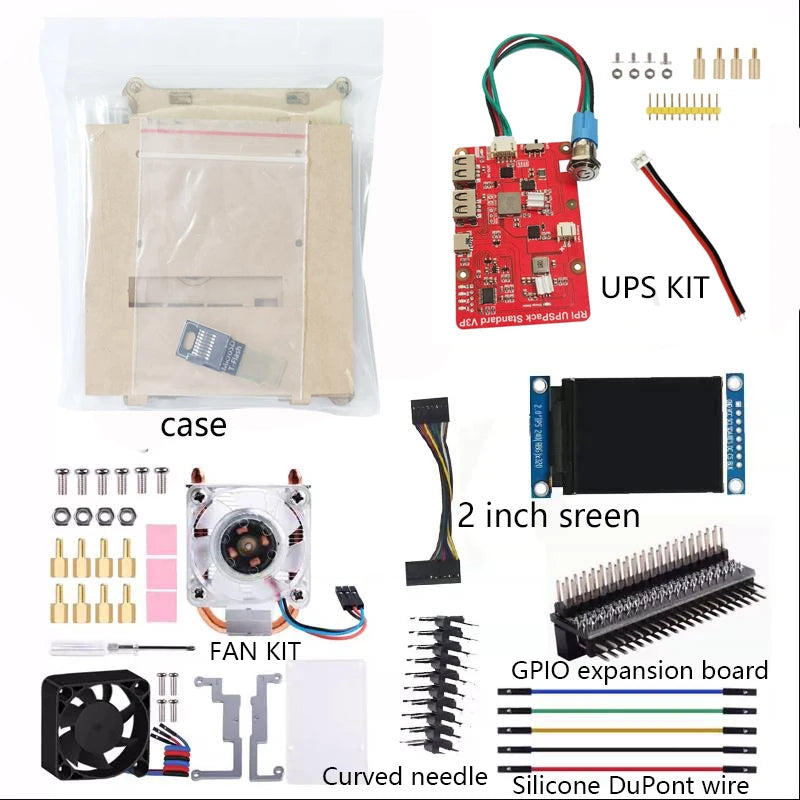

Shipping list:

The enclosure contains accessories:

Transparent acrylic sheet*6PCS

M3 nut*4PCS (four feet of the shell)

M3*90+6 post*4PCS (shell support post)

M3*6 screw*4PCS (fixed by the upper cover of the shell)

M2.5*11+6 copper column*8PCS

M2.5 nut*4PCS, M2.5*6 screw*4PCS (fixed by copper column at the bottom of the motherboard)

M2*10 screw*4PCS, M2 nut*4PCS (screen fixing)

TF extension card sleeve*1PCS (according to actual needs, easy to pull out the card)

The fan includes accessories:

U-shaped copper tube glare ice tower fan (gift black fan, cooling pad) * 1PCS

Screwdriver*1PCS

Screw copper post*1 pack

The screen contains accessories:

2-inch screen*1PCS

Finished line*1PCS

UPS includes accessories:

Positive curved pin header 10P (can be cut)*1PCS

Self-locking switch (with 4P socket and wire)*1PCS

UPS motherboard(not include lithium battery, Recommended Size 70mm x 41mm x 9.5)

UPS special silicone Dupont cable*5 (one for each of yellow, blue, green, red and black)*1PCS

1 into 2 expansion boards *1PCS

Note: The delivery does not include the Raspberry Pi motherboard and memory card.
