SPECIFICATIONS

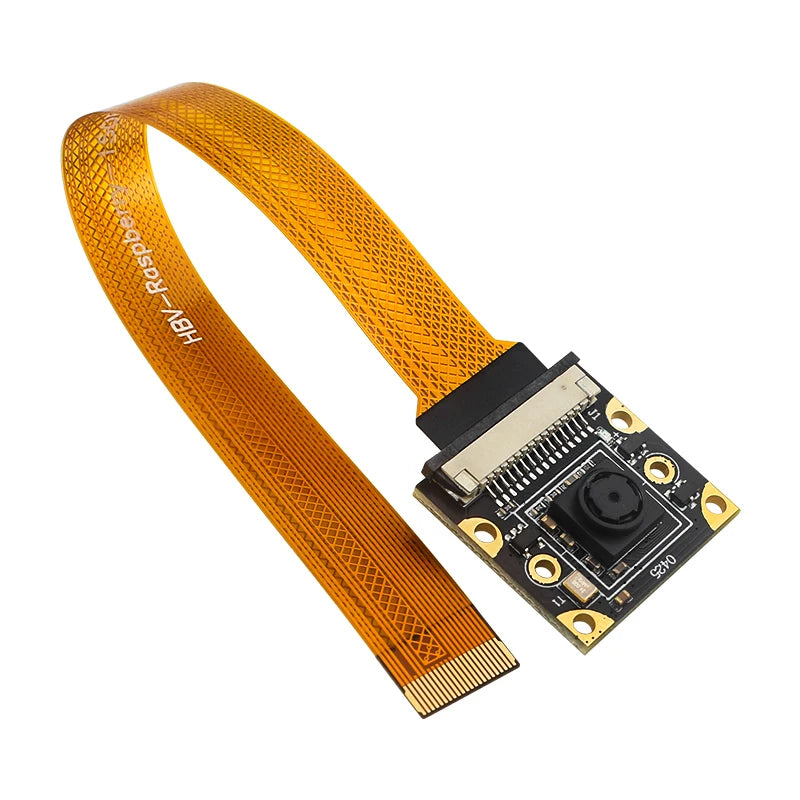

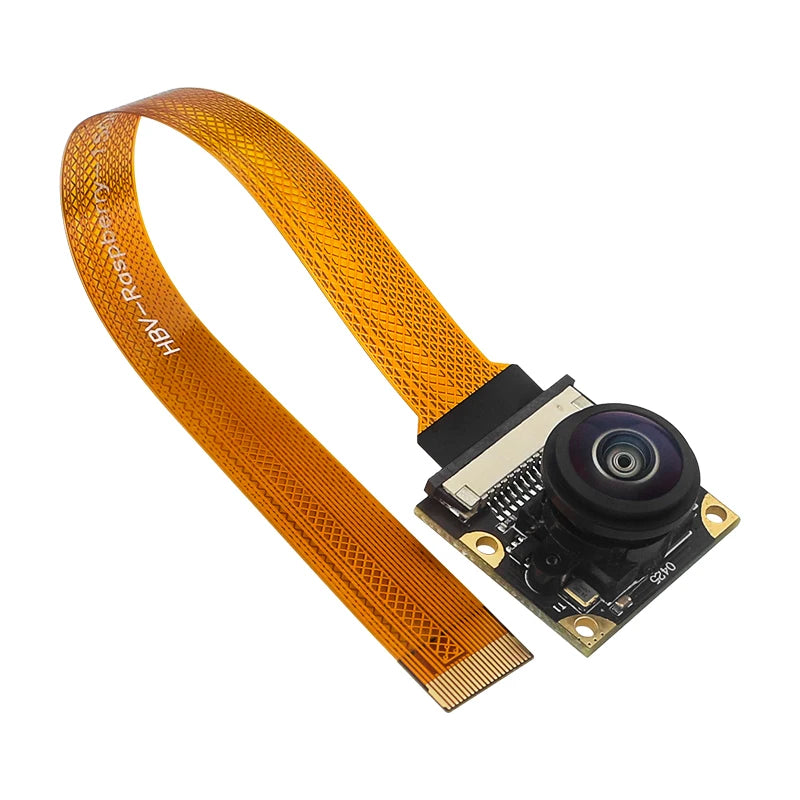

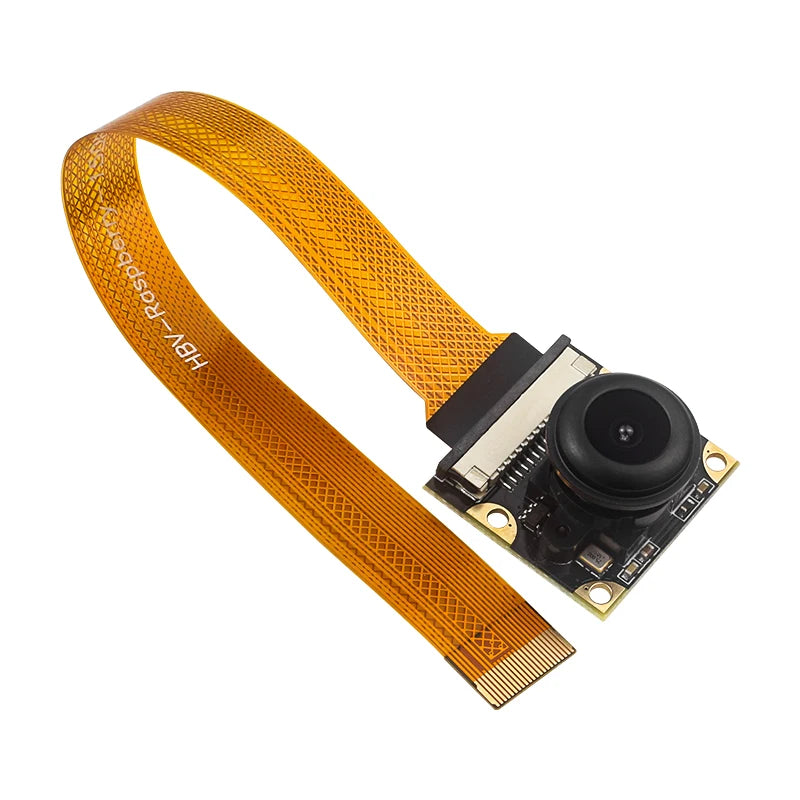

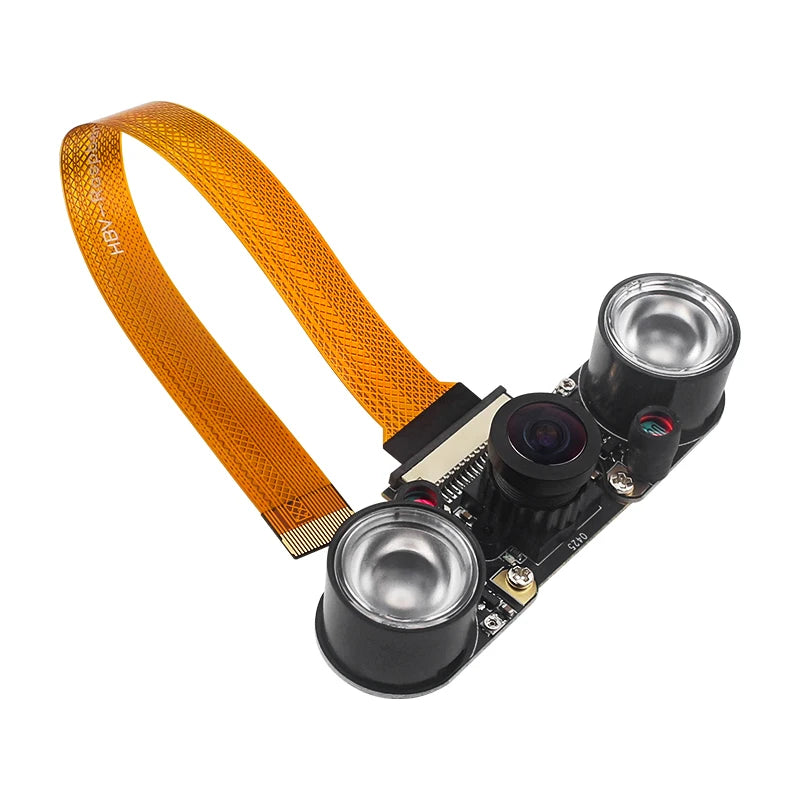

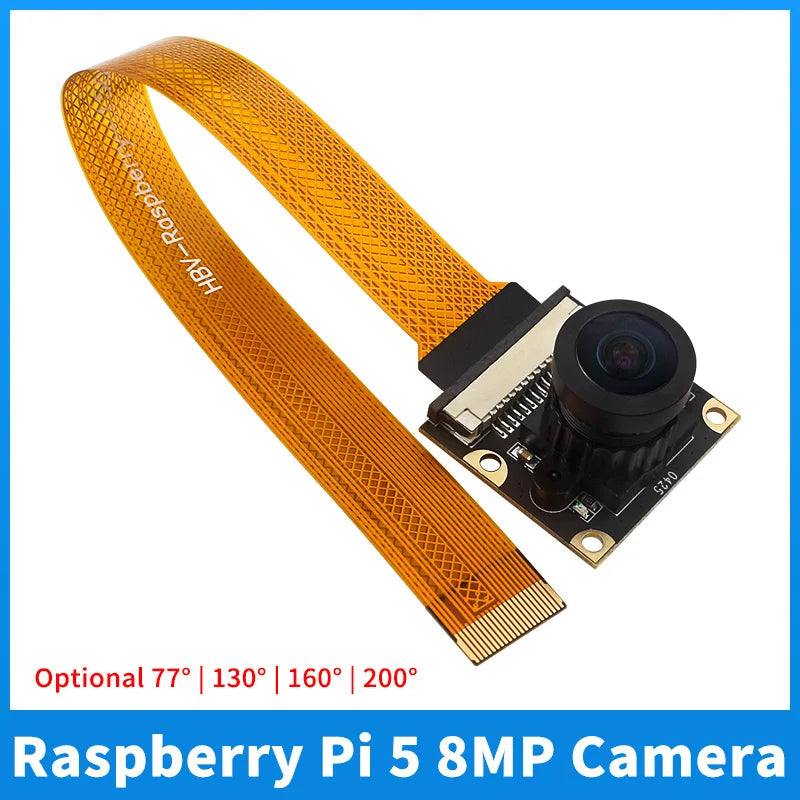

Raspberry Pi 5 8MP Camera IMX219 Sensor Chip CSI Interface 77° 130° 160° 200° Camera Webcam for Raspberry Pi 5 Zero W 2W

Feature

1. Raspberry Pi 5 Camera

2. Photosensitive Chip: IMX219

3. Pixel: 8MP

4. Aperture (F): 2.0

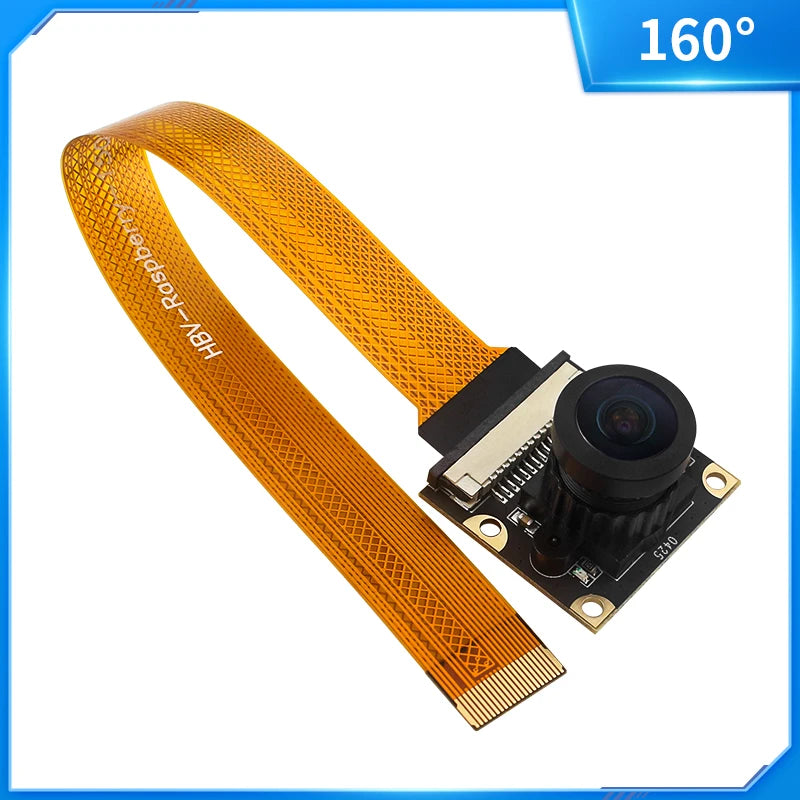

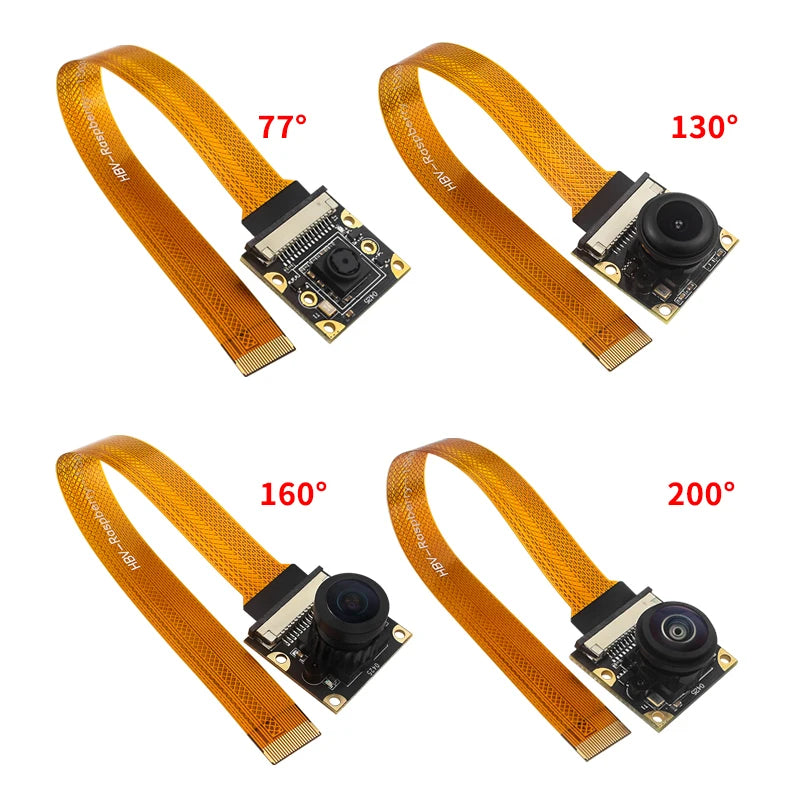

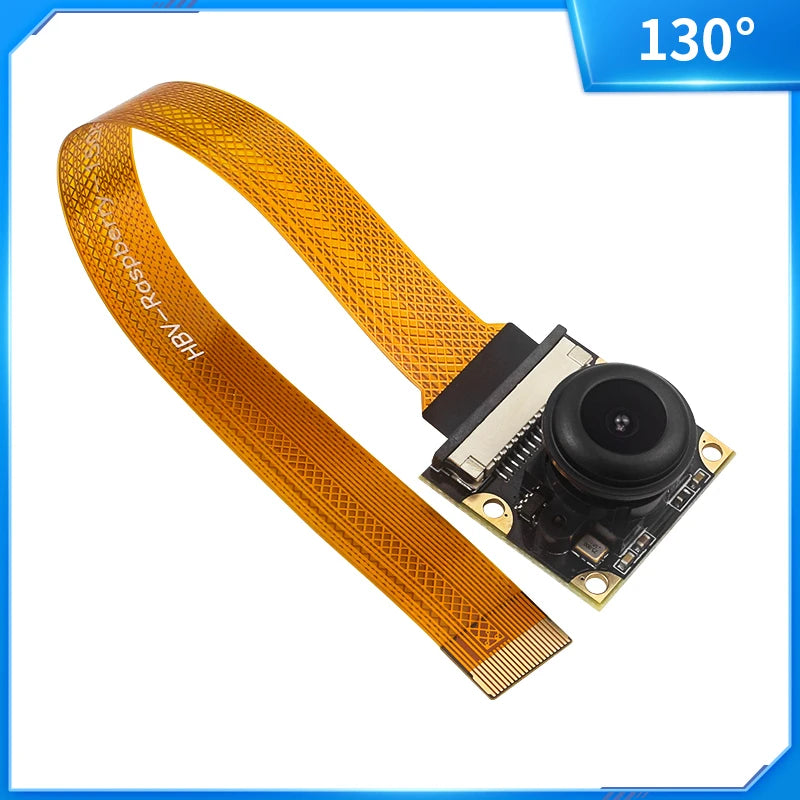

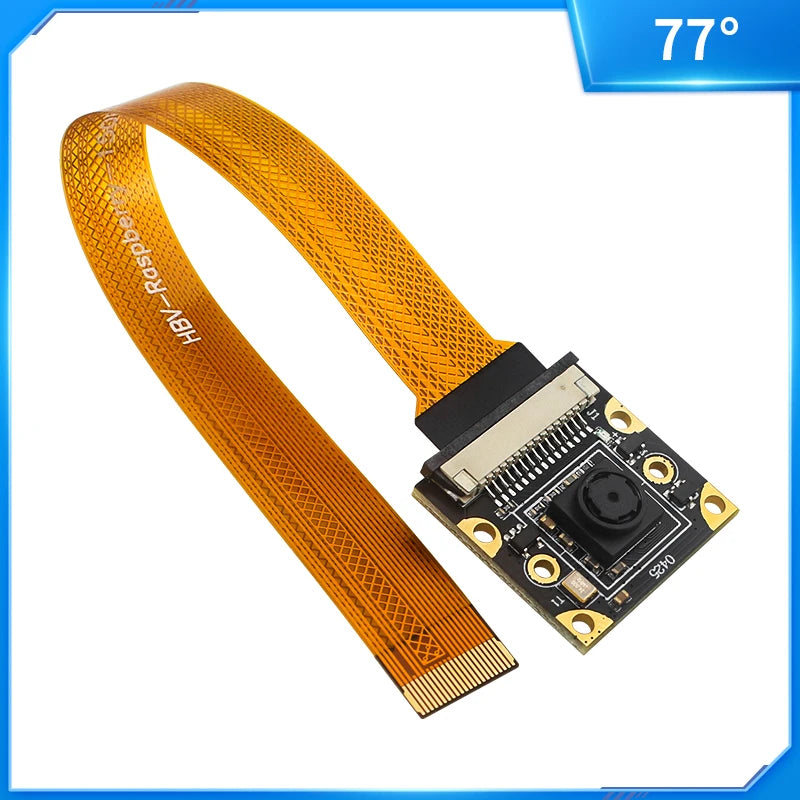

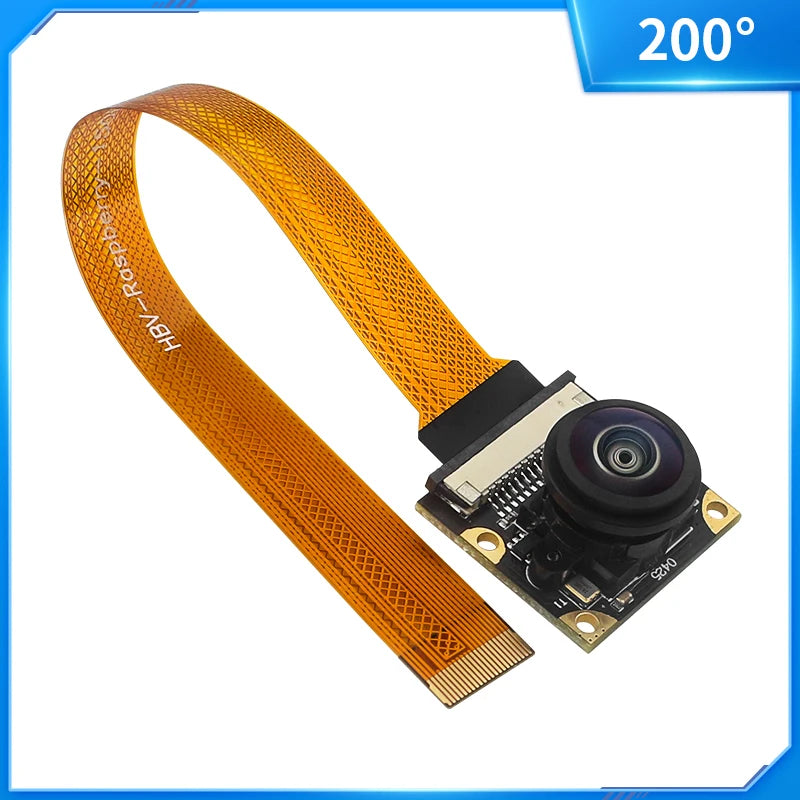

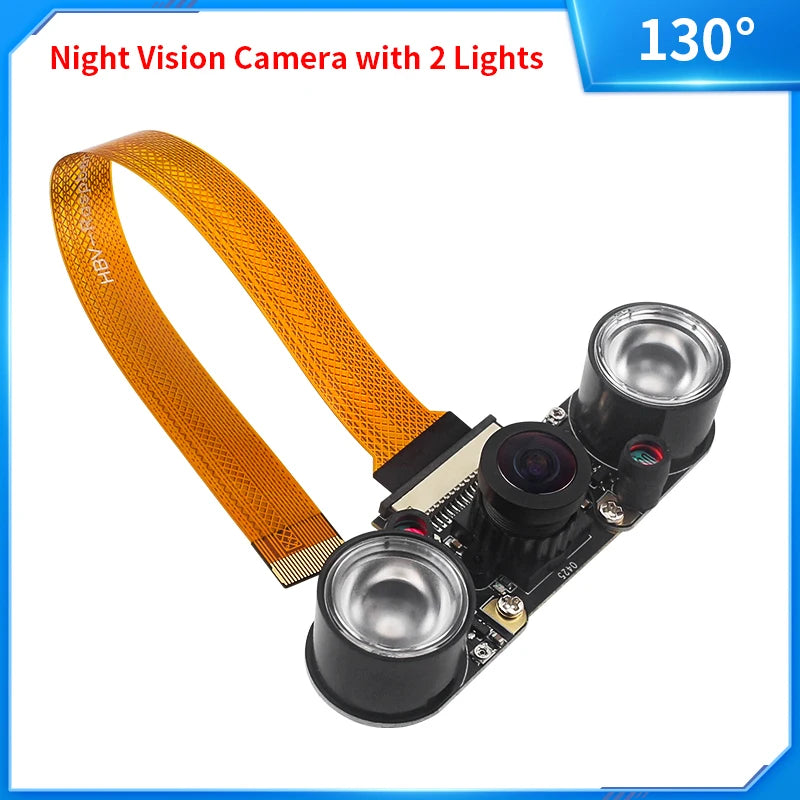

5. Diagonal angle : 77 degree / 130 degree / 160 degree / 200 degree

6. Working temperature: -20 °~70 °

Usage Method

Usage of Raspberry Pi's new system camera OV5647 or IMX219
If using the latest Bookworm system, you need to configure sudo nano/boot/firmware/config.txt
After entering sudo nano/boot/firmware/config.txt, find:

Step 1: camera-auto-detect=1 statement, modify to camera_outo_detect=0
If used for Raspberry Pi 4B and Zero series, ignore the first step of modification. Try directly entering the command libcamera jpeg - o test. jpg to test. If it doesn't work, continue with the second step.

Step 2: Add at the end of the file: dtoverlay=ov5647 or dtoverlay=imx219
Attention: Choose to add ov5647, imx219, or imx708 based on your own camera chip
If it cannot be used, you can add dtoverlay=imx219, cam0 to try it out
ctrl+o Enter, then ctrl+x Exit, and enter reboot to restart

Application

Raspberry Pi is not included.
