SPECIFICATIONS

【Note】

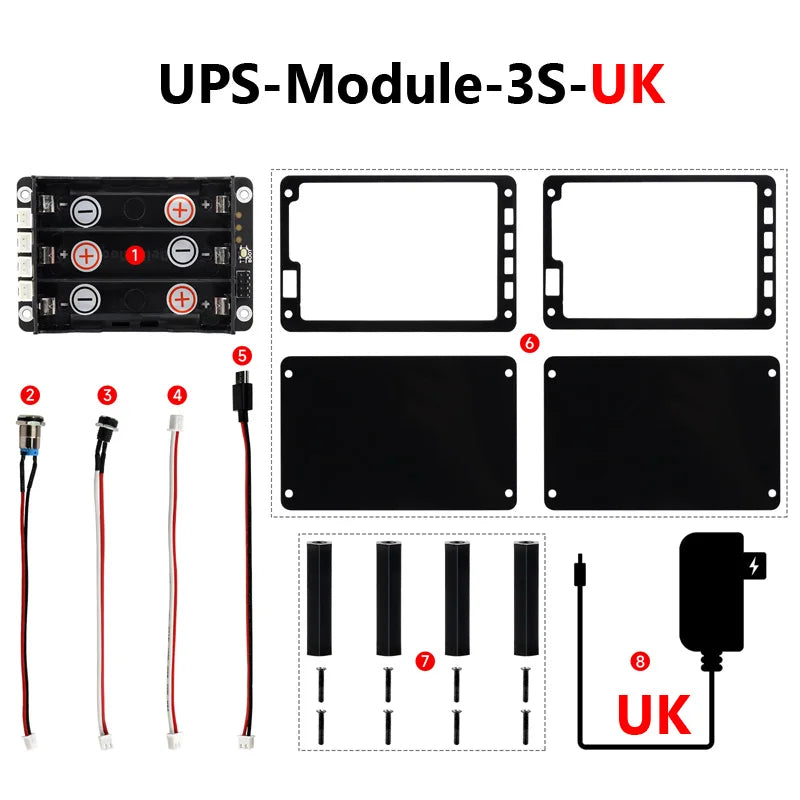

[] Do not include 18650 batteries, Please Buy alone.

【Overview】

[] Uninterruptible Power Supply Module, Supports charging And Power output at the same time, 3S & 5V 5A Output

【Features】

[] Adapting various interfaces via cables, easy to integrate into mobile robots or industrial control equipment

[] I2C bus communication, monitoring the batteries voltage, current, power in real time

[] Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable

[] Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi and Jetson Nano

[] Batteries warning indicators, easy to check if the battery is connected correctly

[] Comes with online development resources and manual

【Specifications】

[] OUTPUT VOLTAGE : Batteries series voltage; 5V 5A; 3.3V 300mA

[] CONTROL INTERFACE : I2C

[] BATTERY SUPPORT : 3 x 18650 Li batteries (in series, NOT included)

[] CHARGER : 12.6V 2A

[] DIMENSIONS : 60 × 93mm

[] MOUNTING HOLE SIZE : 3.0mm

【Suitable For Raspberry Pi Series】

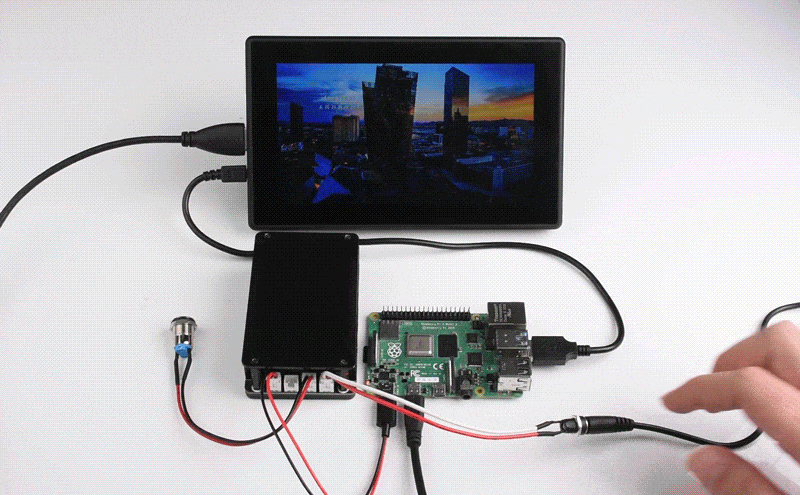

【Uninterruptible Power】

[] It is able to charge the batteries and provide power output at the same time from external power supply

[] Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

【Real Time Monitoring】

[] Monitoring The Batteries Voltage, Current And Power Via I2C

[]for reference only, the Raspberry Pi 4B and the batteries are NOT included.

【Safe And Stable Circuit Design】

[] Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse

[] Along With The Equalizing Charge Feature, More Safe And Stable

【Adapting Various Interfaces Via Cables】

[] Easy To Integrate Into Mobile Robots Or Industrial Control Equipment

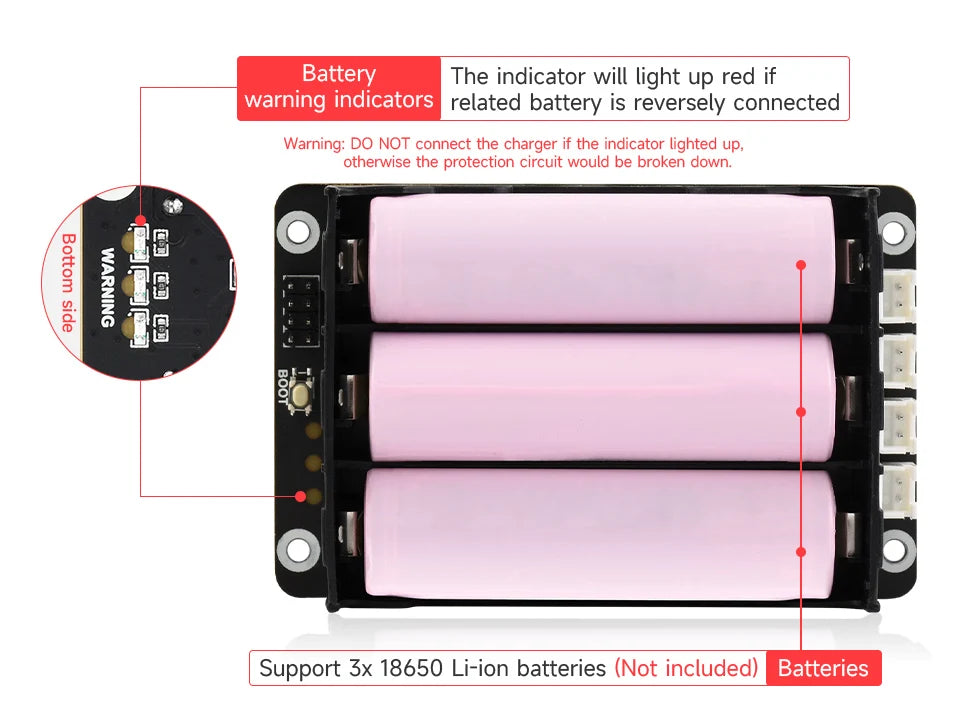

【Battery Warning Indicators】

[] Easy To Check If The Battery Is Connected Correctly

【Interface Definition】

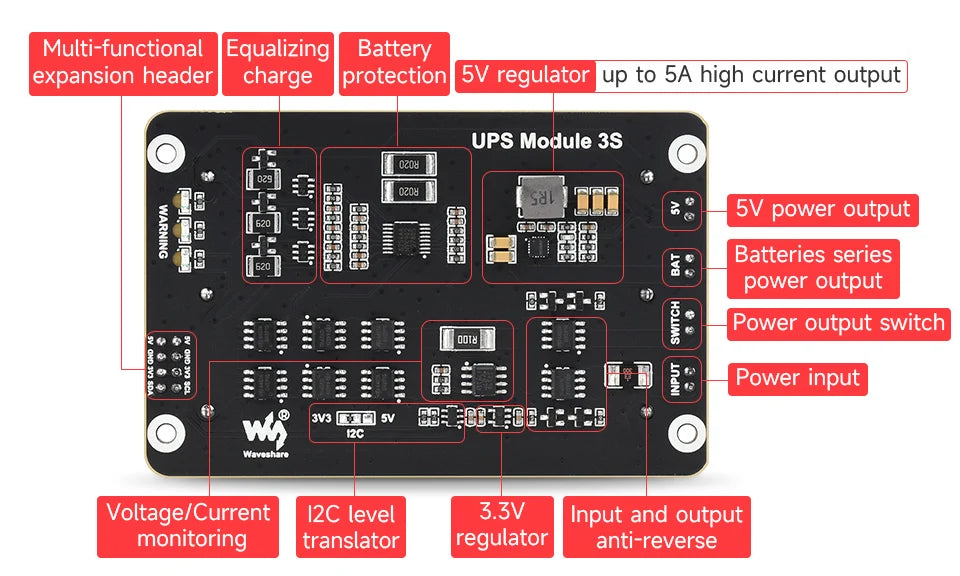

【What's On Board】

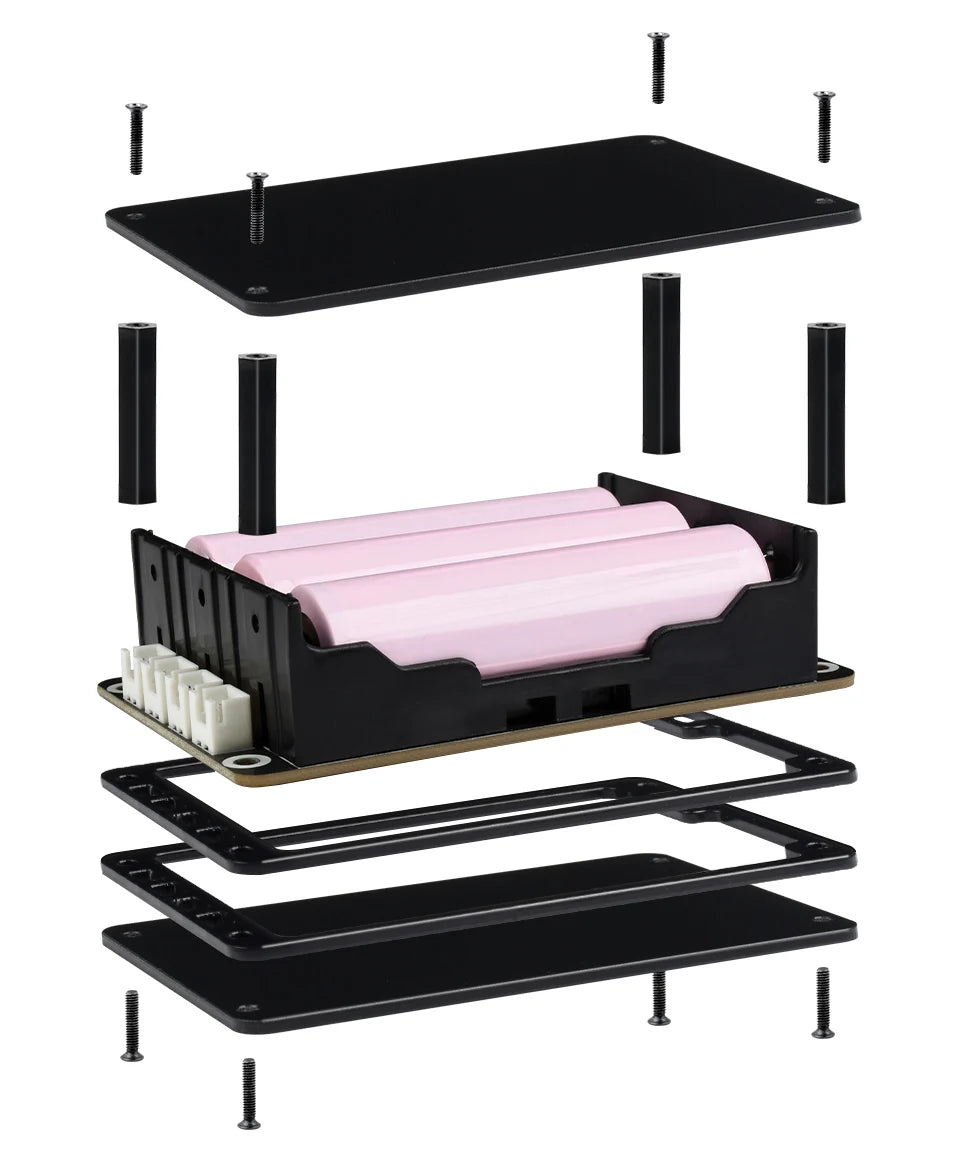

【Easy To Install】

【Outline Dimensions】
