SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

PN: 8MP IMX219 Camera Module

Type: Module

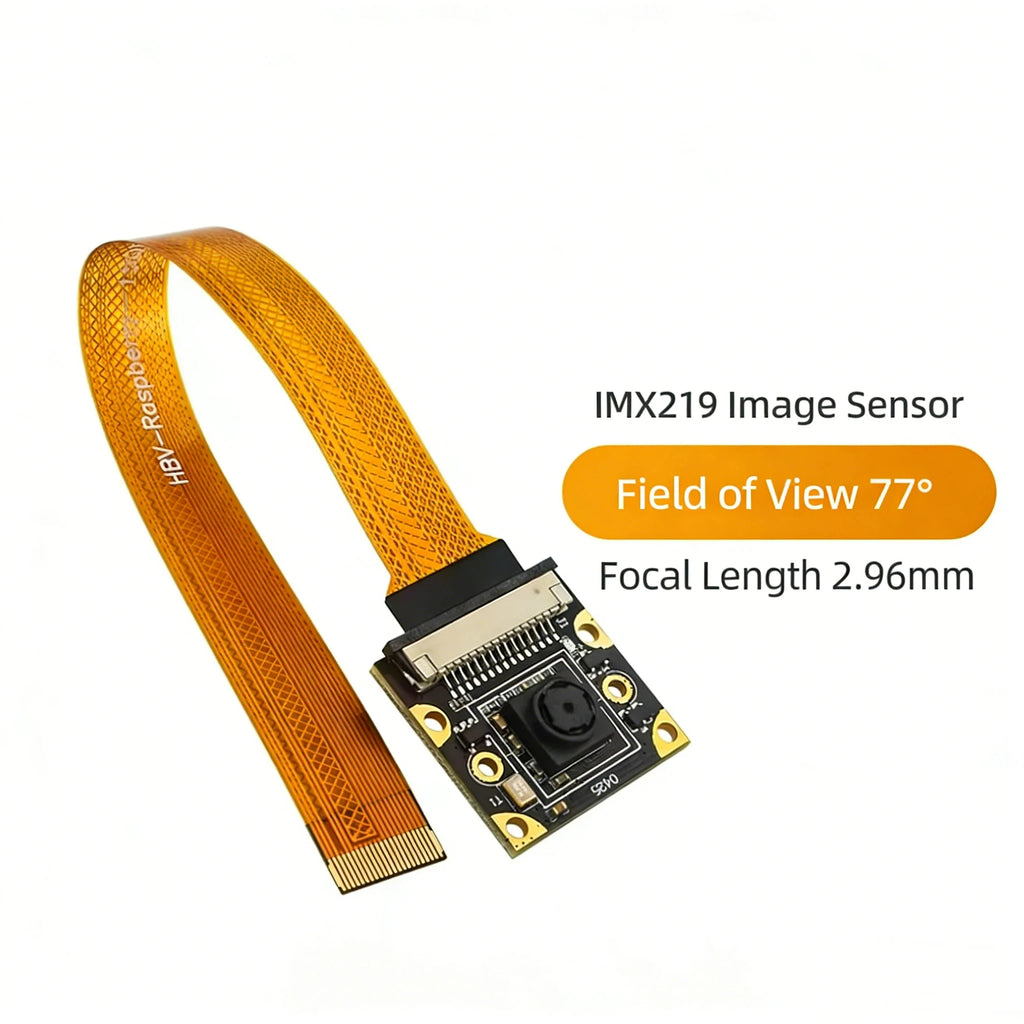

8 Megapixels | 77° Angle of View

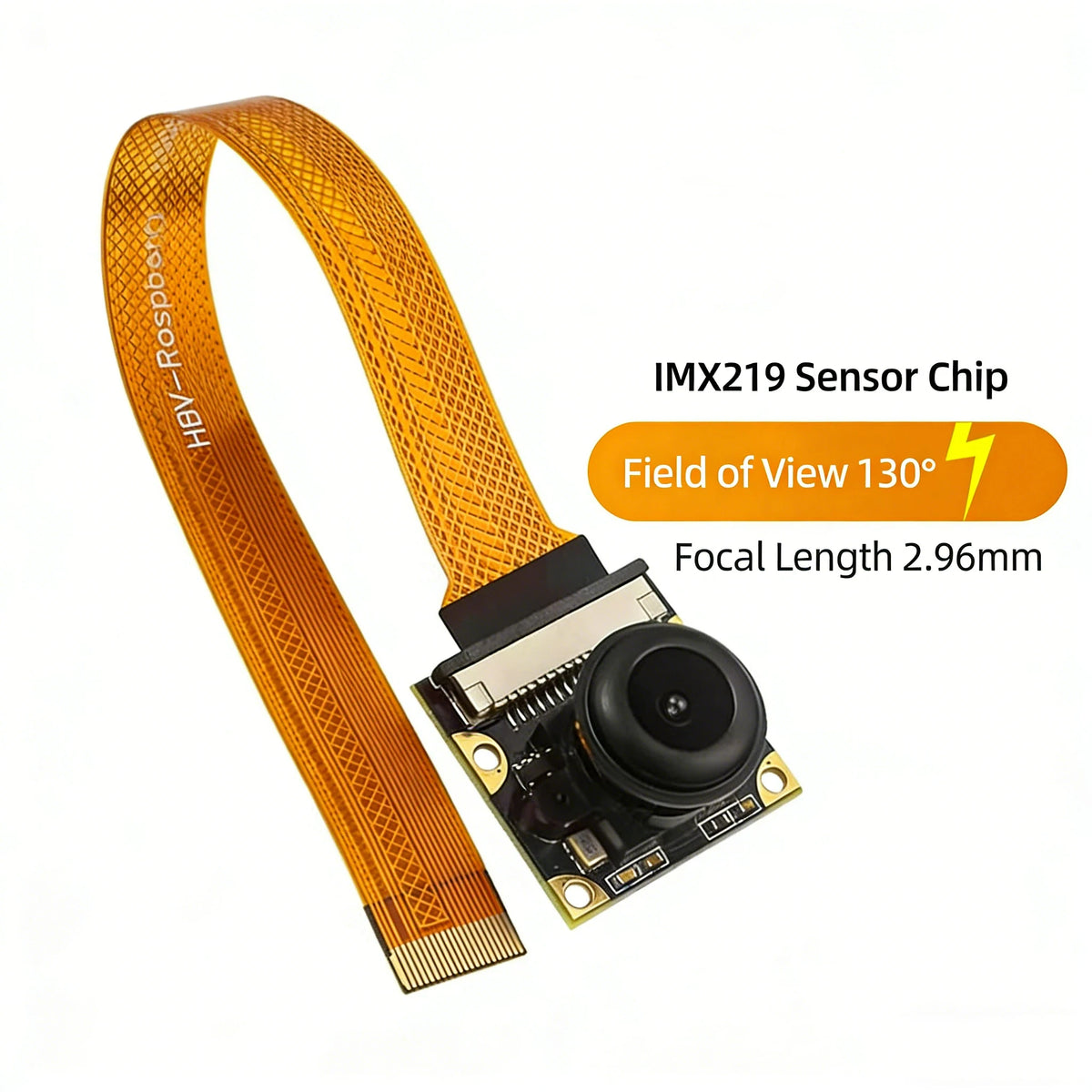

8 Megapixels | 130° Angle of View

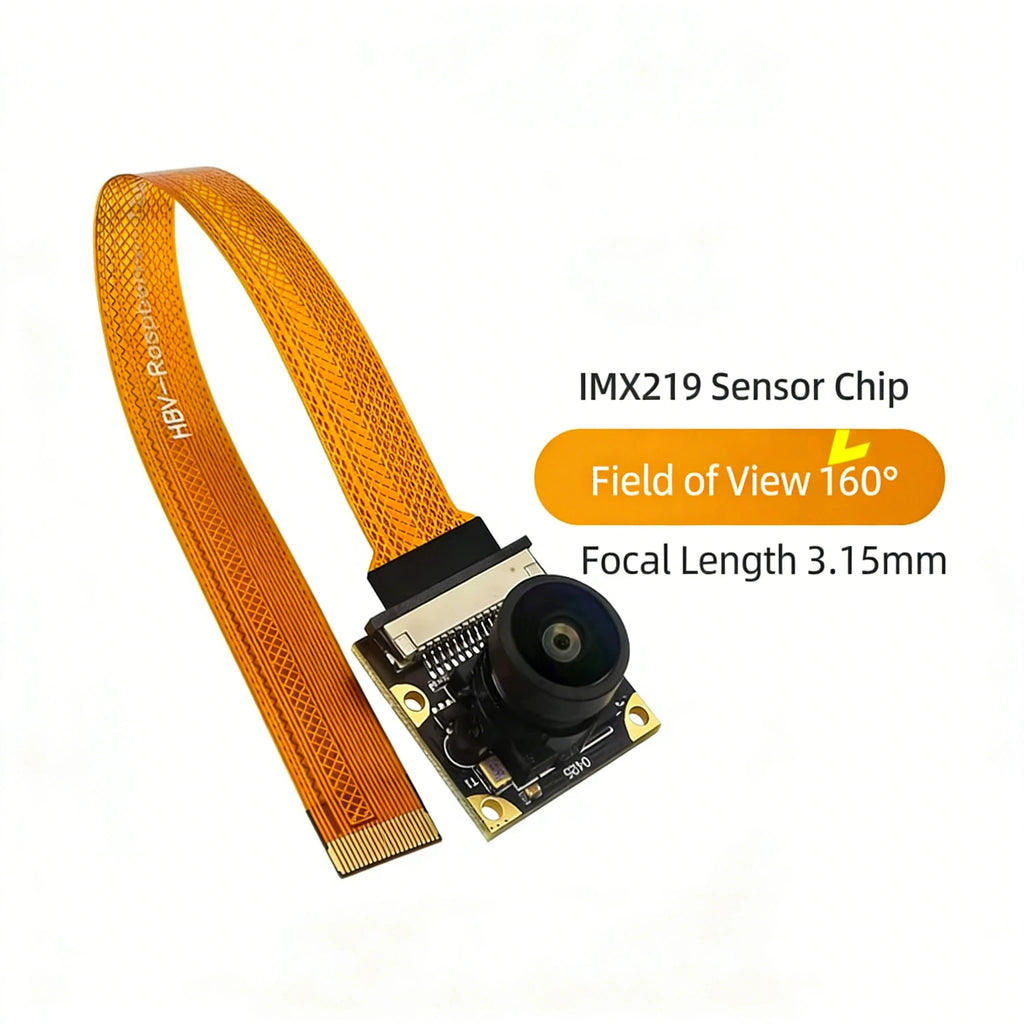

8 Megapixels | 160° Angle of View

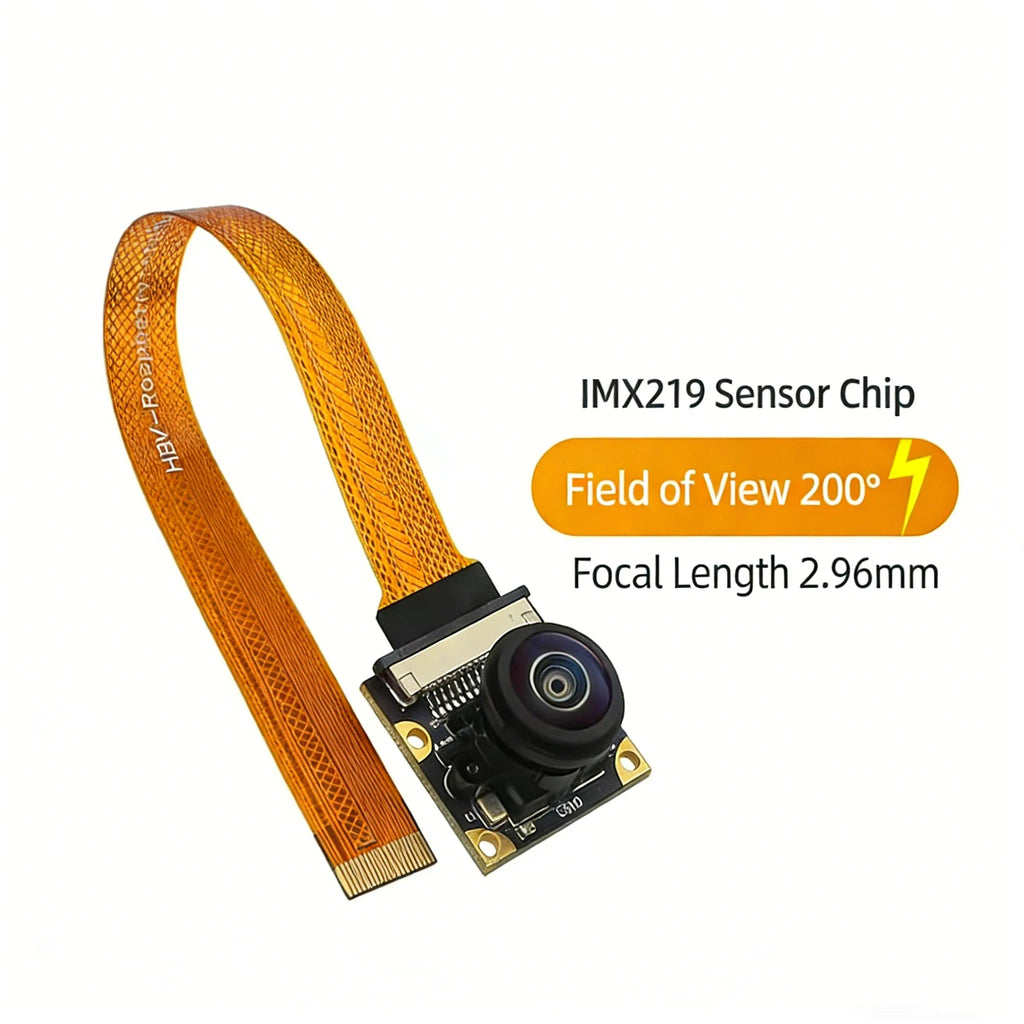

8 Megapixels | 200° Angle of View

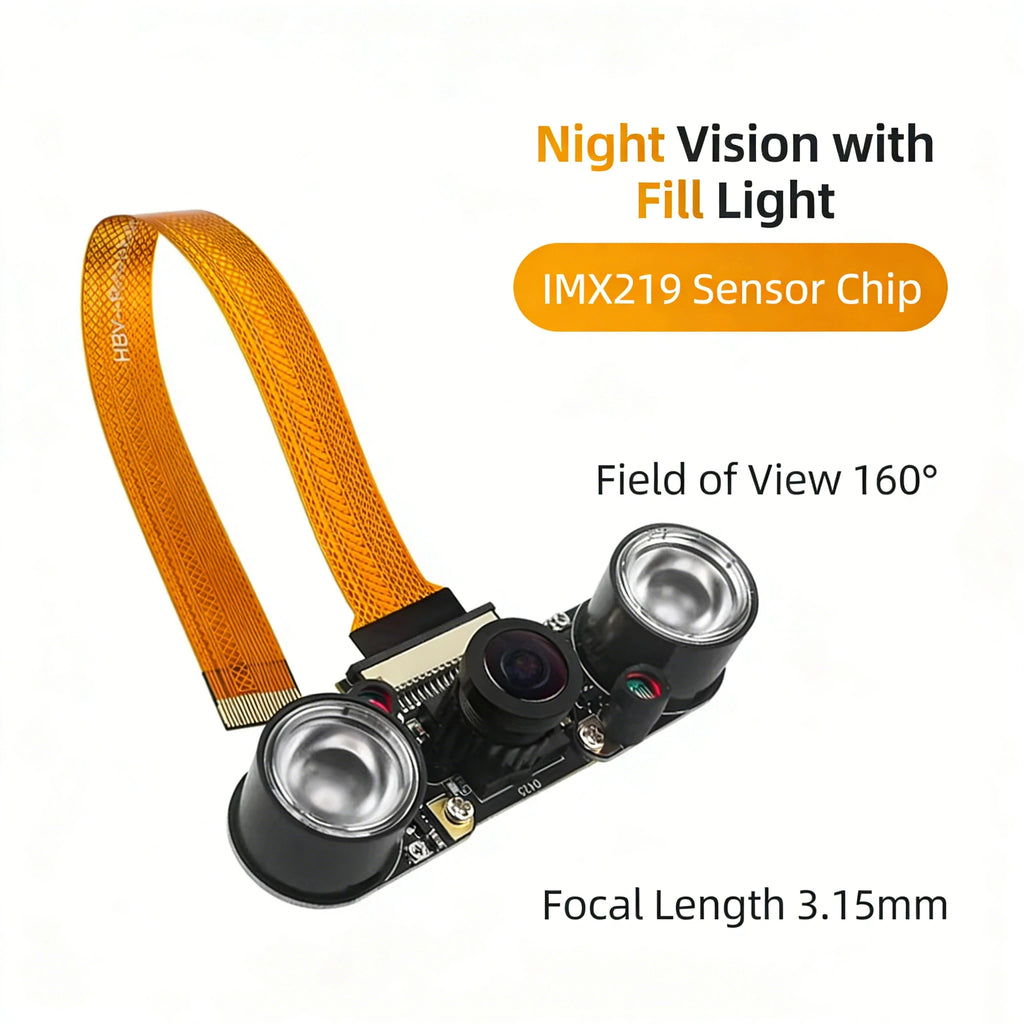

8 Megapixels | 160° Angle of View | Night Vision Model

Product Overview
Upgrade your projects with this high-performance 8MP camera module, officially compatible with the latest Raspberry Pi 5 and Jetson Nano. Built around the premium Sony IMX219 sensor, it delivers stunningly clear, vibrant color images and smooth HD video at an exceptional value, making it the ideal choice for photography, video streaming, security, and robotics.

Key Features & Selling Points

8MP High-Definition Imaging: Captures crisp photos up to 3280x2464 resolution and stable 1080p@30fps video.
Premium Sony IMX219 Sensor: Ensures superior image quality with excellent color reproduction and light sensitivity.
Broad Compatibility: Designed for Raspberry Pi 5 and Jetson Nano/NX boards.
Versatile Field of View Options: Standard 77° diagonal FOV. Choose from wider 130°, 160°, or 200° lenses for different application needs.
Enhanced Night Vision Model: The IR-sensitive version, when paired with an optional infrared illuminator, provides clear monochrome footage in total darkness.
Robust & Flexible Design: Features a 2.96mm fixed focus lens (F2.0 aperture), four mounting holes for secure placement, and a 3.3V power output for accessories.

Detailed Specifications

Parameter	Specification
Pixel	8 Megapixels
Sensor	Sony IMX219
CMOS Size	1/4 inch
Aperture (F)	2.0
Focal Length	2.96mm (varies with FOV option)
Diagonal FOV	77° (130°, 160°, 200° optional)
Video Support	1080p30, 720p60
Mounting	4 x M2 mounting holes
Power	Supports 3.3V external output
IR Illuminator	Optional for Night Vision model
Size (Board)	25mm x 24mm
Operating Temperature	-20°C to 70°C

Package Contents

Camera Module (Standard or Night Vision version)
CSI Interface Ribbon Cable (length specified)
(For Night Vision Kit) Infrared Filter & Focusing Tool

Why Buy This Camera?
This module offers the perfect balance of professional-grade image quality, durability, and versatility. Whether you're building a home security system, a wildlife camera, a machine vision prototype, or simply exploring computational photography, its plug-and-play design and flexible options provide a reliable and high-value solution
