SPECIFICATIONS

Battery Included: no

Brand Name: SupTronics

Compatible with: Raspberry Pi CM5

High-concerned chemical: none

Model Number: X1500 V1.0

Origin: Mainland China

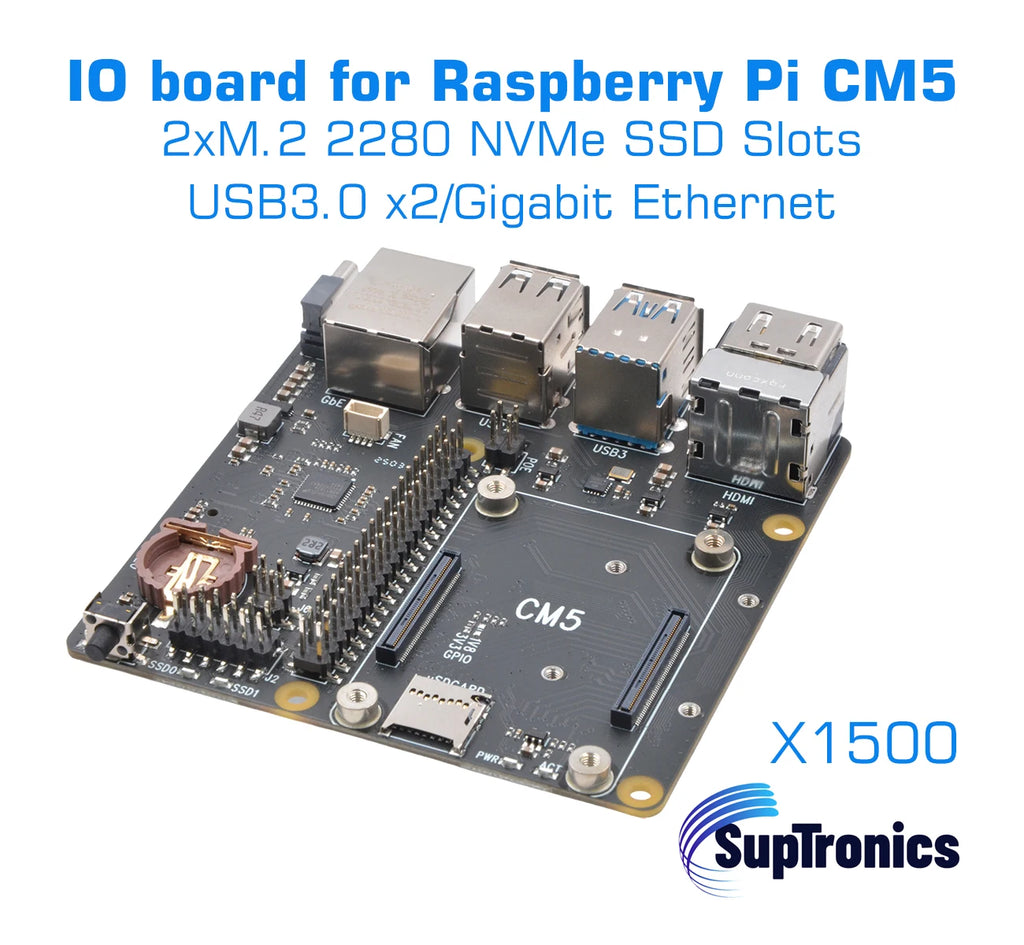

IO board for Raspberry Pi Compute Module 5

2 xM.2 NVMe slots / Gigabit Ethernet Port / Supports up to 8TB (4TB x2)  / PCIe2.0 5Gbps / Dual USB3.0 ports / dual HDMI 2.0 Ports / Great for NAS, media servers, and data apps

 Product Overview

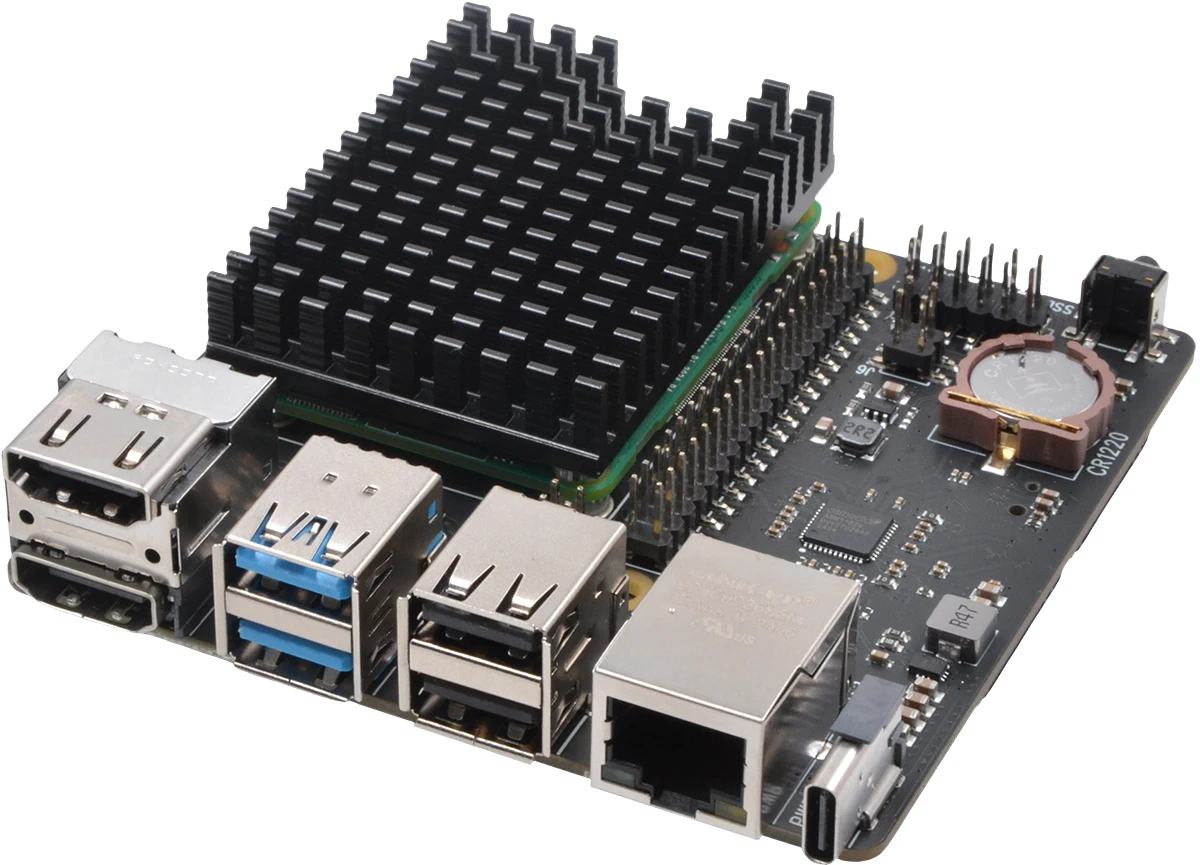

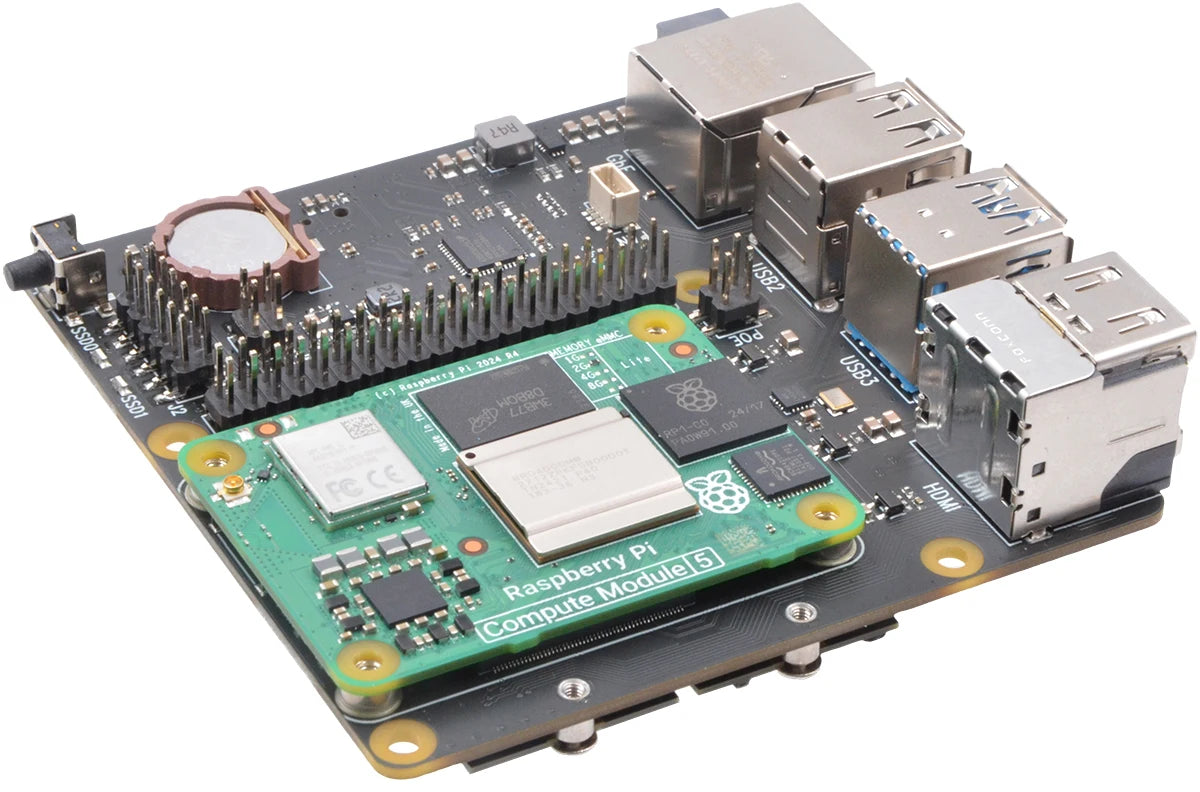

The X1500 is a purpose-built IO board tailored for the Raspberry Pi Compute Module 5 (CM5). It features two full-size M.2 NVMe slots and integrates a variety of peripherals into an ultra-compact design. This carrier board is meticulously engineered to streamline system development, allowing you to rapidly assemble solutions using readily available off-the-shelf components, such as existing Raspberry Pi HATs and M.2 NVMe devices.

For ease of integration, the board features a streamlined layout with major user connectors positioned along one edge, making enclosure design straightforward and efficient. Whether you're developing with the Compute Module 5 or deploying it as part of an embedded end product, the X1500 is designed to meet your needs with flexibility and performance.

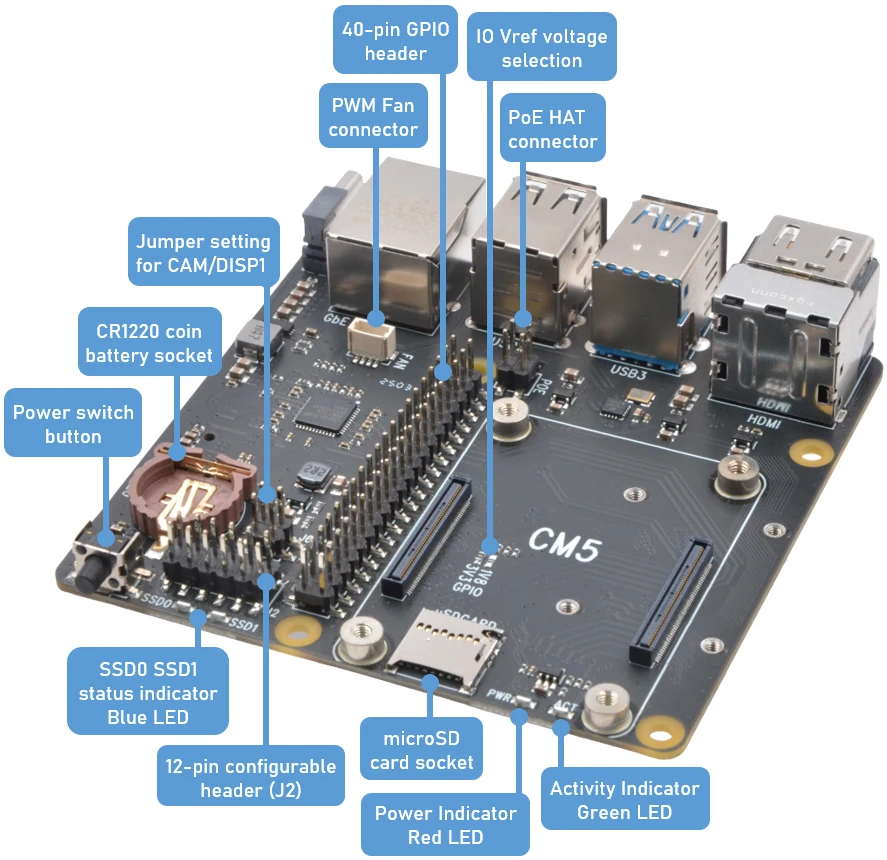

 Product Features

• Fully compatible with all Raspberry Pi Compute Module 5 variants

• Compact Design (87x87x25mm): Combines a small footprint with a rich array of I/O peripherals for versatile applications.

• Gigabit Ethernet Port: Features 1GbE with PoE+ support (for simplified power delivery)

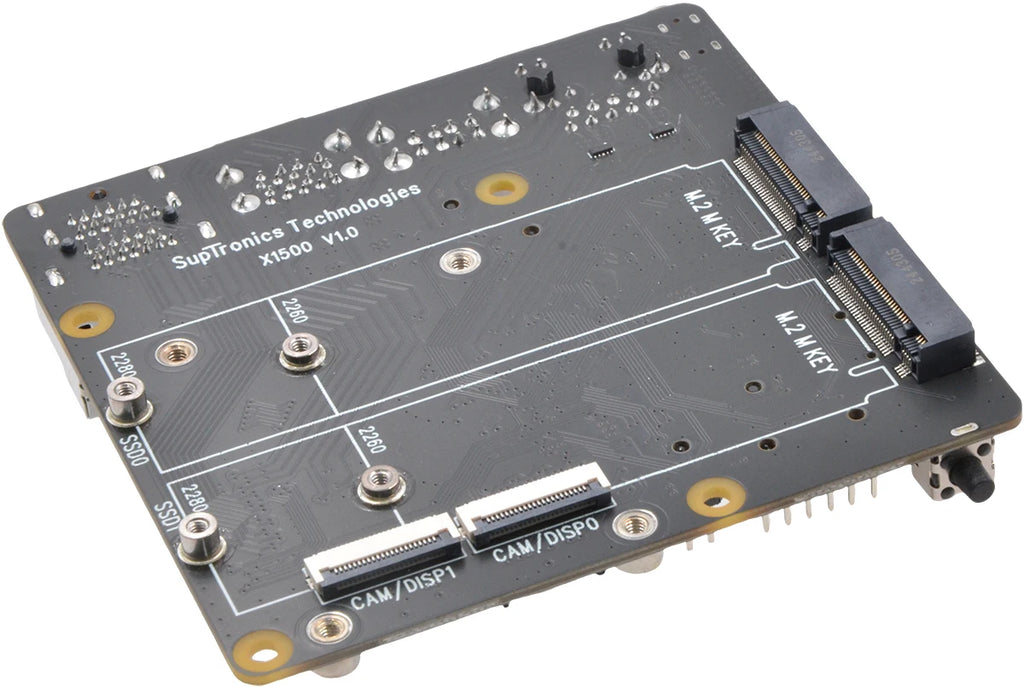

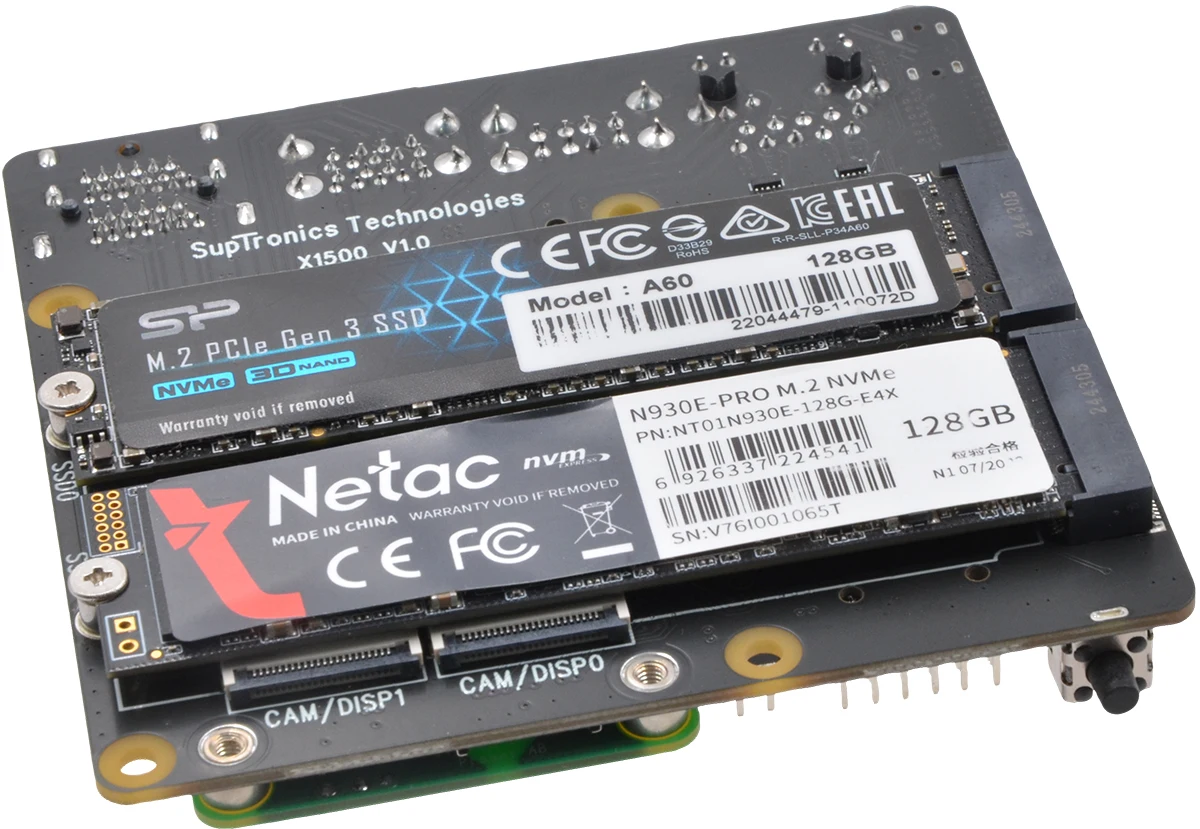

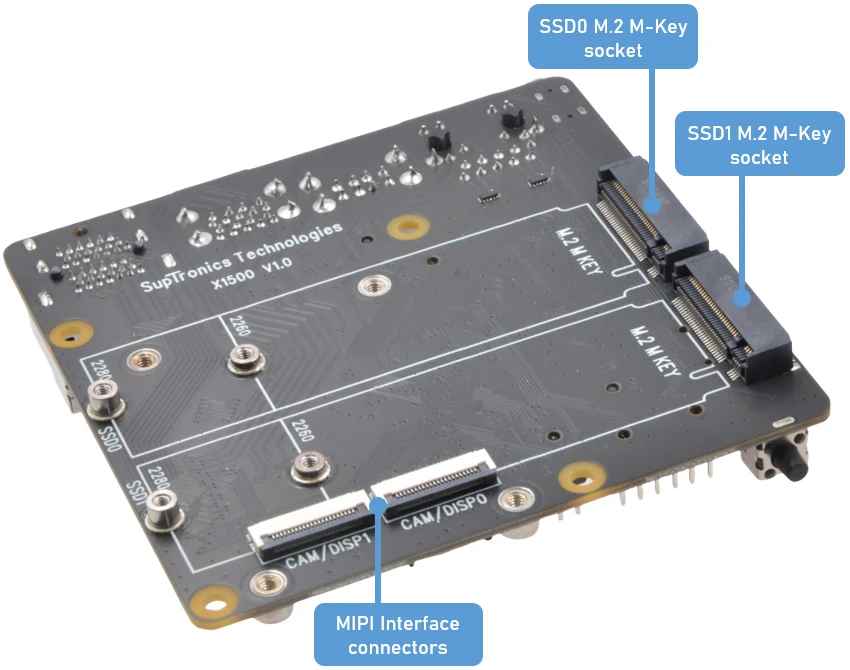

• Dual M.2 2280 NVMe SSD Slots: Supports up to 8TB (4TB+4TB) via PCIe 2.0 (5Gbps) for fast data transfers and boot times, compatible with M.2 NVMe SSDs in 2280, 2242, and 2230 form factors.

• Supports the Hailo AI acceleration module and deliver ultra-fast SSD boot times

• Dual HDMI 2.0 Ports: Enables dual 4K display output for multimedia or industrial use cases.

• Dual USB 3.2 Gen 1 Ports: delivering high-speed data transfer rates of up to 5 Gbps.

• Dual MIPI DSI/CSI-2 Connectors: 22-pin FPC connectors (0.5mm pitch) compatible with Raspberry Pi 5 CSI and DSI modules for seamless camera and display integration.

• MicroSD Card Slot: Supports Compute Module 5 Lite variants (without onboard eMMC).

• Raspberry Pi HAT+ Compatibility: Reuse existing Raspberry Pi HATs to save time and reduce development costs.

• Convenient Power Button: Easily wake or shut down the Compute Module 5 with a single press.

• RTC Battery Socket (CR1220): Ensures accurate timekeeping during power interruptions.

• PWM Fan Support: Includes a fan power connector for adjustable cooling in demanding environments.

• USB-C Port: Handles both power delivery and OS image loading directly into the CM5’s eMMC.

• Configurable Jumpers: Allows disabling features like wireless connectivity or EEPROM writing for customization.

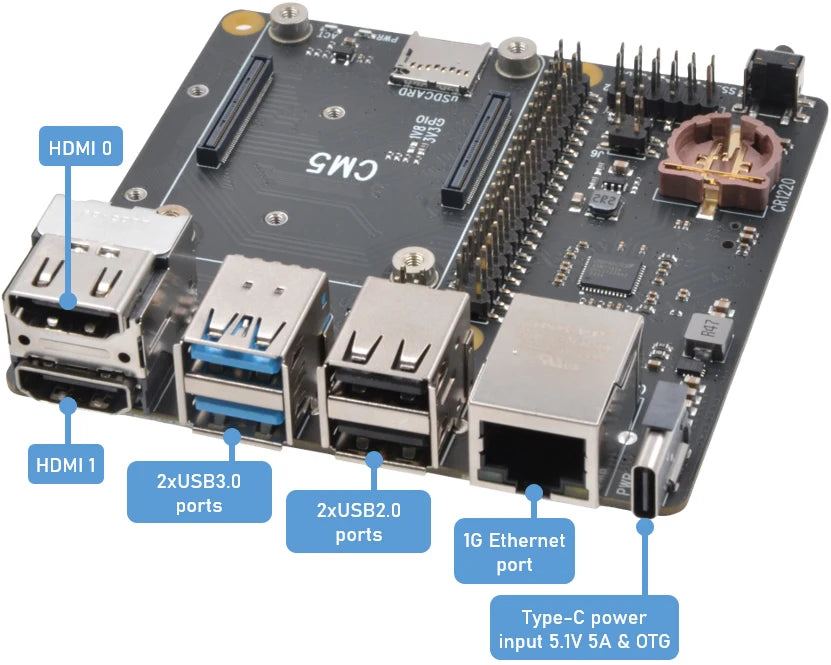

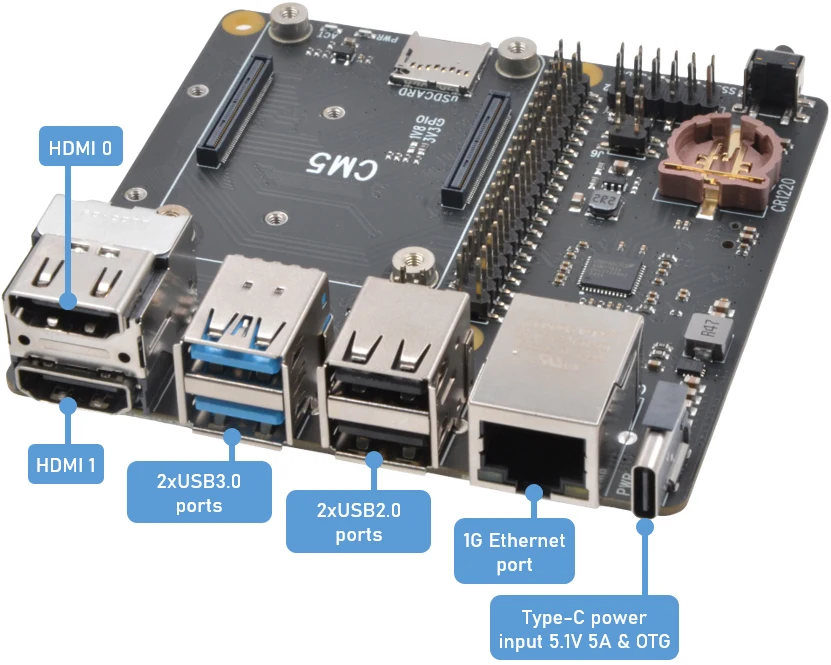

• Streamlined Connector Layout: USB, HDMI, Ethernet, and power ports are grouped along one edge for clean cable management and easy enclosure integration.

 Performance Test (Gigabit Ethernet / SSD read/write speed)

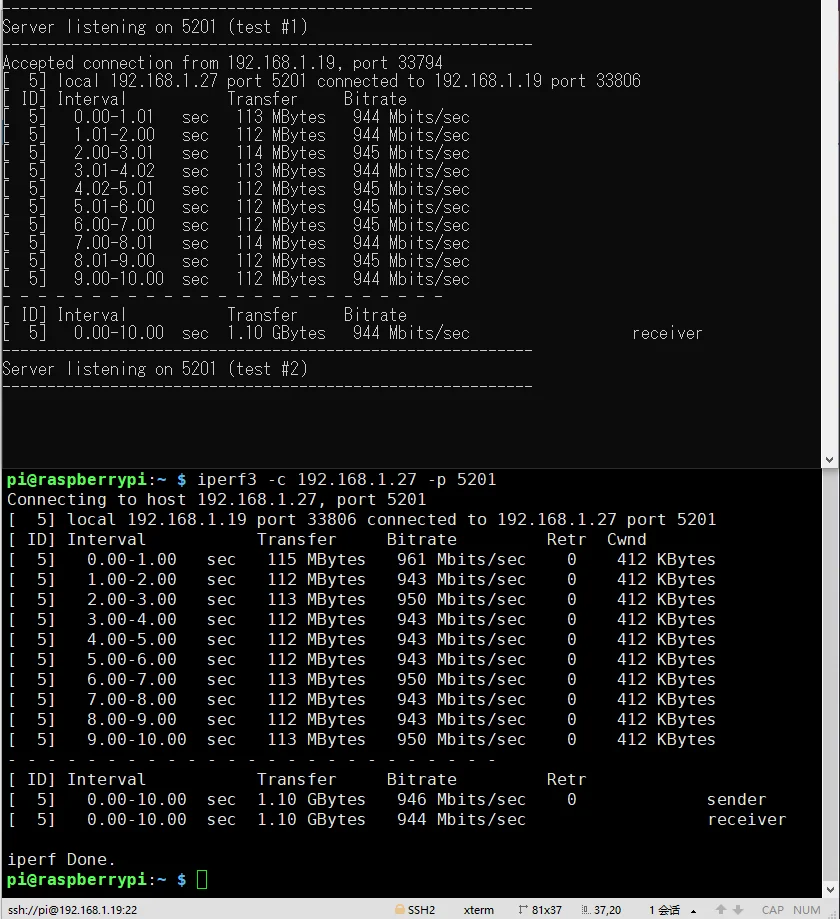

Testing 1Gbps Ethernet on the Raspberry Pi CM5

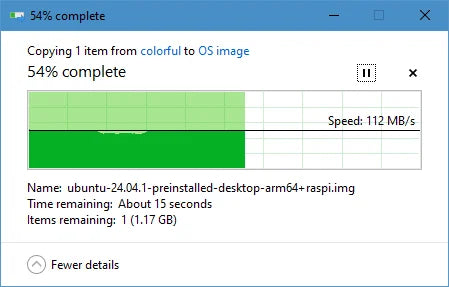

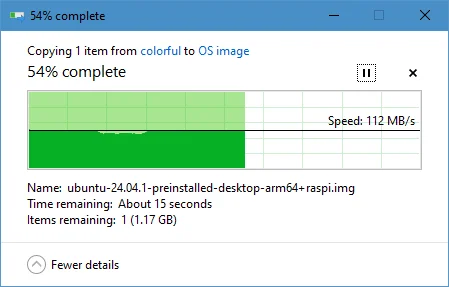

Write speeds on an OpenMediaVault (OMV) shared folder

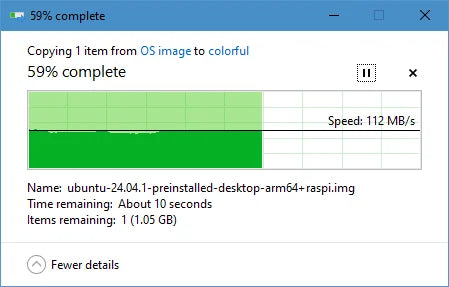

Read speeds on an OpenMediaVault (OMV) shared folder

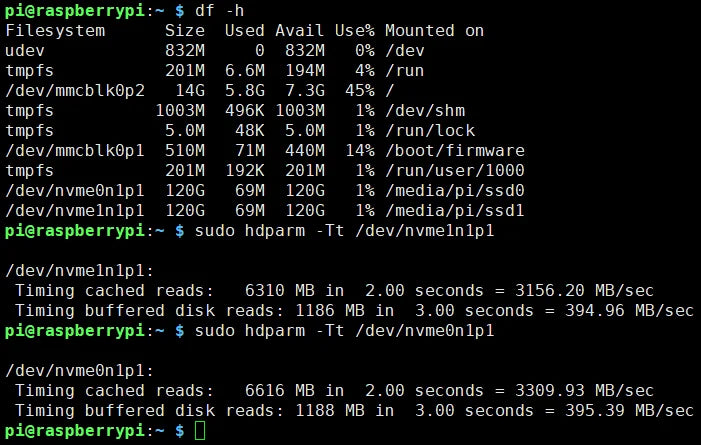

Testing disk drive read speed with hdparm

 Instructions for Getting Started Copy and paste the link into the address bar.

X1500 CM5 IO board

Product introduction

https://suptronics.com/Raspberrypi/cm5/x1500-v1.0.html

Hareware overview and assembly

https://suptronics.com/Raspberrypi/cm5/x1500-v1.0_hardware.html

Operating system installation and setting

https://suptronics.com/Raspberrypi/cm5/x1500-v1.0_software.html

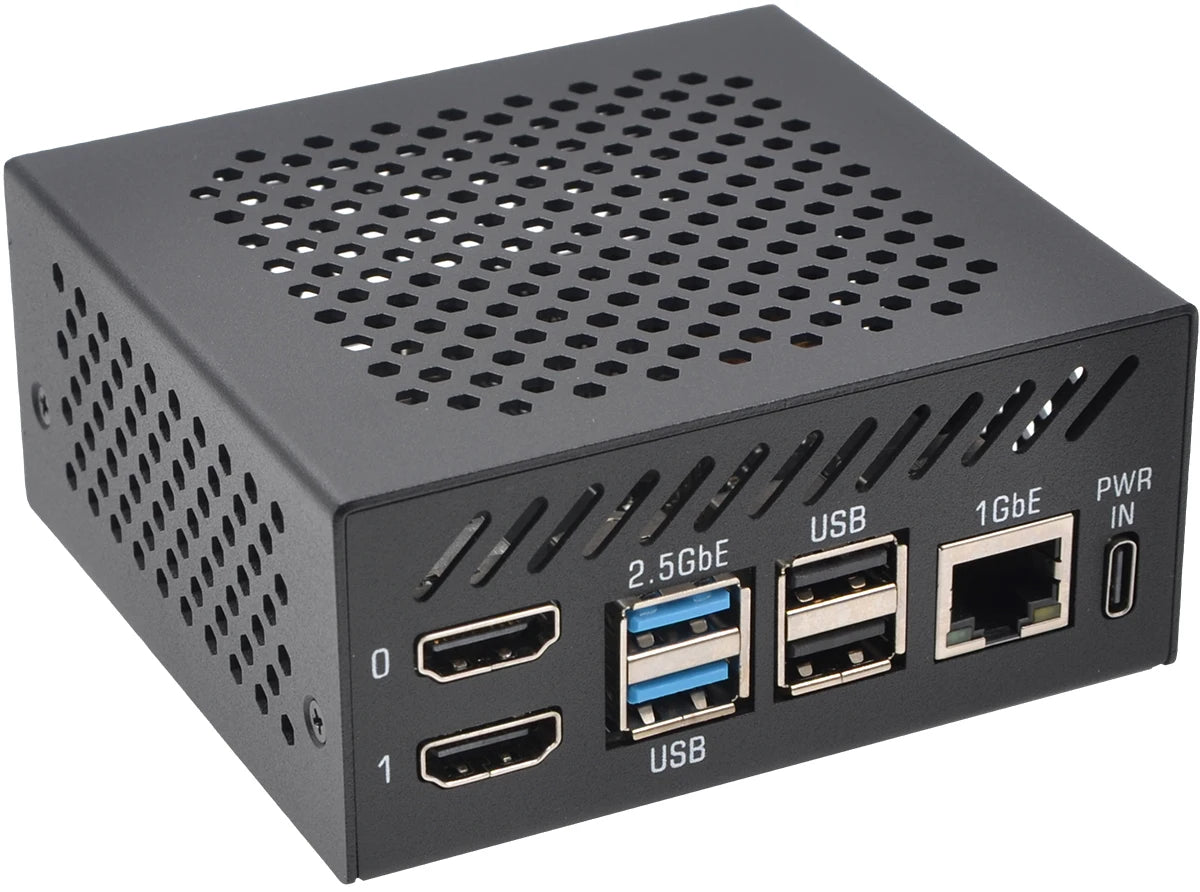

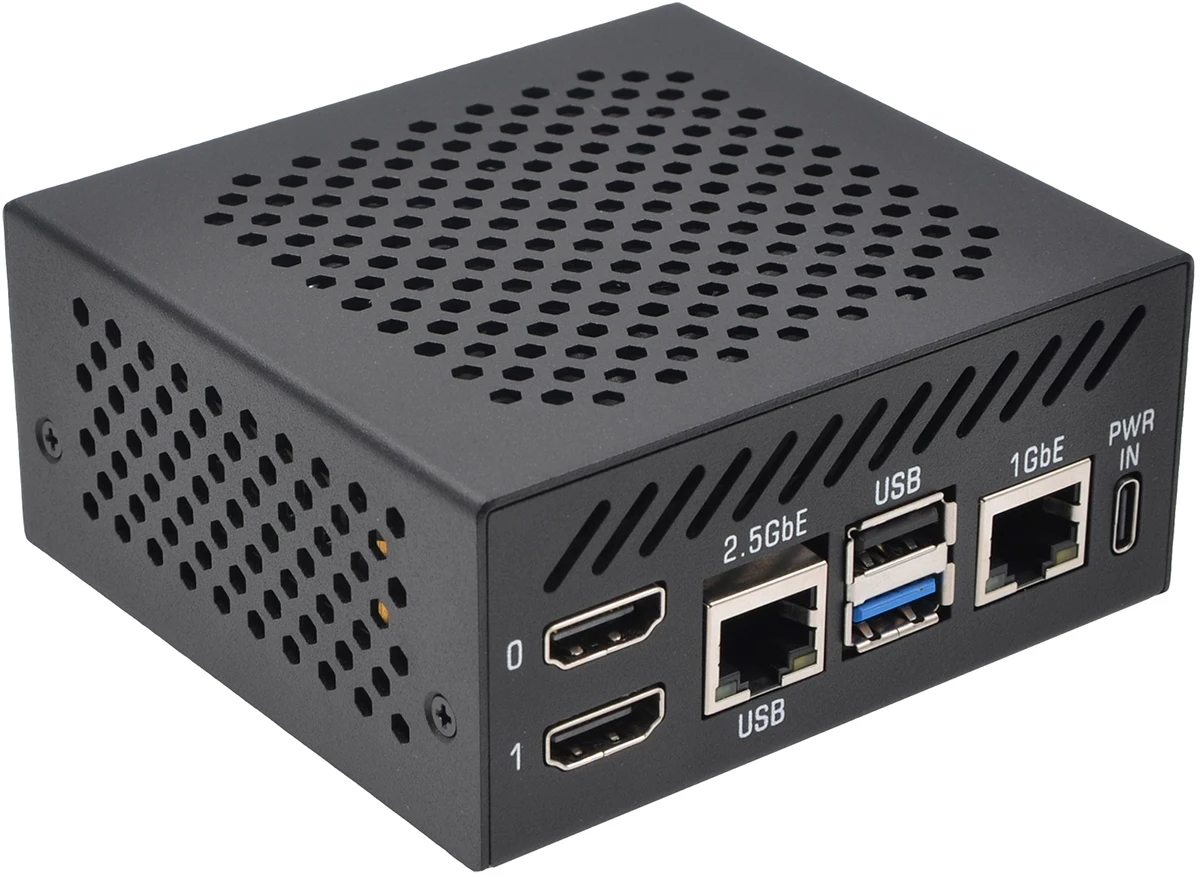

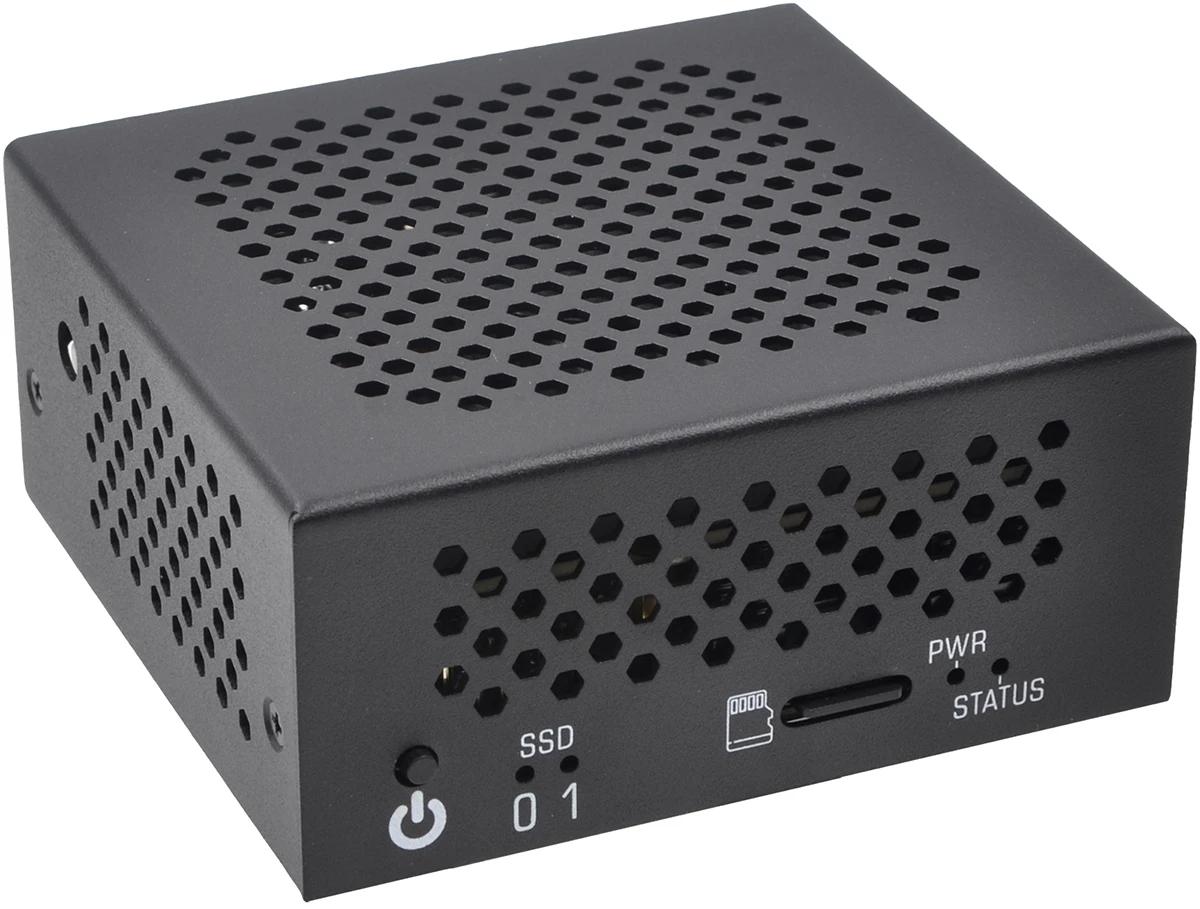

X15-C1 Case

Product introduction

https://suptronics.com/Raspberrypi/cm5/x15-c1.html

Assembly instructions

https://suptronics.com/Raspberrypi/cm5/x15-c1_assembly.html

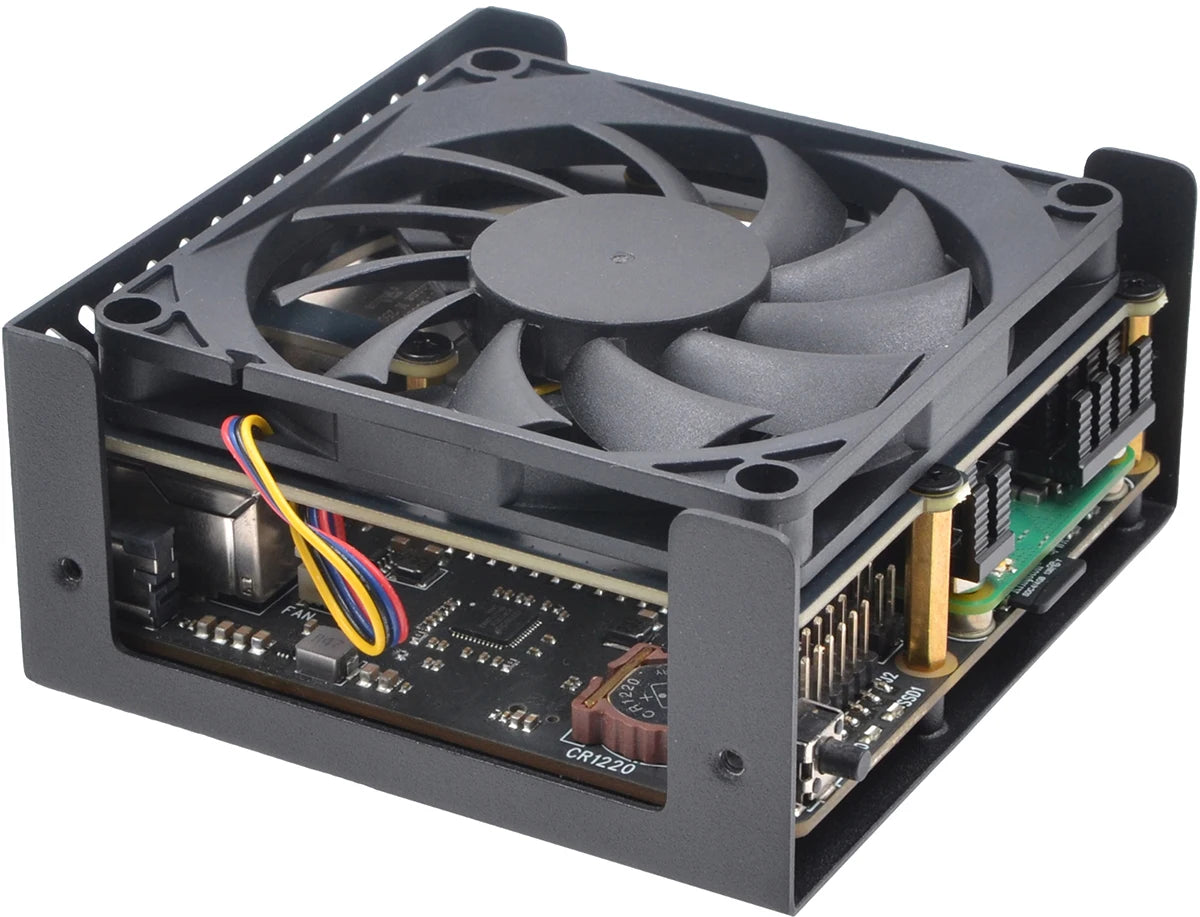

X15-F1 8010 PWM-controlled fan

Product introduction

https://suptronics.com/Raspberrypi/cm5/x15-f1.html

Assembly instructions

https://suptronics.com/Raspberrypi/cm5/x15-f1_hardware.html

 Any problem ?

support@suptronics.com

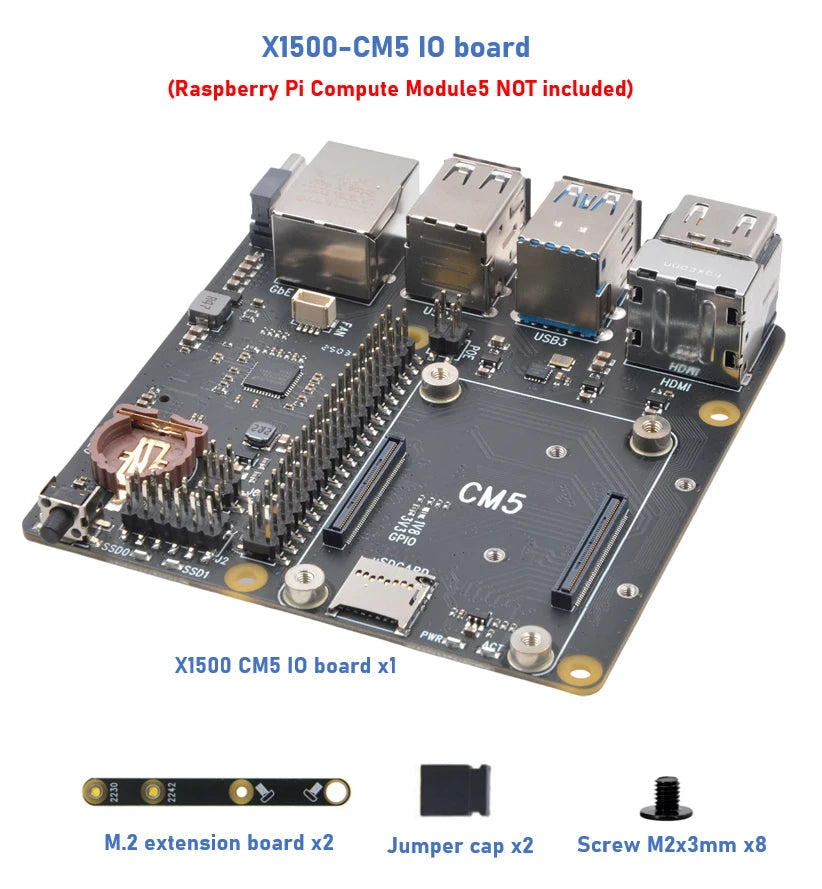

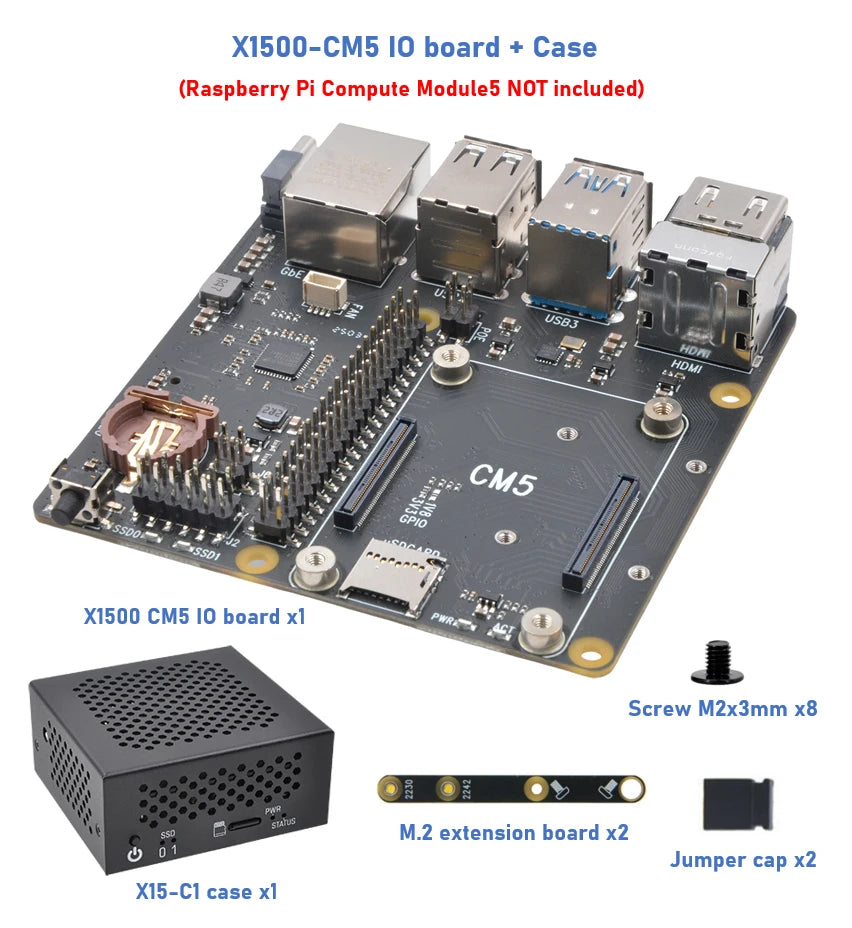

 Package Contents

X1500-BD

- X1500 V1.0 CM5 IO board (CM5 not included) x1

- M.2 extension board x2 (Supports 2230 and 2242 M.2 devices)

- 2.54mm jumer cap x2

-  Screw pack x1

X1500-BD-CASE

- X1500 V1.0 CM5 IO board (CM5 not included) x1

- M.2 extension board x2 (Supports 2230 and 2242 M.2 devices)

- 2.54mm jumer cap x2

-  Screw pack x1

-  X15-C1 Metal case kit x1

X1500-BD-CASE-FAN

- X1500 V1.0 CM5 IO board (CM5 not included) x1

- M.2 extension board x2 (Supports 2230 and 2242 M.2 devices)

- 2.54mm jumer cap x2

-  Screw pack x1

-  X15-C1 Metal case kit x1

-  X15-F1 8010 PWM-controlled fan
