SPECIFICATIONS

【Product Details】

High Resolution High Sensitivity IMX477 Sensor

Supports Raspberry Pi / Jetson Series Boards

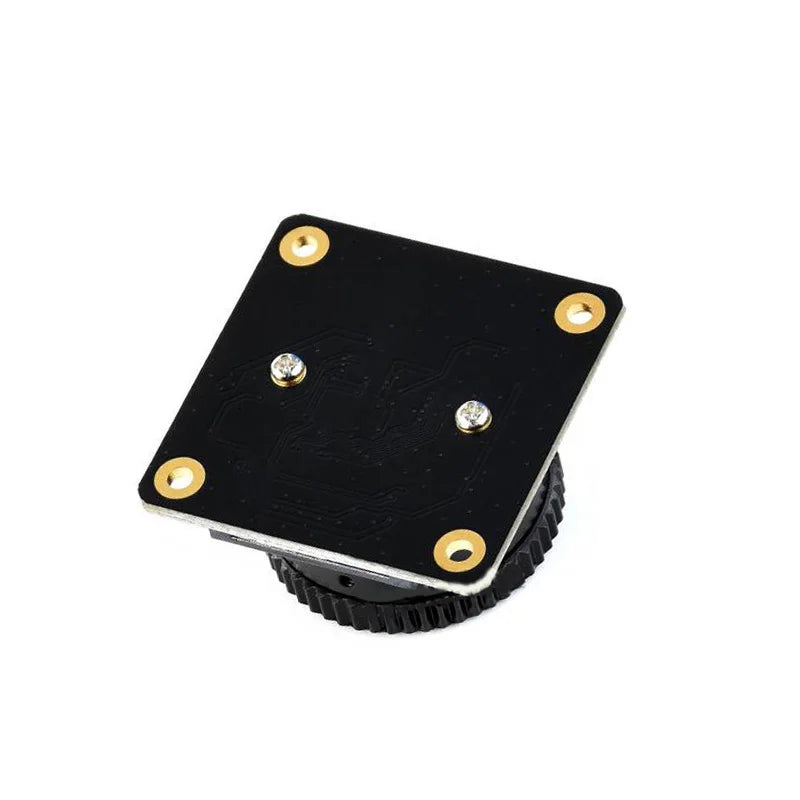

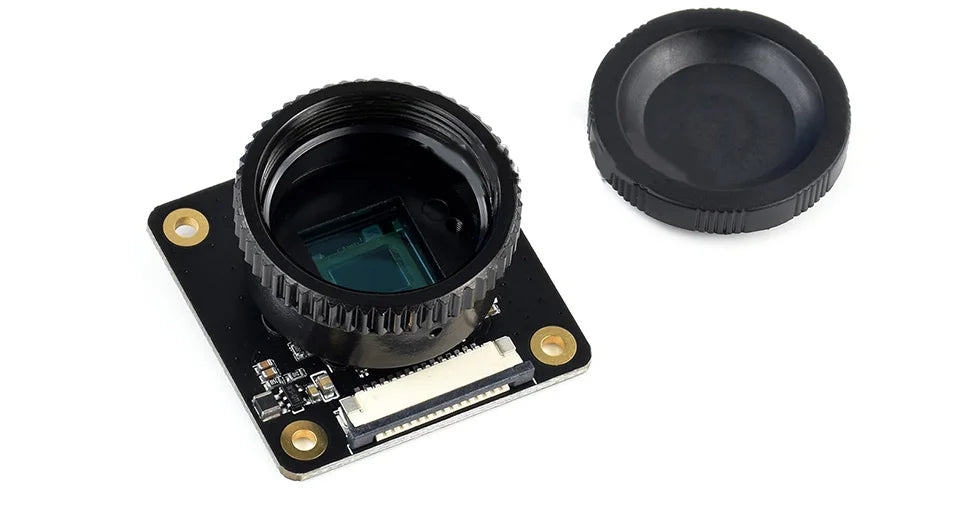

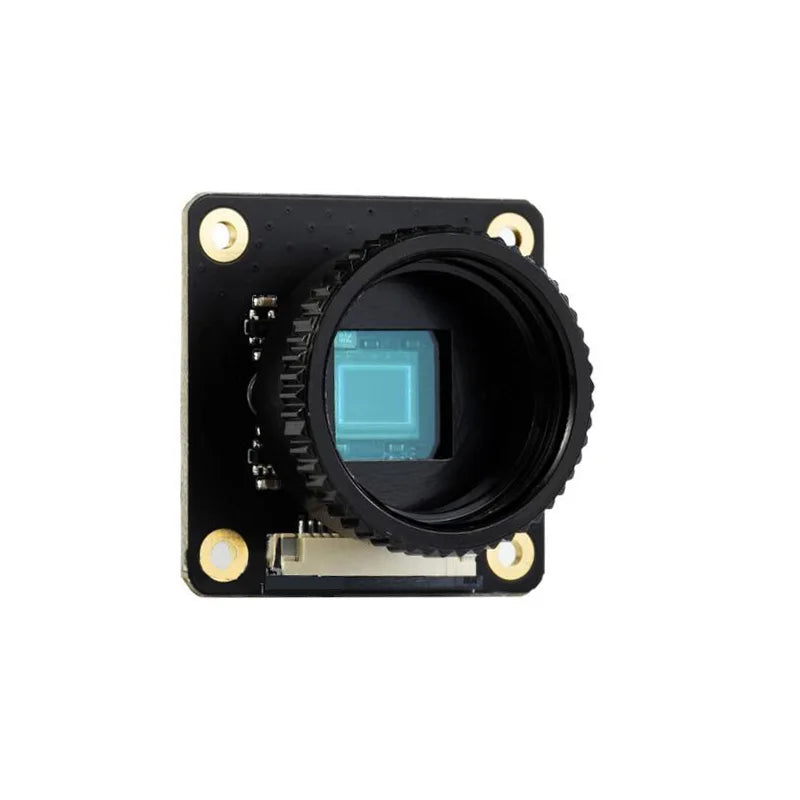

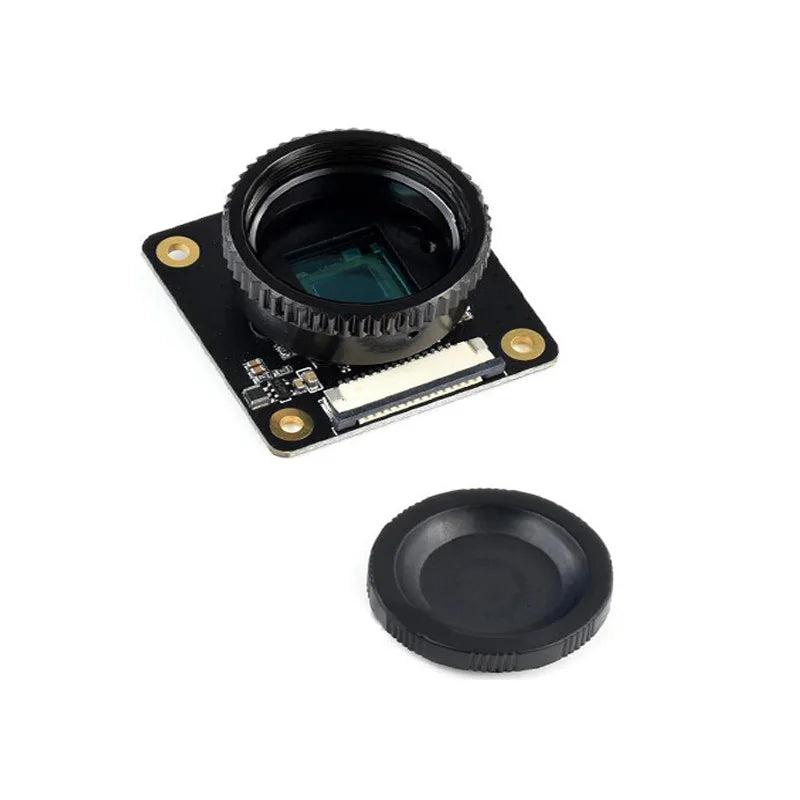

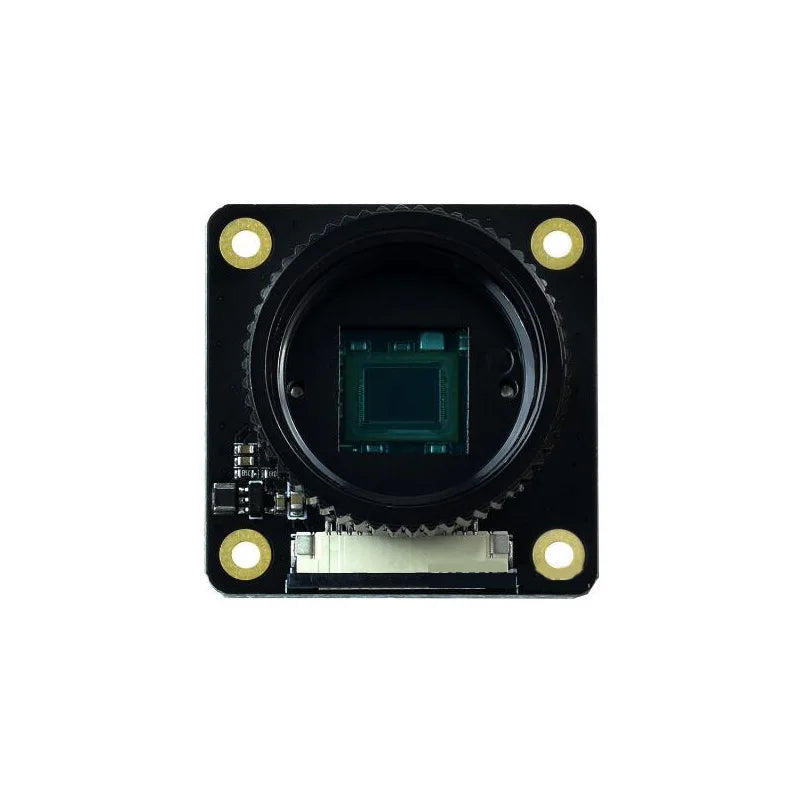

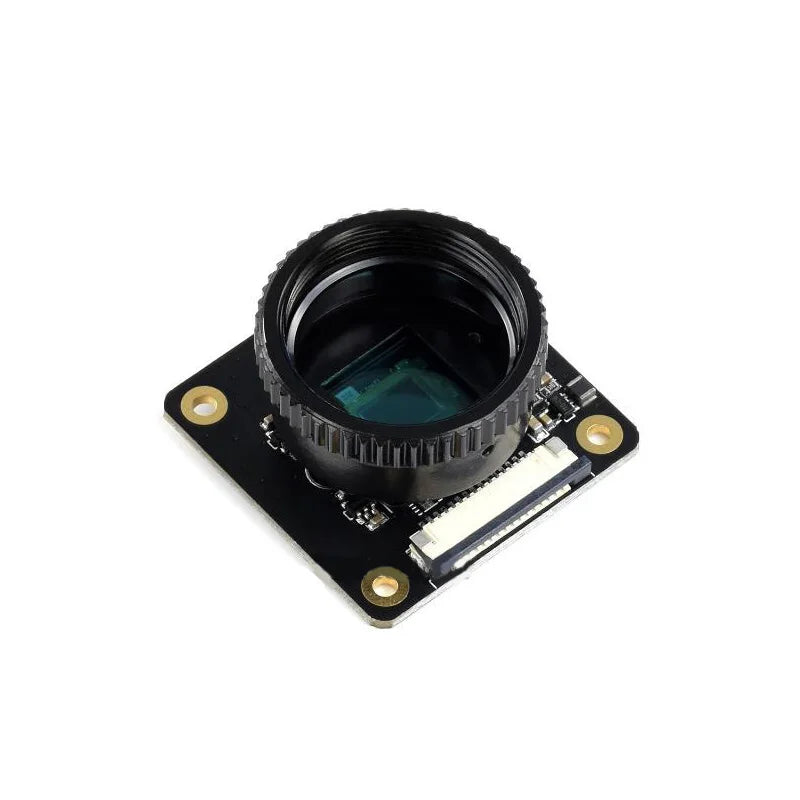

[] TheIMX477 12.3MP Camerais a high quality camera module which adopts theIMX477R sensor, and requires aC- or CS-mount lensto work. It is compatible with Raspberry Pi Compute Module and NVIDIA Jetson Nano, offers higher resolution (12.3MP) and higher sensitivity (nearly50% greater area per pixelfor improved low-light performance) than IMX219 cameras.

[] The IMX477 12.3MP Camera is suitable for industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

【Specifications】

SENSOR	IMX477R
	12.3MP, 4056 (H) × 3040 (V)
	7.9mm CMOS diagonal size
	1.55µm (H) × 1.55µm (V) pixel size
OUTPUT	RAW12 / 10 / 8, COMP8
BACK FOCUS	Adjustable
LENS SUPPORT	C-mount / CS-mount (C-CS adapter included)
IR CUT FILTER	Integrated

Lens Selection

PRODUCT	6mm Wide Angle Lens	16mm Telephoto Lens	25mm Telephoto Lens	35mm Telephoto Lens	8-50mm Zoom Lens	100X Microscope Lens for Pi
IMAGE FORMAT	1/2"	1"	2/3"	1"	1/2.3"	1/2"
FOCAL LENGTH	6mm	16mm	25mm	35mm	8-50mm	-
APERTURE	F1.2	F1.4-16	F1.4-16	F1.7-16	F1.4	-
OPTICAL MAGNIFICATION	-					0.12X~1.8X
ZOOM RATIO	-					15:01
MOUNT	CS-mount	C-mount				C/CS-mount
ANGLE OF VIEW	63°	1"      44.6° × 33.6° 2/3"      30.0° × 23.2° 1/1.8"      24.7° × 18.6° 1/2"      21.8° ×16.4°	2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5°	1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9°	45°-5.35°	-
BACK FOCUS	7.53mm	17.53mm				-
OPTICAL LENGTH	-	67.53mm	-
DISTORTION	-	1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%）	0.05%	0.35%	-	< -0.1%
M.O.D.	0.20m	0.20m	0.25m	0.30m	0.20m	2.4mm
DIMENSIONS	Φ30.00 × 34.00mm	Φ39.00 × 50.00mm	Φ34.00 × 34.00mm	Φ35.00 × 34.00mm	Φ40.00×68.30mm	Φ39.00×112.00mm
OPERATION	Manual aperture adjustment					Fixed aperture
WEIGHT	53g	133.7g	82g	78g	148g	202g

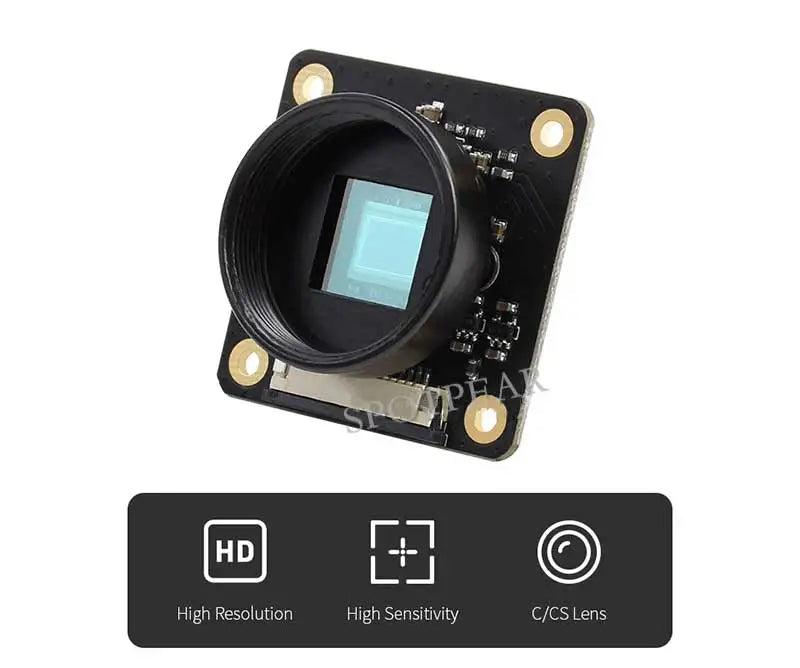

Higher Resolution, Better Imaging Effect

Compared To 8MP Of Normal Raspberry Camera, This High Quality Camera Offers Up To 12.3MP, Along With Nearly 50% Greater Area Per Pixel, Delivering Better Imaging Effect

With Mounted Lens

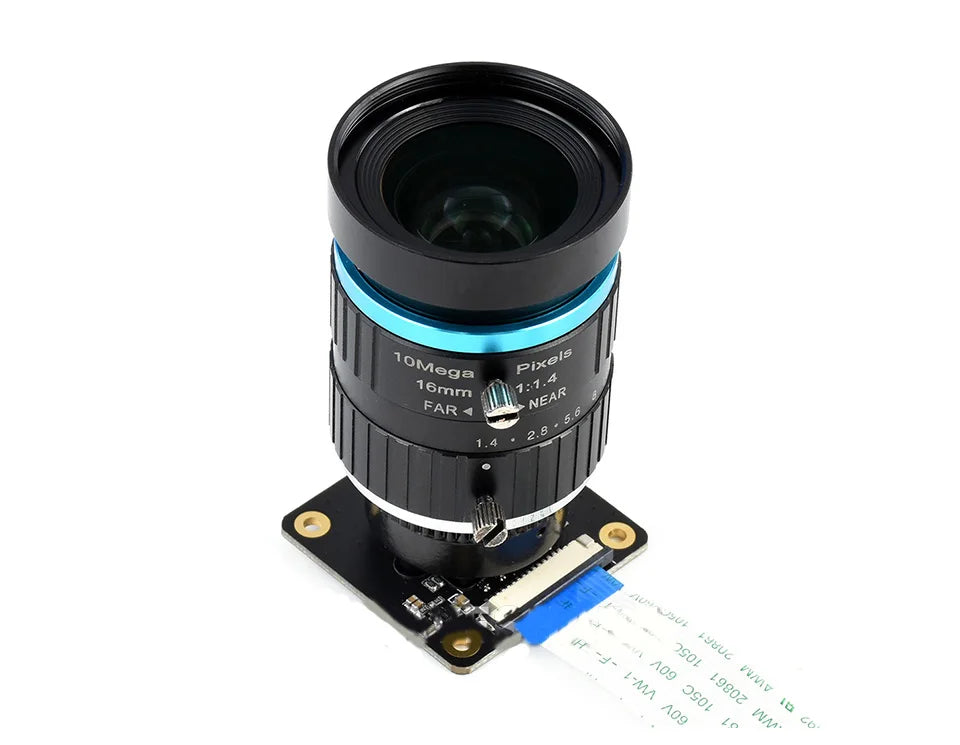

C-Mount 16mm Telephoto Lens(C-CS Adapter Required)

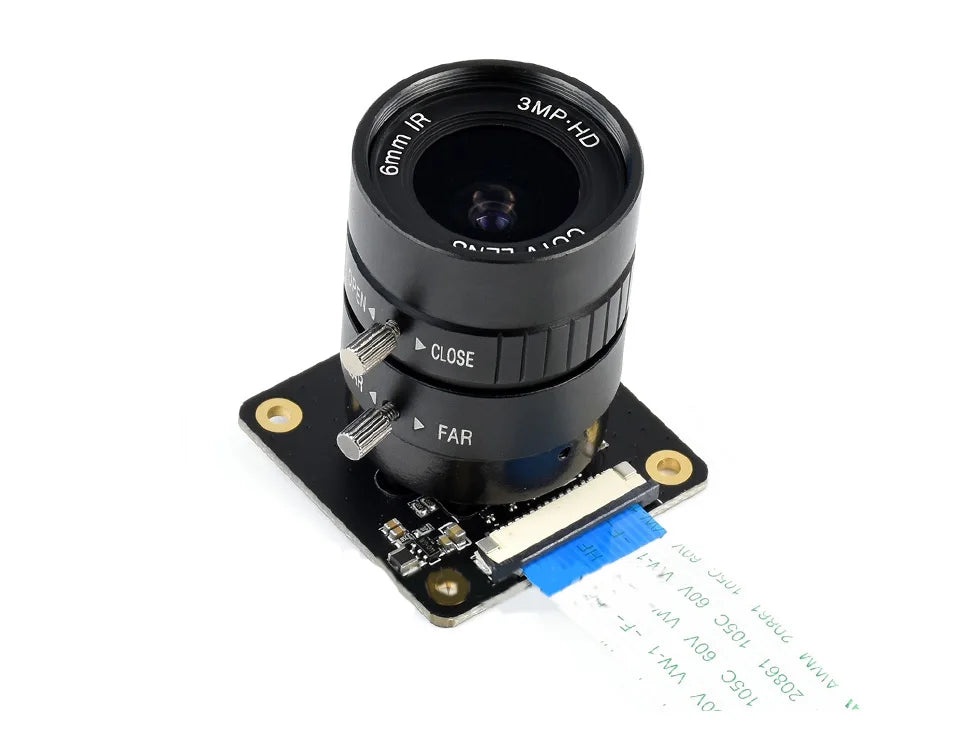

CS-Mount 6mm Wide Angle Lens(C-CS Adapter Should Be Removed)

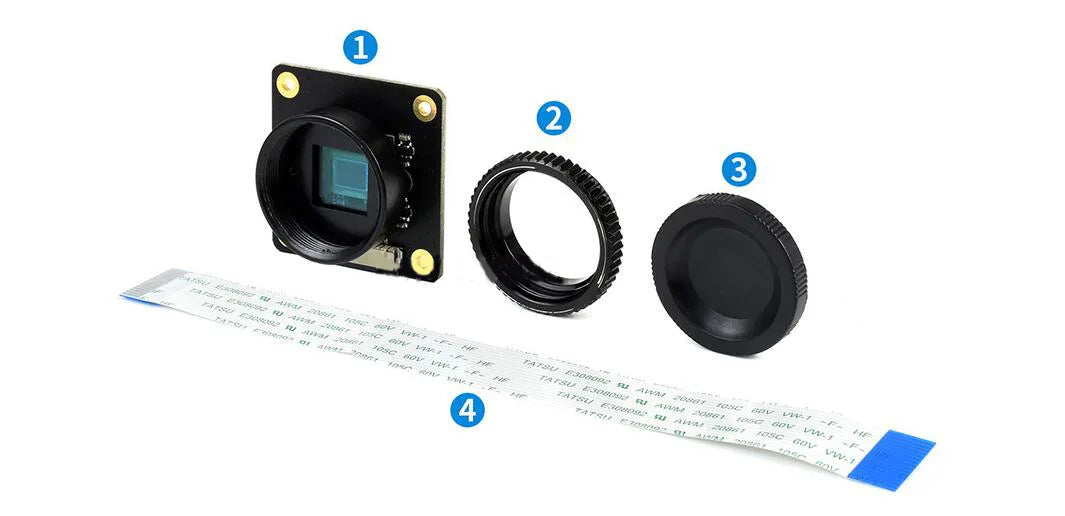

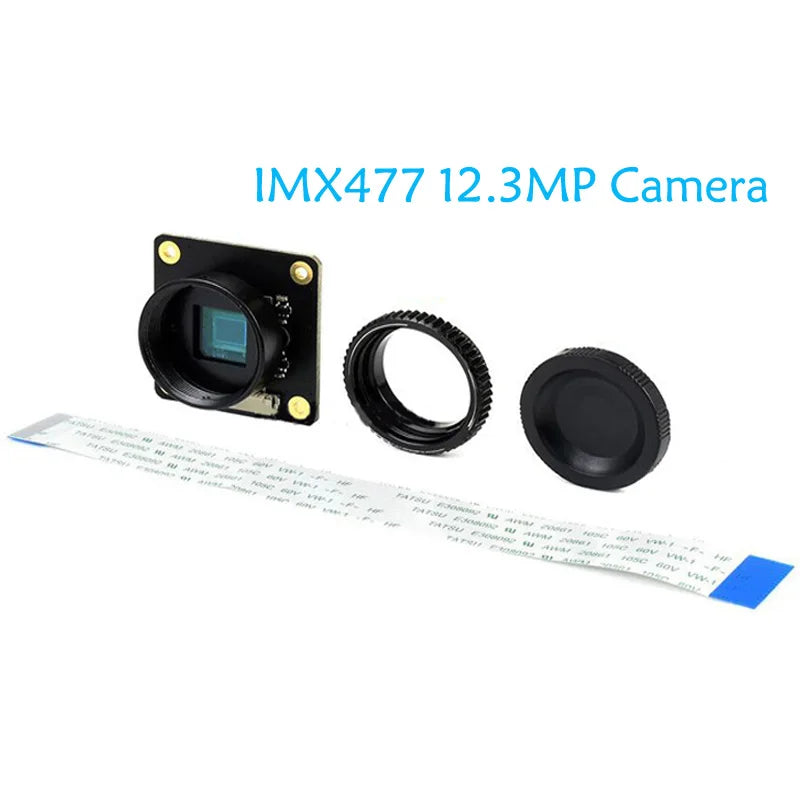

* for reference only, please refer to the Package Content for detailed part list

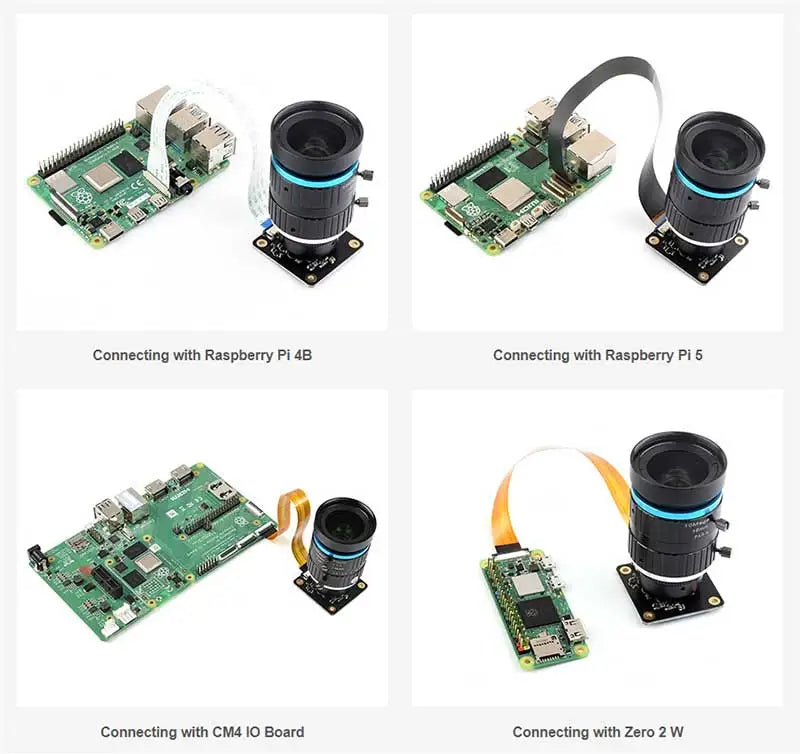

Multiple Motherboards Support
Compatible With Raspberry Pi And Jetson Series Boards (Specific Driver Is Required)
Extra FPC Cable Is Required For Raspberry Pi 5, CM3/3+/4, And Zero Series

* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 4 IO Board, Zero 2 W, Jetson Nano Kit, Jetson Orin Kit, 16mm Telephoto Lens, black FPC and yellow FPC are NOT included.
