SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

PN: Raspberry Pi Noir Camera V2

Type: Module

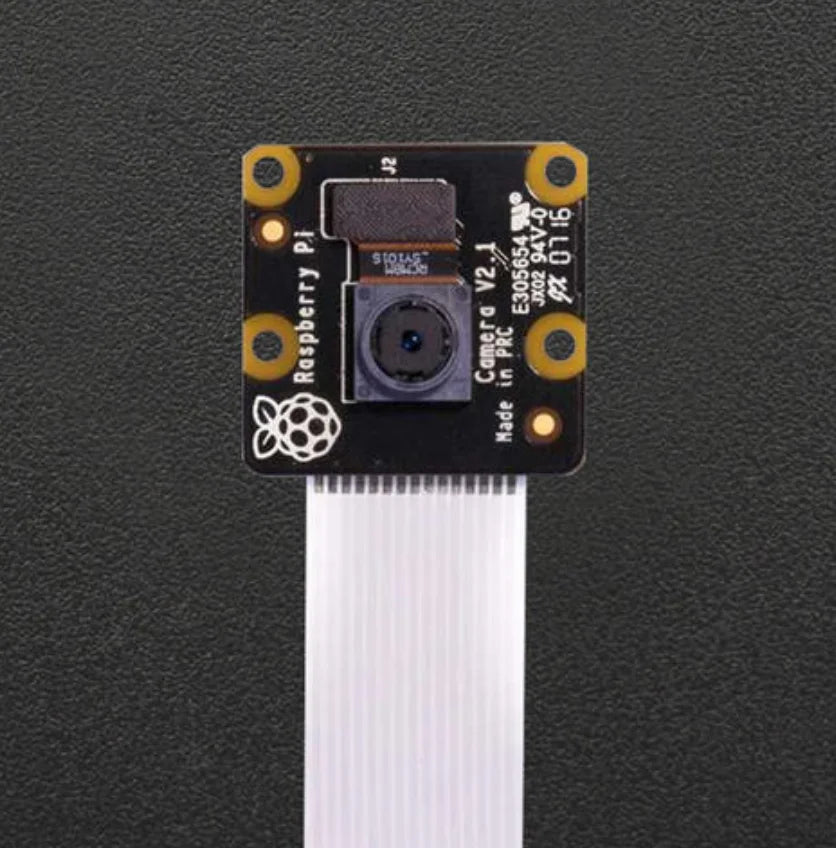

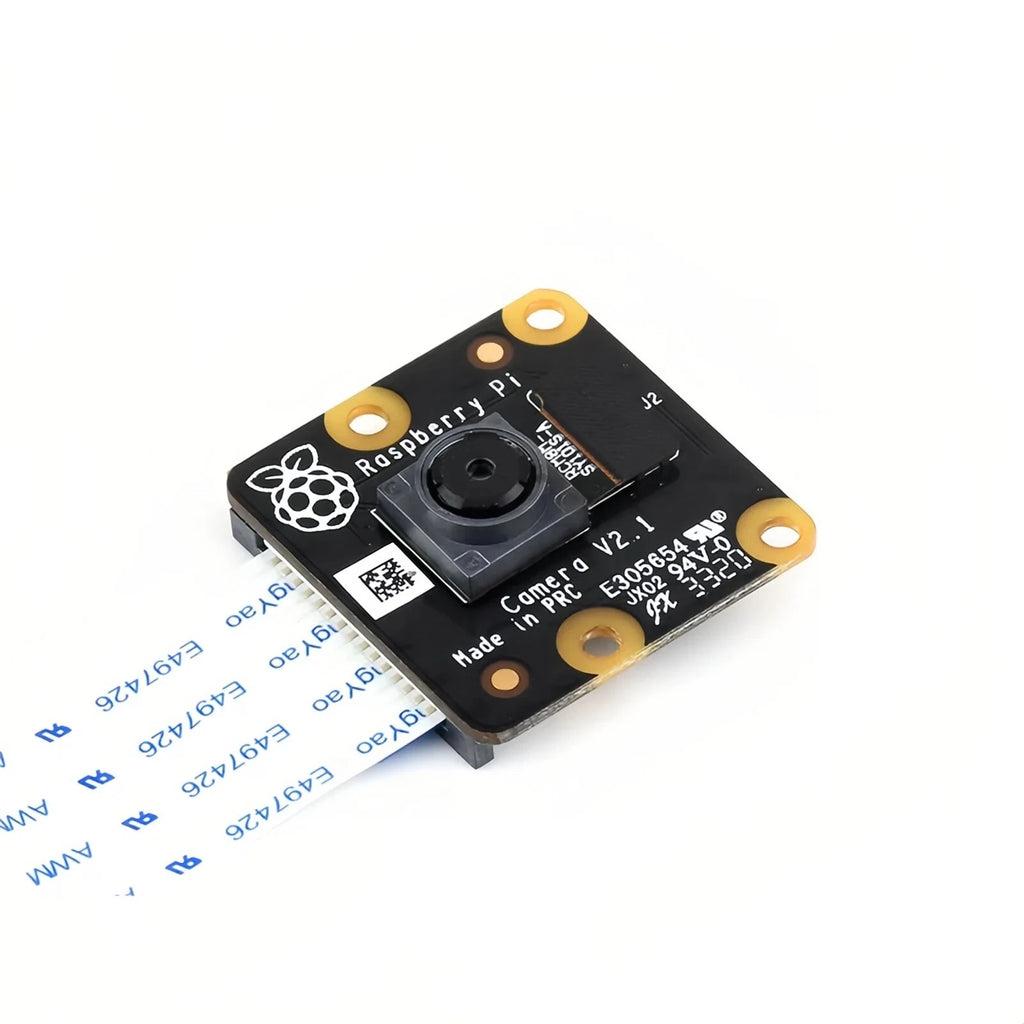

Raspberry Pi Noir Camera V2 - 8MP Night Vision & Low Light Camera (No IR Filter)

Unlock the world of night vision and infrared photography for your Raspberry Pi projects with the official-style Noir Camera V2. This specialized module removes the standard infrared (IR) cut filter, allowing it to capture clear images in near-total darkness (with IR illumination) and see beyond the visible light spectrum. Powered by the high-quality 8MP Sony IMX219 sensor, it's perfect for security, nature observation, and creative photography.

Key Features & Benefits:

• See in the Dark: With no infrared (IR) filter (Noir), this camera excels in low-light conditions. When paired with IR LED lights, it becomes a powerful night vision tool, perfect for 24/7 surveillance or observing nocturnal wildlife without disturbance.

• High-Resolution Imaging: Features an 8-megapixel Sony IMX219 sensor, a significant upgrade from older 5MP models. Delivers sharper 3280 x 2464 pixel still images and superior 1080p@30fps video with better color fidelity and low-light performance.

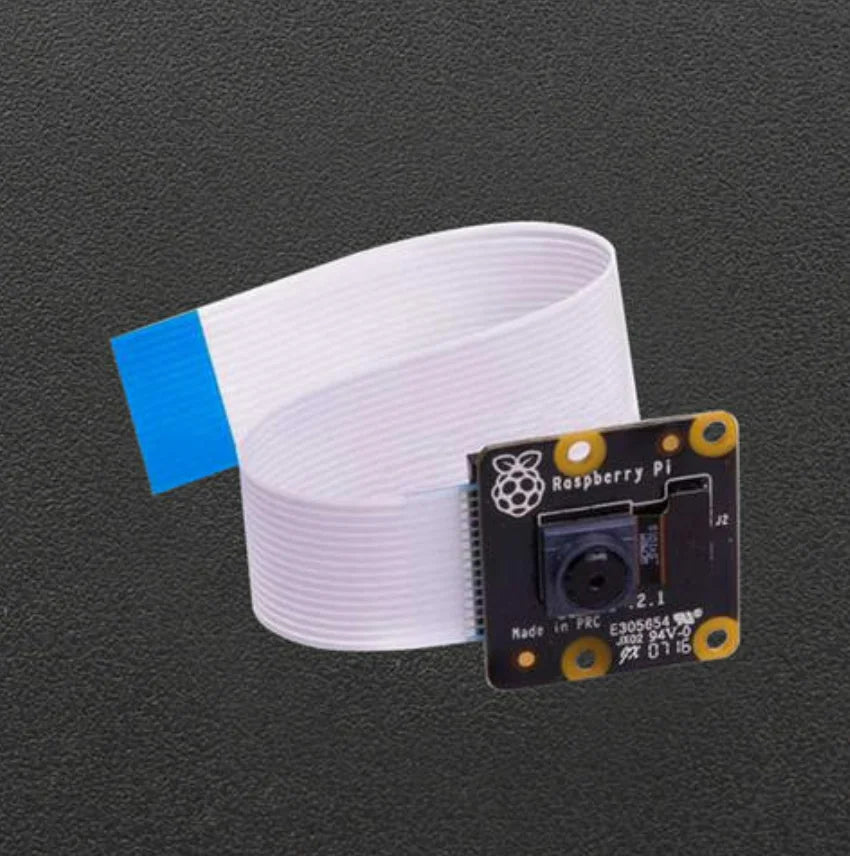

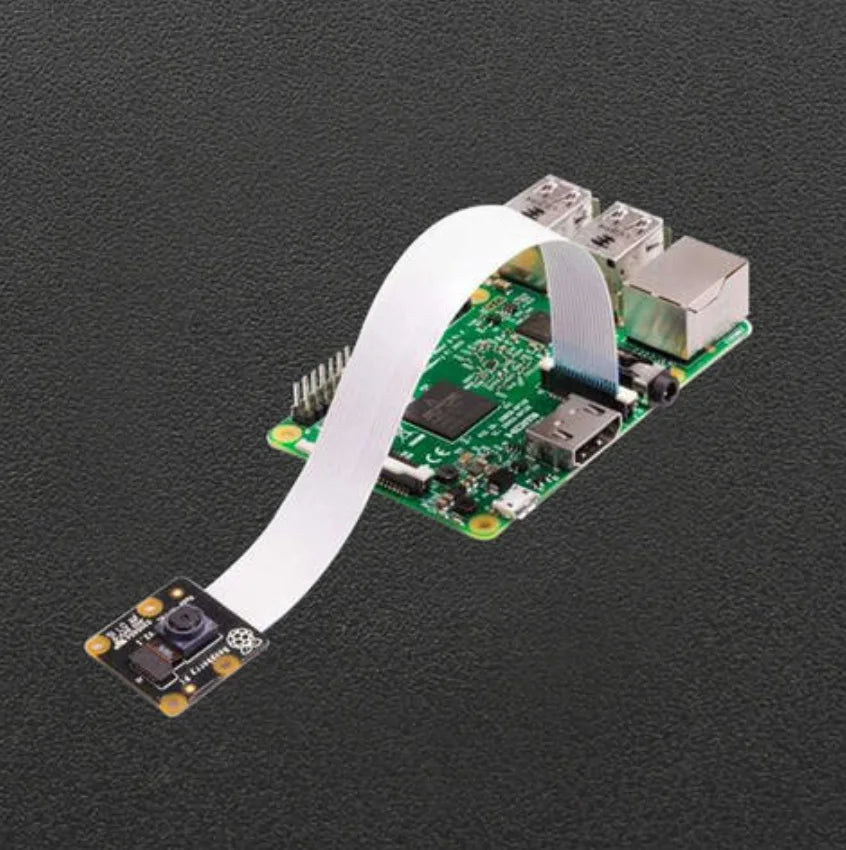

• Broad Raspberry Pi Compatibility: Uses the standard CSI interface and is compatible with all Raspberry Pi models (1, 2, 3, 4, Zero, etc.) via the included ribbon cable.

• Ultra-Compact & Lightweight: Its tiny footprint (25x23x9mm, ~3g) makes it ideal for drones, portable devices, or any project where size and weight matter.

• Important Note (Daytime Color): Due to the missing IR filter, daytime photos will have an unnatural reddish/purple tint. This is normal and expected. For accurate daytime color, a standard Raspberry Pi camera is recommended.

Technical Specifications:

• Sensor: Sony IMX219

• Resolution: 8 Megapixels

• Max Still Resolution: 3280 x 2464

• Video Modes: 1080p @ 30fps, 720p @ 60fps, VGA (640x480) @ 90fps

• Special Feature: No IR Cut Filter (Infrared Sensitive)

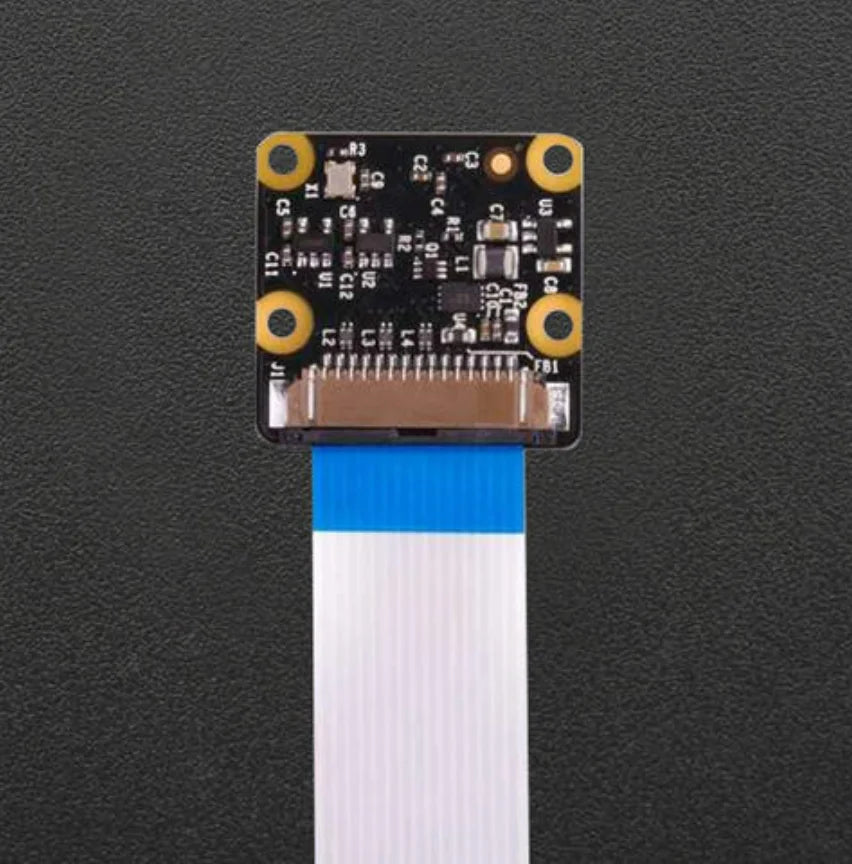

• Interface: MIPI CSI-2 (15-pin ribbon cable included)

• Compatibility: Raspberry Pi 1/2/3/4/Zero

• Dimensions: 25 x 23 x 9 mm

• Weight: ~3g

Application Scenarios:

• 24/7 Security & Surveillance Systems

• Nocturnal Wildlife / Nature Monitoring (e.g., plant health, animal behavior)

• Infrared Photography & Creative Projects

• Low-Light Scientific Imaging

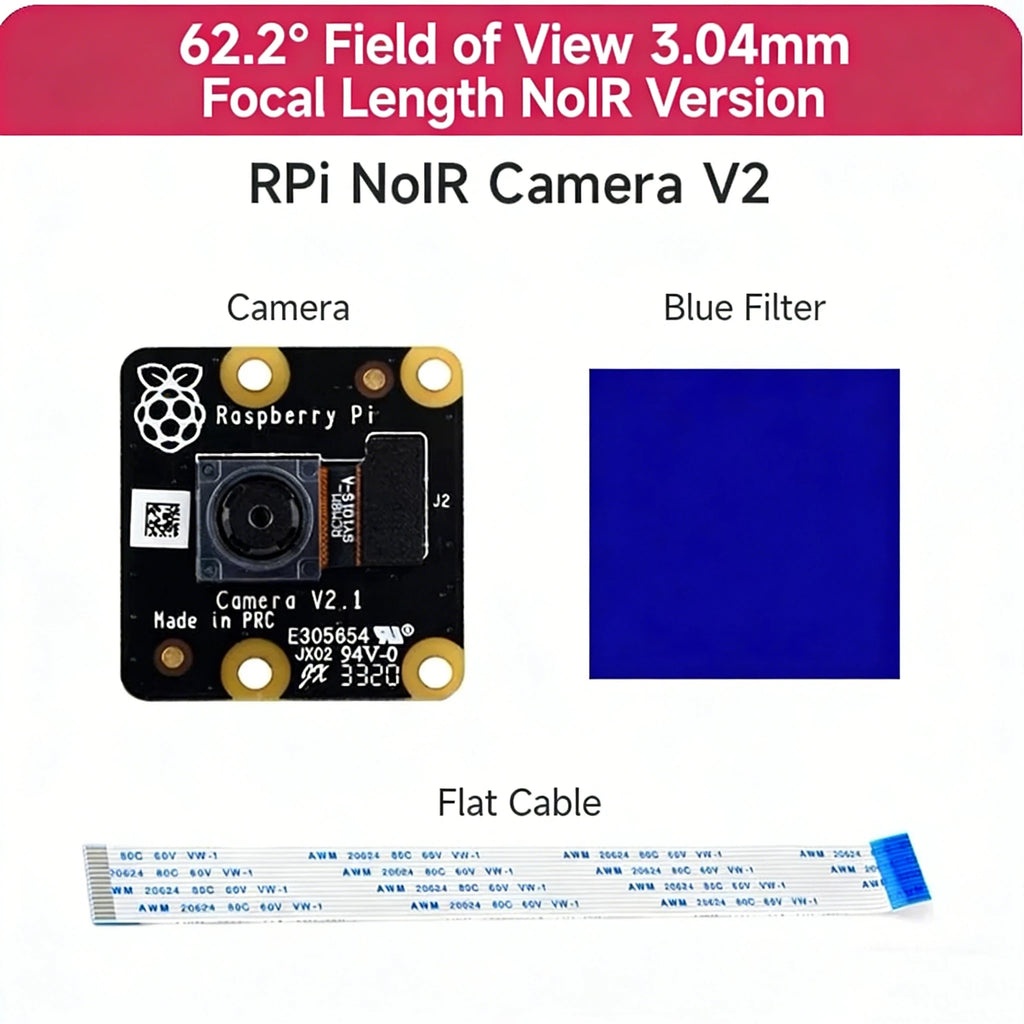

Package Includes:

• Raspberry Pi Noir Camera V2 Module x1

Note: This camera is designed for specialized low-light and IR applications. For standard daytime color photography, please consider the regular Raspberry Pi Camera Module V2.
