Raspberry Pi PoE Ethernet USB HUB HAT 3 X USB 2.0 Ports RJ45 802.3af RTL8152B Compatible for Raspberry Pi Zero W WH 1.3

Raspberry Pi PoE Ethernet USB HUB HAT 3 X USB 2.0 Ports RJ45 802.3af RTL8152B Compatible for Raspberry Pi Zero W WH 1.3

$69.92

$69.92 $0.00

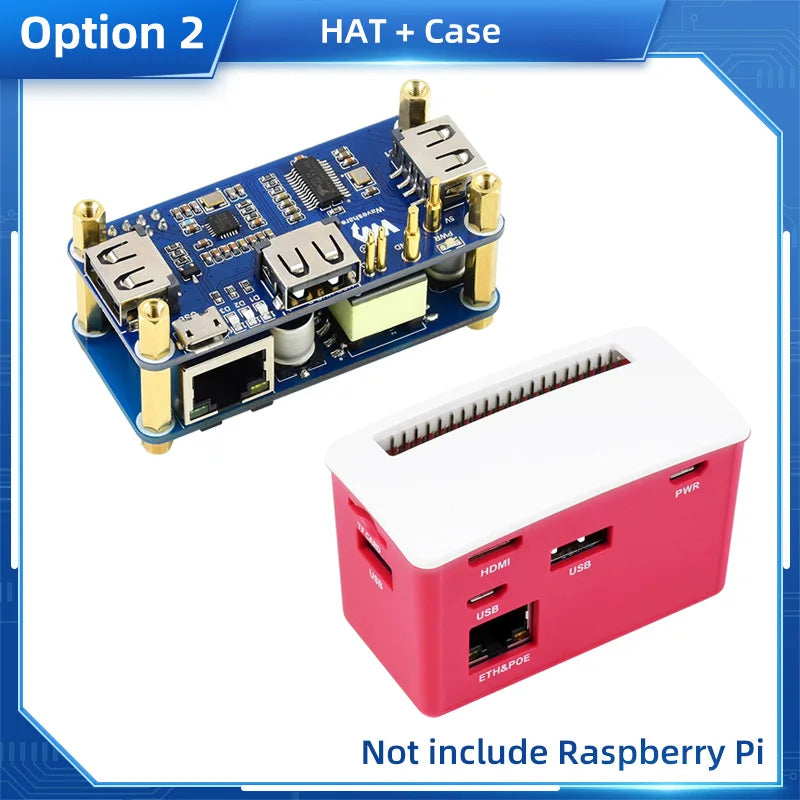

Color Only HAT(B) Only HAT(A) HAT(A) and Case HAT(B) and Case

Ships FromCN

Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: SHCHV

Choice: yes

Compatible With: Raspberry Pi Zero/ZeroW/ZeroWH

Dimension: 23.1 x 65 mm approx

High-concerned chemical: none

Network Standard: IEEE 802.3af-compliant PoE

Origin: Mainland China

PoE Power Input: 37V-57V DC In

Power Output: 5V 2.5A DC Out

Typical Application Fields: Education and Learning

semi_Choice: yes

PoE Ethernet / USB HUB HAT

Suitable For Raspberry Pi Zero / Zero W / Zero WH, 802.3af-Compliant

Features At A Glance

ThePoE/ETH/USB HUB HATis a PoE (Power over Ethernet) USB HUB HAT designed forRaspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with3x extended USB ports.

Designed for Raspberry Pi Zero, compatible with Zero series boards

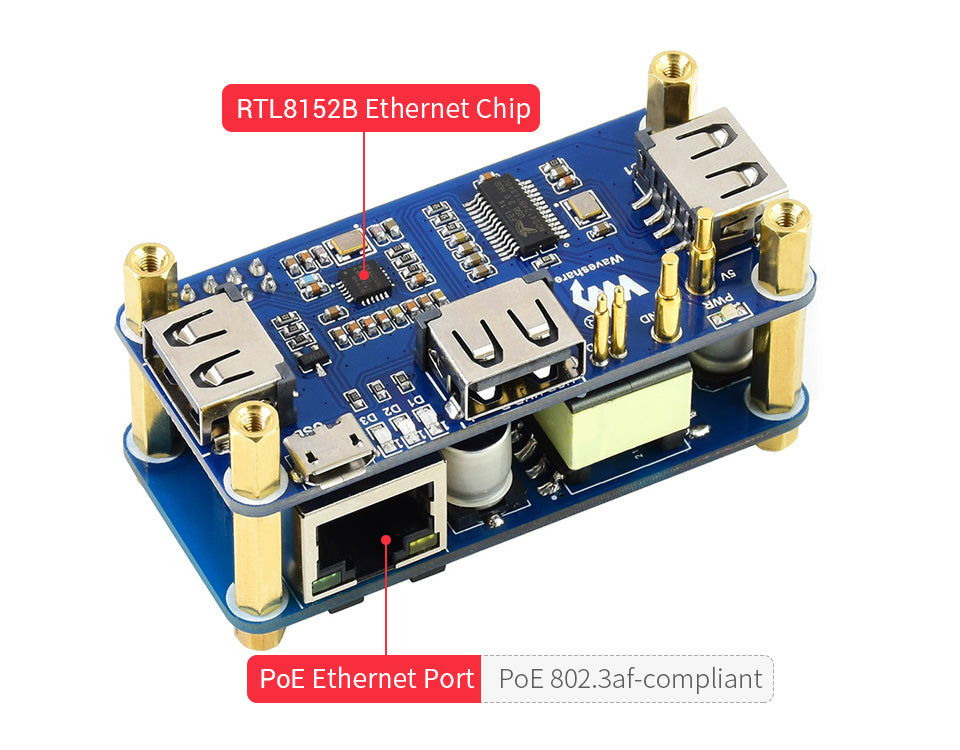

Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
PoE (Power over Ethernet) feature, 802.3af-compliant
Fully isolated SMPS (Switch Mode Power Supply)
3x extended USB ports, compatible with USB 2.0 / 1.1

Specifications

POE POWER INPUT	37V ~ 57V DC in
POWER OUTPUT	5V 2.5A DC out
NETWORK STANDARD	IEEE 802.3af-compliant PoE
DIMENSIONS	23.10 × 65.00 mm

Compatible With Raspberry Pi Zero Series

Designed For Raspberry Pi Zero, Compatible With Zero / Zero W / Zero WH

3x Extended USB 2.0 Ports

USB1 ~ USB3, Compatible With USB 2.0 / 1.1

Extended Ethernet Port

USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation

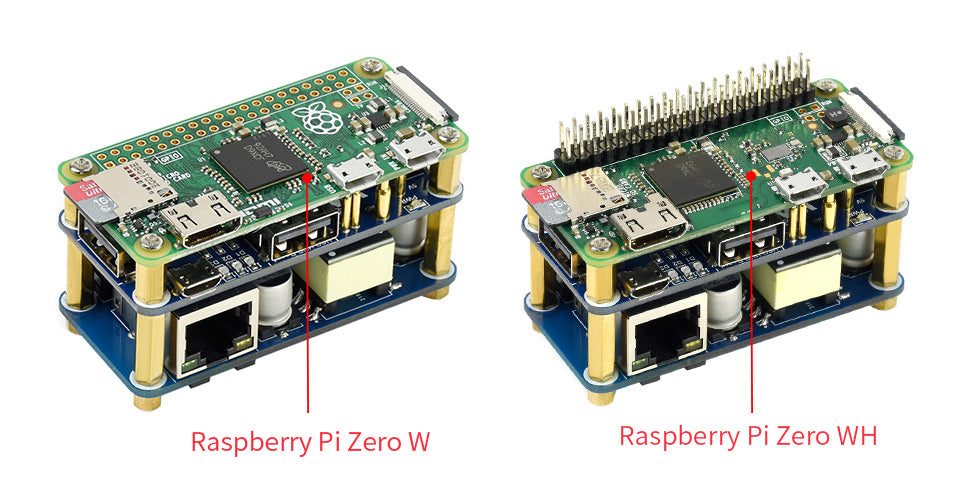

Application Example

For reference ONLY, the Raspberry Pi Zero, LCD display, and MicroSD card are NOT included.

Outline Dimensions

Weight: 0.063KG

Packing List:

1 x PoE/ETH/USB HUB HAT
1 x USB HUB Board
1 x Screws pack
1 x Screwdriver
(not include Raspberry Pi)

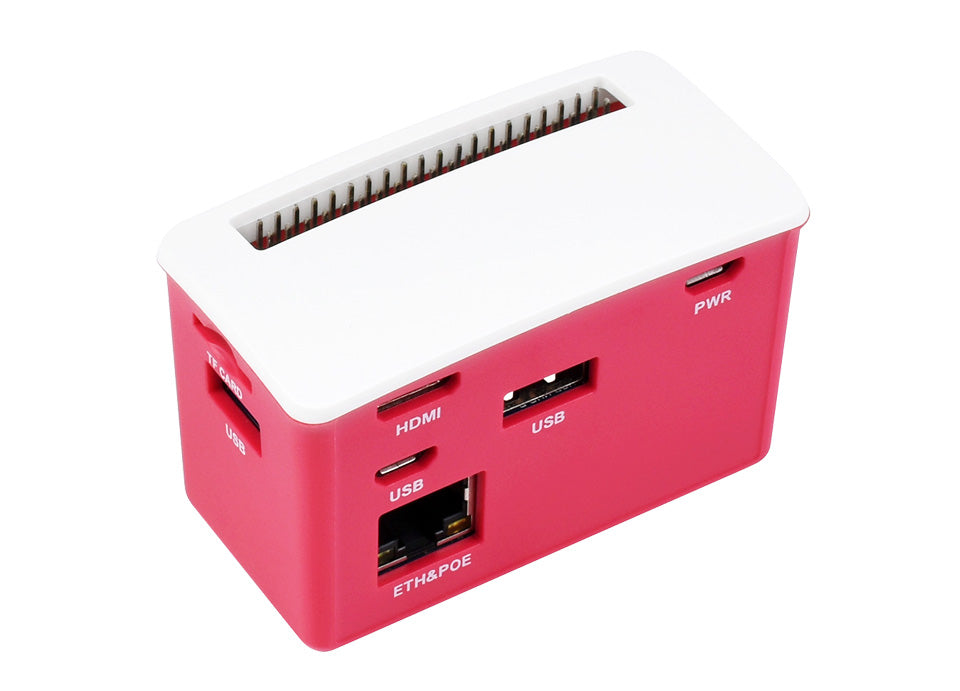

PoE Ethernet / USB HUB BOX For Zero

Dull polish surface, well designed, nice & dust-proof

PoE 802.3af-Compliant Ethernet Port | 3x USB 2.0 Ports

Features At A Glance

The PoE-ETH-USB-HUB-BOX is a HUB kit with PoE/ETH/USB HUB HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports.

Designed for Raspberry Pi Zero, compatible with Zero series boards
Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
PoE (Power over Ethernet) feature, 802.3af-compliant
Fully isolated SMPS (Switch Mode Power Supply)
3x extended USB ports, compatible with USB 2.0 / 1.1
Angle rounded design, smooth hand feeling, "simple snap" case lid
Quality ABS material, dull polish surface, anti-fingerprint
Comes with two different lids, changing as you like

Specifications

POE POWER INPUT	37V ~ 57V DC in
POWER OUTPUT	5V 2.5A DC out
NETWORK STANDARD	IEEE 802.3af-compliant PoE
DIMENSIONS	72.80 × 37.50 × 45.80 mm

Compatible With Raspberry Pi Zero Series

Specialized Pogo Pin Connection, Dedicated Cut-Outs For Zero Series, Plug-And-Play

Two Different Lids, Changing As You Like

"Simple Snap" Design, Easy To Change, Allows Attaching Other Zero HATs

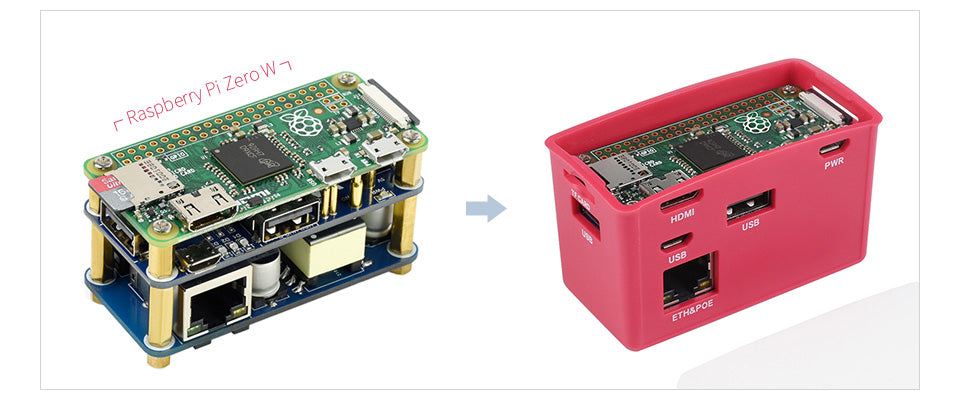

Application Example

Raspberry Pi Zero is NOT included.

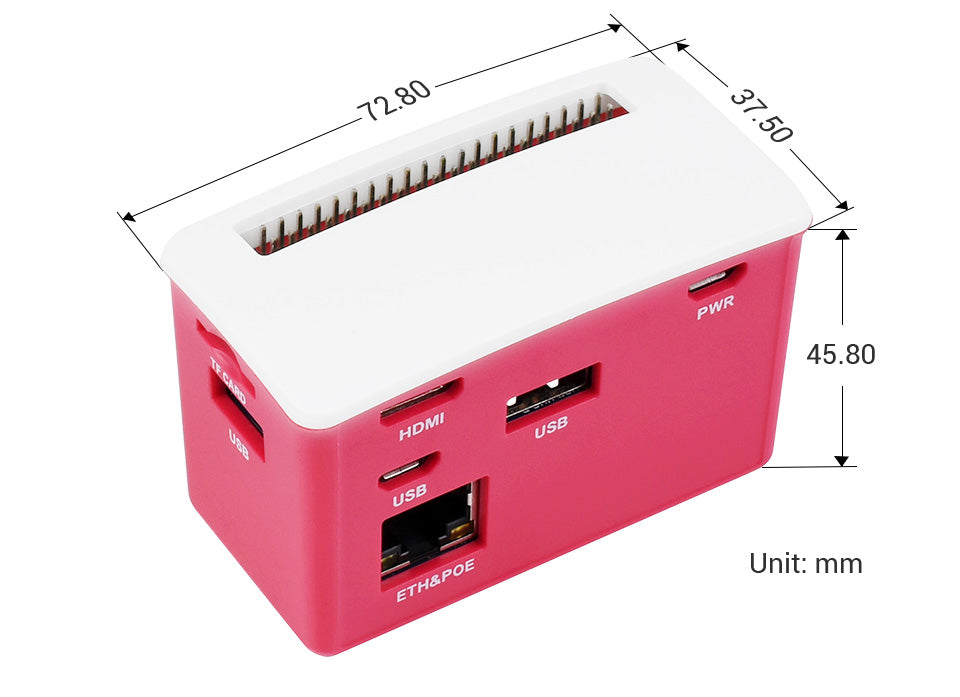

Outline Dimensions

Packing List:

Weight: 0.096 kg

PoE/ETH/USB HUB HAT kit x1
ABS case x1
Rubber feet 4PCS x1
Screws pack x1

Ethernet / USB HUB HAT (B) For Raspberry Pi Series, 1x RJ45 Ethernet Port, 3x USB 2.0 Ports

Ethernet / USB HUB HAT (B)

Suitable for Raspberry Pi series

1x RJ45 Ethernet Port | 3x USB 2.0 Ports

Features At A Glance

The ETH/USB HUB HAT (B) is an Ethernet and USB HUB designed for Raspberry Pi, providing 1x RJ45 Ethernet port and 3x USB 2.0 ports. It's pogo pin design is specialized for Zero series, while the onboard normal USB connector can be used to connect with other Raspberry Pi boards through a USB cable.

3x extended USB ports, compatible with USB 2.0 / 1.1
Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation
Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH
USB HUB connector, for connecting with Raspberry Pi 4B/3B+/3A+/2B through USB cable

Compatible With Raspberry Pi Series

Specialized Pogo Pin For Zero Series, Plug-And-Play, Without Preventing Other HATs
Normal USB HUB Connector For Other Raspberry Pi Boards Or PC

Extended Ports

1x RJ45 Ethernet Port, 10/100M Auto-Negotiation
3x USB 2.0 Ports, Compatible With USB 2.0 / 1.1

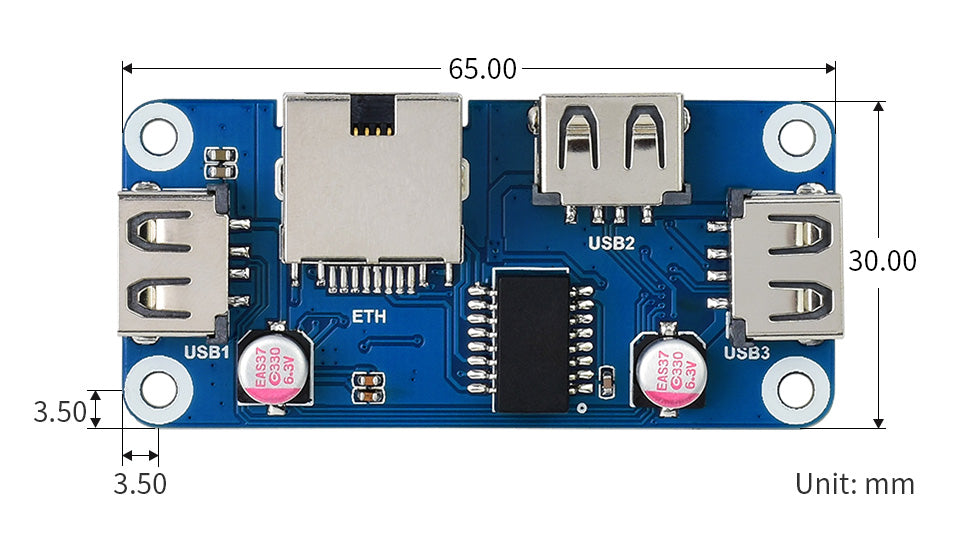

Outline Dimensions

Resources & Services

Wiki: http://www.waveshare.com/wiki/ETH/USB_HUB_HAT_(B)

PACKAGE CONTENT

Weight:0.026 kg

ETH/USB HUB HAT (B) x1
Screws pack x1

1

2

Ethernet / USB HUB BOX For Raspberry Pi Zero Series, 1x RJ45 Ethernet Port, 3x USB 2.0 Ports

Ethernet / USB HUB BOXFor Zero

Dull polish surface, well designed, nice & dust-proof

1x RJ45 Ethernet Port | 3x USB 2.0 Ports

Features At A Glance

The ETH-USB-HUB-BOX is a HUB kit with ETH/USB HUB HAT (B) inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. This HUB BOX will provide RJ45 Ethernet port and more USB capability for your Zero, make it easy to connect the Internet and sorts of USB devices.

Designed for Raspberry Pi Zero, compatible with Zero series boards
3x extended USB ports, compatible with USB 2.0 / 1.1
Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation
Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH
Angle rounded design, smooth hand feeling, "simple snap" case lid
Quality ABS material, dull polish surface, anti-fingerprint
Comes with two different lids, changing as you like

Compatible With Raspberry Pi Series

Specialized Pogo Pin Connection, Dedicated Cut-Outs For Zero Series, Plug-And-Play
