SPECIFICATIONS

【Pi5 POE Recommend】

【Note】

[] Not include Raspberry Pi 5.

【Overview】

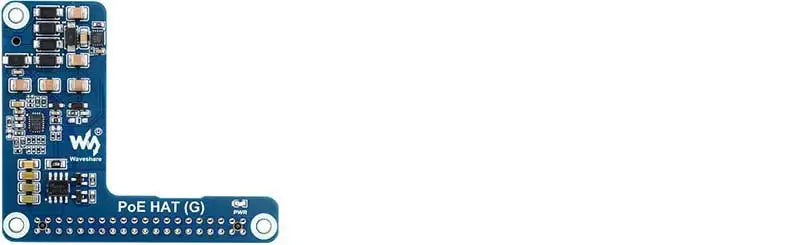

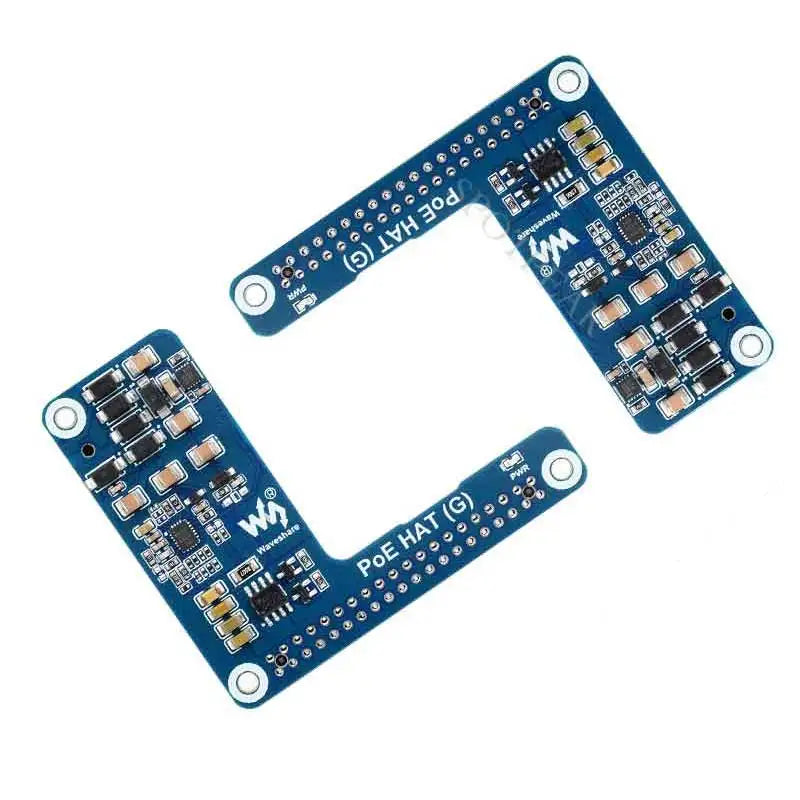

PoE HAT (G) For Raspberry Pi 5

Power Over Ethernet HAT For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard

5V 5A Output, Compatible With Raspberry Pi 5 Official Case

【Features At A Glance】

The PoE HAT (G) is an IEEE 802.3af/at-compliant PoE (Power Over Ethernet) HAT for Raspberry Pi 5.

By using with a PoE router or switch that supports the IEEE 802.3af/at network standard,

it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Standard Raspberry Pi 40PIN GPIO header

PoE capability，IEEE 802.3af/at-compliant

Onboard original IC solution for more stable PoE power performance

Adopts non-isolated switched-mode power supply (SMPS)

Compact and easy to assemble

【For Raspberry Pi 5】

【Power Via A Single Ethernet Cable】
Providing Both Network Connection And Power Supply For The Raspberry Pi 5 In One Cable

* for reference only, the Raspberry Pi 5 and the 120W switch are NOT included.

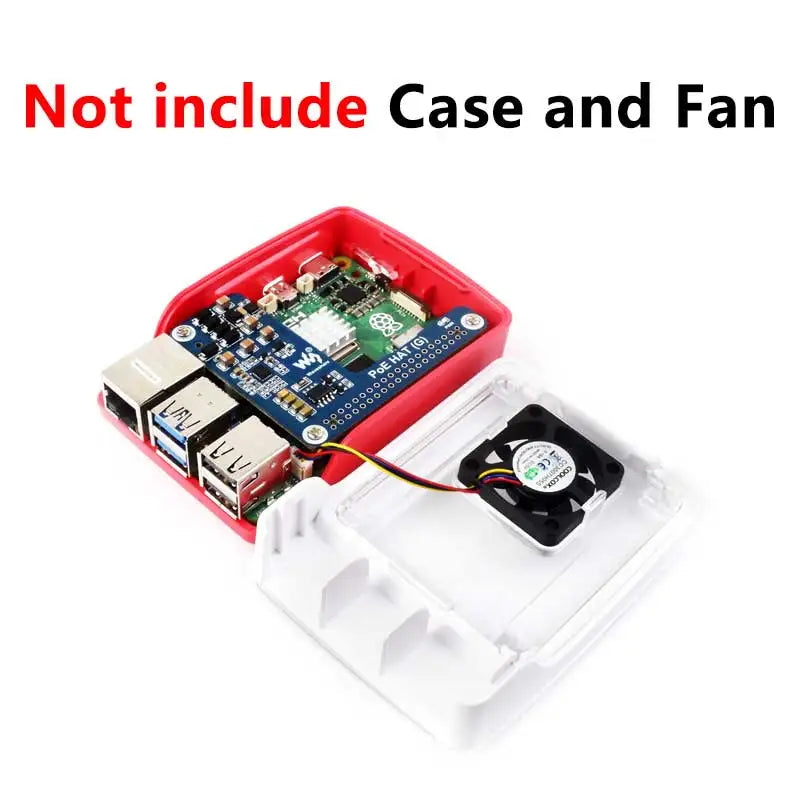

【Compatible With Raspberry Pi 5 Official Case】
Compact Size Design, Can Be Directly Installed Into The Raspberry Pi 5 Case

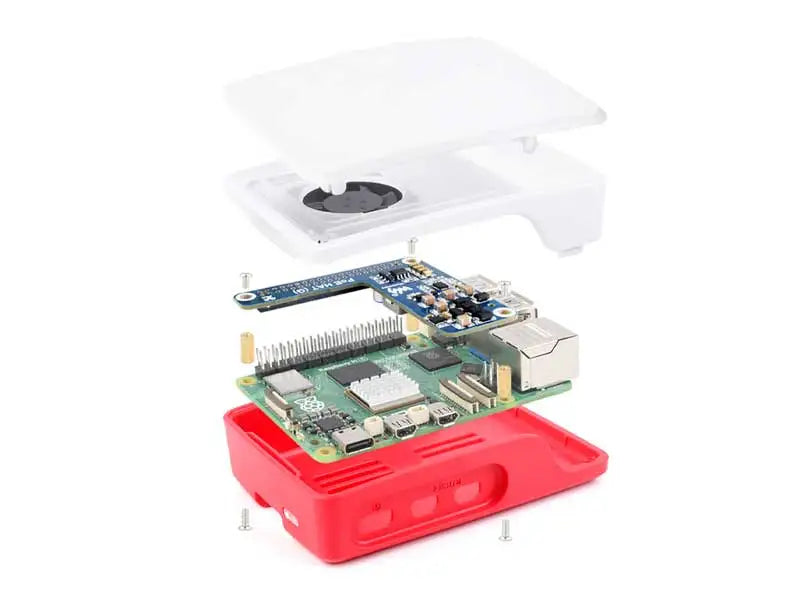

【How To Install】

【Application Example】
With This Product, You Can Use An Ethernet Cable With PoE Function To Power The Raspberry Pi Directly

【Outline Dimensions】

PoE HAT (G) x1

PoE-HAT-G-With-Case_Fan x1
