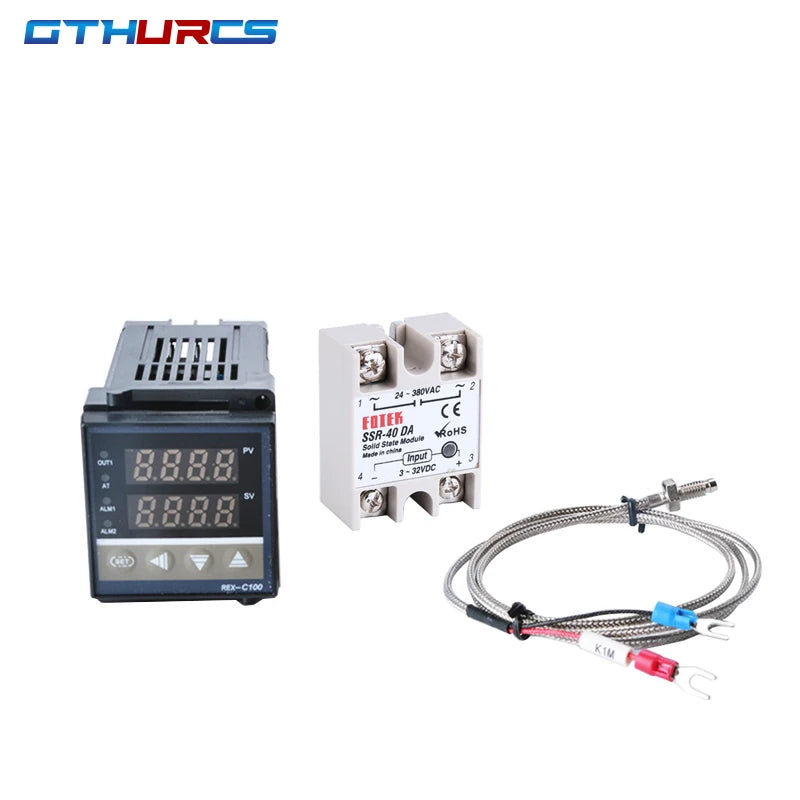

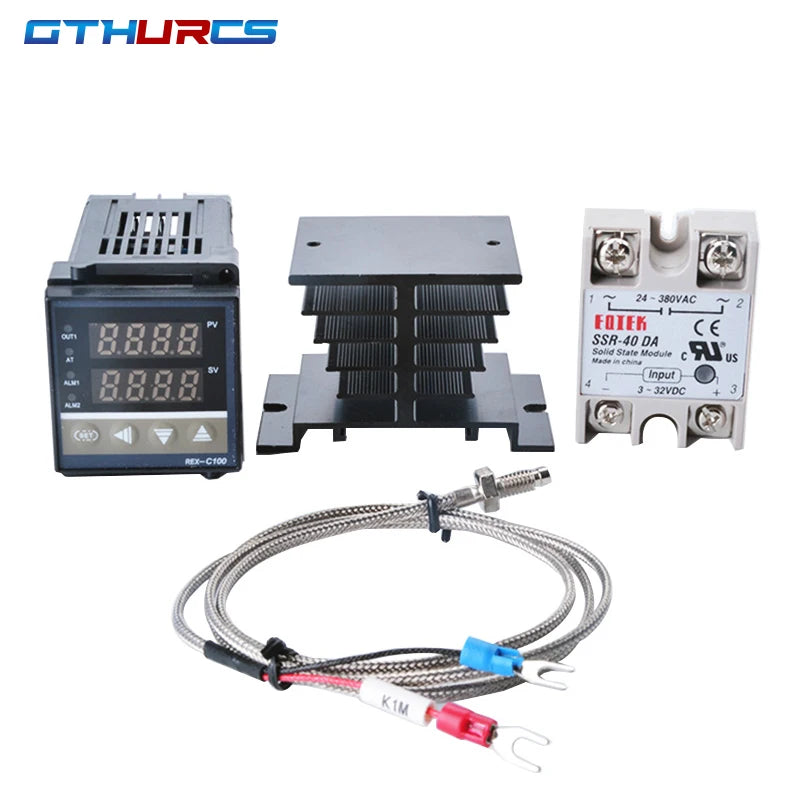

REX-C100 Digital RKC PID Thermostat Temperature Controller digital REX-C100/ 40A SSR Relay/K Thermocouple Probe/heat sink
Without Heat Sink
$102.20
Sale price
$102.20
Regular price
$0.00
Skip to product information
REX-C100 Digital RKC PID Thermostat Temperature Controller digital REX-C100/ 40A SSR Relay/K Thermocouple Probe/heat sink
$102.20
Sale price
$102.20
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: GTHURCS
Certification: CE
Choice: yes
High-concerned chemical: none
Is Smart Device: Yes
Model Number: REX C100
Origin: Mainland China
Theory: Temperature Controller
Use: Industrial
semi_Choice: yes
1.Parameter
Product Main Specifications:

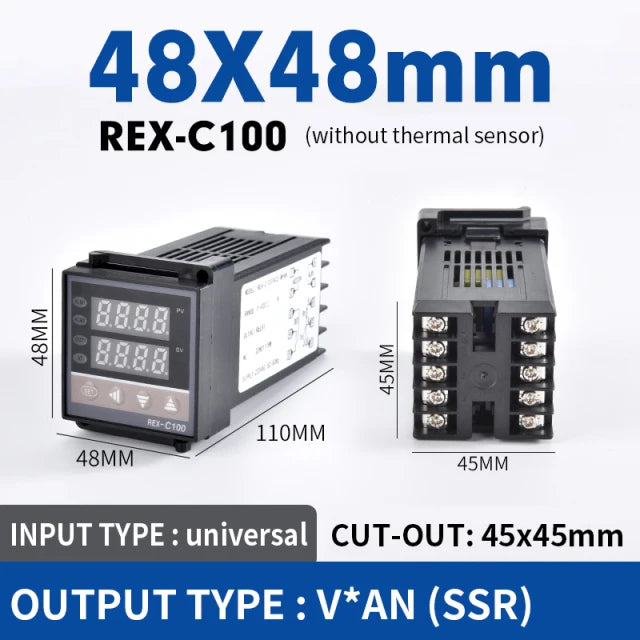

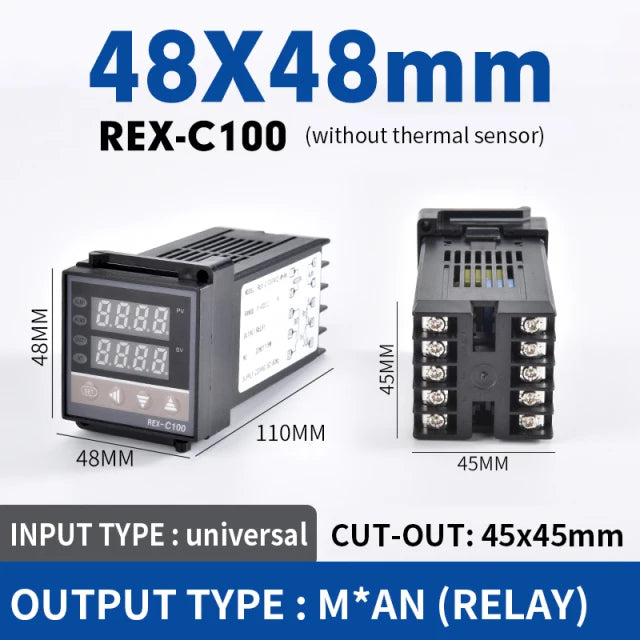

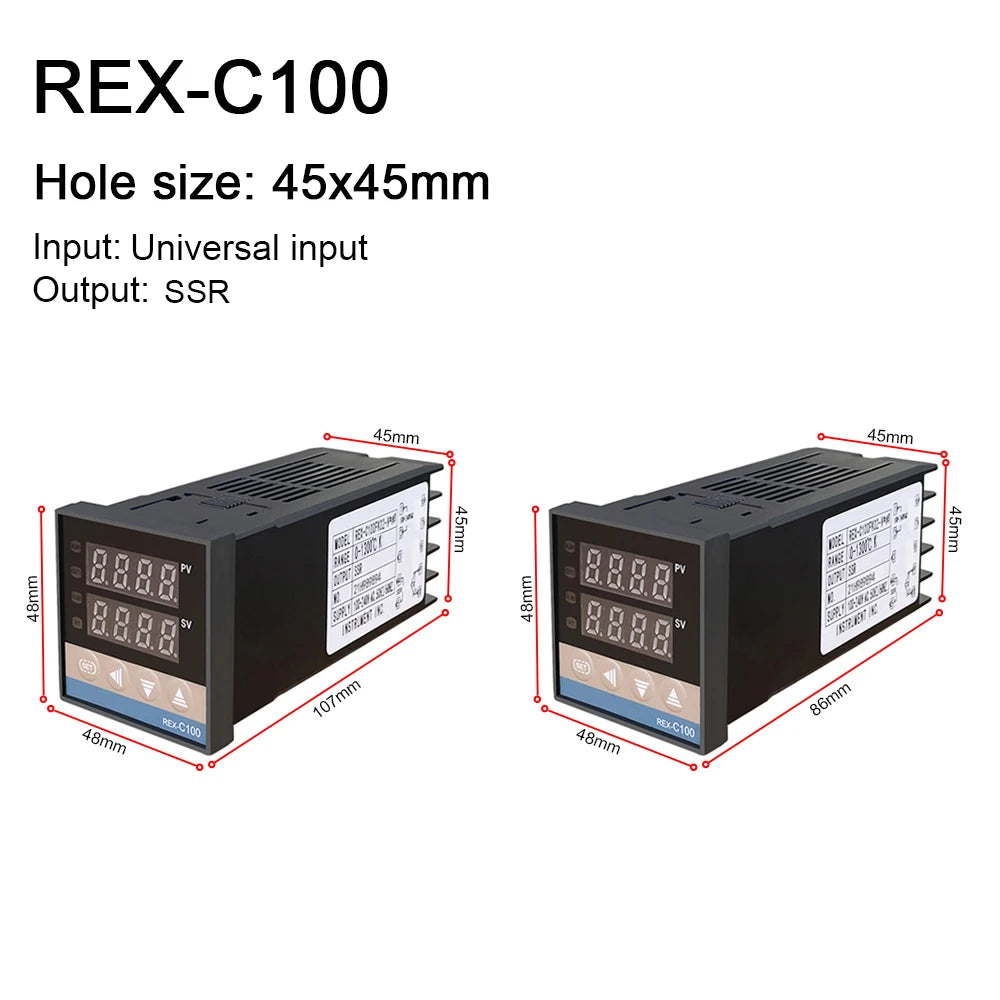

Model number |
External dimensions |
Perforation dimensions |
Output type |
Input type |
||
REX-C100 |
48x48 |
45 0.50x45 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple |
||
REX-C400 |
48x96 |
45 0.50x92 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple |
||
REX-C410 |
|
|||||
REX-C700 |
72x72 |
68 0.50x68 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple |
||
REX-C900 |
96x96 |
92 0.50x92 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple |
||
Model number |
REX-C series |
Accuracy |
±0.5% of full scale |
Supply voltage |
100-240Vac, 50/60 Hz |
Input types-Thermocouple |
K |
Voltage |
0-5V, 1-5V |
Current |
0-20mA, 4-20mA |
Output types |
Electromagnetic relay, SSR, current, SCR |
Power consumption |
Less than 5 VA |
Control method |
PID Control (with auto-tuning) or Self-tuning, or ON/OFF |
Setting method |
Touch switch |

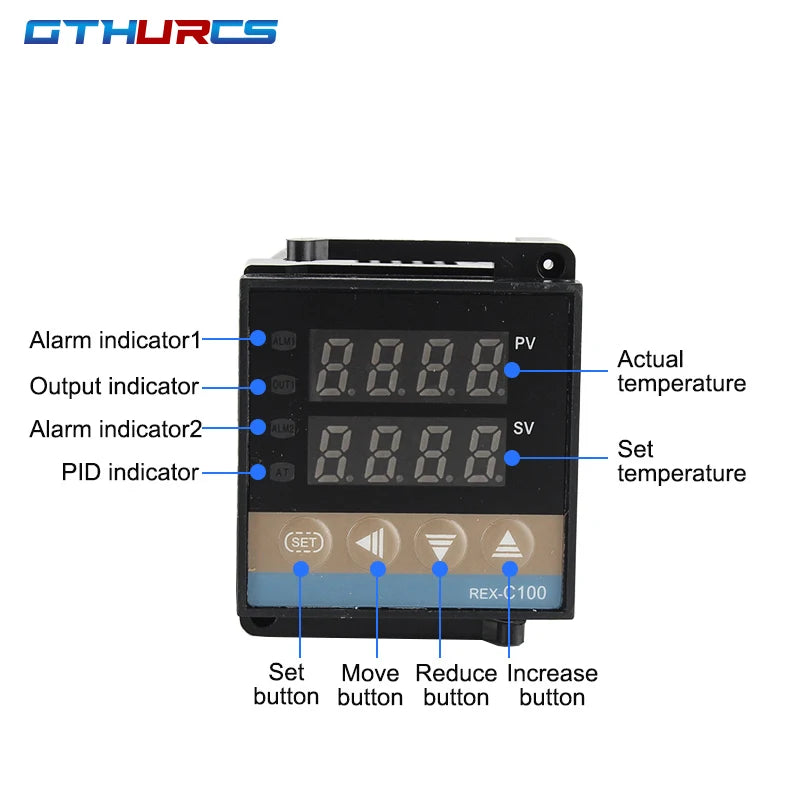

Indication method |
8-segment 4-digital display and LED indication |
Alarms |
Deviation High, Low, High/Low, Band,Process High, Low Set value High, Low |
Sampling period |
0.5s |
Electromagnetic compatibility |
IEC61000-4-4 (Electrical fast transient burst), 4KV/5KHz; IEC61000-4-5 (Surge), 4kv |
Isolation voltage |
>=2300v among the terminal of power, relay contact and signal; >=600v between two isolated weak signal terminal |
Operating temperature |
0 to 50 ℃ (32 to 122 ℉) |
Operating humidity |
30-85% RH max, non-condensing |
Alias name |
REX-C pid temperature controller, intelligent temperature controller |
