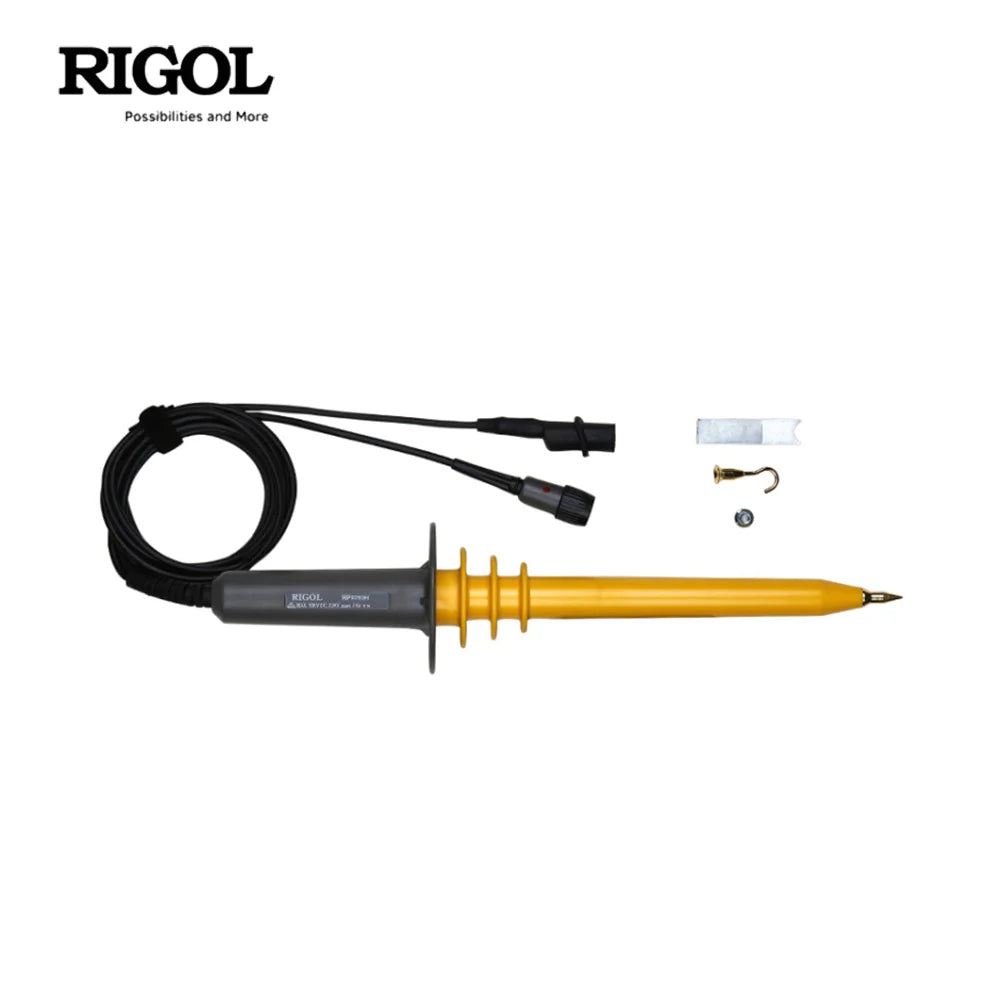

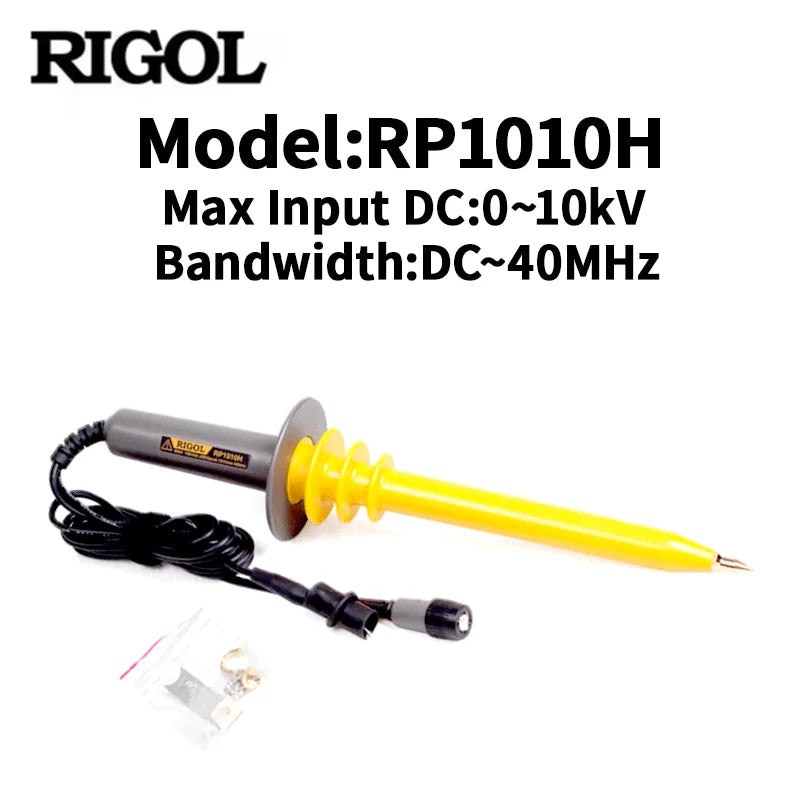

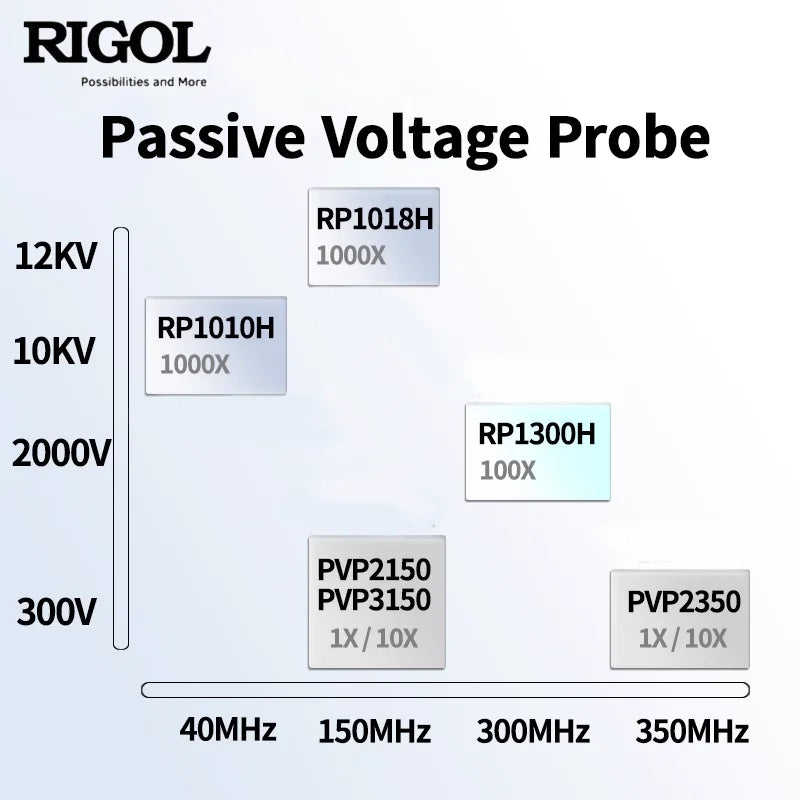

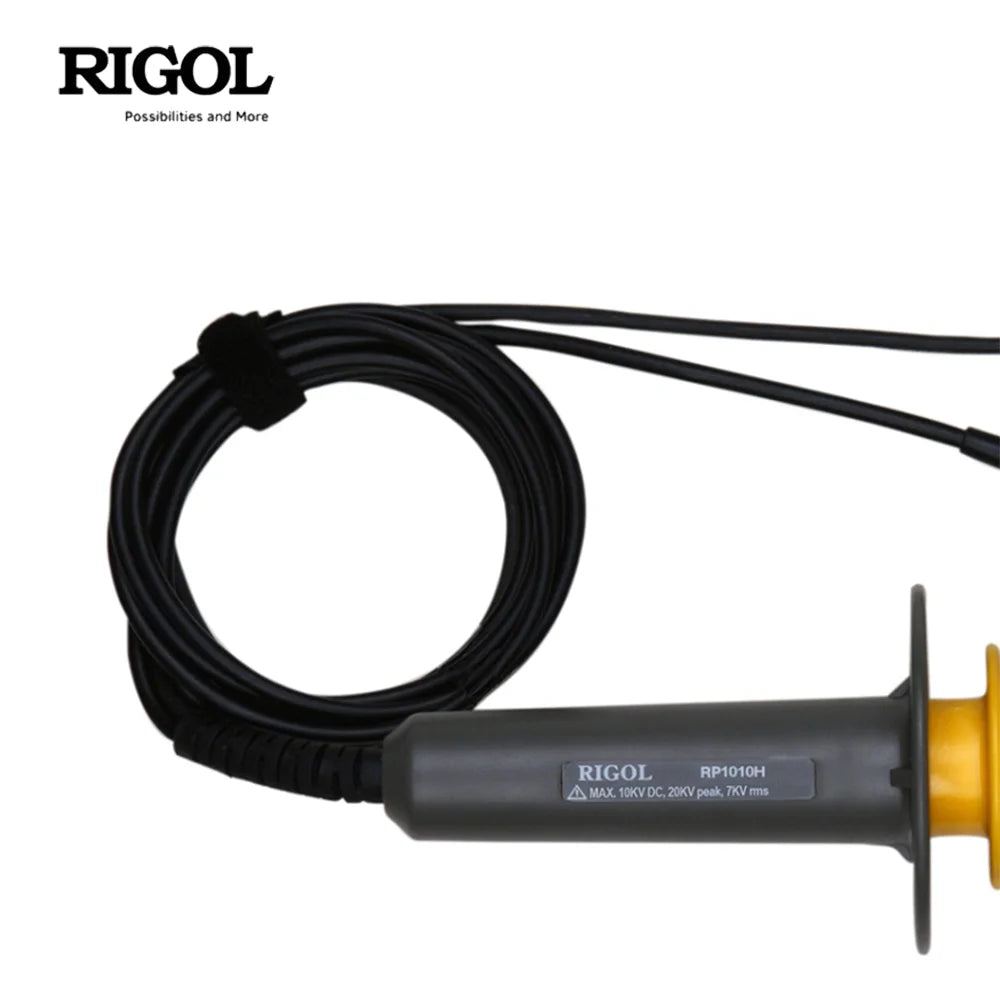

RIGOL RP1010H High-Voltage Oscilloscope Probe | 10kV Max Voltage & 1000:1 Attenuation | 40MHz Bandwidth with Universal BNC

For your safety and to prevent the product from being damaged, please read the product manual or product detail page carefully before use

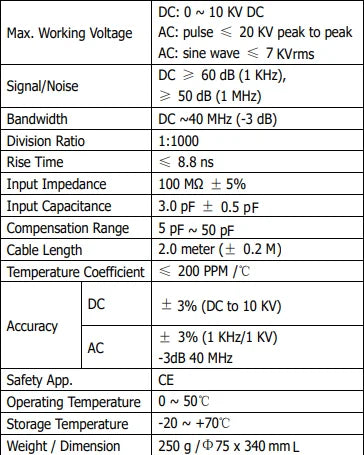

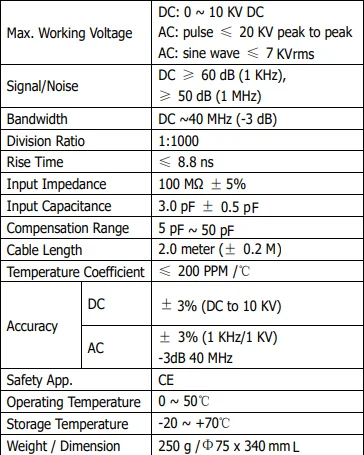

Probe Pamameter

Safety Precautions

1. This high voltage probe must only be operated by personnel who are trained, experienced, or otherwise qualified to recognize hazardous situations and who trained the safety precautions that necessary to avoid possible injuries when using such a device.

2. Do not work alone under the high voltage circuits.

3. For your own safety, inspect the probe for cracks and frayed or broken leads before each use. If defects are noted, DO NOT USE the probe.

4. Hands, shoes, floor and work bench must be dry. Do not make any measurement under humid, damp or other situations that might affect the measurement safety.

5. If possible, do always turn off the high voltage source before you connect or disconnect the probe.

6. The probe body should be kept clean and free of any conductive contamination.

Warning

1. Do not attempt to take measurements from sources when the chassis or return lead is not ground.

2. This ground connection is critical to the safety operation of the probe. Failure to make this connection may result in personal injuries or damages to the probe or voltmeter. This connection must be made before the probe tip comes into contact with the high voltage and must not be removed until after the probe tip has been removed.

3. Do not connect the ground clip to the high voltage source or the probe tip to the ground for any reason.

4. BEFORE turning the high voltage on, make sure that no part of your body is in contact with the device.

5. Remembering that the voltage being measured is 1000 times greater than the voltmeter reading.

6. When the measuring voltage are DC 8 to 10 KV, or AC rms 5 to 7 KV or AC peak 15 to 20 KV, do not exceed 60 sec on each measurement. You can break off for 5 minutes at least during the measurement. Otherwise overheating will affect the measurement accuracy even damage the probe. Disconnect the probe tip from the high voltage source BEFORE removing the ground clip lead.

Cleaning

1. Clean only the exterior probe body and cables. Use a soft cotton cloth lightly moistened with a mild solution of detergent and water. Do not submerge any portion of the probe at any time.

2. Dry the probe thoroughly before any voltage measurement.

3. Make sure the probe is free from any solvents or solvent fumes as these can case deterioration to the probe body and cables.

Operation

1. Connect the divider probe common lead (alligator clip) to a good earth ground or reliable ground.

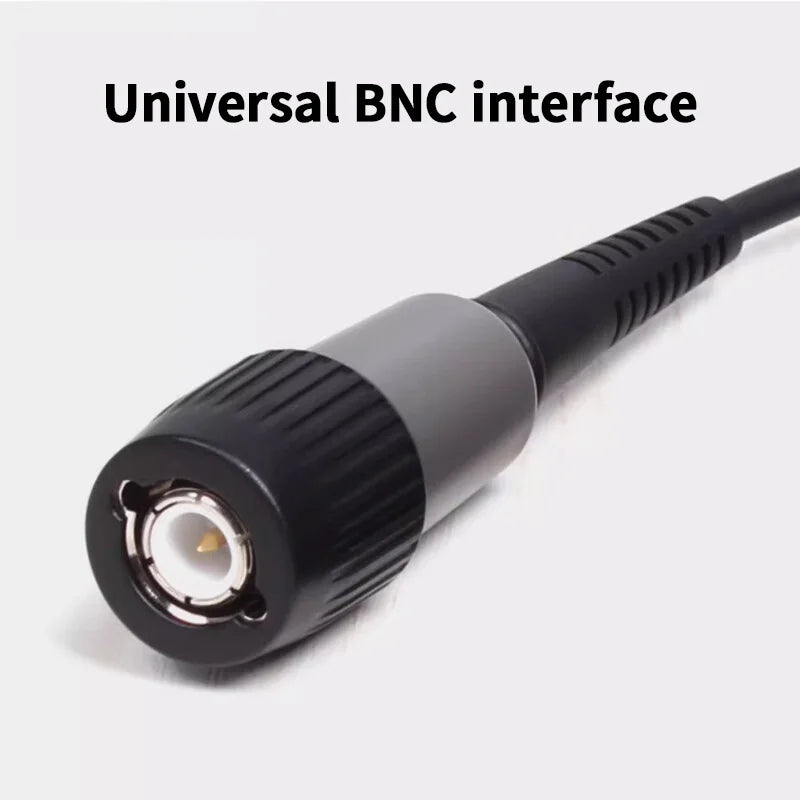

2. Connect the BNC connector to the BNC input of your oscilloscope.


3. Select a desired range for your oscilloscope. Whenever possible, turn the high voltage source off before making any connections.
