SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Model Number: 26122

Origin: De(origin)

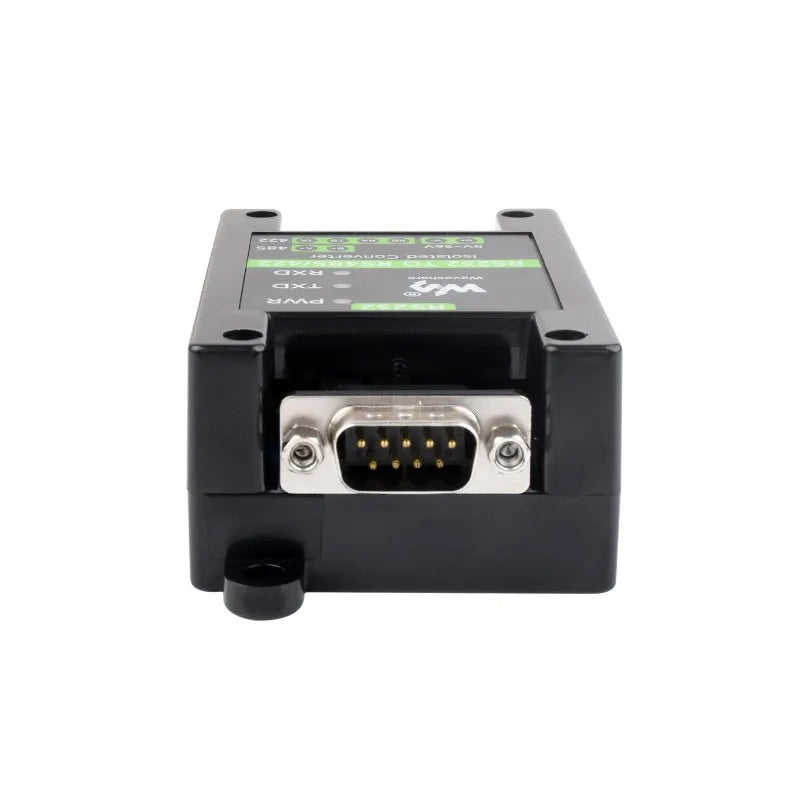

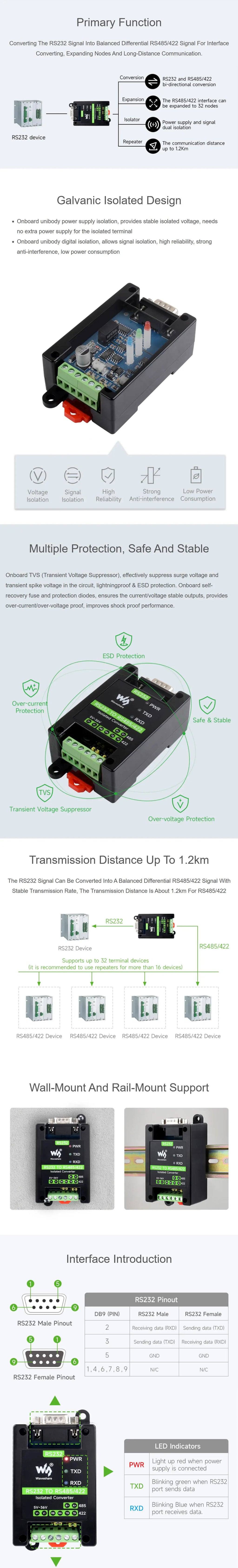

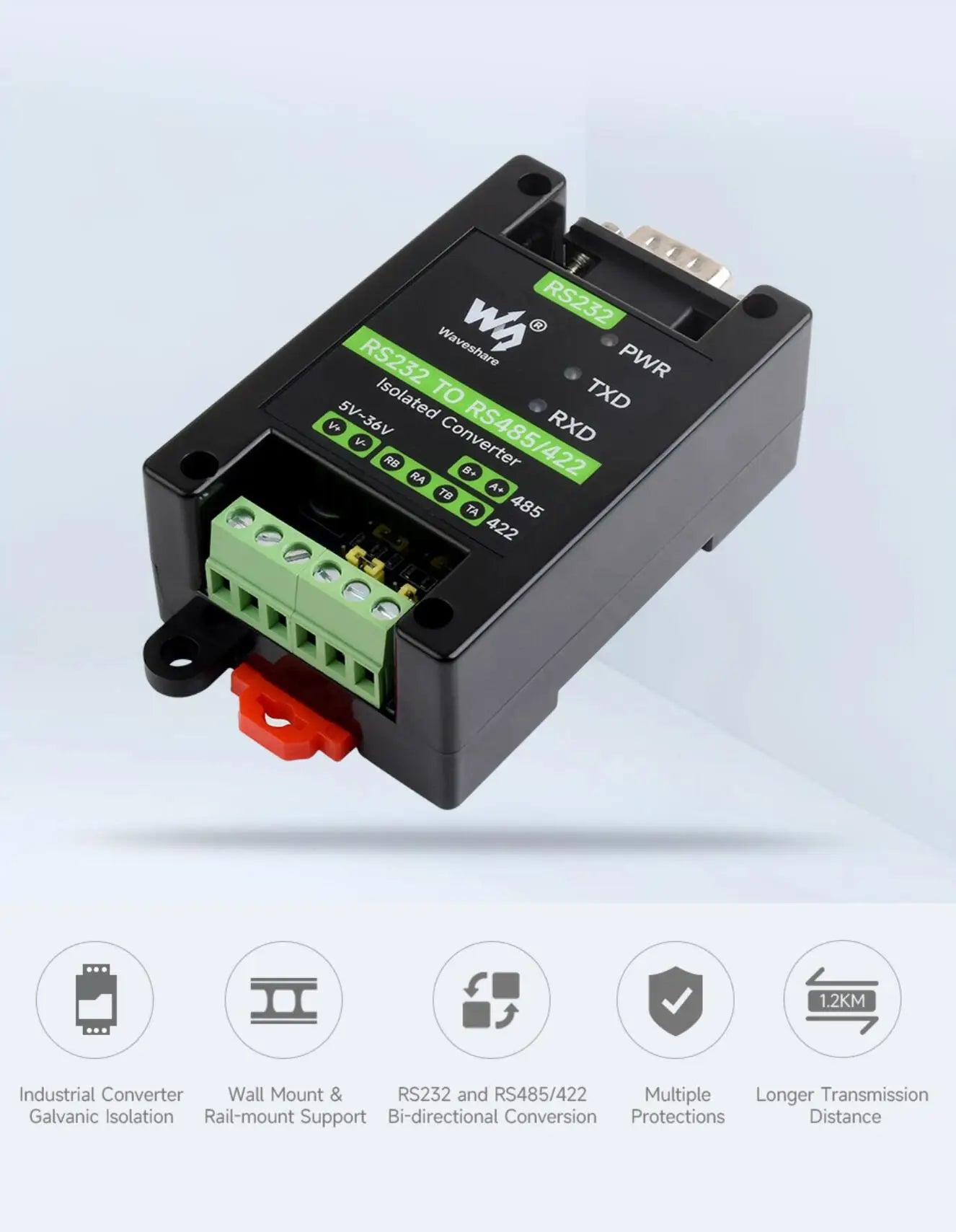

RS232 To RS485/422
Active Digital Isolated Serial Converter

Adopts SP3232EEN and SP485EEN chips solution, provides stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

• Onboard SP3232EEN and SP485EEN chips. Fast communication, stable and reliable, better compatibility

• Stable transmission at the rate of 300~921600bps

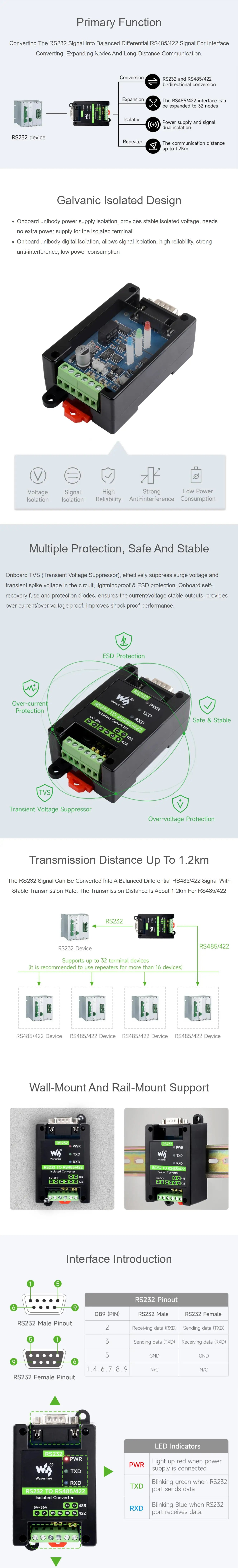

• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic

• Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance

• Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection

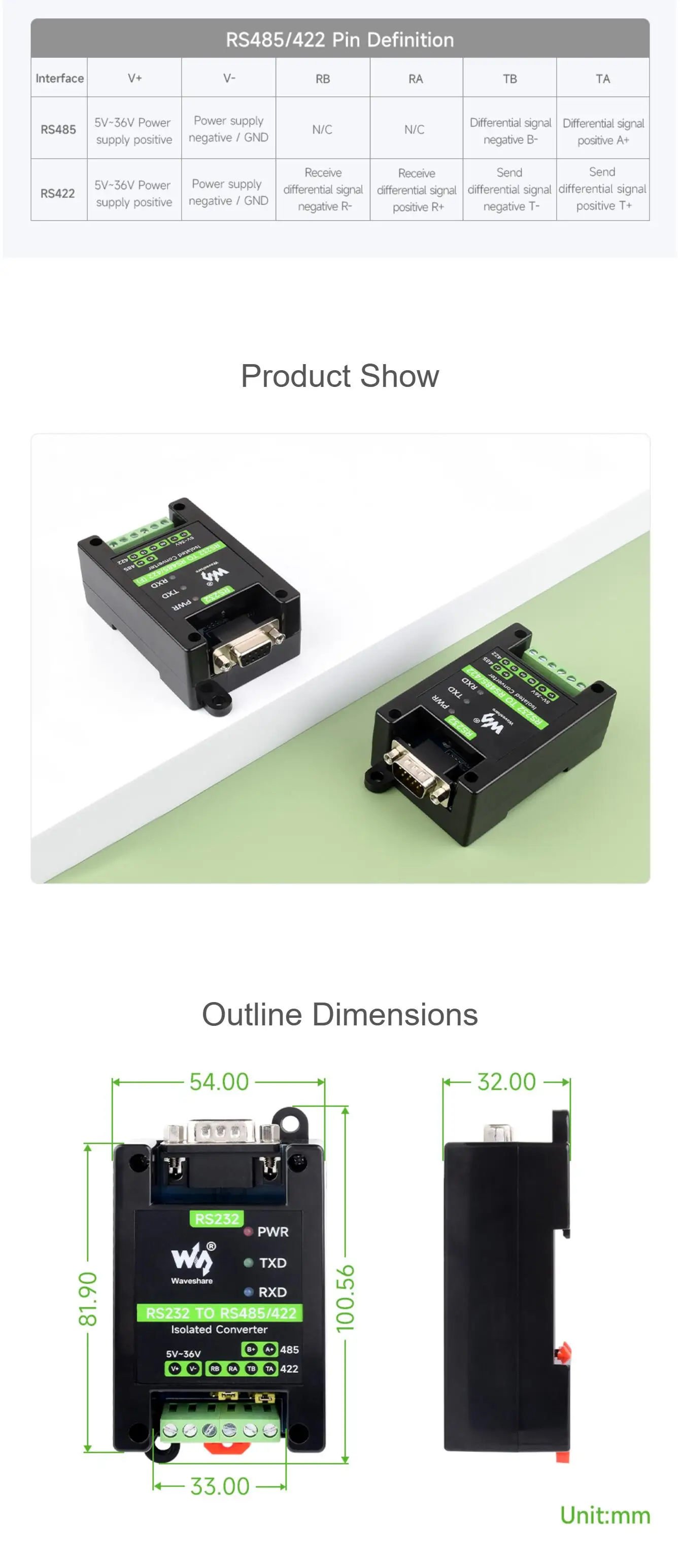

• Onboard 120R terminal resistor on the RS485/RS422 interface, disable by default, configurable by jumper

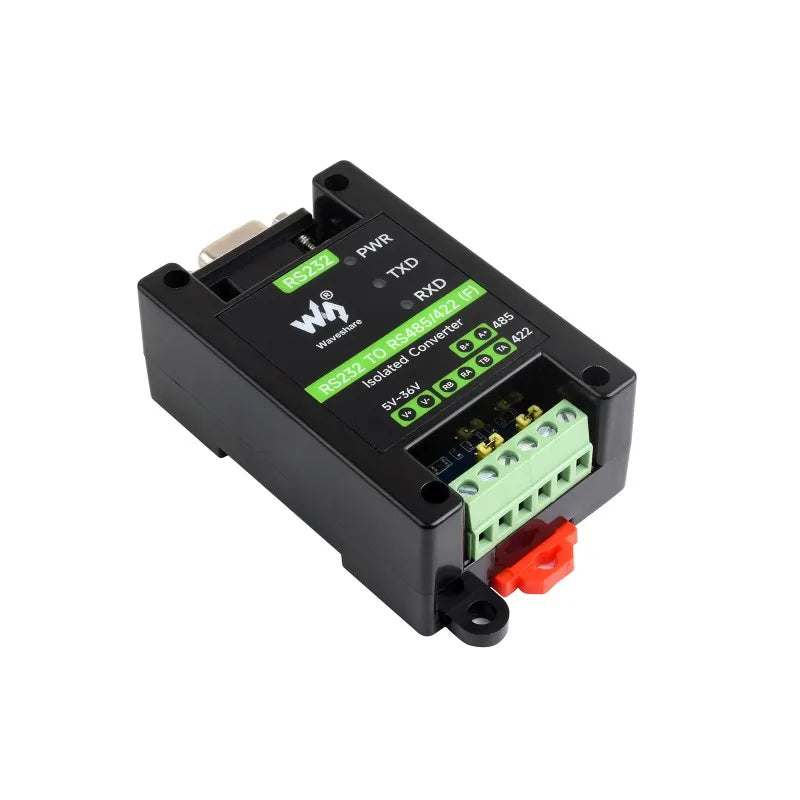

• Onboard power supply screw terminal, allows 5V~36V DC wide range input

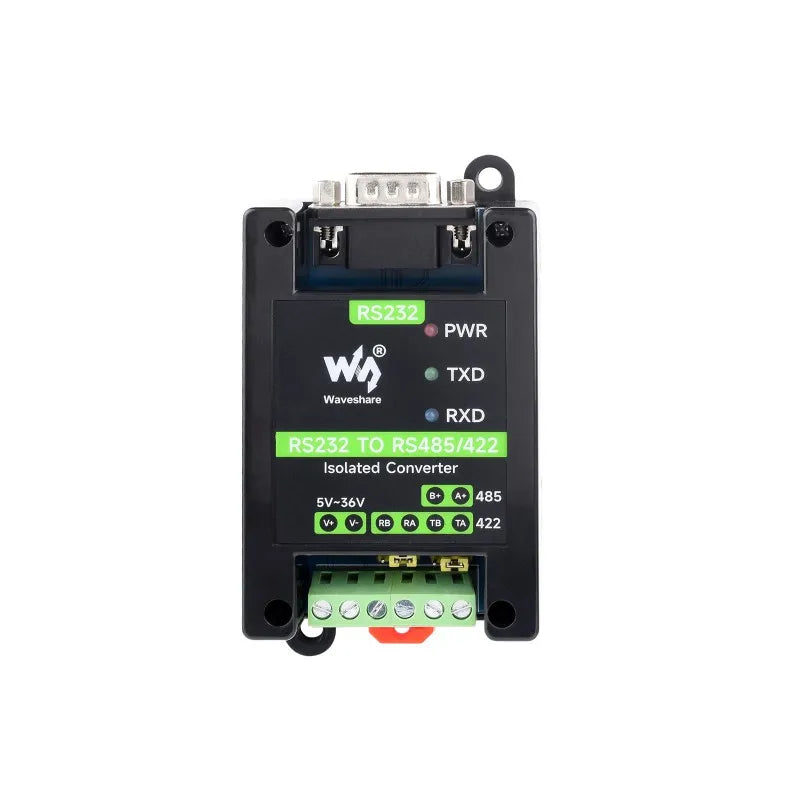

• 3 LEDs for indicating the power and transceiver status

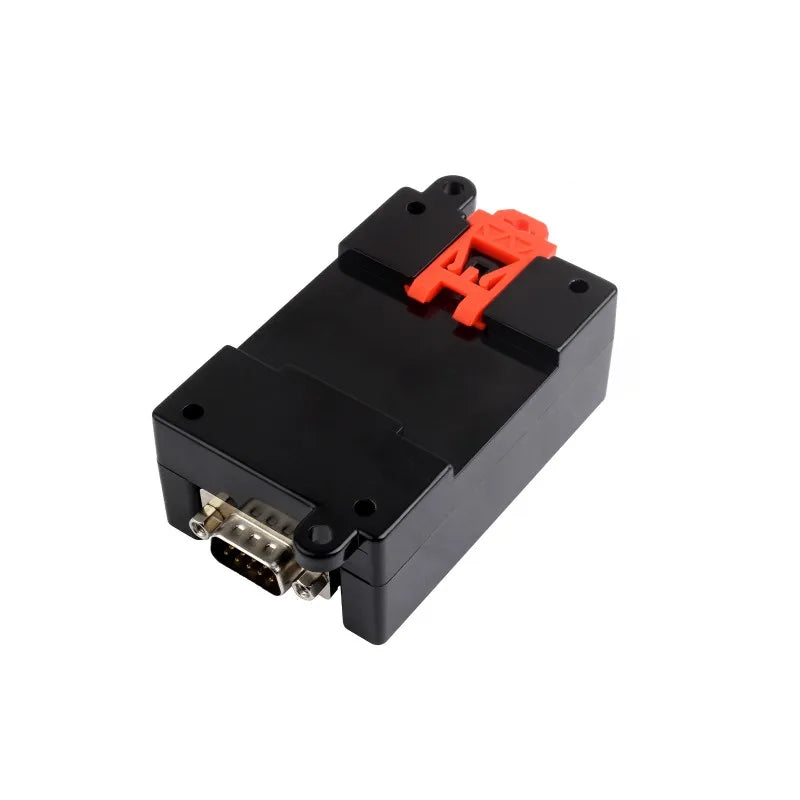

• Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
