SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE,RoHS

Detection Angle: 360

Detection Range: 4

High-concerned chemical: none

Model Number: SCD40 SCD41

Origin: Mainland China

Product introduction

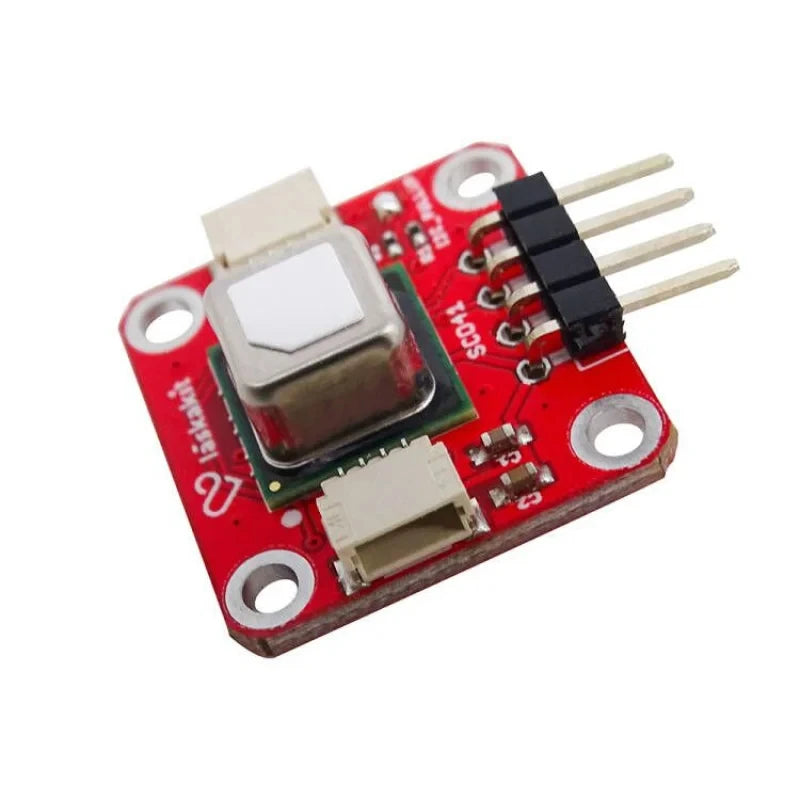

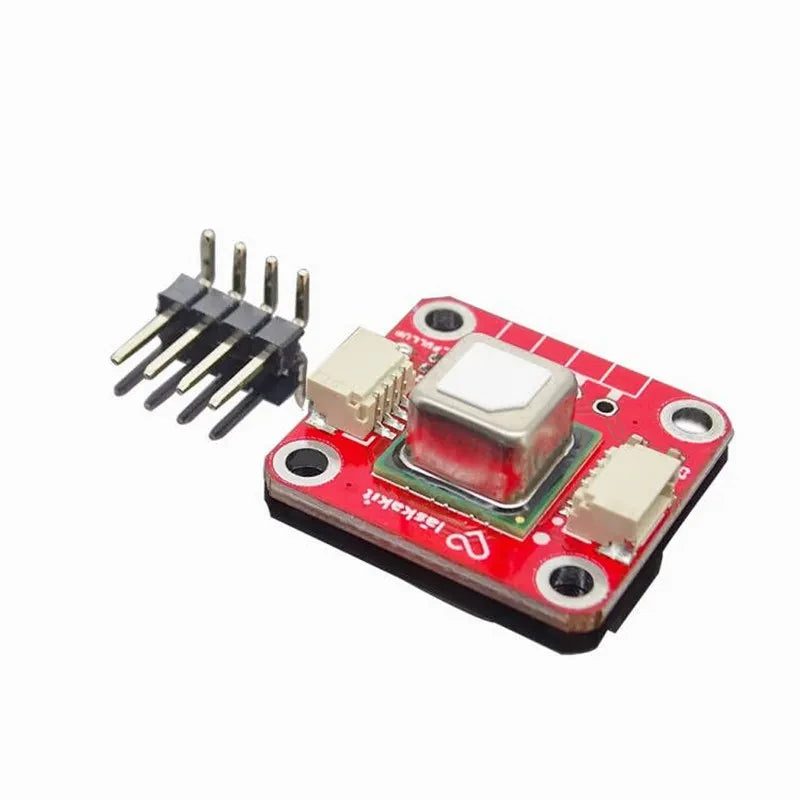

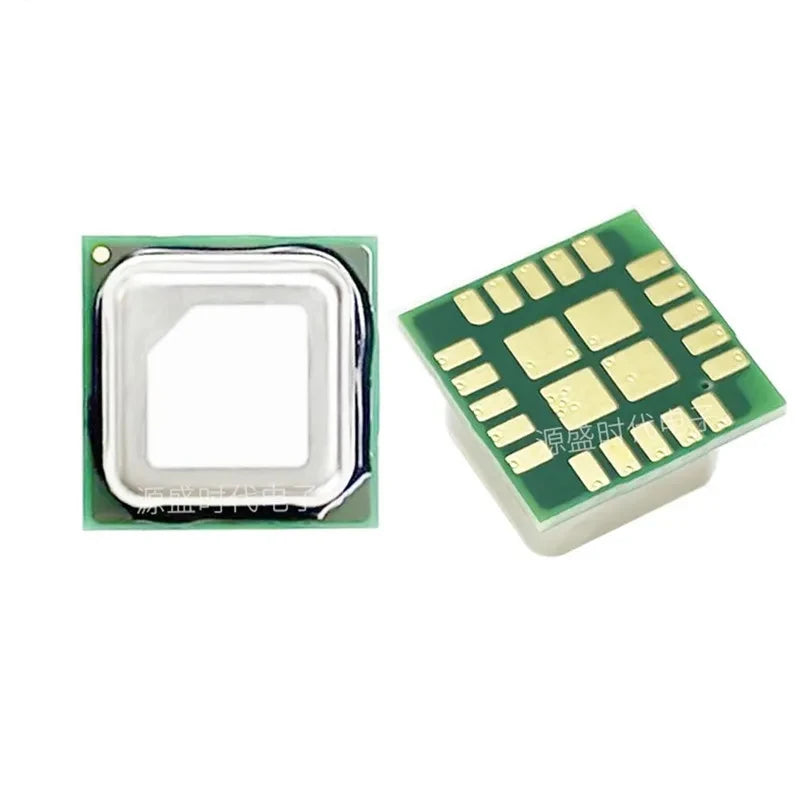

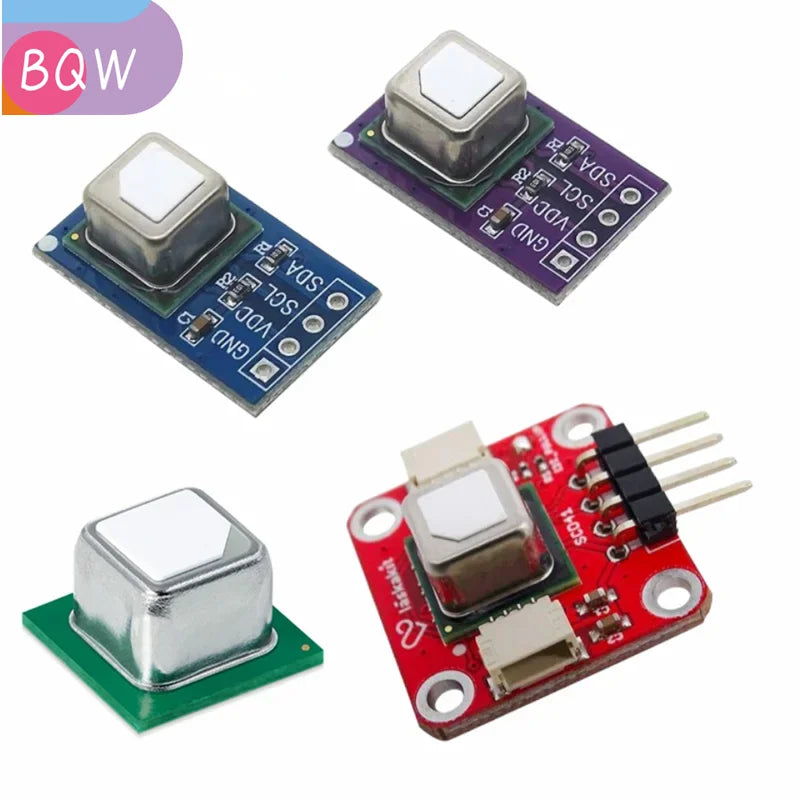

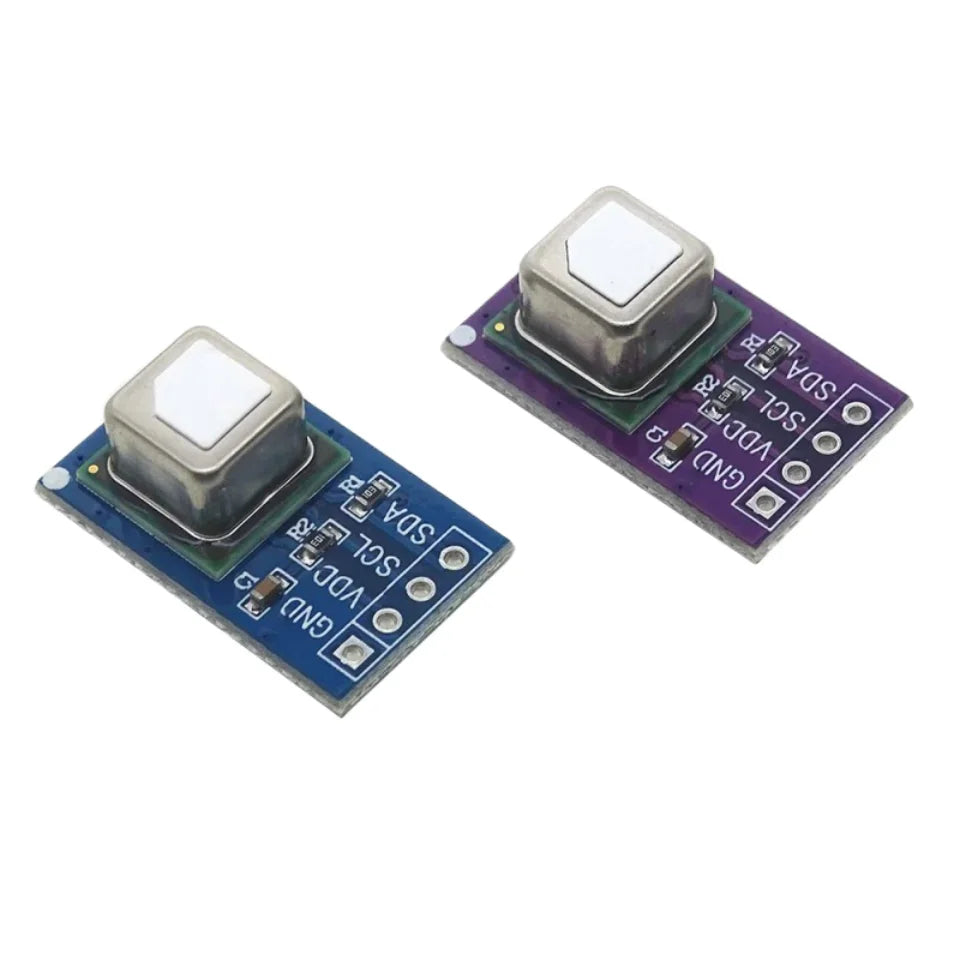

Carbon dioxide is a key indicator of indoor air quality that impairs human cognitive ability and happiness. SCD40/SCD41 is Sensirion's next generation micro carbon dioxide sensor, which has high precision and cost-effectiveness. The module uses 2.54mm spacing pin interfaces to lead out power and communication pins. On chip temperature and humidity compensation is achieved through built-in temperature and humidity sensors for humidity and temperature measurement. SCD40/SCD41 can achieve intelligent adjustment of indoor ventilation systems based on carbon dioxide concentration, and indoor air quality helps to maintain a healthy and efficient environment under low carbon dioxide concentration for a period of time.

feature

Reference accuracy, specified range,

SCD40:400-2000 ppm

SCD41: 400-5000 ppm

Power supply voltage range: 2.4-5.5 V

High precision: ± (40 ppm+5%)

Digital I2C interface

Integrated temperature and humidity sensors

Low power operation to<0.4 mA average @ 5 V, 1 measure/ 5 minutes

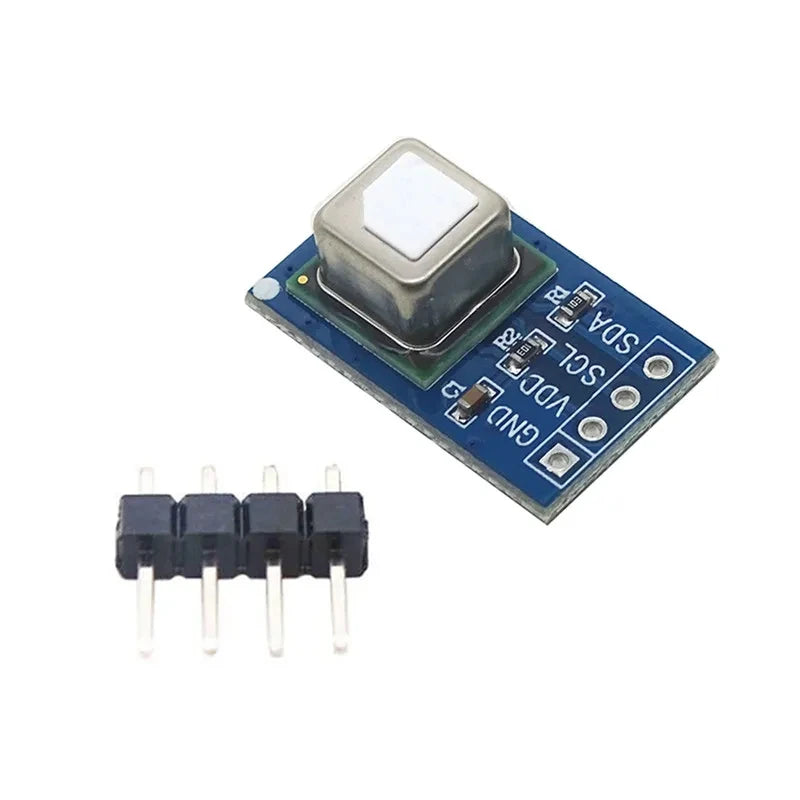

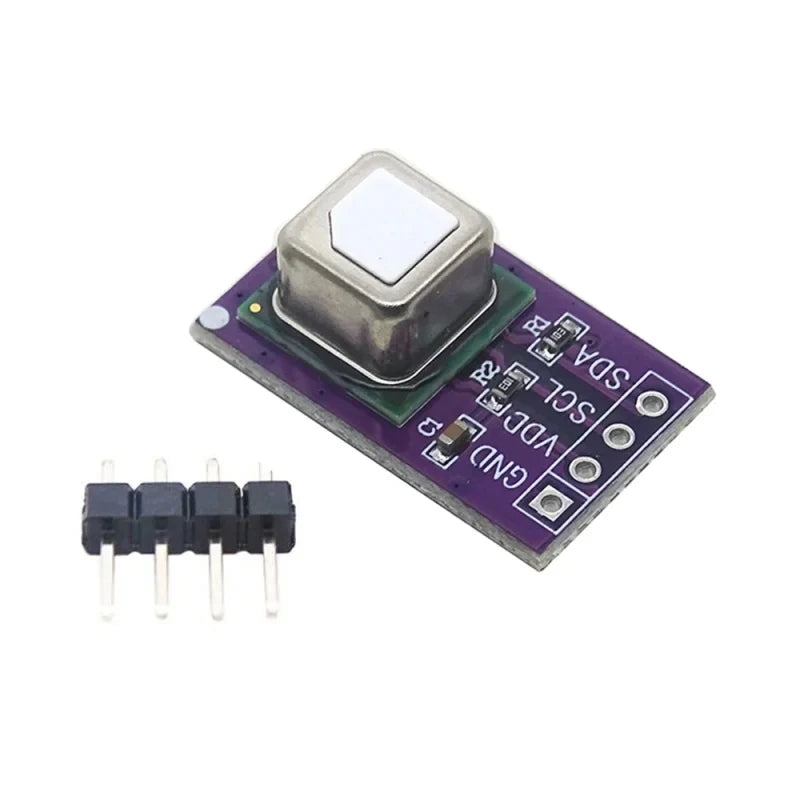

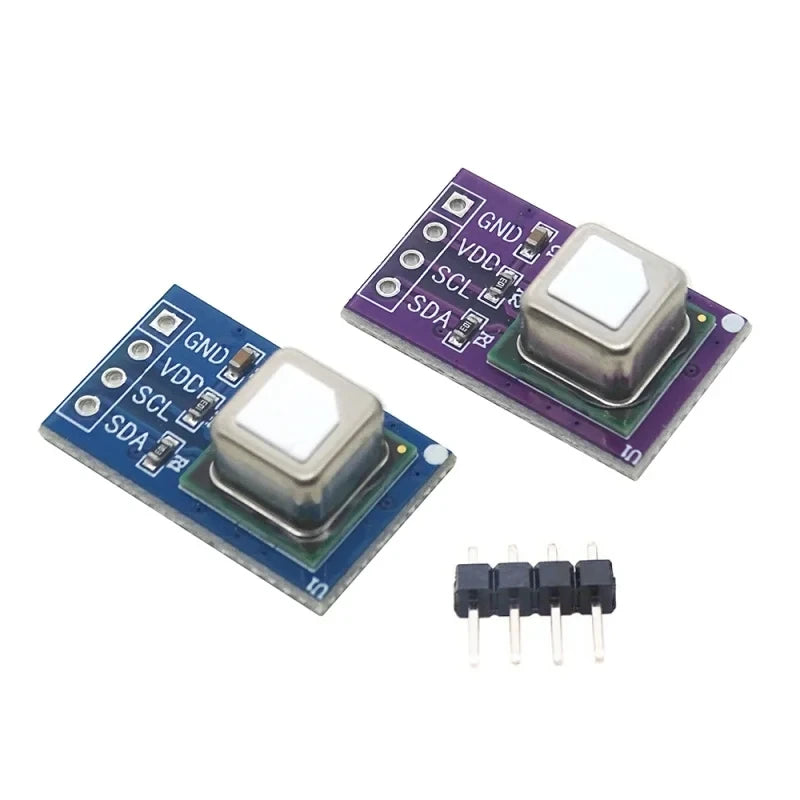

Interface definition:

1. GND: Power negative input port

2. VDD: Power positive input port
