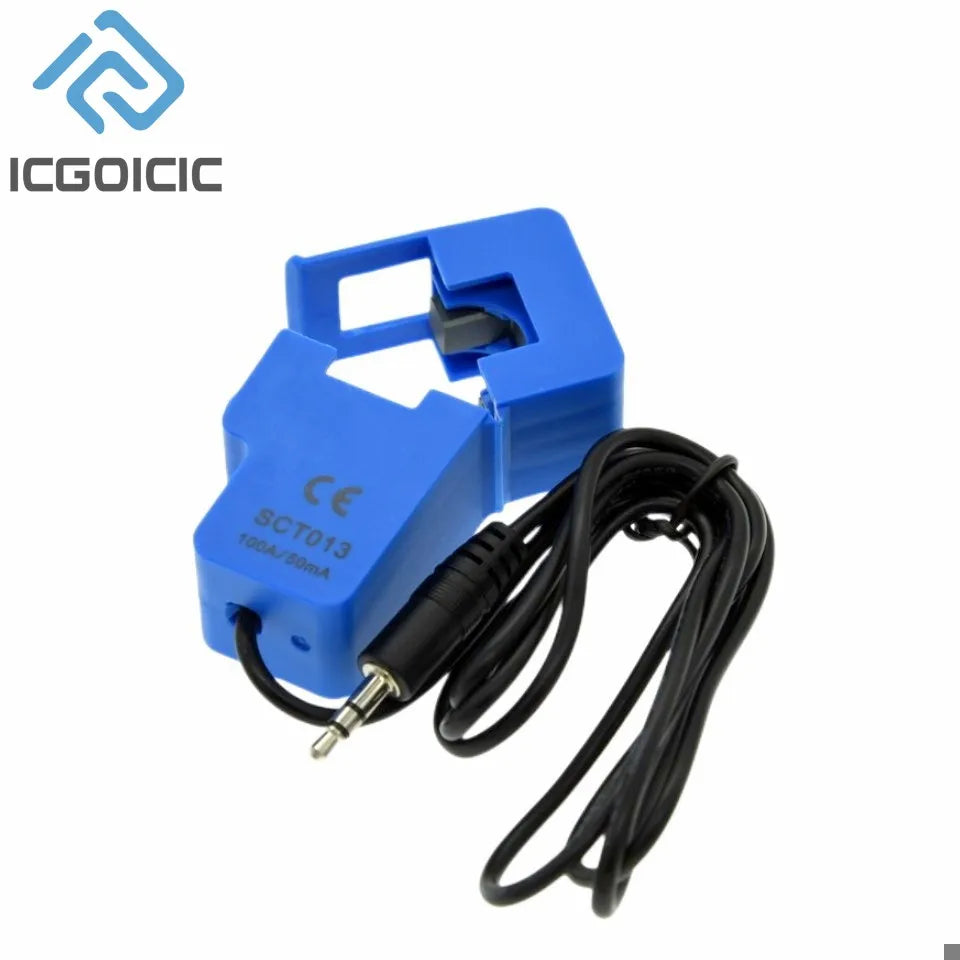

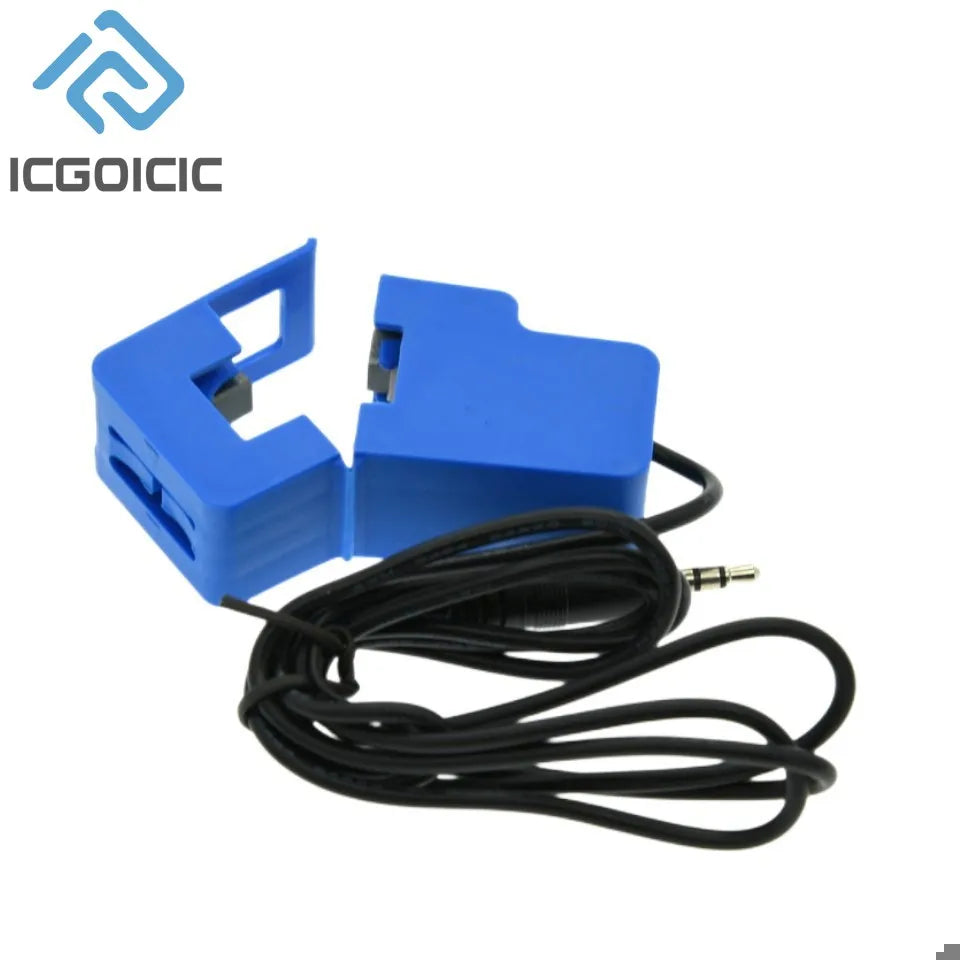

SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer

SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer

5A 1V
$32.09
$32.09 $0.00
Skip to product information
SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
  • SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
  • SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
  • SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
  • SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
  • SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
  • SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
  • SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
  • SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
  • SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
SCT-013-000 30A 50A 100A Open-Close Current Transformer SCT013 Non-invasive AC Current Sensor Split Core Current Transformer
$32.09
$32.09 $0.00
Color
Description

SPECIFICATIONS

Brand Name: ICGOICIC

Choice: yes

High-concerned chemical: none

Material: Metal

Model Number: SCT-013-000

Origin: Mainland China

Output: Switching Transducer

Theory: Current Sensor

Type: vibration sensor

Use: MAGNETIC SENSOR

is_customized: Yes

Model : SCT013

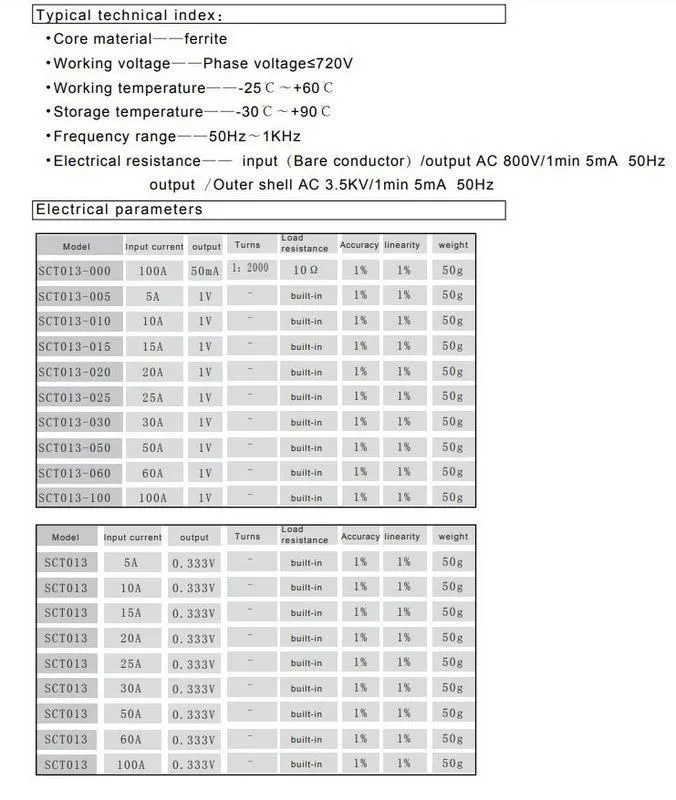

Frequency : 50HZ-150KHZ

Retractable transformer SCT-013 Rated Input Current : 100A Model : SCT-013 Rated Input Current : 60A / 100A

Features :

Opening size:

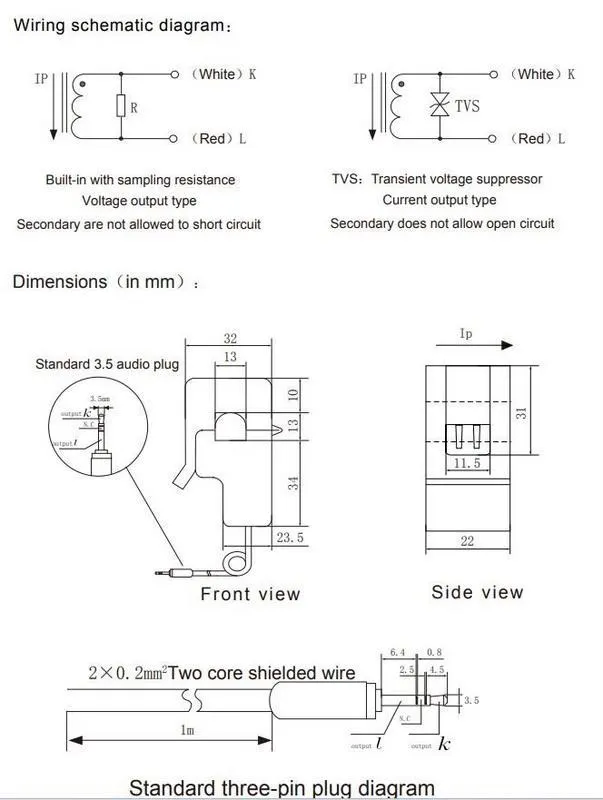

13mm × 13mm, is fully compatible with similar foreign products ; non-linearity of ± 3% (10% ~ 120% of rated input current ) ; lead length 1.5 m , the standard three-pin plug Φ3.5 output ; current, voltage, two output forms ( built- shaped output voltage sampling resistor ) .

Uses:

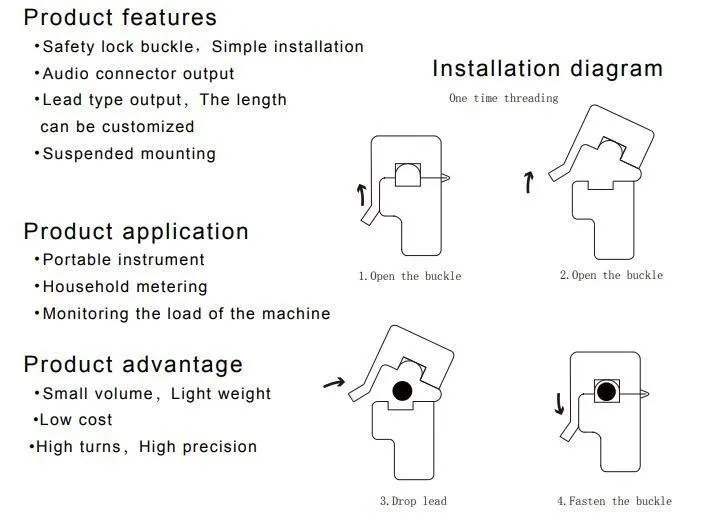

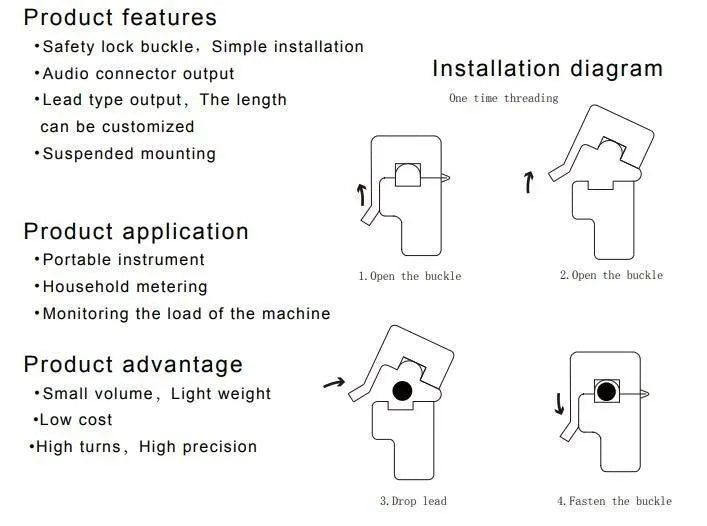

Current measurement for AC motors, lighting equipment , air compressor , monitoring and protection. Core material : ferrite mechanical strength : opening and closing times of not less than 1000 times (20 °c test )

Safety indicators : Dielectric strength ( between housing and output ) 6000V AC / 1min retardant characteristics meet UL94-V0

Operating temperature : -25 ° C~ + 70 °C
