SPECIFICATIONS

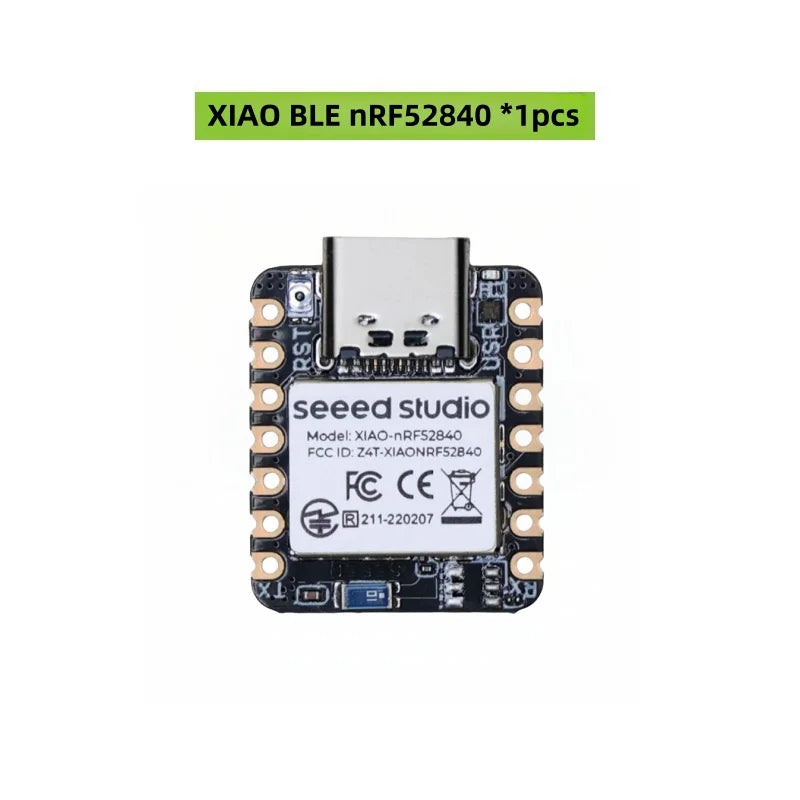

Seeed Studio XIAO nRF52840 by Nordic is carrying wireless capability for the first time and it supports Bluetooth Low Energy 5.4, also able to operate with low power consumption. It will be your best microcontroller for Bluetooth applications.

Features:

🌱 Versatile Microcontroller

      Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython.

🌱 Wireless Capabilities

      Implement Bluetooth 5.0, BLE functions with onboard antenna, also provide NFC connectivity

      Elaborate Power Design: Provide ultra-low power consumption as 5 μA in deep sleep mode while supporting lithium battery charge management.

🌱 Thumb-sized Compact Design

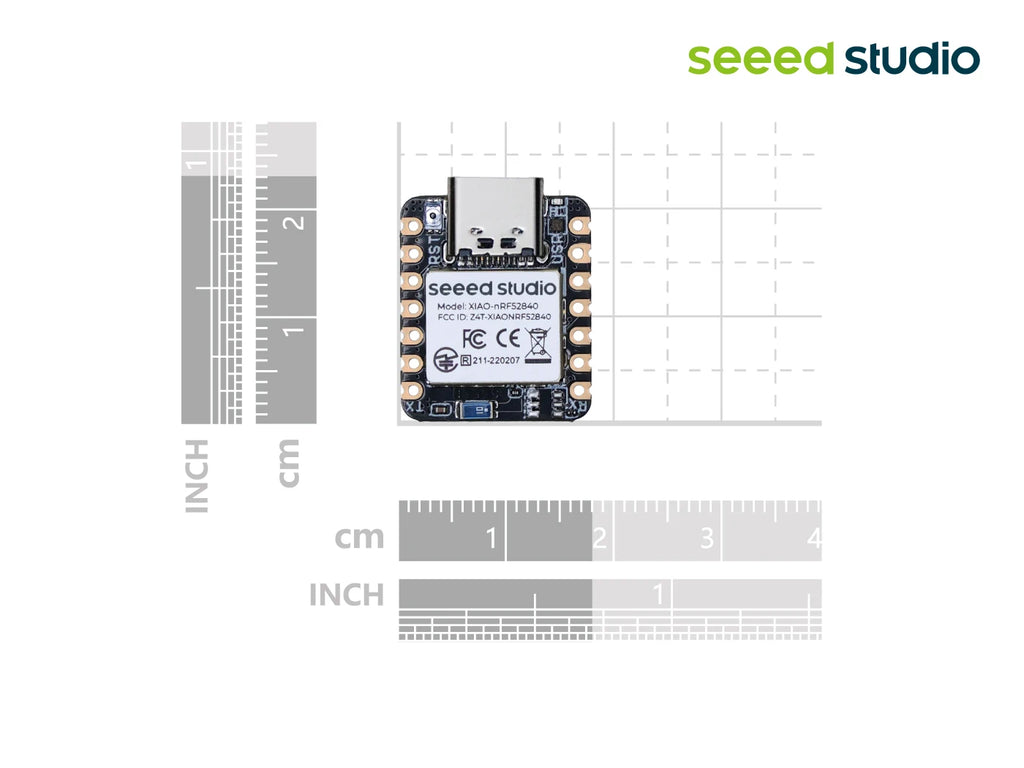

      21 x 17.5mm, adopting the classic form factor of XIAO, suitable for space limited projects like wearable devices.

🌱 Perfect for Production

      Breadboard-friendly & SMD design, no components on the back.

Product Description:

Seeed Studio XIAO nRF52840 has an ultra-low power consumption of only 5 μA in the deep sleep mode, the embedded BQ25101 chip supports battery charge management which prolongs its use time. Moreover, Seeed Studio XIAO nRF52840 supports the USB Type-C interface which can supply power and download code. It also has rich On-chip Memory of 1 MB flash and 256 kB RAM, and an Onboard Memory of 2 MB QSPI flash. There are 11 digital i/o that can be used as PWM pins and 6 analog i/o that can be used as ADC pins.

It supports UART, IIC, and SPI all three common serial ports. 1 Reset button, 1 3-in-one LED, 1 Charge LED, and 1 Bluetooth antenna are on board, allowing developers to debug their code very easily.

The powerful performance makes it perfect for machine learning applications.

Notes:

All the I/O pins are 3.3V, please do not input more than 3.3V, otherwise, the CPU may be damaged.

Application:

• Wearable devices

• Wireless connect

• Embedded machine learning projects

• Perfect for mini Arduino projects

• Tiny Machine Learning application

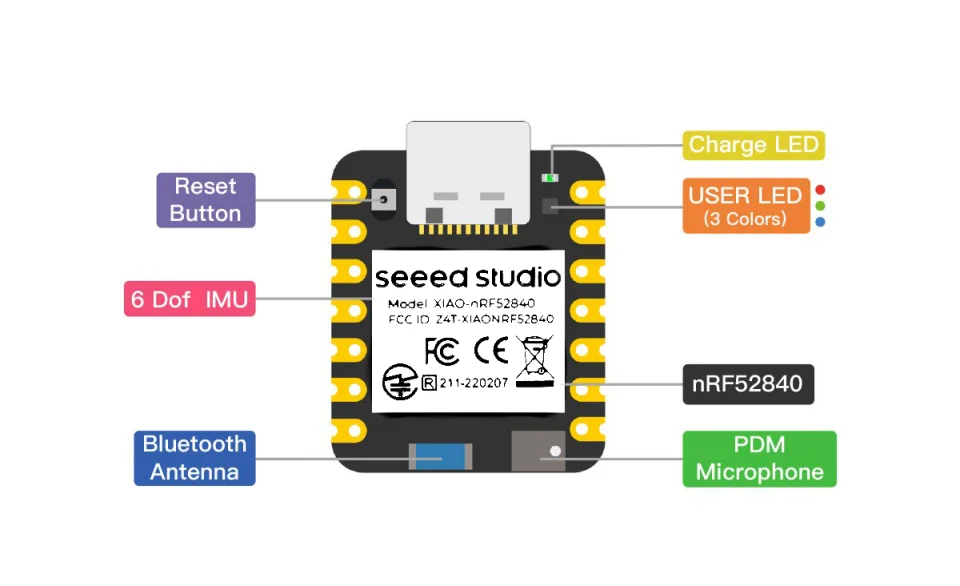

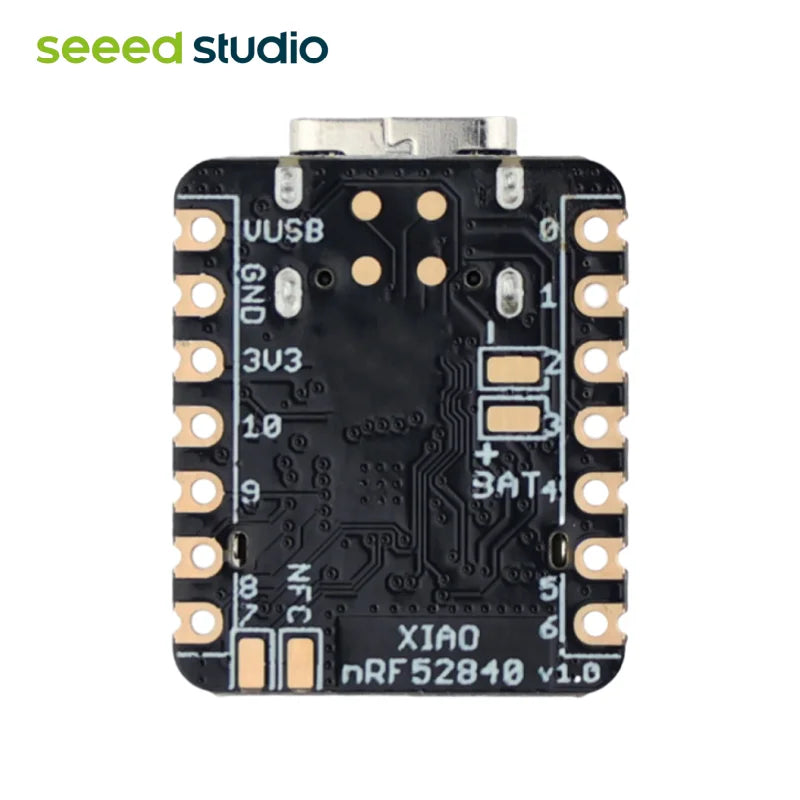

Hardware Overview:

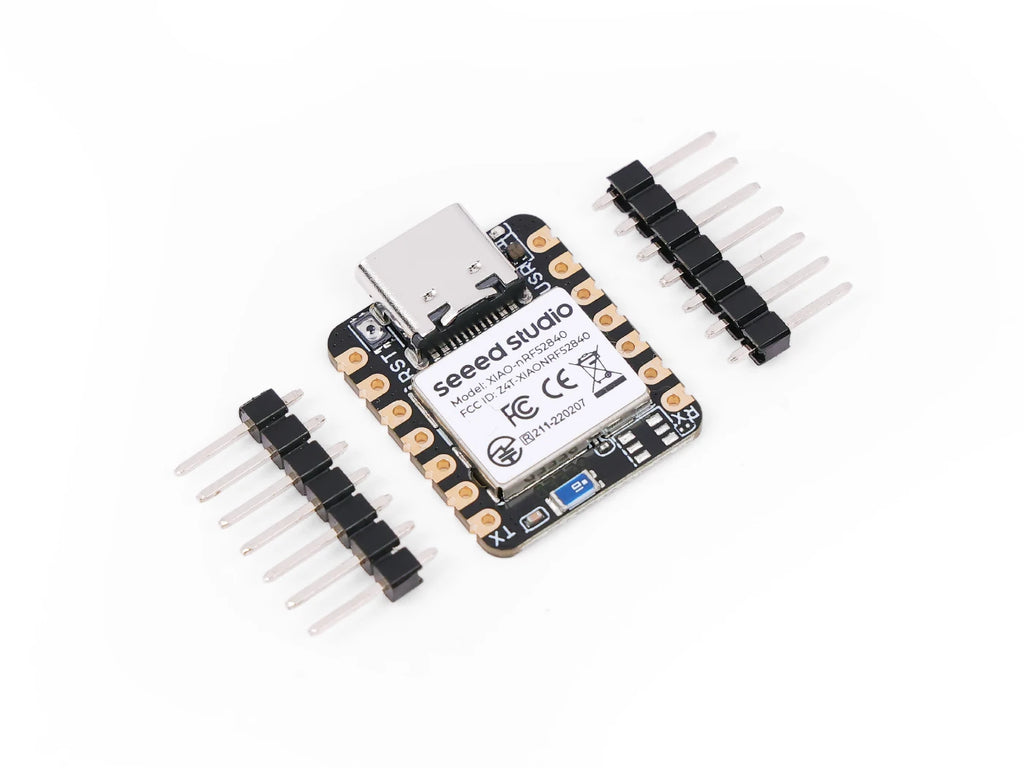

Part List:

• Seeed Studio XIAO nRF52840x1

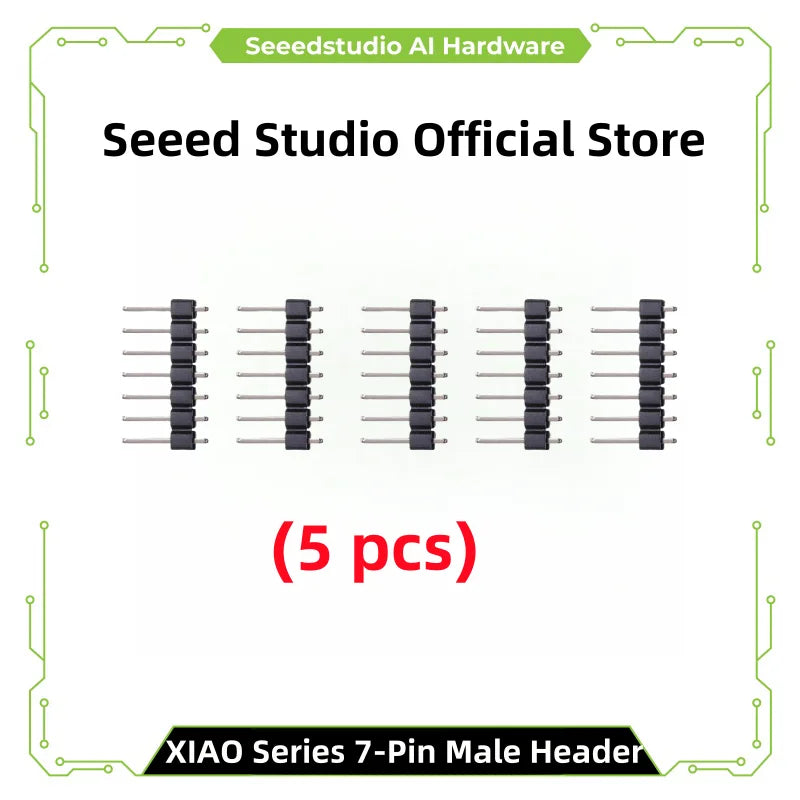

• 7 Pin Header 2

Learn and Documents:

• Nano BLE MCU-nRF52840 PS v1.1

• Bottom-pad-positioning

• Flash_P25Q16H-UXH-IR_Datasheet

• Seeed Studio XIAO nRF52840 BLE Communication Distance Test Report
