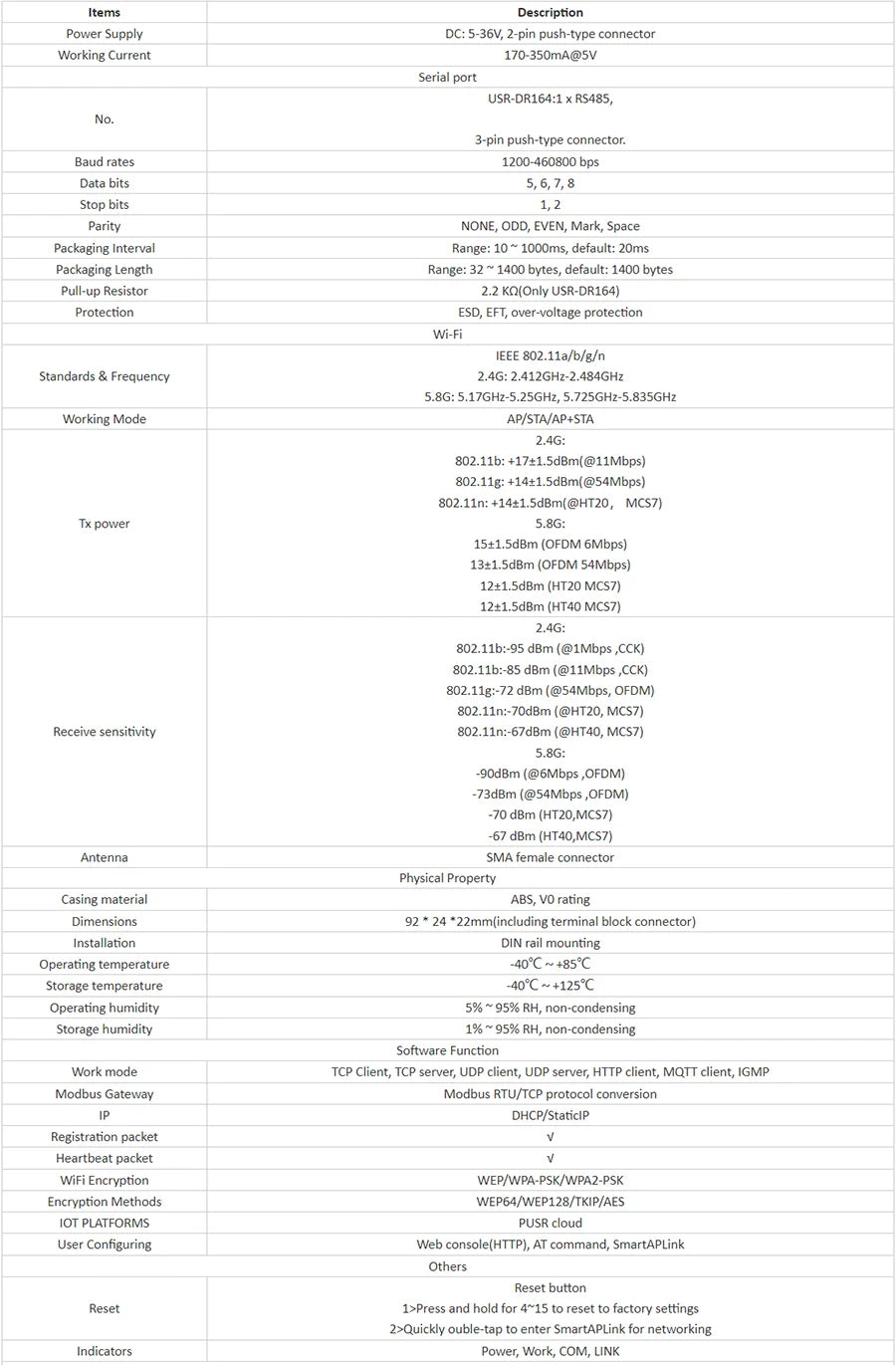

SPECIFICATIONS

Key Features:

• Dual Band WiFi: 2.4G + 5.8G

• “Lipstick” Size: Save your space

• DIN Rail mounting: Easy installation

• Modbus Gateway: Modbus TCP/RTU conversion

• Rich Protocol: TCP/UDP/HTTP/MQTT/IGMP

• Easy Configuration: Smart APlink APP

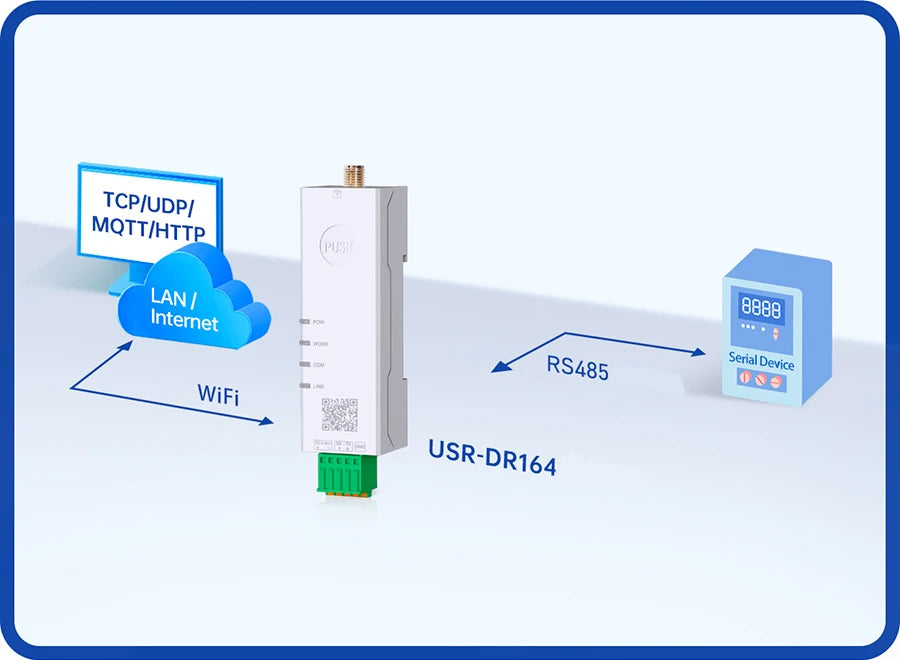

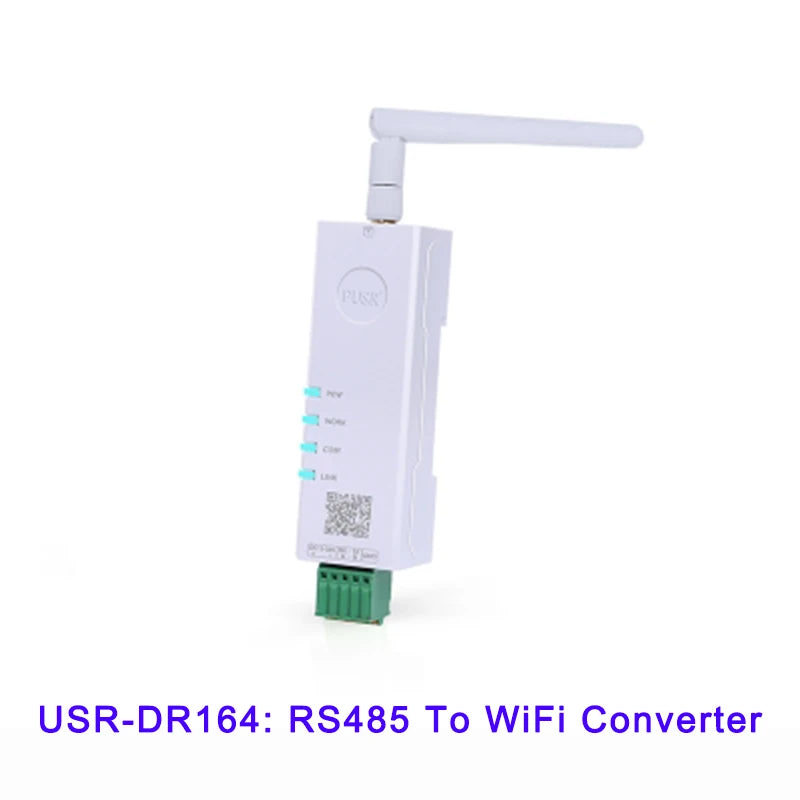

Serial to WiFi, Bidirectional Data Transmission

With serial to WiFi converter, traditional serial devices can be connected to local networks and the Internet, then users can transform traditional serial device into loT device to achieive remote monitoring/controlling.

Dual Band WiFi, Anti-interference, Wide Coverage

For 2.4G: The transmission distance can up to 200 meters in open environment;

For 5.8G: It has anti-interface and high transmission speed, can work well in complex environment.

One More Thing, Modbus Gateway

Connect to PLC, SCADA system or user’s private server to achieve local or remote motoring.

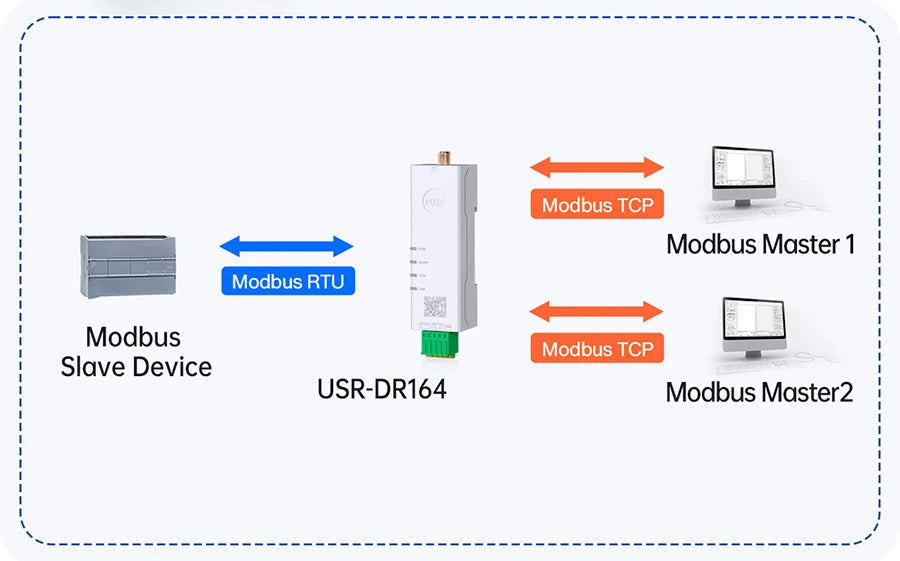

Modbus RTU to Modbus TCP

Multi-Host Modbus Polling

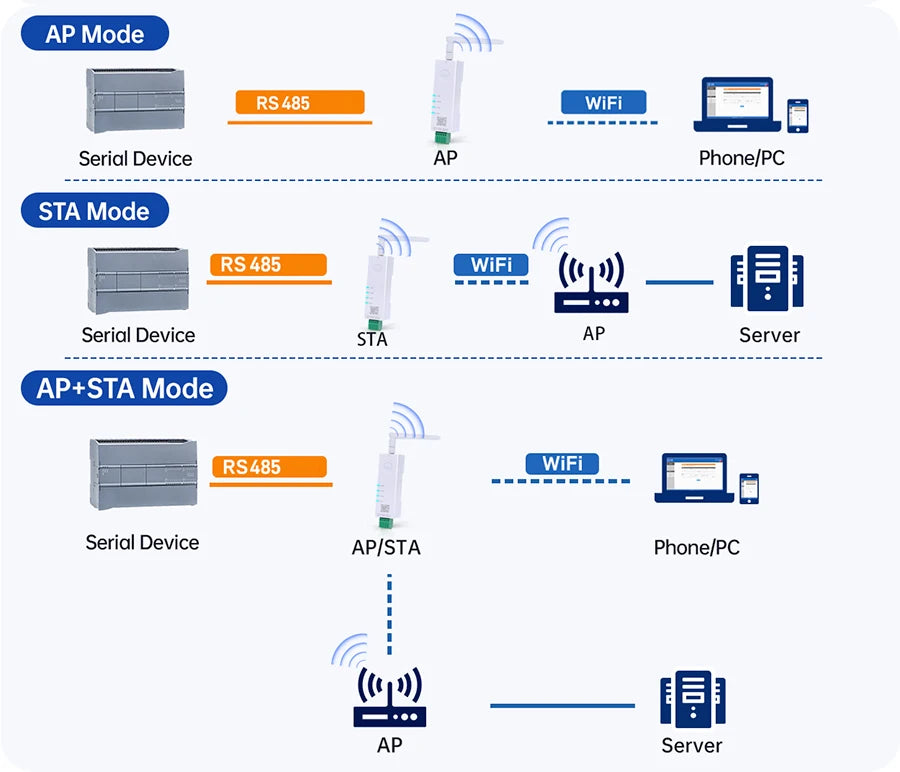

Multi WiFi Networking Method

• AP Mode: Allow network devices to access USR-DR164 via Wi-Fi.

• STA Mode: USR-DR164 accesses to other networks via Wi-Fi as a network device

• AP+STA Mode: Work in AP and STA mode simultaneously

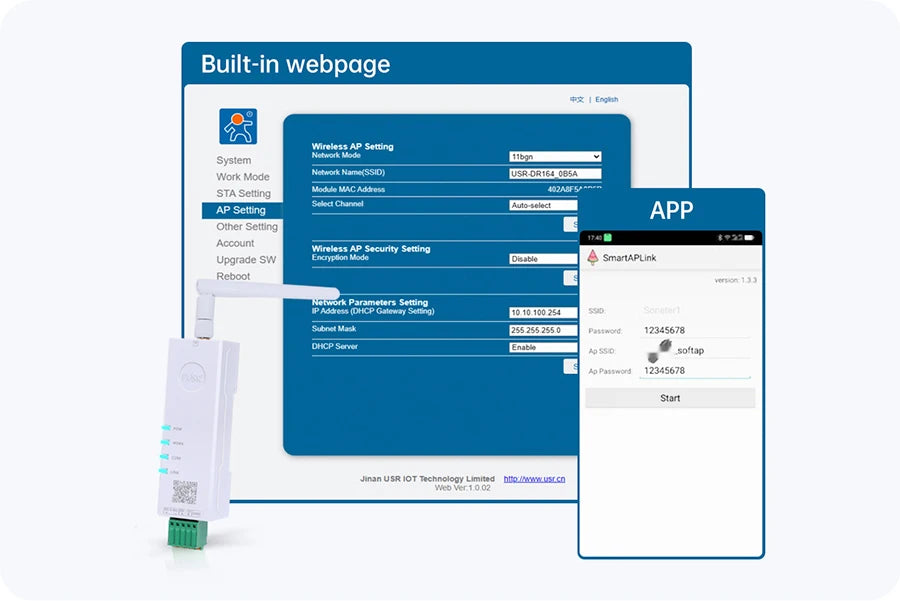

Multi Configuration Methods

• AT Command: Serial AT command and network AT command is supported.

• Built-in webpage: User friendly interface, clear parameters.

• APP: To achieve fast access to network.

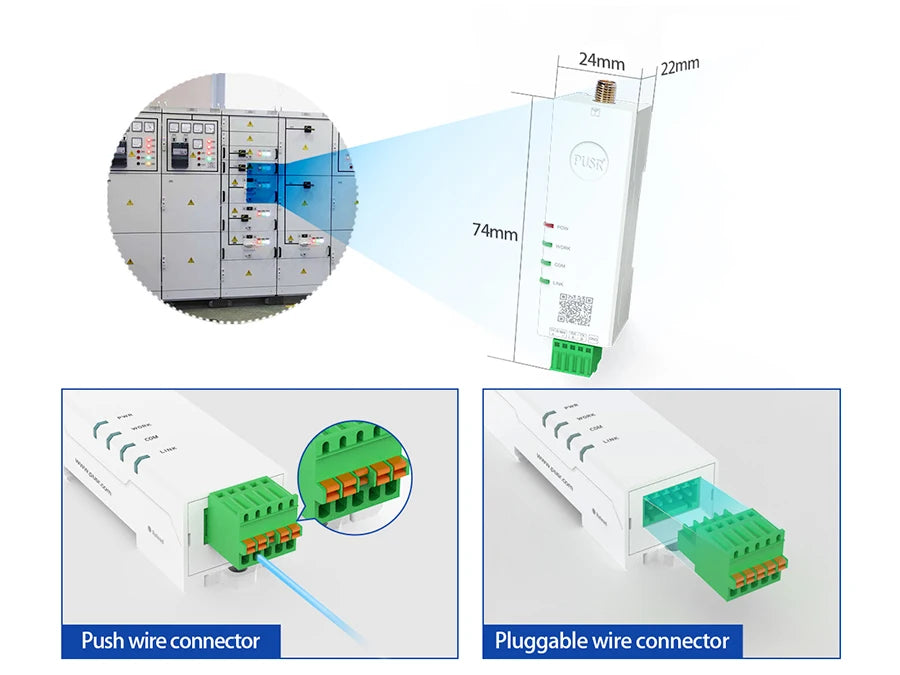

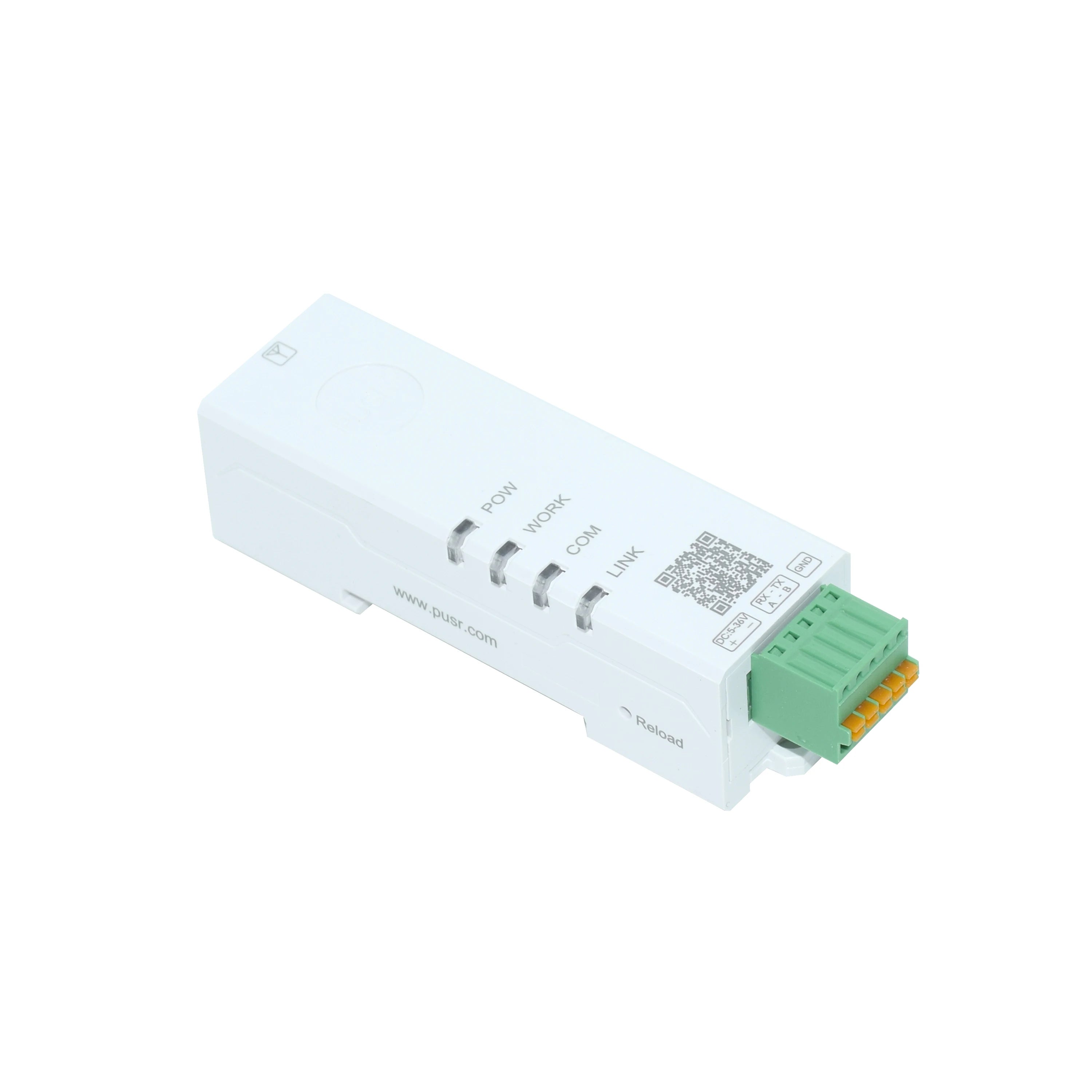

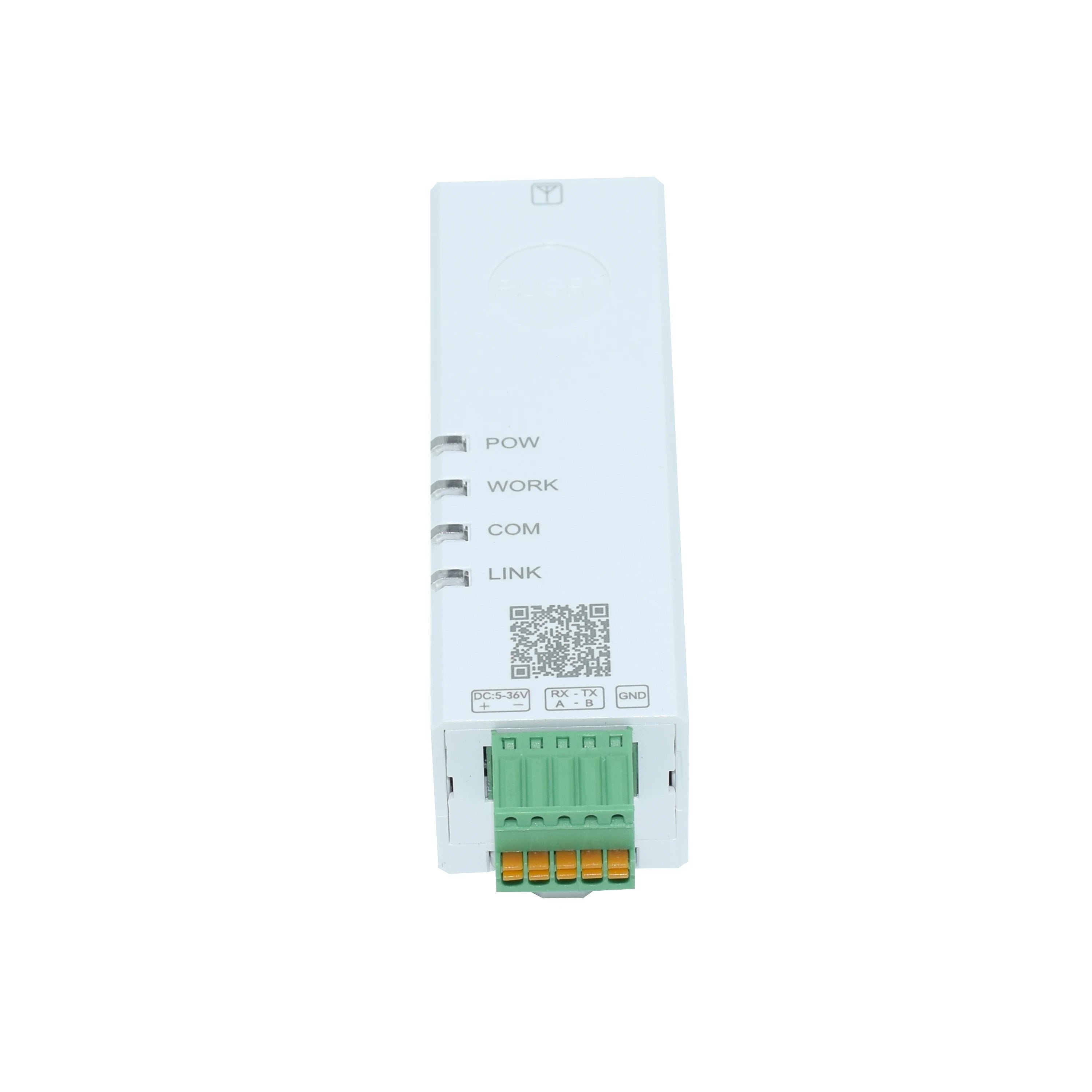

Ultra-small Size

3 Practical Designs, Easy Your Installation.

Ultra-small size like a lipstick, can be applied to various scenarios, especially the small box.

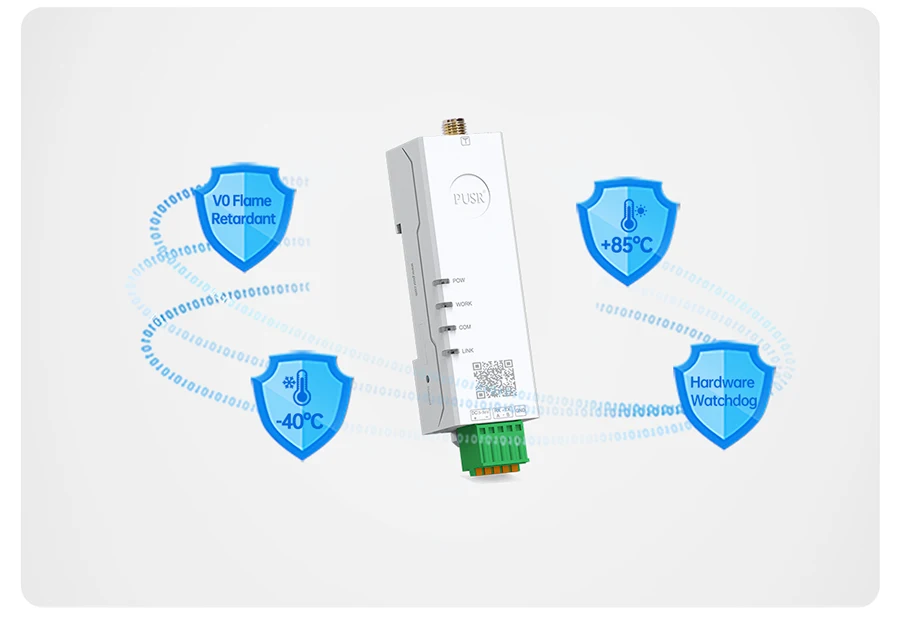

High Reliablity Design

• Watchdog Protection: Hardware & software dual watchdog to ensure stable operation.

• Flame retardant rating: V0, burning stops within 10 seconds on a vertical part allowing for drops of plastic that are not inflames.

• Wide Operating Temp: -40℃ ~ 85℃, industrial grade design, stable operation in harsh environments.

• Wide Power Input: DC 5-36V.

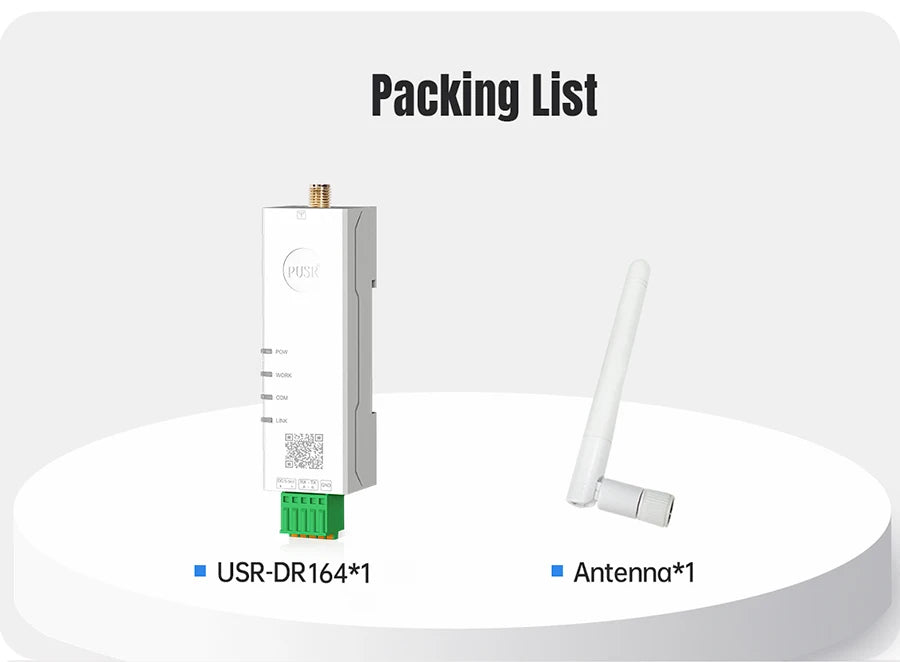

Packing List

• USR-DR164*1

• Antenna*1

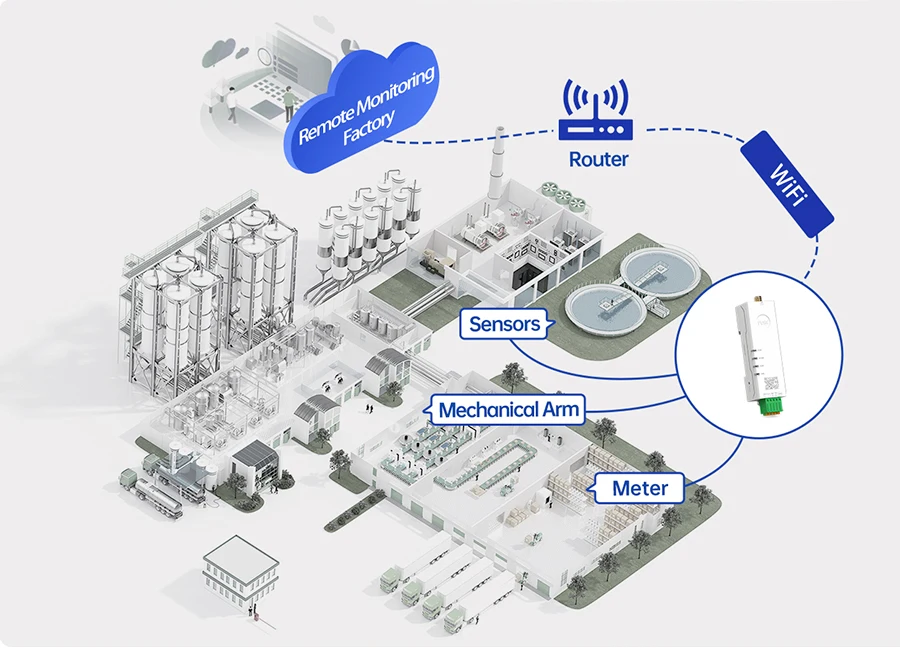

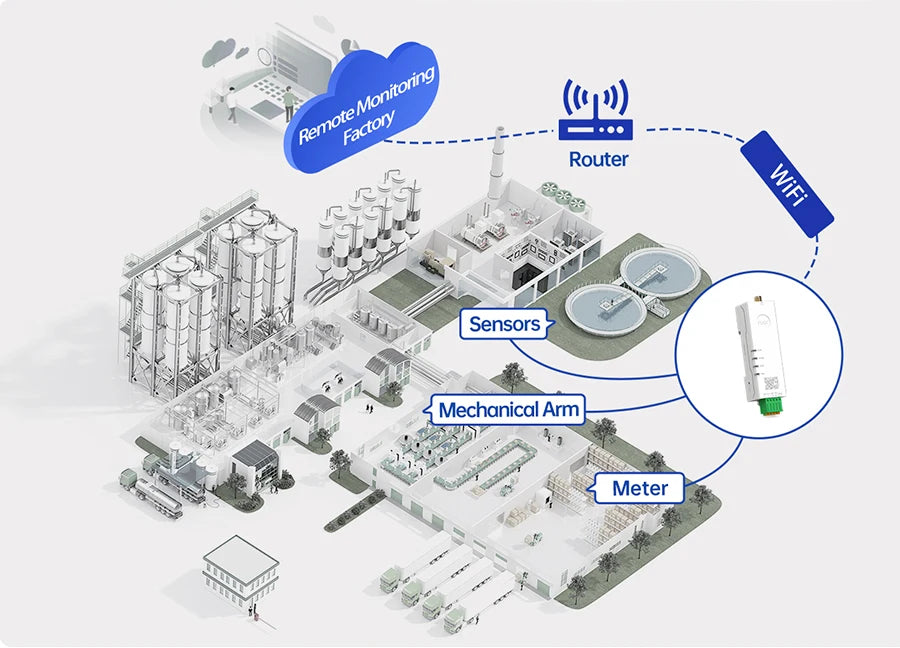

Smart Factory Solutions

In factory scenario, operating status, fault information, production information, etc. of the equipment can be transmitted to the remote server via USR-DR164 to achieve remote management and controlling of the on-site equipment. With the remote management platform, users can effectively improve the controllability of the production process, timely and accurate collection of equipment data, reduce production and maintenance costs.

More Application

• Smart Factory

• Smart Building

• Warehouse Logistics

• Energy Monitoring

• Smart Office
