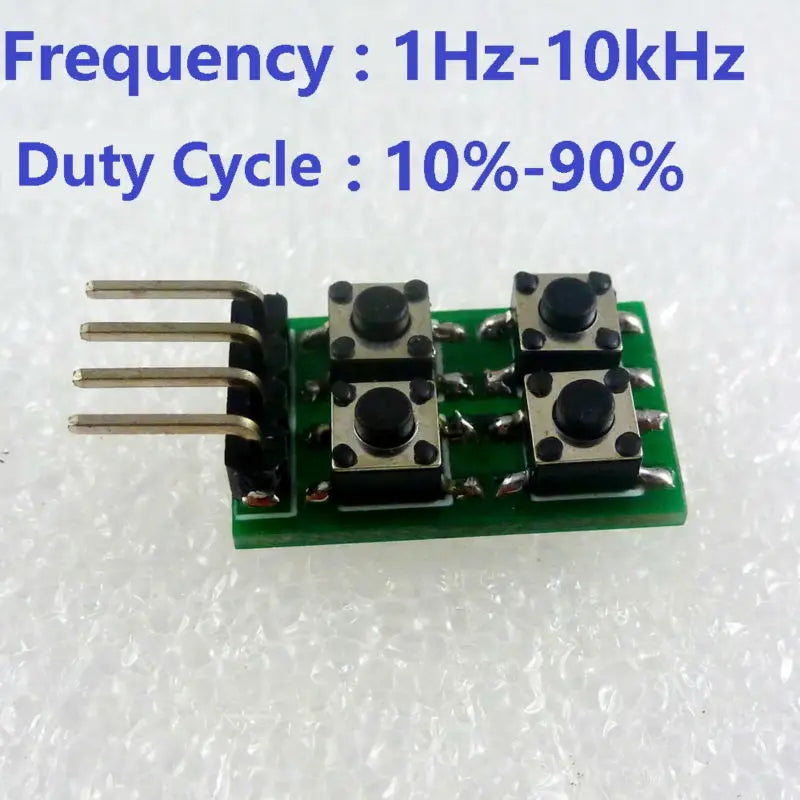

SG11A02 1-10kHz Duty Cycle & Frequency Adjustable PWM Square Wave Pulse Generator Module Replace NE555 LM358 CD4017 DDS AD9850
Default Title
$17.10
Sale price
$17.10
Regular price
$0.00
Skip to product information
Description:
USE:
SG11A02 1-10kHz Duty Cycle & Frequency Adjustable PWM Square Wave Pulse Generator Module Replace NE555 LM358 CD4017 DDS AD9850
$17.10
Sale price
$17.10
Regular price
$0.00
Description
SPECIFICATIONS
Application: Electric Toy
Brand Name: eletechsup
Choice: yes
Condition: New
Dissipation Power: 0.1W
Frequency: 1Hz-10Khz
High-concerned chemical: none
Operating Temperature: -20-80
Origin: Mainland China
Pulse: 10%-90%
Supply Voltage: dc 5V
Type: Timer
is_customized: Yes
semi_Choice: yes
Product Name:
1-10kHz Duty Cycle & Frequency Adjustable PWM Square Wave Pulse Generator Module replace NE555 LM358 CD4017 DDS AD9850 AD9851
Package inlcuded:
1 PCS 1Hz~10Khz Duty Cycle & Frequency Adjustable signal generator
Description:
VCC : DC 5V(3.8~5.5V) Power supply positive
GND : Power Supply Negative
PWM+ : 1Hz-10kHz(Accuracy:0.6%) Square wave output(5V TTL Level,maximum output current 20MA).
PCB size : 19.4*12*6.7mm
Weight : 1.5g
power-down storage parameters

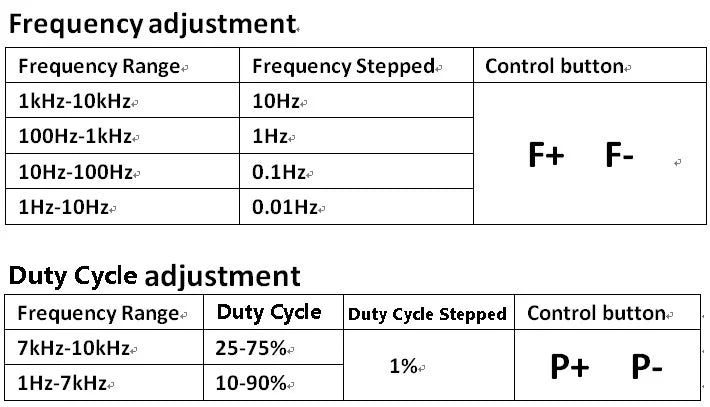

Frequency and Duty Cycle continuously adjustable, Stepping: See the image below
USE:
Short press (less than 2S) : Fine adjustment
Long press (more than 2S) : Quick adjustment

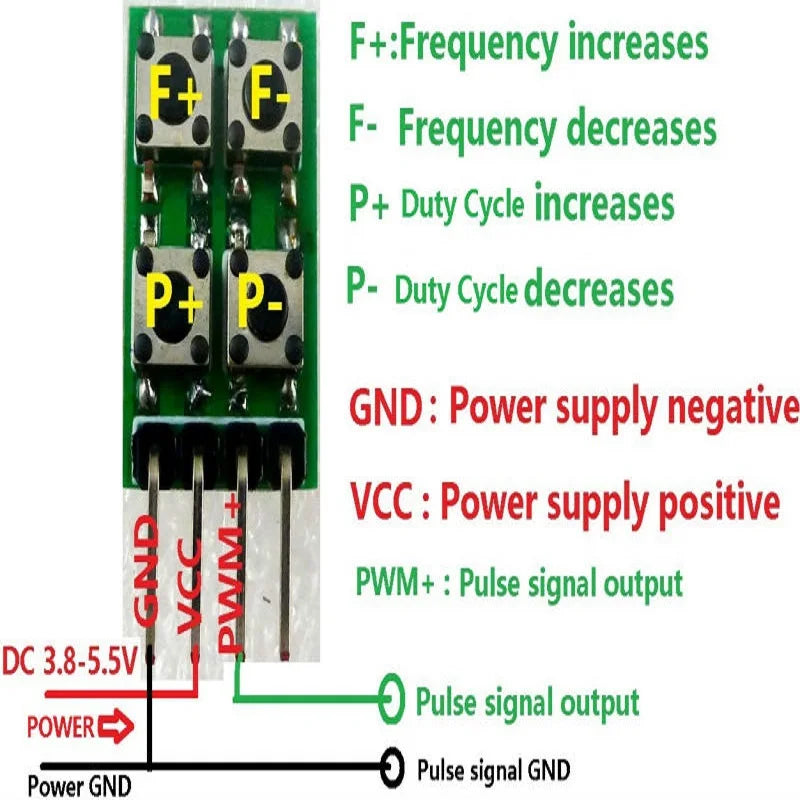

Wiring Diagram:

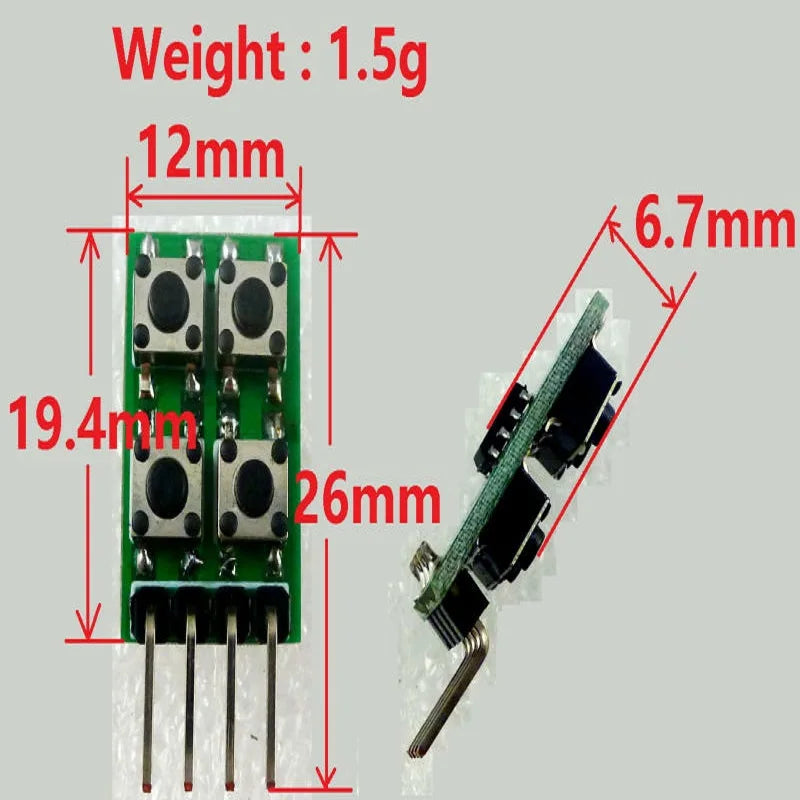

Size &Weight:
10khz Waveform:

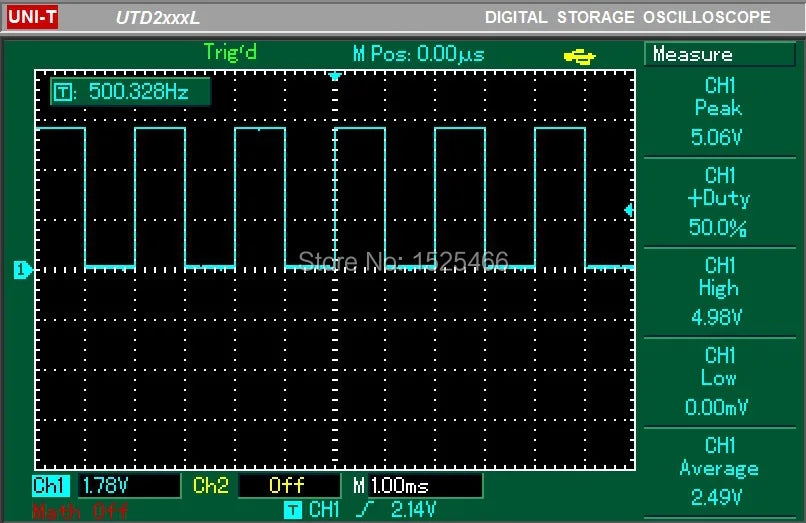

500Hz Waveform:

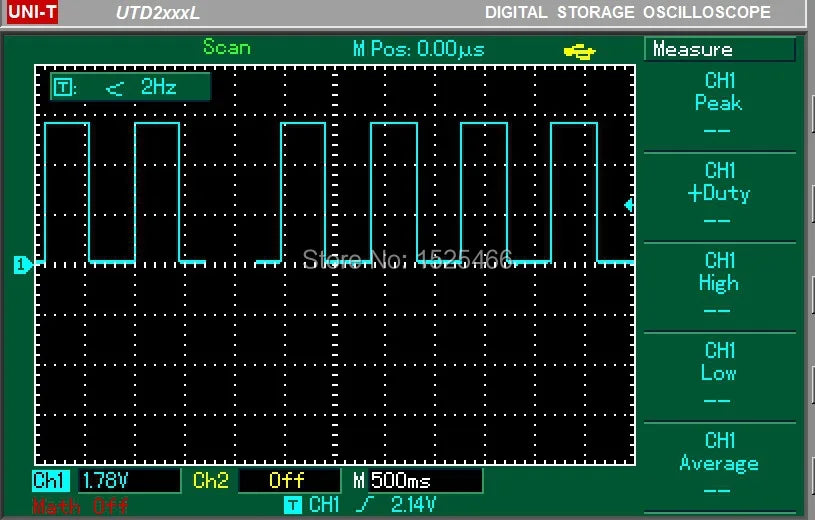

1Hz Waveform:
