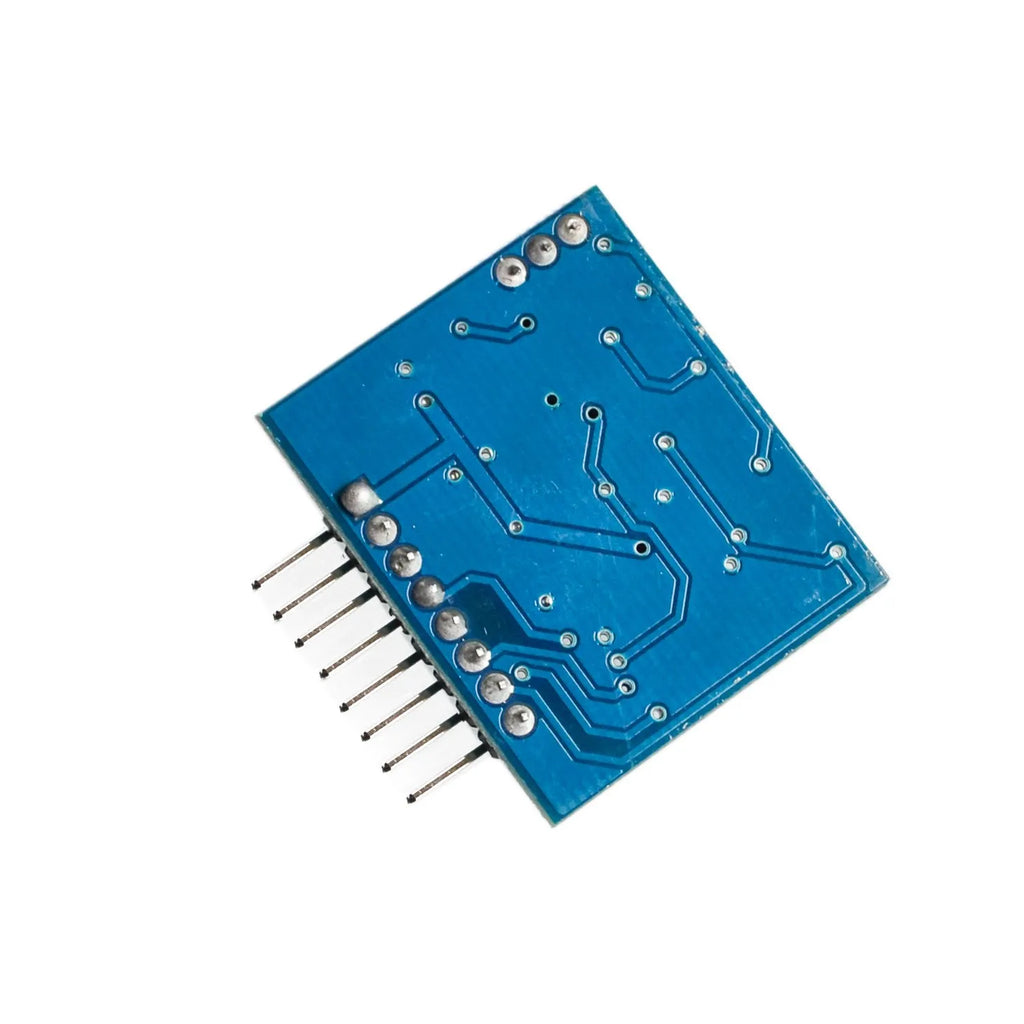

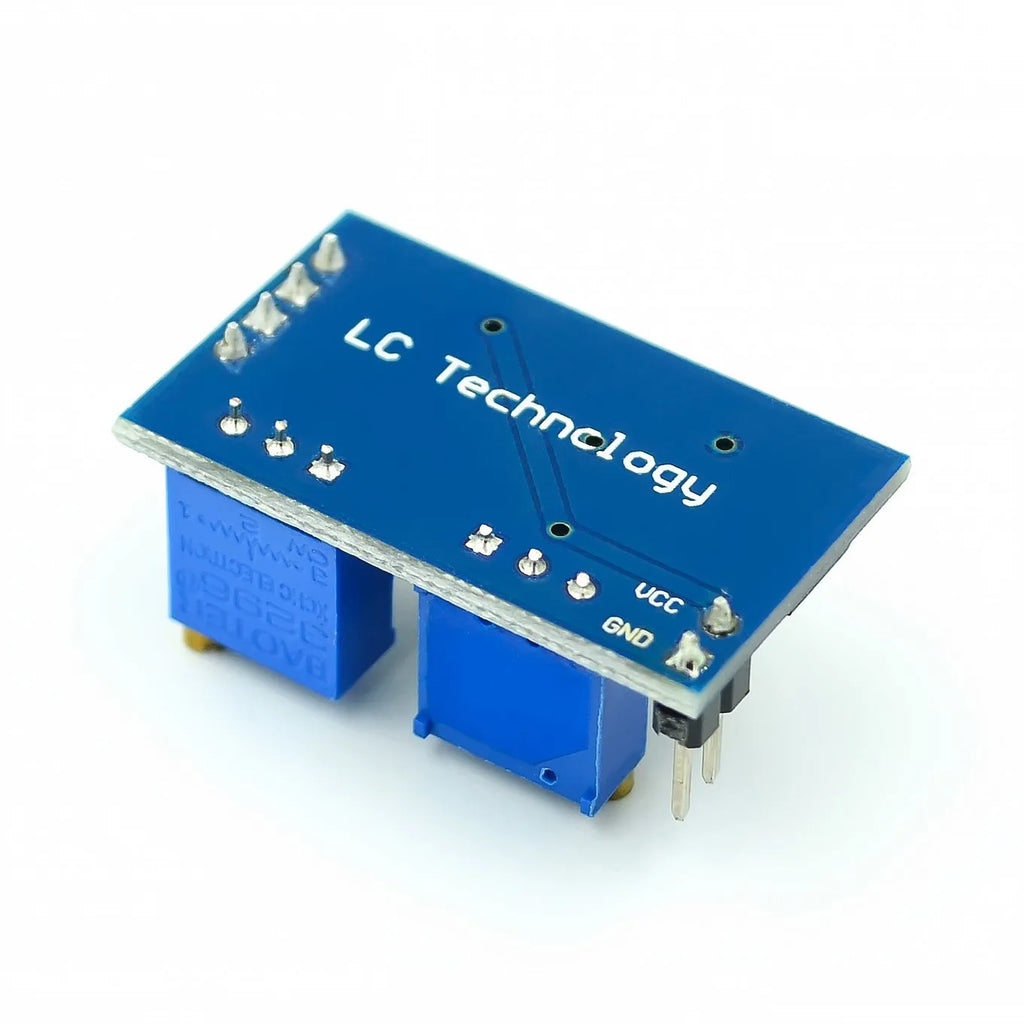

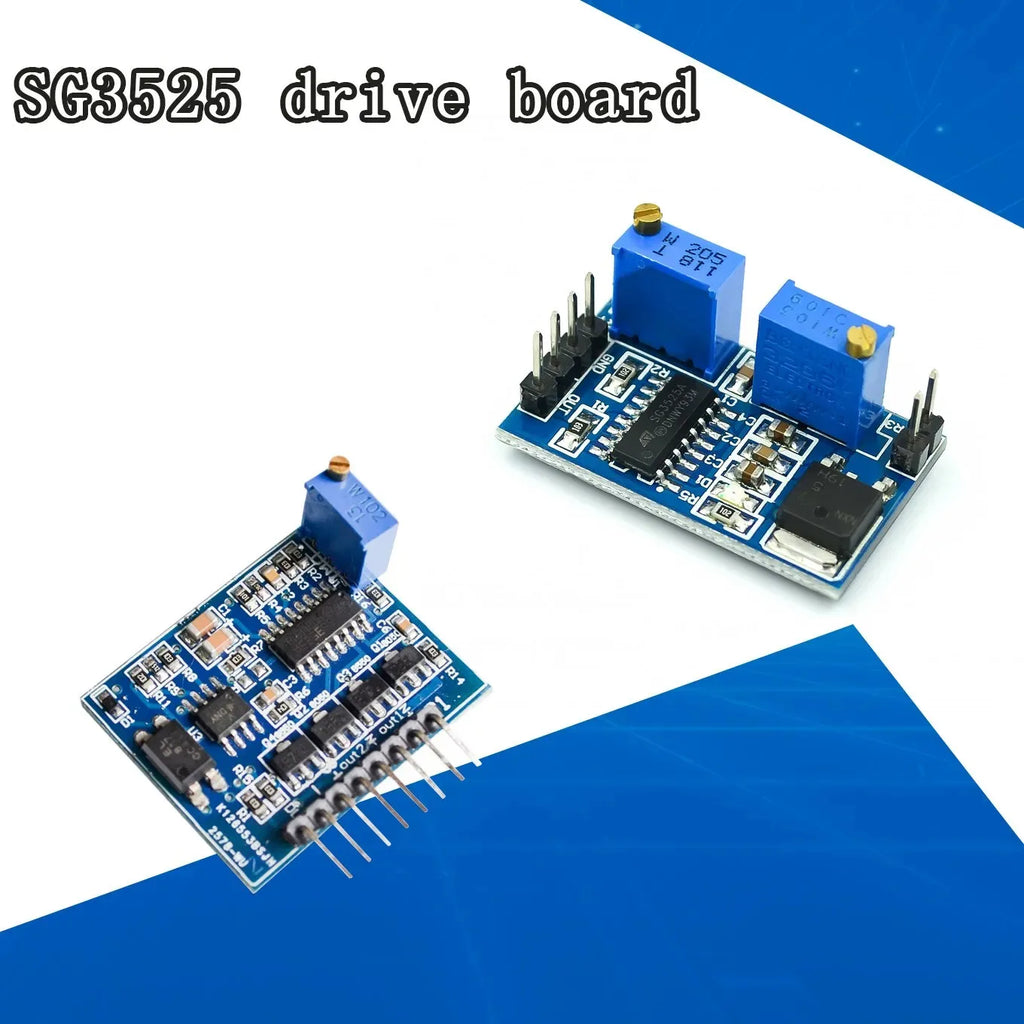

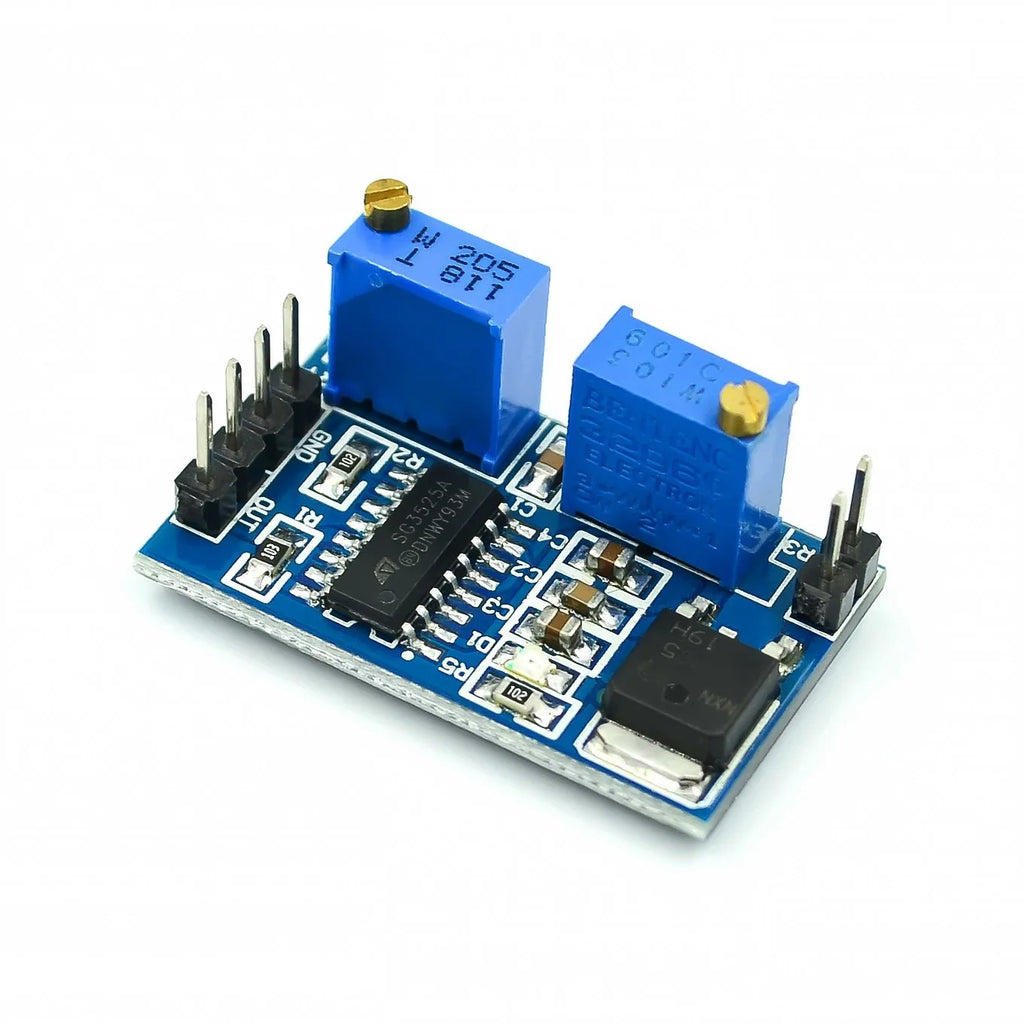

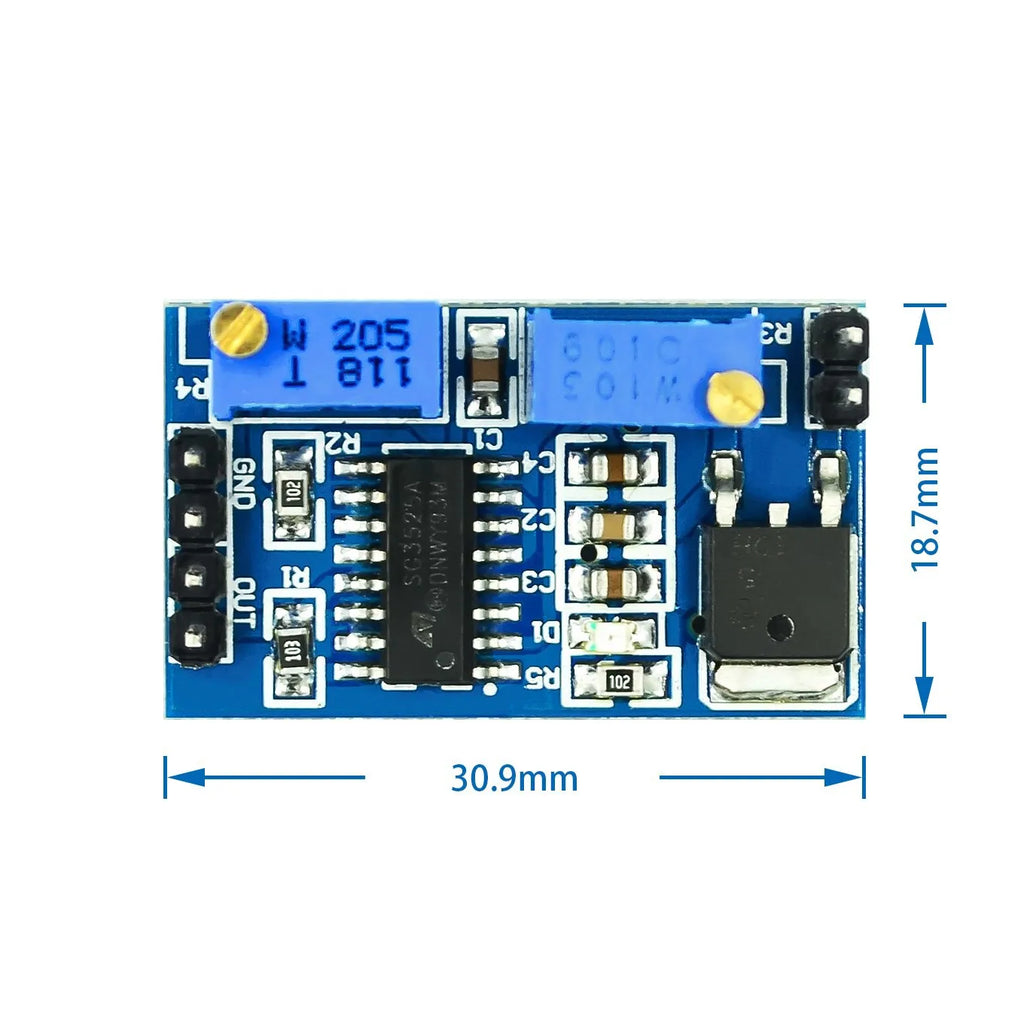

SG3525 LM358 Inverter Driver Board Mixer Preamp Drive Board 12V-24V
SG3525 PWM
$7.20
Sale price
$7.20
Regular price
$0.00
Skip to product information
SG3525 LM358 Inverter Driver Board Mixer Preamp Drive Board 12V-24V
$7.20
Sale price
$7.20
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: MINGWUDIANZI
Choice: yes
Condition: New
Dissipation Power: 1w
Operating Temperature: 0-85
Origin: Mainland China
Package: TQFP
Supply Voltage: 3-5v
Type: Voltage Regulator
is_customized: Yes
semi_Choice: yes
Frequency adjustable
Overcurrent short circuit off self-locking
Can output voltage regulator, the effect is good!
The output current up to 1A or so, driving 20 3205 effect transistor no problem
For high-power drive board can be linked with customer service, drive current 3A can drive about 30 effects

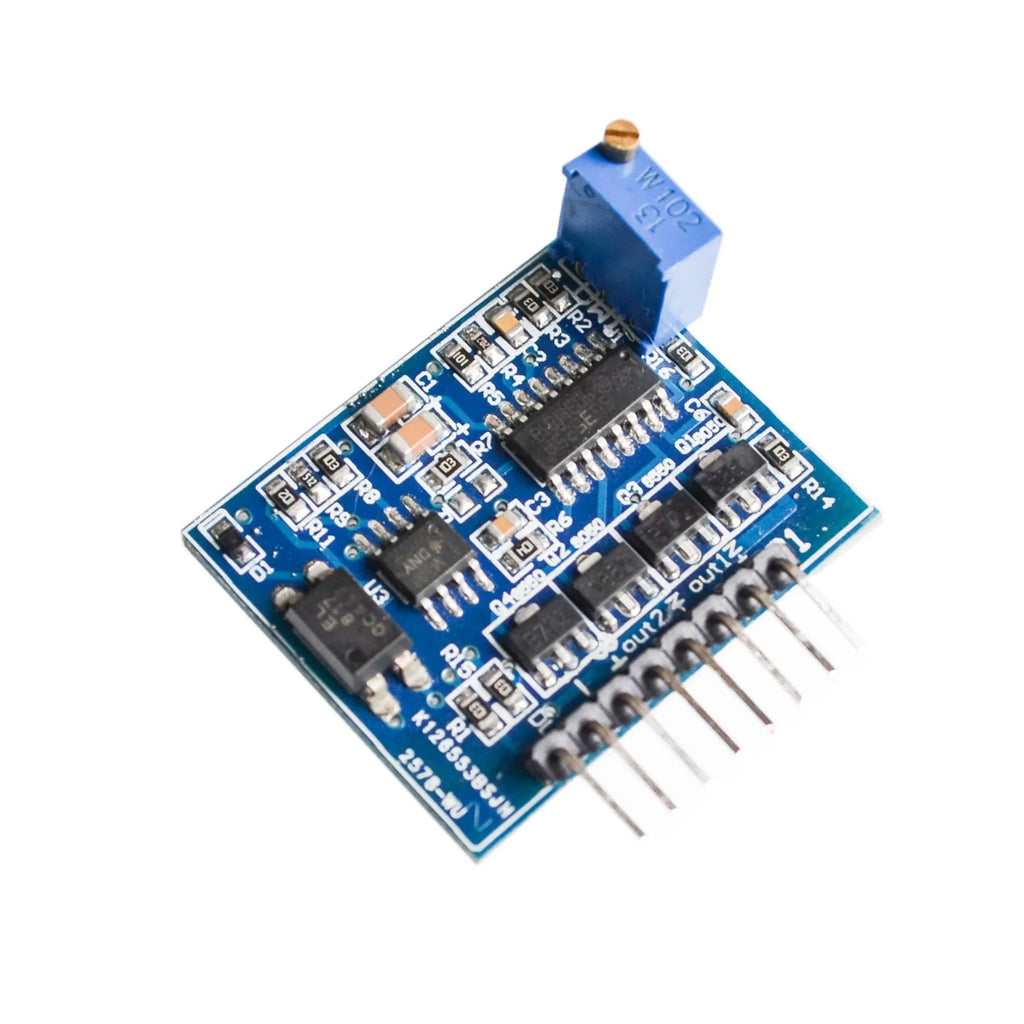

If the product is updated without notice, unless the function changes! Pin description
1, Positive power supply
2, Signal output
3, Power negative
4, Signal output
5, Optocoupler input positive
6, Optocoupler output negative
7,The signal is short
8, Signal feedback feet
