SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Input: 3-32V/DC or 80-250V/AC

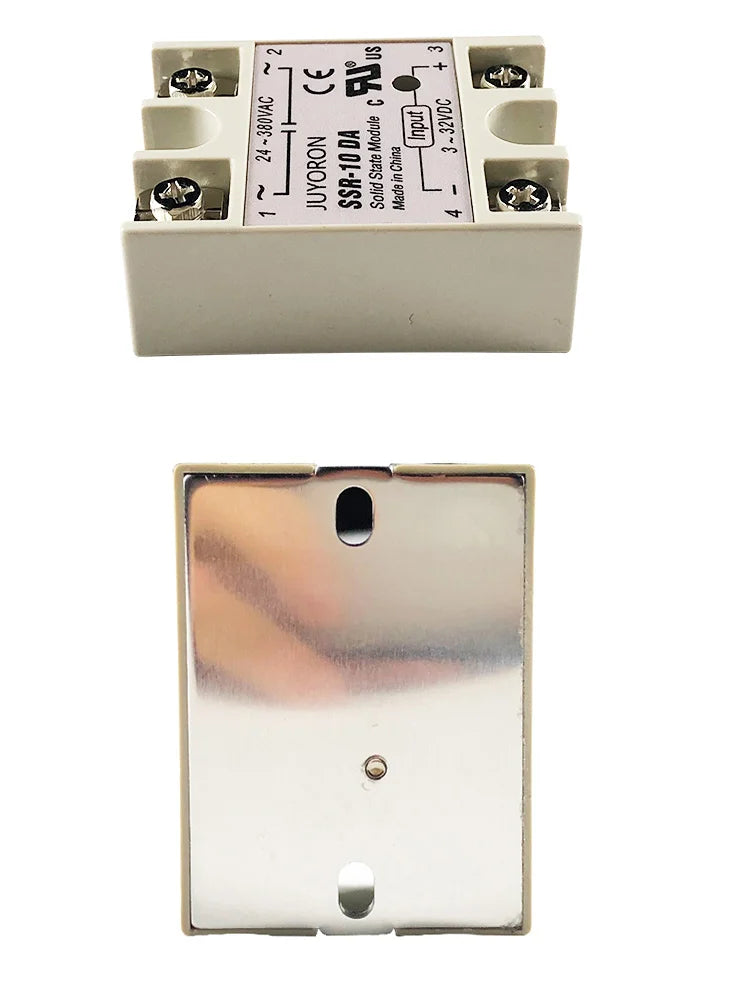

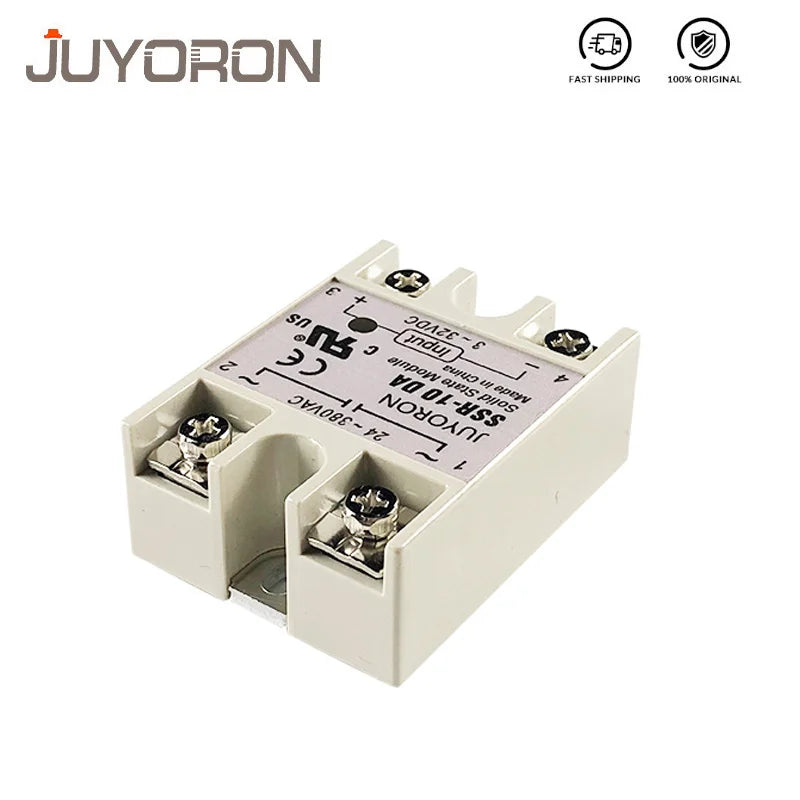

Model Number: SSR 10/25/40/60/80/100 DA/AA/DD

Origin: Mainland China

Output: 24-380V/AC or 12-220V/DC

Protect Feature: Sealed

Theory: Solid State Relay

Use: General Purpose

is_customized: Yes

semi_Choice: yes

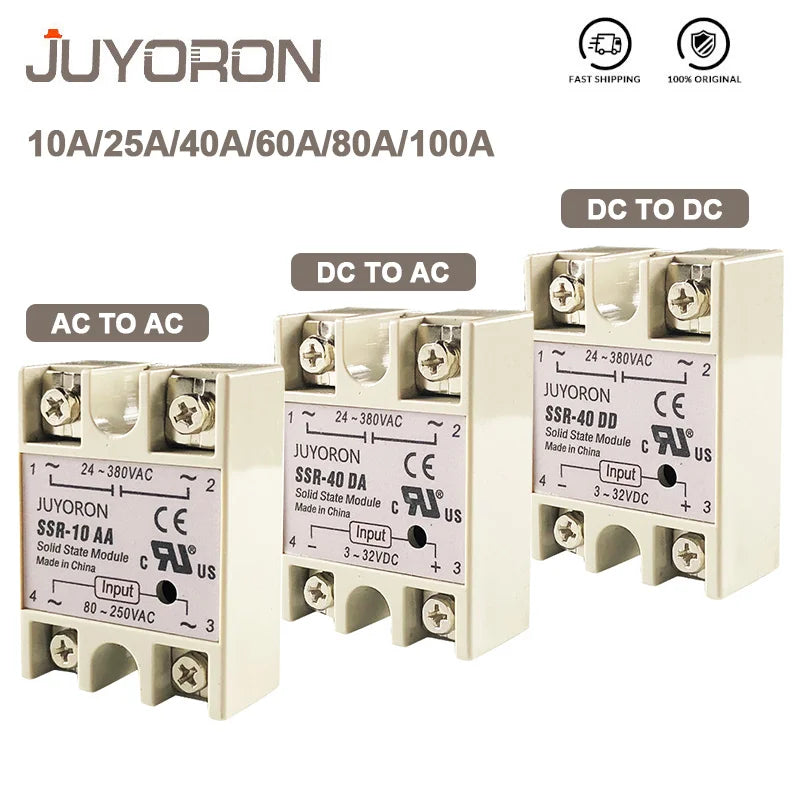

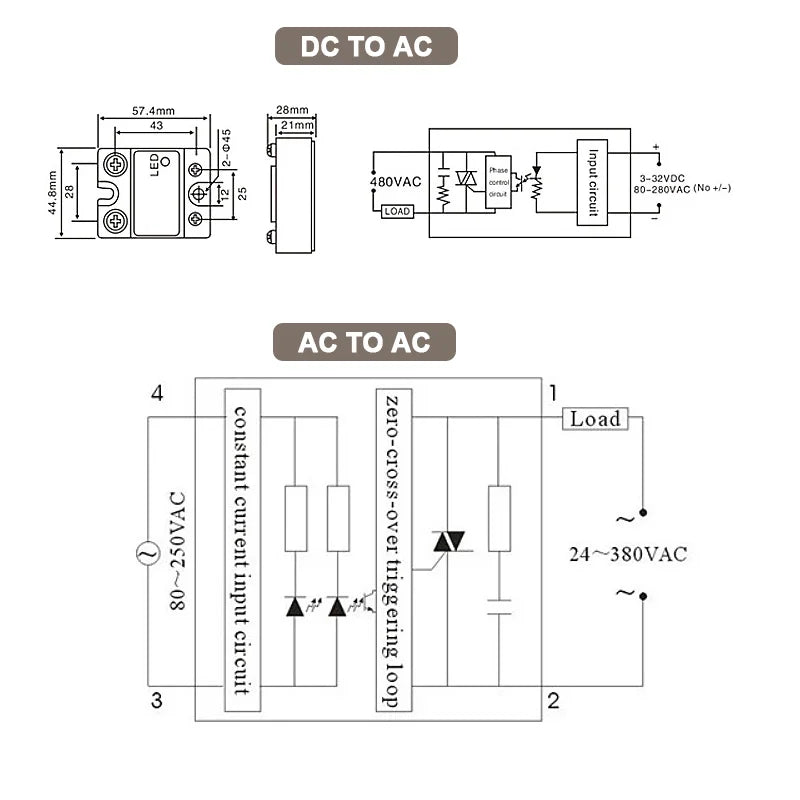

DC TO AC
MODEL	LoadCurrent	control voltage	3-32VDC	shut-off voltage	≤1.5VDC

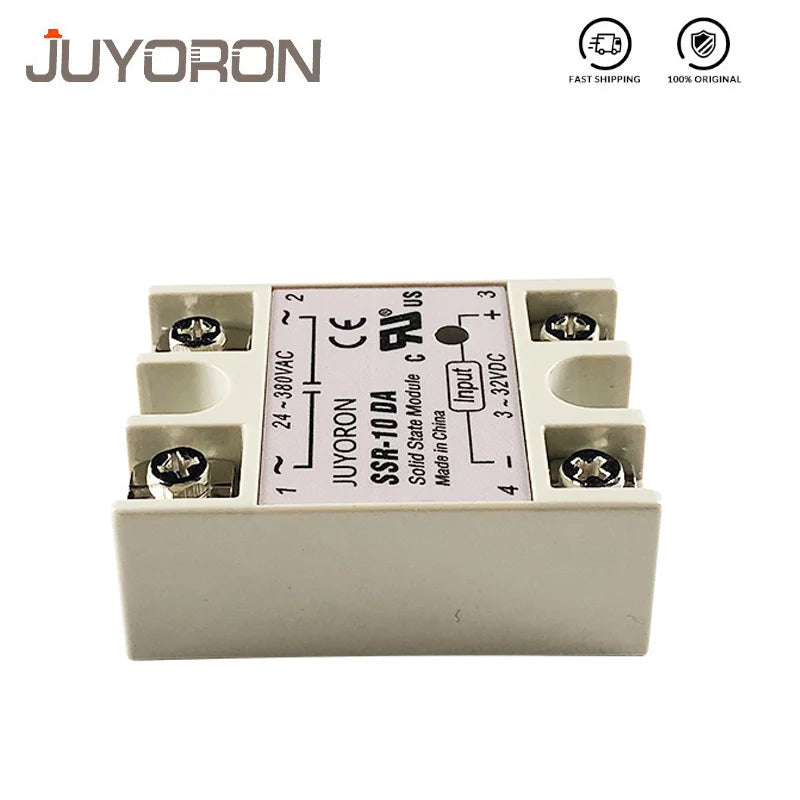

SSR-10DA	10A	Load Voltage Range	24-380VAC	Control Current	<25mA
SSR-25DA	25A			Starting Current	5mA
SSR-40DA	40A			Insulation Voltage	≥2500VAC
SSR-60DA	60A	cooling Condition	10-30A With Radiator	On-off Time	≤10ms
SSR-80DA	80A	cooling Condition	40-300A Add fan for forced cooling	Work Instructions	LED
SSR-100DA	100A	Load Current	Resistive Load 35%，Inductive Load 20%	a fixed way	bolted

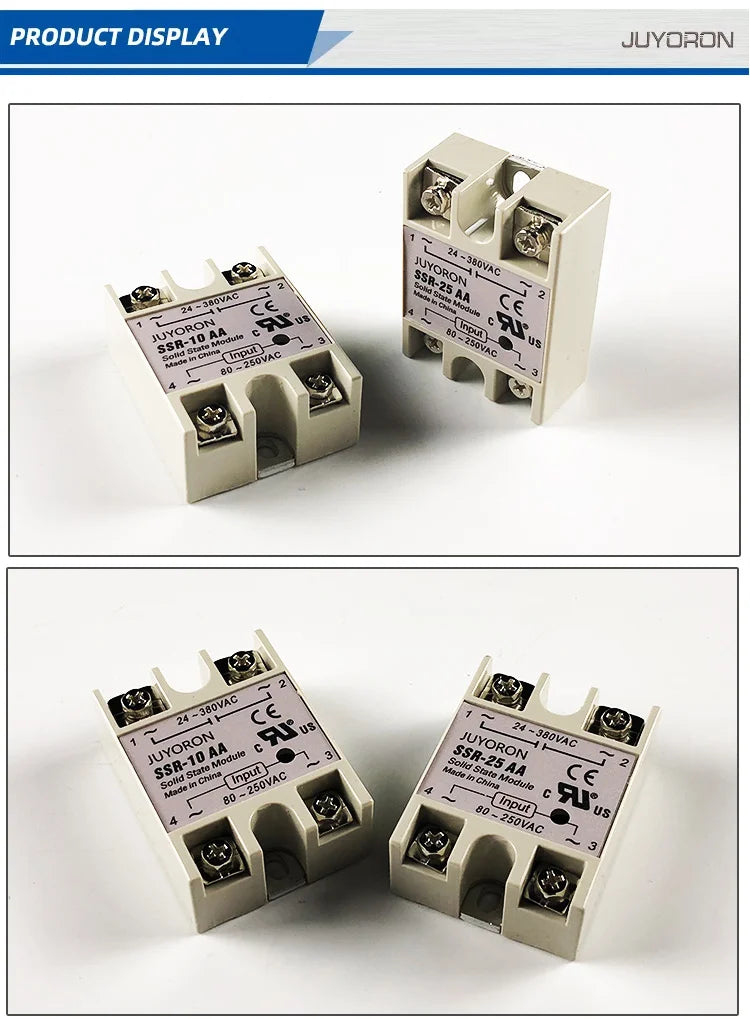

AC TO AC
MODEL	LoadCurrent	control voltage	80-250VAC	shut-off voltage	≤50VAC
SSR-10AA	10A	Load Voltage Range	24-380VAC	Control Current	<12mA
SSR-25AA	25A			Starting Current	5mA
SSR-40AA	40A			Insulation Voltage	≥2500VAC
SSR-60AA	60A	cooling Condition	10-30A With Radiator	On-off Time	≤10ms
SSR-80AA	80A	cooling Condition	40-300A Add fan for forced cooling	Work Instructions	LED
SSR-100AA	100A	Load Current	Resistive Load 35%，Inductive Load 20%	a fixed way	bolted


DC TO DC
MODEL	LoadCurrent	control voltage	3-32VDC	shut-off voltage	≤1.5VDC
SSR-10DD	10A	Load Voltage Range	12-220VDC	Control Current	3-25mA
SSR-25DD	25A			Starting Current	5mA
SSR-40DD	40A			Insulation Voltage	≥2500VAC
SSR-60DD	60A	cooling Condition	10-30A With Radiator	On-off Time	≤10ms
SSR-80DD	80A	cooling Condition	40-300A Add fan for forced cooling	Work Instructions	LED
SSR-100DD	100A	Load Current	Resistive Load 35%，Inductive Load 20%	a fixed way	bolted
