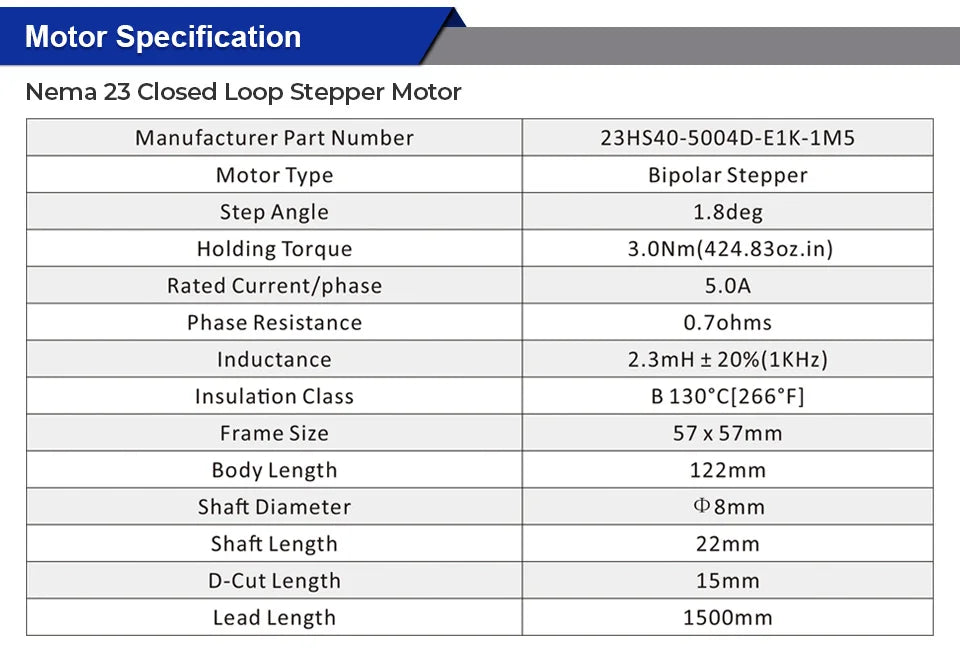

SPECIFICATIONS

Body Length: 122mm

Brand Name: STEPPERONLINE

Cable Length: 1500mm

Certification: ce

Current / Phase: 5A

D-Cut Length: 15mm

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Encoder Resolution: 1000PPR(4000CPR)

Encoder Type: Optical Incremental

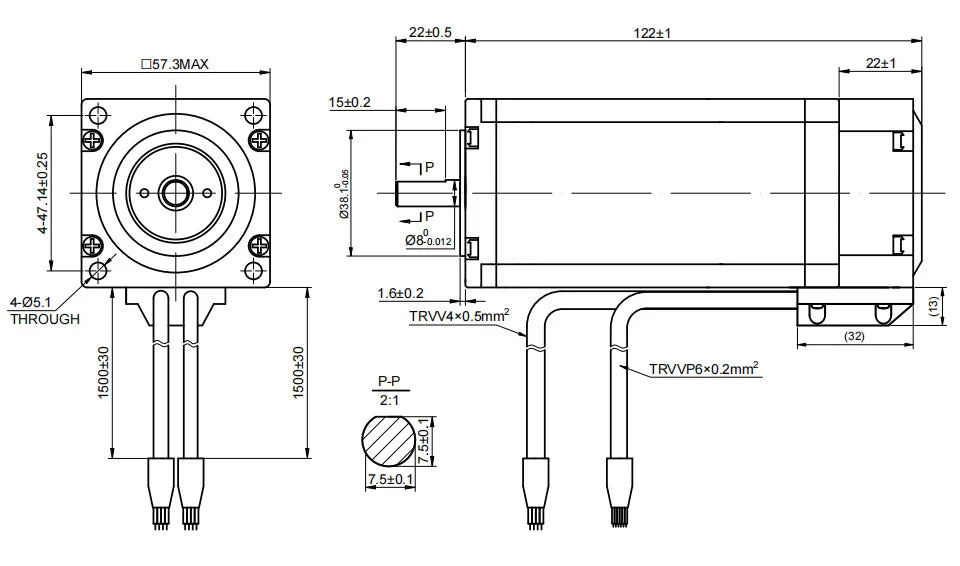

Frame Size: Nema 23 (57 x 57mm)

High-concerned chemical: none

Holding Torque: 3.0Nm(424.83oz.in)

Model Number: 1-CLYS30-1M5-V20

Origin: Mainland China

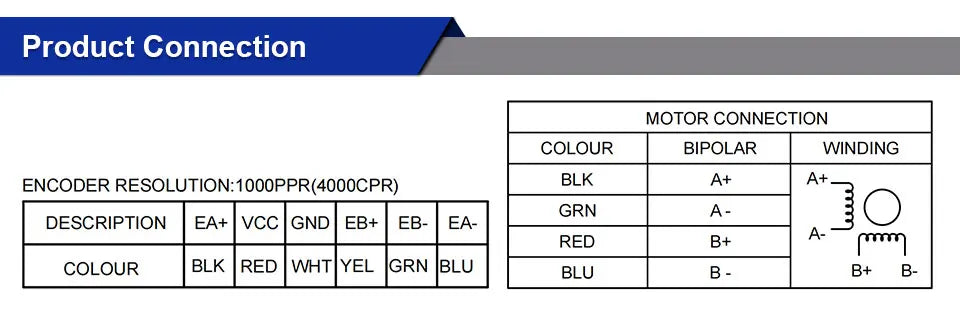

Output Circuit Type: Differential type

Output Signal Channels: 2channels

Phase: 2

Product Type: Nema 23 Closed Loop Stepper Motor

Shaft Length: 22mm

Step Angle(degrees): 1.8deg

Type: HYBRID

1 x S Series Nema 23 Closed Loop Stepper Motor 3.00Nm(424.83oz.in) Encoder 1000PPR(4000CPR)

1 x Y Series V2.0 Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor

1 x 201W 36V 5.9A 115/230V Switching Power Supply

1 x RS232 debugging cable

Nema 23 Closed Loop Stepper Moto & Servo Driver CL57Y Stepper Kit
