STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit

STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit

4 Axis Stepper Kit / United States / 8mm
$1,330.56
$1,330.56 $0.00
Skip to product information
STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
  • STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
STEPPERONLINE 4 Axis Nema 23 Closed Loop Stepper Motor 3Nm and Hybrid Servo Stepping Driver & 500W 48V Power Supply CNC Kit
$1,330.56
$1,330.56 $0.00
Color
Ships FromUnited States
Shaft Diameter8mm

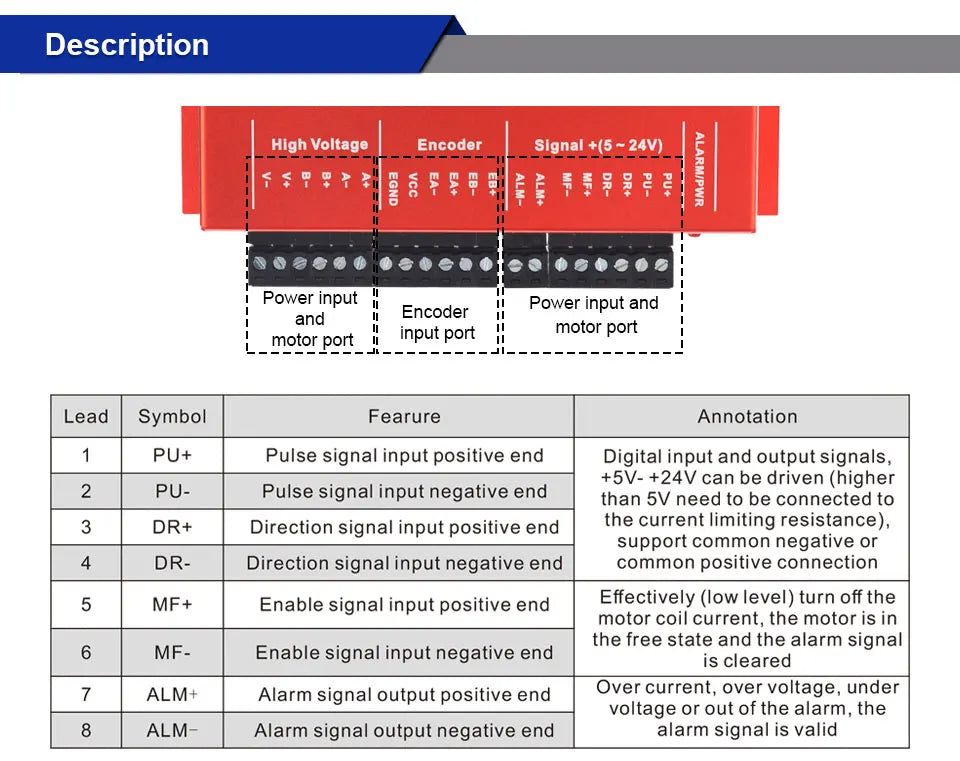

Description

SPECIFICATIONS

Body Length: 122mm

Brand Name: STEPPERONLINE

Cable Length: 1500mm

Certification: ce

Current / Phase: 5A

D-Cut Length: 15mm

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Encoder Resolution: 1000PPR(4000CPR)

Encoder Type: Optical Incremental

Frame Size: Nema 23 (57 x 57mm)

High-concerned chemical: none

Holding Torque: 3.0Nm(424.83oz.in)

Model Number: 4-CLYS30-1M5

Origin: Mainland China

Output Circuit Type: Differential type

Output Signal Channels: 2channels

Phase: 2

Product Type: Nema 23 Closed Loop Stepper Motor

Shaft Length: 22mm

Step Angle(degrees): 1.8deg

Type: HYBRID







Nema 23 Closed Loop Stepper Moto & Servo Driver CL57Y Stepper Kit
