STEPPERONLINE 4Nm Nema 24 Closed Loop Stepper Motor 5A with Nema24 Hybrid Servo Driver CL57Y V2.0 CNC Kit
China Mainland / 10mm
$450.76
Sale price
$450.76
Regular price
$0.00
Skip to product information
STEPPERONLINE 4Nm Nema 24 Closed Loop Stepper Motor 5A with Nema24 Hybrid Servo Driver CL57Y V2.0 CNC Kit
$450.76
Sale price
$450.76
Regular price
$0.00
Description
SPECIFICATIONS
Body Length: 125mm
Brand Name: STEPPERONLINE
Certification: ce
Current / Phase: 5A
D-Cut Length: 15mm
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Encoder Resolution: 1000PPR(4000CPR)

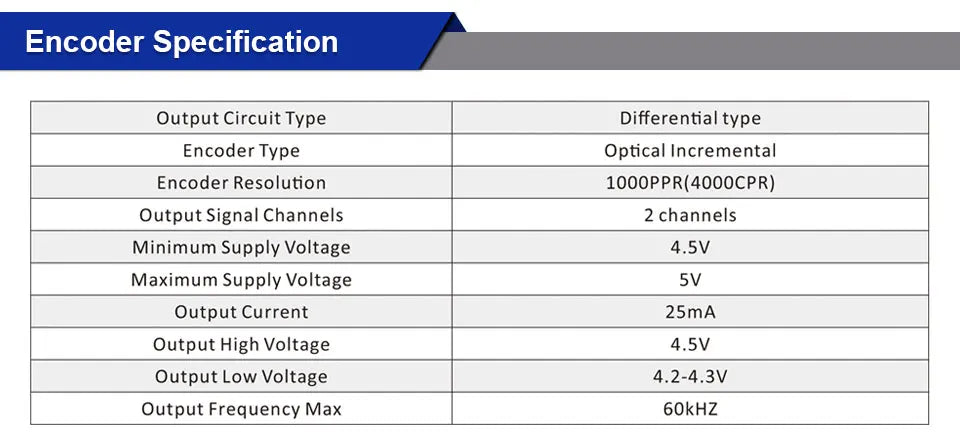

Encoder Type: Optical Incremental
Frame Size: Nema 24 (60 x 60mm)
High-concerned chemical: none
Holding Torque: 4Nm(566.45oz.in)
Model Number: 1-CL57Y-S40-V20
Origin: Mainland China
Output Circuit Type: Differential type
Output Signal Channels: 2channels
Phase: 2
Product Type: Nema 24 Closed Loop Stepper Motor
Shaft Length: 21mm
Step Angle(degrees): 1.8deg
Type: HYBRID
Nema 23 Closed Loop Stepper Moto & Servo Driver CL57Y Stepper Kit
