SPECIFICATIONS

Brand Name: STEPPERONLINE

Certification: NONE

Current / Phase: 2.0A

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Encoder Resolution: 1000PPR(4000CPR)

High-concerned chemical: none

Holding Torque: 80Ncm(113.29oz.in)

Lead Length: 500mm

Model Number: 1-CL42T-S08-V41

Motor Frame Size: 42 x 42x 80mm

Origin: Mainland China

Phase: 2

Shaft Diameter: 5mm

Step Angle(degrees): 1.8deg

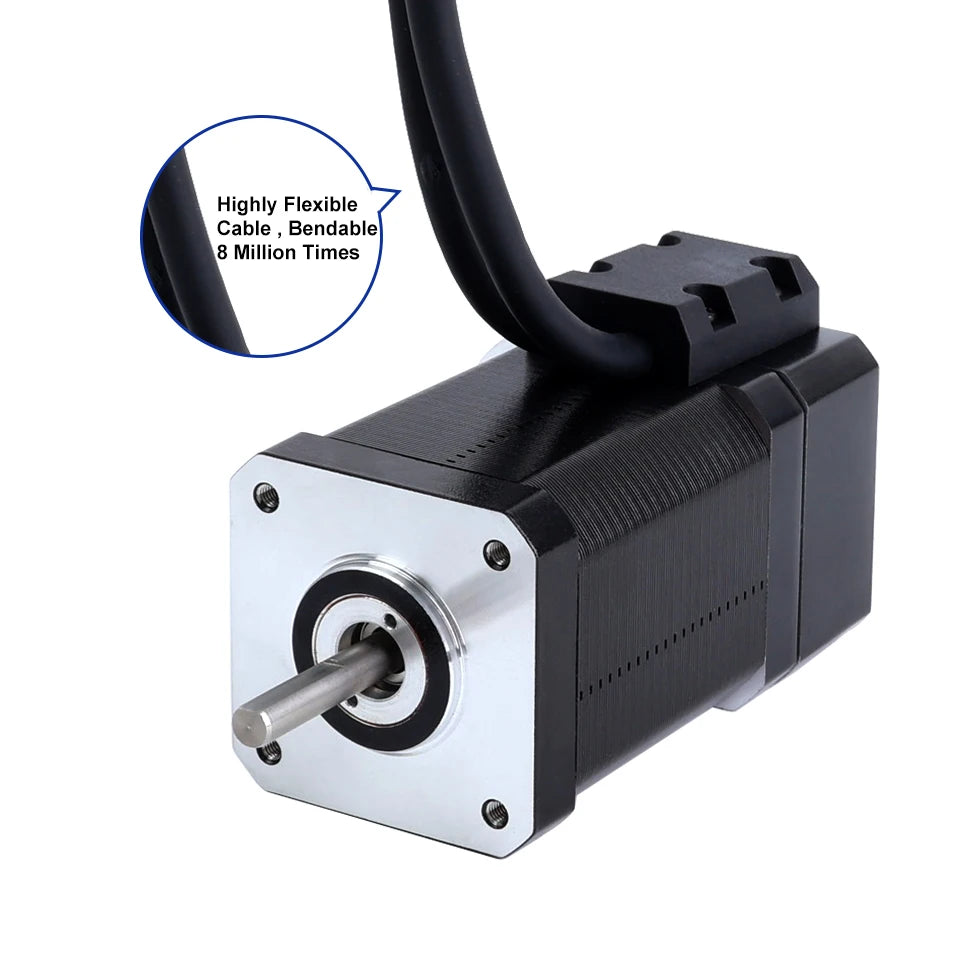

1 x 17HS24-2004D-E1K: Nema 17 Closed Loop Stepper Motor 80Ncm(113.29oz.in) with Encoder 1000PPR(4000CPR)

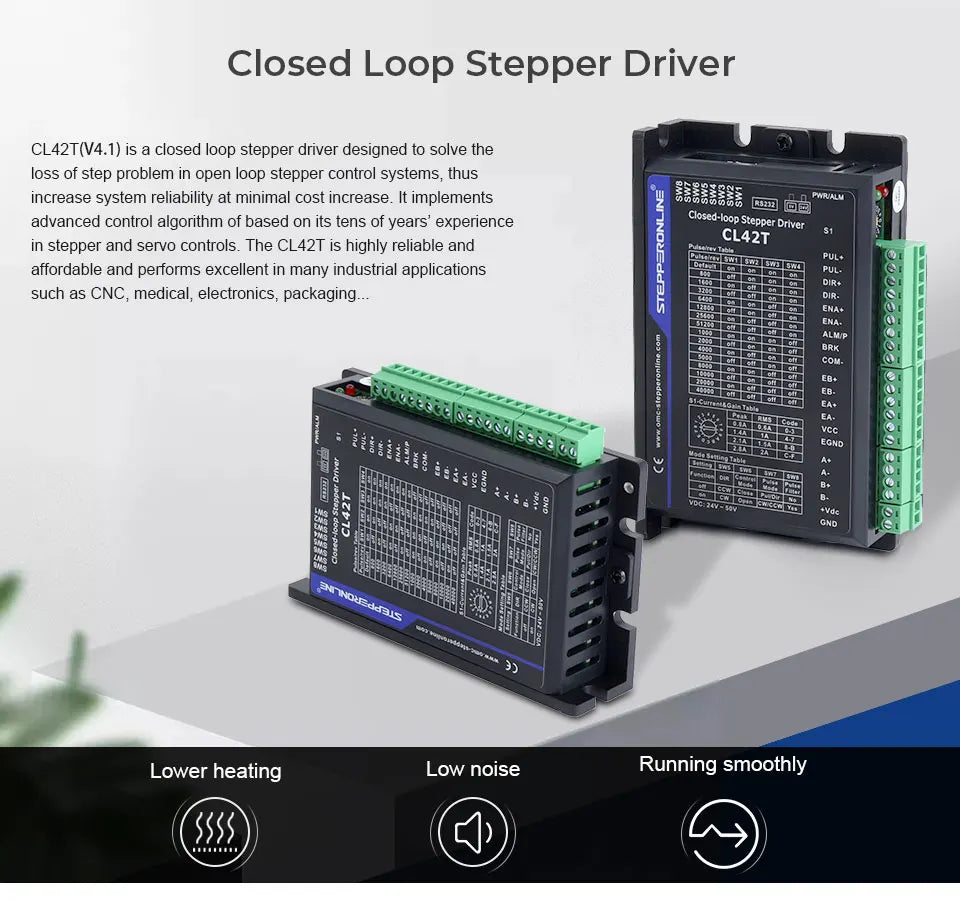

1 x CL42T-V41: Closed Loop Stepper DriverV4.1 0-3.0A 24-48VDC for Nema 11, 14, 17 Stepper Motor

1 x CABLE-PC-1: RS232 Debugging Cable

Manufacturer Part Number: 17HS24-2004D-E1K

Number of phase: 2

StepAngle: 1.8deg

Holding Torque: 80Ncm(113.29oz.in)

Rated Current/Phase: 2.0A

Phase Resistance: 1.3ohms

Inductance: 2.7mH ± 20%(1KHz)

Frame Size: 42 x 42mm

Body Length: 80mm

Shaft Diameter: Φ5mm

Shaft Length: 24mm

D-Cut Shaft Length: 15mm

Lead Length: 500mm

Insulation Class: B 130°C[266°F]

Output Circuit Type: Differential type

Encoder Type: Optical Incremental

Encoder Resolution: 1000PPR(4000CPR)

Output Signal Channels: 2 channels

SupplyVoltage Min: 5V

SupplyVoltage Max: 5V

Output HighVoltage: <4V

Output LowVoltage: <1V

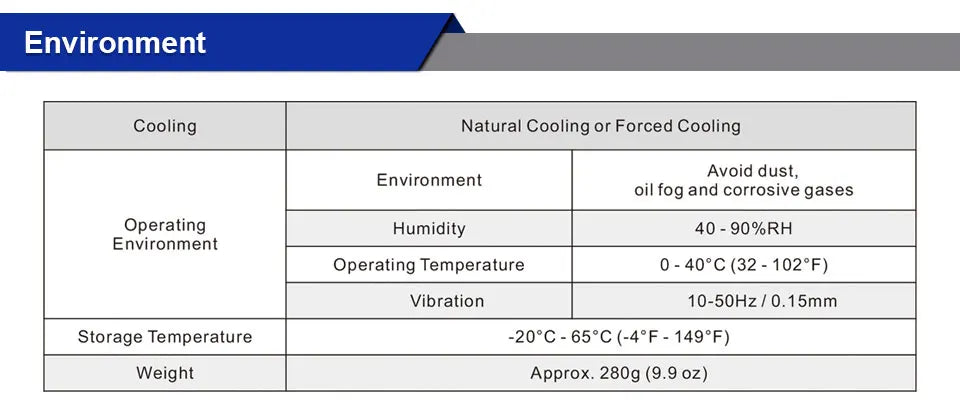

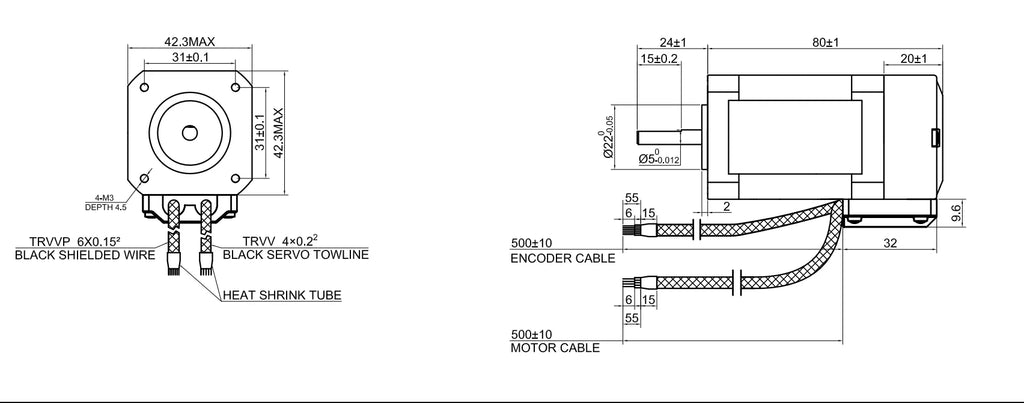

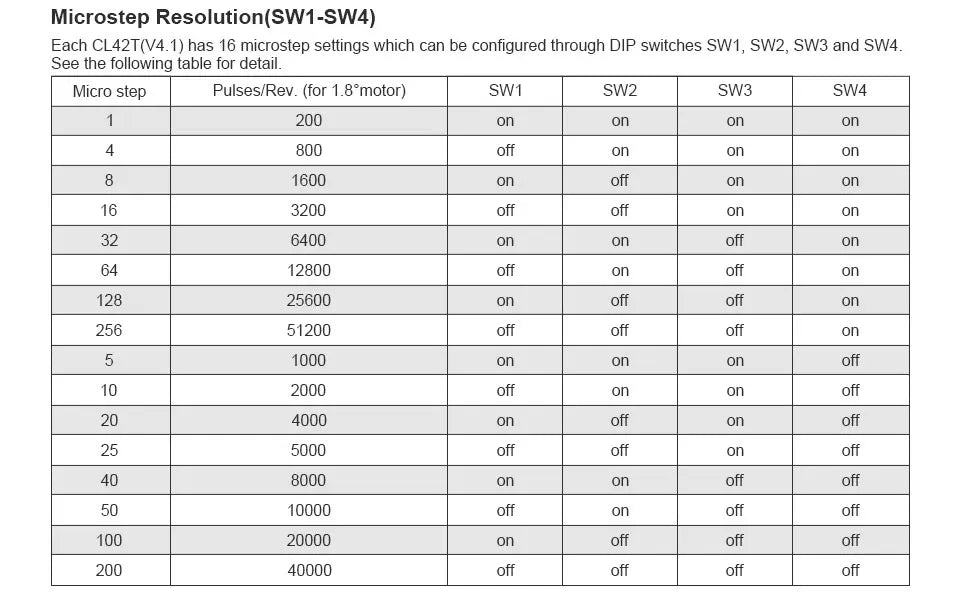

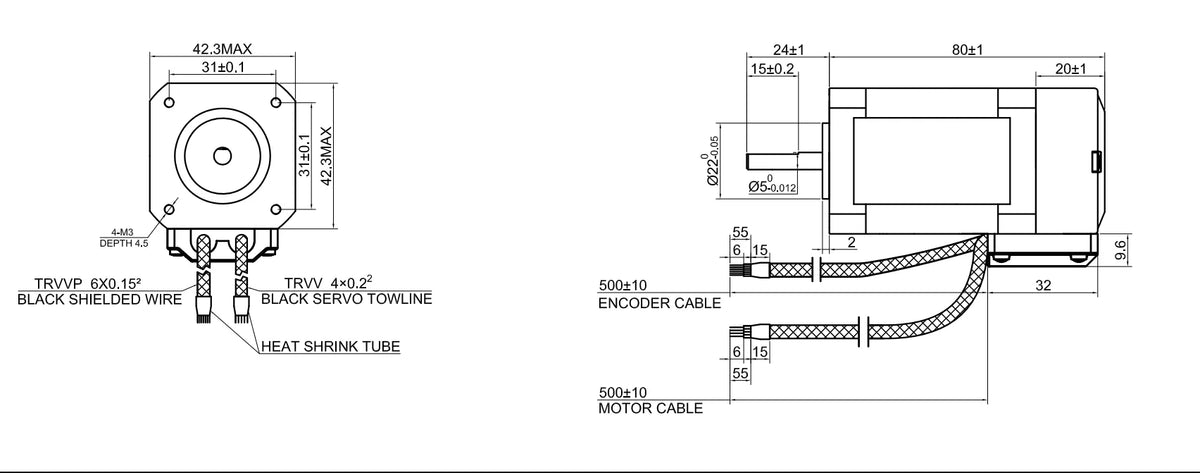

Motor and Encoder Connection
