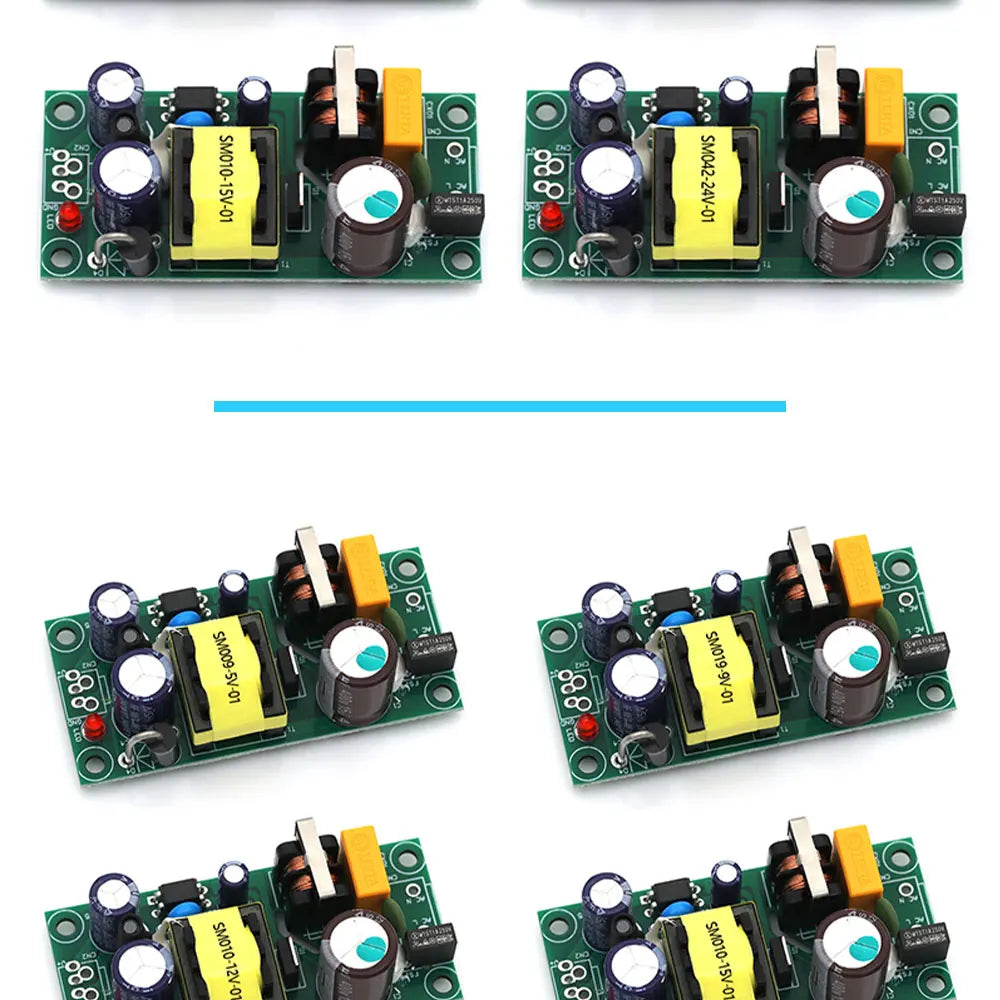

Stlxy 220V To 5V AC-DC Isolated Switch Power Supply Module Converter 9V 12V 15V 24V switching power supply Power supply module 1
15V 0.8A (12W)
$13.96
Sale price
$13.96
Regular price
$0.00
Skip to product information
Stlxy 220V To 5V AC-DC Isolated Switch Power Supply Module Converter 9V 12V 15V 24V switching power supply Power supply module 1
$13.96
Sale price
$13.96
Regular price
$0.00
Description

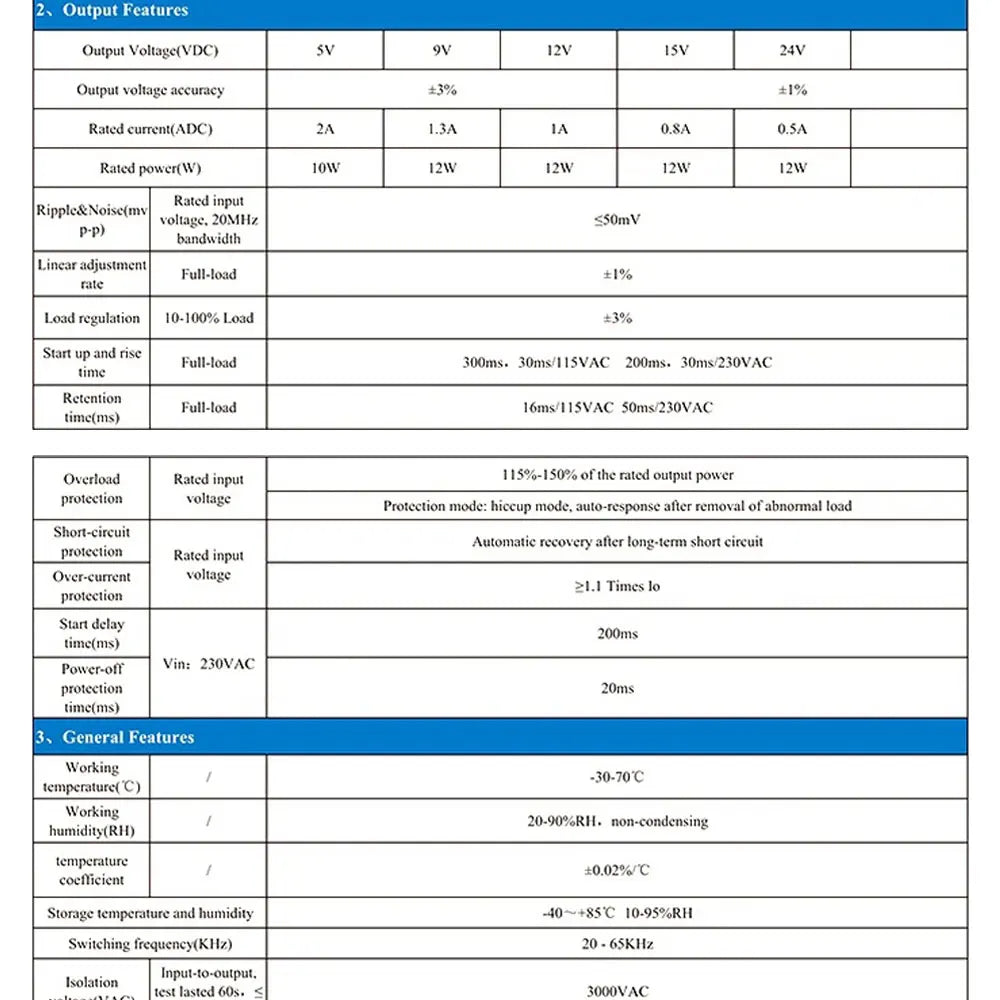

SPECIFICATIONS
Brand Name: Stlxy
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: PLF12A
Origin: Mainland China
Output Current: 0-5A
Output Frequency: 10W 12W
Output Type: SINGLE
Rated Capacity: 40-1000VA（include40VA）
Type: Power Supply
is_customized: Yes
Product characteristics
1. The product is easy to install, and can be installed on the main board of the socket (AC input V h3.96-3a2 / DC output V h3.96-2a), so as to realize the direct plug insertion and use, and reserve the wire hole
2. There are fixed installation holes at four corners to prevent power failure caused by movement / vibration. The straight diameter of the fixed holes is 3.2mm
3. Global general input voltage: 85-264VAC or 110-370vdc
4. High efficiency, high power density, low output ripple noise, high output voltage accuracy
5. High input and output isolation.
6. Over current protection, short circuit protection and temperature protection
7. Output built-in filter, no need to use external filter circuit
8. 3 years warranty.
