SX1278 LoRa Module 433M 10KM Ra-02 Wireless Module Ai-Thinker Spread Spectrum Transmission Electronic DIY Kit
Default Title
$16.64
Sale price
$16.64
Regular price
$0.00
Skip to product information
SX1278 LoRa Module 433M 10KM Ra-02 Wireless Module Ai-Thinker Spread Spectrum Transmission Electronic DIY Kit
$16.64
Sale price
$16.64
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: STJF
Condition: New
Dissipation Power: ...
Functions: Electronic Module
High-concerned chemical: none
Model Number: SX1278
Operating Temperature: -40-+85
Origin: Mainland China
Package: DIY Module
Range of application: Switch And Sensor For Arduino STM
Supply Voltage: ...
Type: Voltage Regulator
is_customized: Yes
Description

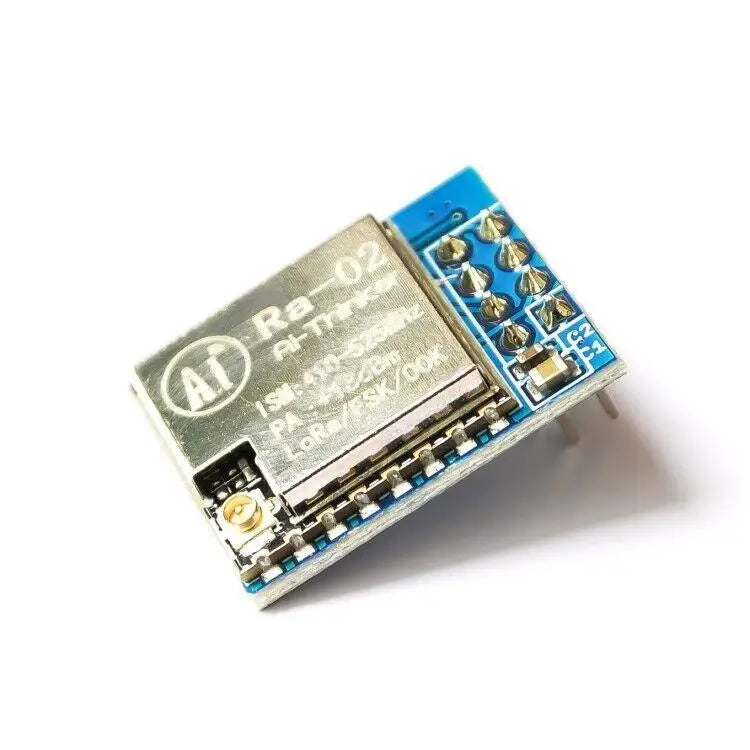

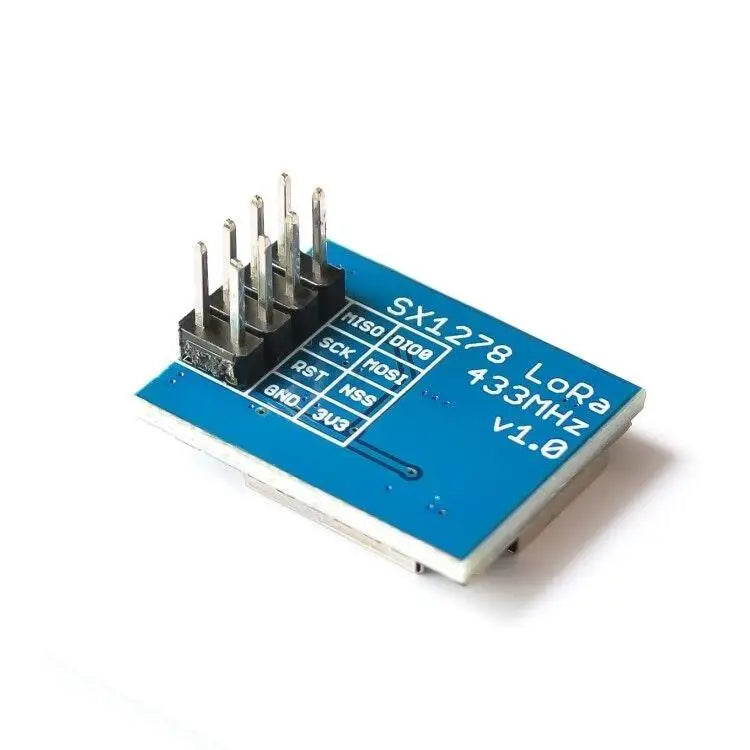

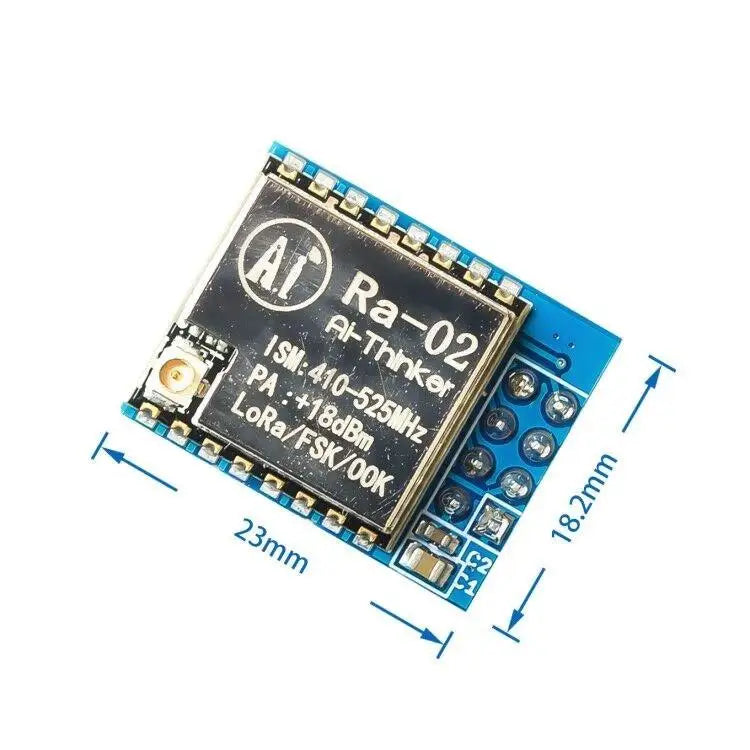

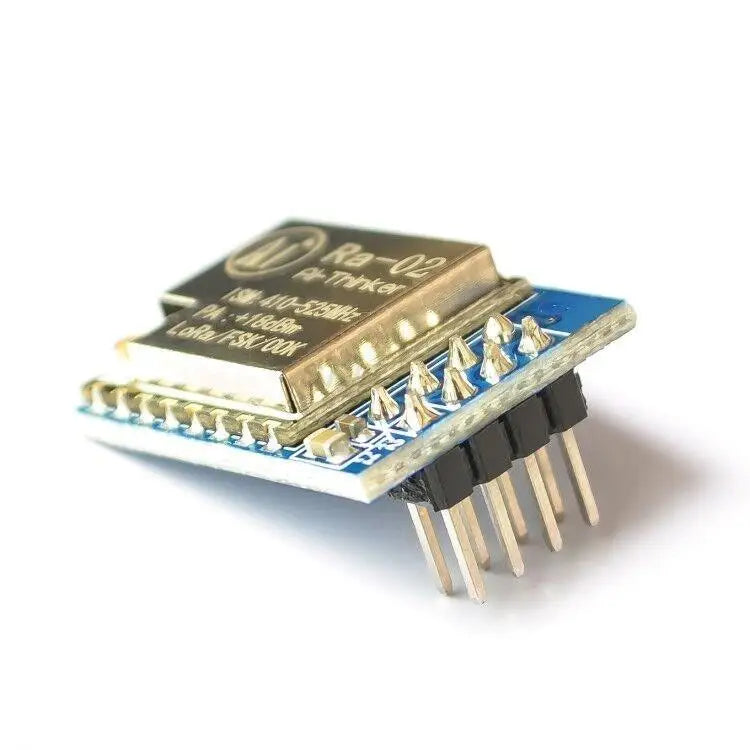

Ra-02 is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.
The LoRa series module Ra-01 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH's patented LoRa modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.
|
Features LoRa Spread Spectrum modulation technology Constant RF power output at + 20dBm-100mW voltage change High sensitivity: down to -148dBm Half-duplex SPI communication Programmable bit rates up to 300kbps Supports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes 127dB RSSI dynamic range Automatic RF signal detection, CAD mode and very high speed AFC Packet engine with CRC up to 256 bytes Small footprint dual-row stamp-hole patch package Shielded housing Spring Antenna |
