T12 Heat Guns OLED Digital Display Temperature Soldering Station Portable BGA Rework Hot Air Gun Home Diy Repair Tools

T12 Heat Guns OLED Digital Display Temperature Soldering Station Portable BGA Rework Hot Air Gun Home Diy Repair Tools

$286.96

$286.96 $0.00

Color858 heat gun

Power (W) EU Plug 220V UK Plug 220V US Plug 110V CN Plug 220V

Description

SPECIFICATIONS

Air Volume: /

Brand Name: handskit

Certification: CE

Choice: yes

Electrified: No

Feature: Temperature Adjustable

High-concerned chemical: none

Model Number: handskit

No-Load Speed: 1800rpm

Origin: Mainland China

Power Source: Ac

Rated Output Power: 700W

Rated Voltage: 220V

Usage: Home DIY

Use: Home DIY

Weight: 1.2

is_customized: Yes

semi_Choice: yes

Feature

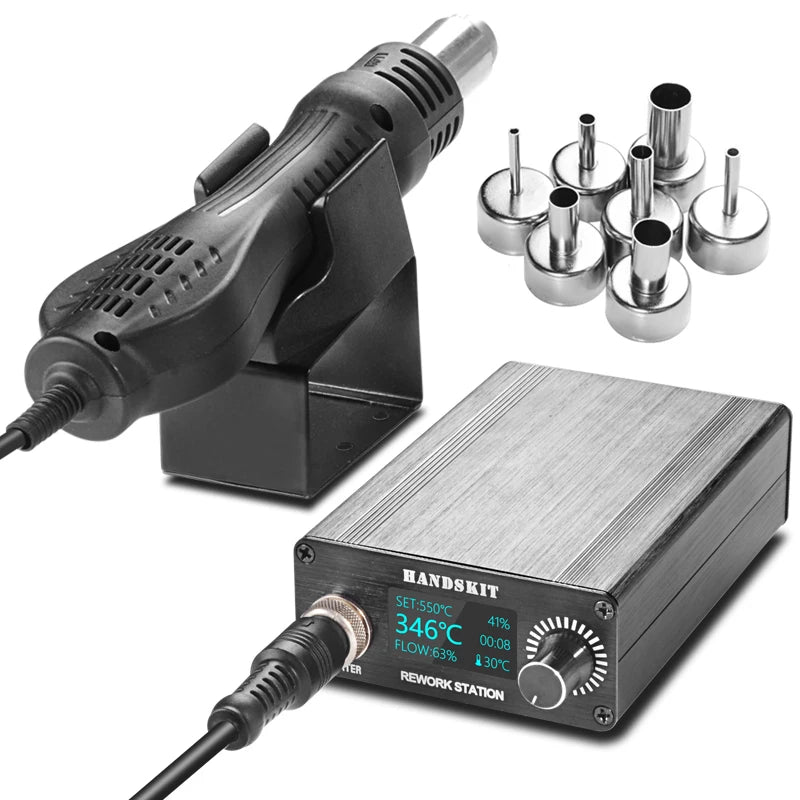

1. Very portable hot air desoldering station, the host is very small in size, the internal structure is compact, and the aluminum shell is anti-fall and anti-corrosion.

2. The station supports hot air rework temperature. 100°C-480°C range and soldering temperature. Operating temperature range is 200°C-480°C. Temperature calibration can be done via the cold-end function.

3. Support English/Chinese dual language, OLED screen is convenient to view/adjust various parameters.

4. Placing the handle on the bracket can make the hot air gun go to sleep, save energy and prolong the life of the heating core.

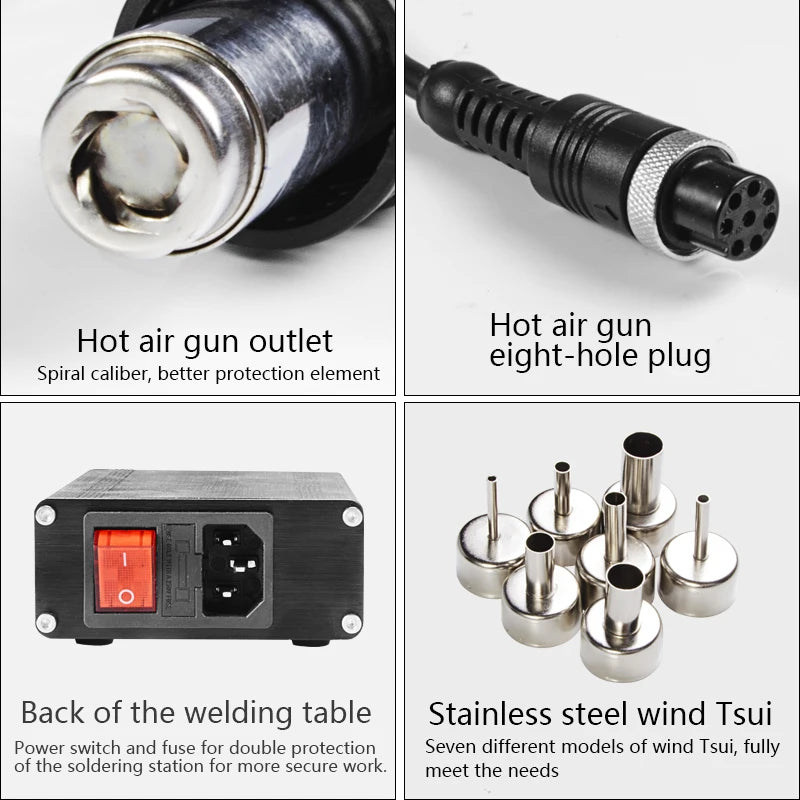

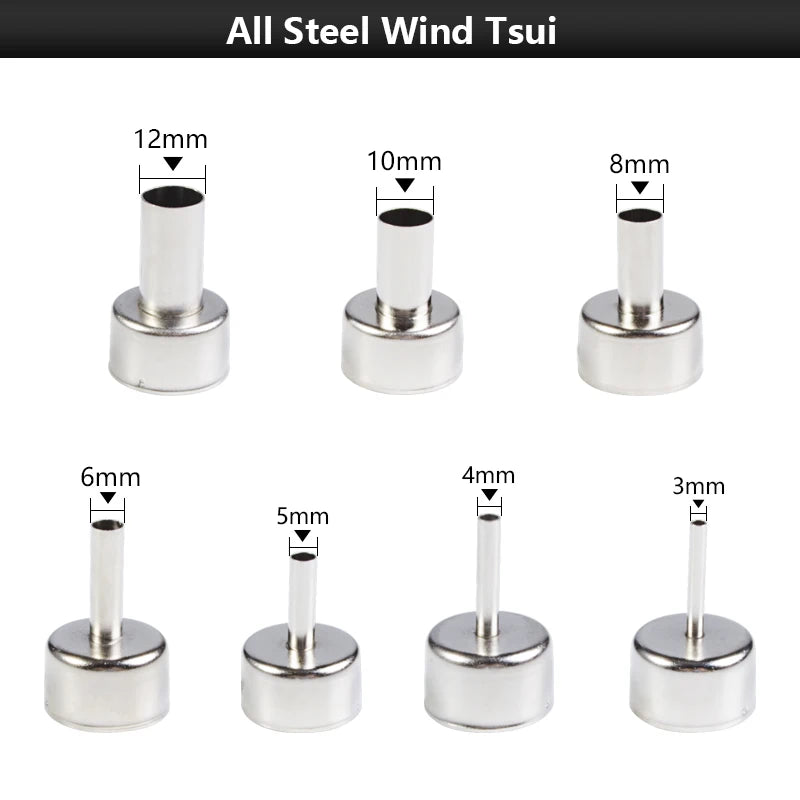

5. Equipped with 7 nozzles of different sizes to adapt to different working environments.

6. Version 1.02 and version 1.04 have the same actual function, and version 1.04 discards a function.

STM858- Hot Air Gun

MODEL NO. ：Stm-858

IN PUT VOTAGEAC ： 100-240V

Controller ：STM32

POWER ：700W

Temperature(adjustable) ：100-550 ℃

Fan Speed ：1-100%

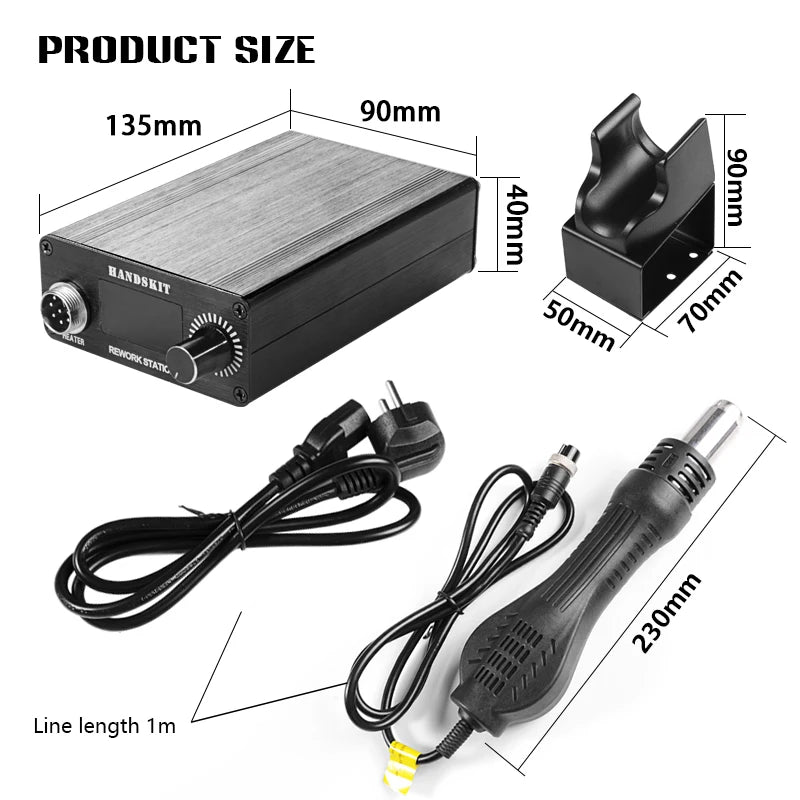

Prodcut Size ：130*88*38MM

Product material ：Aluminum

Display Size ：1.3Inch OLED

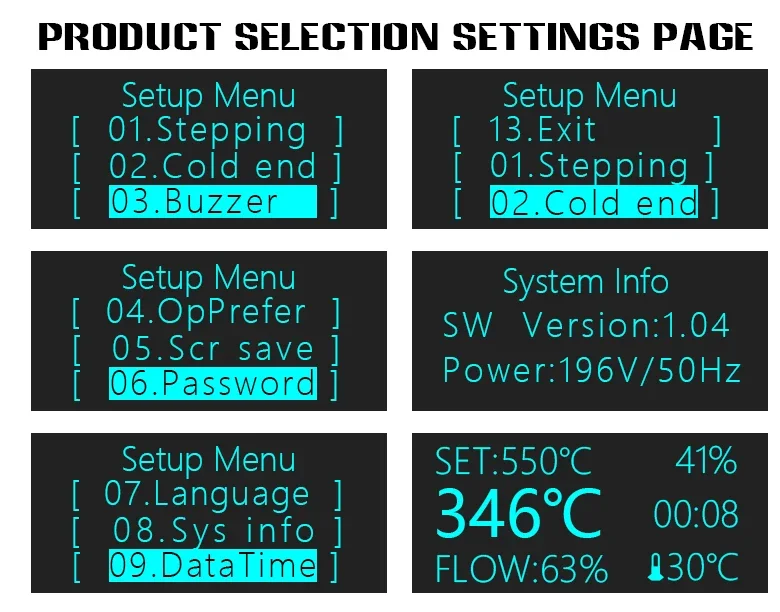

Function menu

1）Steepping
1.1 Temperature step 1-50℃, default 10

1.2 Air output step by step, 1-20%, default 5%.

2）Cold end-Temperature compensation
Choice Mode NTC/CPU, temperature compensation -9-99℃

3）Buzzer-off/open

4）Operational preferences--you can According to personal preference, choose the air volume or temperature adjustment on the main page。

5）Screen Saver
The screen saver is a special program designed to protect the display. The original intention of the design at that time was to prevent the computer from displaying the same screen for a long time due to unmanned operation, resulting in aging and shortening the life of the display.The time can be selected from 1 to 60 minutes, and the default is 5 minutes.

6）Password
In order to prevent others from changing their own settings, you can password and lock time, you can set 1-60 minutes to take effect, the default is 5 minutes, the default password

7）LauguageEnglish/China

8）System Information

9）Init -Reset

10）Exit-quit Set
