Description
SPECIFICATIONS
Brand Name: NONE
Condition: New
Dissipation Power: -
High-concerned chemical: none
Operating Temperature: -
Origin: Mainland China
Quantity: 1
Supply Voltage: -
Type: Module
is_customized: Yes
TB6560 Upgrade Version TB6600 NEMA17/NEMA23 Stepper Motor Driver Driver Board 3A 32 Subdivision Not Easy to Burn
Product description
1) Operating voltage DC 10V-35V. It is recommended to use DC24V switching power supply.
2) 6N137 high-speed optical coupling, to ensure high speed without losing step.
3) TB6560AHQ new original chip, there are low-voltage shutdown, over-temperature shutdown and over-current protection circuit to ensure optimal performance.
4) Rated maximum output is: ± 3A, peak 3.5A.
5) Suitable for two-phase / four-phase / four-wire / six-wire stepper motor within steps of 3A and 5A, not suitable for stepping motors exceeding 3A.
6) automatic half-flow function.
7) Subdivision: whole step, half step, 1/8 step, 1/16 step, maximum 16 subdivision.
8) Volume: Width 50 * Length 75.2 * Height 35 (MM)
Features in similar products
1, the current level by adjustable, to meet your needs of a variety of applications.
2, automatic half-flow adjustable.
3, using 6N137 high-speed light lotus, to ensure high speed without losing step.

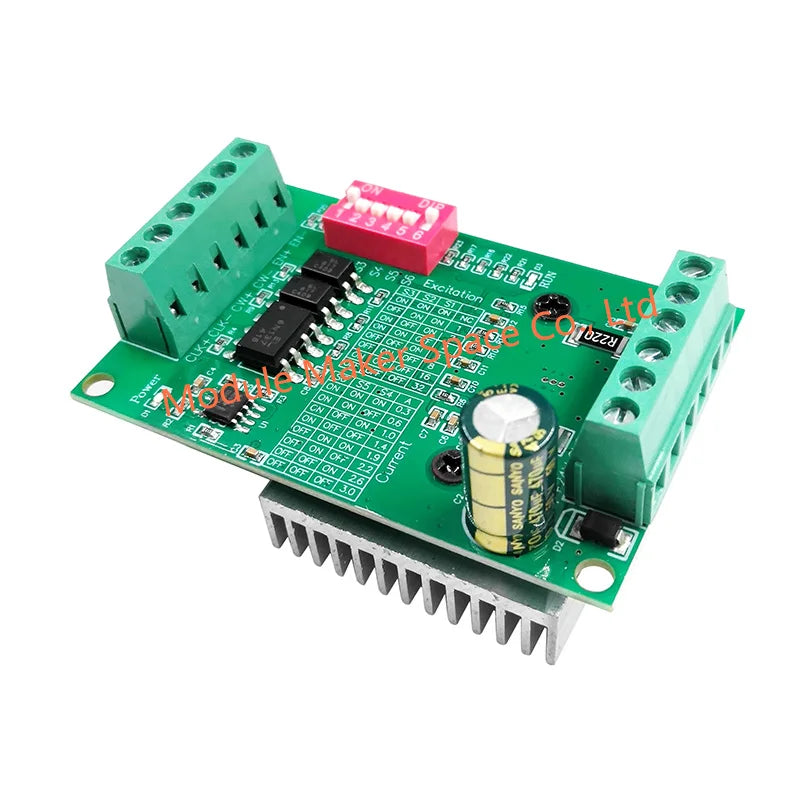

4, Board setting instructions, without instructions can also be operated.

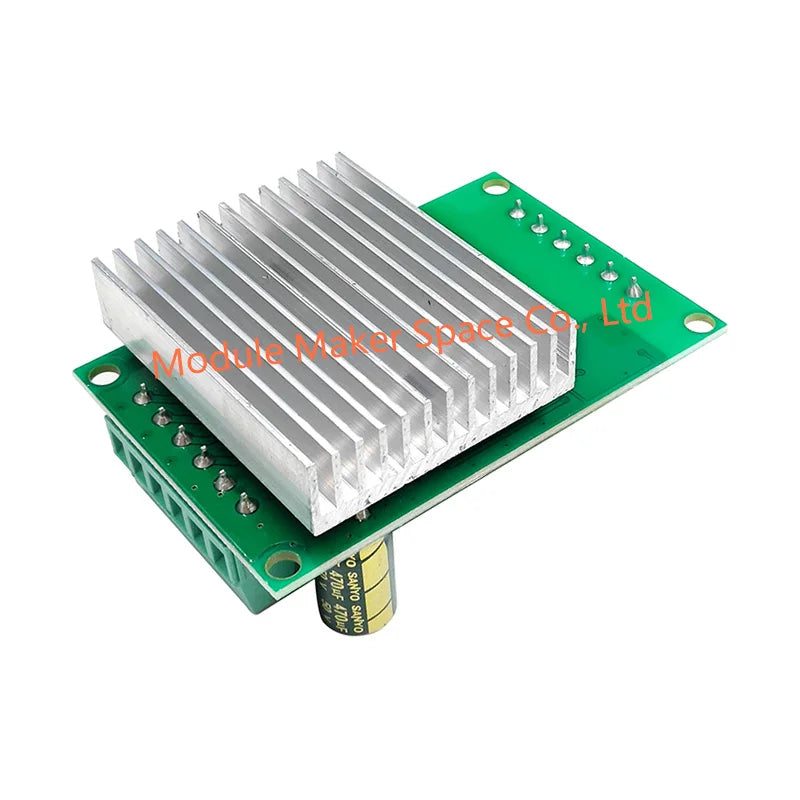

5, using thick tooth radiator, heat well.
