TB6612 DRV8833 Dual Motor Driver 1A TB6612FNG for Arduino Microcontroller Better than L298N

TB6612 DRV8833 Dual Motor Driver 1A TB6612FNG for Arduino Microcontroller Better than L298N

$10.84

$10.84 $0.00

Description

SPECIFICATIONS

Application: Computer

Brand Name: STJF

Choice: yes

Condition: New

Dissipation Power: ...

Functions: Electronic Module

High-concerned chemical: none

Operating Temperature: -40℃~+80℃

Origin: Mainland China

Package: DIY Module

Range of application: Switch And Sensor For Arduino STM

Supply Voltage: 2.7V-10.8V

Type: Module

semi_Choice: yes

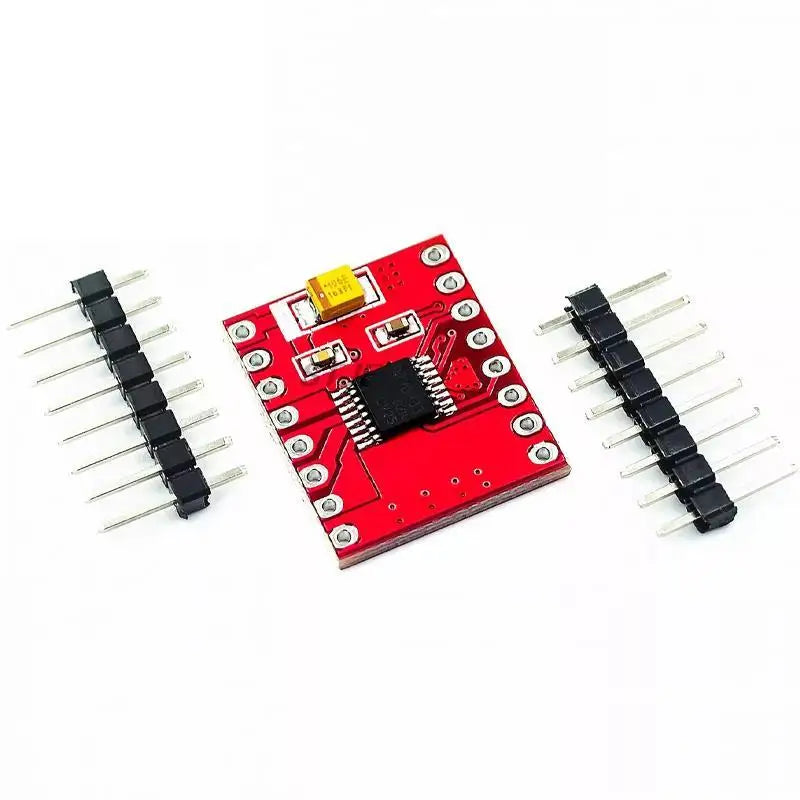

The DRV8833 motor drive module can directly replace the TB6612 drive module, and the pins are basically fully compatible.

Usage of DRV8833:

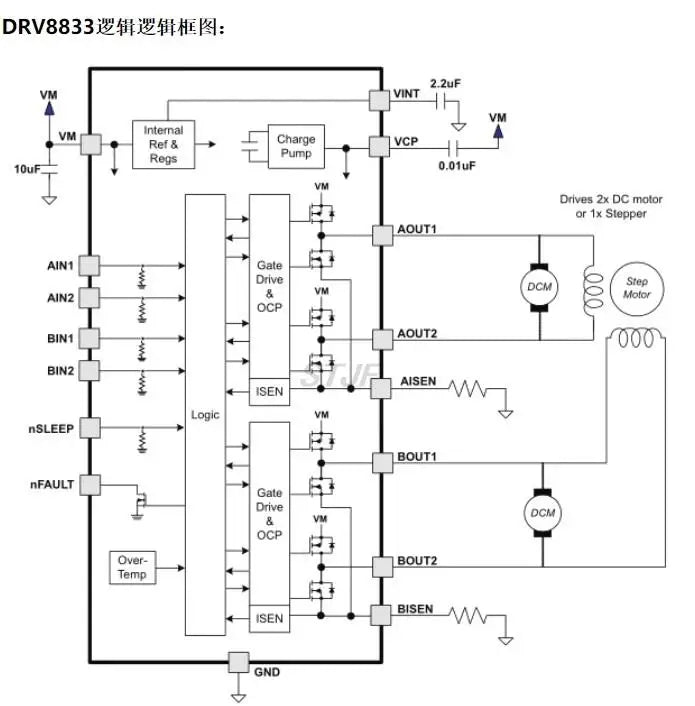

Feature introduction:

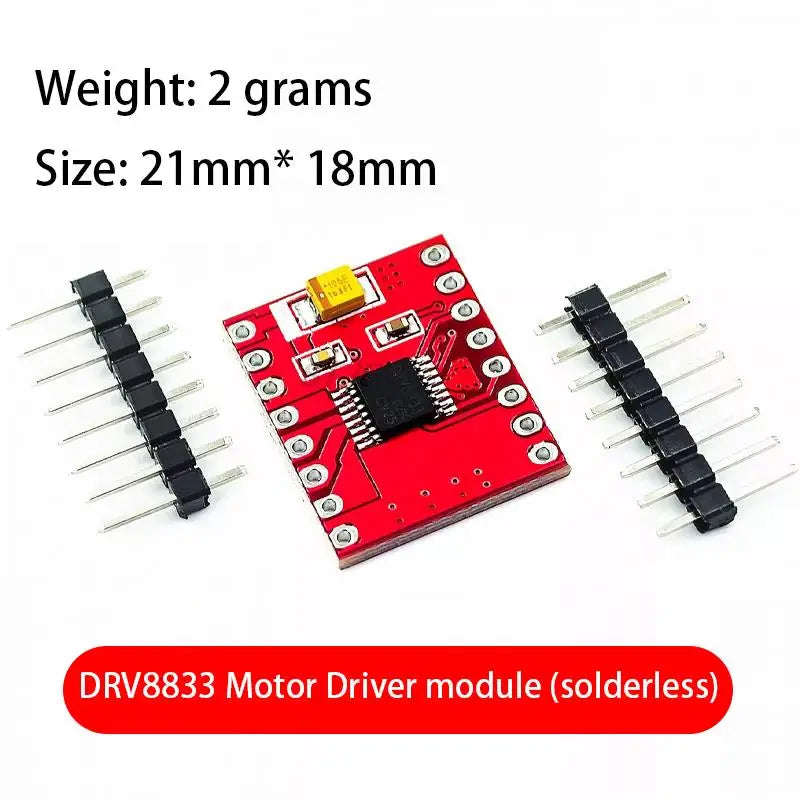

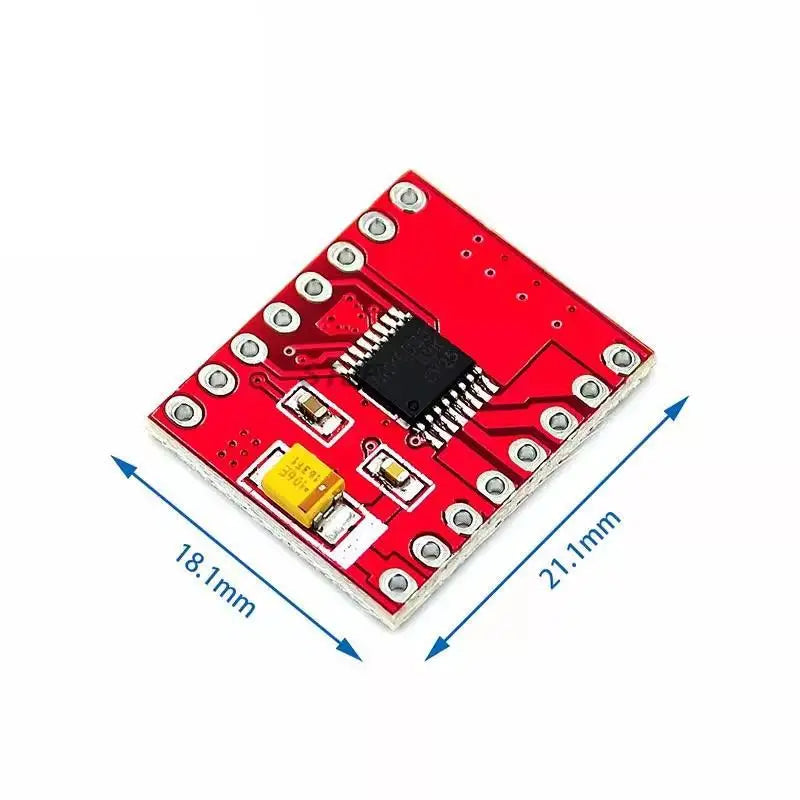

Size: 18* 21mm

Input voltage: 2.7V - 10.8V

Single H bridge output current: 1.5A, can drive 2 DC gear motors.

Built-in overcurrent protection, short circuit protection, undervoltage lock and overheat protection. With low power sleep mode.

Usage: It can drive DC motors and 4-wire stepper motors below 1.5A.

Pin description:
ANI1: Logical input control port of AO1, level 0-5V.
AIN2: Logical input control port for AO2, level 0-5V.
BNI1: Logical input control port of BO1, level 0-5V.
BIN2: Logical input control port of BO2, level 0-5V.
AO1 and AO2 are 1 H-bridge output ports, which are connected to two feet of a DC motor.
BO1 and BO2 are 2-way H-bridge output ports, which are connected to two feet of another external direct motor.
GND: Ground.

VM: chip and motor supply pin, voltage range 2.7V - 10.8V.

STBY: Grounded or suspended chip does not work, no output, connected to 5V work; Level 0-5V.

NC: Empty foot

Usage of DRV8833:
The DRV8833 is dual drive, that is, it can drive two motors
Below are the IO ports that control the two motors
The IO port zeroing motor of STBY port is all stopped, and the forward and reverse rotation is controlled by AIN1 AIN2, BIN1, BIN2
Connect the VM to a power supply within 12V
GND not much to say
Drive 1 channel

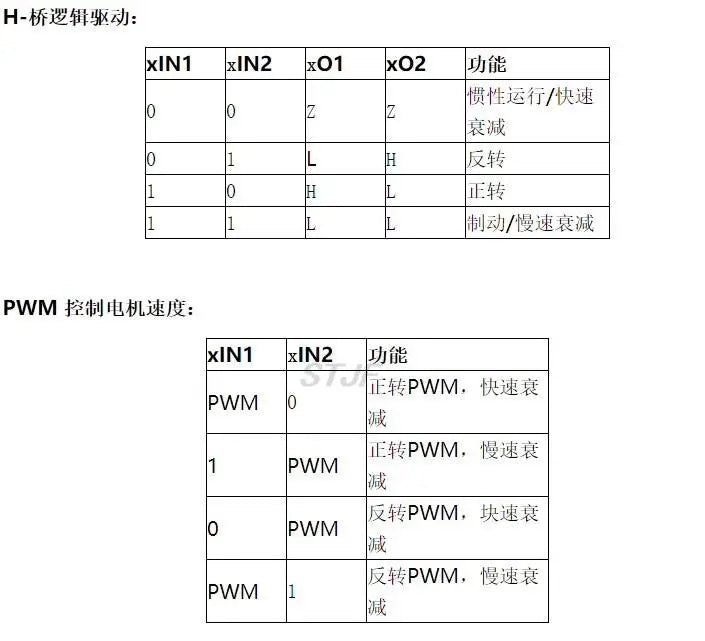

Truth table:
AIN1 0      0      1
AIN2 0      1      0
Stop reversing forward
A01
AO2 connects the two legs of motor 1
Drive 2 way
PWMB Connects to the PWM port of the MCU
Truth table:
BIN1 0      0      1
BIN2 0      1      0
Stop reversing forward
B01
BO2 connects the two feet of motor 2

Usage of TB6612:
The TB6612 is dual-drive, that is, it can drive two motors
Below are the IO ports that control the two motors
The IO port zeroing motor of STBY port is all stopped, and the forward and reverse rotation is controlled by AIN1 AIN2, BIN1, BIN2
Connect the VM to a power supply within 12V
The VCC is connected to a 5V power supply
GND not much to say
Drive 1 channel
PWMA Connects to the PWM port of the MCU

Truth table:
AIN1 0 0 1
AIN2 0 1 0
Stop the forward reversal

A01
AO2 connects the two legs of motor 1

Drive 2 way
PWMB Connects to the PWM port of the MCU
Truth table:
BIN1 0 0 1
BIN2 0 1 0
Stop the forward reversal
B01
BO2 connects the two feet of motor 2

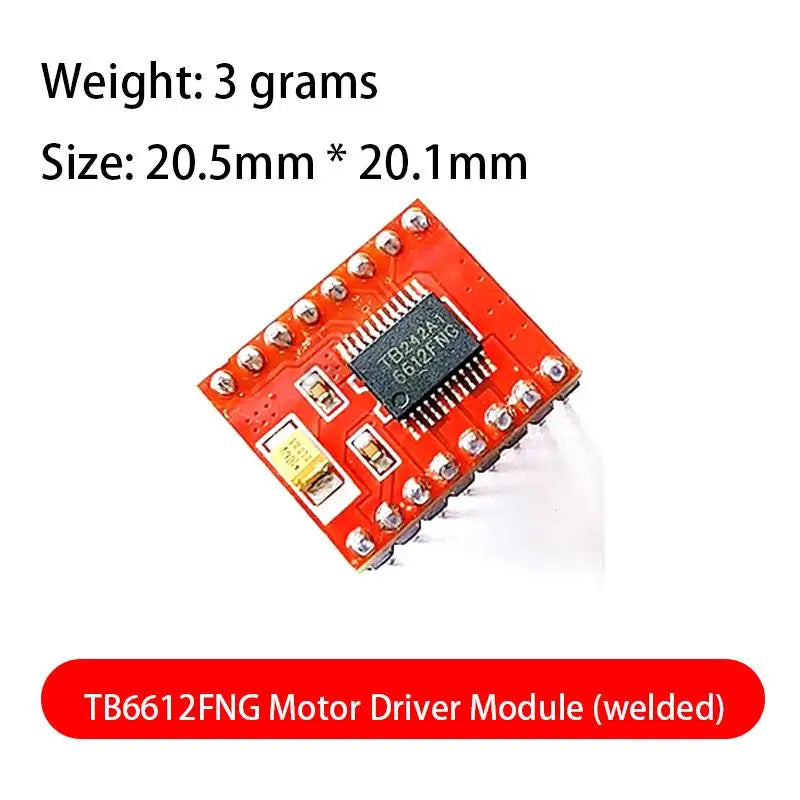

Description: The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and s. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.CJMCU.

Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

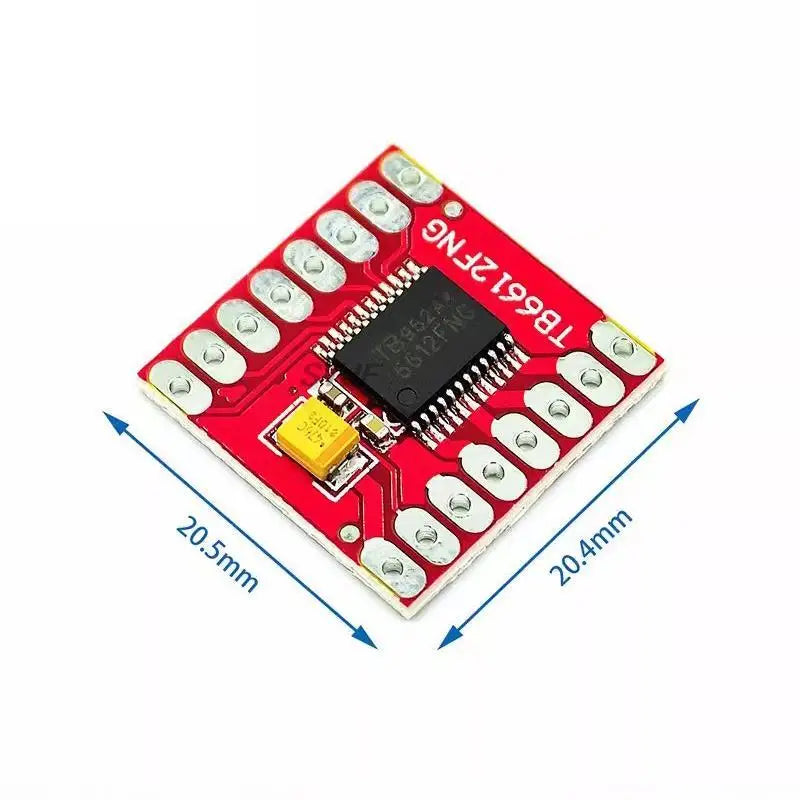

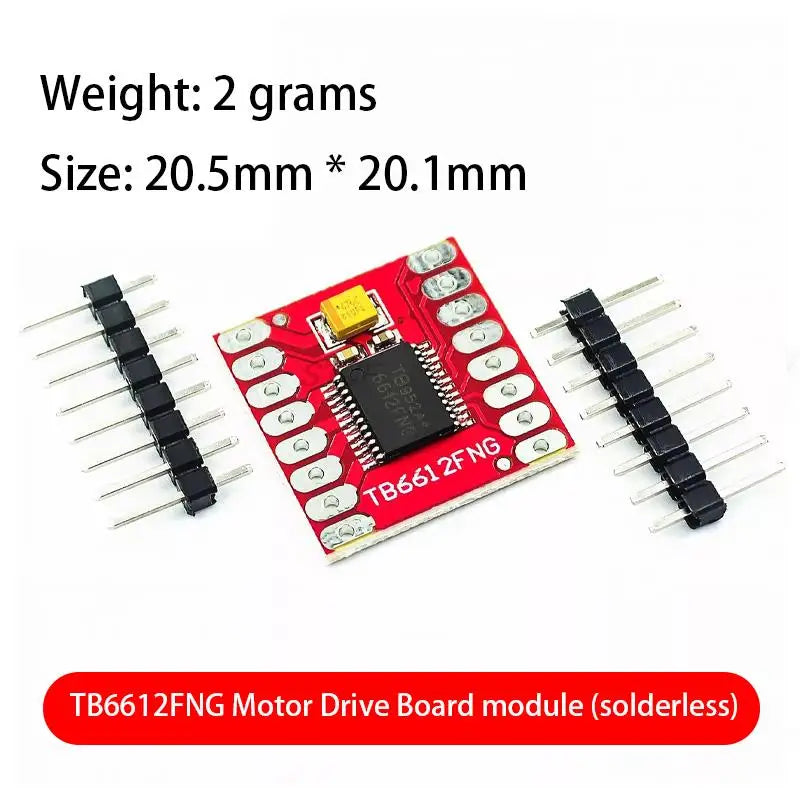

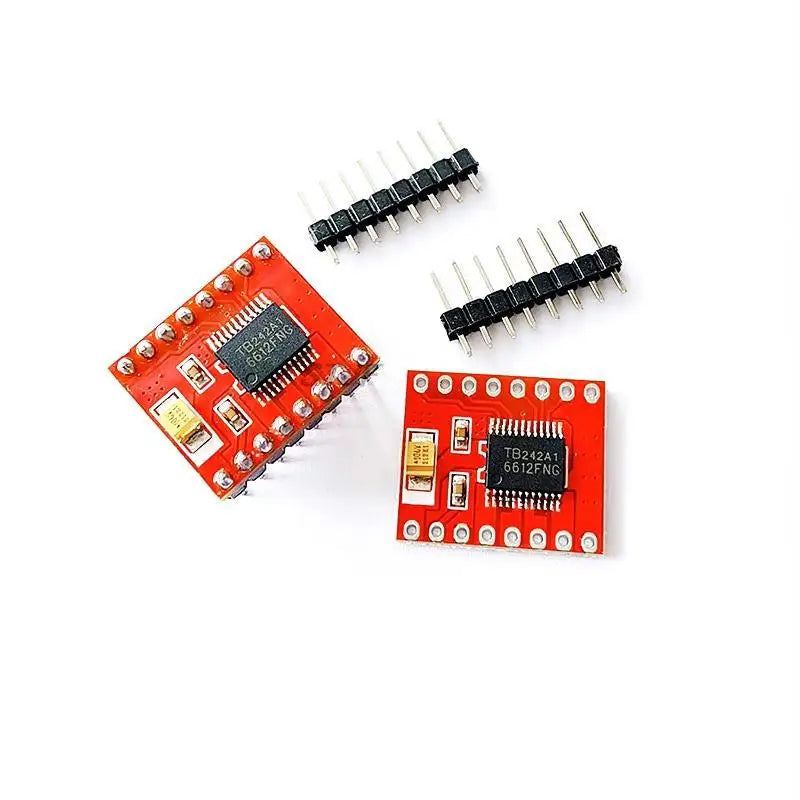

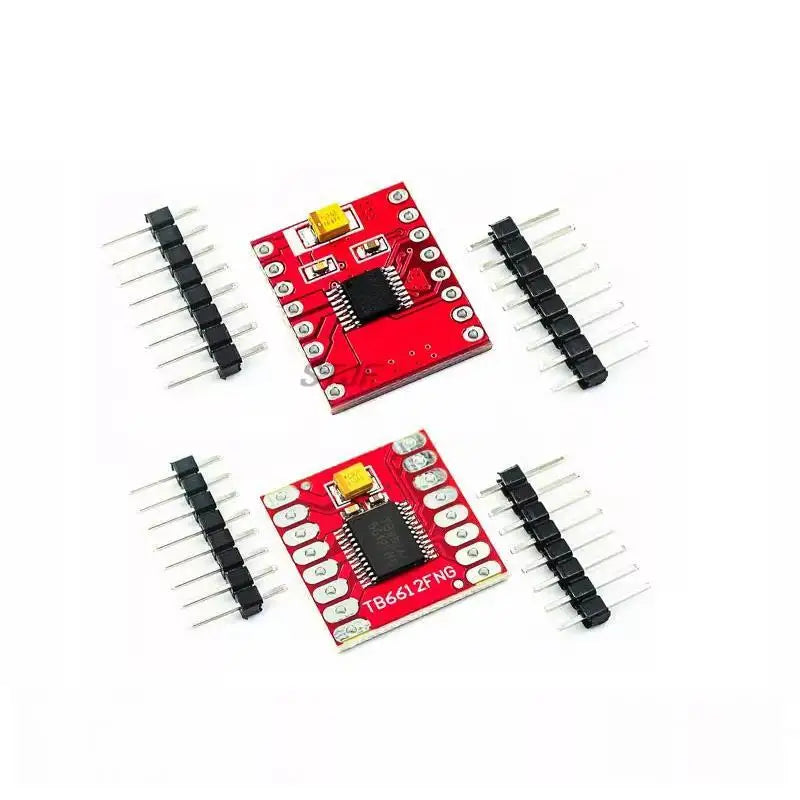

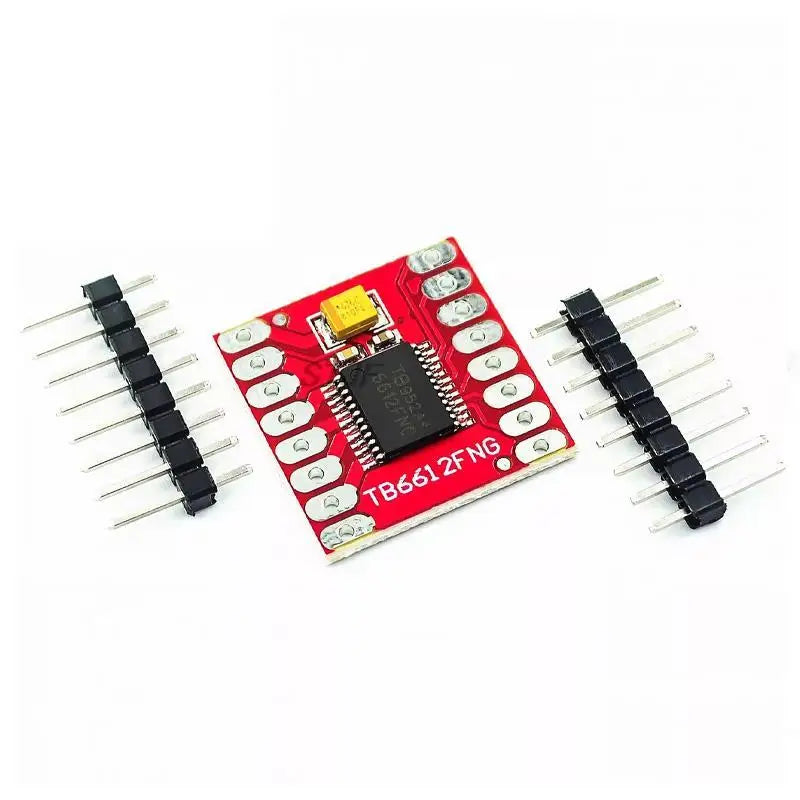

Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1" pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other.

Features:
