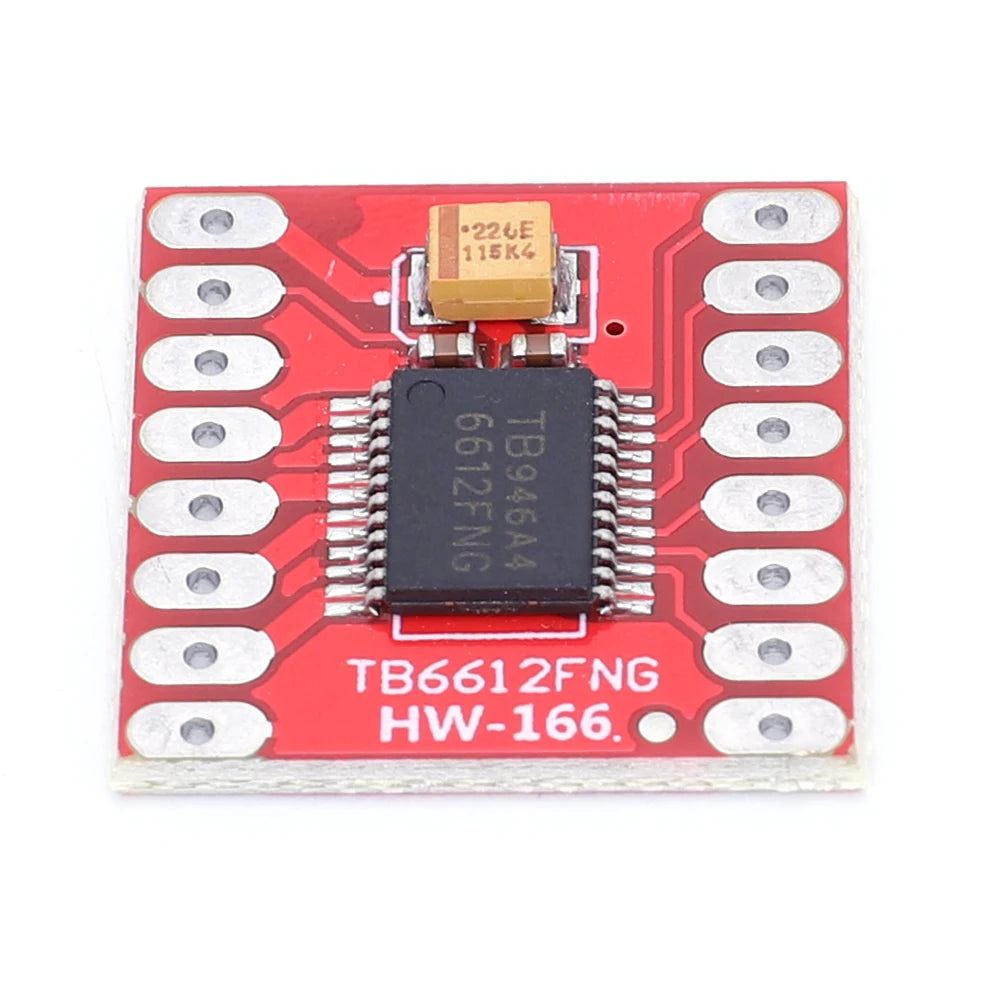

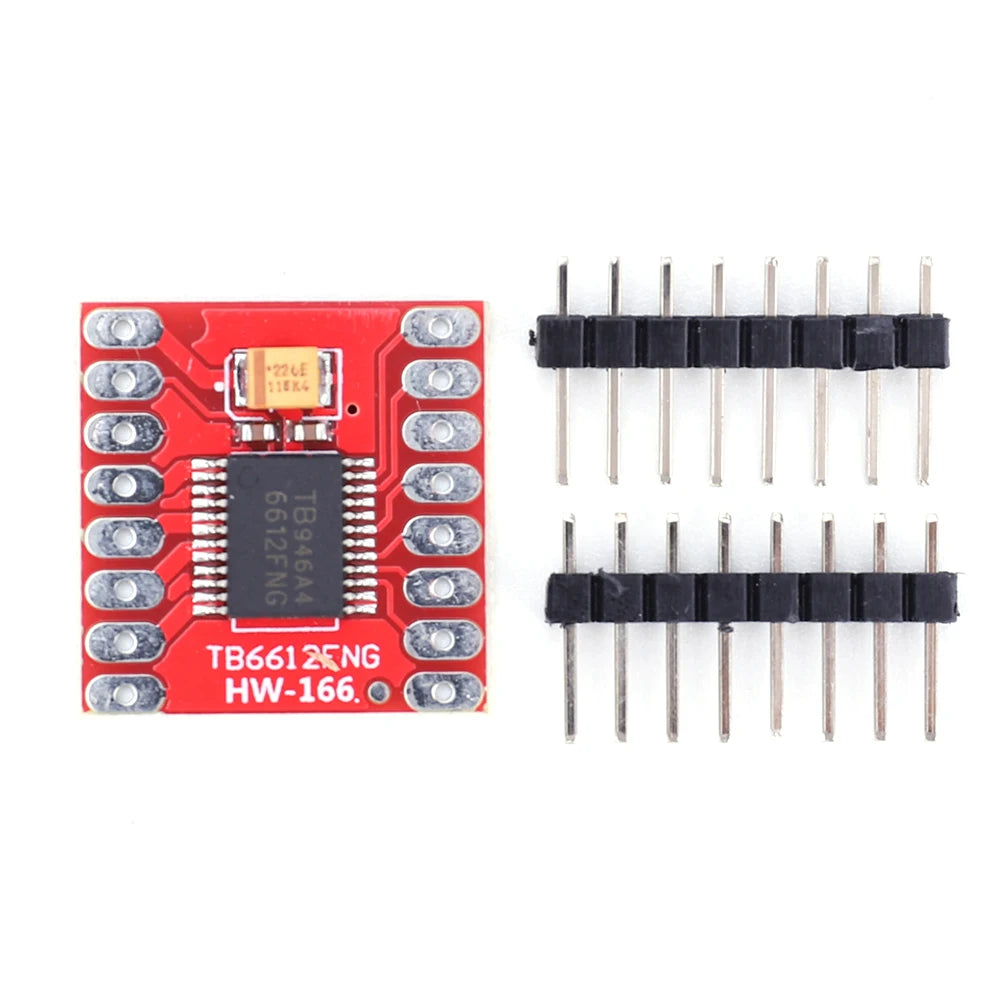

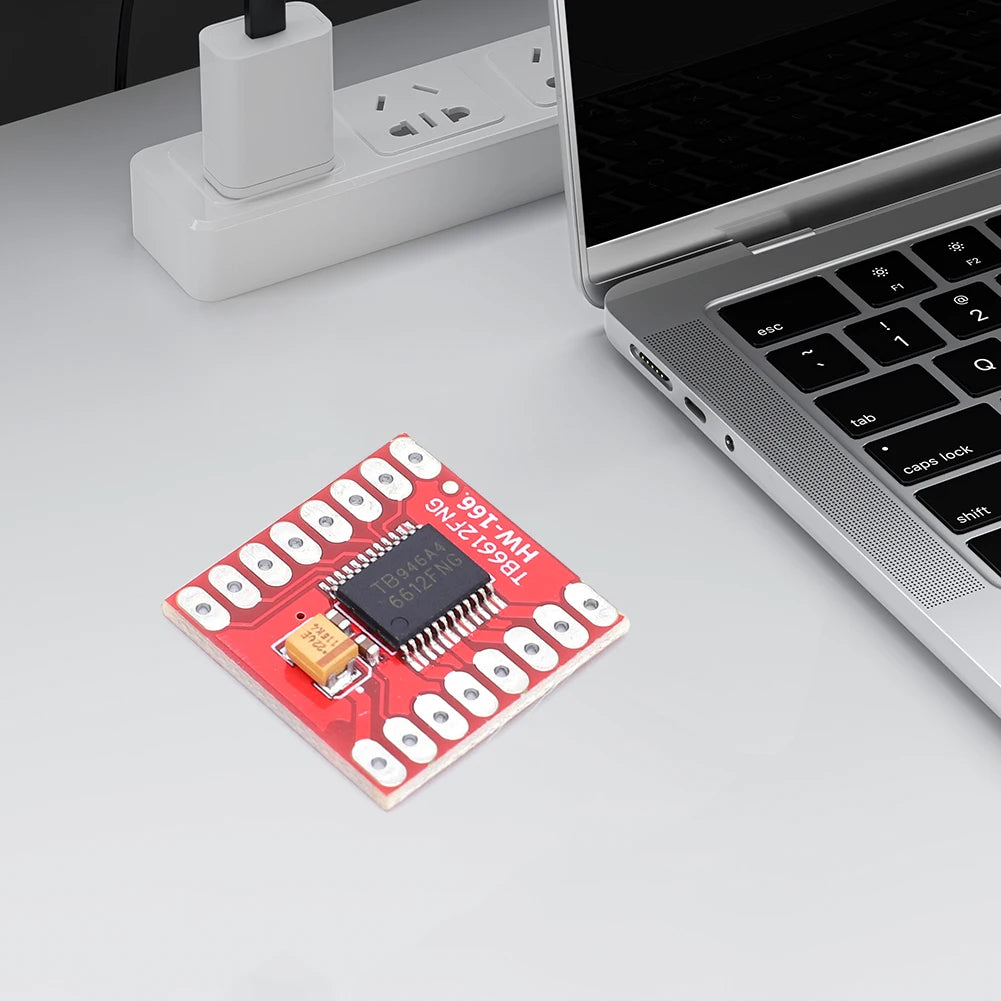

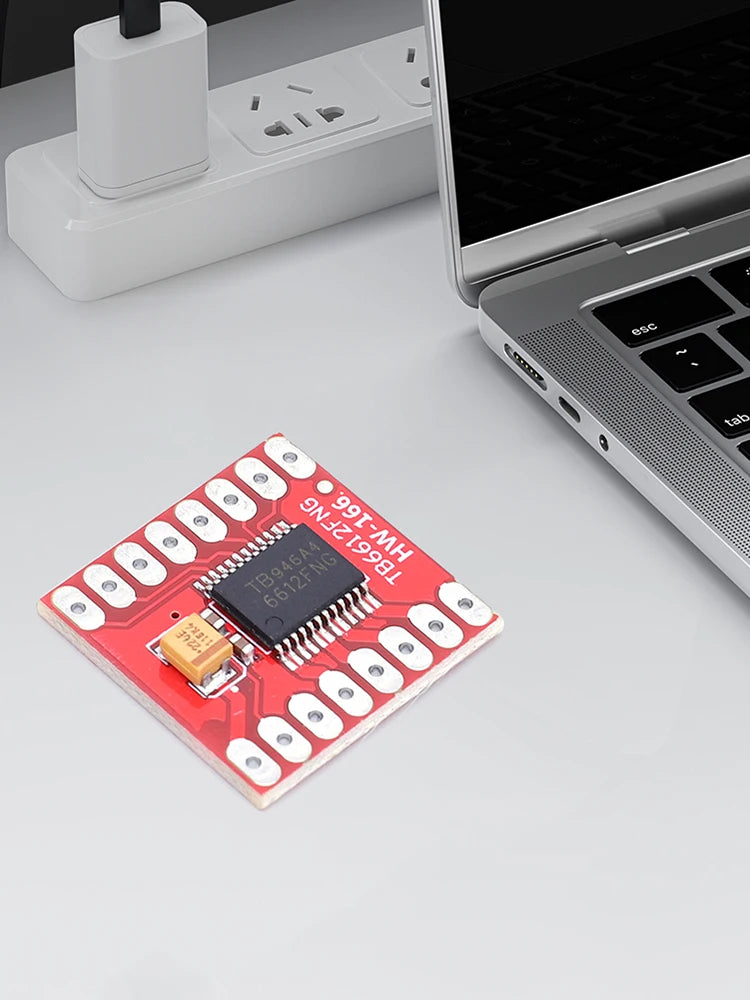

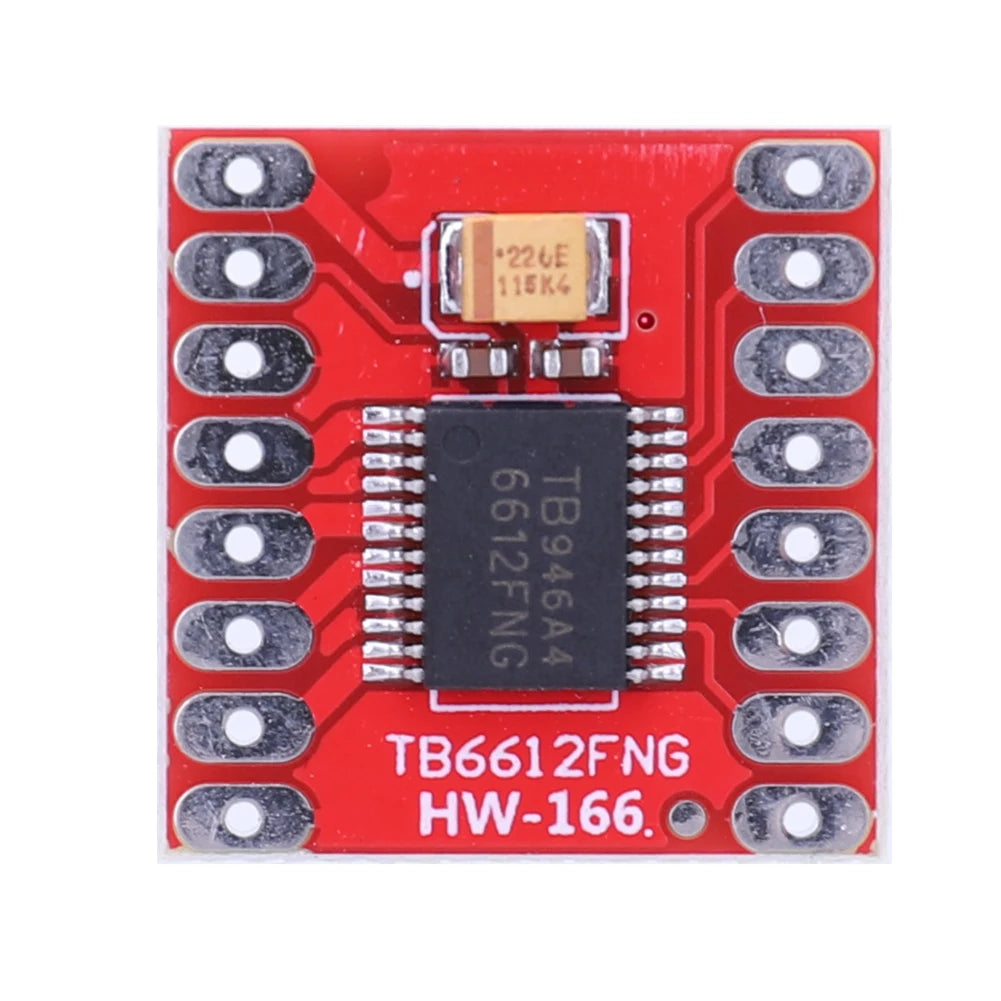

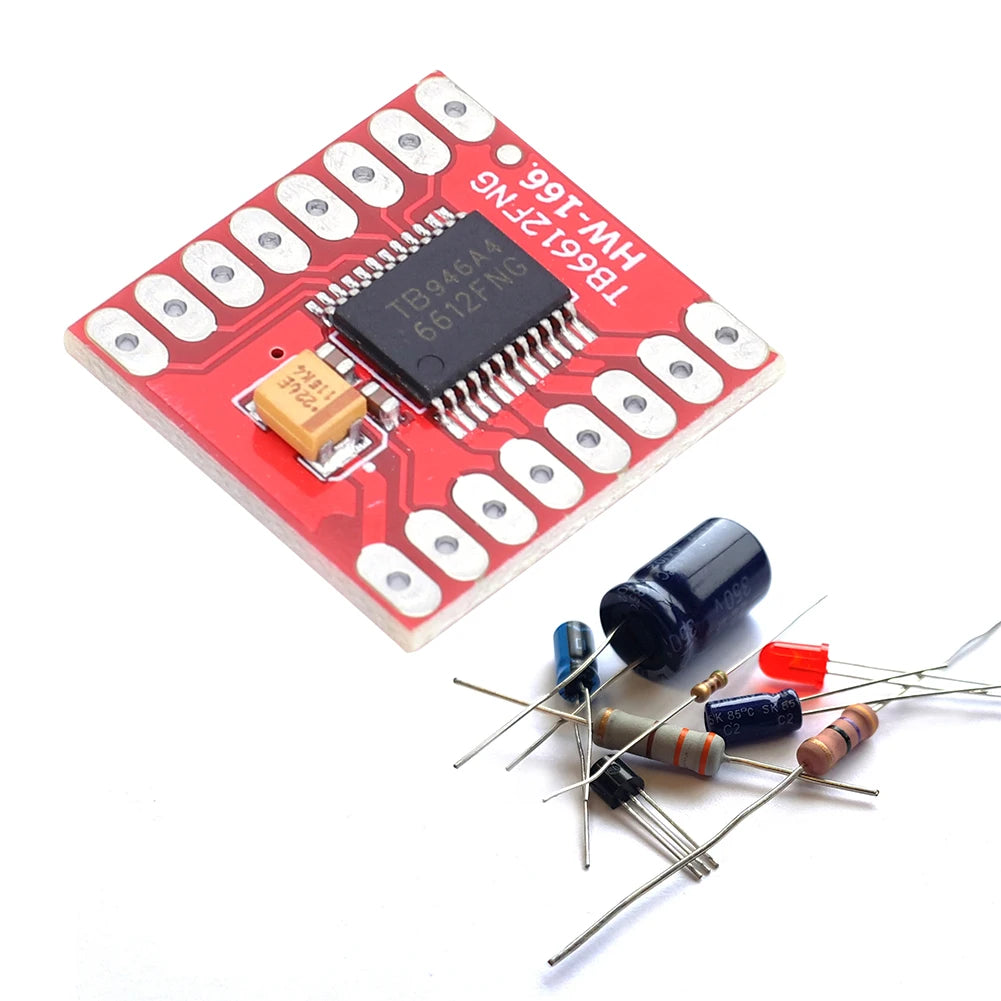

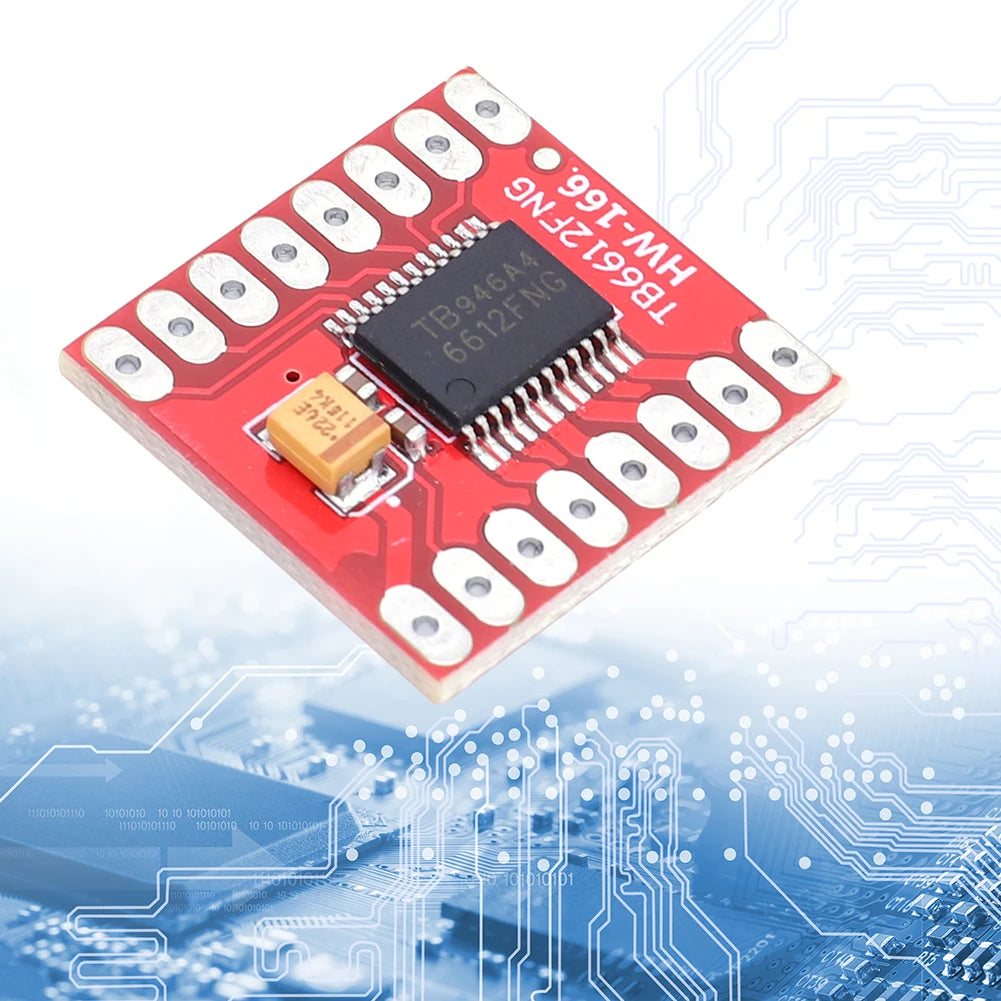

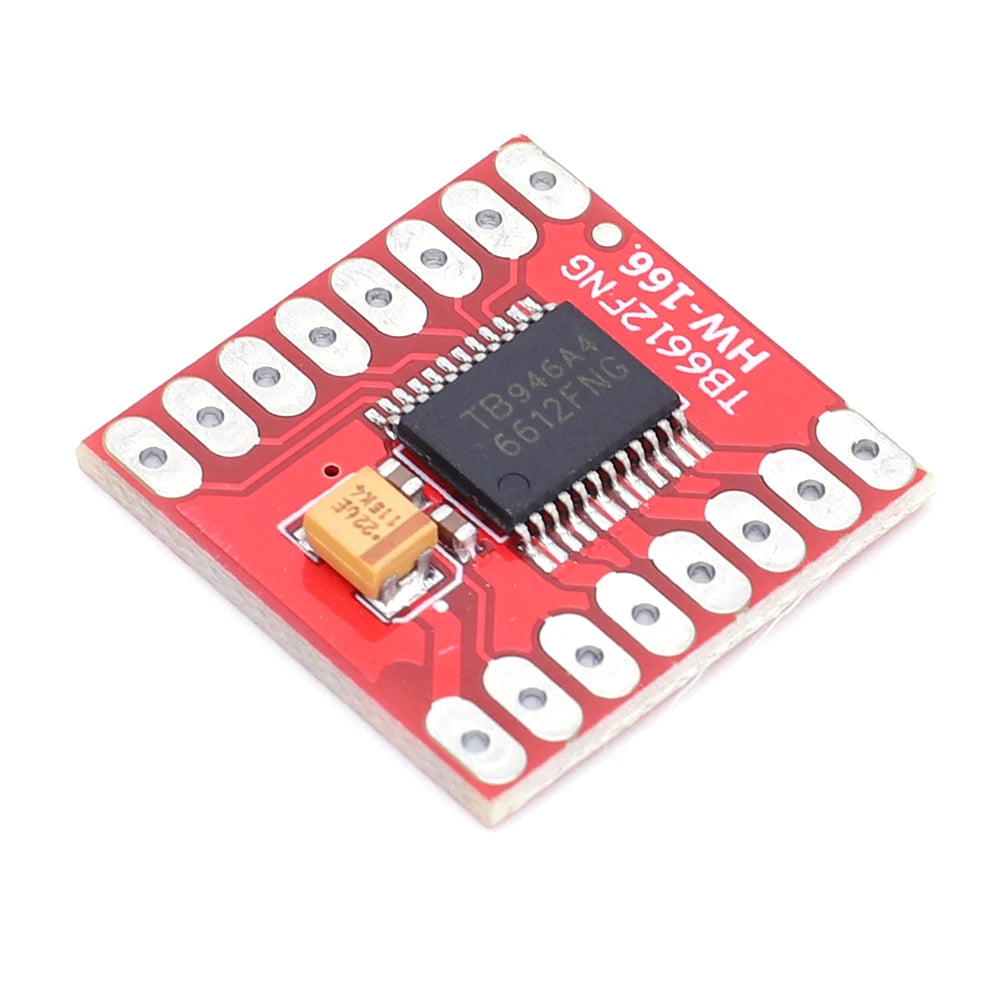

TB6612FNG Stepper Motor Driver Module 1.2A Dual DC Stepper Motor Driver Module 8 Pin for Arduino Microcontroller

TB6612FNG Stepper Motor Driver Module 1.2A Dual DC Stepper Motor Driver Module 8 Pin for Arduino Microcontroller

$12.32

$12.32 $0.00

Description

SPECIFICATIONS

Brand Name: VODOOL

Choice: yes

Dual DC Stepper Motor Driver Module: Dual Motor Driver Module

Dual Stepper Motor Driver: Dual DC Motor Driver Board

High-concerned chemical: none

Origin: Mainland China

Stepper Motor Driver Board: Motor Driver Controller Board

Stepper Motor Driver Module: Motor Driver Controller Module

Stepping Controller Module: Stepper Motor Controller

Type: Stepper Controls & Drives

semi_Choice: yes

TB6612FNG Motor Driver Controller Module 1.2A Dual DC Stepper Motor Driver Module for Arduino Microcontroller
Features:
1. High Efficiency: Significantly improved efficiency compared to traditional L298N drivers.This stepper motor driver board provides better power utilization, resulting in reduced energy waste and increased overall performance.

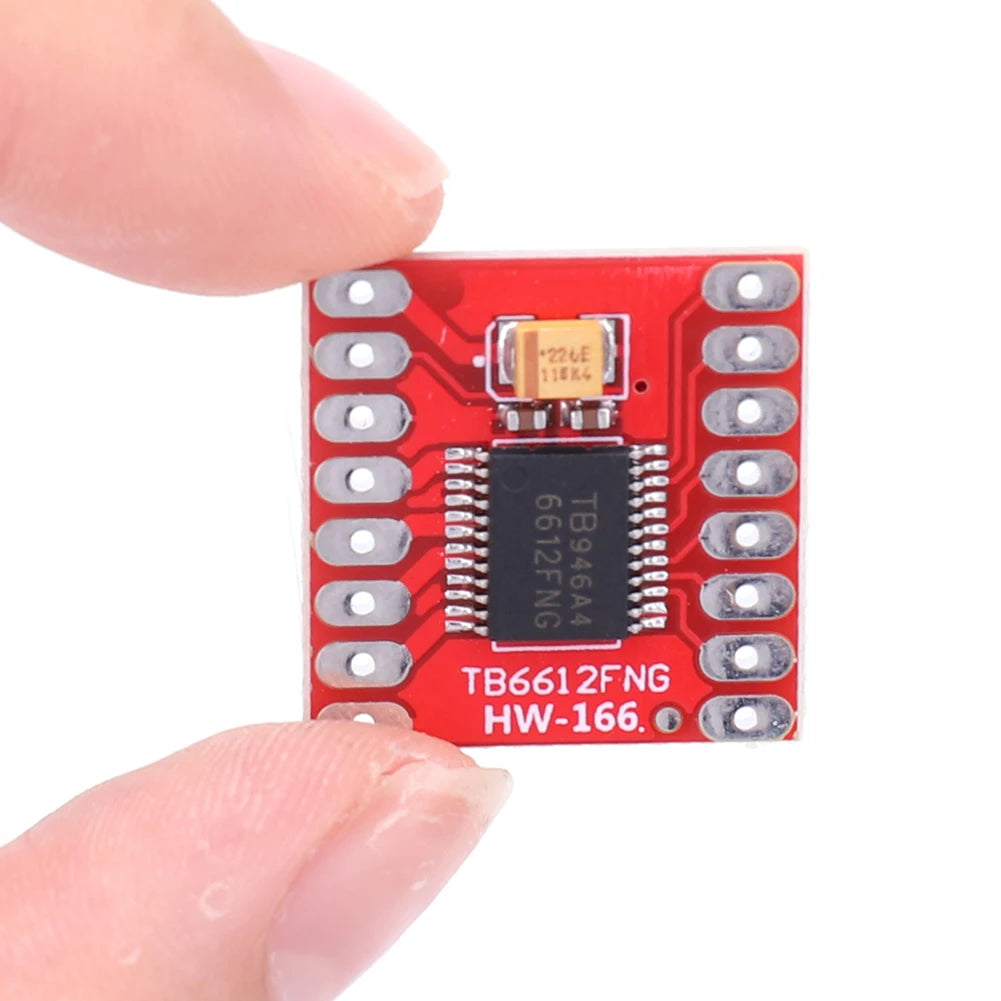

2. Compact Size: The motor driver controller board features a smaller form factor, making it easier to integrate into various projects or devices.Designed for convenience, allowing for straightforward installation and simple usage.
3. Powerful Functionality: This stepper motor driver module operates with minimal heat generation when used within its rated range.Offers reliable and powerful motor driving capabilities while maintaining stable and cool operation.
4. Dual-Drive Capability: This dual DC stepper motor driver module equipped with dual-drive functionality, enabling the simultaneous control of two motors.Suitable for applications requiring precise control of multiple motors, such as robotics or mechatronics projects.
5. Long-lasting Durability: This dual DC motor driver board crafted using high-quality components and materials, ensuring long-term durability and reliability.Built to withstand continuous use and deliver consistent performance over an extended period.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Model Number: DC Stepper Motor Driver Module
Usage:

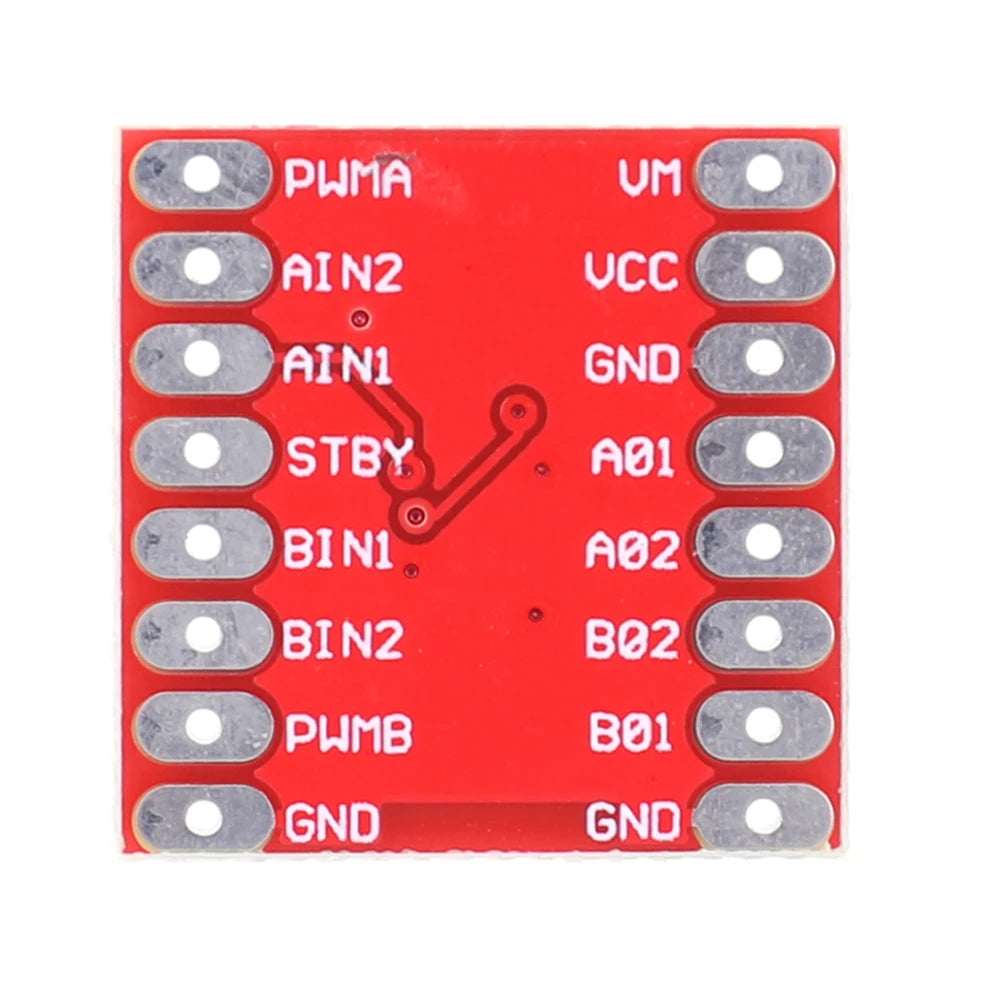

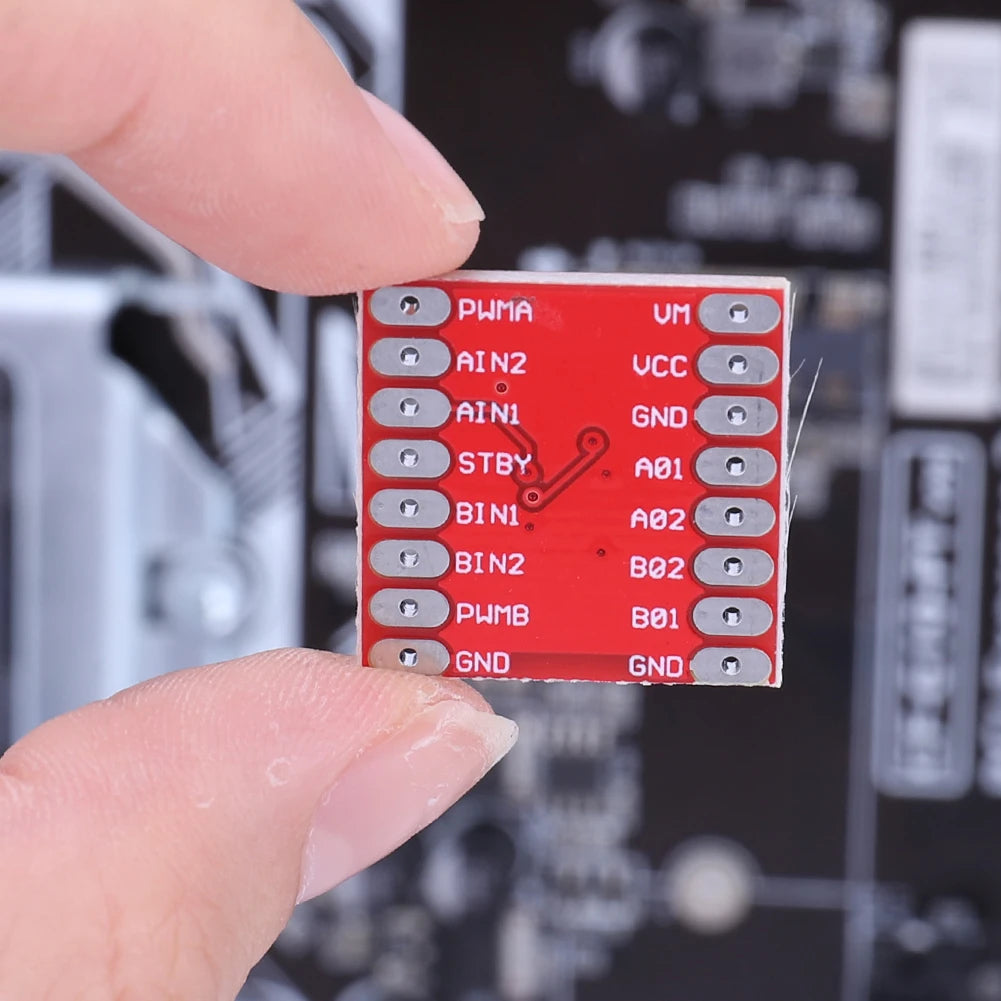

1.TB6612 is a dual drive, that is, can drive two motors
2. The following are the control of the two motor IO port
3.STBY port connected to the microcontroller's IO port zero motor all stop, set 1 through AIN1 AIN2, BIN1, BIN2 to control forward and reverse rotation
4.VM connects to the power supply within 12V
5.VCC connects to 5V power supply
6.GND to the negative side of the power supply
7.Drive 1 way
8.PWMA connects to the PWM port of the microcontroller

The module is relative to the traditional L298N efficiency to improve a lot, the volume is also greatly reduced in the rated range, the chip is basically not heat, of course, also appears to be more delicate, so we recommend that there is a certain degree of hands-on ability of friends to use, the wiring must be careful and careful, pay attention to the positive and negative polarity.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
