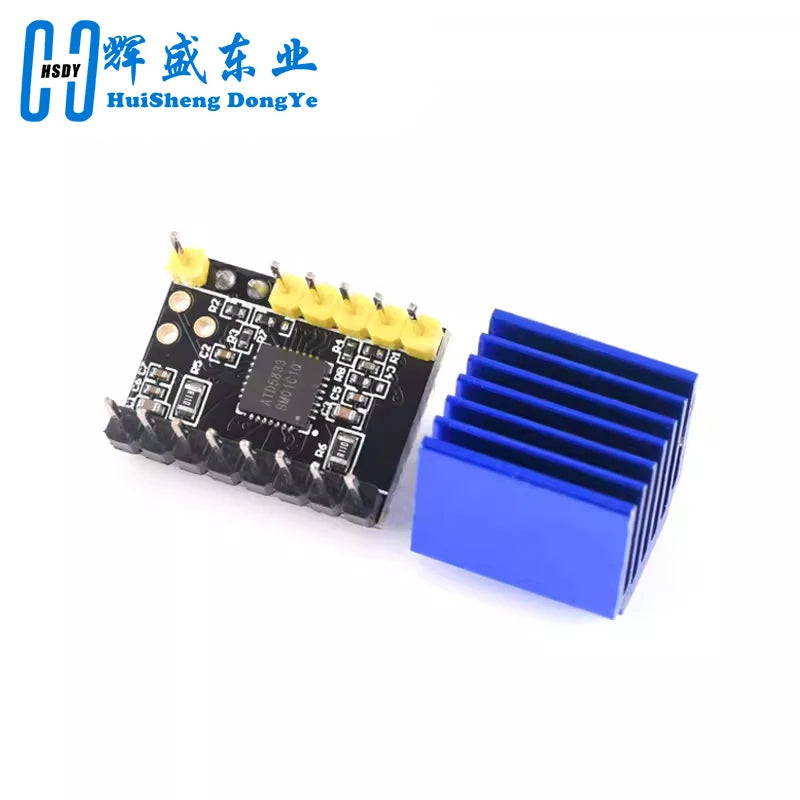

TMC2208 TMC2209 ATD5833 V2.0 With Heat Sink Stepper Motor Driver StepStick 3d Printer Parts 2.5A 256 Subdivision Silent Printing
ATD5833
$14.72
Sale price
$14.72
Regular price
$0.00
Skip to product information
TMC2208 TMC2209 ATD5833 V2.0 With Heat Sink Stepper Motor Driver StepStick 3d Printer Parts 2.5A 256 Subdivision Silent Printing
$14.72
Sale price
$14.72
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: HUISHENGYUFA
Choice: yes
Condition: New
Dissipation Power: Standard
High-concerned chemical: none
Model Number: TMC2208 TMC2209 ATD5833
Operating Temperature: -45 +85
Origin: Mainland China
Package: DIP
Supply Voltage: 3/5V
Type: Drive IC
is_customized: Yes
semi_Choice: yes
Note: By default, no jumper UART mode is supported, and you can ignore it if you don't need to.!!!
Product name: TMC2209
Maximum output current: 2A
Recommended operating current: maximum 1.7A
Micro step: 256 micro step subdivision
Configuration: STEP/DIR OR UART
Load driving electric range: 5.5~38V
IC logic operating voltage: 3/5V
Product name: TMC2208
Maximum output current: 1.4A
Recommended operating current: maximum 1.2A
Micro step: 256 micro step subdivision
Configuration: STEP/DIR OR UART
Load driving electric range: 5~ 36V
IC logic operating voltage: 3.3V/5V
Product name: ATD5833
Maximum output current :2.5A
Recommended operating current: Max. 2A
Micro step: 256 micro step subdivision
Configuration: STEP/DIR OR UART
Load driving electric range: 5~36V
IC logic operating voltage: 3.3V/5V
