SPECIFICATIONS

Brand Name: Veinasa

High-concerned chemical: none

Material: Polymer

Origin: Mainland China

Output: Digital Sensor

Output signal: RS485

Soil Conductivity: 0-2000μS/cm

Supply voltage: 5 - 24V

Type: Temperature Sensor

Use: Temperature Sensor

is_customized: Yes

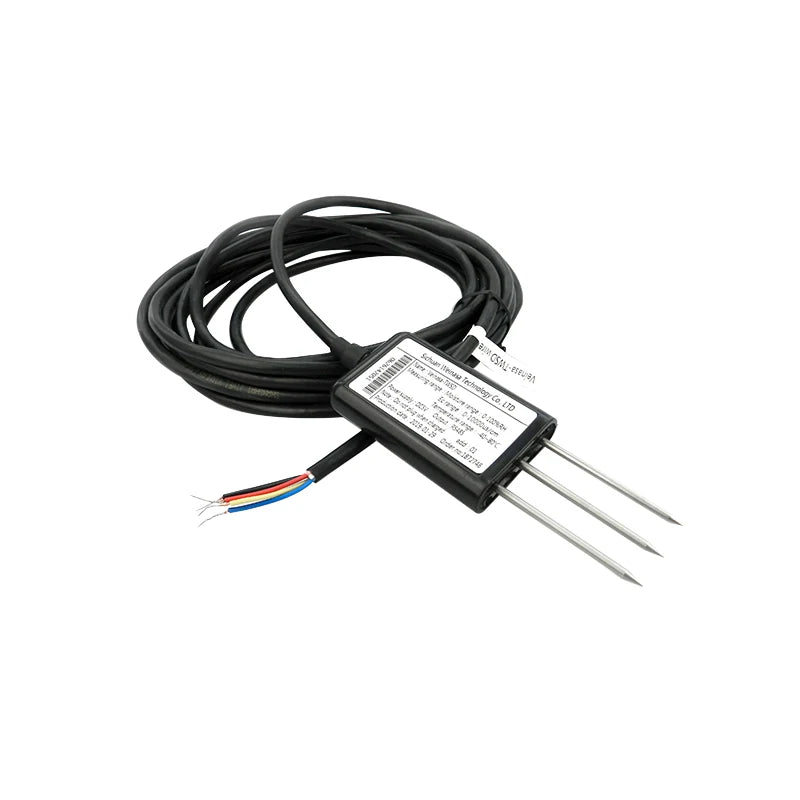

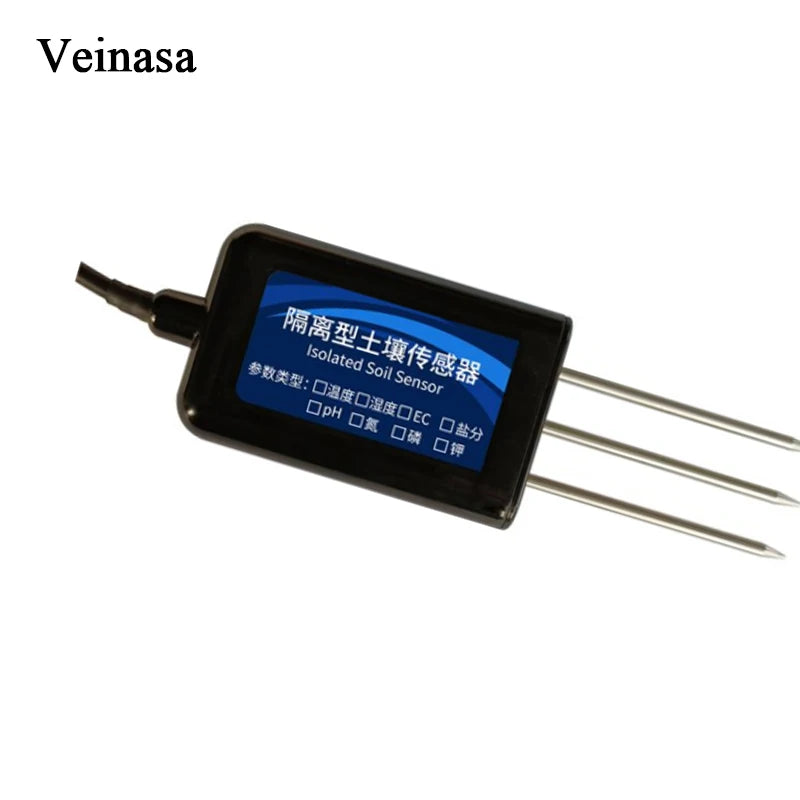

TR-C01O Isolated Soil Conductivity Sensor

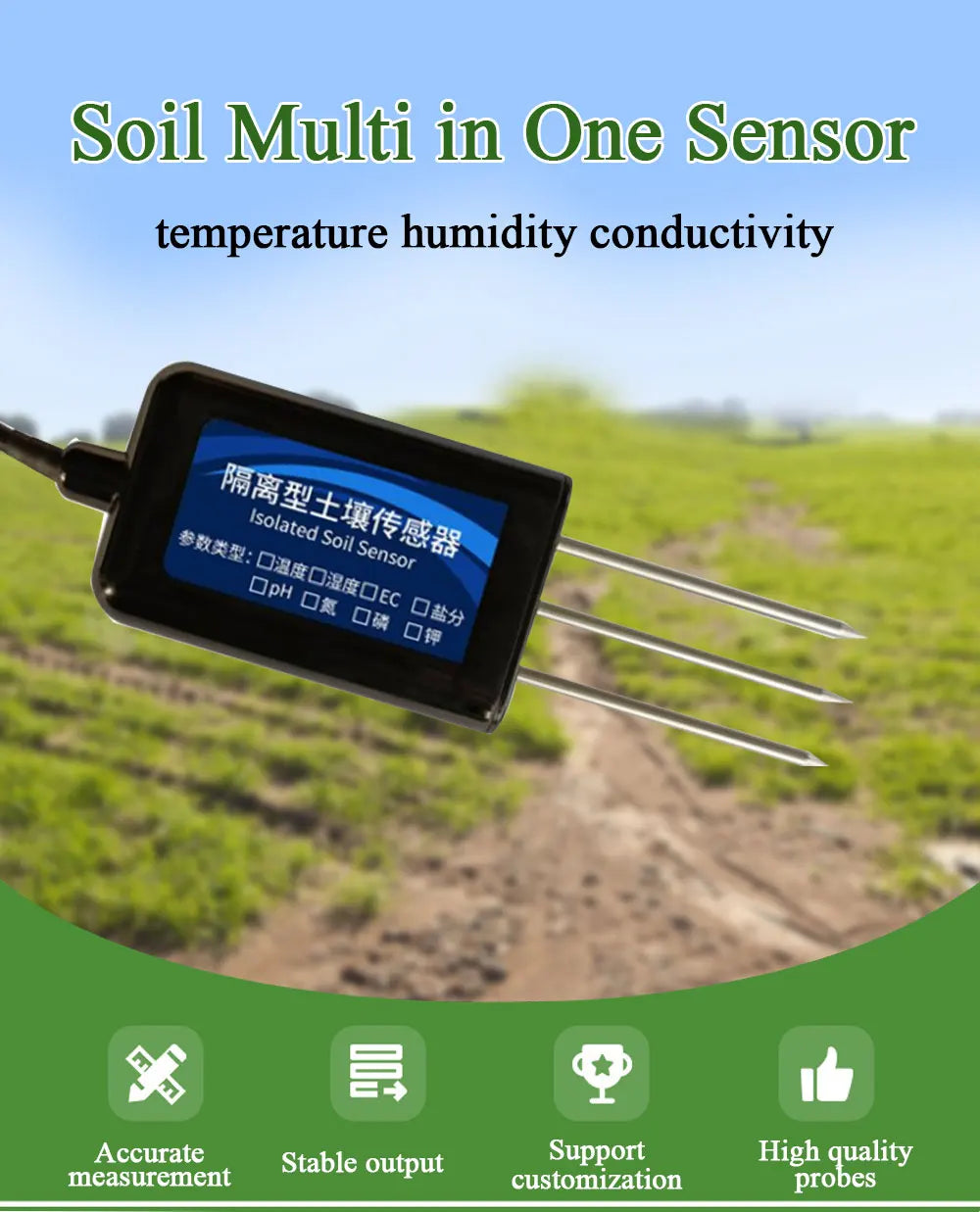

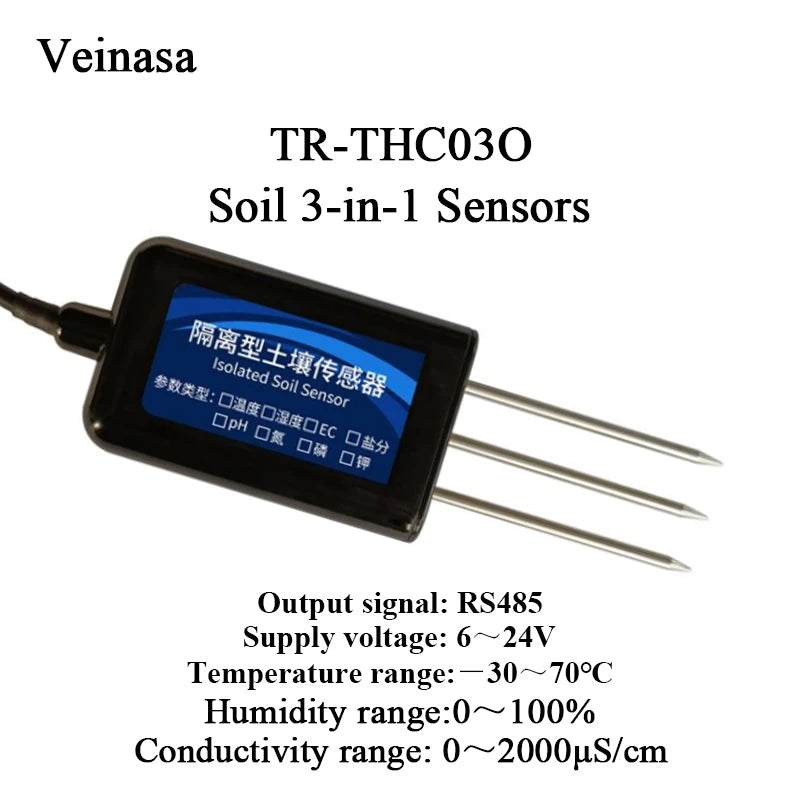

TR-THC03O 3 in 1 Isolated Soil Temperature Humidity Conductivity Sensor Humidity measurement
For Soil Rapid Test

The isolated soil conductivity sensor is a stainless steel probe converted into an analog or digital signal of soil conductivity through the sensor. In the development process, the advanced technology of similar foreign instruments is absorbed, and the actual situation and use requirements of China are combined to convert the conductivity value into the corresponding analog or digital signal. The conductivity of soluble salt ions in soil solution is measured directly by embedding the conductivity sensor in soil. The stainless steel electrode has the characteristics of stable performance and high sensitivity, and is suitable for a wide measurement range, especially for high conductivity, so it is very suitable for the determination of soil conductivity.

Features:

1. The measurement accuracy is high, the response speed is fast, the interchangeability is good, the data transmission efficiency is high.

2. Good sealing, can be directly buried in the soil for use, and is not corroded.

3. Real-time conductivity monitoring function to measure the conductivity of soil at different depths.

4. The electrical isolation of the equipment can resist complex interference situations in the field, and the isolation voltage is up to 1500V.

5. The RS485 port can withstand electrical isolation up to 5000VRMS (60s) and typical CMTI of ±150kV/μs.

Features:

1. The measurement accuracy is high, the response speed is fast, the interchangeability is good, the data transmission efficiency is high.

2. Good sealing, can be directly buried in the soil for use, and is not corroded.

3. Real-time conductivity monitoring function to measure the conductivity of soil at different depths.

4. The electrical isolation of the equipment can resist complex interference situations in the field, and the isolation voltage is up to 1500V.

5. The RS485 port can withstand electrical isolation up to 5000VRMS (60s) and typical CMTI of ±150kV/μs.

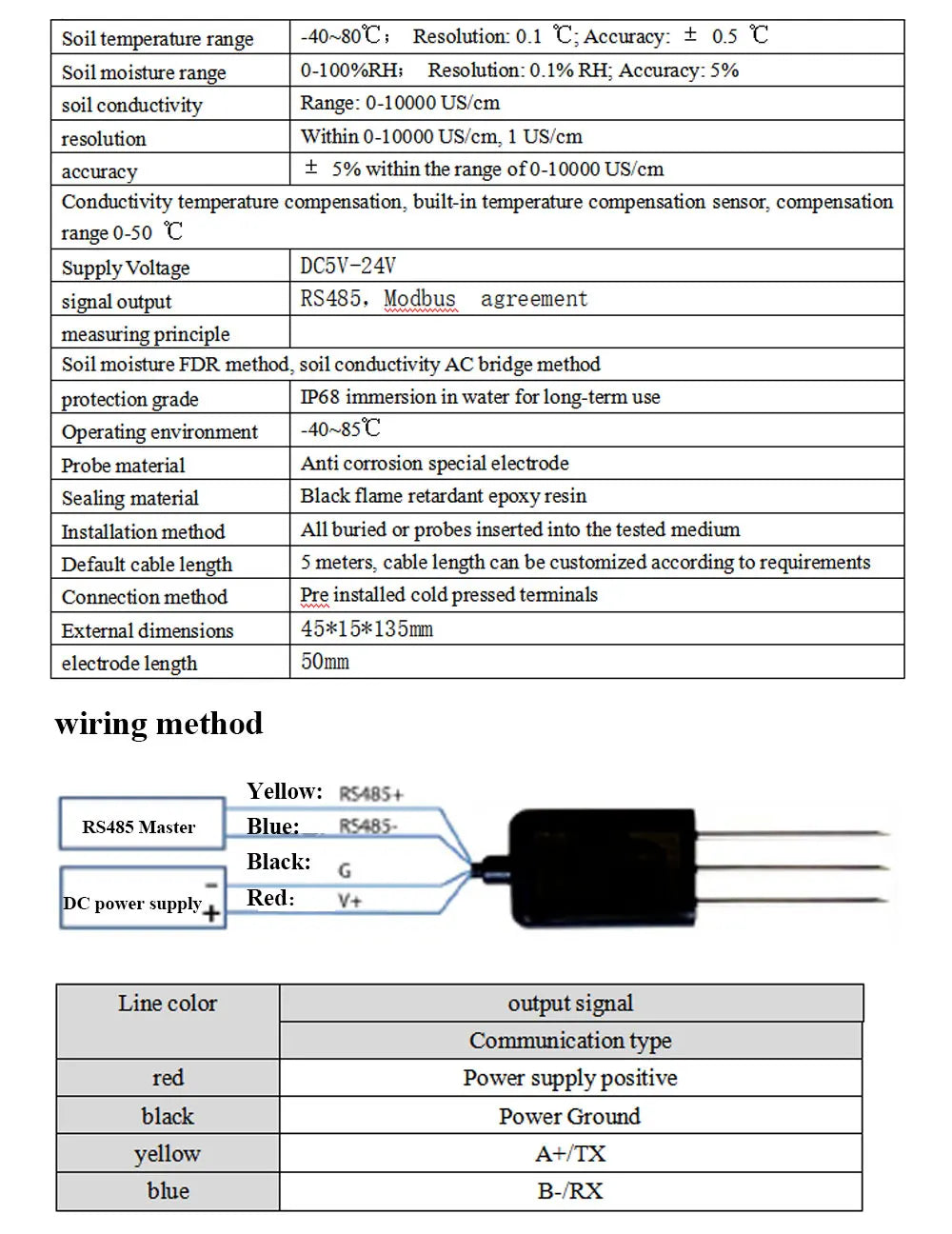

Technical Parameters
