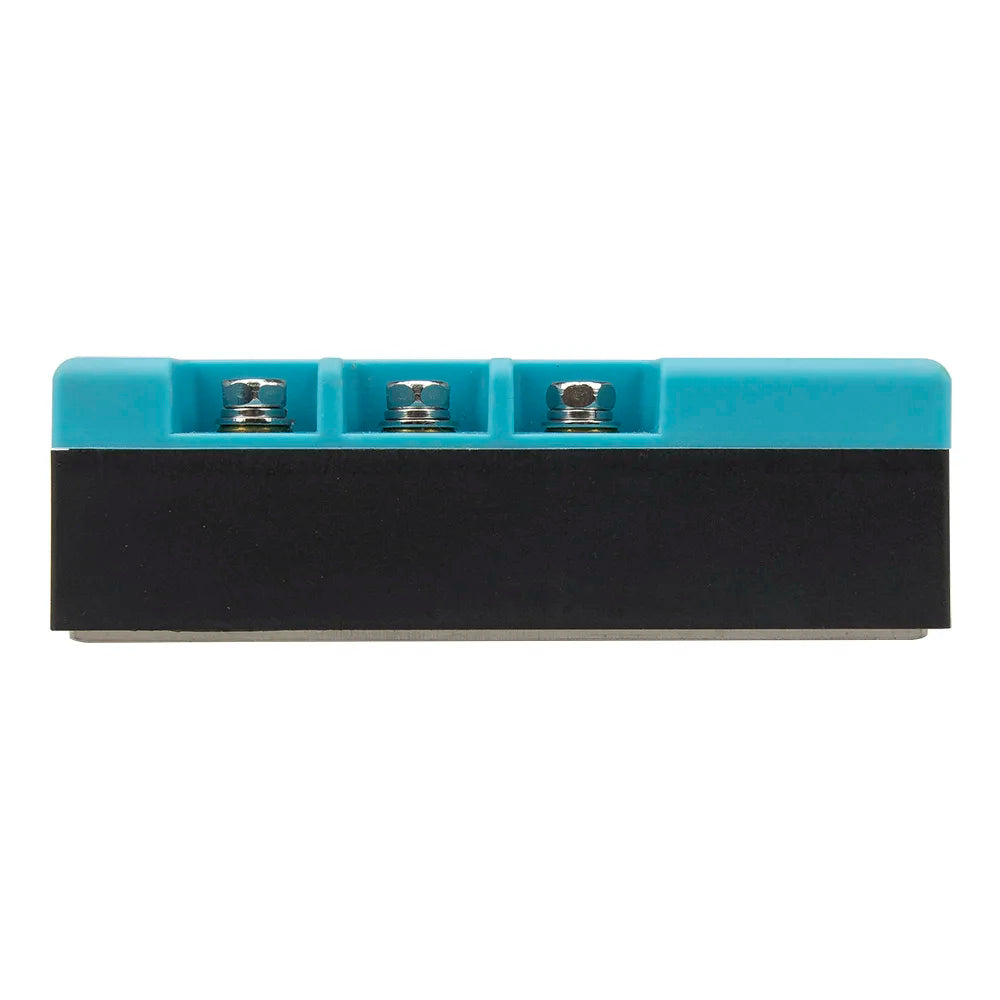

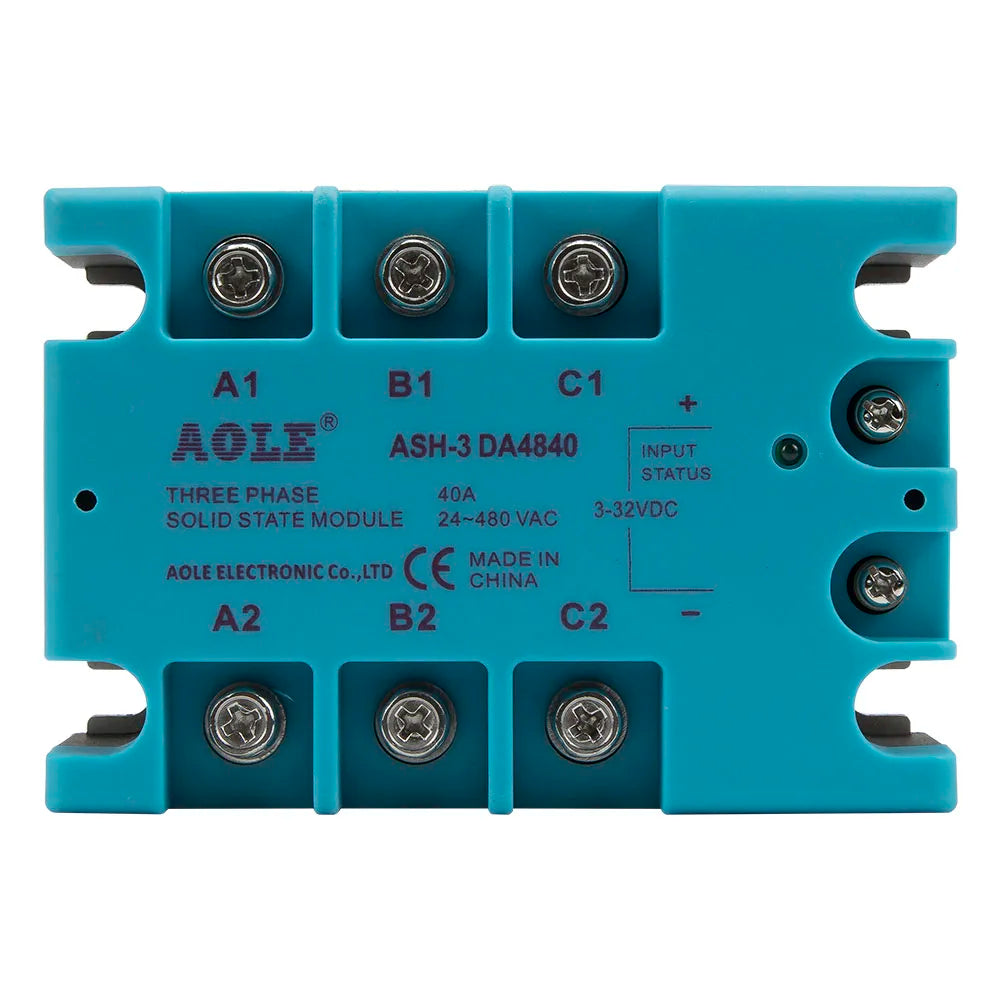

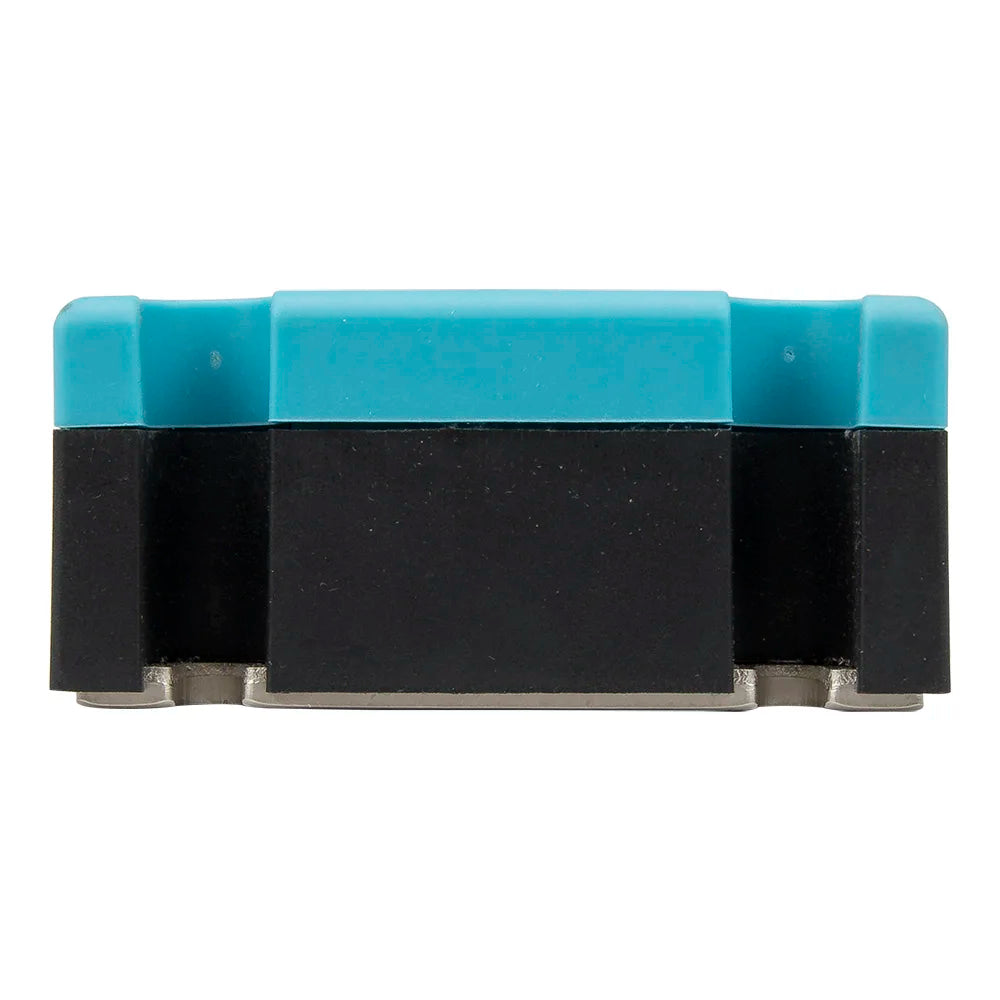

TSR-40DA three phase DC to AC 40A 90-480VAC solid state relay / SSR ASH-3 DA4840

TSR-40DA three phase DC to AC 40A 90-480VAC solid state relay / SSR ASH-3 DA4840

$83.88

$83.88 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Contact Load: Low Power

High-concerned chemical: none

Model Number: TSR-40DA

Origin: Mainland China

Protect Feature: Sealed

Size: Miniature

Theory: Solid State Relay

Use: General Purpose

is_customized: Yes

Three phase DC to AC solid state relays

▇ Model number and parameters

Model number	Same model	Load current	Load voltage	Related product
TSR-10DA	ASH-3-DA4810	10A	90-480Vac	Order
TSR-25DA	ASH-3-DA4825	25A	90-480Vac	Order
TSR-40DA	ASH-3-DA4840	40A	90-480Vac	Visiting...
TSR-60DA	ASH-3-DA4860	60A	90-480Vac	Order
TSR-80DA	ASH-3-DA4880	80A	90-480Vac	Order
TSR-100DA-H	ASH-3-DA48100	100A	90-480Vac	Order
TSR-120DA-H	ASH-3-DA48120	120A	90-480Vac	Order

▇ Suitable maximum load power

Load current (A)	10	25	40	60	80	100	120
380V resistive load power (KW)	1.9	4.8	7.6	11.4	15.2	19	22.8
380V inductive load power (KW)	0.6	1.4	2.2	3.3	4.4	5.5	6.6

▇ General

Model number

TSR-DA series

Rated input control voltage

3-32Vdc

Rated input control current

10-68mA

Pick-up voltage

3Vdc

Drop-out voltage

1Vdc

Pick-up or drop-out time

10ms max

Control type

Zero crossing detection

Input-ON indication

LED

On-state leakage current

2mA max

On-state voltage drop at Imax

1.5Vac

Matched heat sink

≤40A: FHSI04-105, ≤60A: FHSH01-110, ≤80A: FHSH01-150, ≤150A: FHSY01-110

Matched thermal grease

HZ-KS101

Dielectric strength

1500VAC 50/60Hz for 1 minute

Insulation resistance

500 MΩ min at 500 VDC

External dimensions

105x74x33mm

Terminals

Screw

Operational temperature

-20 to 75°C

Operational humidity

95% max no condensation

Alias name

TSR-DA series three phase DC to AC SSR

Advantage

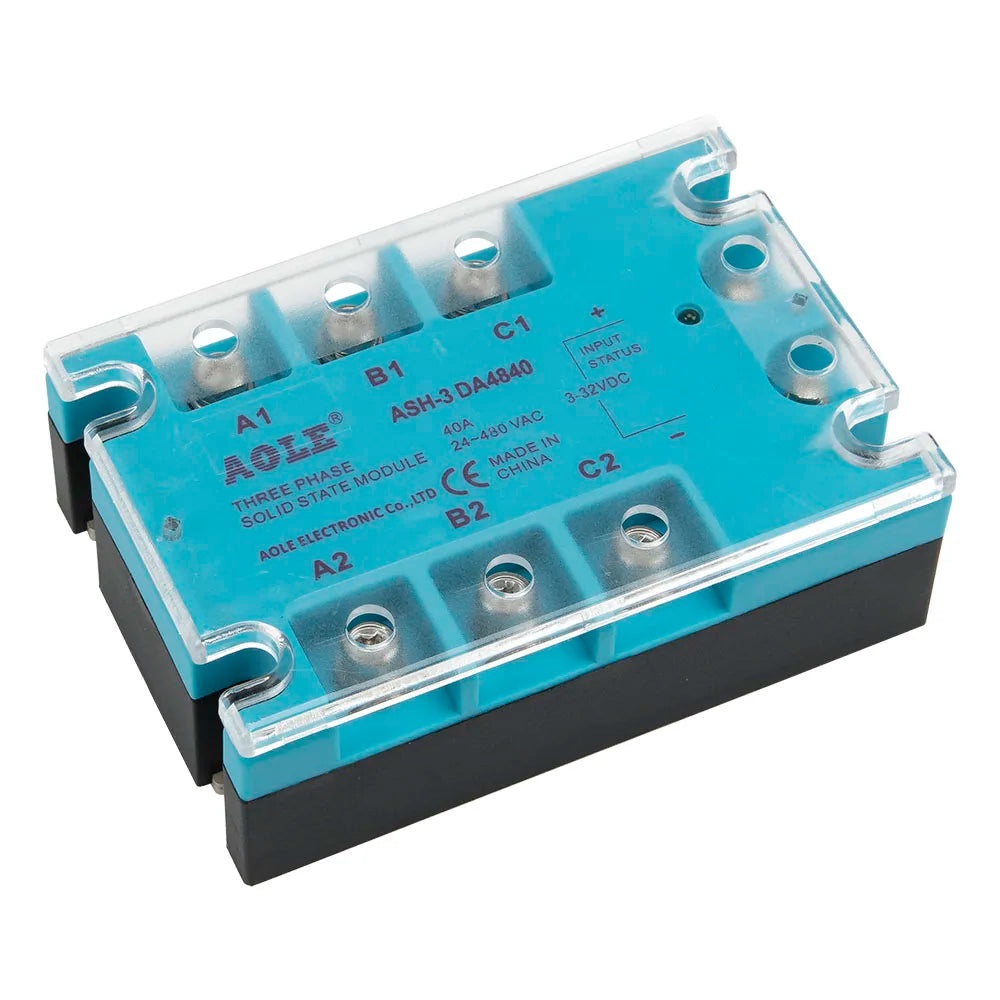

	1. The case is made of high quality PC and PVC, with good toughness, smooth appearance; HD transparent protective cover can protect the product better for use in a variety of environments.

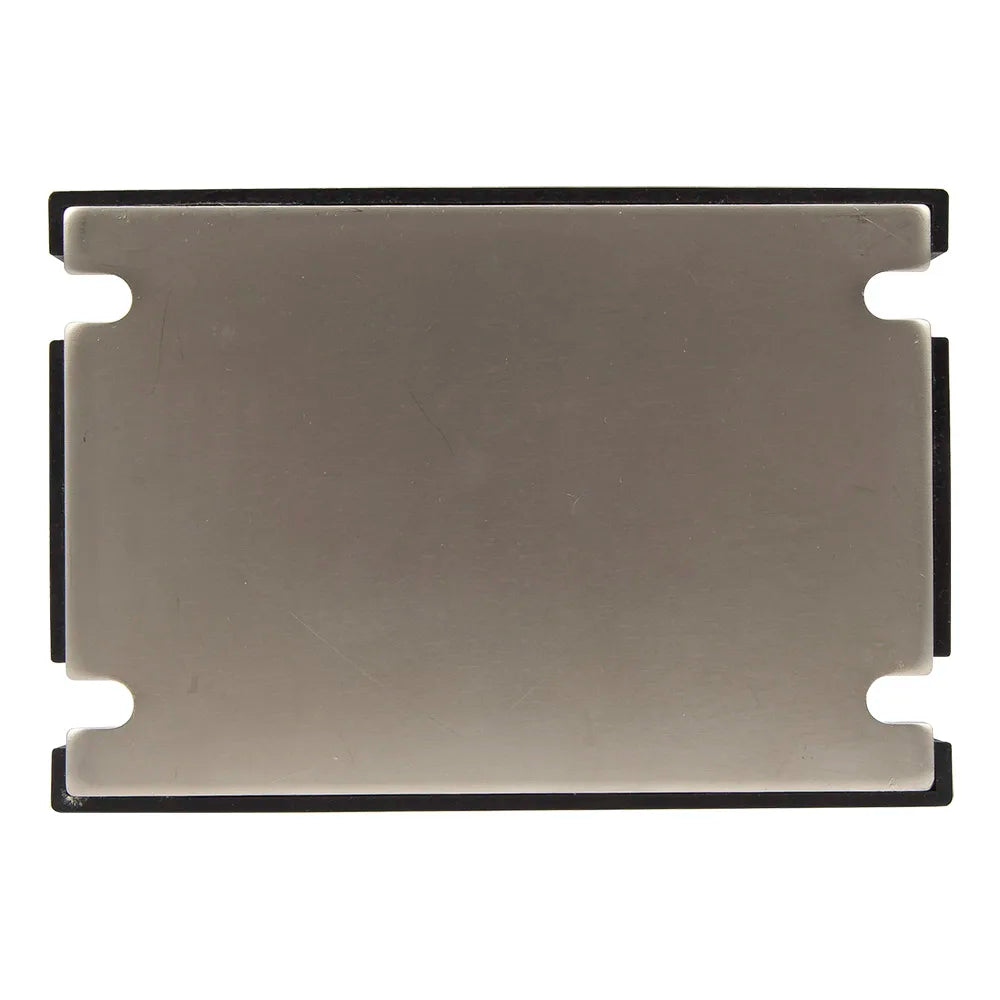

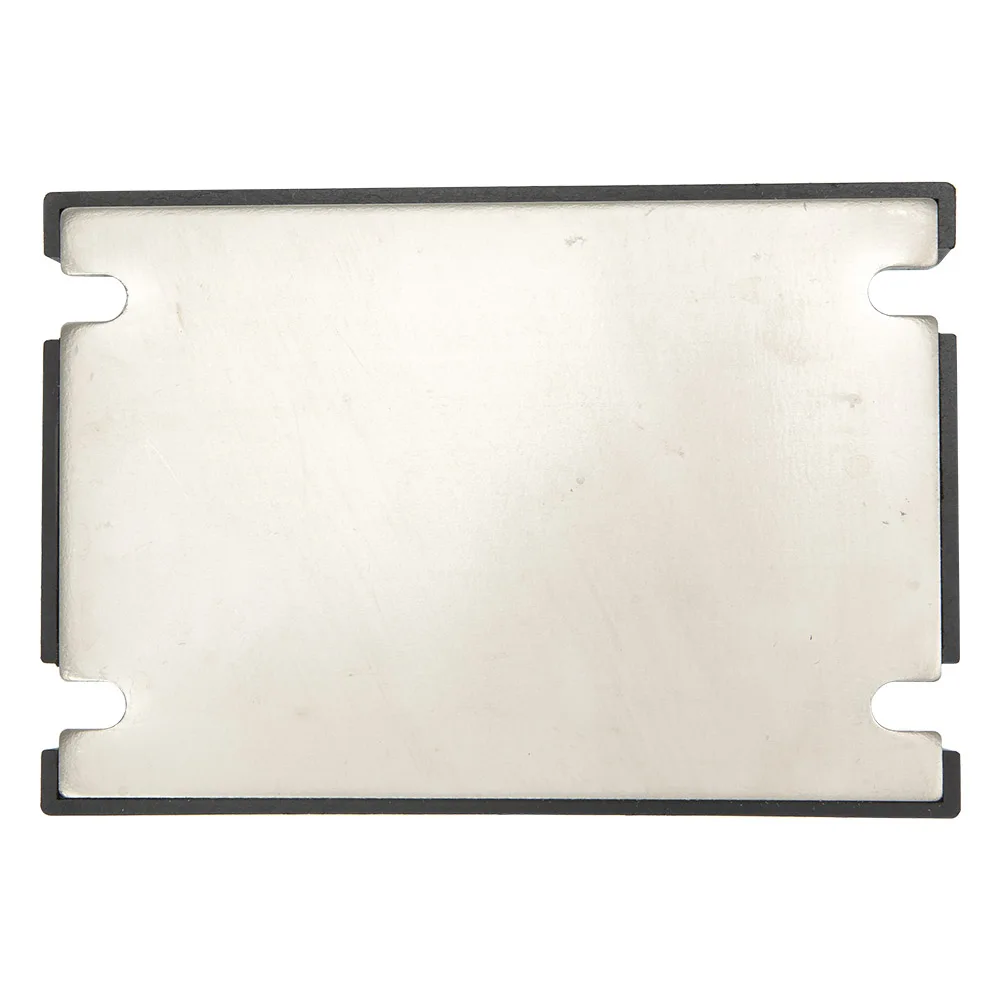

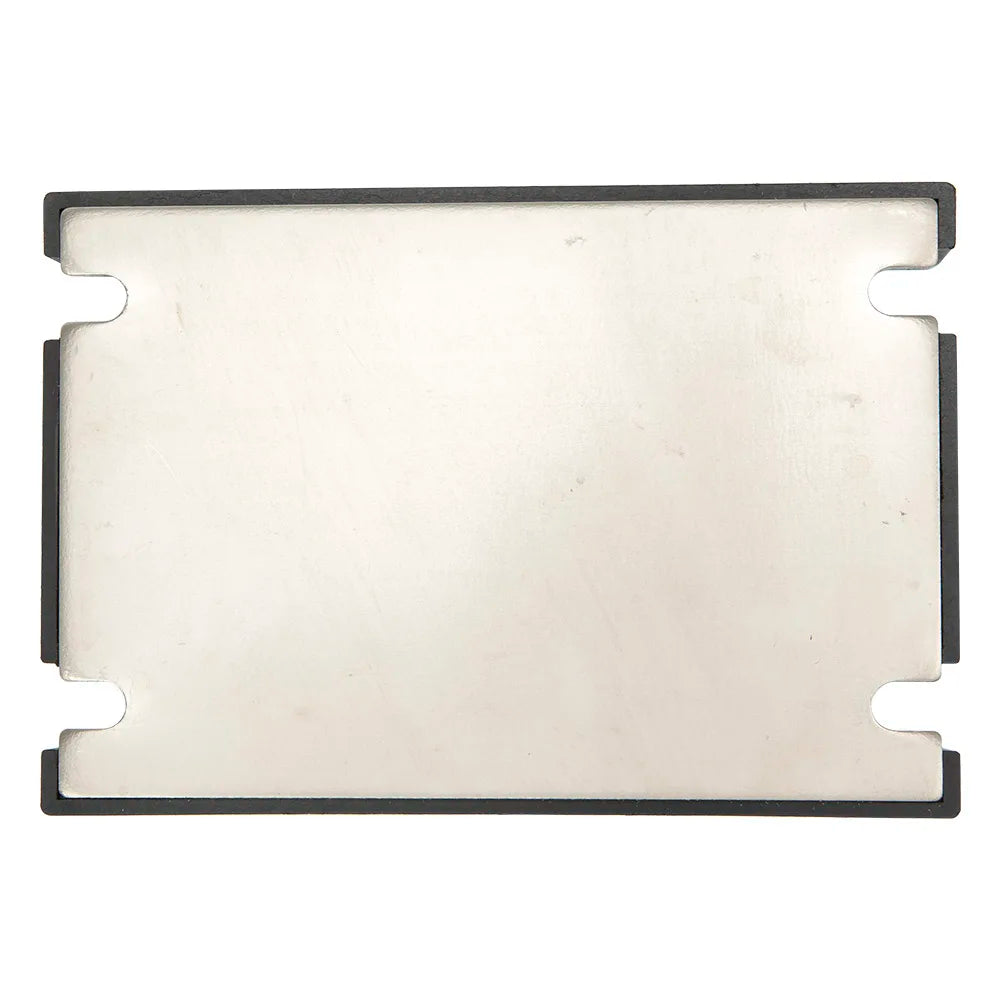

	2. Good heat dissipation: high quality thick aluminum base plate and relay are welded together seamlessly; plating process make the base plate smooth, so the SSR can be fit to heat sink better.

Note

1. Model selection method: calculate the load current, according to load type, multiply the balance factor.
Resistive load: balance factor is 2 times, such as incandescent lamp, resistance wire, oven, heating rod.
Inductive load: balance factor is 7 times, such as: transformer, coil, fan motor, pump motor.
Example: 9KW three phase 380V furnace. 9KW/380V*2=47.4, can select 60A specification.

2. Heat dissipation: note the ambient temperature, when is is too low, should warm it first then start up, if work in low temperature for long time, can increase the input current appropriatly; When the ambient temperature is too high, and tbe heat can not be dissipated effectively, should need more heat dissipation measure, make sure the SSR surface's tempearture less than 70 degrees Celsius; When work in high temperatures and different load for a long time, should increase the balance factor.

finglaiThree phase SSR drawing
