Description

SPECIFICATIONS

Brand Name: EARU

Certification: CE,RoHS

Contact Load: Low Power

Control Type: AC Control AC

Control Voltage: 70-280VAC

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Load Current: 10A 25A 40A 60A 80A 100A 120A 200A

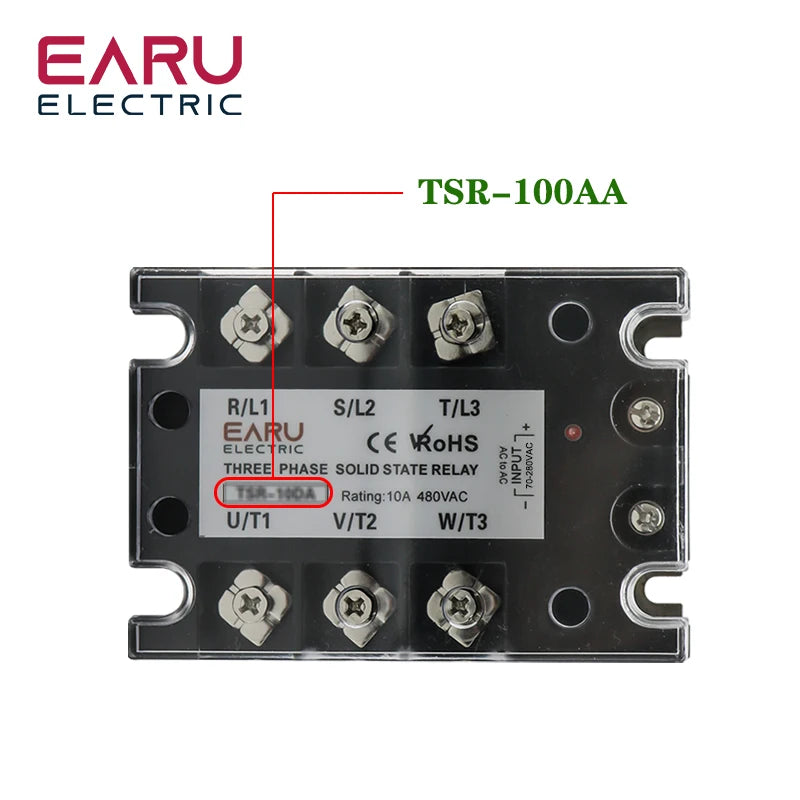

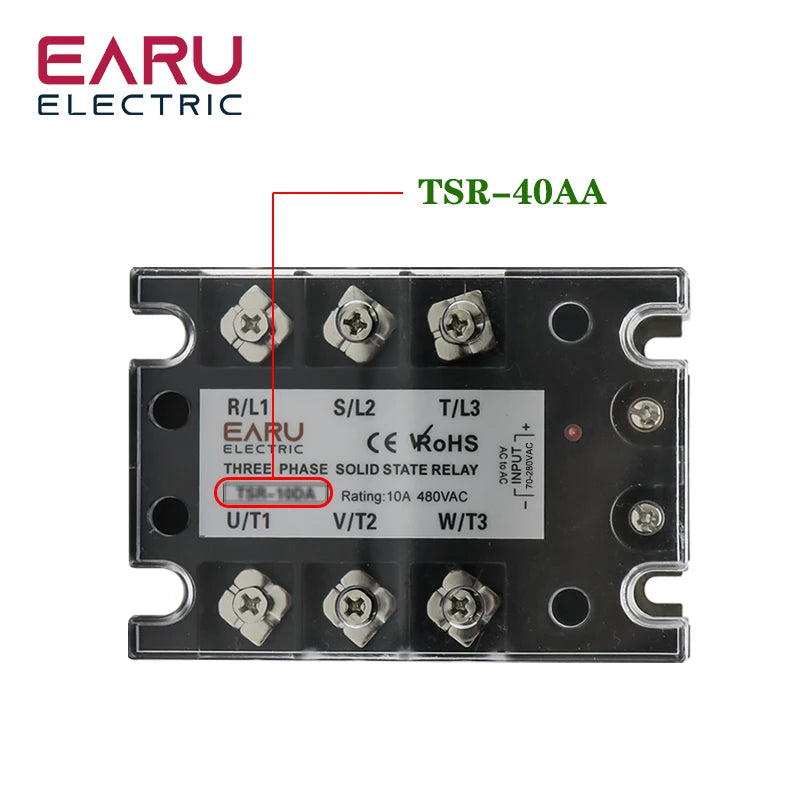

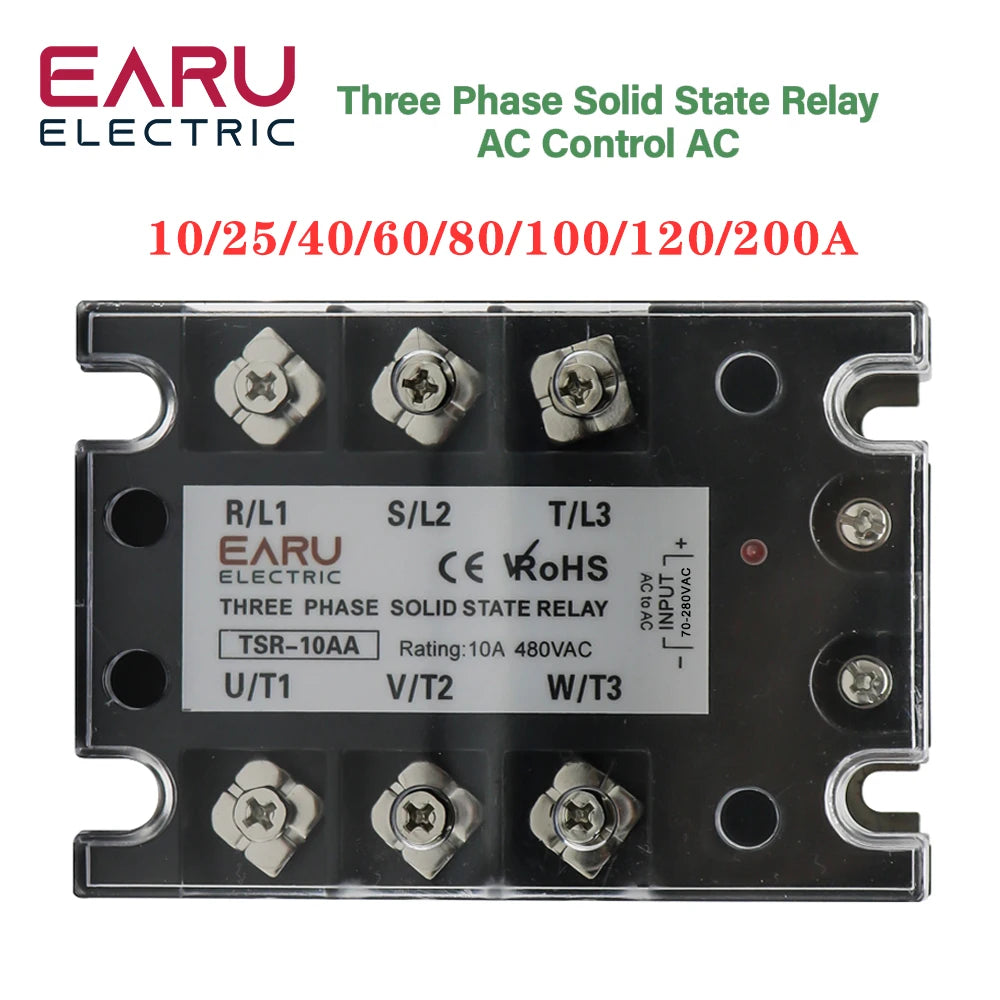

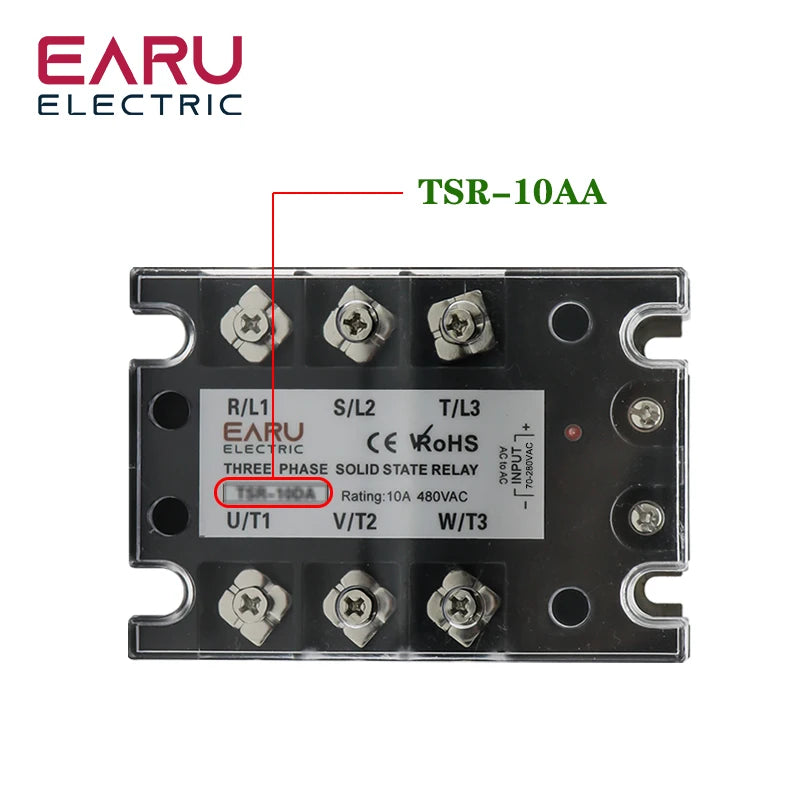

Model Number: TSR-40AA

Module Number 1: SSR-10AA/SSR-25AA/SSR-40AA/SSR-60AA

Module Number 2: SSR-80AA/SSR-100AA/SSR-200AA

Net Weight: 237.5g

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Rating: 10A 480VAC

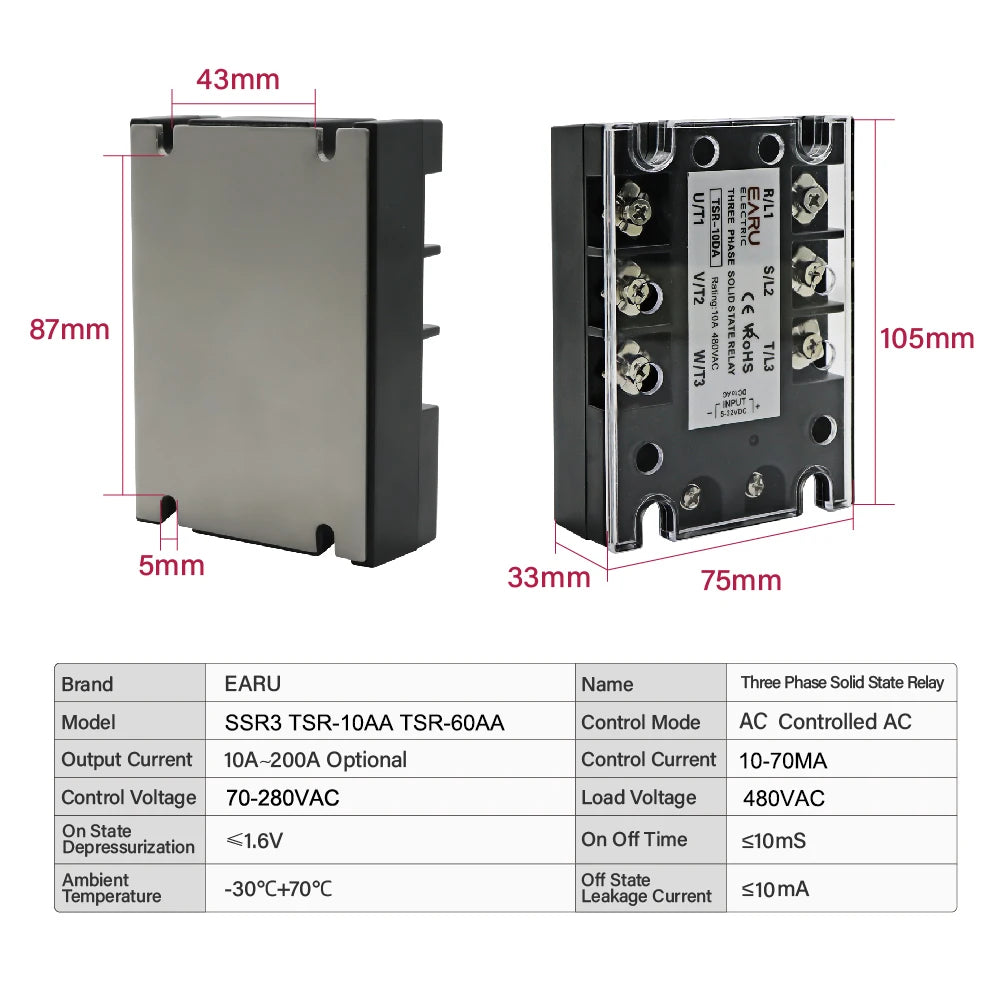

Size: 150.8mm*75.5mm*37.5mm

Theory: Solid State Relay

Use: General Purpose

is_customized: Yes

Step 1: Choose a correct control Mode
AA- AC Control AC
DA- DC Control AC

Step 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :70%, Inductive load:20%,Capacitive load：10%.

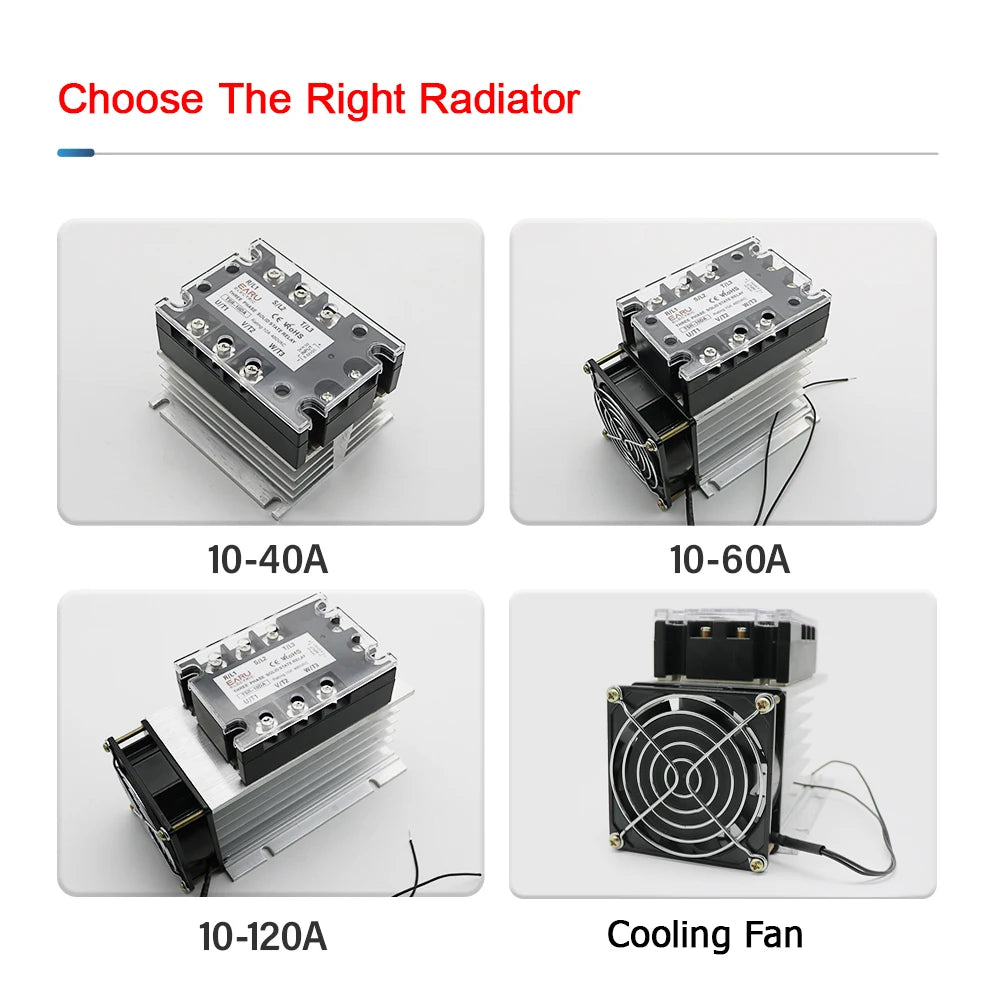

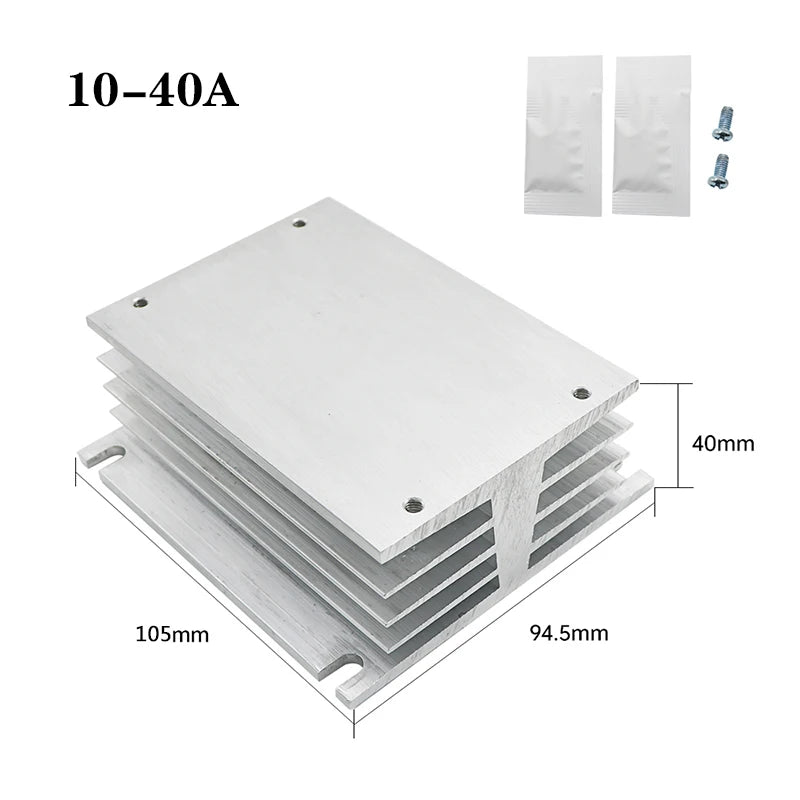

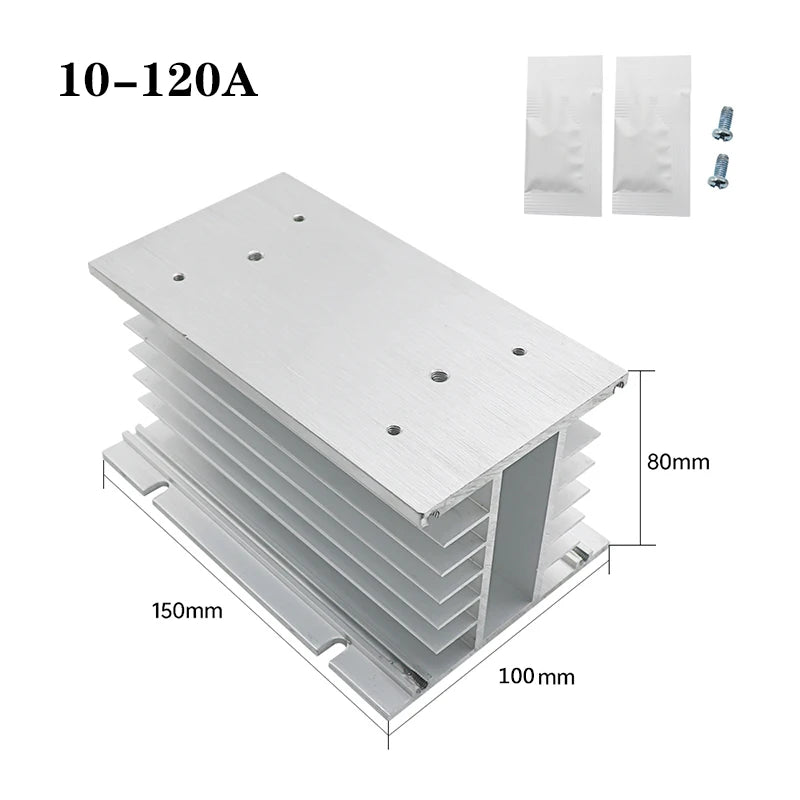

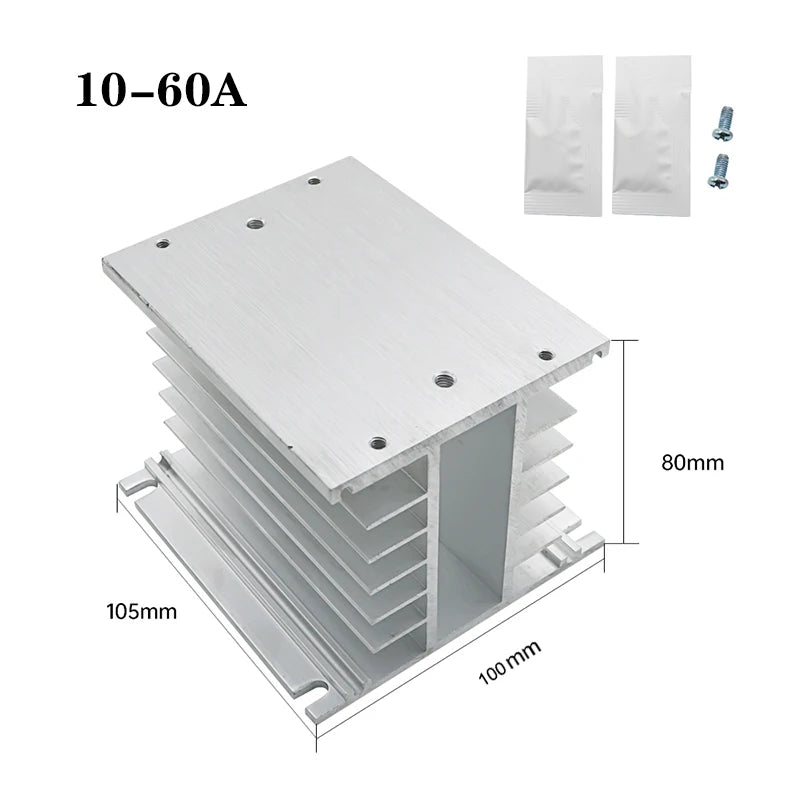

Step 3: Choose a suitable heat sink
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)

Notice:
The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).
According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
