Tuya Smart ZigBee/WiFi Human Presence Detector Radar Detection Sensor Photometric 2 in 1 Function Smart Life Ceiling PIR Hub

Tuya Smart ZigBee/WiFi Human Presence Detector Radar Detection Sensor Photometric 2 in 1 Function Smart Life Ceiling PIR Hub

$144.54

$144.54 $0.00

Description

SPECIFICATIONS

Brand Name: MOES

Certification: CE

Choice: yes

Detection Angle: 120

Detection Range: 0-9m

High-concerned chemical: none

Origin: Mainland China

Tuya Smart ZigBee/WiFi Human Presence Detector mmWave Radar Detection Sensor Light Luminosity 2 in 1 Function Smart Life APP Ceiling Mount Human Body Sensing Detection Motion PIR Hub Required
By MOES

Main Features:

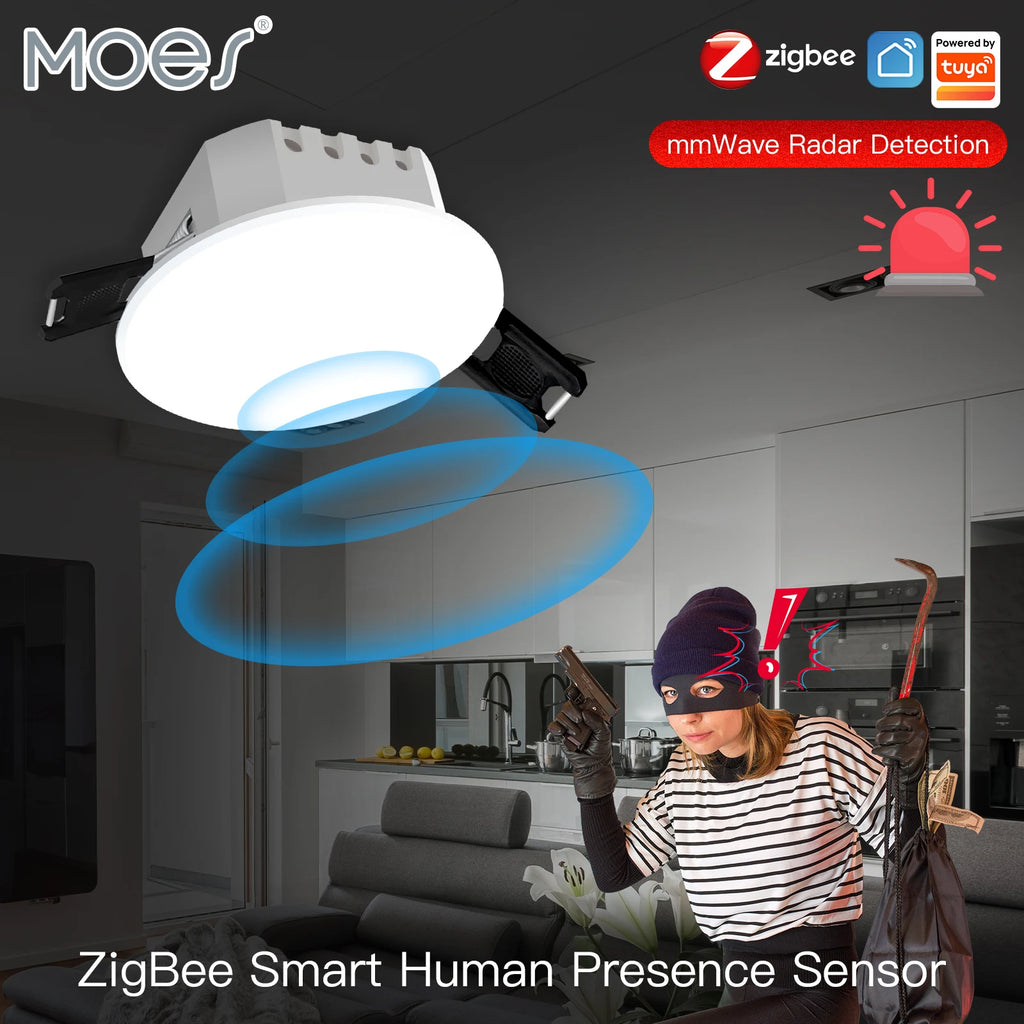

1.Functional ZigBee Smart Human Presence Sensor:Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.

2.Perceived Light Intensity for Smart&Scene Linkage:Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.

3.ZigBee Hub as Control Center:Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs)

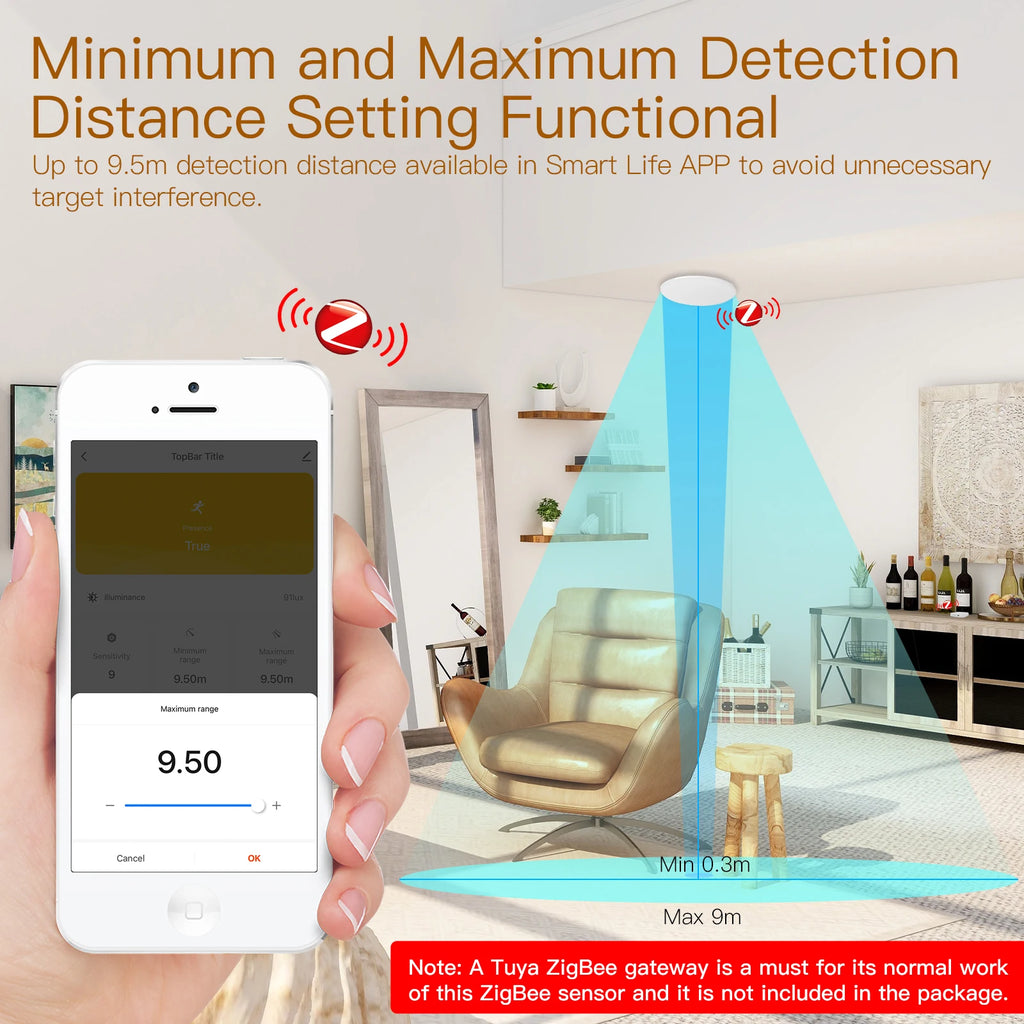

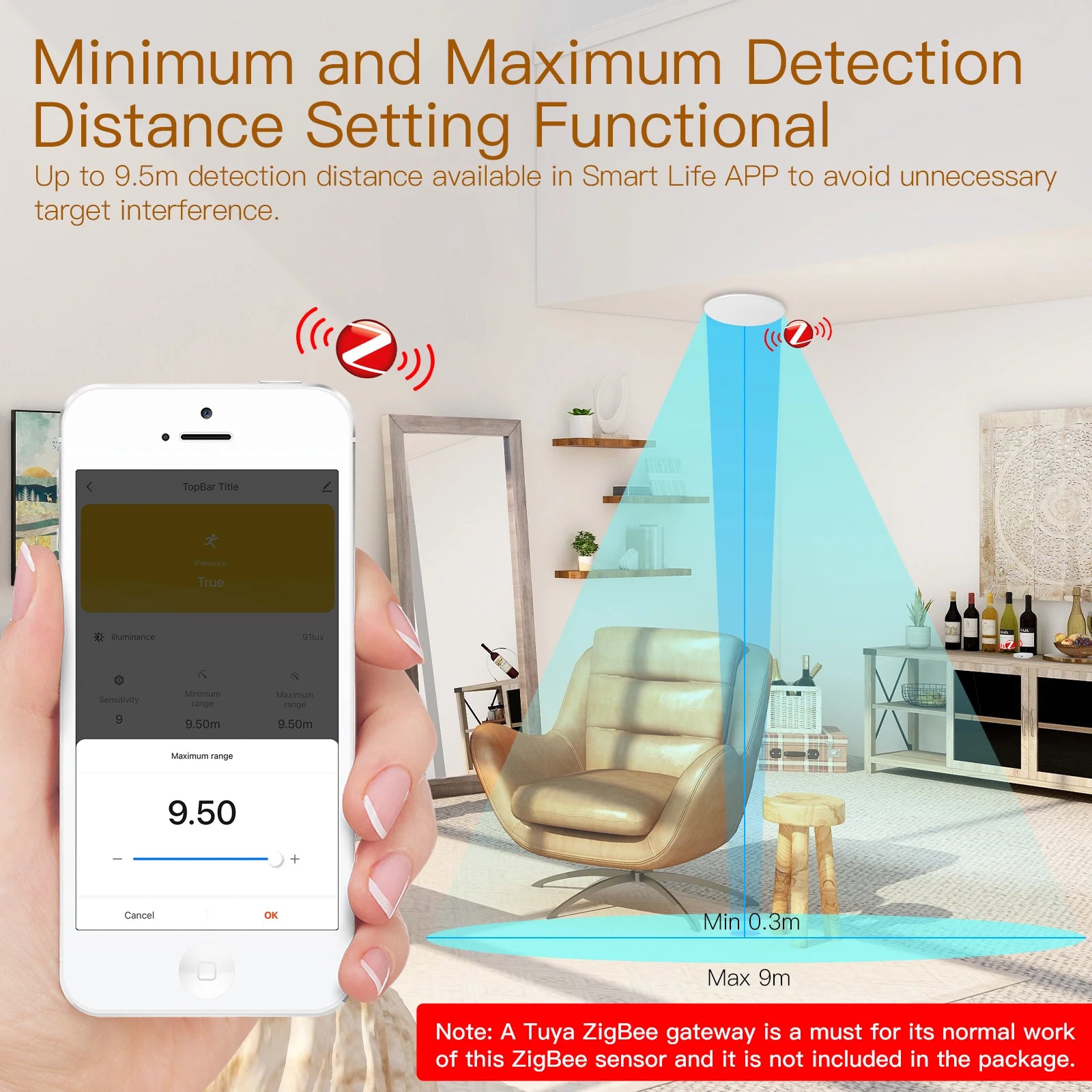

4.Advanced New Design with Multiple Settings:Set the sensitivity from 1-9 to your own need,together with minimum detect range as 0.00m and maximum as 9.5m for flexible detection demand.Meanwhile,it is designed with hold time set as 0-1500s and detection latency set as 0-10s to avoid irrelevant annoying movement and reduce false alarm rate.

5.Clear APP Interface for Simple Application:Tuya Smart APP compatible ensures its wireless remote control anywhere you like,monitoring your house security wherever and whenever with corresponding target distance display in APP;Ceiling-mounted installation;includes full 2-year warranty and 60-day refund guarantee for complete satisfaction.

Specifications:

Product name: Human presence sensor
Wireless Technology: Zigbee
Work voltage: AC100V-250V
Work current: ≤70mA
Work temperature: －20℃～＋70℃
Sensitivity: 0-9 (Default 7)
Detect distance: 0～9m (Default distance 7 m)
Delay time:
1. target detection confirmation time: 0～0.5s.
2. target disappearance delay time: 20s～25min.
It is recommended not to be less than 15 seconds.
If too small, easy to miss.
Light sense: 0～2000Lux
Installation mode: Ceiling

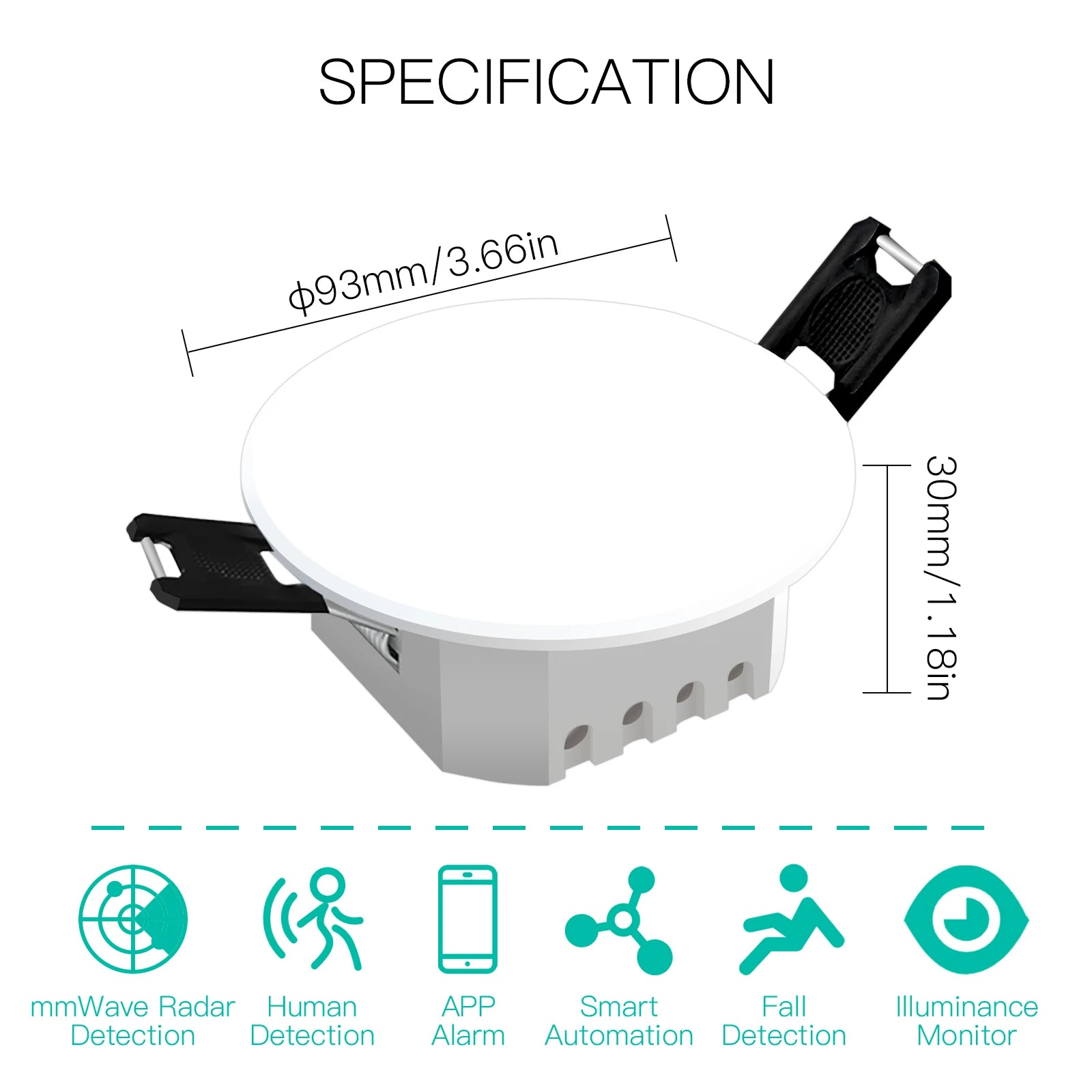

Product size: ∅93x30
Microwave operating frequency: 5.8GHz
Microwave transmitting power: 3-5dBm
Module Model: ZT3L Model
Max RF Power: +10dBm
Operating Frequency: 2.400-2.483GHz

Package list:

Human presence sensor*1

User manual*1

User manual:

https://drive.google.com/file/d/1Ledr-R46drsATeGl91K2Q08R5pQ8Pv5i/view?usp=sharing

Q&A:

1.Q:Does it need hub for smart controls in APP?

A:Yes,it is produced with ZigBee protocol which is Tuya ZigBee hub required.

2.Q:Can I set the detection latency to reduce false alarm rate?

A:Yes,you can set the detection latency from 0 to 10s to avoid irrelevant annoying movement.

3.Q:Can I set the hold time to ensure its best detection function?

A:Yes,there is the hold time set available in APP for much more accurate detection.

4.Q:What is the illuminance for in APP?

A:It is the function for the sensor that can monitor real-time luminance with its light sense as 0-200Lux.

5.Q:What is the deference between a human presence sensor and a PIR motion sensor?

A:The smart human presence sensor acts as more sensitive and with more necessary features in APP to clarify the meaning of home security in a true sense than a PIR motion sensor,even can accurately detect the static state such as personnel sleeping.
