Description

SPECIFICATIONS

Brand Name: Ziqqucu

Communication method: RS485

Condition: New

High-concerned chemical: none

Operating Temperature: -20℃ ~ 60℃

Origin: Mainland China

Package: SOP

Product Name: USB to RS485 Serial Port Module

Quantity: 1

RS485 terminal: 5.08mm spacing KF301 terminal

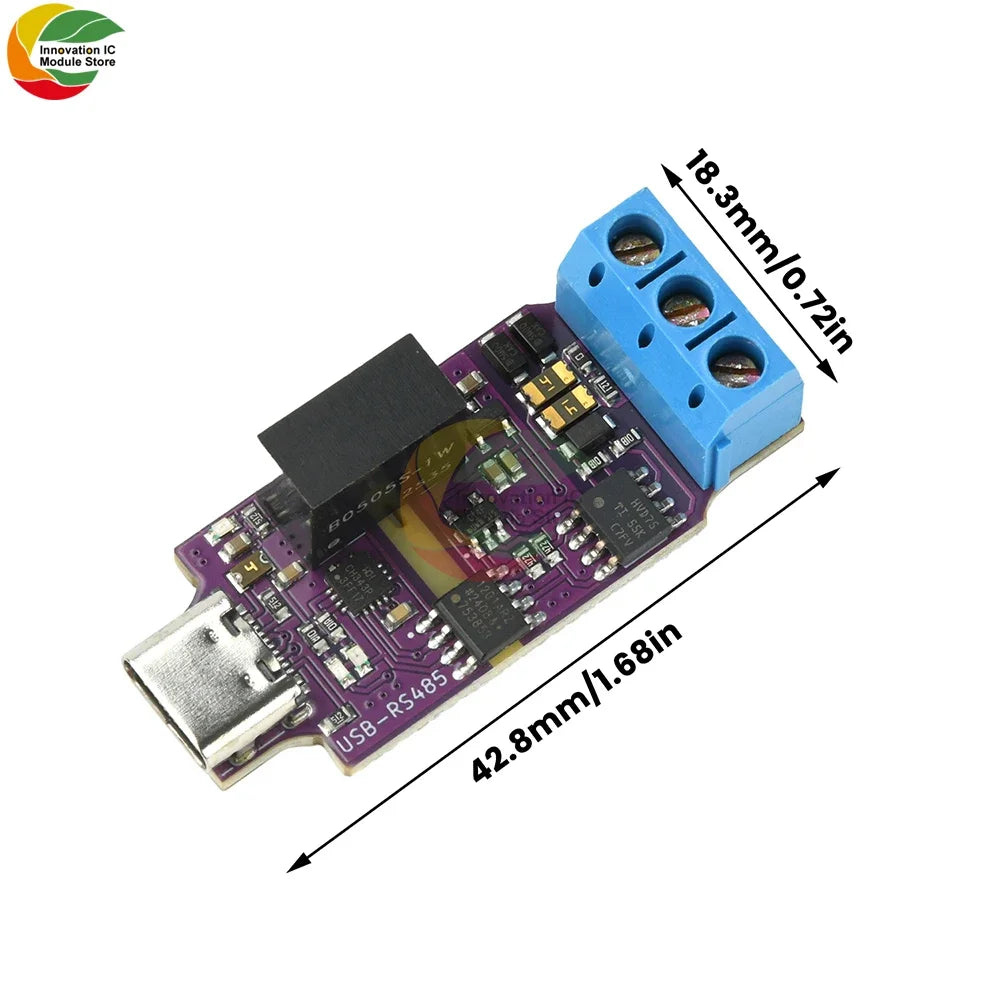

Size: 42.8mm * 18.3mm

Supply Voltage: DC 5V

Type: Module,Fully isolated type

USB interface: Type C interface

Working voltage: DC 5V

is_customized: Yes


✨Features:

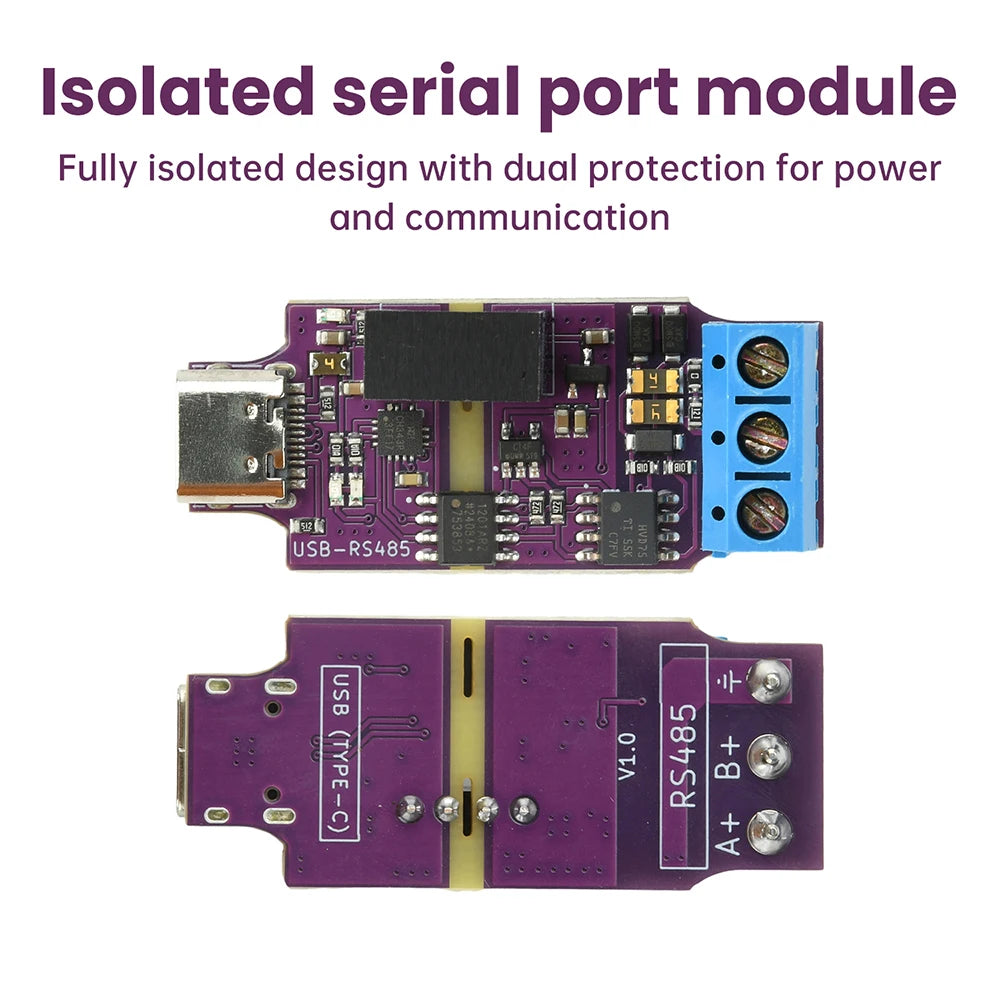

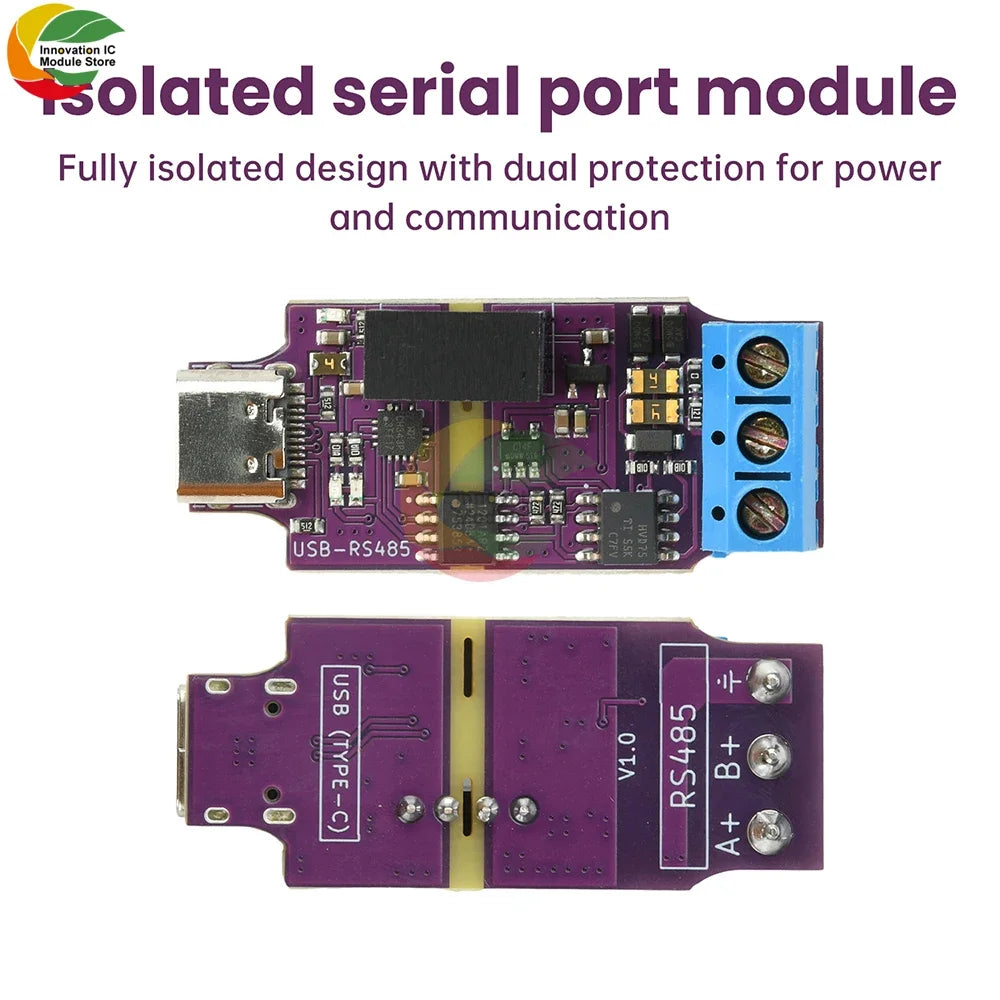

1. Fully isolated design, dual protection for power and communication.

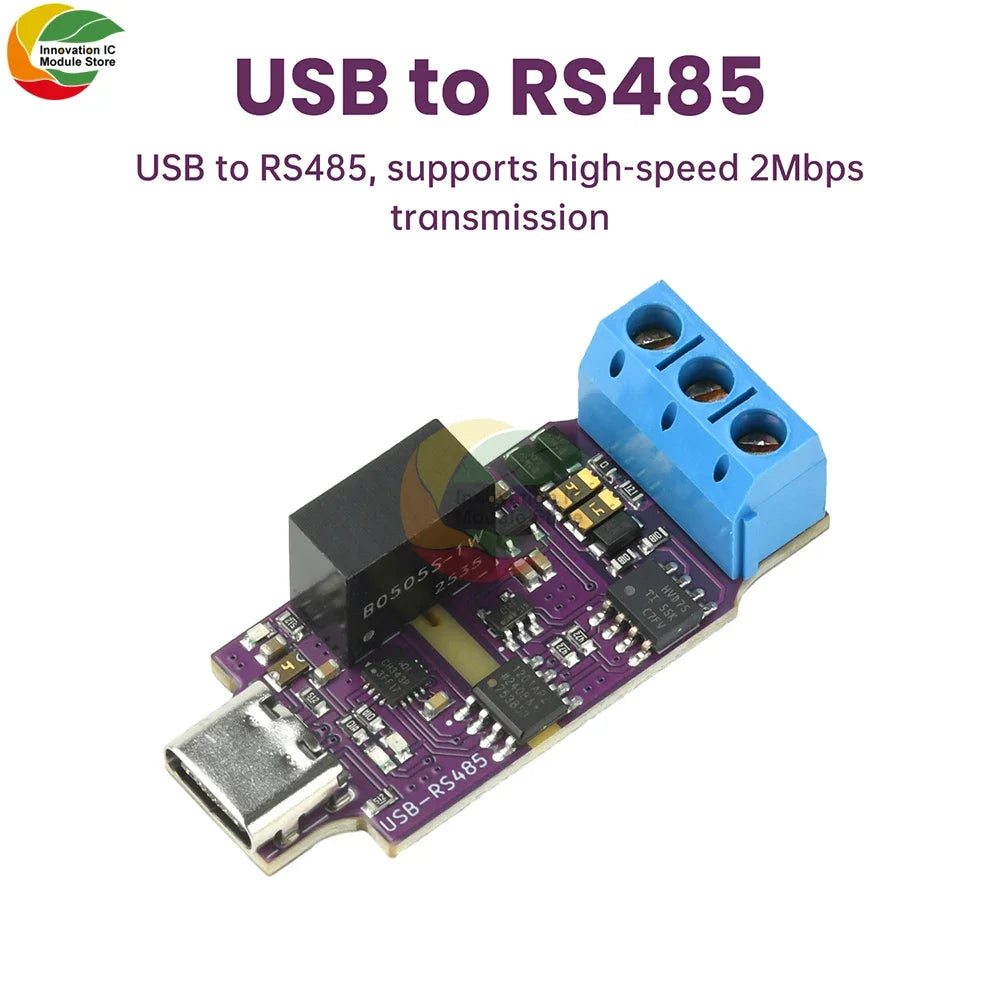

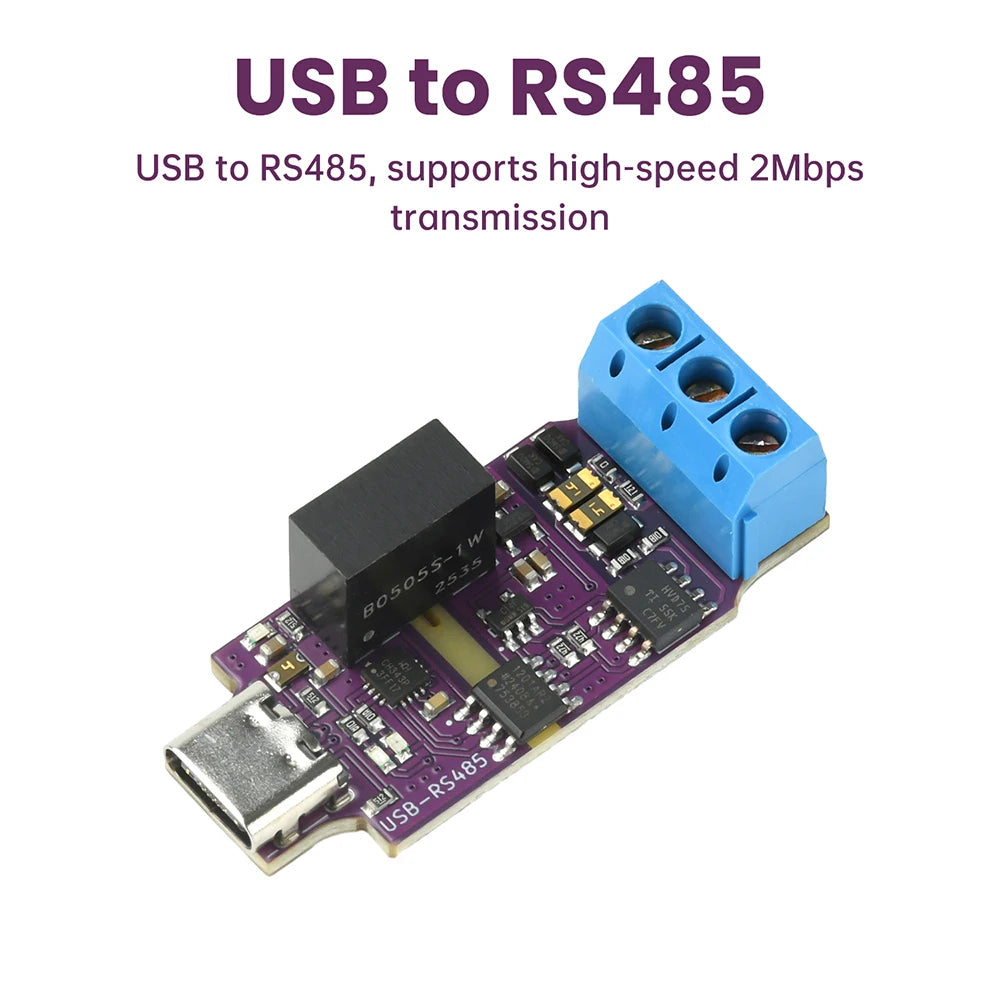

2. USB to RS485, supports high-speed 2Mbps transmission.

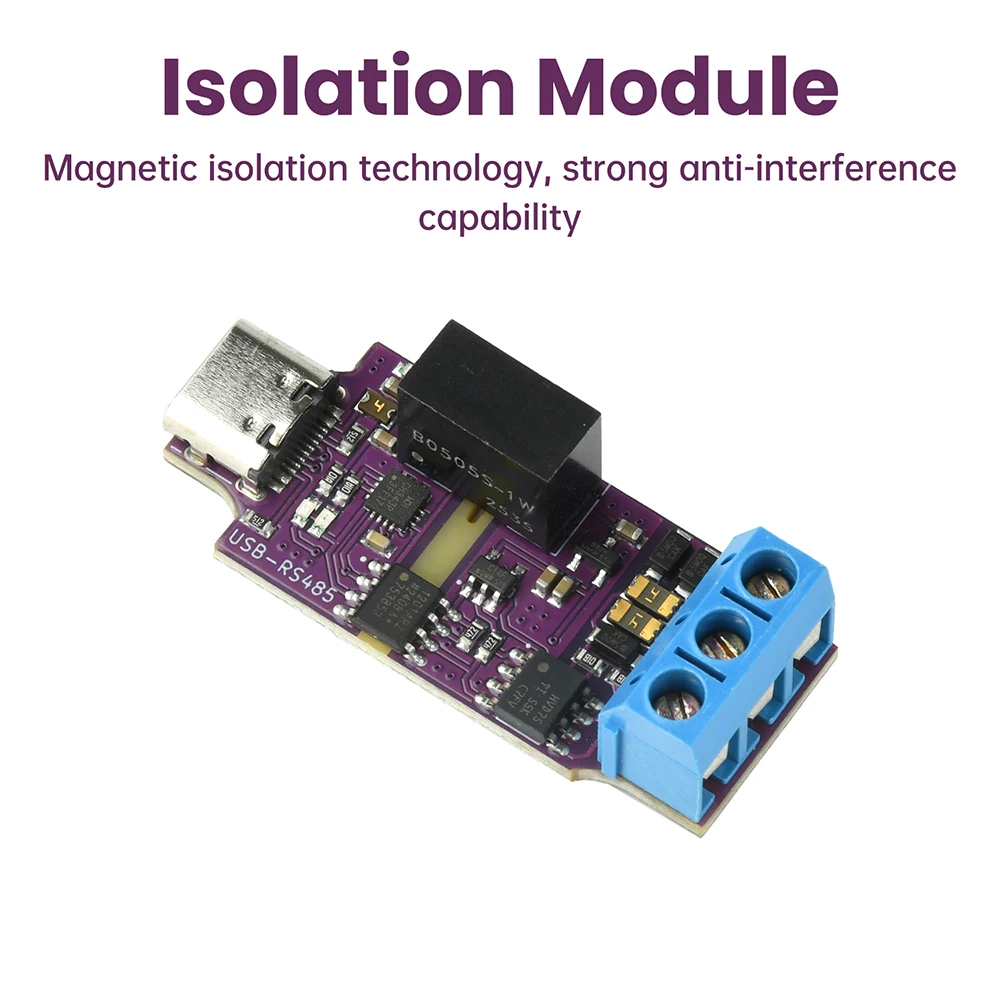

3. Magnetic isolation technology has strong anti-interference ability.

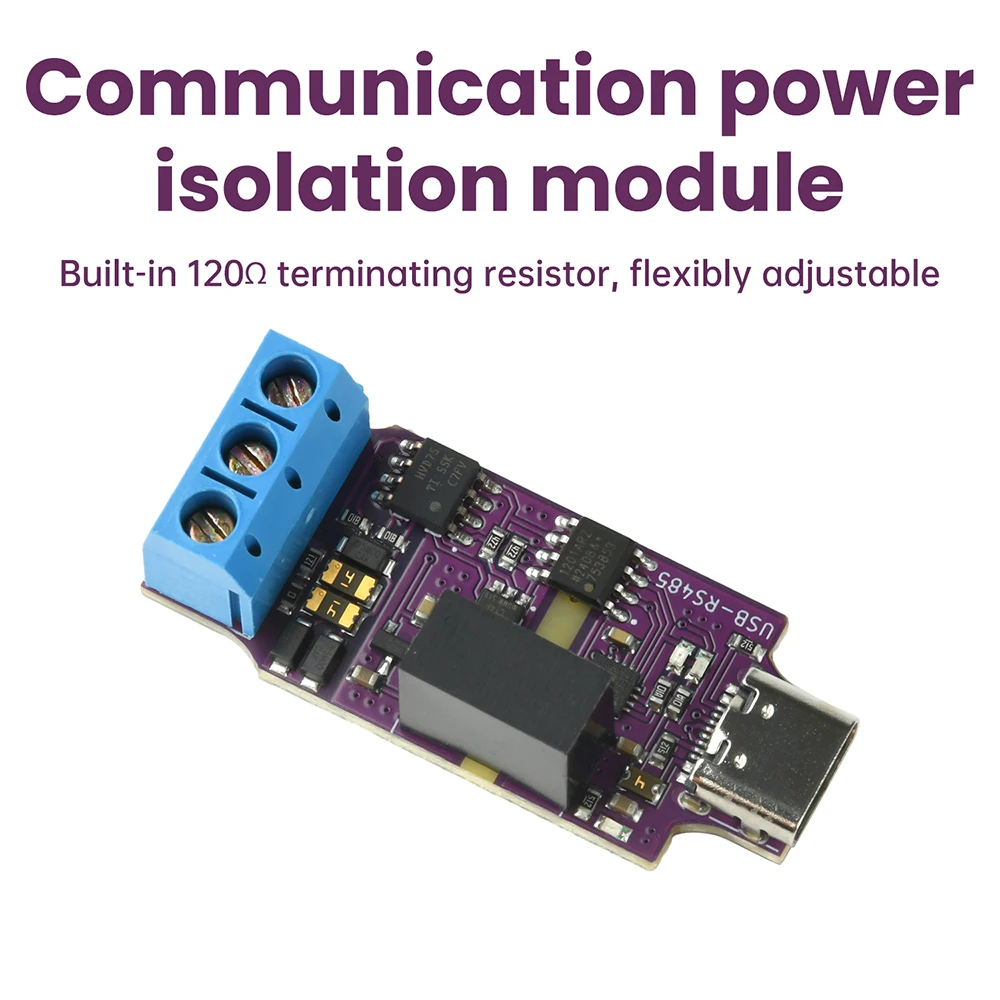

4. Built in 120 Ω terminal resistor, flexible and adjustable.

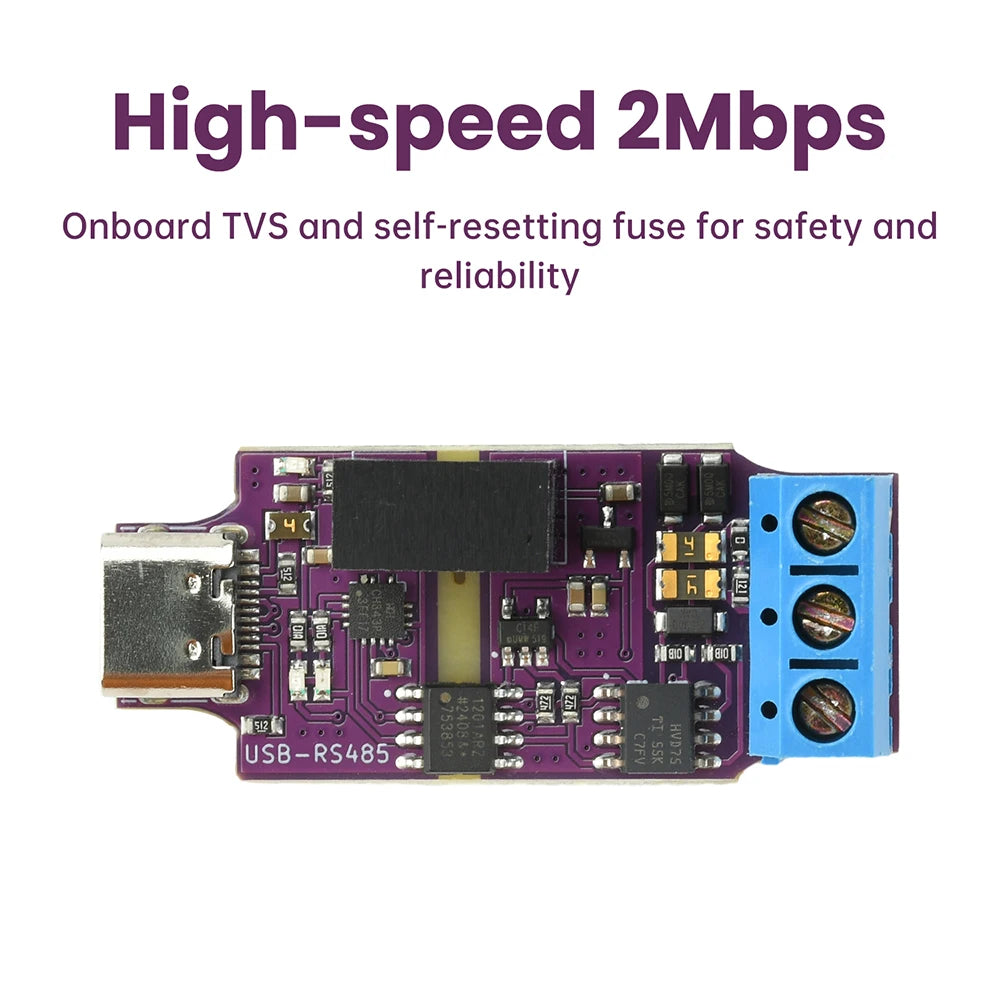

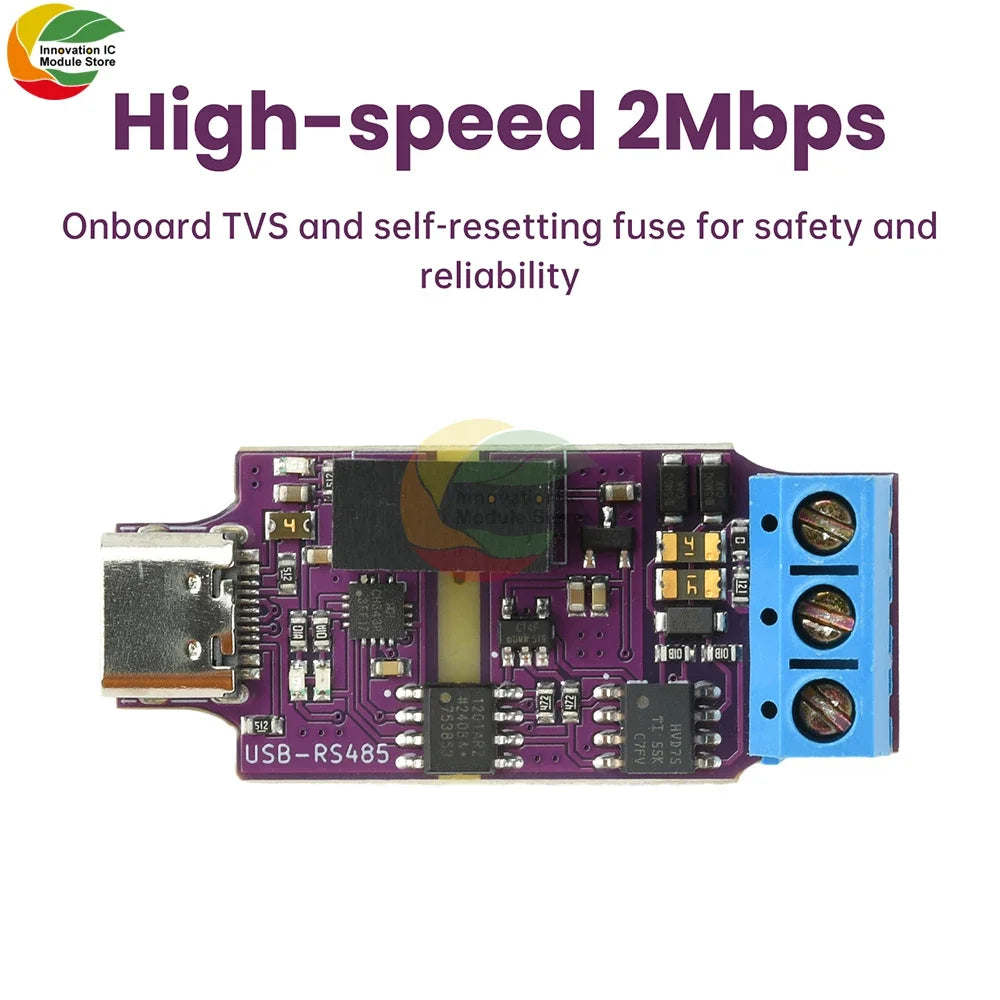

5. Onboard TVS and self recovery insurance, safe and reliable.

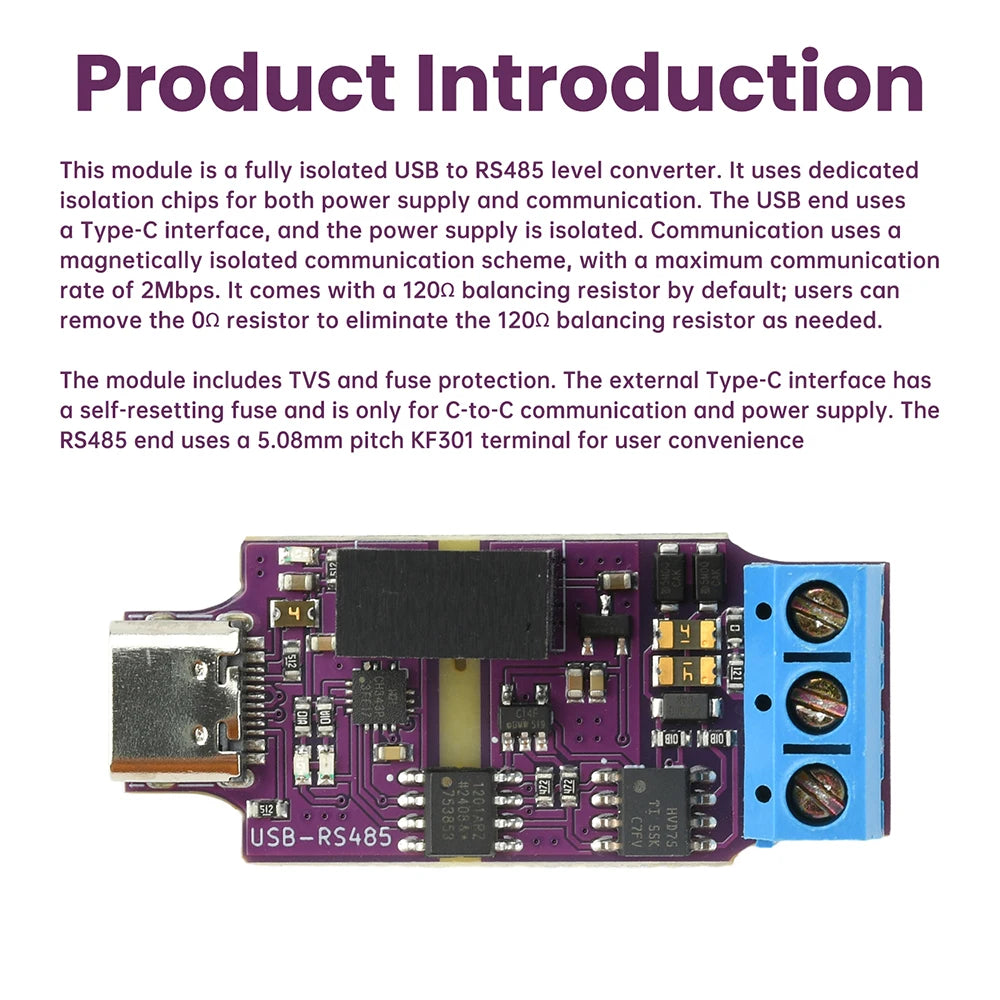

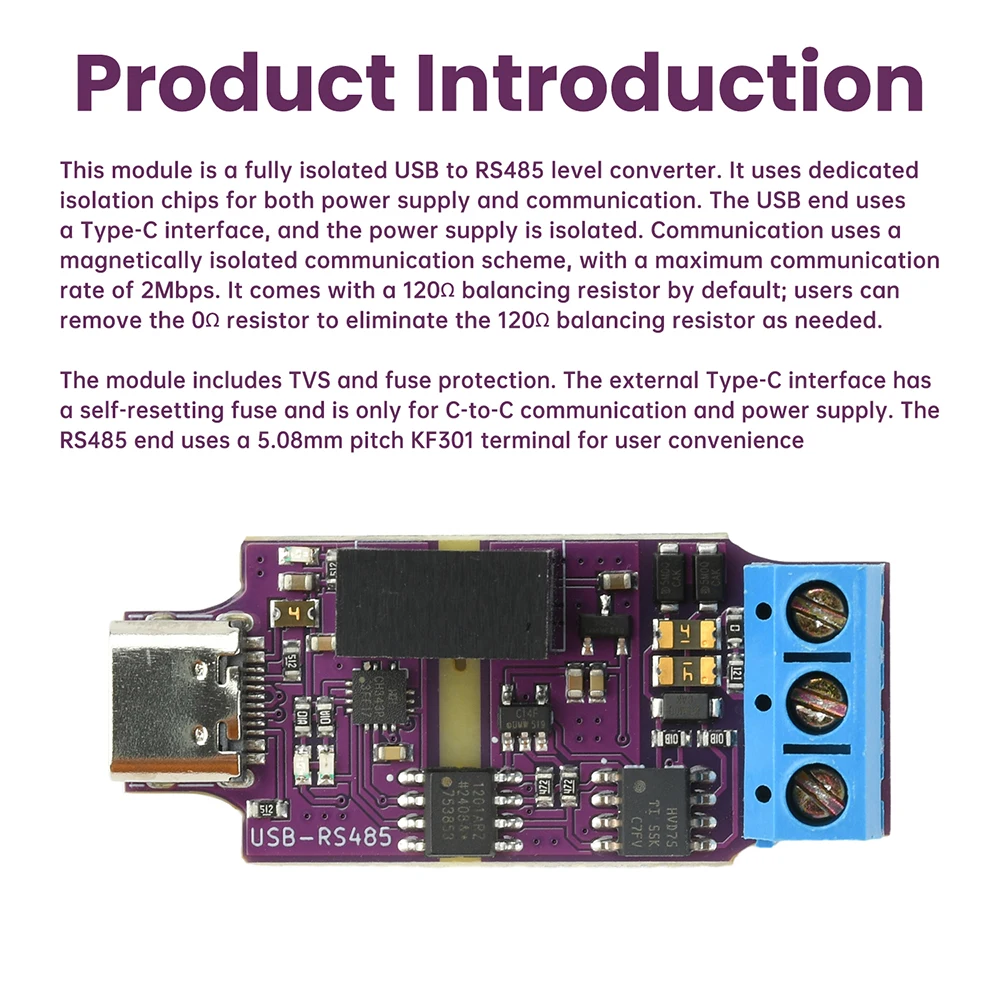

✨Product Introduction ：
This module is a fully isolated USB to RS485 level module, which uses dedicated isolation chips for power and communication. The USB end adopts a Type-C interface, and the power supply is equipped with an isolated power supply. The communication adopts a magnetic isolation communication scheme, and the maximum communication rate can reach 2Mbps. The default board carries a 120 Ω balanced resistor, and users can remove the 0 Ω resistor according to their needs to cancel the 120 Ω balanced resistor
Resistance.

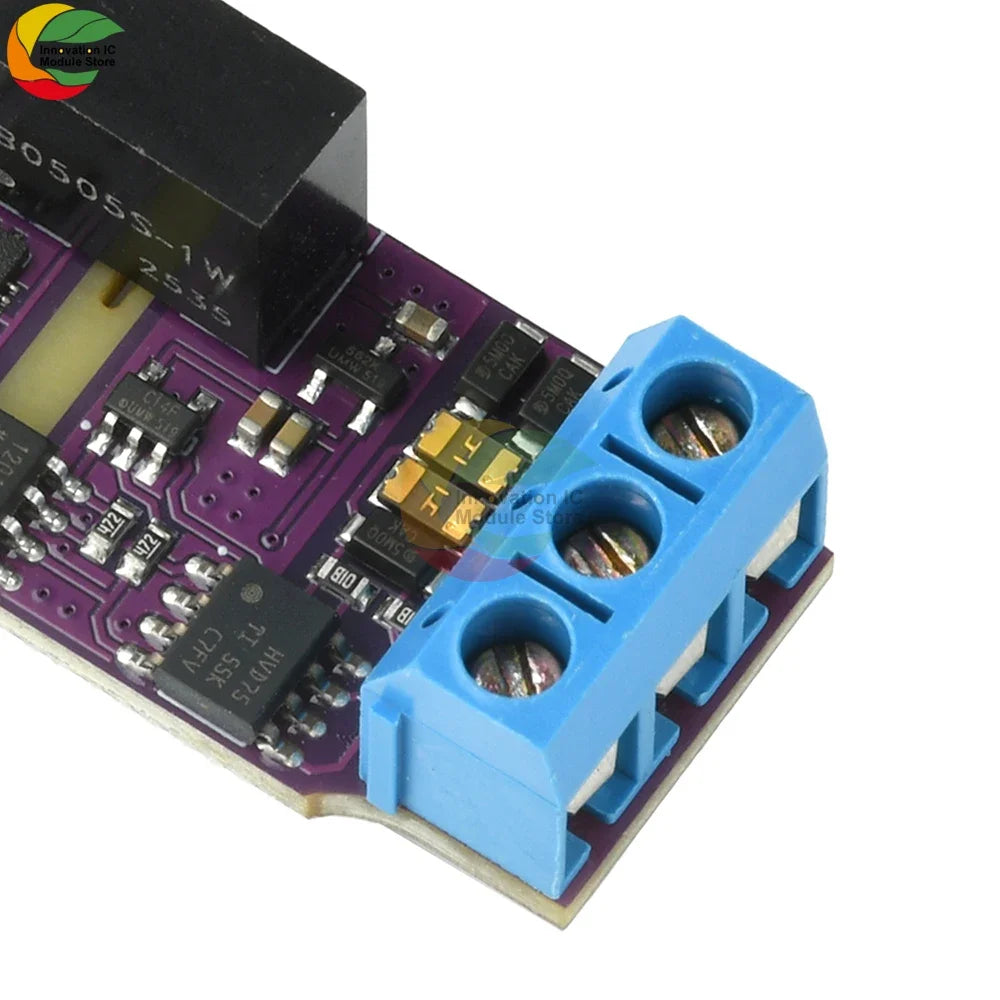

The board is equipped with protective measures such as TVS and insurance. The module has a self recovering fuse for the TYPE-C interface and is only used for C to C communication and power supply. The RS485 terminal has a 5.08mm spacing KF301 terminal for user convenience.

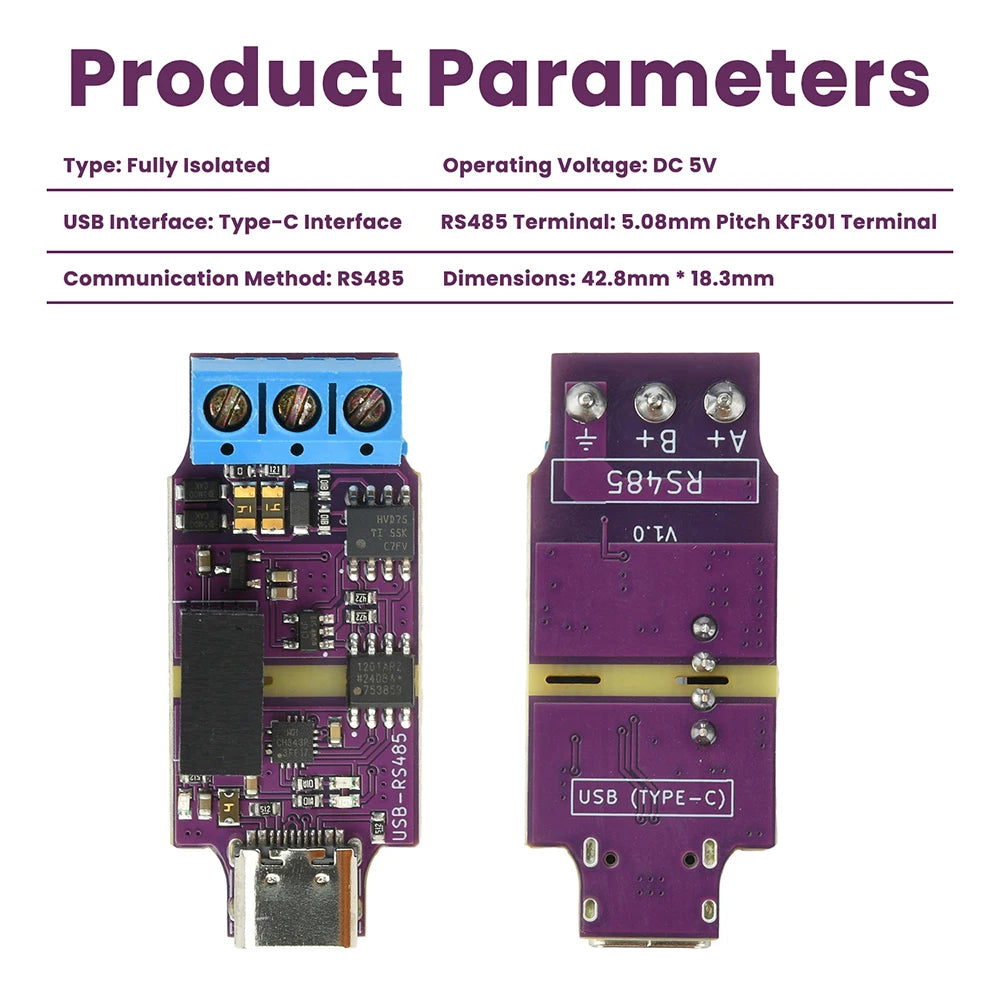

✨Parameters:
Type: Fully isolated type
Working voltage: DC 5V
USB interface: Type C interface
RS485 terminal: 5.08mm spacing KF301 terminal
Communication method: RS485
Size: 42.8mm * 18.3mm

✅Package Include:
1X module
