Usongshine Free shipping Nema 23 Stepper Motor 4-lead 56mm 126N.CM 2.8A 6.35mm or 8mm Shaft 23HS5628 motor 57 Step Motor Nema23
23HS5628 / China Mainland / 8.0
$136.60
Sale price
$136.60
Regular price
$0.00
Skip to product information
Usongshine Free shipping Nema 23 Stepper Motor 4-lead 56mm 126N.CM 2.8A 6.35mm or 8mm Shaft 23HS5628 motor 57 Step Motor Nema23
$136.60
Sale price
$136.60
Regular price
$0.00
Description
SPECIFICATIONS
1: Nema23
2: Stepper Motor
3: 57 motor
4: 57 Step Motor
5: 4-Lead
Brand Name: Usongshine
Cable 1: L500mm
Certification: ce,ISO,ROHS,NONE,UL,RoHS,ISO,CE,CCC
Choice: yes
Current / Phase: 2.8A
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Holding Torque: 126N.CM
Model 1: 23HS5628
Model 2: 23HS7628
Model Number: Nema23
Origin: Mainland China
Step Angle(degrees): 1.8°
Type: HYBRID
semi_Choice: yes
Usongshine Free shipping Nema 23 Stepper Motor 4-lead 56mm 126N.CM 2.8A 6.35mm or 8mm Shaft 23HS5628 motor 57 Step Motor Nema23
Package：57 Motor*1 Drive*1 Simple Controller*1
Model:23HS5628
Step Angle:1.8deg
Mitir Length:56mm
Rated Current:2.8A
Phase REsistance:0.9Ohm
Phase Inductance:2.5mH
Holding Torque:126N.cm
ROtor Inertia:300g.cm2

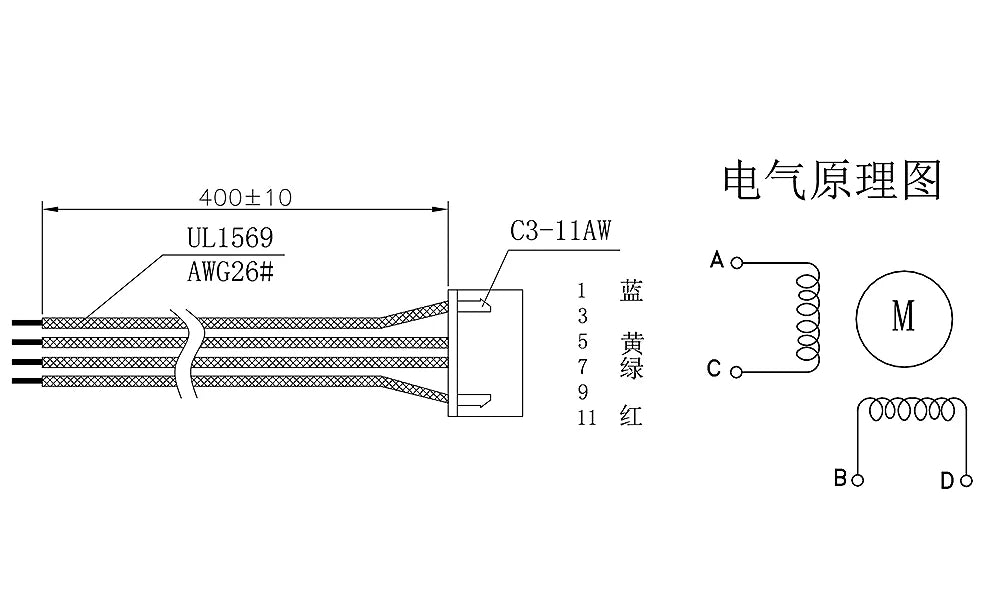

Lead wire 4 No
Motor Weight:700g
Introduction:
The upgraded version of TB6600 is a driver suitable for 57/42 type two-phase hybrid stepping motor with phase current below 4.0A.
Set 7 kinds of subdivisions (1/2A/2B/4/8/16/32) through 6-bit DIP switch
And 8 gear output current (0.5A/1.0A/1.5A/2.0A/2.5A/2.8A/3.0A/3.5A)
Widely used in various small and medium-sized automation equipment and hardware,
Such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, crystal grinding machine, automatic assembly equipment, etc.
The best application object is 57 stepper motors and 42 stepper motors with a torque of 1.8N.m and below.
