SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Electrified: No

High-concerned chemical: none

Origin: Mainland China

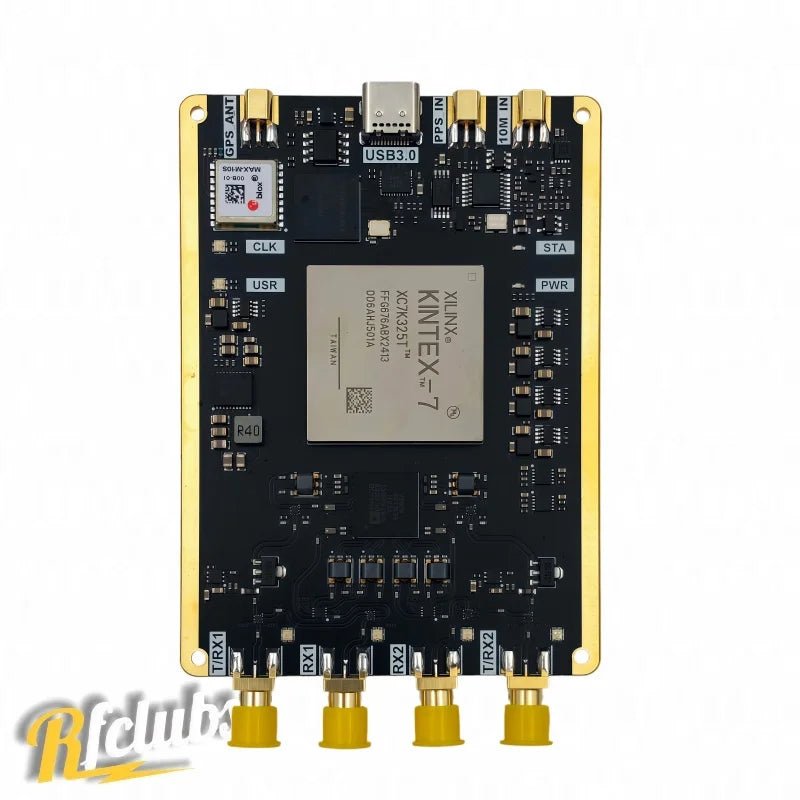

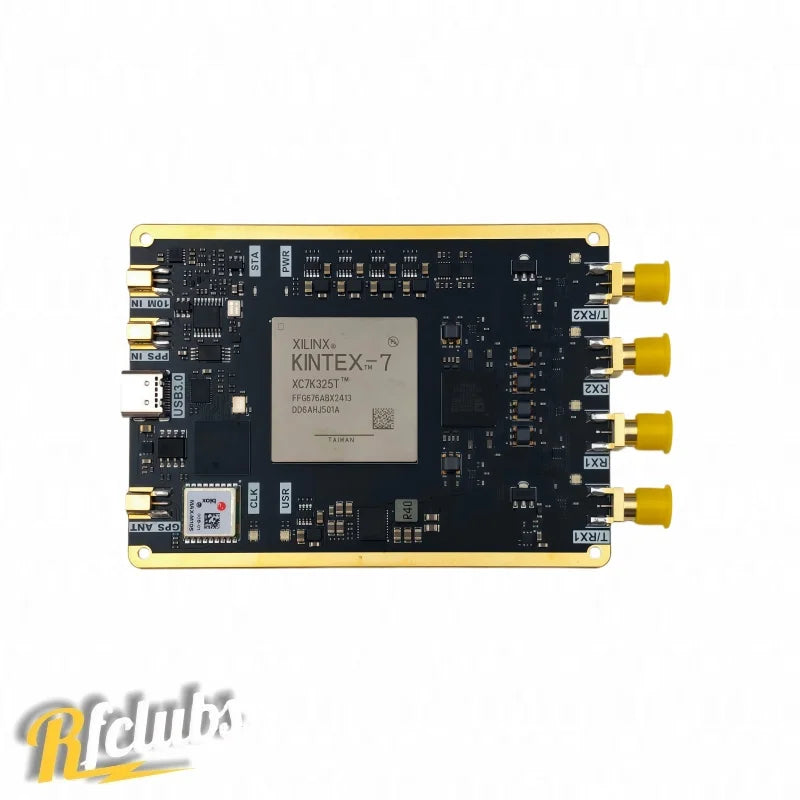

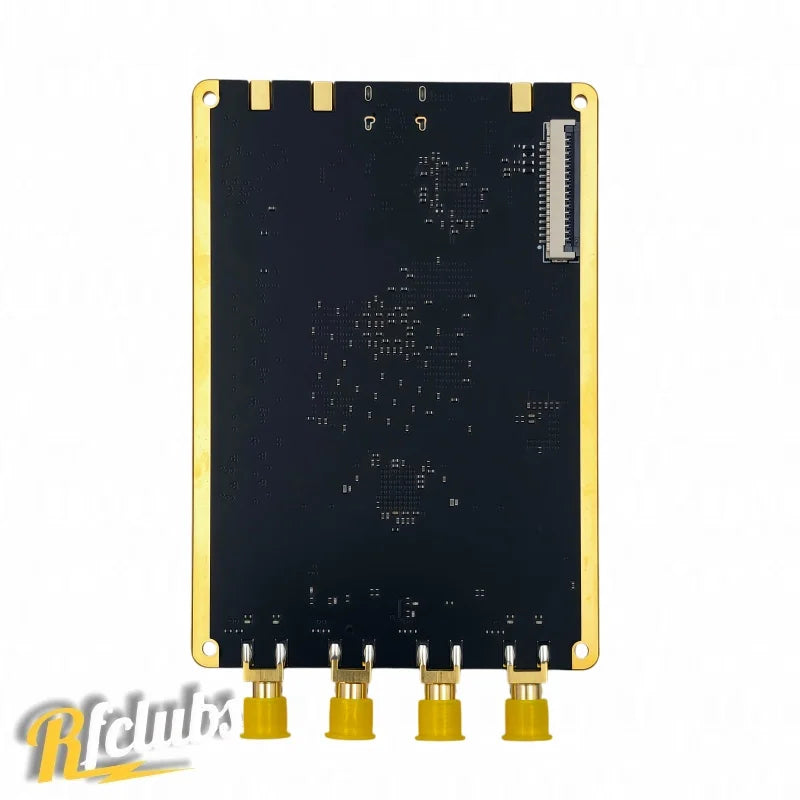

USRP B210 Improved Edition K7+AD9361 SDR 56MHz Bandwidth USB 3.0

1). Product Introduction

This USRP B210 improved edition software-defined radio (SDR) development board is a next-generation platform comprehensively optimized and upgraded from the original version. The core device has been upgraded from the Xilinx Spartan-6 series to the more powerful Kintex-7 series (XC7K325T), supporting development in the Vivado environment while maintaining full software compatibility with the original B210 ecosystem.

The RF front-end continues to leverage the proven AD9361BBCZ transceiver solution with a frequency-division duplex architecture, and the RF chain has been optimized through simulation to ensure excellent RF performance. The data interface has been upgraded to USB 3.0 Type-C, delivering a maximum real-time transmission bandwidth of up to 56 MHz to meet high-speed signal acquisition and processing demands. An onboard GPS module can replace external PPS input, while PPS and 10 MHz reference clock input interfaces (MMCX) are retained for system synchronization and expansion. The overall board size has been reduced to 70 × 97 × 11.5 mm for enhanced compactness and portability.

2). Product Parameters

• Main FPGA: Xilinx Kintex-7 XC7K325T (supports Vivado development)

• RF Transceiver: AD9361BBCZ (FDD architecture, RF chain optimized via simulation)

• Data Interface: USB 3.0 Type-C (max real-time bandwidth 56 MHz)

• Reference Clock Input: 10 MHz (MMCX connector)

• External PPS Input: PPS (MMCX connector)

• Onboard GPS Module: Supports satellite timing and positioning, can replace external PPS input

• GPSDO Support: GPSDO slot removed (different from original version)

• RF Connectors:

  • TRX1 / TRX2: Shared TX/RX ports (SMA) × 2

  • RX1 / RX2: Dedicated RX ports (SMA) × 2

• Debug & Expansion: FPC connector (JTAG debug + GPIO expansion)

• GPS Antenna Interface: MMCX

• LED Indicators:

  • PWER (Red): Power indicator, lights up after power-on

  • STAS (Blue): Status indicator, lights up after firmware loading

  • CLK (Red): PPS indicator, flashes in sync with the selected PPS pulse

  • USR: User-defined function (currently not enabled)

  • TRX1 / TRX2: TX/RX status (red for transmit, blue for receive)

  • RX1 / RX2: Receive status (blue when receiving)

• Board Dimensions: 70 × 97 × 11.5 mm

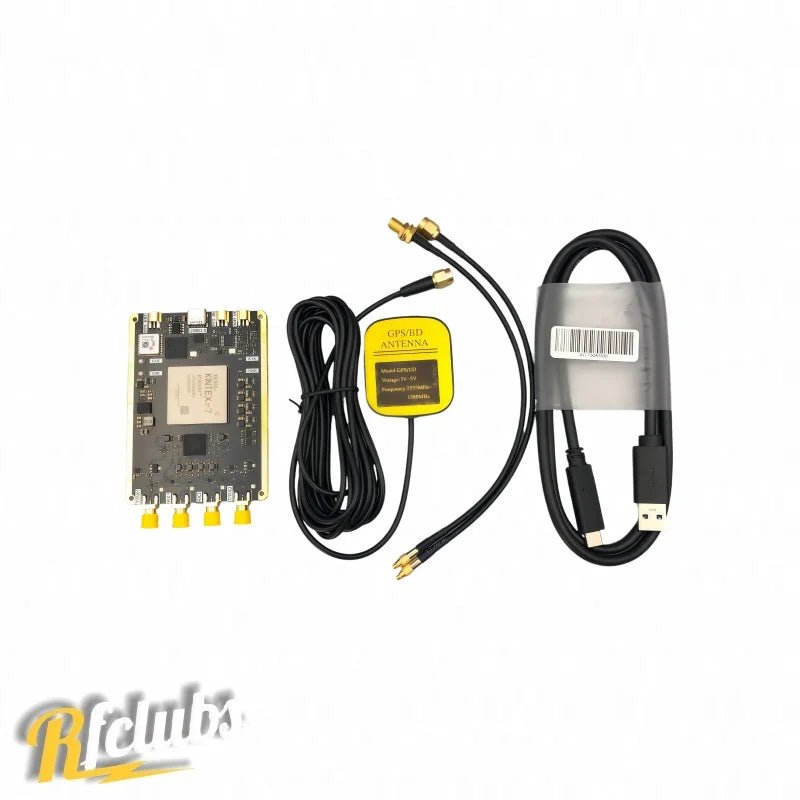

3). Package Contents

• USRP B210 Improved Edition SDR Development Board × 1 piece

• USB 3.0 Type-C Data Cable × 1 piece

• GPS Active Antenna × 1 piece

• MMCX to SMA Adapter Cable × 1 piece

4). Application Areas

• Software-defined radio (SDR) algorithm development and validation

• Wireless communication signal acquisition and analysis

• Spectrum monitoring and spectrum sensing systems

• Cellular network (LTE / 5G NR) signal research

• GNSS / GPS signal processing and timing synchronization

• Radar and RF detection system prototyping

• University communications engineering and electronics lab teaching

Important Usage Notes (Differences from Original Version):

1. Software Configuration: Before use, you must replace the usrp_b210_fpga.bin file on your computer to accommodate the new hardware.

2. GPSDO Compatibility: This board no longer supports external GPSDO modules (the GPSDO slot has been removed).

3. PPS Priority: The onboard GPS module's PPS signal takes priority over the external PPS input. When the GPS module has successfully acquired satellite signals, the external PPS input will be automatically disabled.
