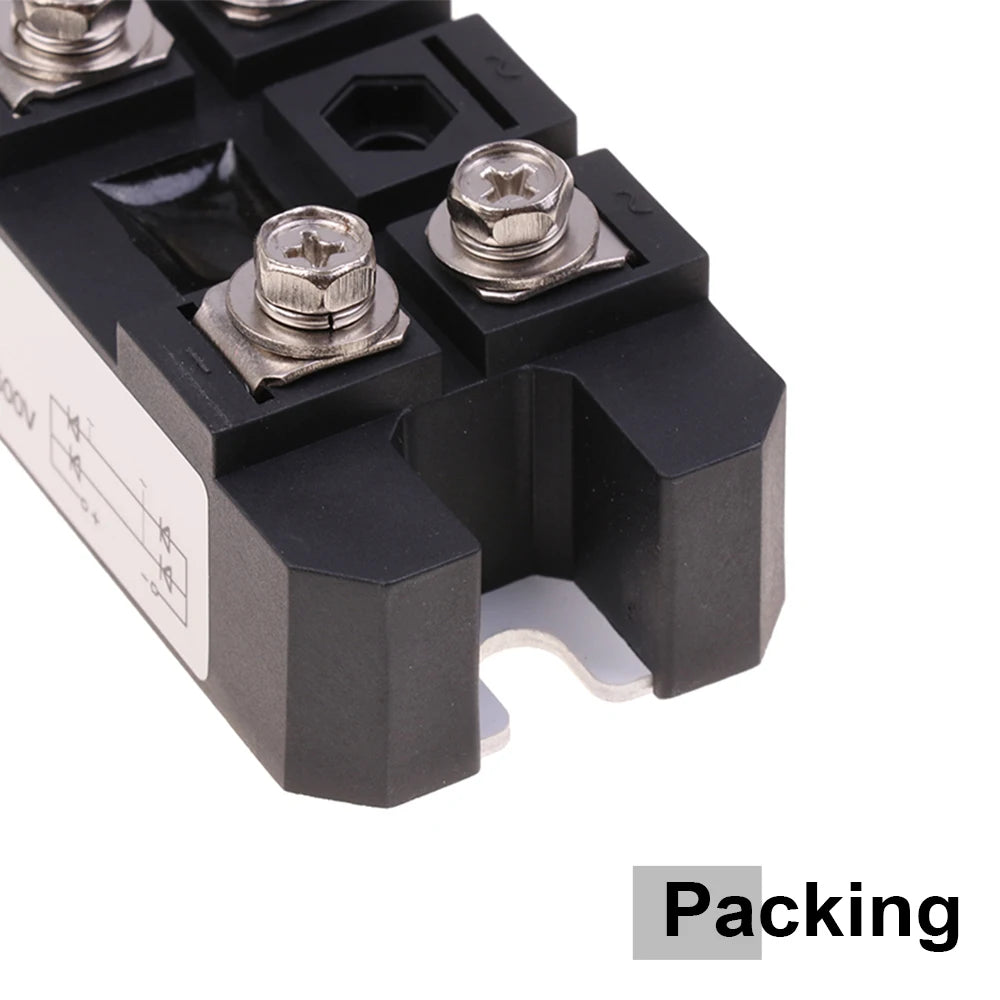

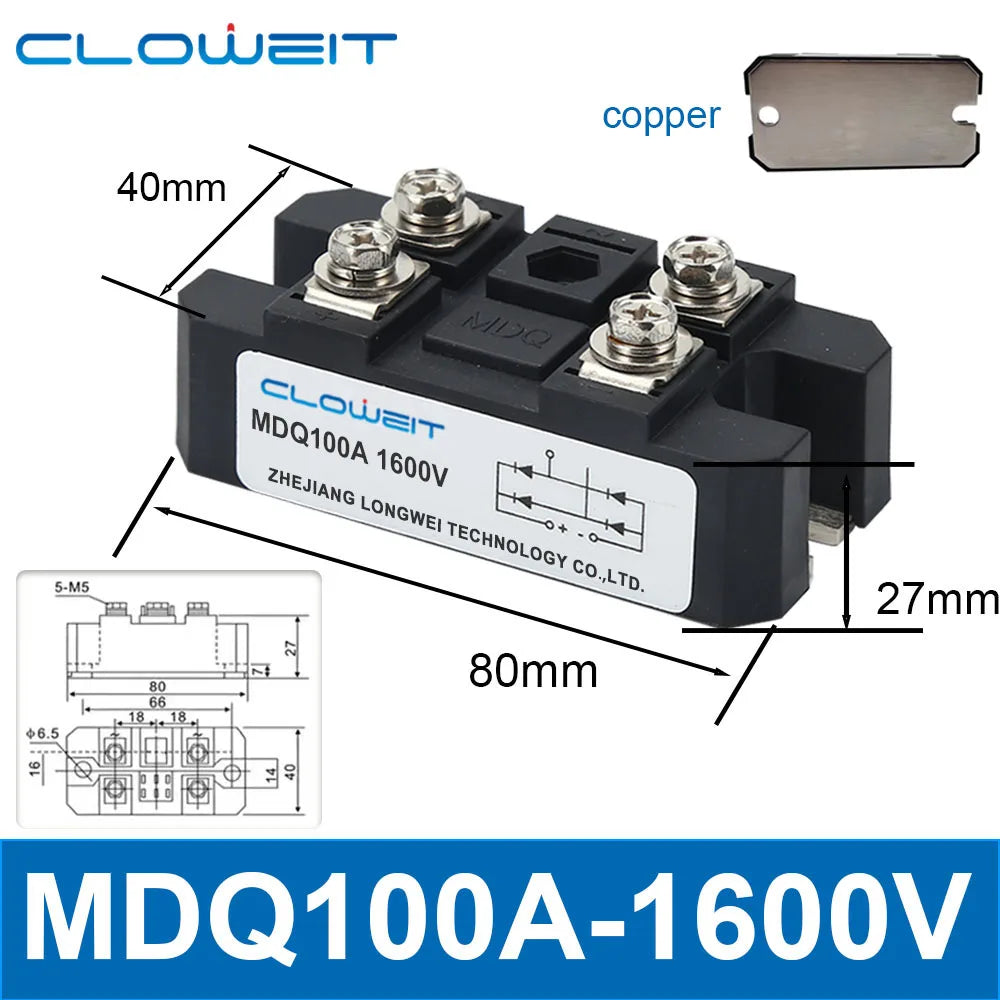

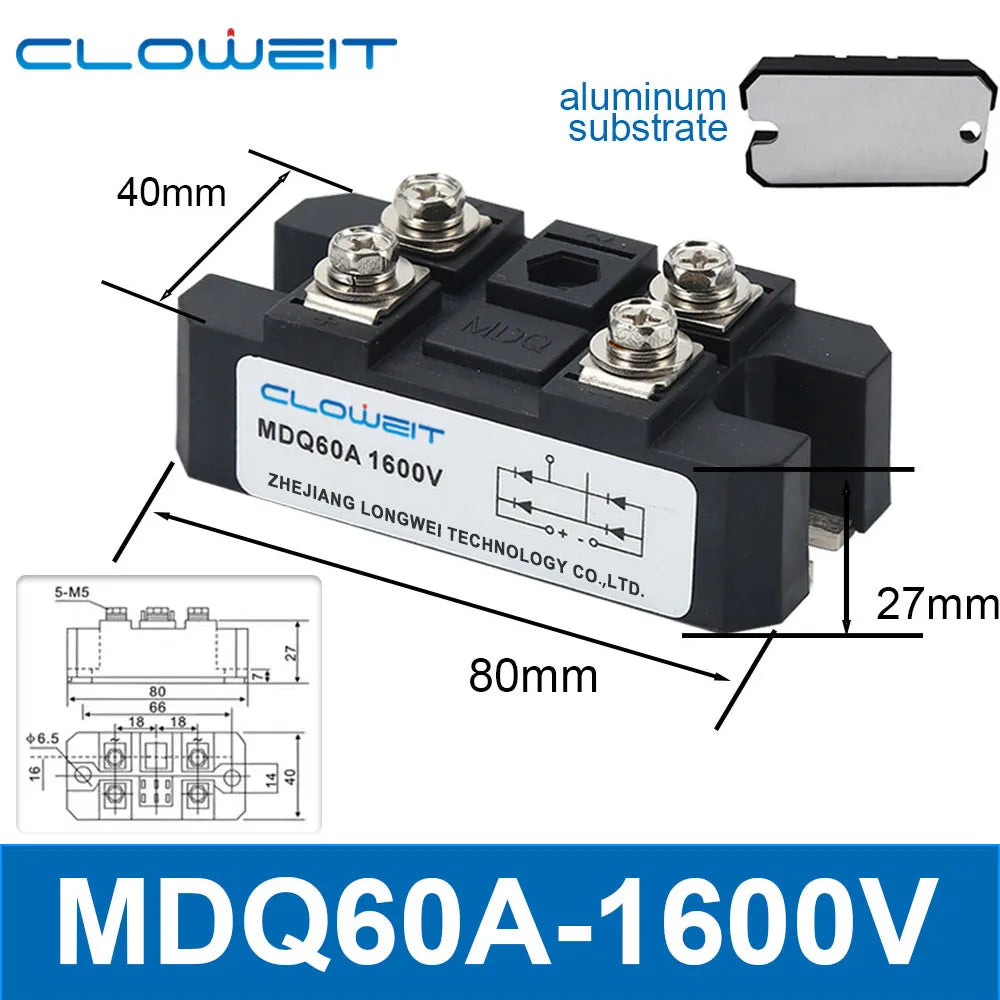

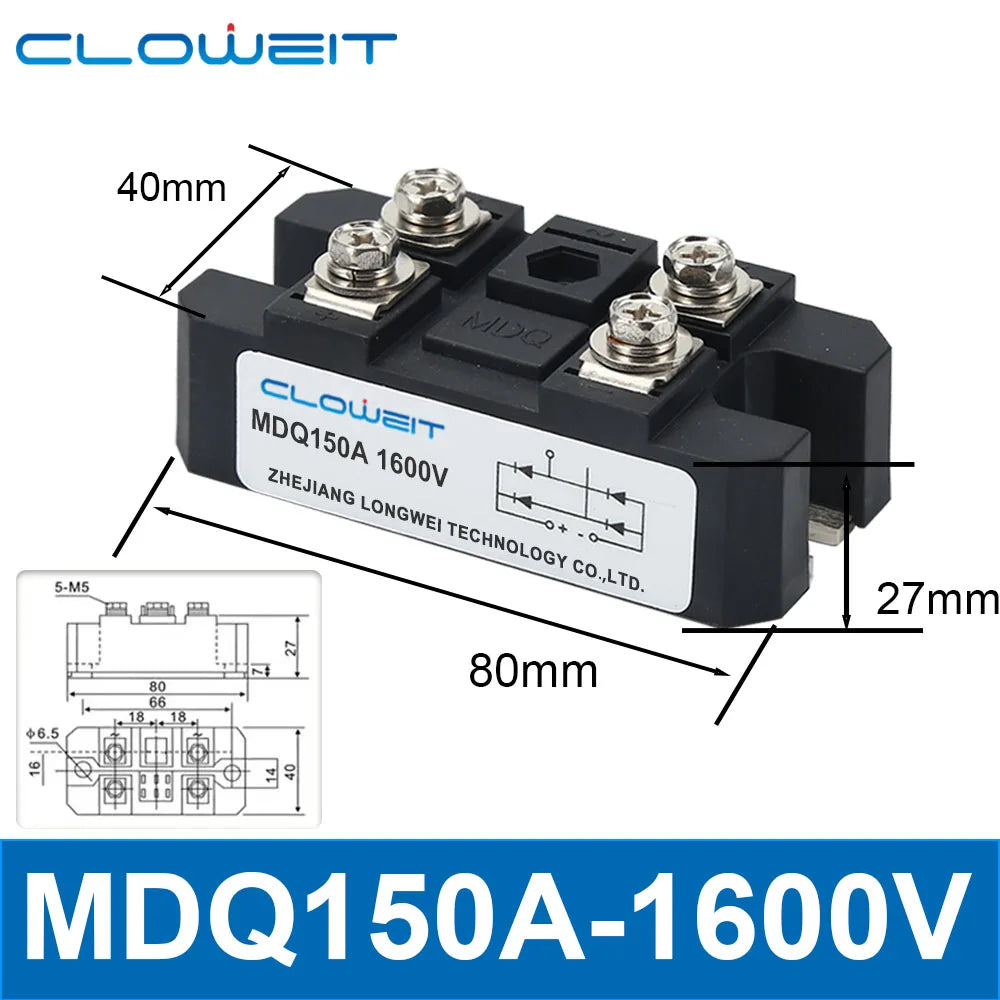

Volt Silicon Single 1 Phase Diode Metal Case Bridge Rectifier MDQ 100A Amp 1600V Single Phase Rectifier Bridge Module
MDQ60A-16 Aluminium
$30.87
Sale price
$30.87
Regular price
$0.00
Skip to product information
Volt Silicon Single 1 Phase Diode Metal Case Bridge Rectifier MDQ 100A Amp 1600V Single Phase Rectifier Bridge Module
$30.87
Sale price
$30.87
Regular price
$0.00
Description
SPECIFICATIONS
Ballast: Electronic
Brand Name: NONE
Certification: NONE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Features: Diode rectifier module
High-concerned chemical: none
Item Type: BALLASTS

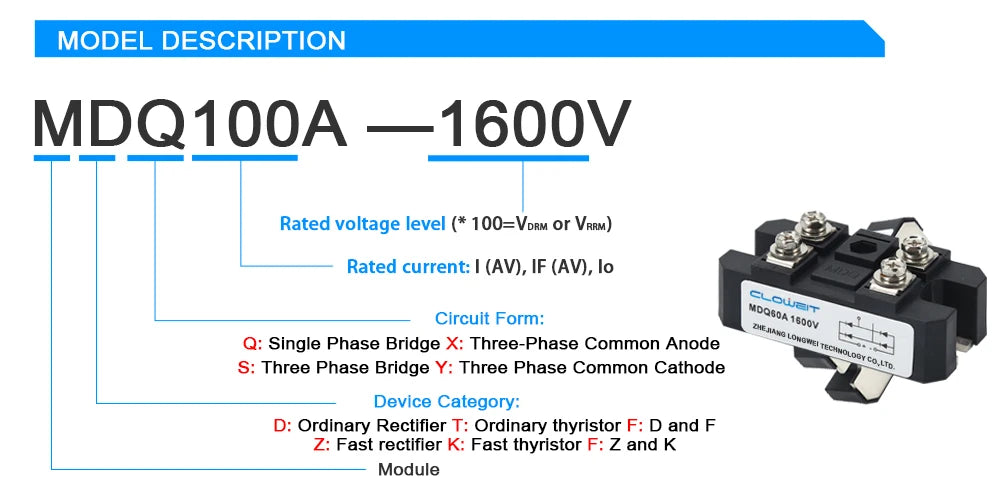

Model Number: MDQ
Origin: Mainland China
Power Factor Compensation: WithOut
Rated current: 50A 60A 100A 150A
Warranty: 1 year
model: MDQ

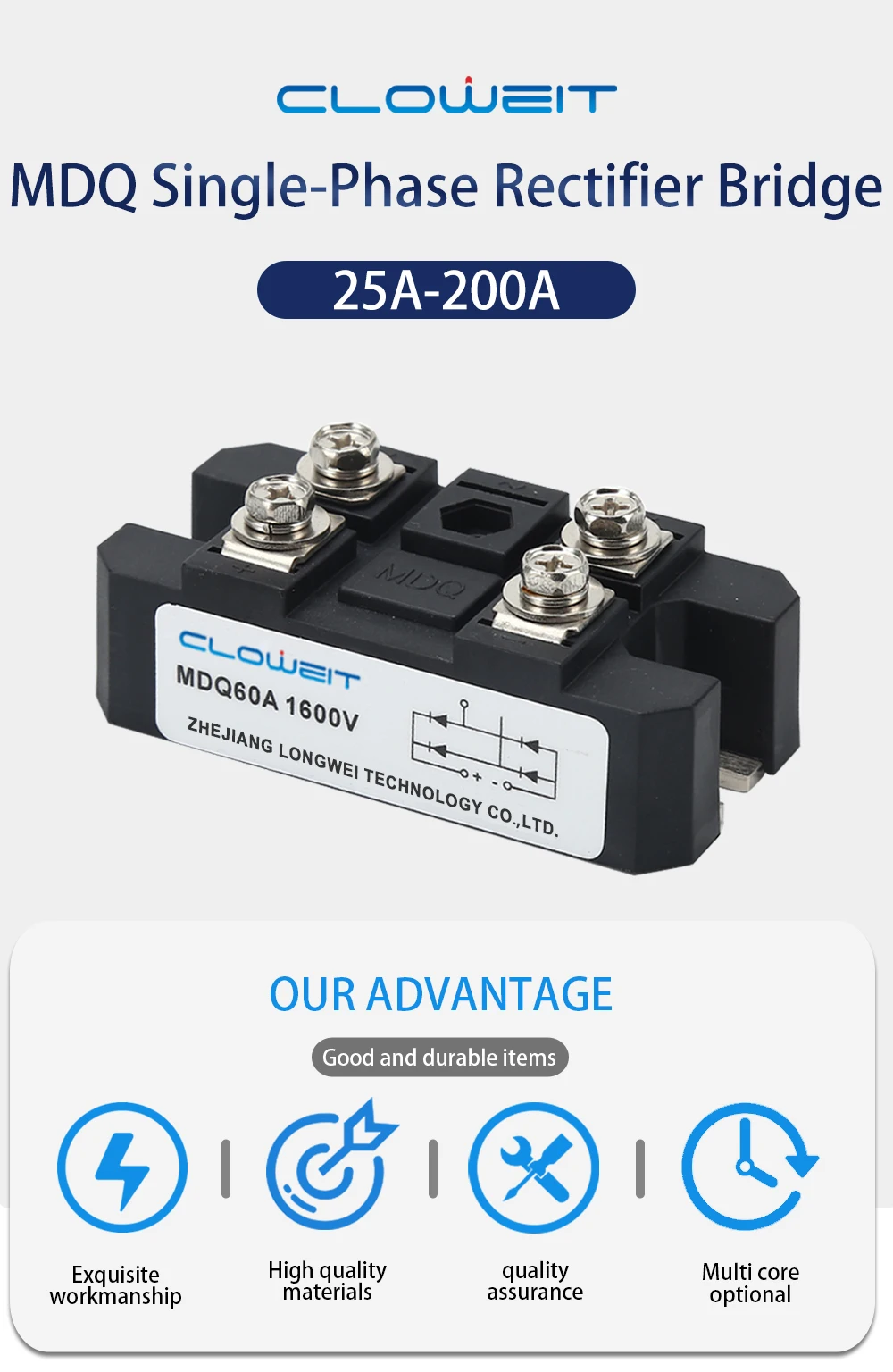

module: Single-phase bridge
semi_Choice: yes
Symbol |
Parameter |
Test Conditions |
Junction |
Parameter Value |
Unit |
|||
Maximum |
Typical |
Maximum |
||||||
ID |
DC output curront |

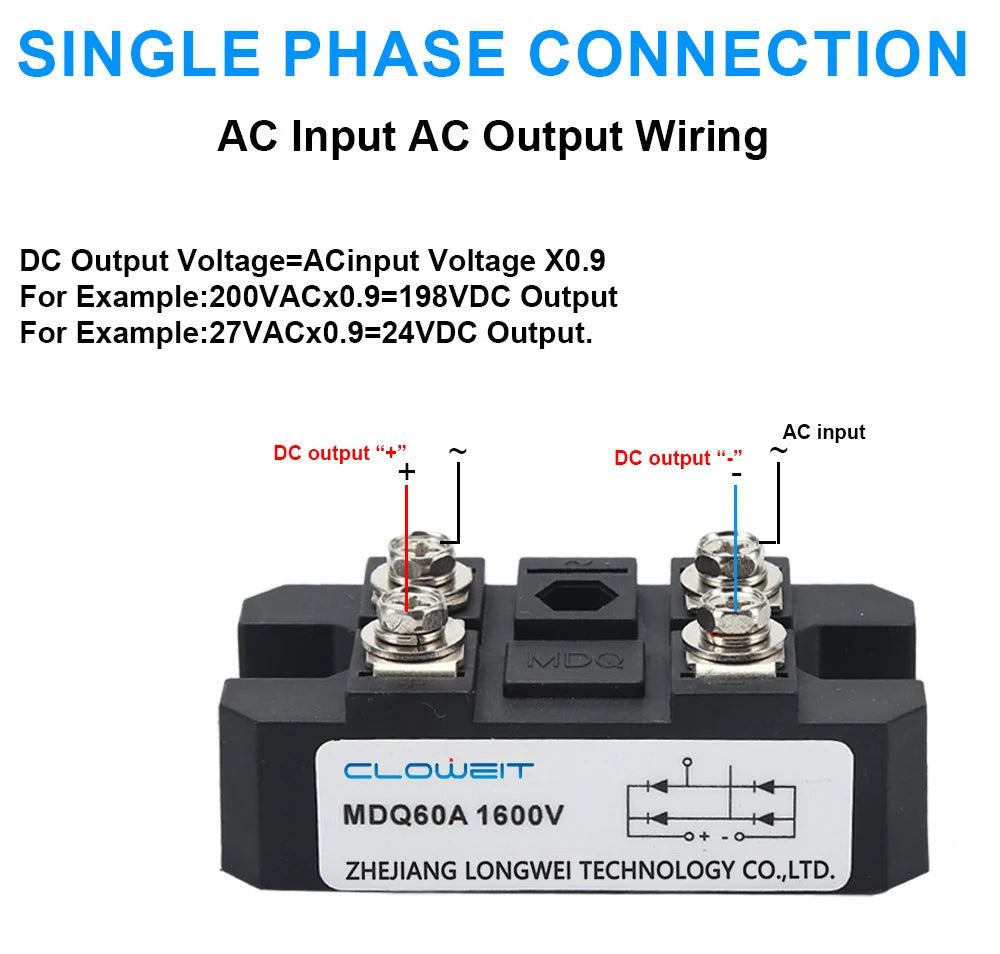

Single phase full wave rectification circuit. Tc-100 ℃ |
150 |
60 |
A |
|||
VRRM |
Repetitive Peak Reverse Voltage |
VRRMtp=10ms |
150 |
600 |
4000 |
V |
||
IRRM |
Repetitive peak reverse current |
at VRRM |
150 |
8 |
mA |
|||
IFSM |
Forward non repetitive surge current |
10ms base width, sine half wave |
||||||
I²t |
Square time product of surge current |
|||||||
VFO |
Threshold voltage |
150 |
1.4 |
KA |
||||
rF |
slope resistance |
8.6 |
A^25* 10³ |
|||||
VFM |
Peak Forward Voltage |
IFM=75A |
25 |
1.55 |
V |
|||
Rth(j-c) |
Thermal impedance (junction to shell) |
Single sided heat dissipation |
0.200 |
℃/W |
||||
Rth(e-h) |
Thermal impedance (shell to radiator) |
Single sided heat dissipation |
0.15 |
℃/W |
||||
Viso |
insulation current |
50HZ,R.M.S,t=1min Iisc:1mA(max) |
2500 |
V |
||||
FM |
Installation torque (M5) |
4 |
N-M |
|||||
Installation torque (M6) |
6 |
N-M |
||||||

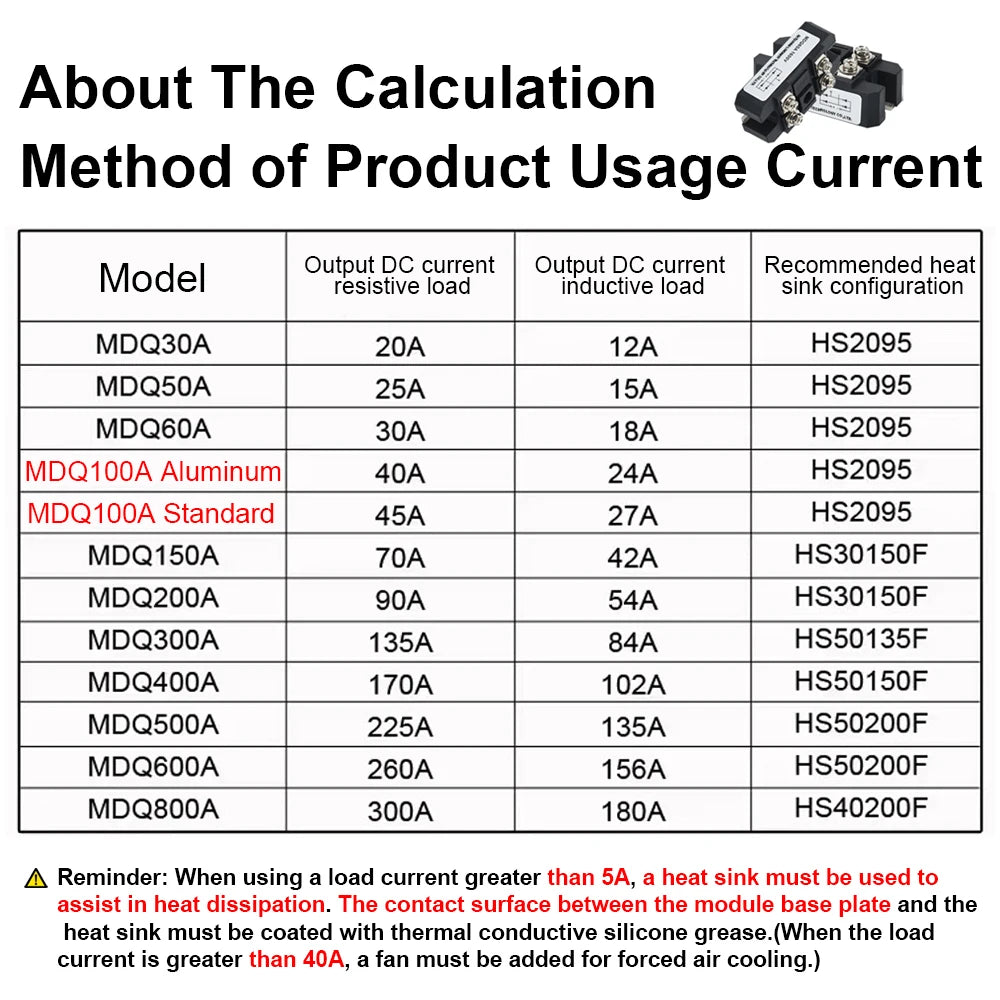

Type |
Id |
IF(AV) |
T0 |
VDRM VRRM |
IRRM |
ITMVTM |
Tjm |
Viso |
Housing |
|
A |
A |
℃ |
V |
mA |
V |
A |
℃ |
V(AC) |
||
MDQ30 |
14 |
15 |
100 |
600-2000 |
8 |
1.45 |
45 |
150 |
2500 |
102A 102A-1 |
MDQ60 |
20 |
30 |
100 |
600-2000 |
8 |
1.45 |
90 |
150 |
2500 |
102A 102A-1 |
MDQ100 |
28 |
50 |
100 |
600-2000 |
10 |
1.45 |
150 |
150 |
2500 |
102A 102A-1 |
MDQ150 |
40 |
75 |
100 |
600-2000 |
10 |
1.5 |
225 |
150 |
2500 |
103A 103A-1 |
MDQ200 |
55 |
100 |
100 |
600-2000 |
10 |
1.5 |
300 |
150 |
2500 |
103A 103A-1 |
MDQ300 |
85 |
150 |
100 |
600-2000 |
10 |
1.5 |
450 |
150 |
2500 |
104A |
MDQ400 |
115 |
200 |
100 |
600-2000 |
10 |
1.5 |
600 |
150 |
2500 |
104A |
MDQ500 |
140 |
250 |
100 |
600-2000 |
10 |
1.5 |
750 |
150 |
2500 |
105A |
MDQ600 |
170 |
300 |
100 |
600-2000 |
10 |
1.5 |
900 |
150 |
2500 |
105A |
MDQ800 |
220 |
400 |
100 |
600-2000 |
10 |
1.5 |
1200 |
150 |
2500 |
105A |
MDQ1000 |
280 |
500 |
100 |
600-2000 |
10 |
1.5 |
1500 |
150 |
2500 |
105A,B Type |
