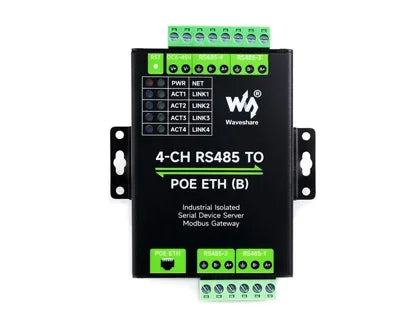

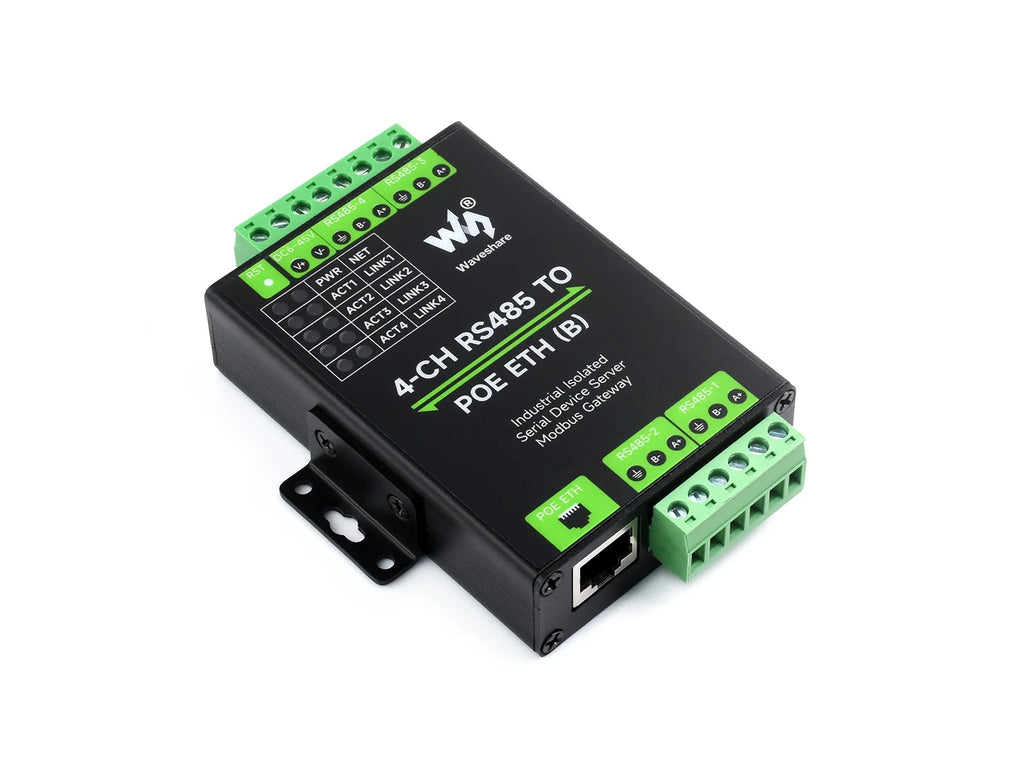

Waveshare 4 Channels RS485 Independent Operation, 4-Ch RS485 To RJ45 Ethernet Serial Server Optional PoE Function

Waveshare 4 Channels RS485 Independent Operation, 4-Ch RS485 To RJ45 Ethernet Serial Server Optional PoE Function

$204.36

$204.36 $0.00

Description

SPECIFICATIONS

Accessory Type: SENSOR

Battery Included: no

Baudrate: 300 ~ 115200 bps

Brand Name: FireChip

Compatible With: 4-Ch RS485 To RJ45 Ethernet

Data bit: 5 ~ 9 bits

Flow control: N/A

High-concerned chemical: none

Operating temperature: -40℃ ~ 85℃

Origin: Mainland China

Parity bit: none, odd, even, mark, space

Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS

Typical Application Fields: Consumer Electronics

DESCRIPTION

4-Ch RS485 To RJ45 Ethernet Serial Server, 4 Channels RS485 Independent Operation, Rail-Mount Industrial Isolated Serial Module, Bi-Directional Transparent Transmission, Modbus Gateway, Optional PoE Function

Industrial Isolated 4-Ch RS485 To RJ45 Ethernet Serial Server

4-Ch RS485 to Ethernet, Modbus/MQTT/JSON Support, Rail-mount Metal Case

Features At A Glance

This is a multi-functional device data acquisitor / IoT gateway with 4-ch RS485 and an Ethernet port (PoE version optional), small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, meeting various application scenarios.

4-ch RS485 can work independently without affecting each other at the same time, enabling more effective data transmission
Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc.

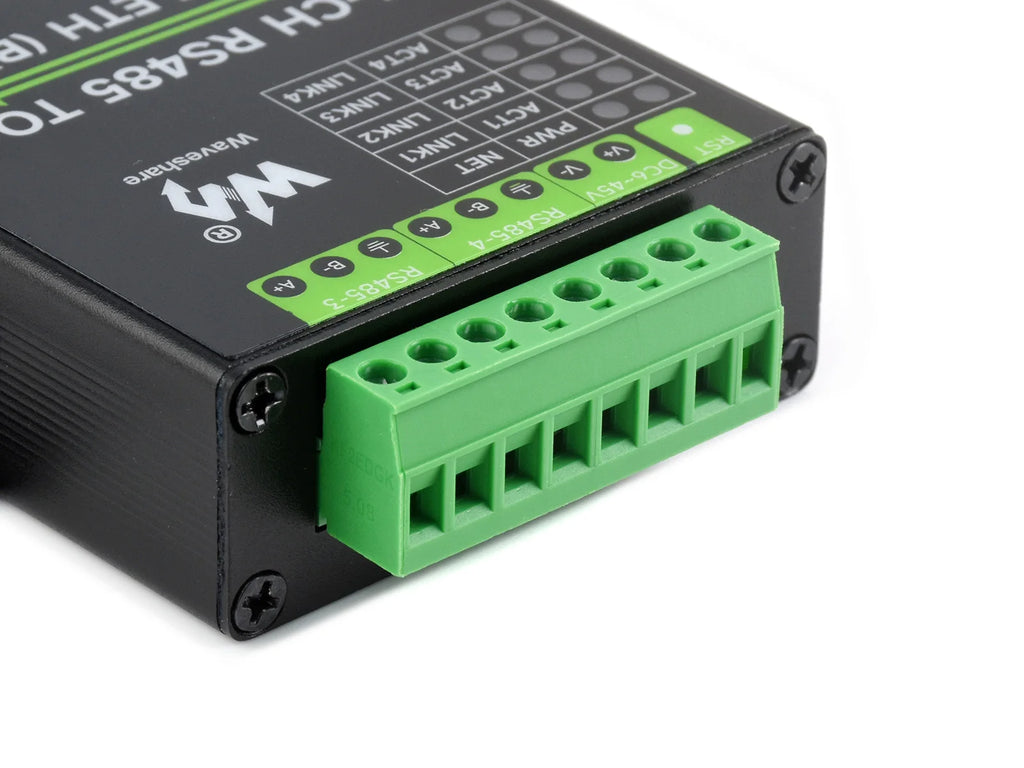

Adopts screw terminal for stable power input
Wall-mount and rail-mount case design, easy to install, for quick deployment and expansion

Version Options

4-CH RS485 TO ETH (B)
4-ch RS485 + Common network port + Electrical isolation

4-CH RS485 TO POE ETH (B)
4-ch RS485 + PoE network port + Electrical isolation

Specifications

	4-CH RS485 TO ETH (B)	4-CH RS485 TO POE ETH (B)
	4-Ch RS485 + Common network port + Electrical isolation	4-Ch RS485 + PoE network port + Electrical isolation
Product Type	Serial server, Modbus Gateway, MQTT Gateway
Basic Function	Bi-directional transparent data transmission between RS485 and Ethernet
Communication interface	RS485 port × 4, Ethernet port × 1
Power supply	DC 6 ~ 45V screw terminal	DC 6 ~ 45V screw terminal, or PoE port
Isolation Protection	Power isolation, Signal isolation
COMMUNICATION
Ethernet	RJ45	RJ45 with PoE support, IEEE 802.3af compliant
	10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port	Isolated RS485 (the 4 channels can receive and transmit independently at the same time)
SERIAL SPECIFICATION
Baudrate	300 ~ 115200 bps
Parity bit	none, odd, even, mark, space
Data bit	5 ~ 9 bits
Flow control	N/A
SOFTWARE
Protocol	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration	host, web browser, device management functions library
Communication method	TCP/IP direct communication, VCOM
Operating mode	TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
OTHERS
Operating temperature	-40℃ ~ 85℃
Humidity range	5% ~ 95% relative humidity
Dimensions	L × W × H: 91.0 × 64.5 × 24.2 mm

Primary Function

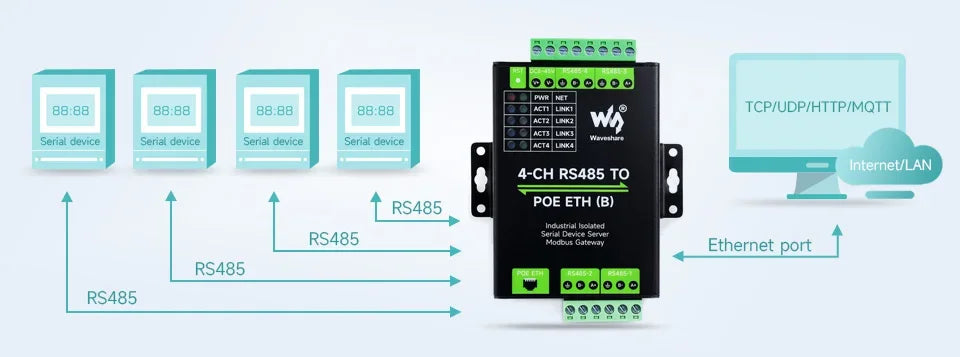

Bi-Directional Transparent Data Transmission Between 4-Ch RS485 And Ethernet

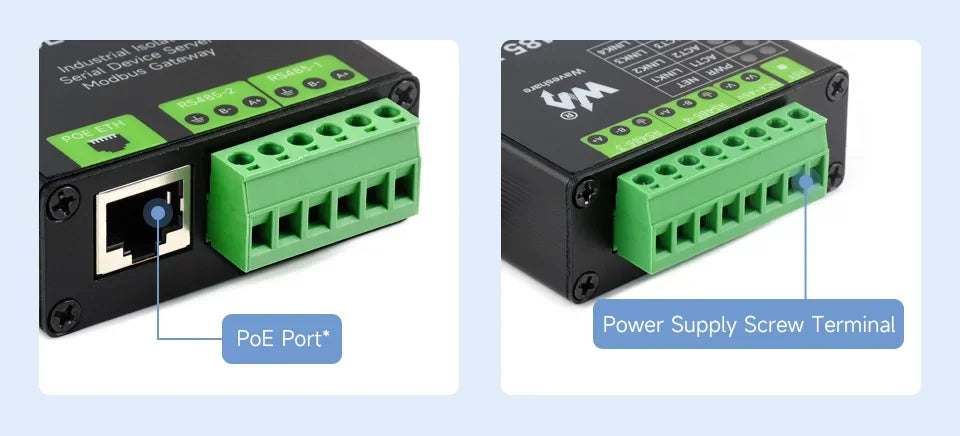

Multi Power Supply Options

Support PoE Ethernet Port Power Supply*, Suitable For IEEE 802.3af PoE Standard
Support Screw Terminal For Power Supply, DC 6~45V Wide Voltage Range Input

* This function is only available on the PoE version

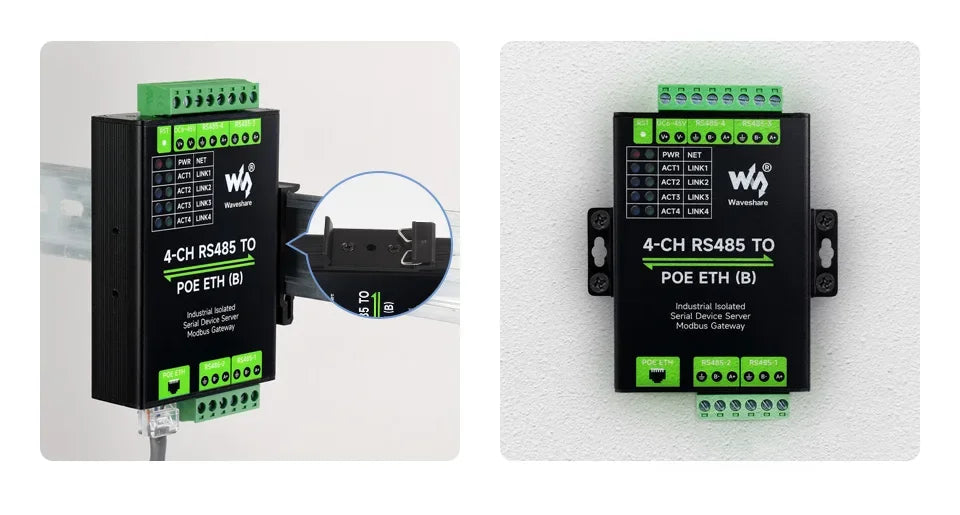

Industrial Serial Server

Industrial Rail-Mount Design, Support Wall-Mount And Rail-Mount Installation, Compact Size, Easy Installation, Cost-Effective

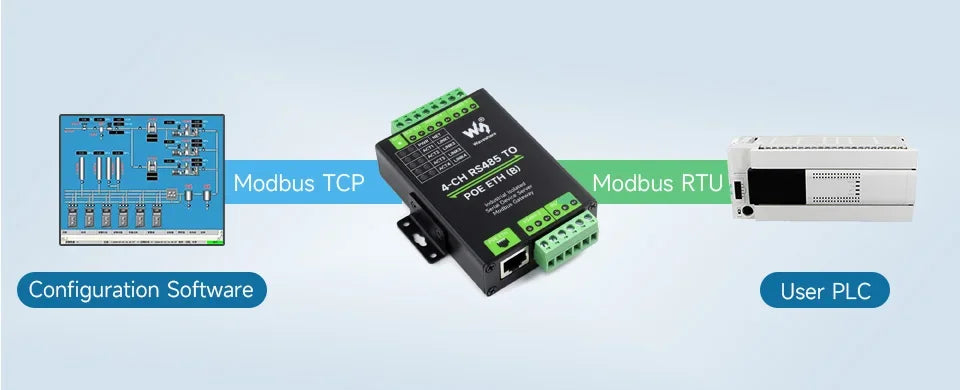

Modbus Gateway Support

Suitable For Modbus Networking Upgrade, Can Be Used With Specific Configuration Software

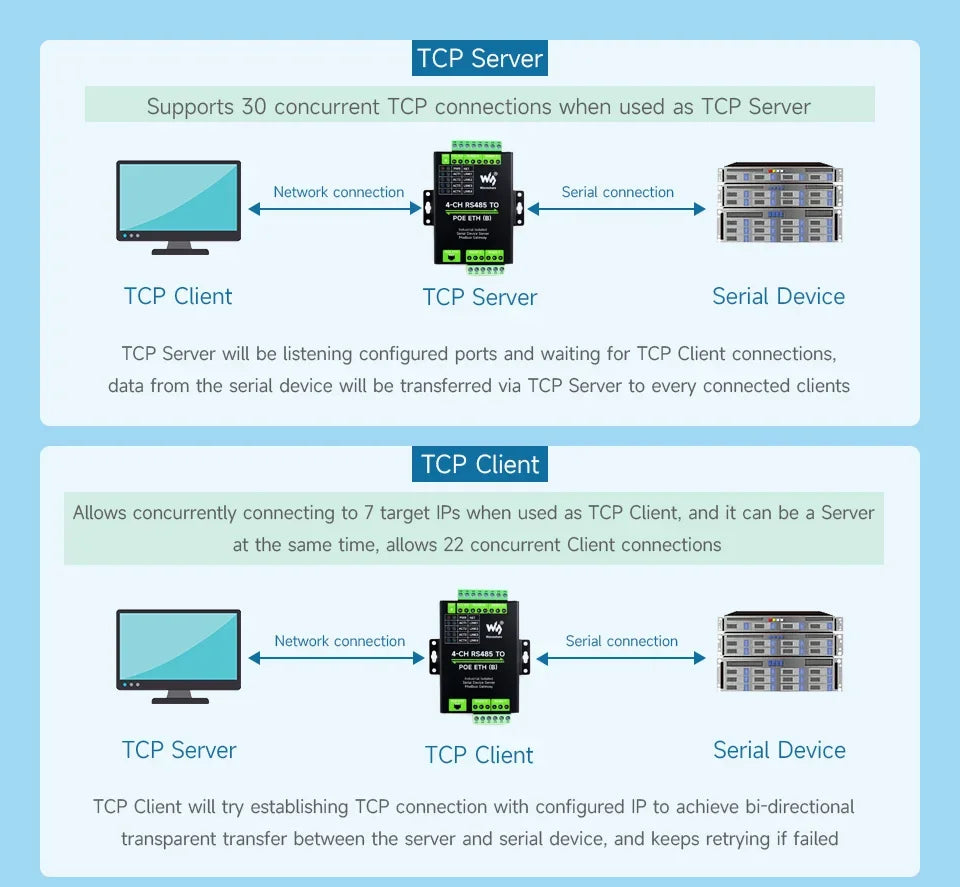

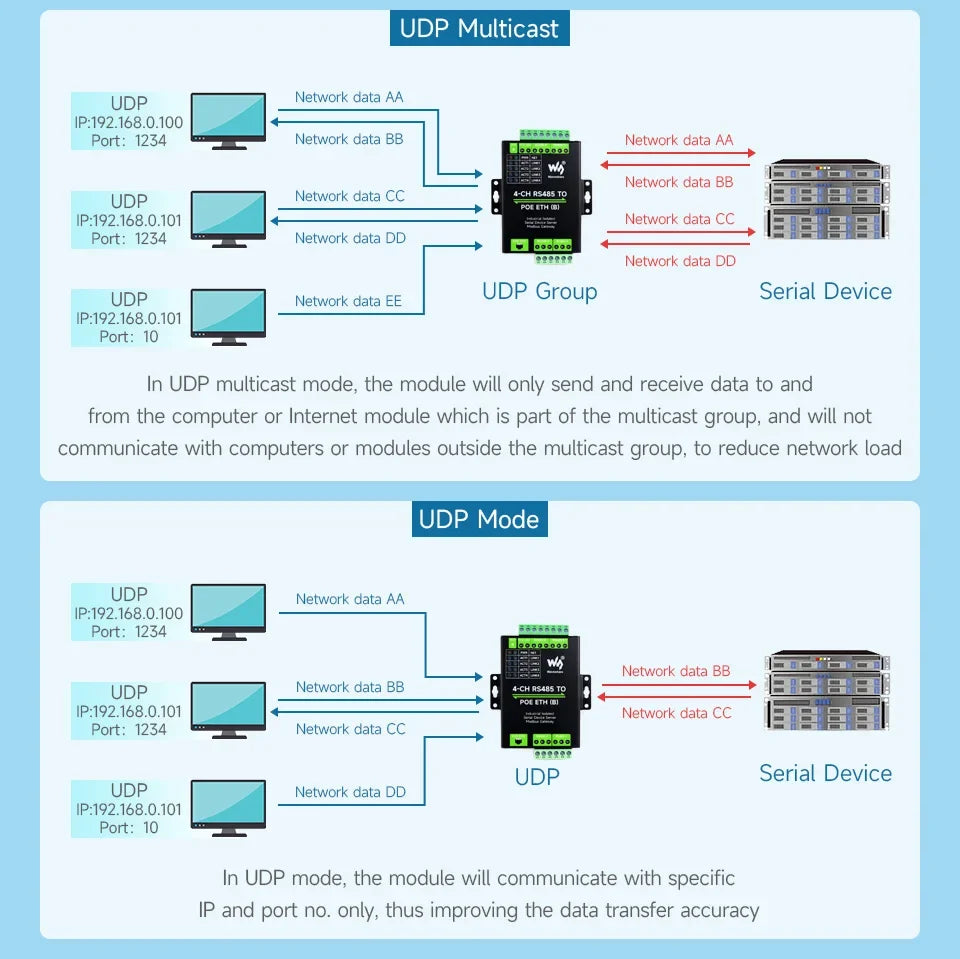

Multi Communication Modes

Supports TCP Server / TCP Client / UDP Multicast / UDP Mode

* Note: This module is 4-channel, and each channel supports the above functions separately

MQTT/JSON To Modbus

More Flexible Conversion Between Different Protocols

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTT data packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

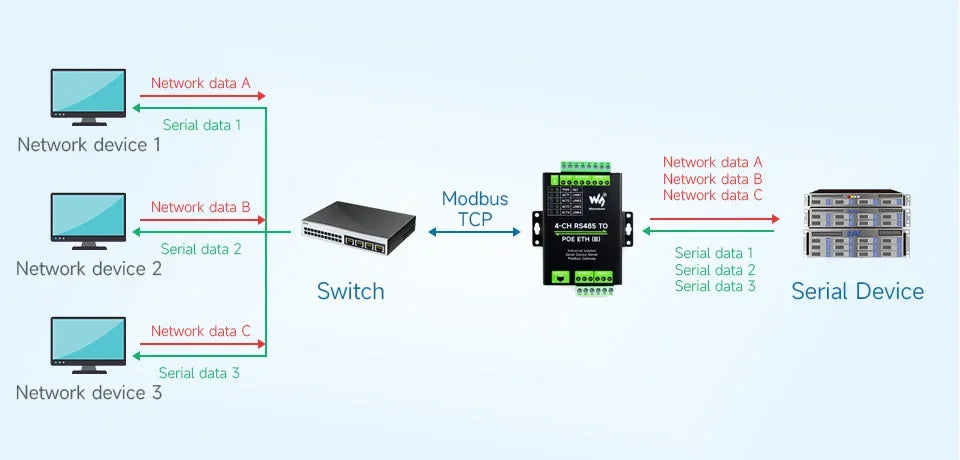

Multi Hosts Roll-Polling Support

Different Network Devices Will Be Identified And Responsed Respectively,
No More Crosstalk Issue While Communicating With Multi Network Devices

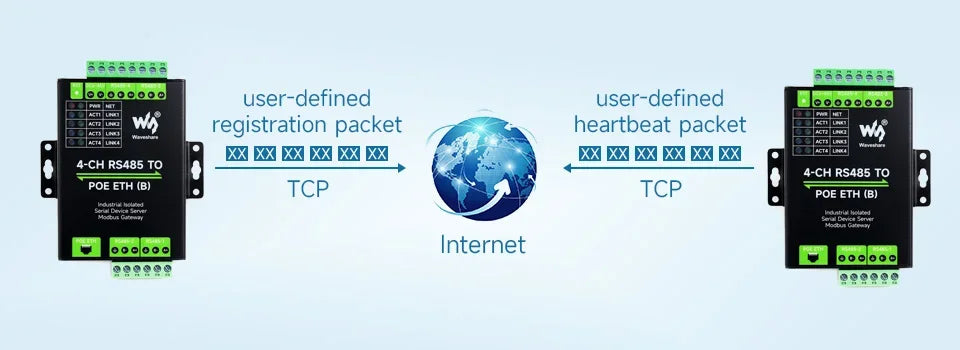

User-Defined Heartbeat/Registration Packet

Easy For Cloud Communication And Device Identification

NTP Protocol Support

Getting Network Time Info For Serial Output Or Data Upload

Multi Configuration Methods

Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,
DNS Protocol Connected Domain Server Address

Multiple Protection, Safe And Stable

Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance

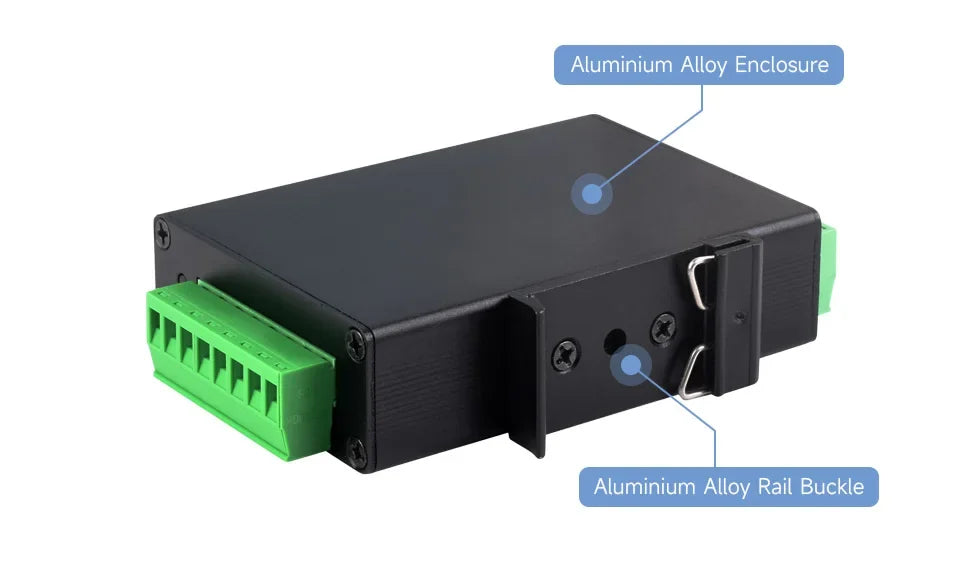

Aluminium Alloy Enclosure

Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
Solid And Durable, Fashion And Good Hand Feeling

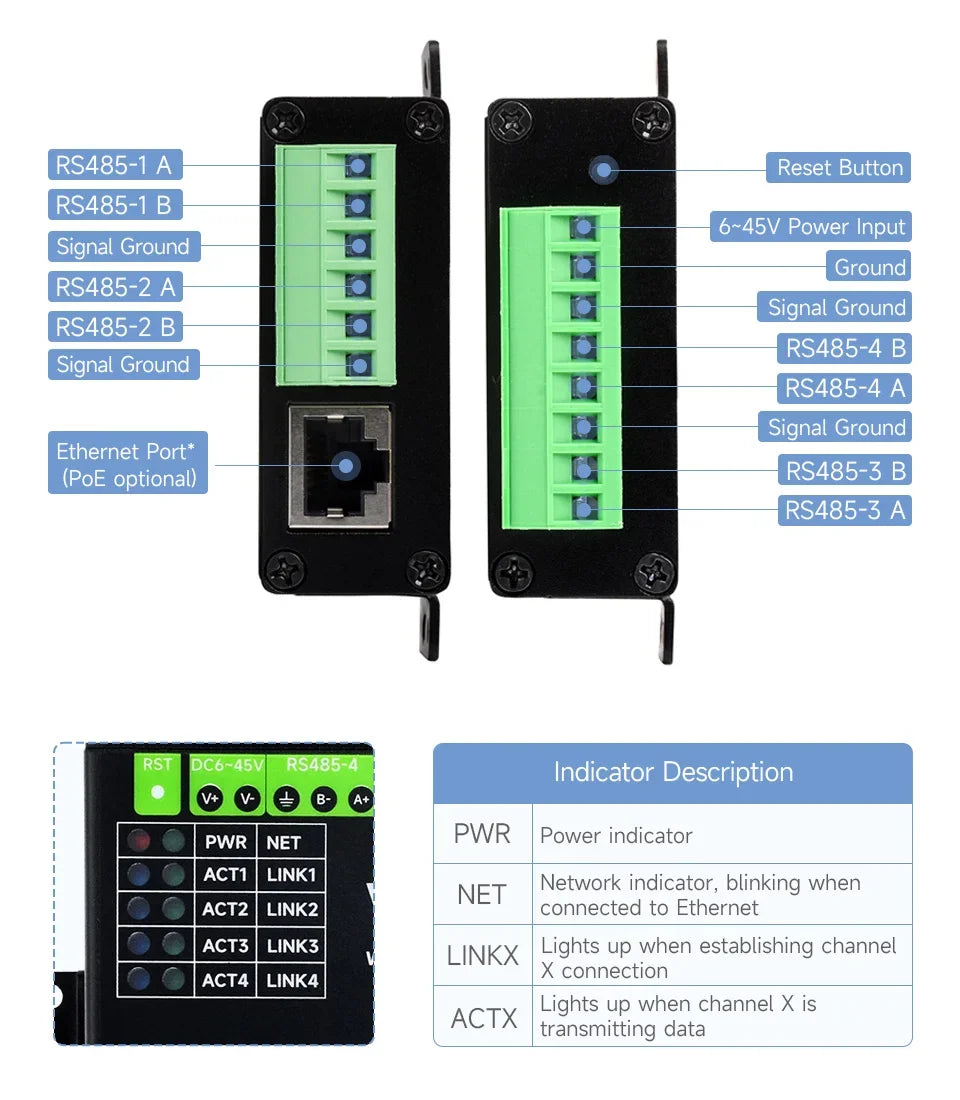

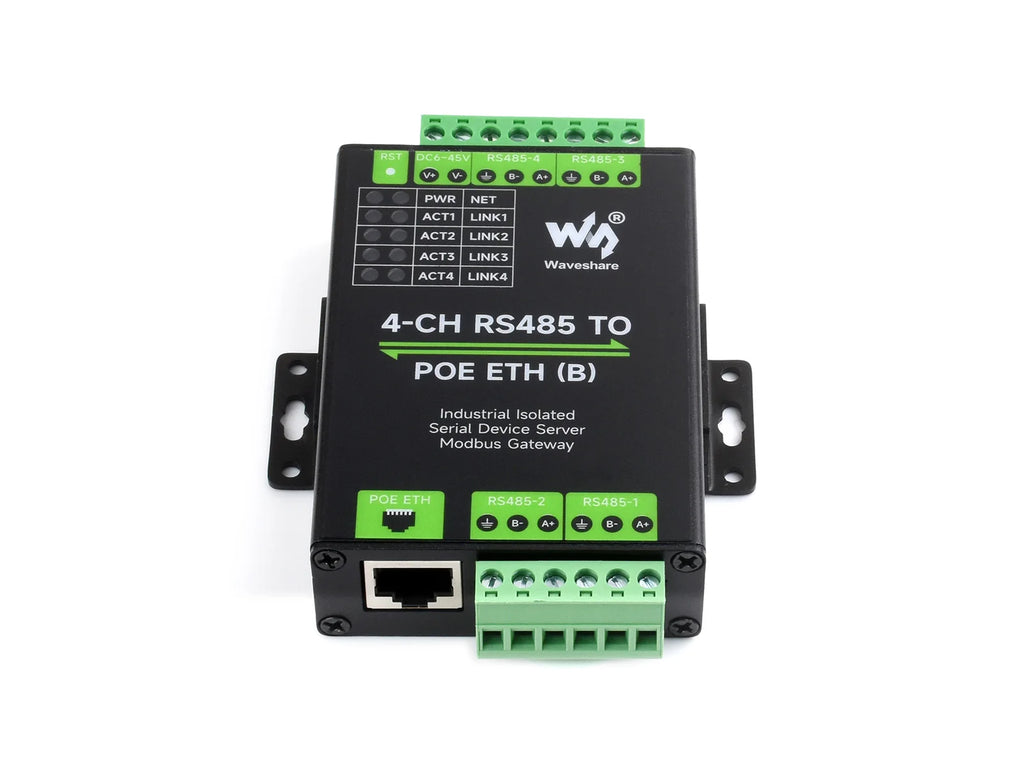

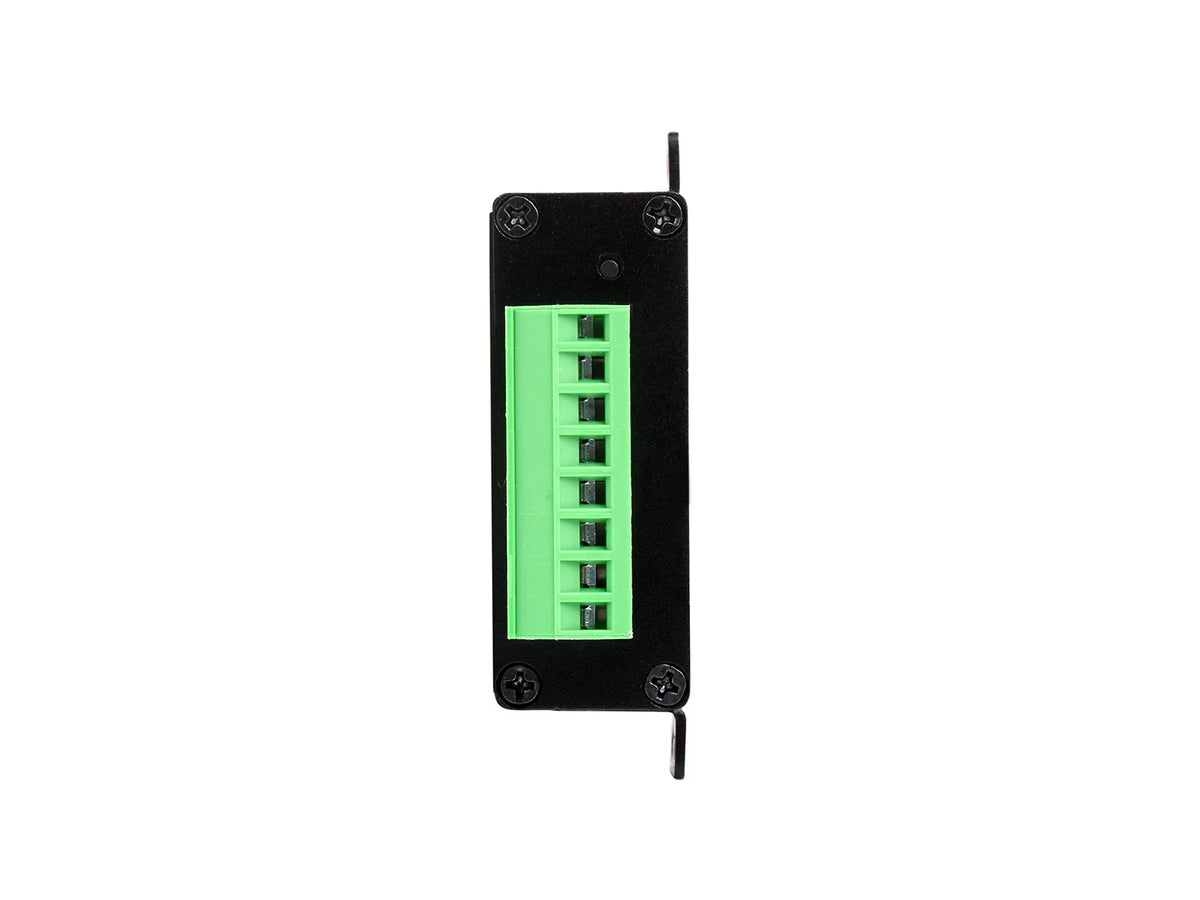

Interface Introduction

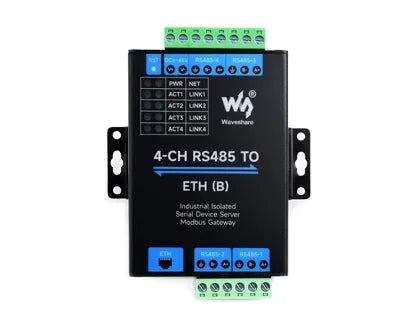

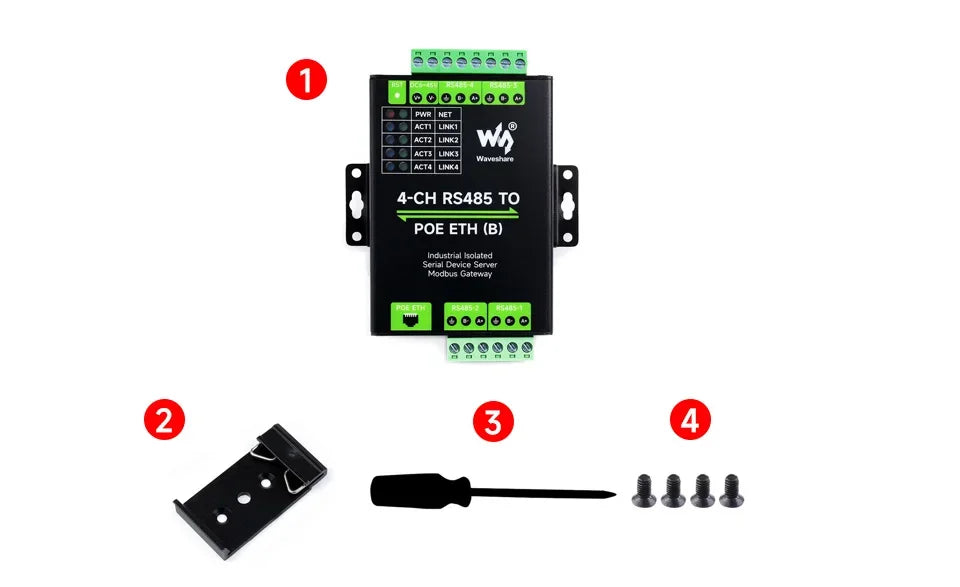

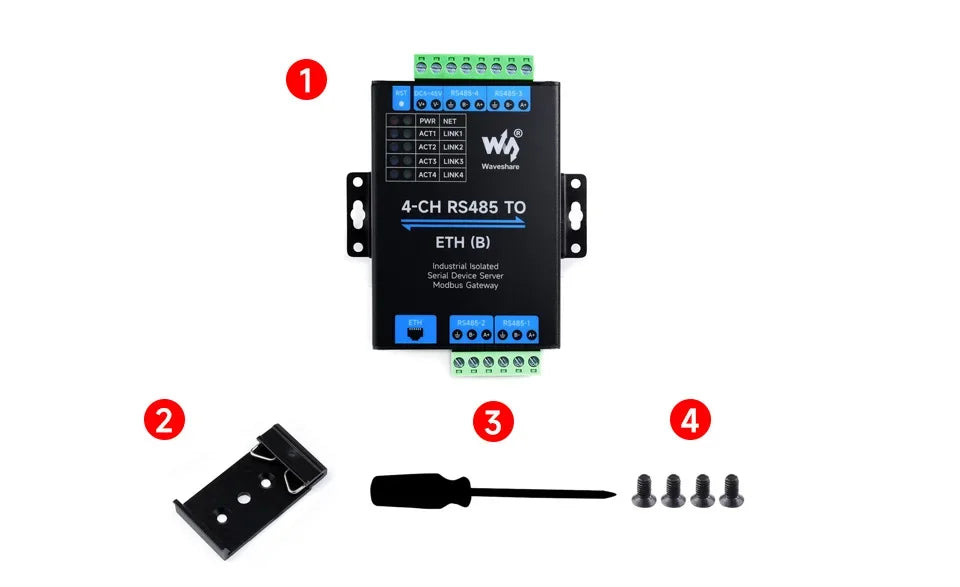

Product Show

* for reference only, please refer to the Package Content for detailed part list

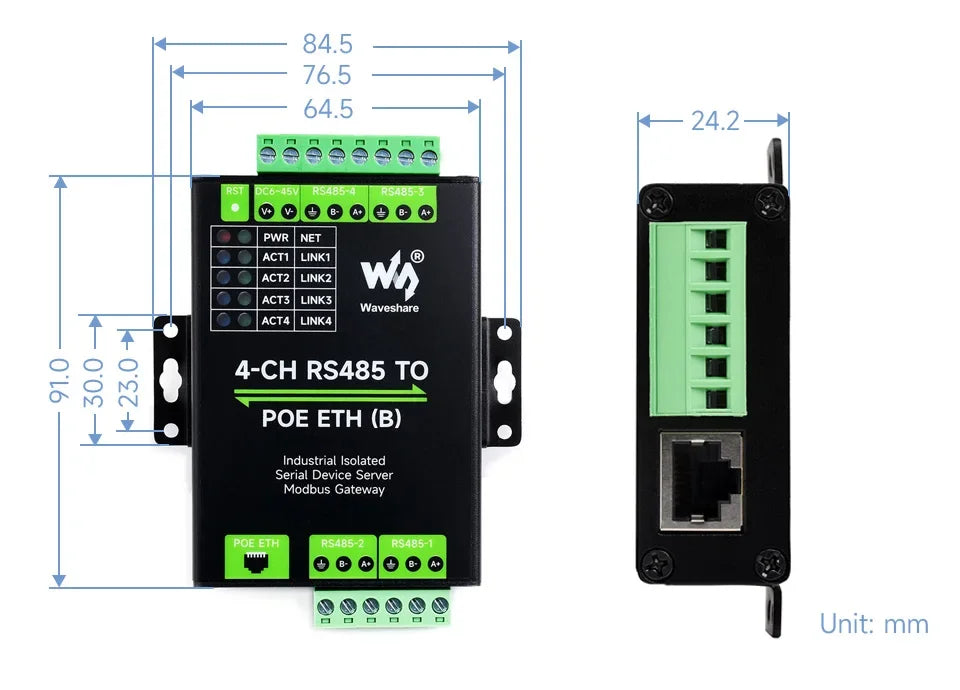

Outline Dimensions

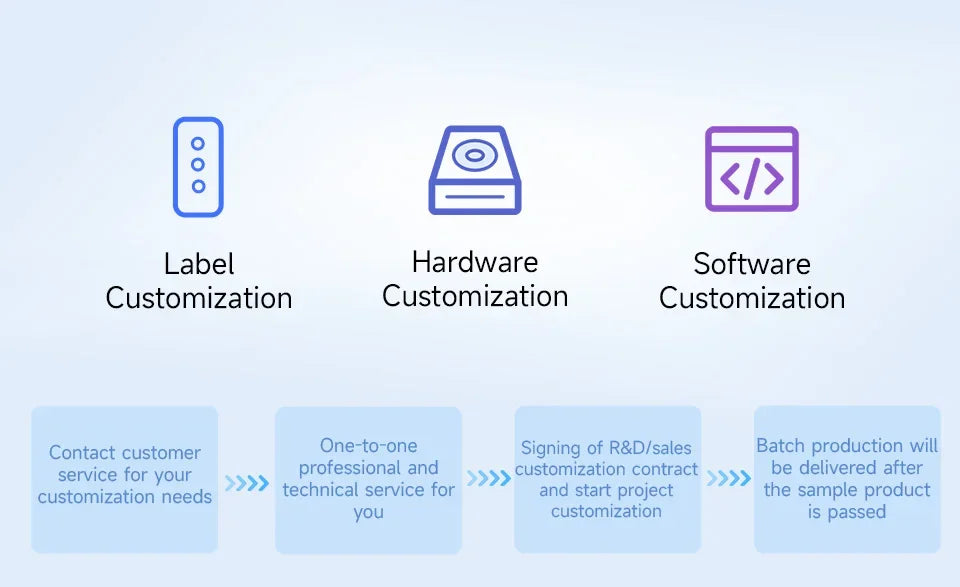

Support Batch Customization

Support Software And Hardware Customization
Including Hardware Interface, LOGO, Label, Case And Web Page, Etc.

Resources & Services

Wiki: www.waveshare.com/wiki/4-CH_RS485_TO_POE_ETH_(B)

Selection Guide

	RS485 TO ETH (B)	RS485 TO POE ETH (B)	RS232/485/422 TO ETH (B)	RS232/485/422 TO POE ETH (B)	2-CH RS485 TO ETH (B)	2-CH RS485 TO POE ETH (B)	RS232 RS485 TO ETH (B)	RS232 RS485 TO POE ETH (B)	4-CH RS485 TO ETH (B)	4-CH RS485 TO POE ETH (B)
Description	Common network port	PoE network port + Electrical isolation	Multi interfaces + common network port + Electrical isolation	Multi interfaces + PoE network port + Electrical isolation	2-Ch RS485 + Common network port + Electrical isolation	2-Ch RS485 + PoE network port + Electrical isolation	RS232 + RS485 + Common network port + Electrical isolation	RS232 + RS485 + PoE network port + Electrical isolation	4-Ch RS485 + Common network port + Electrical isolation	4-Ch RS485 + PoE network port + Electrical isolation
Product Type	Serial server, Modbus Gateway, MQTT Gateway
Serial Port Type	Single serial port server		RS232/485/422 choose one, single serial port server		Dual serial ports server				4 serial ports server
Power Supply methods	Screw terminal
	-	PoE port	-	PoE port	-	PoE port	-	PoE port	-	PoE port
	-		DC 5.5 power port						-
Voltage Range	DC 9~24V	DC 6~36V			DC 6~45V
Isolation Protection	Without isolation	Power isolation, Signal isolation
COMMUNICATION
Ethernet	RJ45 network port	RJ45 with PoE support, IEEE 802.3af compliant	RJ45 network port	RJ45 with PoE support, IEEE 802.3af compliant	2-ch RJ45 network port	2-ch RJ45 with PoE support, IEEE 802.3af compliant	2-ch RJ45 network port	2-ch RJ45 with PoE support, IEEE 802.3af compliant	RJ45 network port	RJ45 with PoE support, IEEE 802.3af compliant
	10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port	RS485	Isolated RS485	Isolated RS232/485/422 (choose one, only one interface can be used for communication at the same time)		2-ch Isolated RS485 (the 2 channels can receive and transmit independently at the same time)		Isolated RS232 + Isolated RS485 (the 2 channels can receive and transmit independently at the same time)		4-ch isolated RS485 (the 4 channels can receive and transmit independently at the same time)
SERIAL SPECIFICATION
Baudrate	300 ~ 115200 bps
Parity bit	none, odd, even, mark, space
Data bit	5 ~ 9 bits
Flow control	N/A
SOFTWARE
Protocol	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration	host, web browser, device management functions library
Communication method	TCP/IP direct communication, VCOM
Operating mode	TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
ENVIRONMENT REQUIREMENT
Operating temperature	-40℃ ~ 85℃
Humidity range	5% ~ 95% relative humidity
Dimensions (L × W × H)	87.0×36.0×59.0mm		88.7×72.5×24.2mm		78.0×72.5×24.2mm				91.0×64.5×24.2mm
