Waveshare Core1262 LF/HF LoRa Module, SX1262 chip, Long-Range, Anti-Interference,for Sub-GHz band for Raspberry Pi 5/4B/3B

Waveshare Core1262 LF/HF LoRa Module, SX1262 chip, Long-Range, Anti-Interference,for Sub-GHz band for Raspberry Pi 5/4B/3B

$36.44

$36.44 $0.00

Description

SPECIFICATIONS

Battery Included: no

Brand Name: Waveshare

Data rate: 0.018~62.5Kbps (LoRa) 0.6~300Kbps ((G)FSK)

Feature: Mini size, long range transmission, high anti-interference capability

Frequency range: EU868 (863~870MHz)

High-concerned chemical: none

Model Number: Core1262-868M

Operating voltage: 3.3V

Origin: Mainland China

RF chip: SX1262

Typical Application Fields: Education and Learning

DESCRIPTION

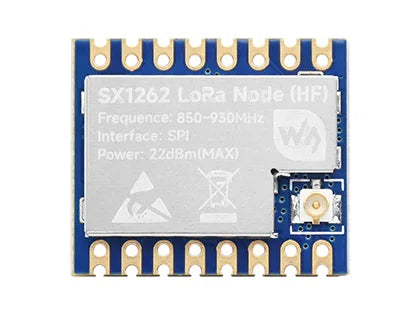

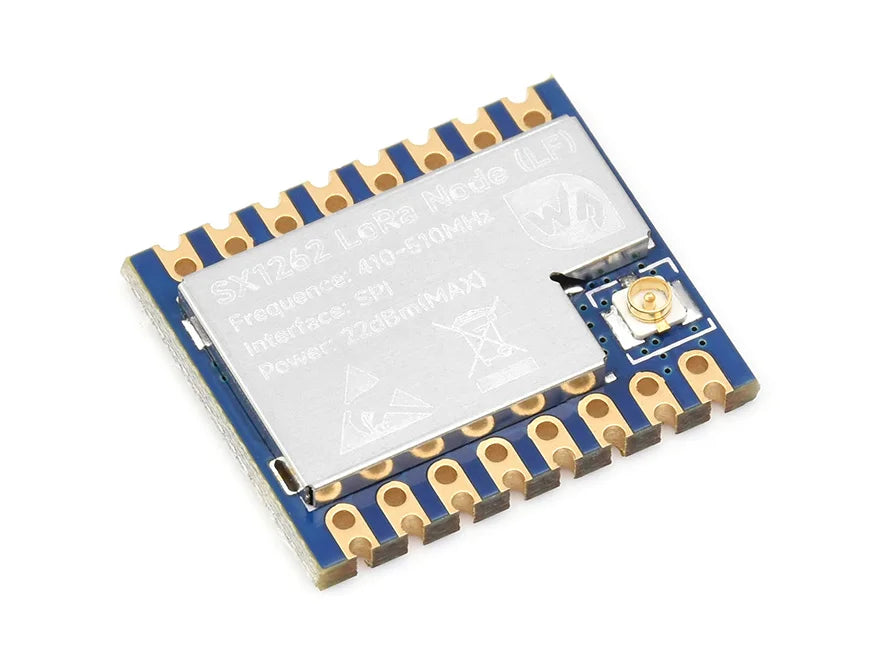

Core1262 LF/HF LoRa Module, SX1262 Chip, Long-Range Communication, Anti-Interference, Suitable For Sub-GHz Band

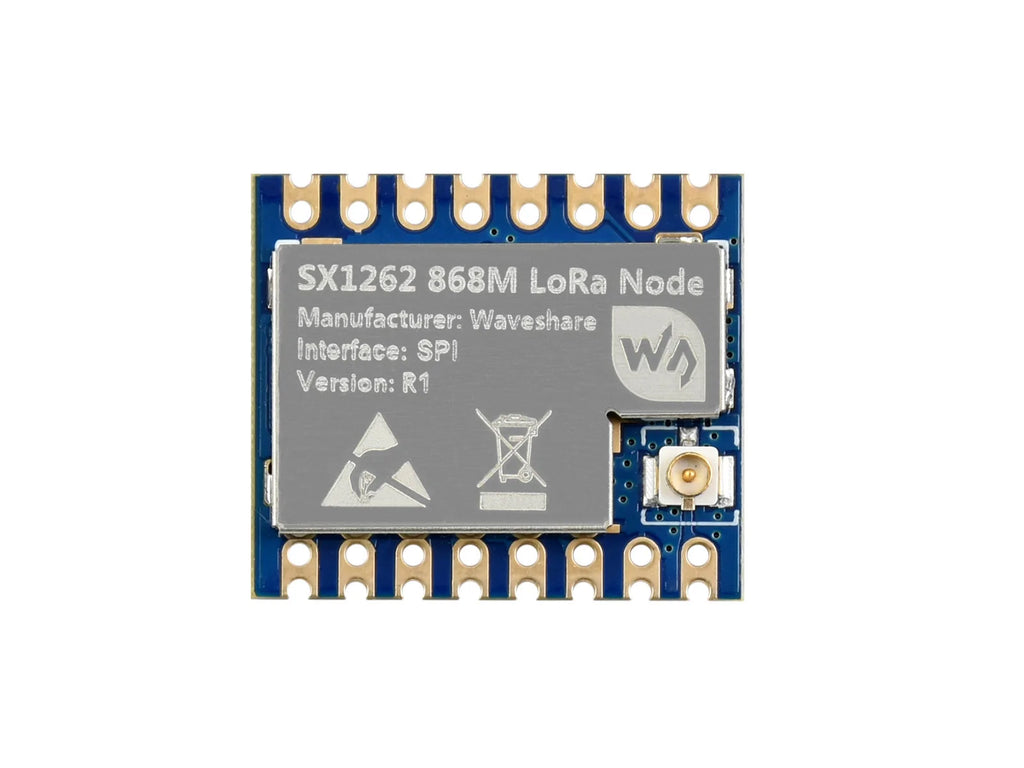

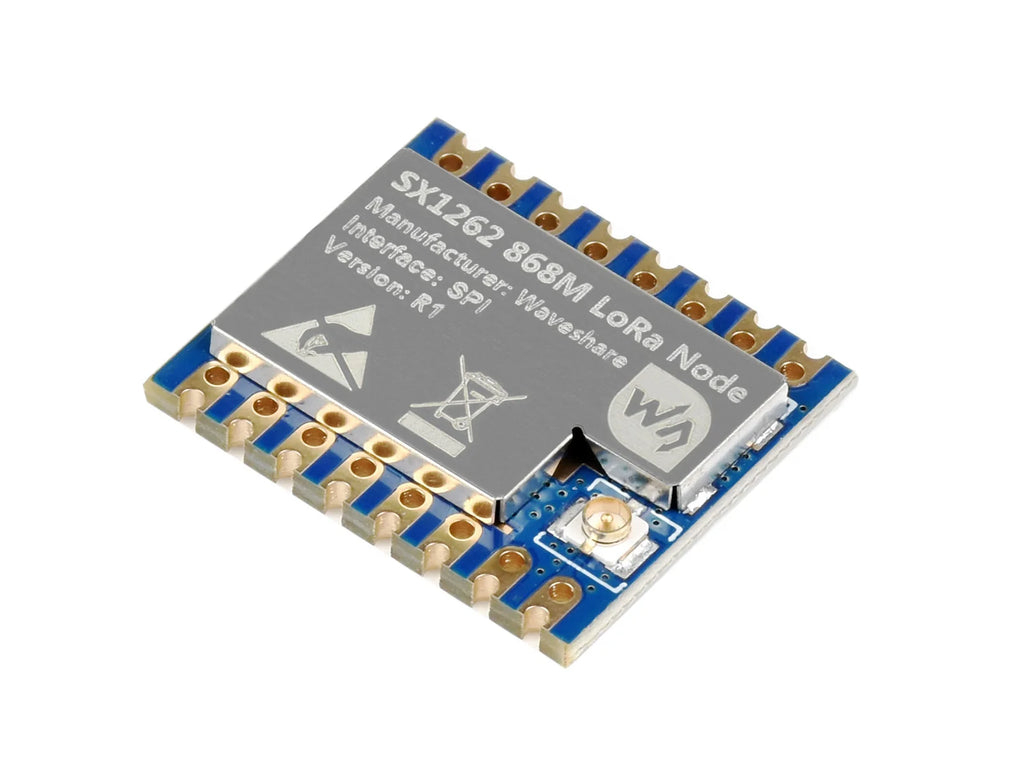

Core1262 LoRa Module

Suitable for Sub-GHz band

Features At A Glance

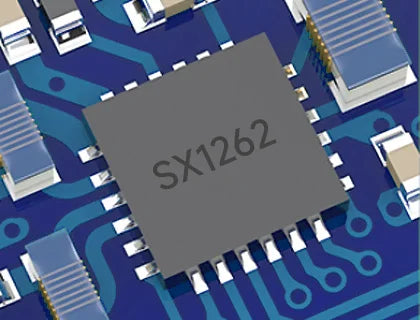

The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
Suitable for Sub-GHz band, combined with the gateway, quick connect to cloud servers to build LoRa/LoRaWAN network
Suitable for the application scenarios such as industry, smart home and data acquisition

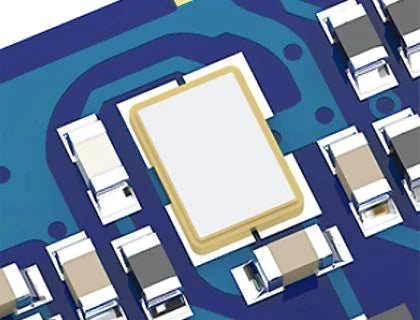

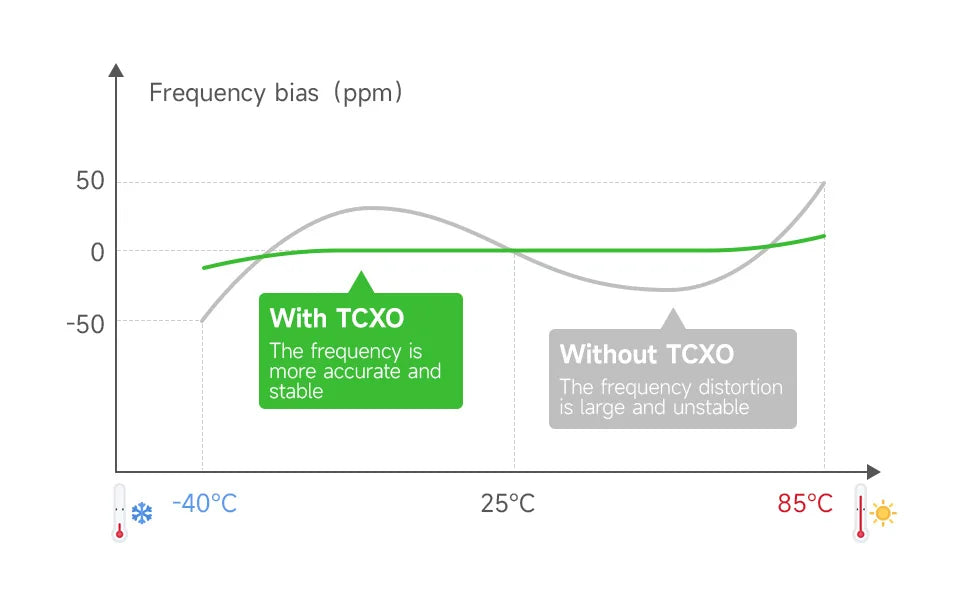

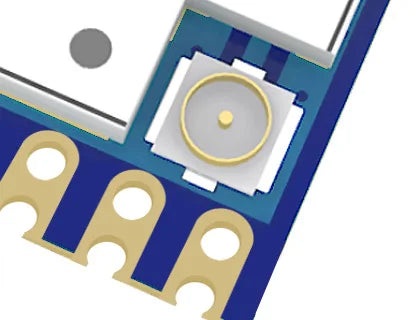

Adopts high-quality components such as TCXO for working stably under harsh conditions
Comes with development resources and manual (examples for Raspberry Pi Pico/STM32)

Version Options

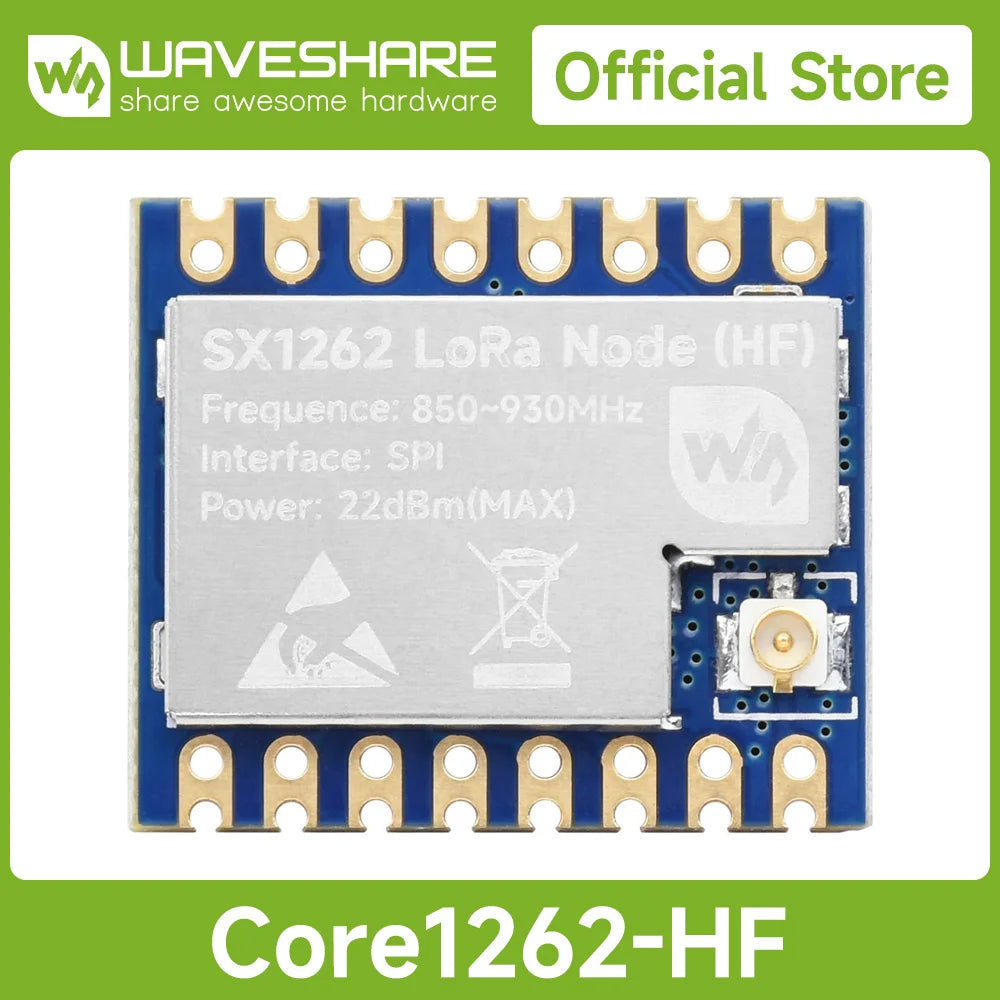

Core1262-HF
HF version is 850 ~ 930MHz frequency
Applicable to Europe, North America and Oceania

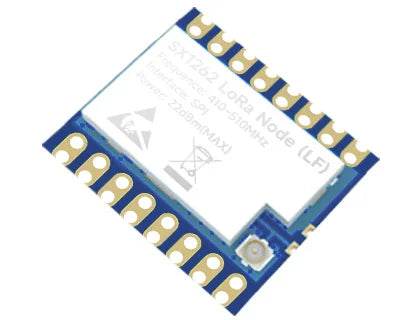

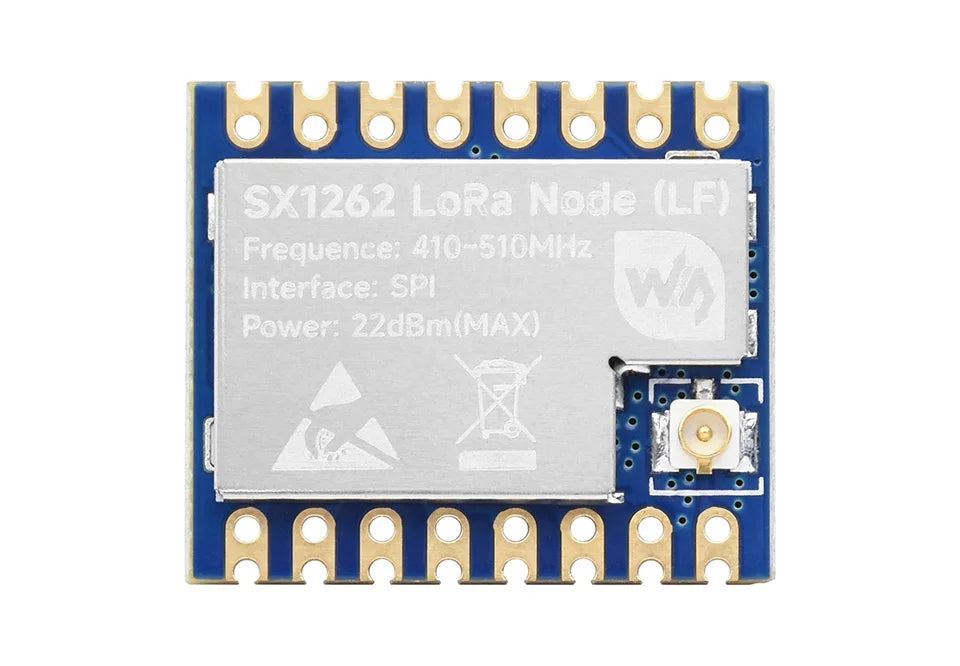

Core1262-LF
LF version is 410 ~ 510MHz frequency
Applicable to Europe, Asia

* Please select the frequency version according to the local radio regulations before placing order

Specifications

VERSION	CORE1262-HF	CORE1262-LF
RF CHIP	SX1262
FREQUENCY RANGE	HF: 850 ~ 930MHz	LF: 410 ~ 510MHz
MODULATION	LoRa/(G)FSK
DATA RATE	0.018~62.5Kbps (LoRa) 0.6~300Kbps ((G)FSK)
EMIT POWER	22dBm@3.3V
SPREADIND FACTOR	SF5 ~ SF12
OPERATING VOLTAGE	3.3V
MODULE POWER CONSUMPTION	emitting current: 45mA@14dBm receiving current: 5.3mA@125KHz	emitting current: 107mA@22dBm receiving current: 5.3mA@125KHz
COMMUNICATION BUS	SPI
OPERATING TEMPERATURE	0 ~ 85℃
CONNECTOR	castellated edge / solder holes, pitch 2.54mm

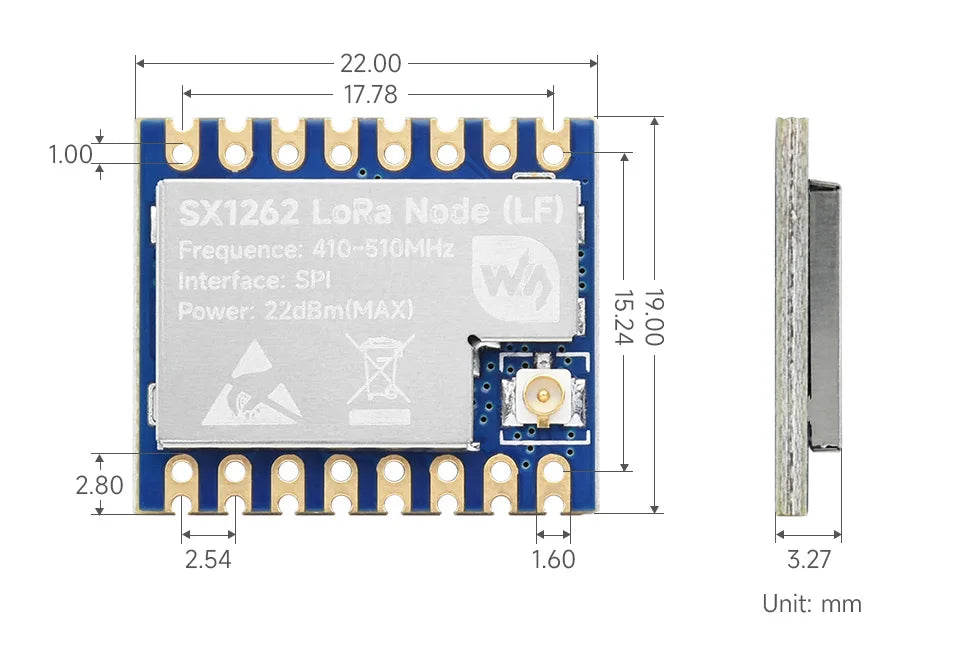

DIMENSIONS	21.00×52.00mm

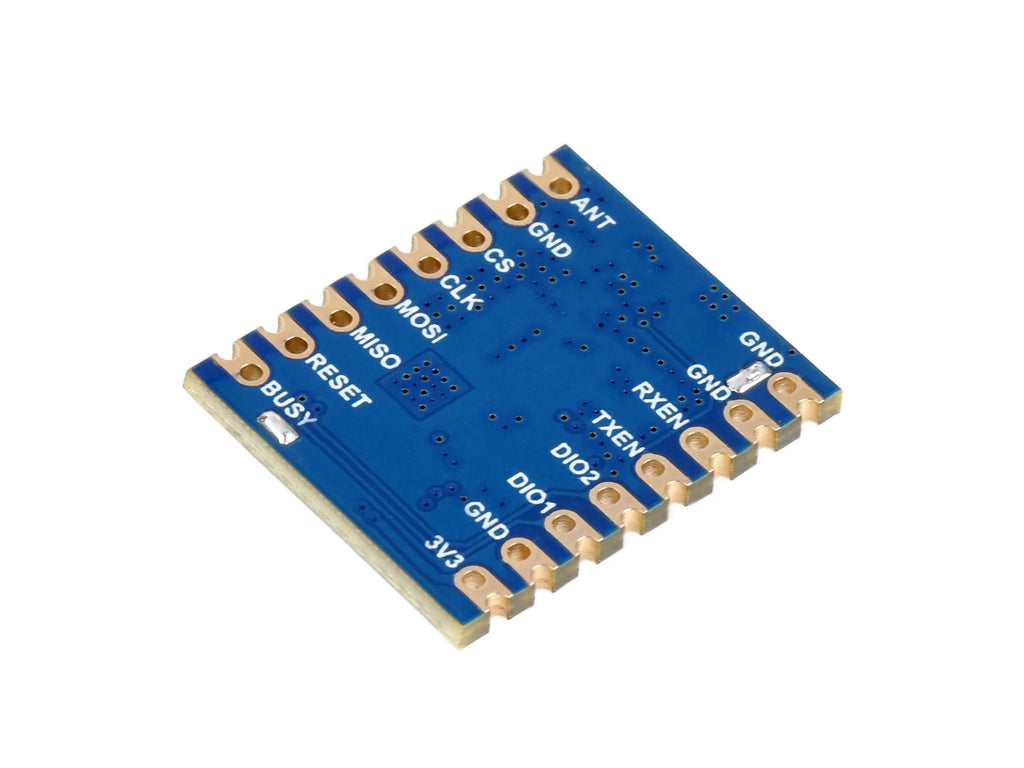

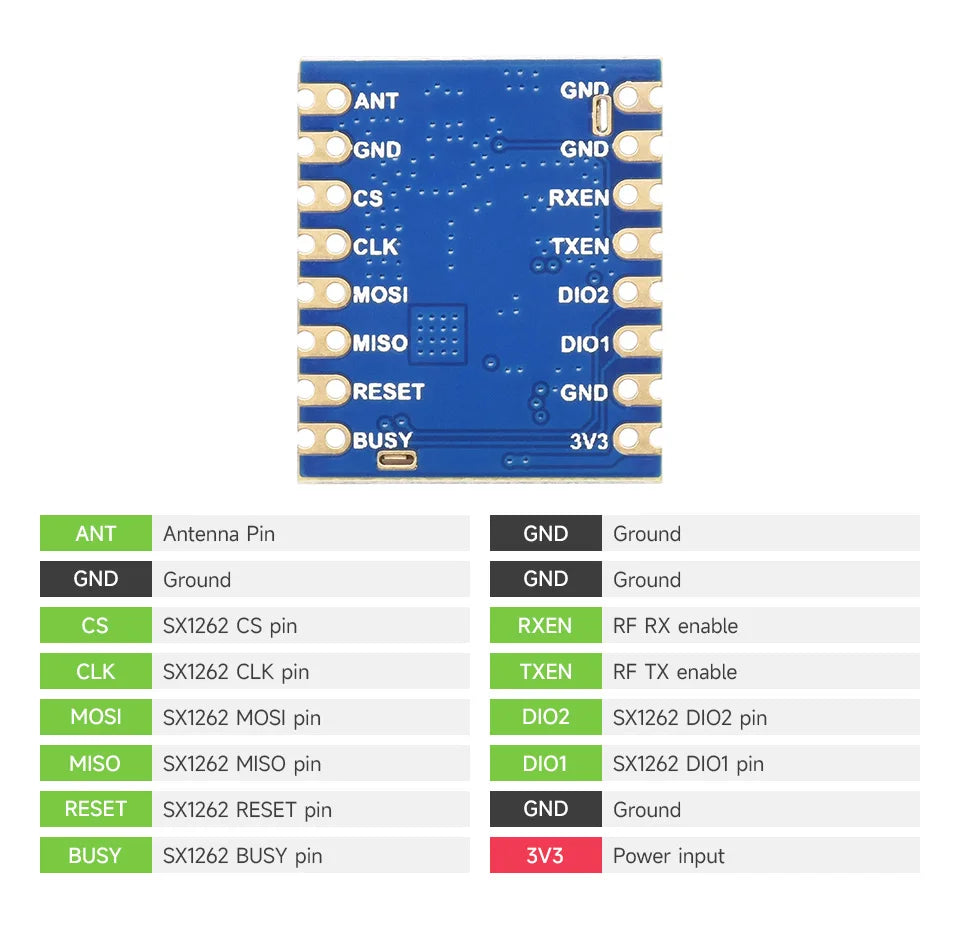

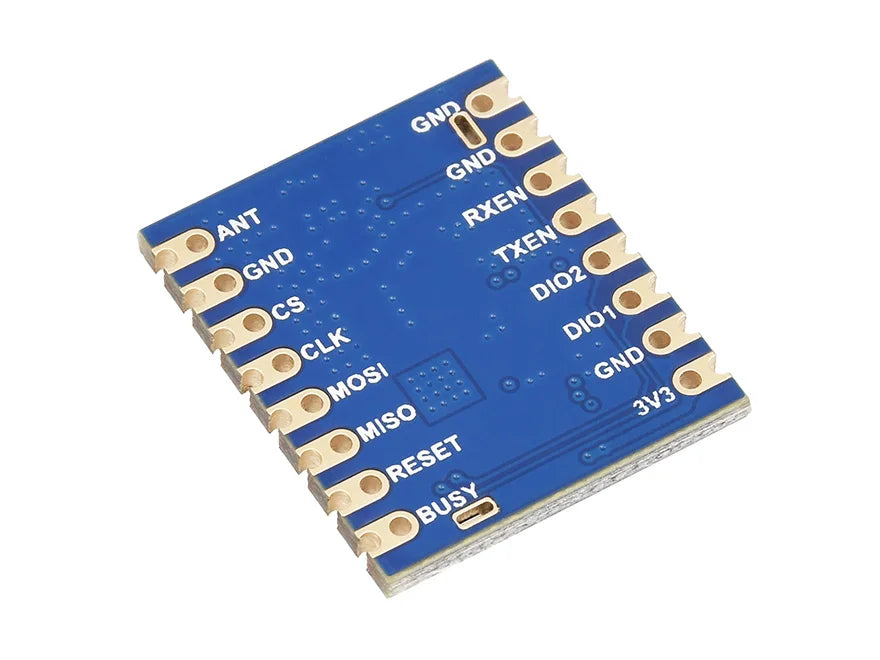

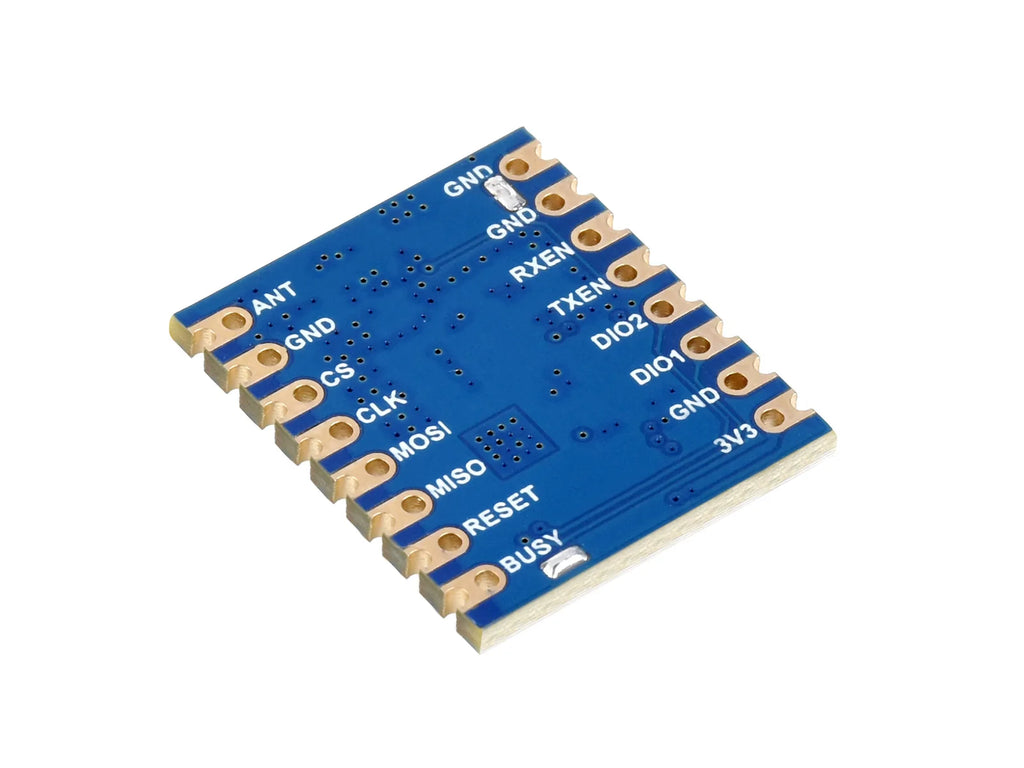

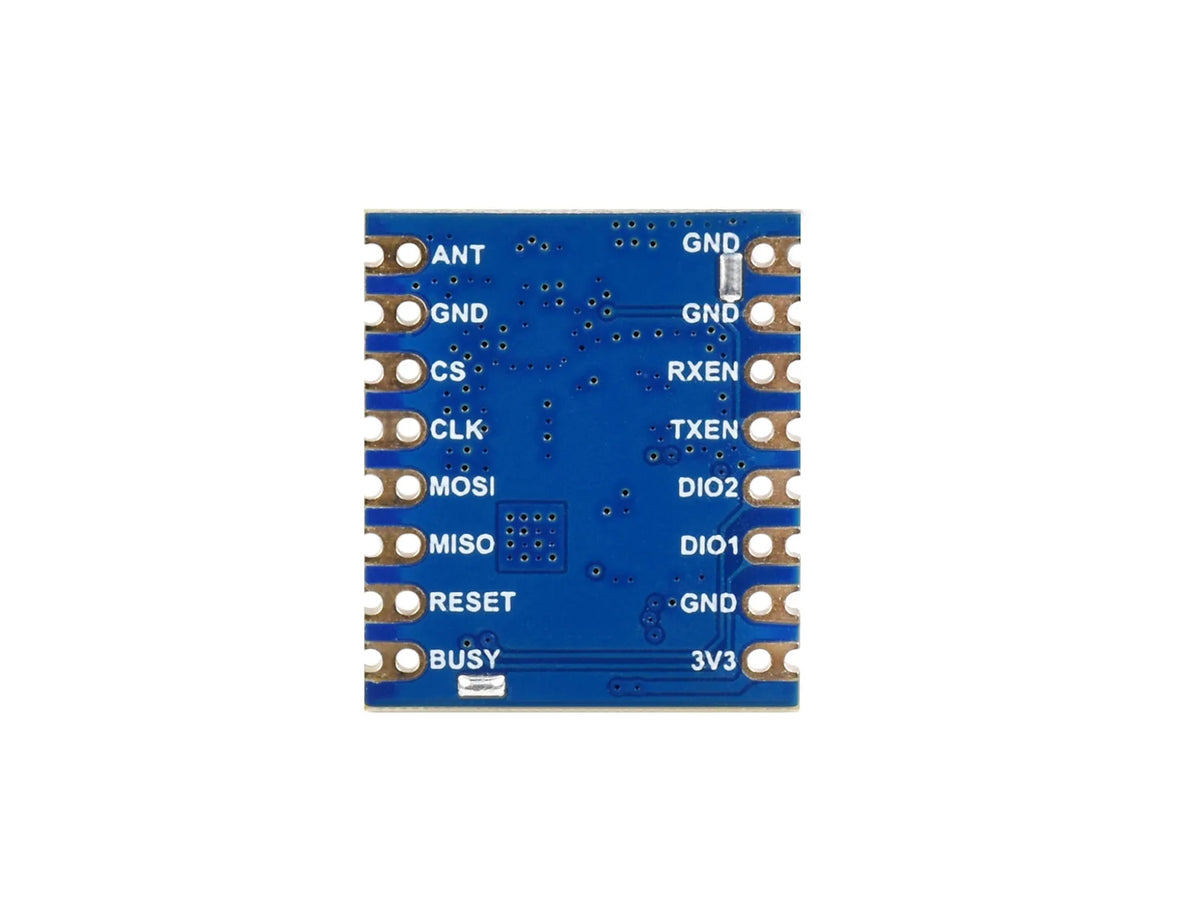

Pinout Definition

Application Example

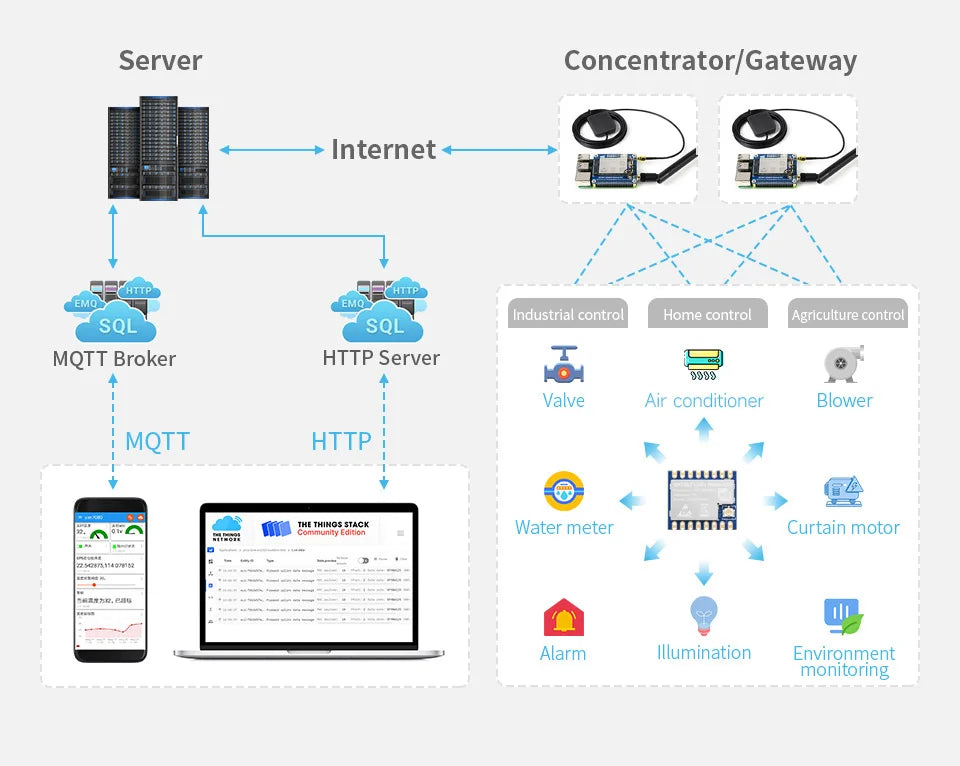

Industrial Environment, Smart Home, And Data Acquisition...

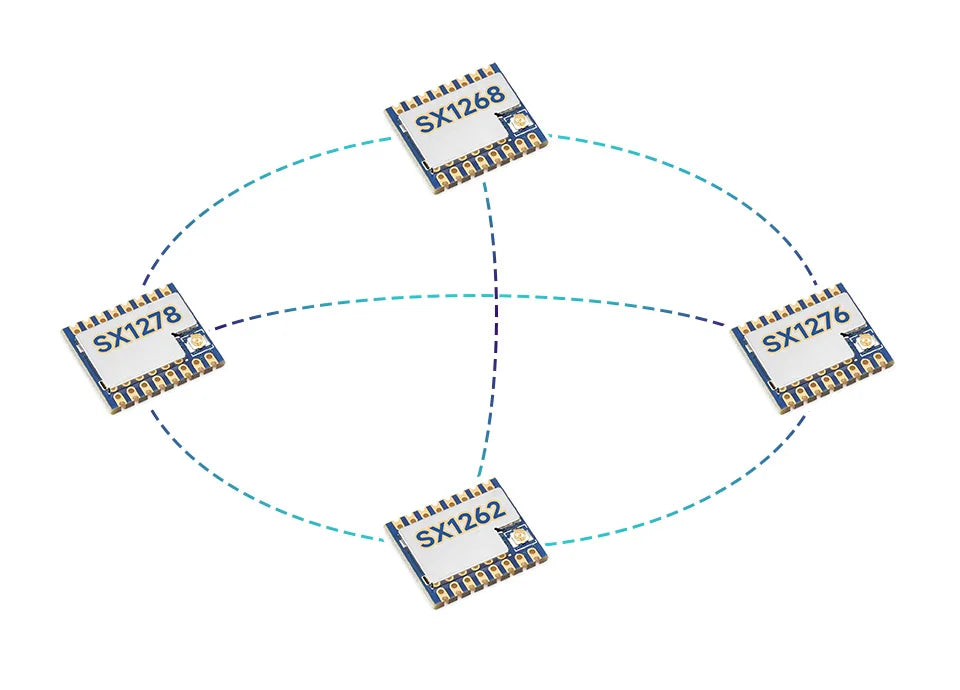

SX126x Can Communicate With SX127x

Both SX1262 and SX1268 can communicate with SX1276 and SX1278, which are still compatible with previous LoRa products after upgrading, and provides higher power efficiency and longer transmission distance.

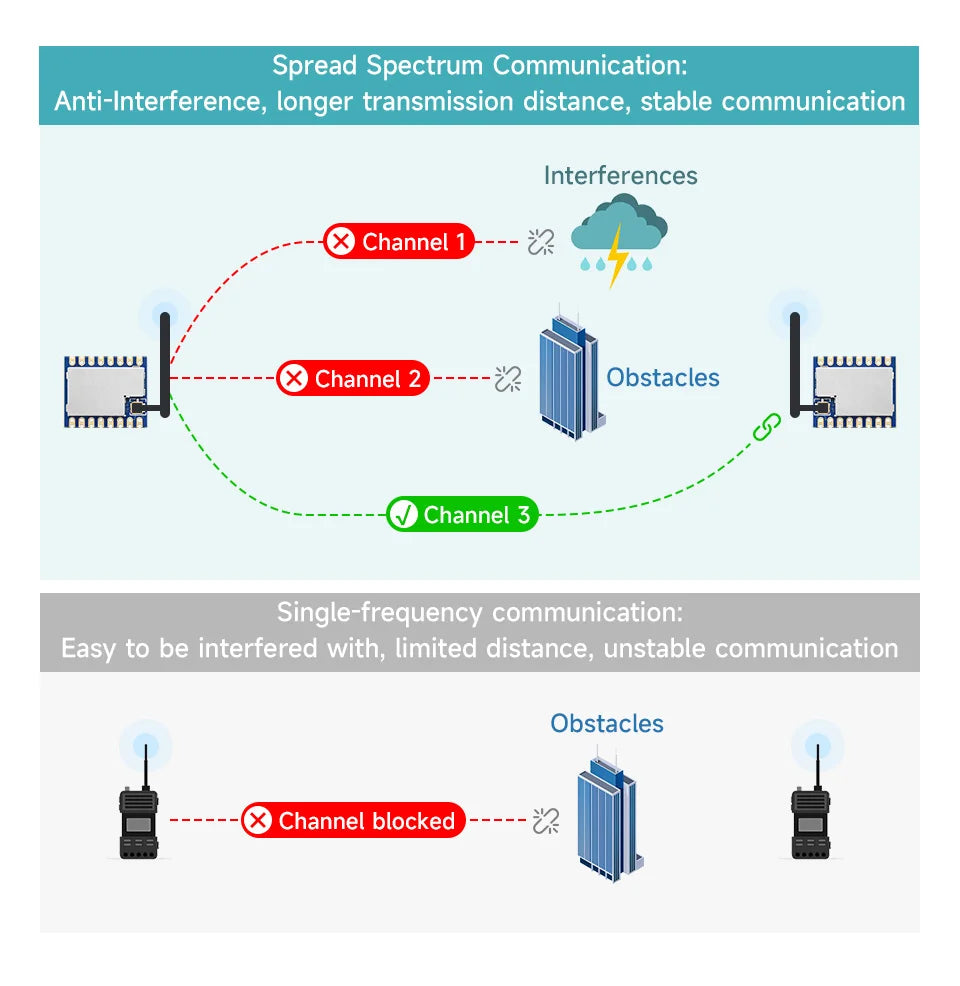

The New Generation LoRa Spread Spectrum Technology

Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.
