SPECIFICATIONS

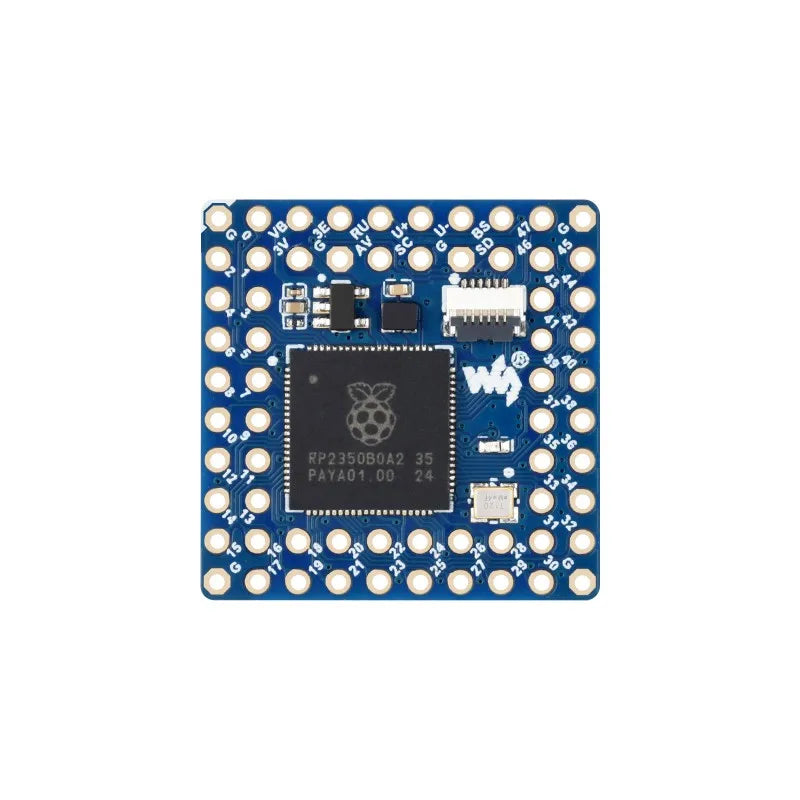

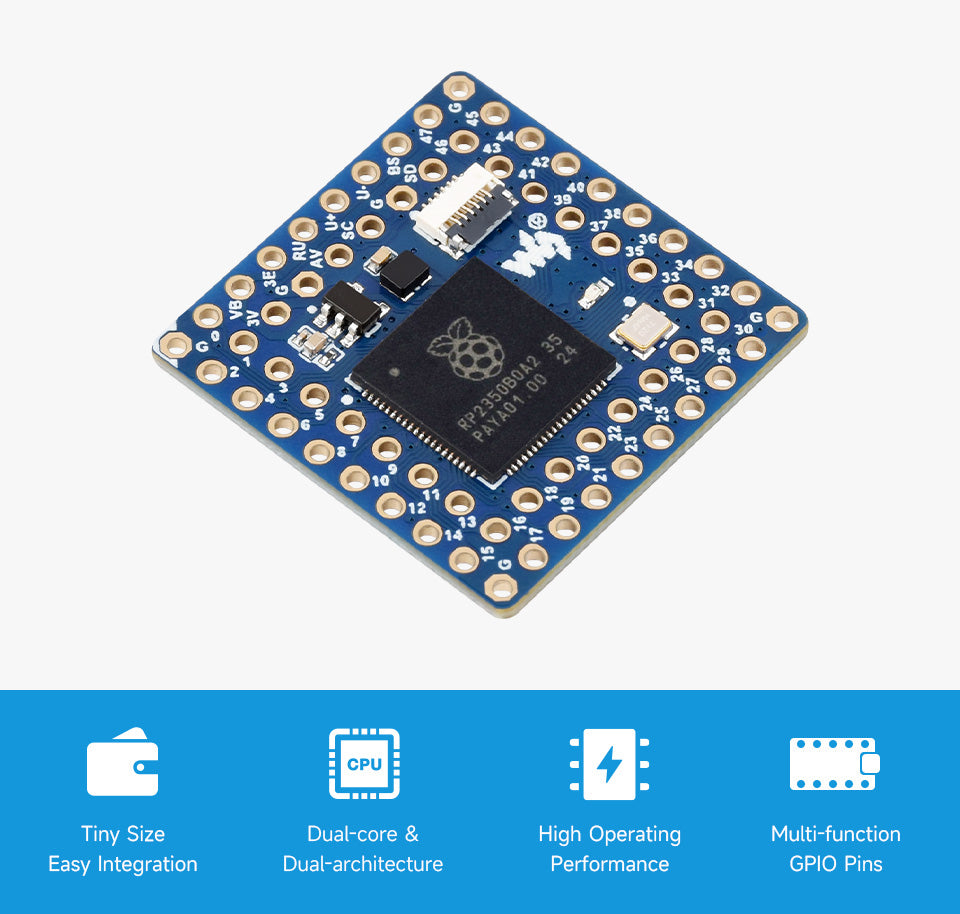

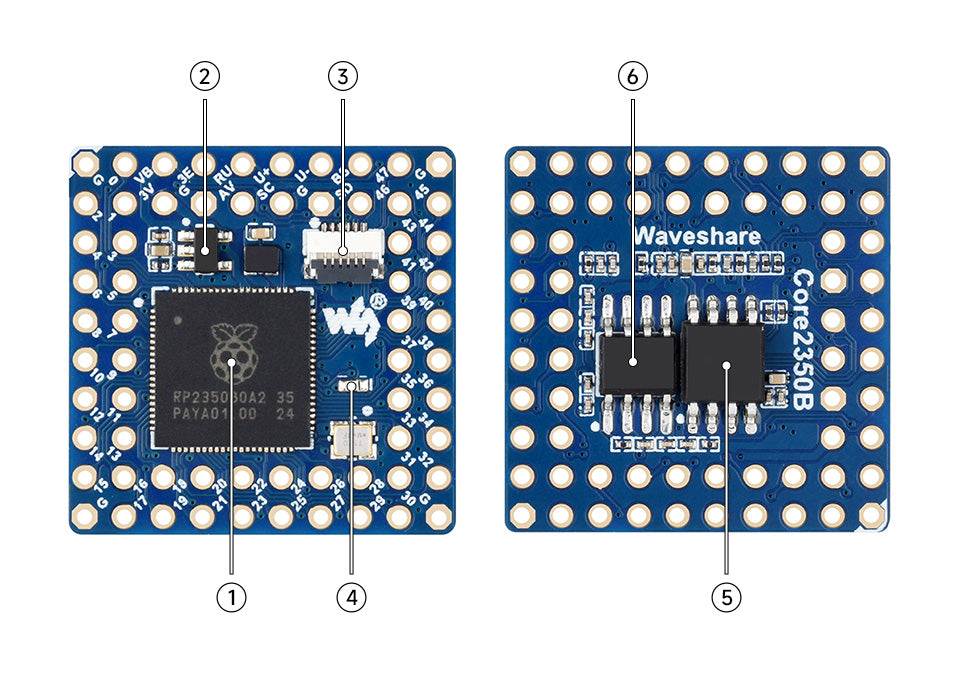

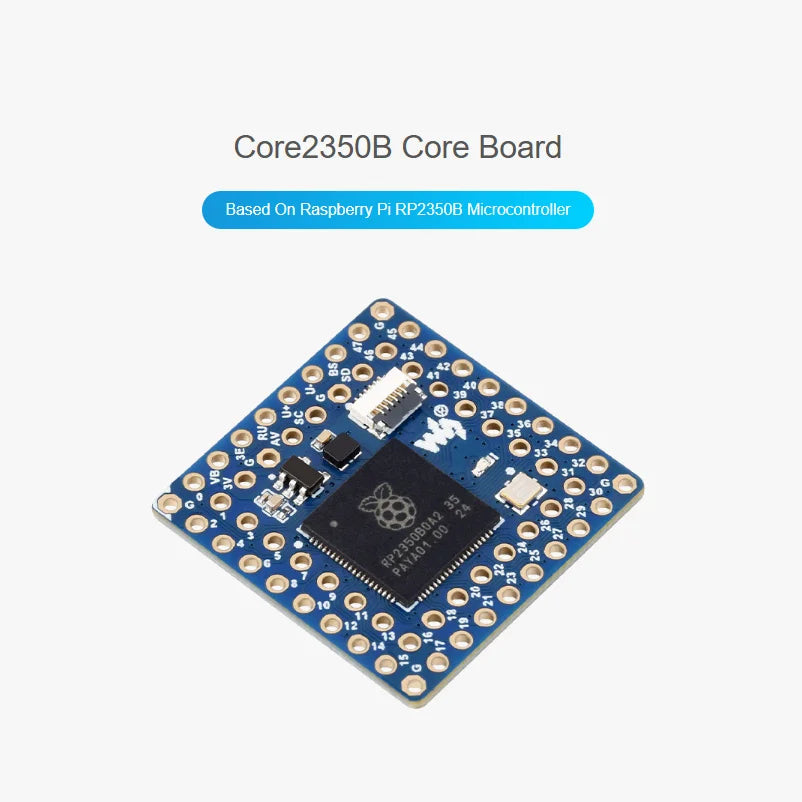

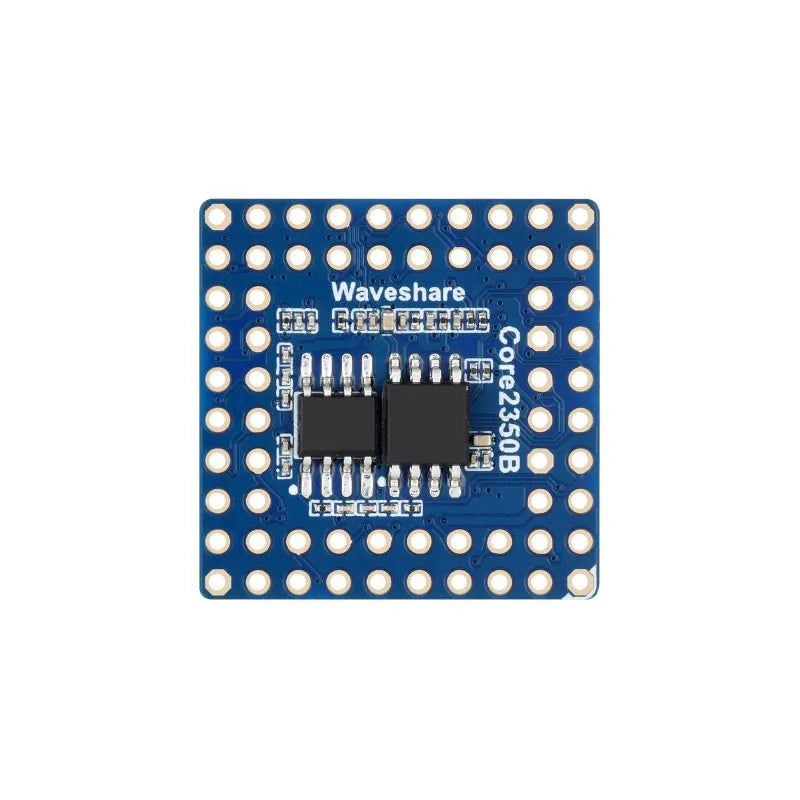

This product is a low-cost, high-performance MCU board designed by Waveshare. It features a compact size with onboard RP2350B main controller, adapting 48 multi-function GPIO pins for easy development and integration.

• RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom

• Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz

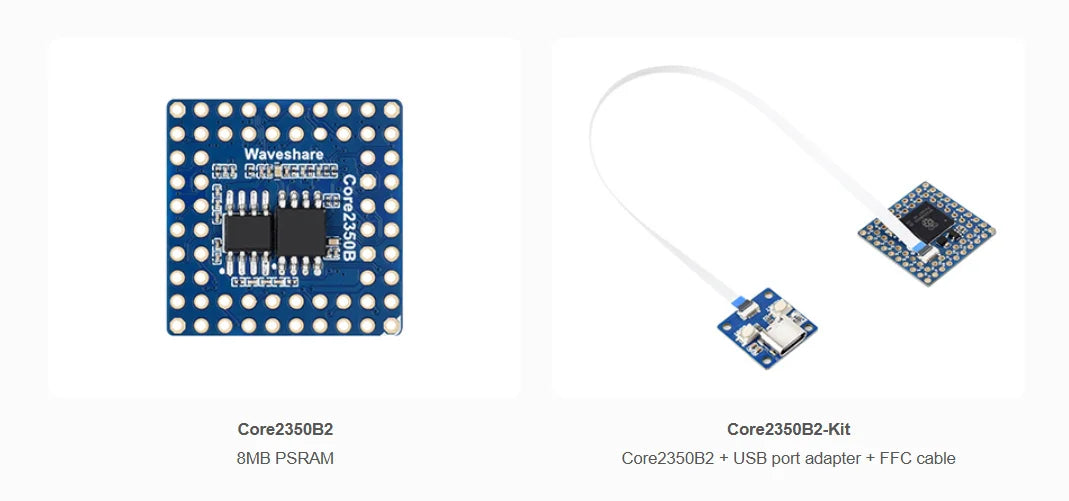

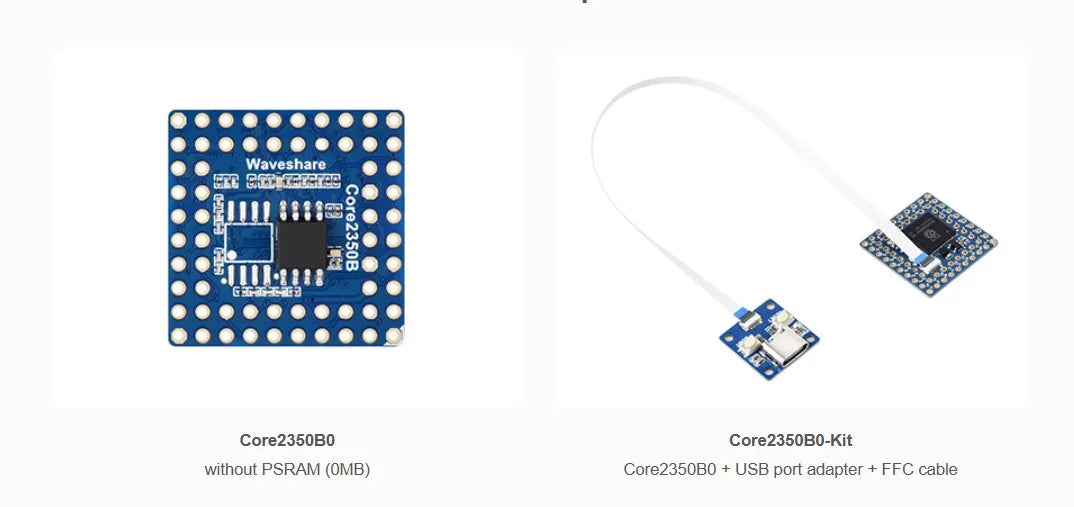

• Options for 0MB / 2MB / 8MB PSRAM, with onboard 520KB SRAM and 16MB Flash memory

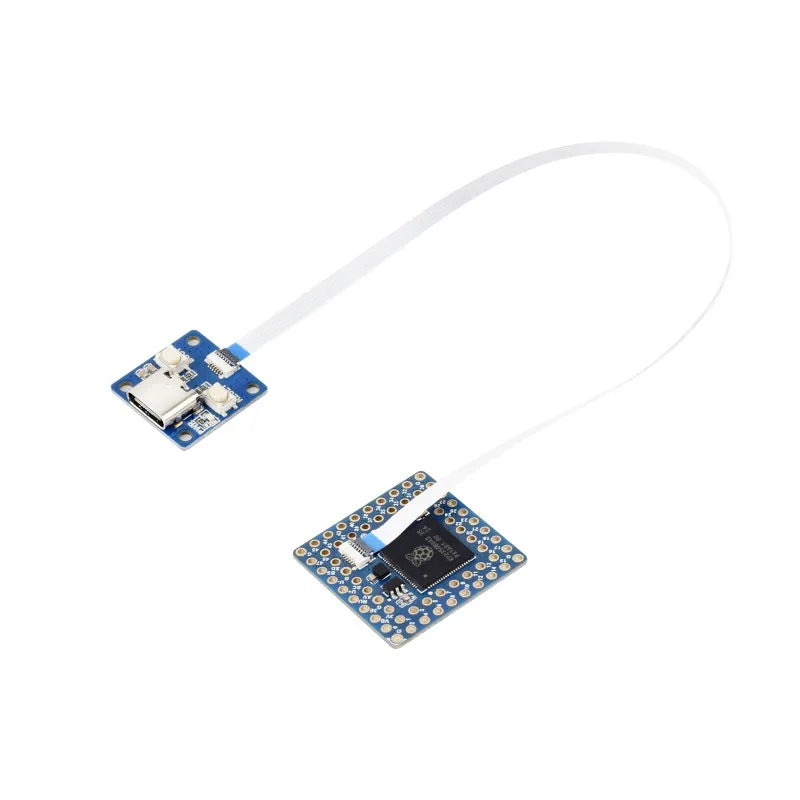

• Onboard FPC 6PIN connector, adapting USB Type-C port via adapter board

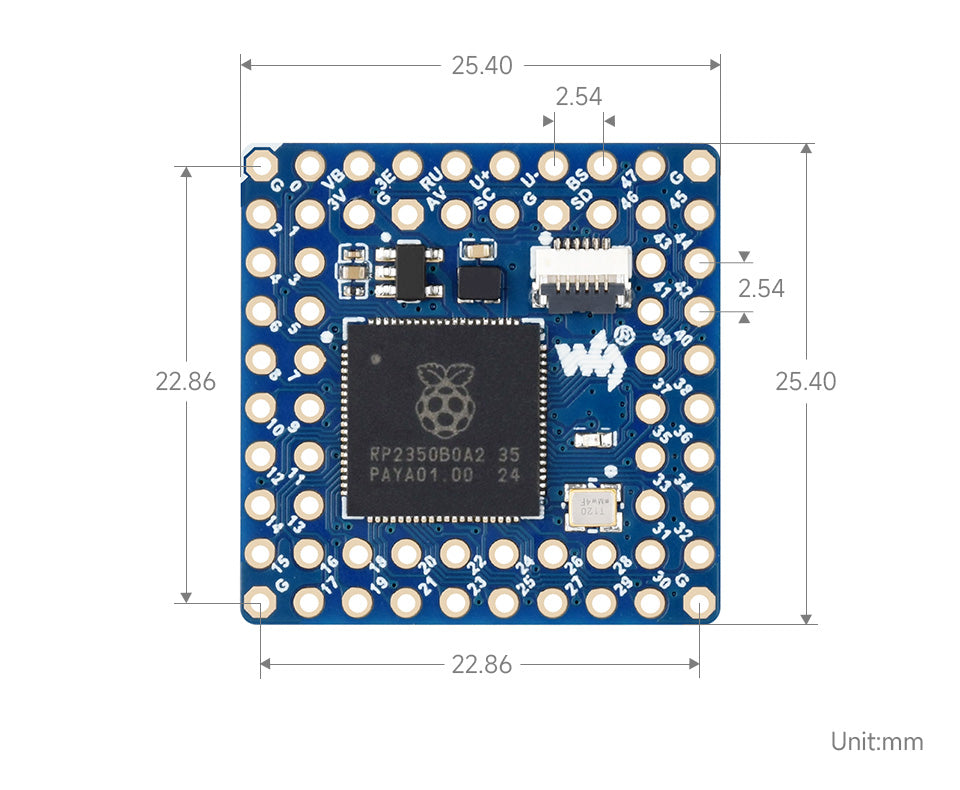

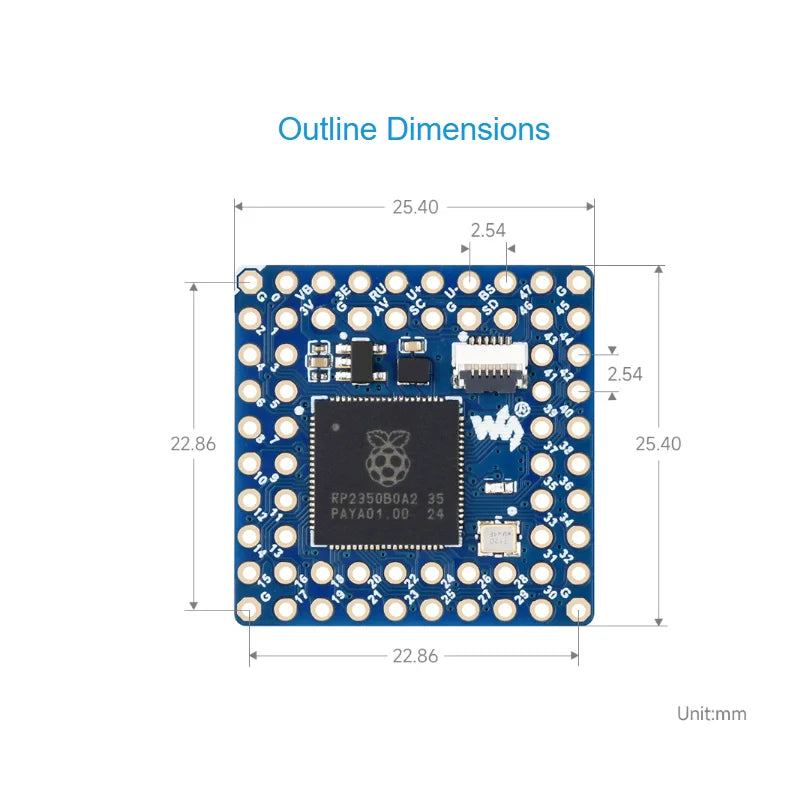

• 64 pins arranged in a standard 2.54 mm pitch for easy integration into carrier boards

• USB 1.1 with device and host support

• Low-power sleep and dormant modes

• Drag-and-drop programming using mass storage over USB

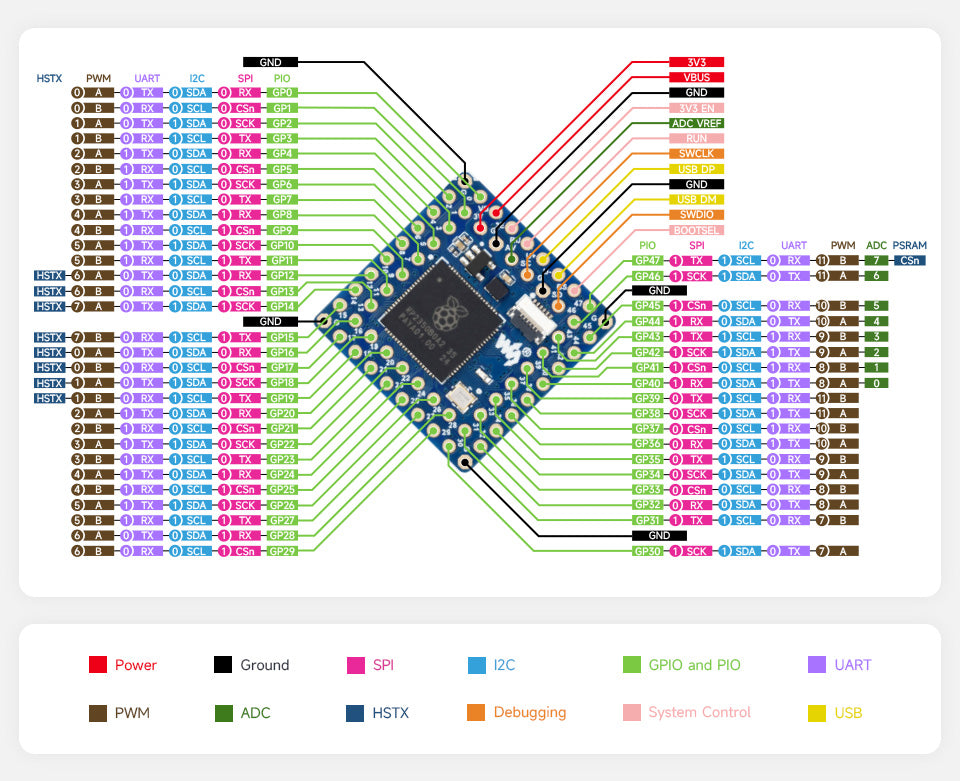

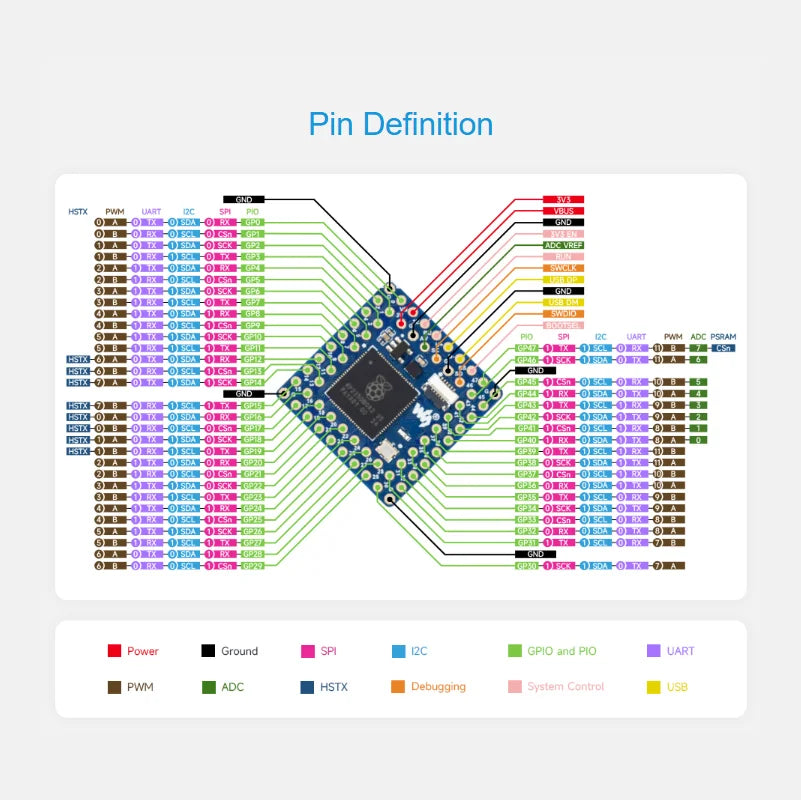

• 48 × multi-function GPIO pins

• 2 × I2C, 2 × UART, 8 × 12-bit ADC, 24 × controllable PWM channels

• Accurate clock and timer on-chip

• Temperature sensor

• 12 × Programmable I/O (PIO) state machines for custom peripheral support
