SPECIFICATIONS

【Overview】

[] RP2040 PiZero is a micro control board with high performance and cost-effectiveness. It has an onboard DVI interface, Micro SD card holder, and PIO-USB interface, and is compatible with Raspberry Pi 40PIN GPIO interface, making it easy to develop and embed into products.

【Features】

[] RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

[] Dual-core Arm Cortex M0+ processor, a flexible clock running up to 133 MHz

[] 264KB of SRAM, and 16MB of onboard Flash memory

[] Onboard PIO-USB interface can be used as USB master and slave

[] Onboard Micro SD Card Slot, which can read and write Micro SD cards

[] Onboard lithium battery Charge and discharge interface

[] USB 1.1 with device and host support

[] Drag-and-drop programming using mass storage over USB

[] Low-power sleep and dormant modes

[] 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC and 16 controllable PWM channels

[] Accurate clock and timer on-chip

[] Temperature sensor

[] Accelerated floating-point libraries on-chip

[] 8 × Programmable I/O (PIO) state machines for custom peripheral support

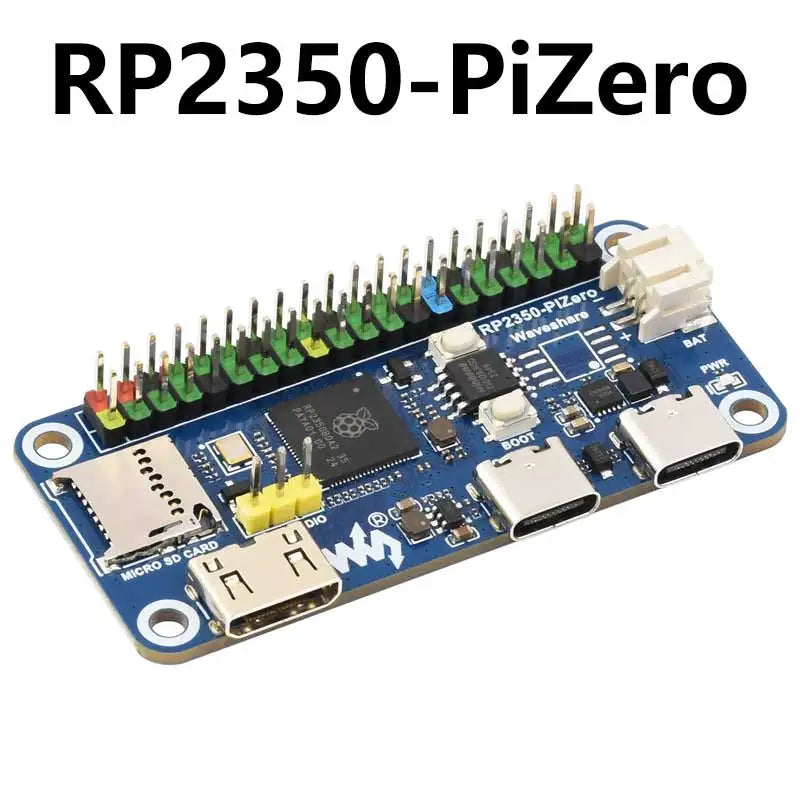

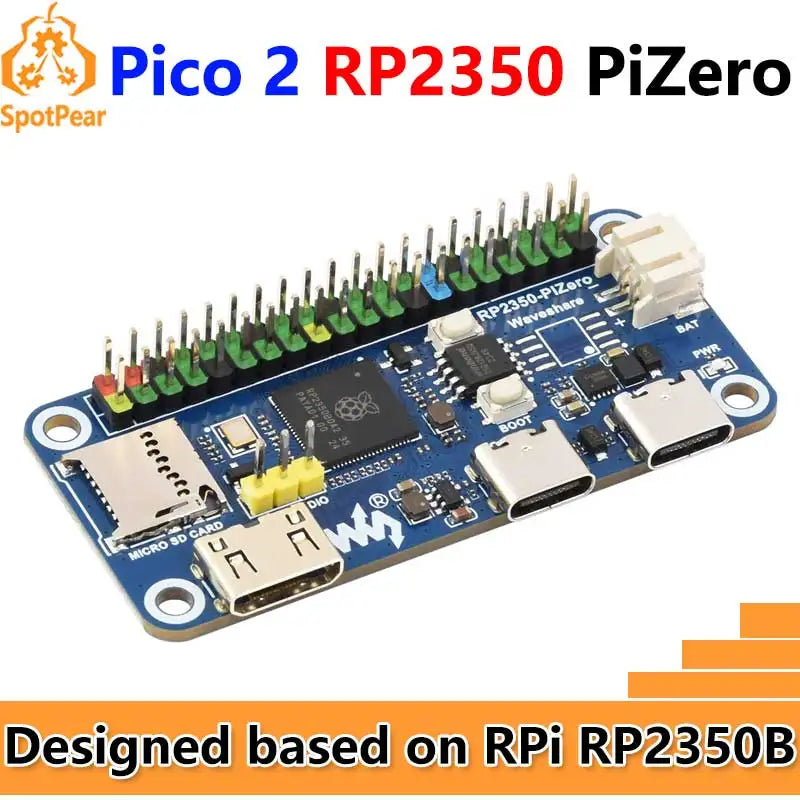

RP2350-PiZero Development Board

Designed based on Raspberry Pi RP2350

Onboard DVI port, Micro SD card slot and PIO-USB port

【C/C++, MicroPython，Arduino Support】

[] Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

[] *HDMI and USB functions can only be realized in C language environment and can only be used separately.

【Application Example】

[] Onboard DVI、PIO-USB、Micro SD、Micro SD Card Slot

[] Do not include LCD

【Introduction Resources】

1. USB Type-C

2. PIO-USB interface

3. Mini HDMI interface

4. Micro SD Card Slot

5. RP2040 Chip

6. W25Q128JV

7. RUN interface

8. BOOT interface

9. lithium battery interface

10. 40PIN GPIO interface

RP2350-PIZERO

【Outline Dimensions】
