SPECIFICATIONS

WisBlock Basic Starter Kit for Meshtastic -RAK4631 LPWAN Wireless SX1262 Lora Module RAK19007 Base Board with Lora Antenna

Comprehensive upgrade (comes with a full-band antenna - suitable for 800-900MHZ full-band)
EU868 is suitable for EU868/RU864/IN865
US915 is suitable for US915/AS923/AU915/KR920
And if you replace it with a full-band antenna, you can use the 800-900MHZ full-band antenna (can be changed directly in the software)

EU868 is mainly a European standard
RU864 is mainly a Russian standard
IN865 is mainly an Indian standard
US915 is the standard for the United States, Canada and Mexico
AS923 is mainly an Asian standard
AU915 is mainly an Australian standard
KR923 is mainly a Korean standard

WisBlock Basic Starter Kit for Meshtastic - RAK4631 LPWAN Wireless Core Module and RAK19007 Base Board Lora Antenna 868Mhz 915Mhz 920Mhz

Product Description
Are you interested to join the Meshtastic network? Meshtastic is an off-grid messaging system using inexpensive hardware to create your personal mesh. Radios forward messages to the next node to distribute them over the network. Communicate kilometers/miles between nodes. Internet-connected relay nodes enable the conversation to move online too.
Start immediately with our Meshtastic Starter Kit. It includes a WisBlock Base board and the RAK4631 WisBlock Core module, already flashed with the Meshtastic firmware. Power the boards up and start sending messages immediately.

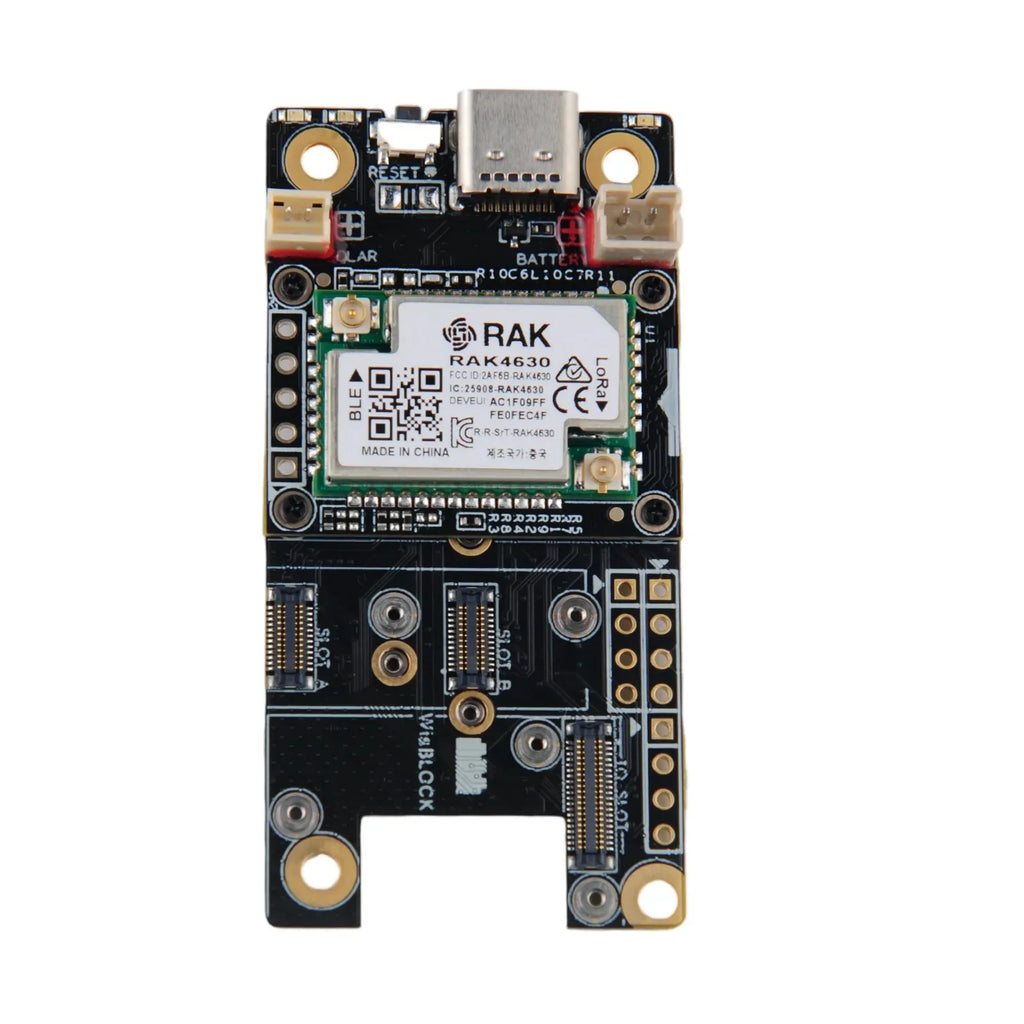

Description of RAK4631 WisBlock Core module
The RAK4631 WisBlock Core module is a RAK4630 stamp module with an expansion PCB and connectors compatible with the RAK5005-O baseboard. It allows an easy way to access to the pins of the RAK4630 module in order to simplify development and testing processes.
The module itself comprises a RAK4630 as its main component. The RAK4630 is a combination of an nRF52840 MCU and an SX1262 LoRa chip, it features ultra-low power consumption of 2.0 uA during sleep mode, high LoRa output power up to 22 dBm during a transmission mode, and the BLE interface with output power up to 4 dBm.

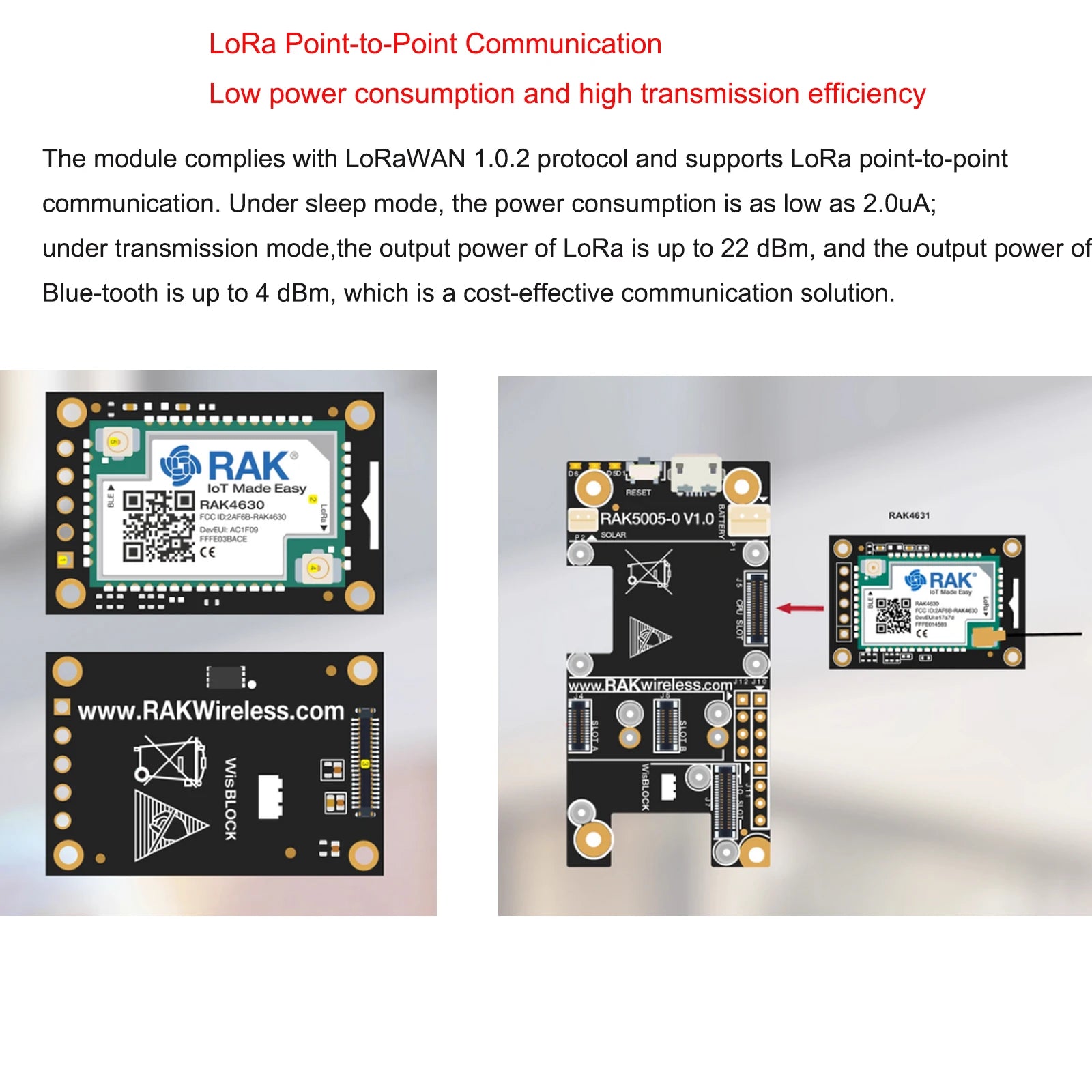

The module complies with LoRaWAN 1.0.2 protocols, it also supports LoRa point-to-point communication.
The RF communication characteristic of the module (LoRa + BLE) makes it suitable for a variety of applications in the IoT field such as home automation, sensor networks, building automation, personal area networks applications
RAK4631 WisBlock Core LPWAN Module Key Features:
RAK4631 and RAK4631 Voice Processing: LoRaWAN® 1.0.2 protocol stack (supports Class A & C)
RAK4631 RUI3: LoRaWAN® 1.0.3 protocol stack (supports Class A, B & C)
Blue-tooth Low Energy 5.0 protocol stack
Nordic-nRF52840:
Ultra-low-power MCU
32-bit ARM® Cortex-M4F CPU
64MHz CPU clock
1 MB Flash, 256 KB RAM
Wide range of connections:
I2C, SPI, Analog inputs,
Digital inputs and outputs
Semtech-SX1262 ：
Low power high range
LoRa® transceiver
Extend the Meshtastic Starter Kit with one or several of our suggested add-ons
Add location service to the mesh with the RAK12500 GNSS module
Connect peripherals to the Meshtastic Starter Kit with the RAK13002 IO module
See your messages directly on the device with the RAK1921 OLED display
Use the RAKBox-B5 to mount the starter kit together with the RAK1921 to a user-friendly indoor stand
Use the Unify Enclosure to take your Meshtastic Kit outdoors. The solar panel of the Unify Enclosure can extend the lifetime of your battery by recharging it automatically.

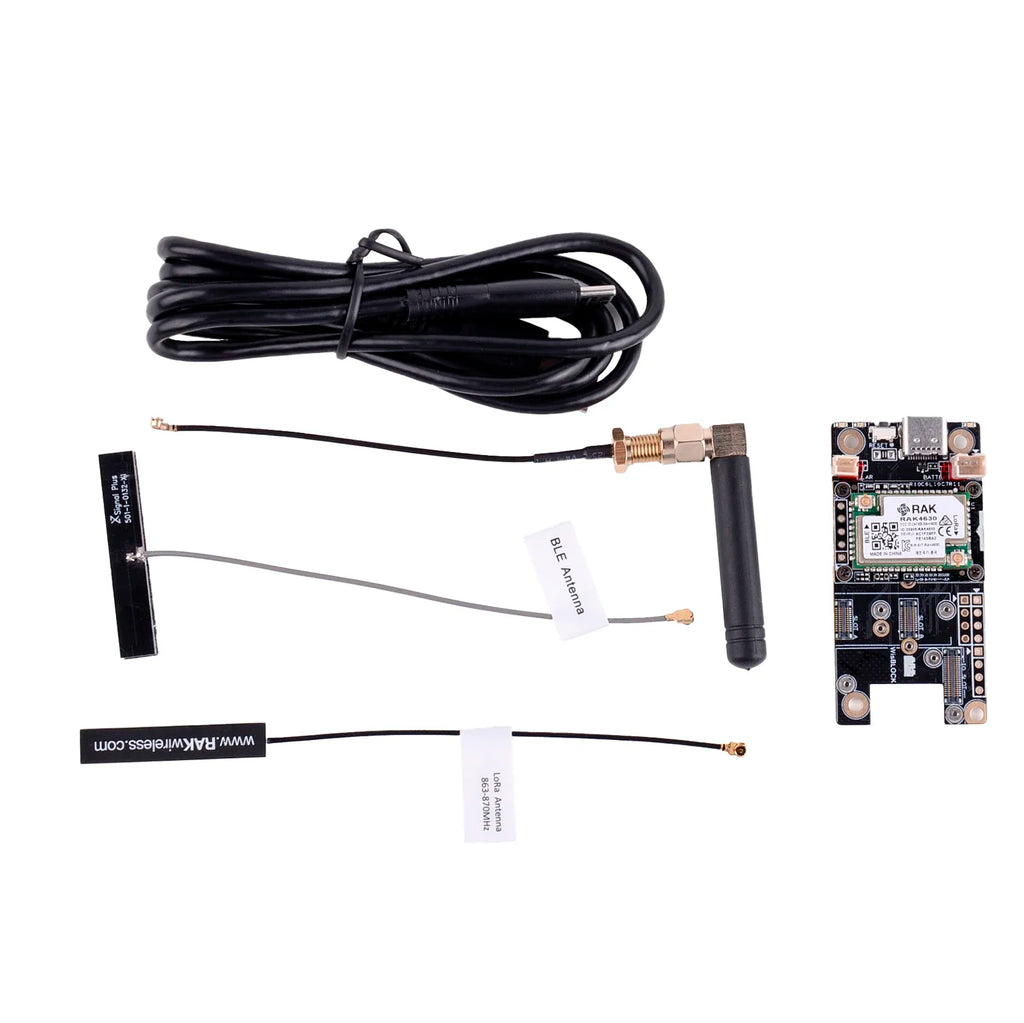

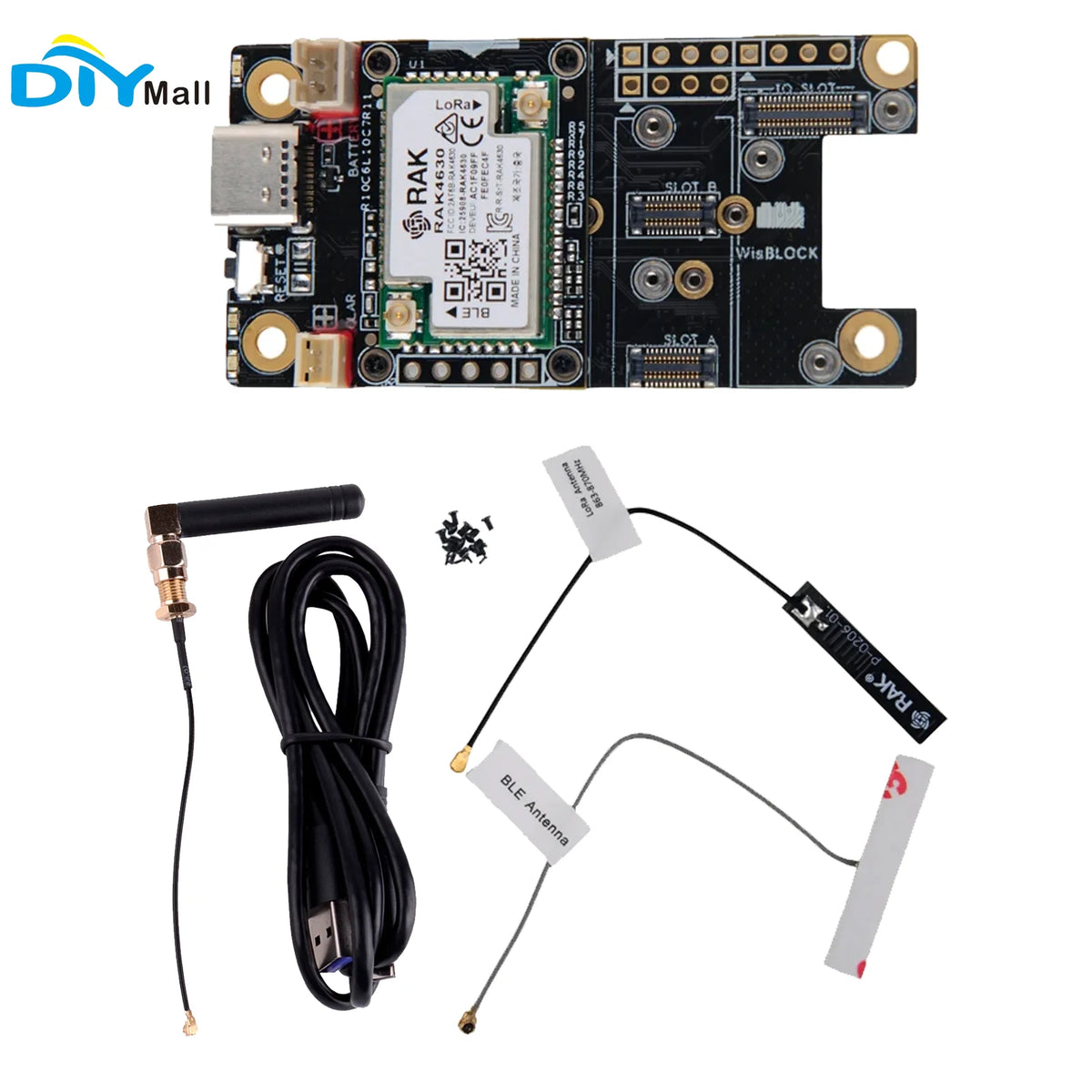

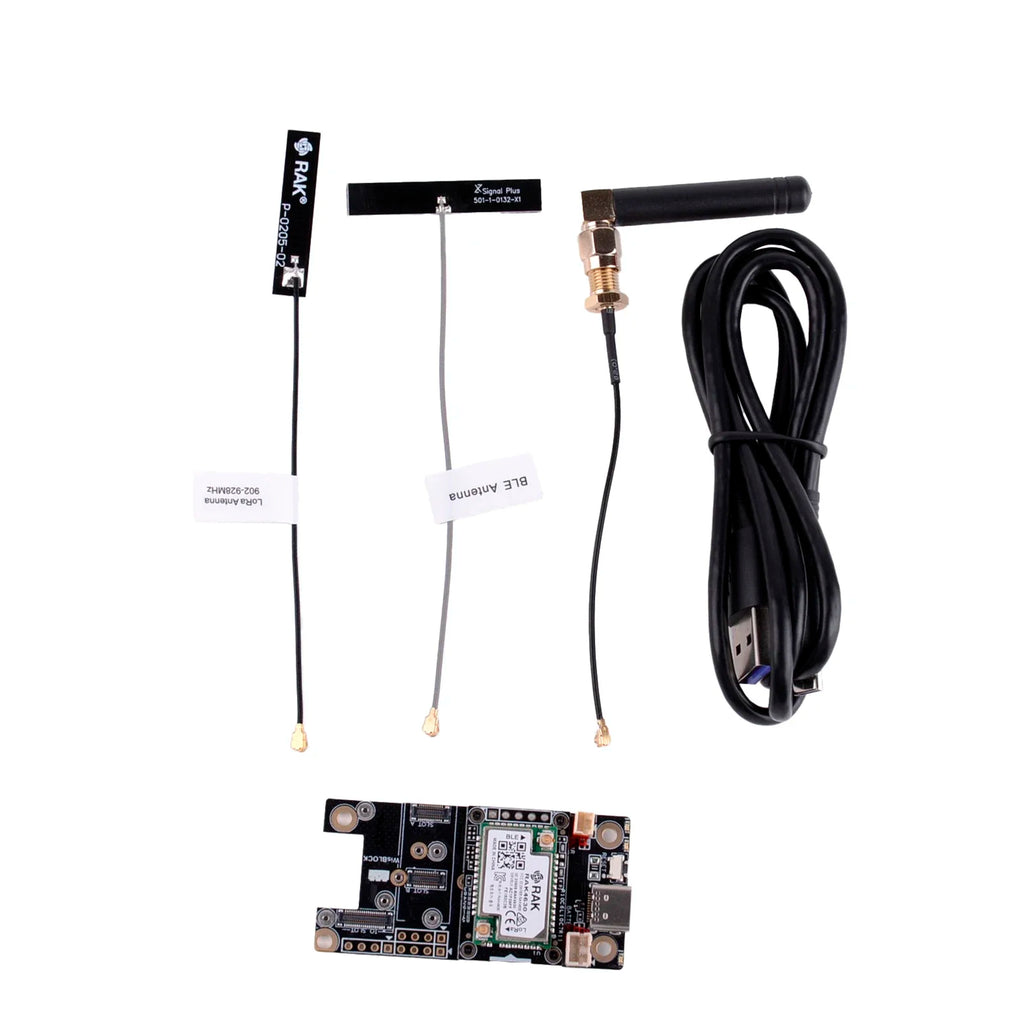

Package List :

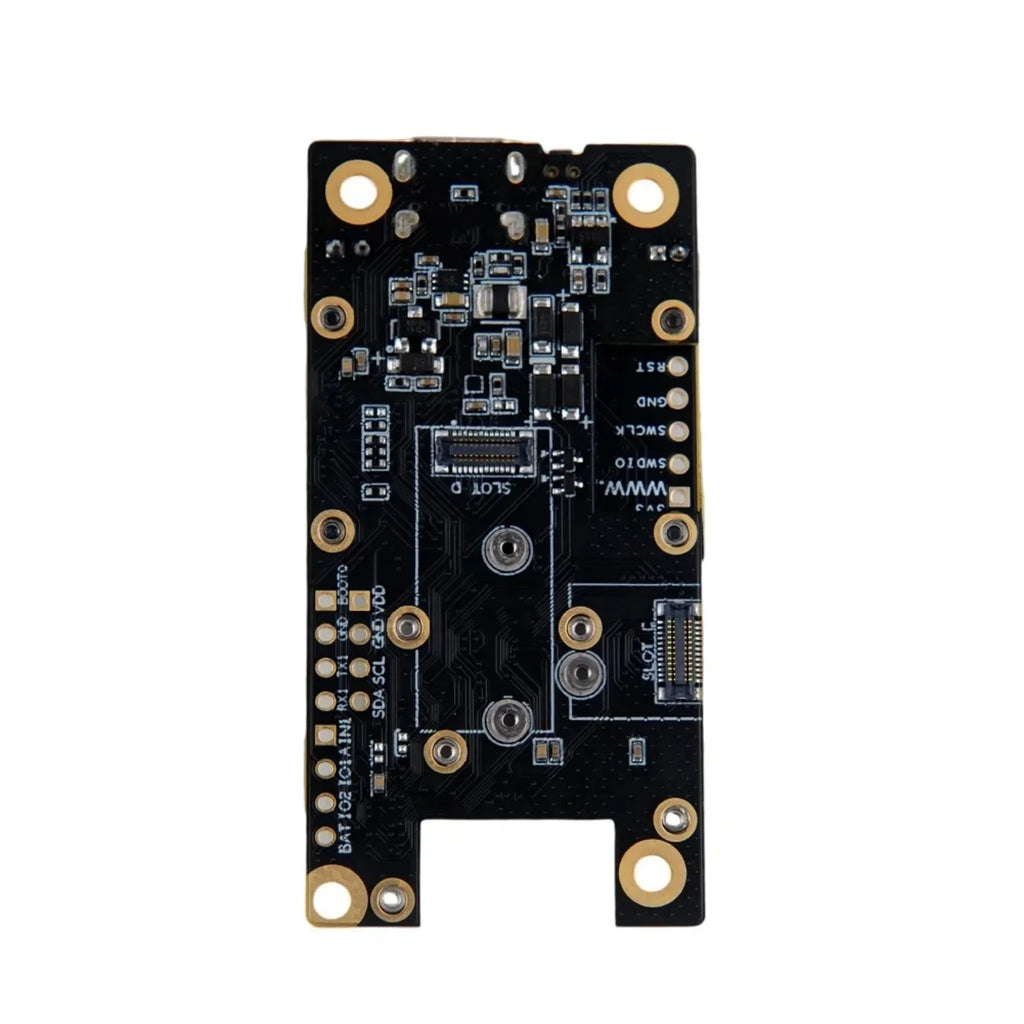

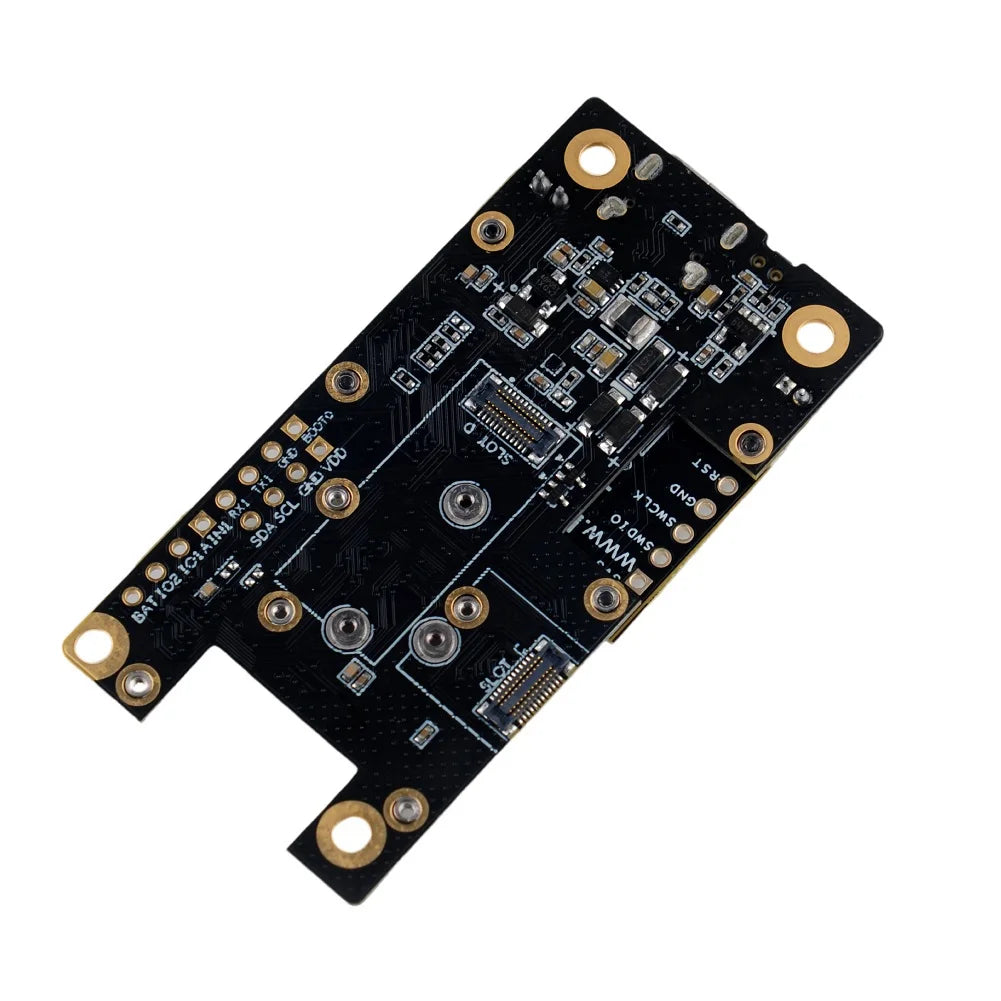

1 X WisBlock Base (RAK19007)
1 X WisBlock Core (RAK4631) - Select your frequency band before ordering .
1 X LoRa Antenna
1 X BLE Antenna
1 X USB Cable
1 X Screws Set
1X Full-band antenna and adapter cable
