SPECIFICATIONS

Accuracy: 0.5%, Calibrated <0.5% (central position, 25℃)

Bandwidth: 1Hz to 100kHz(-3dB)

Brand Name: NONE,MEATROL

Certificate: CE, ROHS 2.0 , IP68(Option)

Communication Interface: 2-Wire

Current input: Maximum 100kA

Description: Rogowski coil, NRC Flexible Rogowski coil

Features: Rogowski coil

Frequency: 1Hz~20kHz

Lead length: 2meter

Linearity: 0.2%, ±0.2% of reading

Material: Flame retardant 94 V-0 rated

Model Number: NRC

Mounting Type: Clamp on

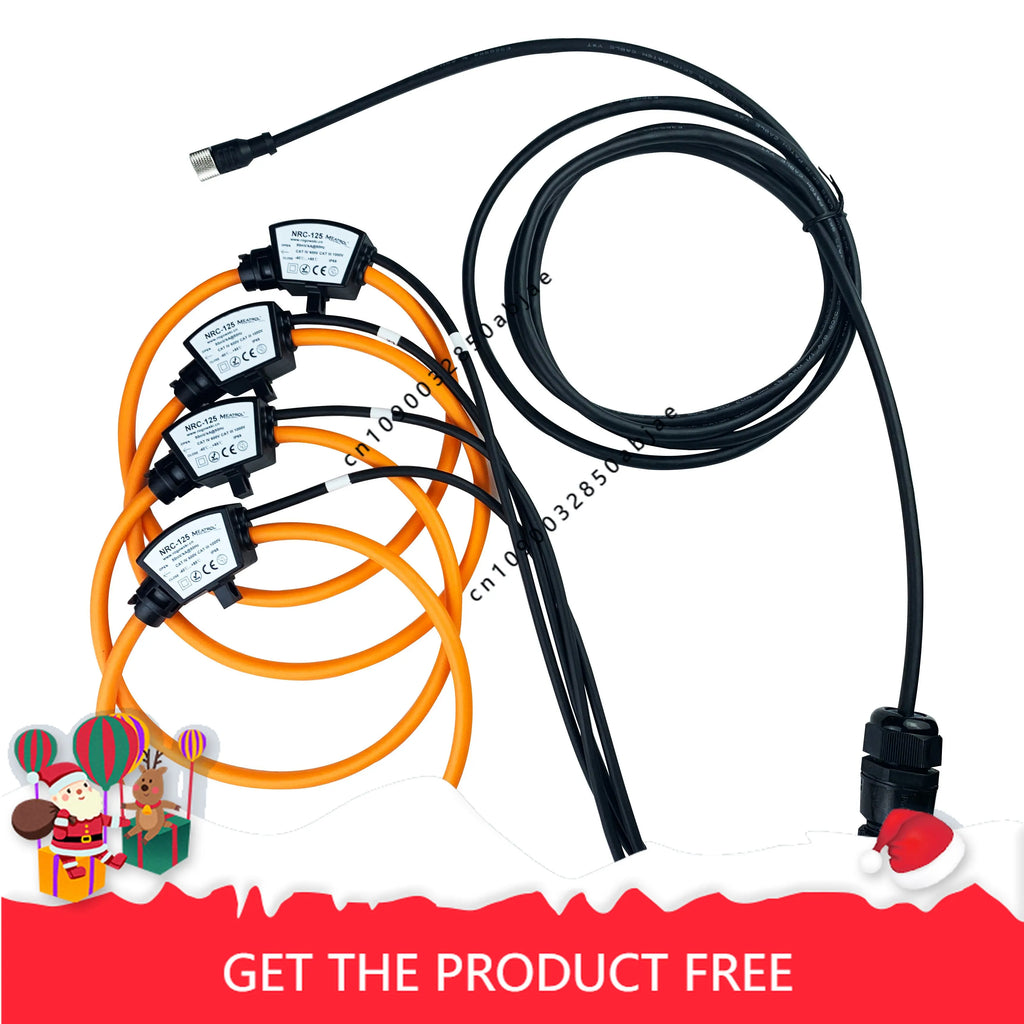

Number of channels: 1 or 3

Origin: Mainland China

Output: 50mV/kA@50Hz, 85mV/kA@50Hz, 100mV/kA@50Hz

Phase error: ≤0.5°

Place of Origin: Shanghai, China

Position Error: ±1% maximum

Sensitivity: 50mV/kA@50Hz, 85mV/kA@50Hz, 100mV/kA@50Hz

Series: Rogowski coil

Theory: The principle of electromagnetic induction

Type: CURRENT TRANSFORMER

Usage: AC current detection and measurement

Voltage - Supply: -

Voltage insulation: Coil: 2000V, Signal cable: 1000V

Product Description

World-famous manufacturer

Three major production bases in Shanghai, Chongqing, and Zhejiang

Looking forward to in-depth communications, project cooperation, and exclusive agency

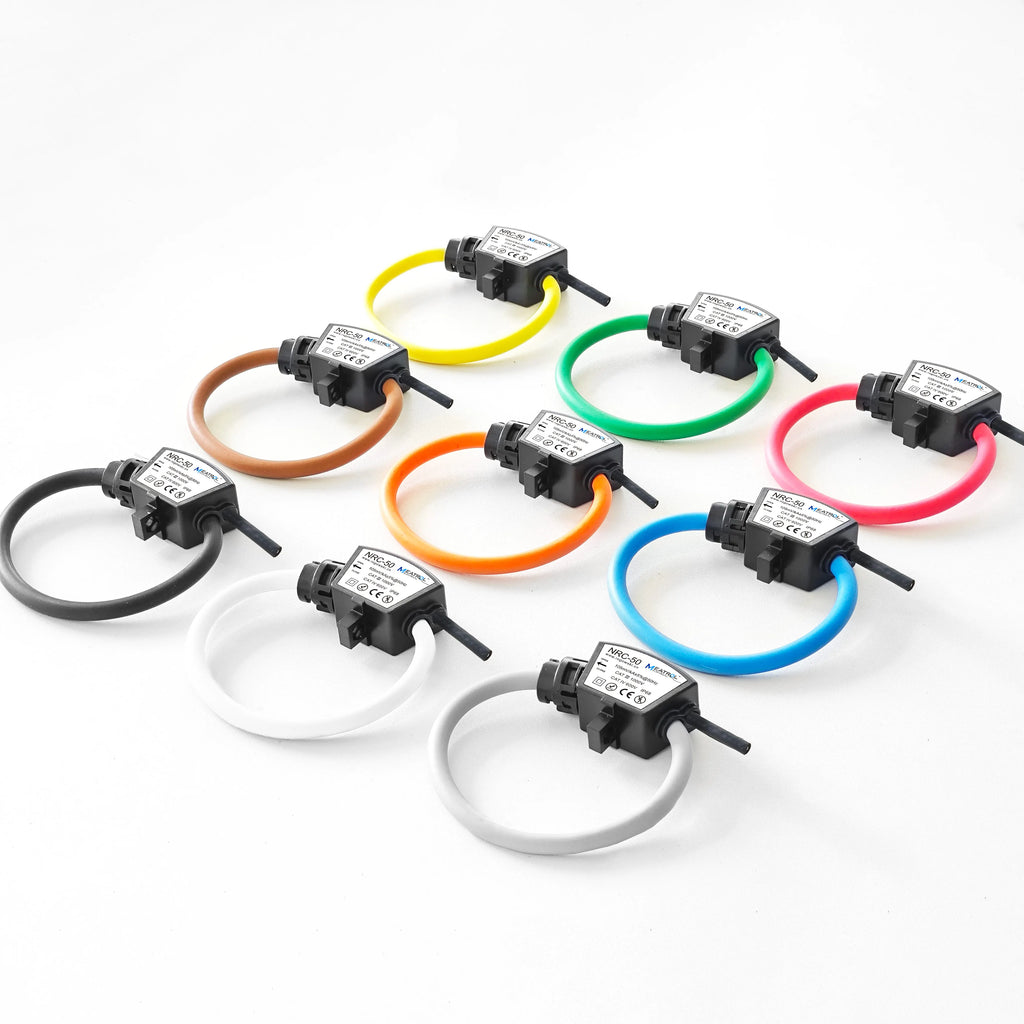

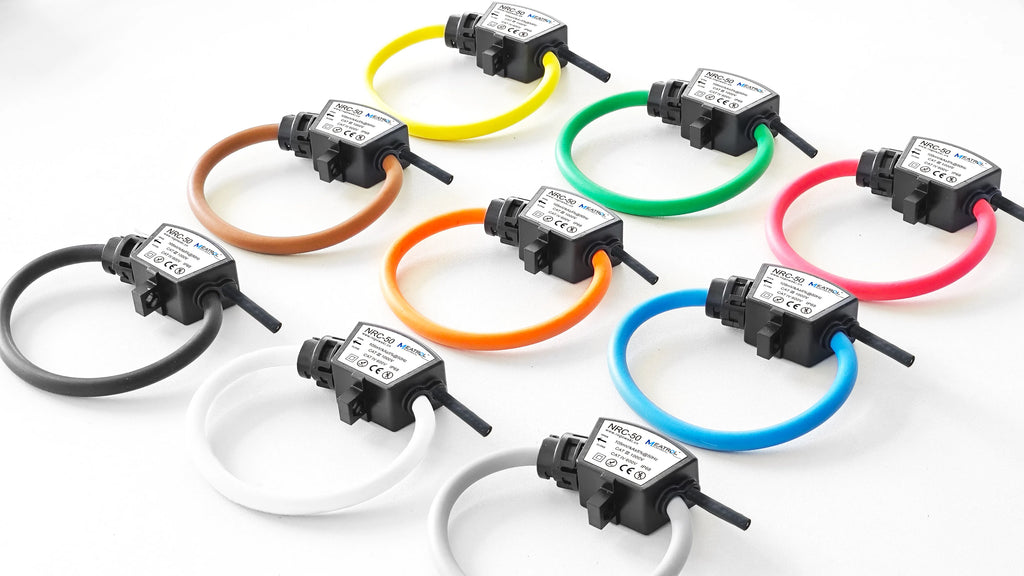

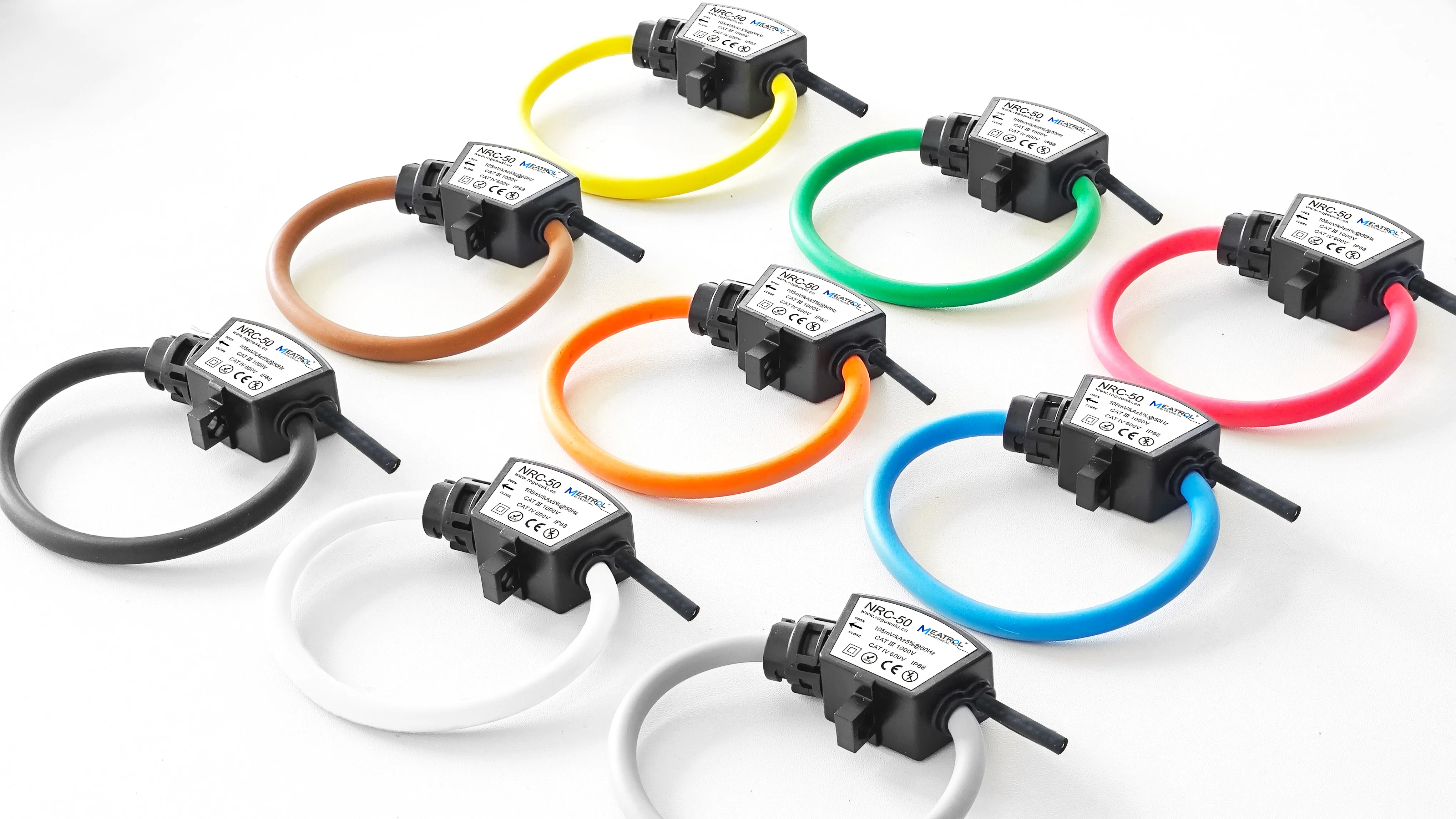

NRC series

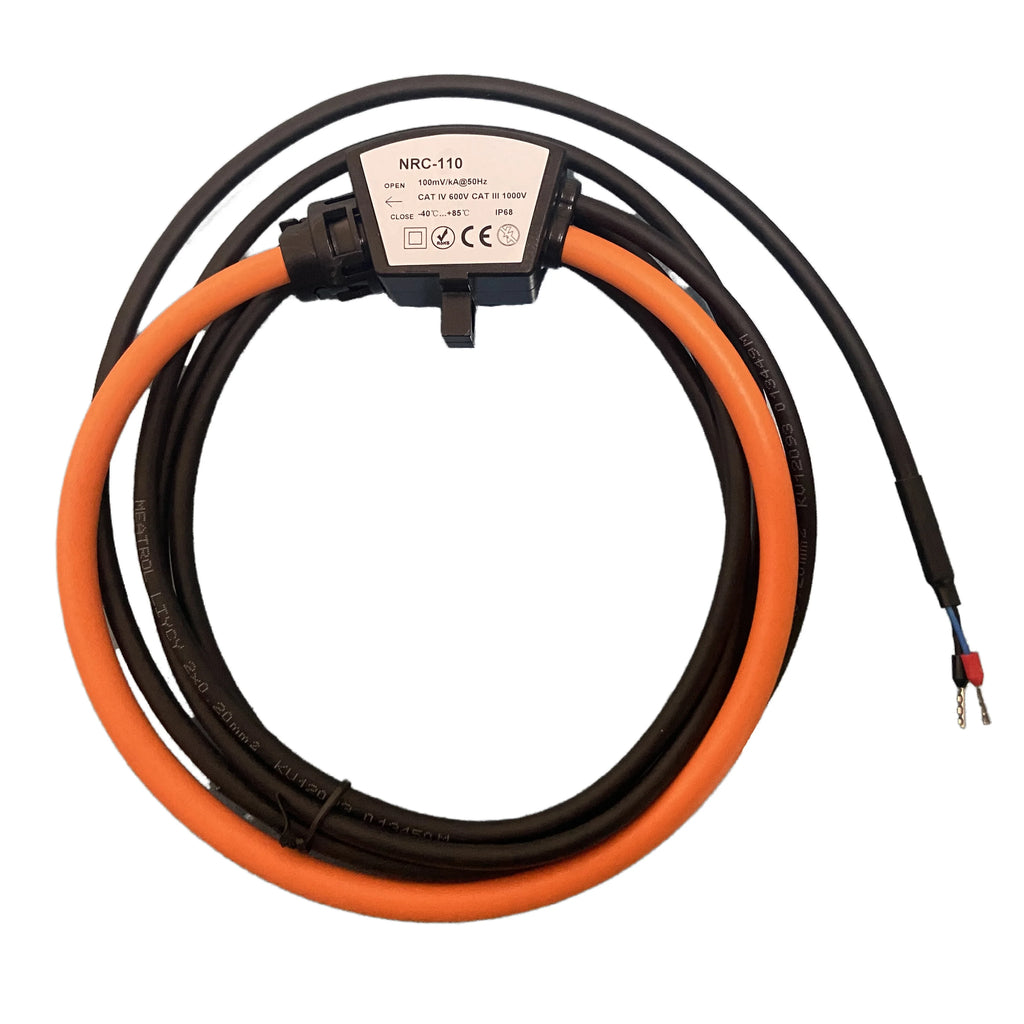

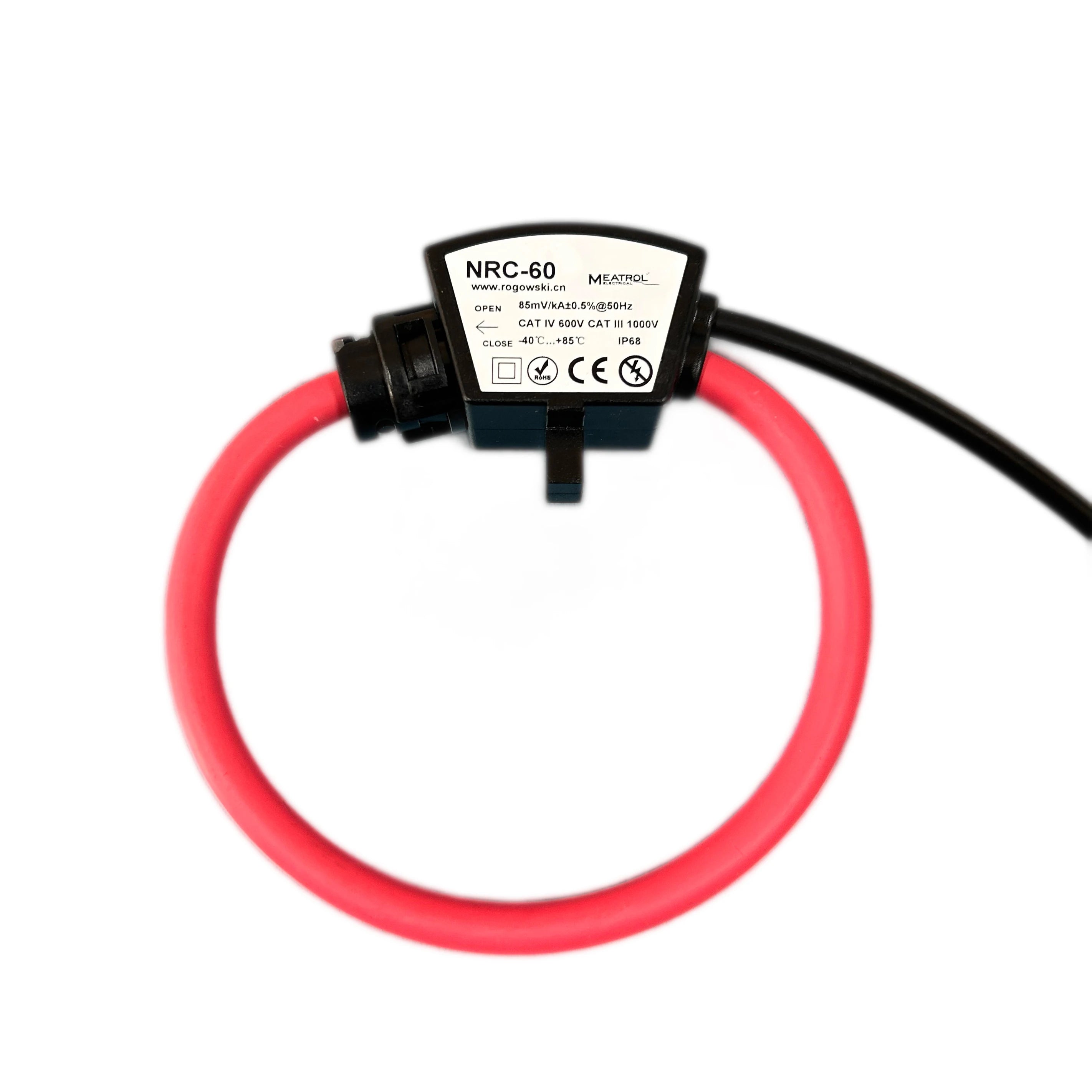

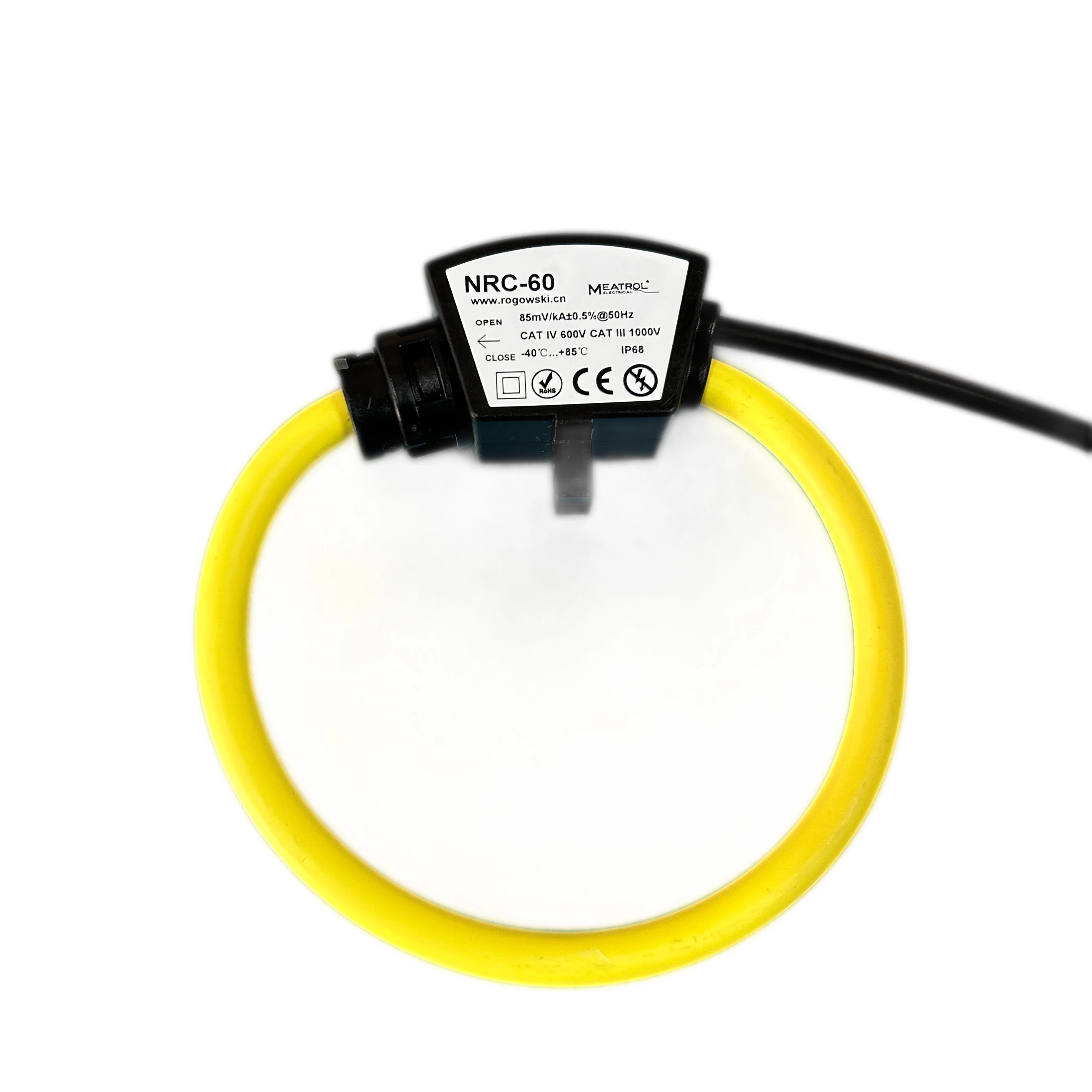

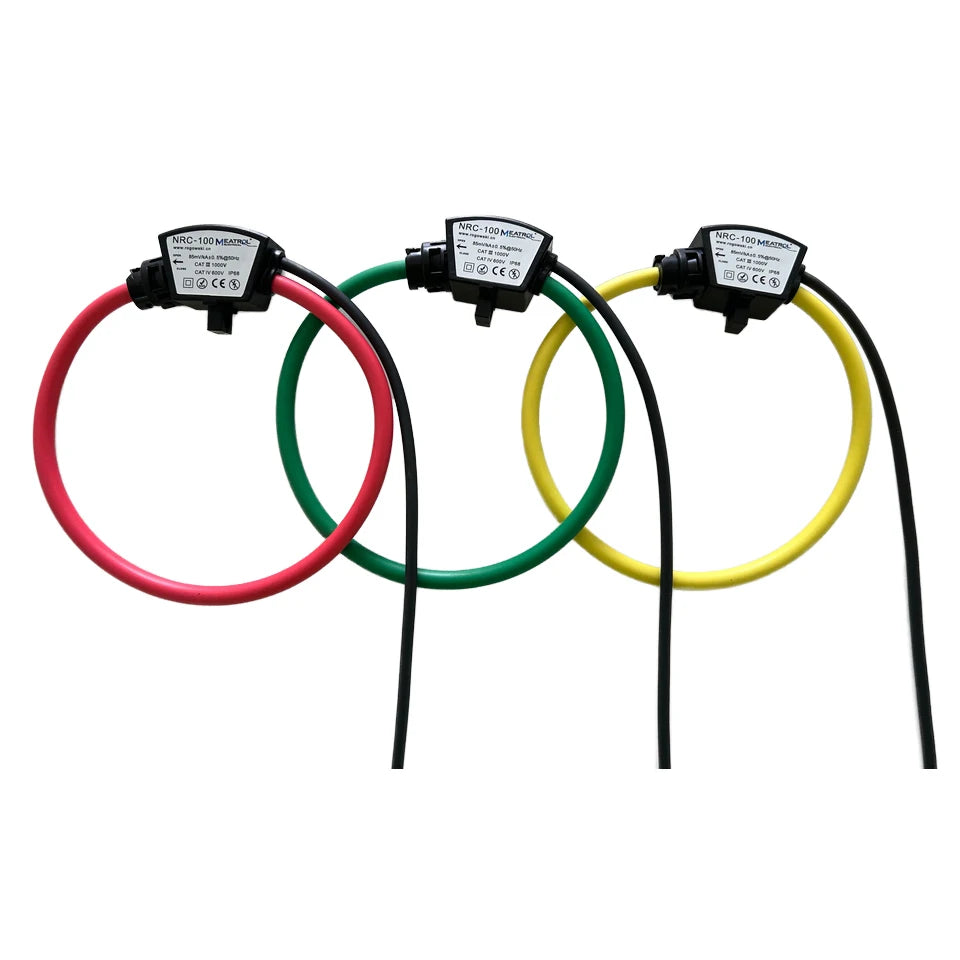

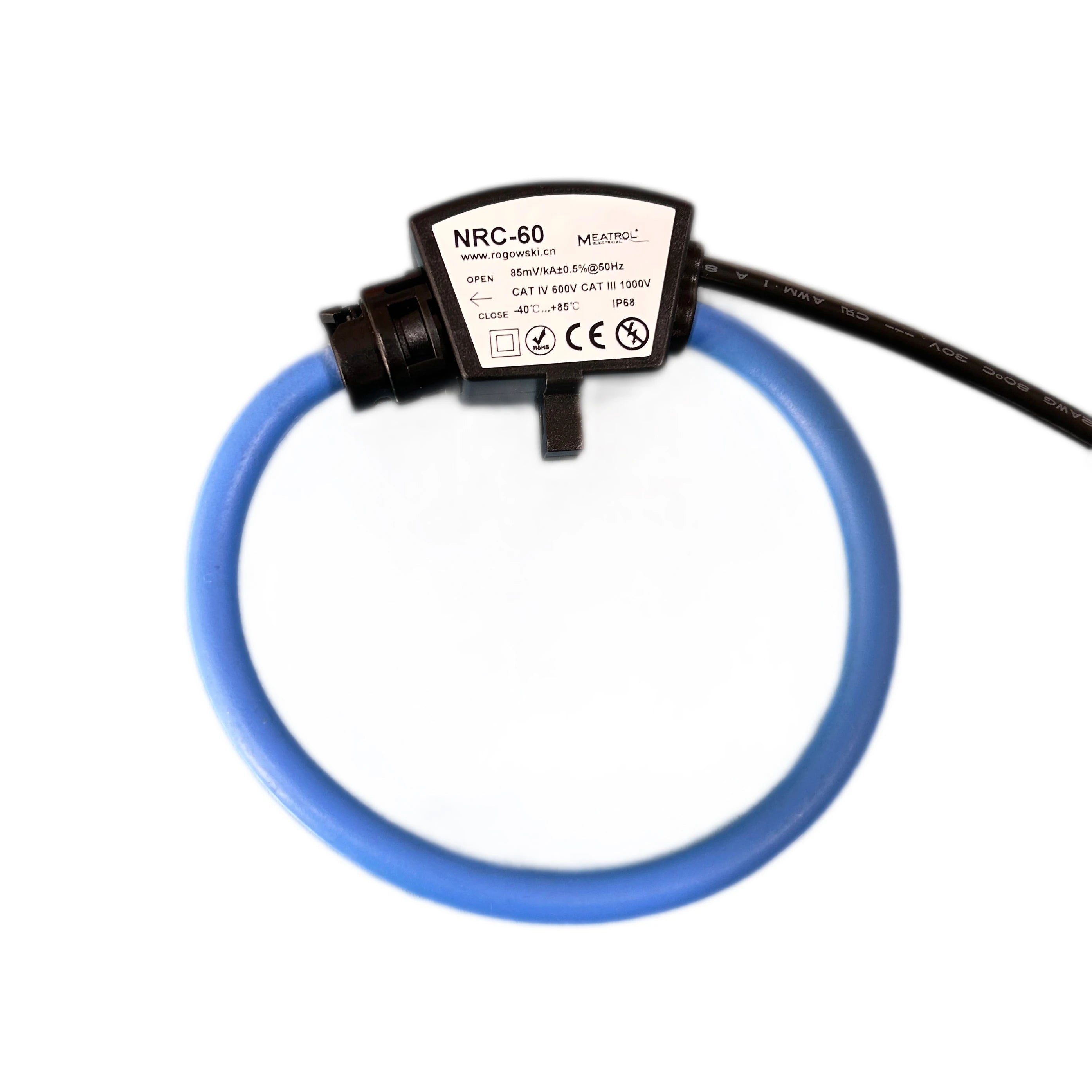

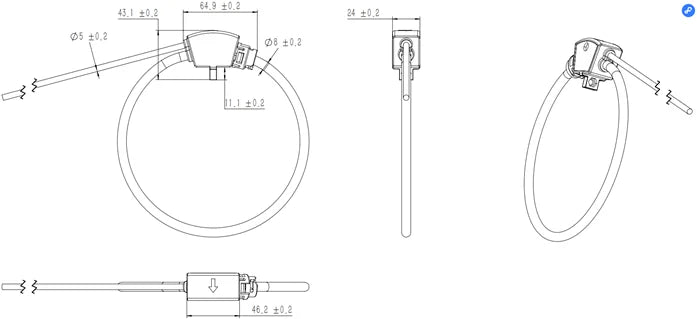

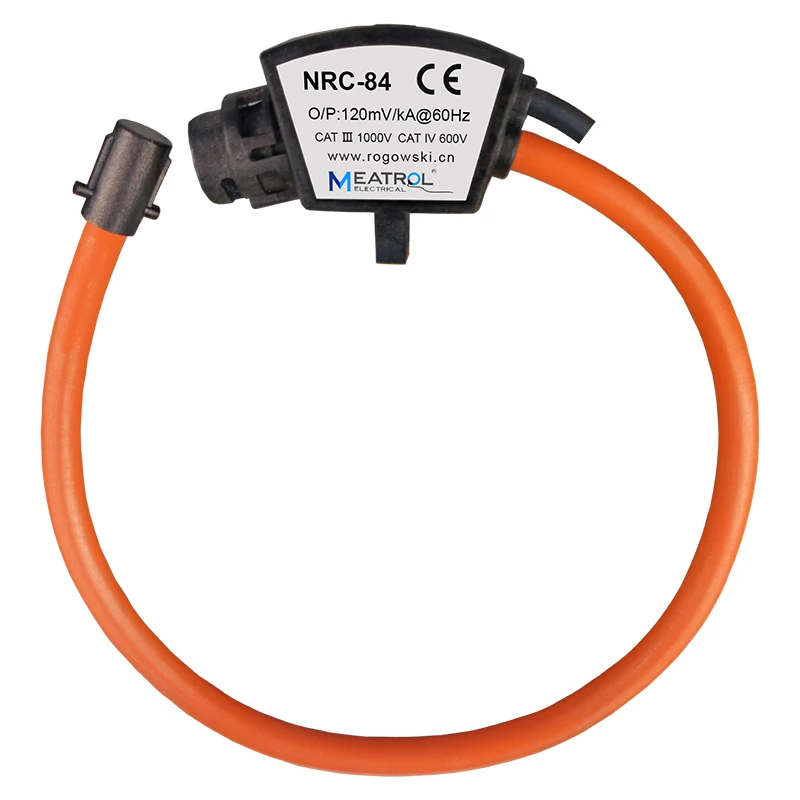

Ø8 screw type flexible Rogowski coil

The new generation of NRC coil strengthens the shielding layer and greatly reduces the influence of external magnetic fields; it can be directly connected to our rail-mounted and panel-type meters without the need for external integrators. NRC series coils have IP68 protection grade, which is extremely suitable for outdoor use.

Advantage

* Excellent linearity
* Wide dynamic range
* Not damaged by large overloads
* Excellent degree of rejection to the

external current conductor
* No danger from open-circuited

secondary
* Zero power consumption
* Small position error
* Soft and light, easy to install
* Long-term stability
* Wide dynamic range
* IP68 protection level



* Applications

* Smart meter
* Rectifier current measurement
* Power quality analysis
* Motor overload/short circuit protection
* Current monitoring of power frequency and intermediate

frequency welding machine
* Medium and high voltage switchgear protection system
* Remote Terminal Unit (RTU)
* Synchronous Phasor Measurement Unit (PMU)
* Current measurement on the secondary side of the

electric furnace





MODEL	NRC-100	NRC-150	NRC-200
Coil length	395mm	525mm	665mm
Window size	100mm	150mm	200mm
Reference Rated current	1000A	3000A	6000A
Ratio	Calibrated：85±0.5mV/kA@50Hz 100±0.5mV/kA@50Hz
		Uncalibrated：105±5mV/kA@50Hz

Specification

Reference Rated current			100A,600A,3000A,6000A...(Unlimited)
Ratio @50Hz	Calibrated (Manufacturing tolerance<0.5%)	... 22.5mV/kA 50mV/kA 85mV/kA 100mV/kA ...
Sensitivity temperature drift coefficient			Uncalibrated, ＜50ppm/℃
				Calibrated, ＜100ppm/℃
Internal resistance temperature drift coefficient1）			Uncalibrated, ＜3800ppm/℃
Read Accuracy			0.5%class (Vertically centered position)
Internal resistance			50～250 Ω
Position Error 2）			＜1%
Output on 0A  (zero drift)			＜0.05mV
Phase error			＜0.5°(45Hz～65Hz)
Linearity			±0.1% (1%～100%)
Bandwidth(3dB)			1Hz～20kHz
Operating temperature			-40℃～85℃
Coil Section			8mm
Lead length(default)			2 meter
For other requirements, please contact us for customization.

Copper row bracket installation Three-axis bracket installation Fix with tie

current sensor current transformer AC current transformer current clamp current transducer current probe current measuring
instrument current voltage tester flexible CT toriodal toroidal air-cored coil Splitcore currenttransformer converter amplifier
integrator analog converter analog integrator Rogowski Coil Flexible Current Transformer,Rogowski Coil,Flexible Rogowski Coil
