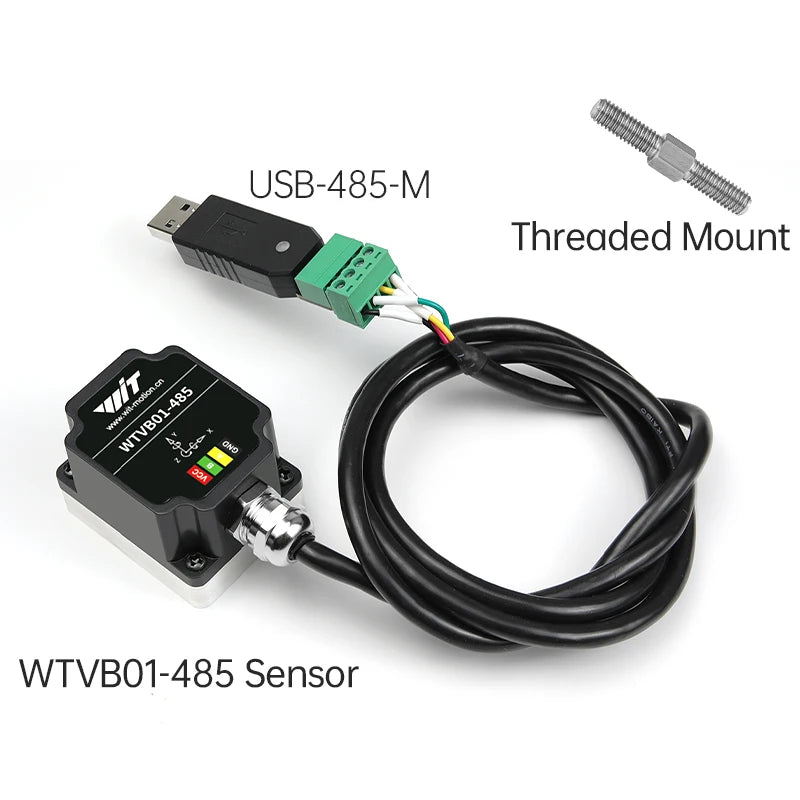

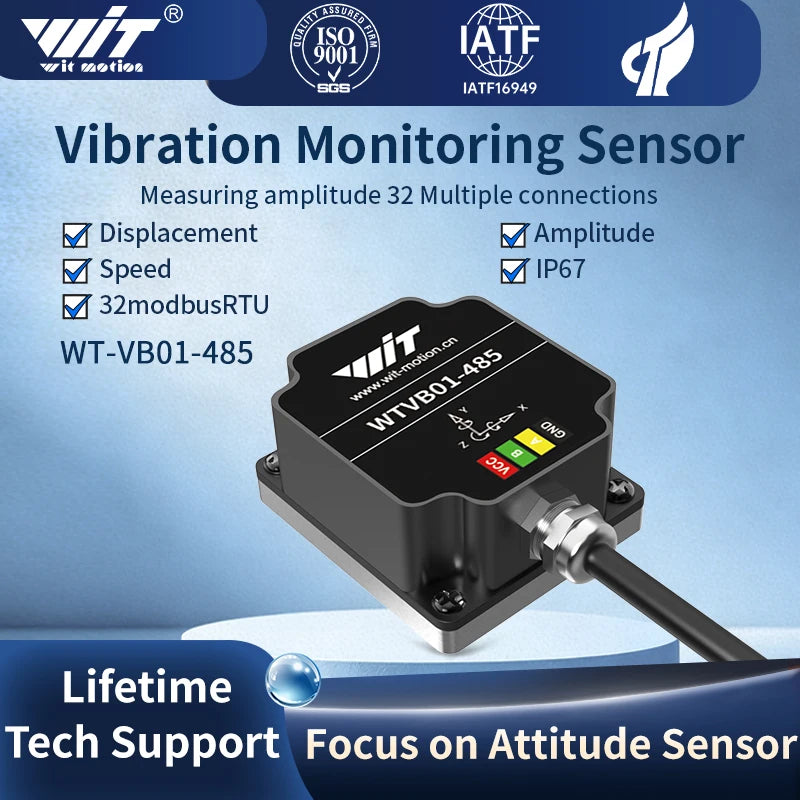

WitMotion WTVB01-485 IPX8 Vibration Sensor 3axis (XYZ) Modbus Vibration Analyzer Displacement(Acceleration +Speed+Amplitude)

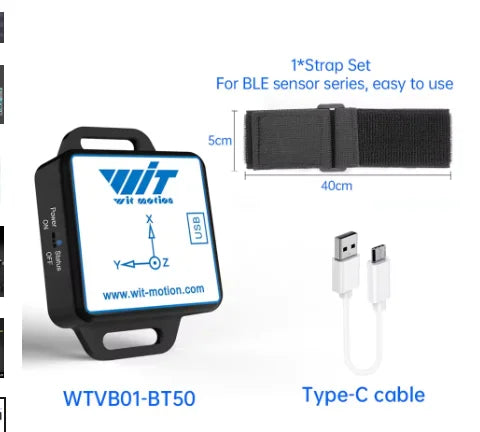

WTVB01-BT50 Strap

$160.52

Sale price $160.52 Regular price $0.00

Skip to product information

WitMotion WTVB01-485 IPX8 Vibration Sensor 3axis (XYZ) Modbus Vibration Analyzer Displacement(Acceleration +Speed+Amplitude)

WitMotion WTVB01-485 IPX8 Vibration Sensor 3axis (XYZ) Modbus Vibration Analyzer Displacement(Acceleration +Speed+Amplitude)

$160.52

Sale price $160.52 Regular price $0.00

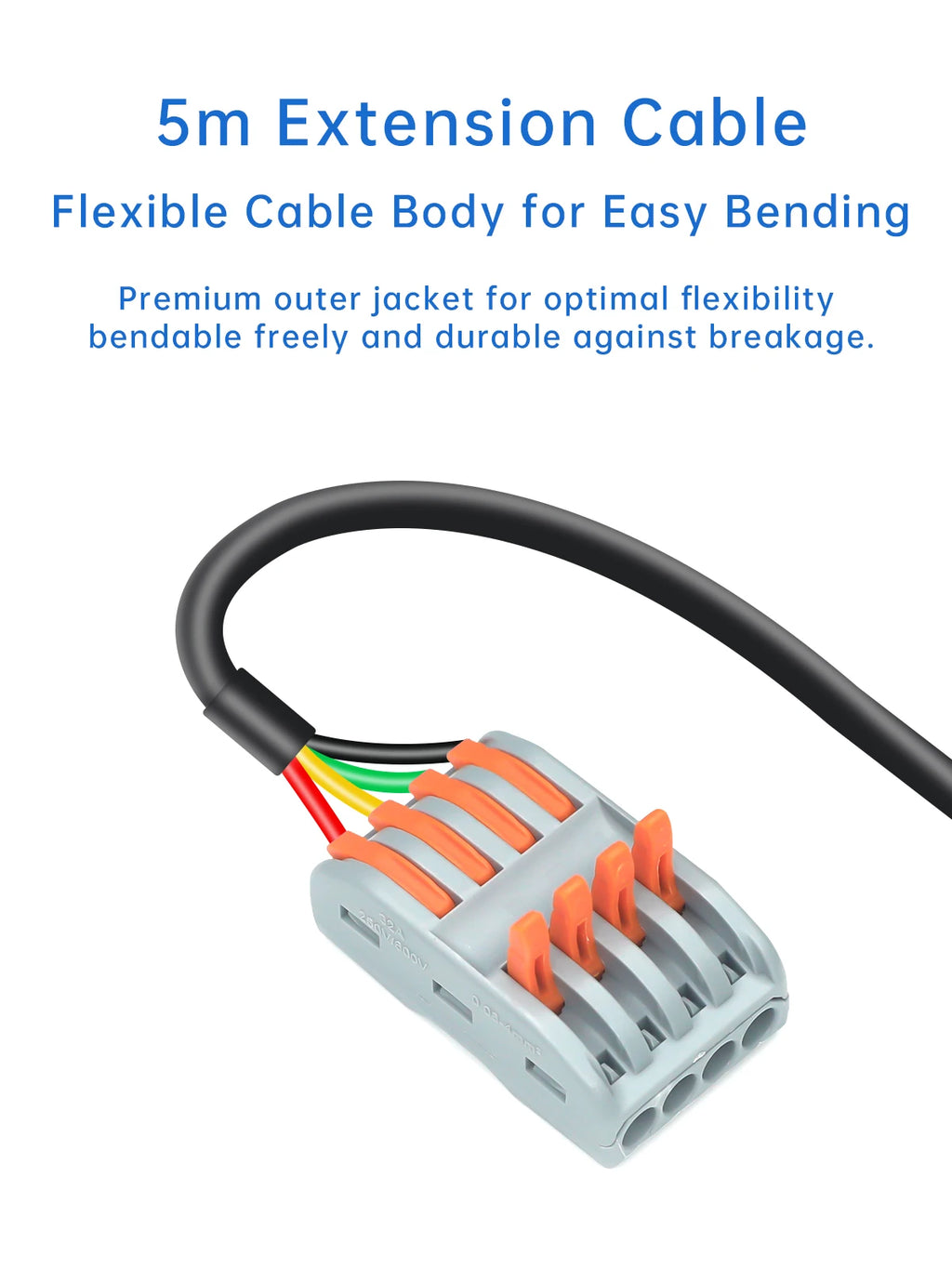

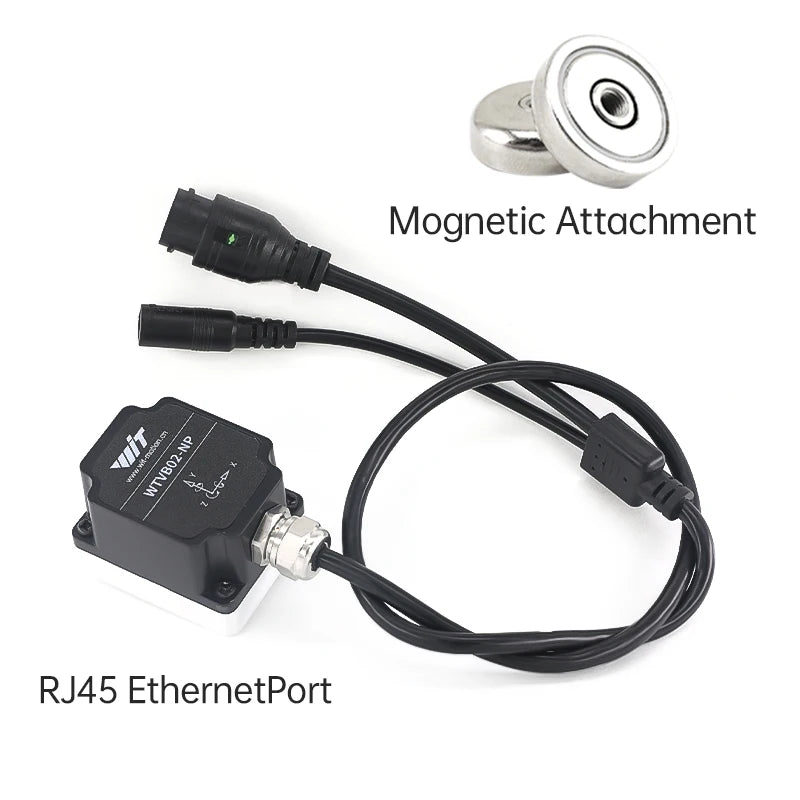

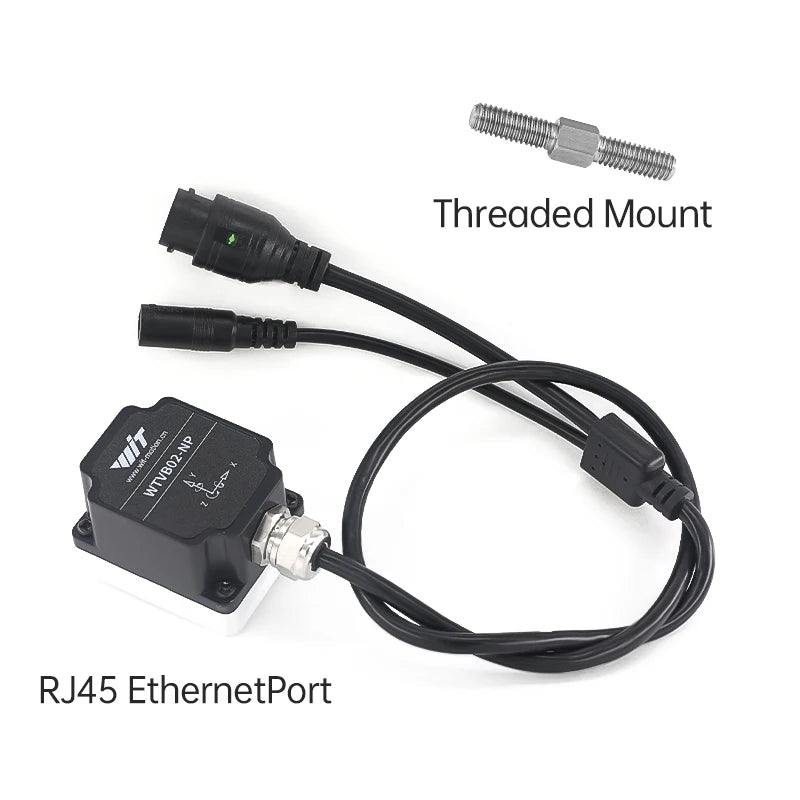

Color WTVB01-BT50 Strap WTVB02-RJ45 Magnetic extension cable 5m WTVB02-RJ45 Threaded WTVB01-485 Threaded WTVB01-485 Magnetic WTVB01-BT50 WTVB02-485 Thread WTVB02-485 Magnetic WTVB05-485 CAN

Description

SPECIFICATIONS

Accuracy:

After-sale Service: Lifetime Technical Support

Brand Name: WitMotion

Choice: yes

Consumption Current: <25mA

Design: Kalman Filtering

Displacement+Speed+Amplitude: Arduino Vibration Sensor

High-concerned chemical: none

Input Voltage: 5V-36V

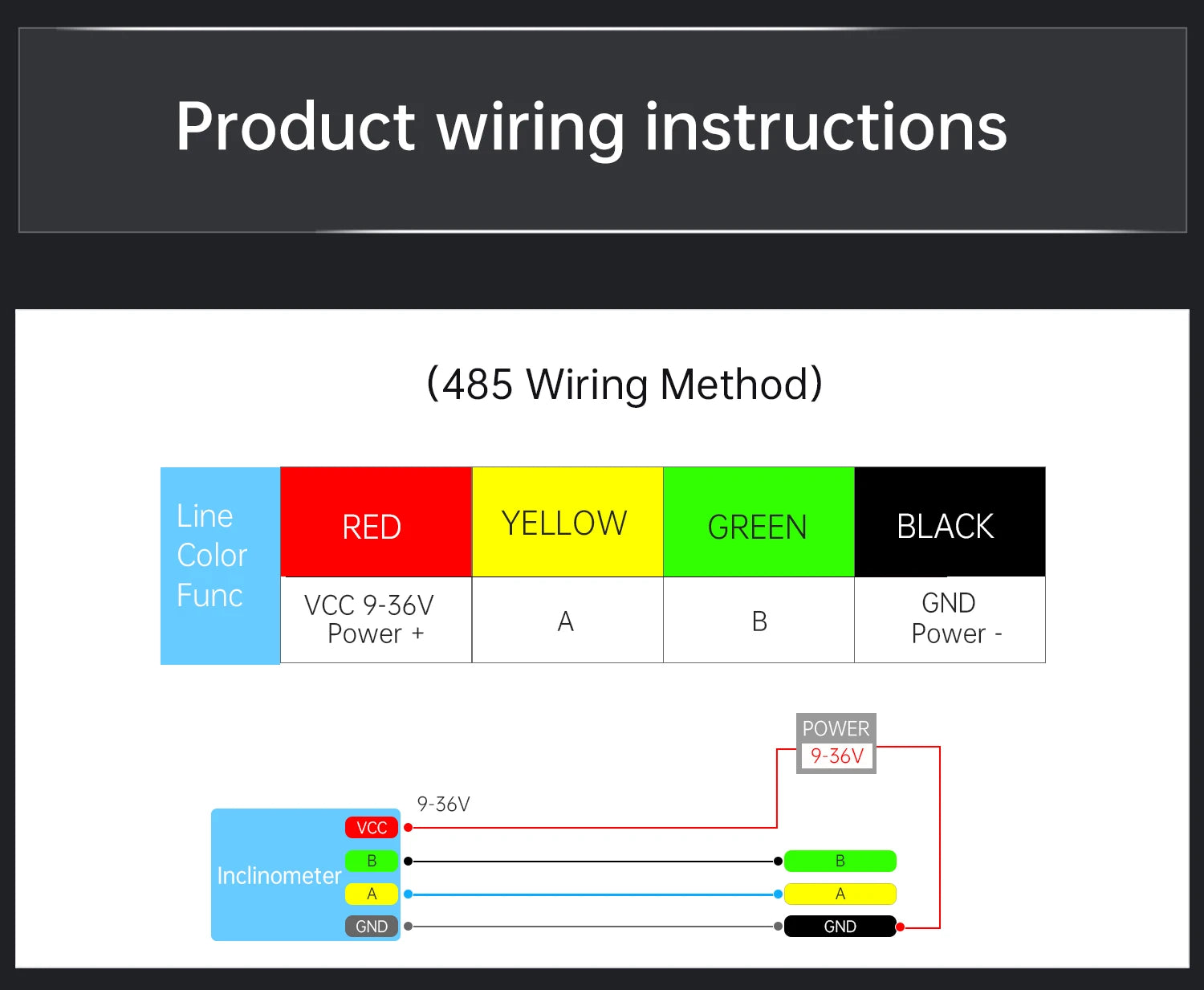

Interface: 485 interface

Measuing: triaxial displacement speed amplitude

Origin: Mainland China

Output: Digital Output

Output Data: triaxial displacement speed amplitude

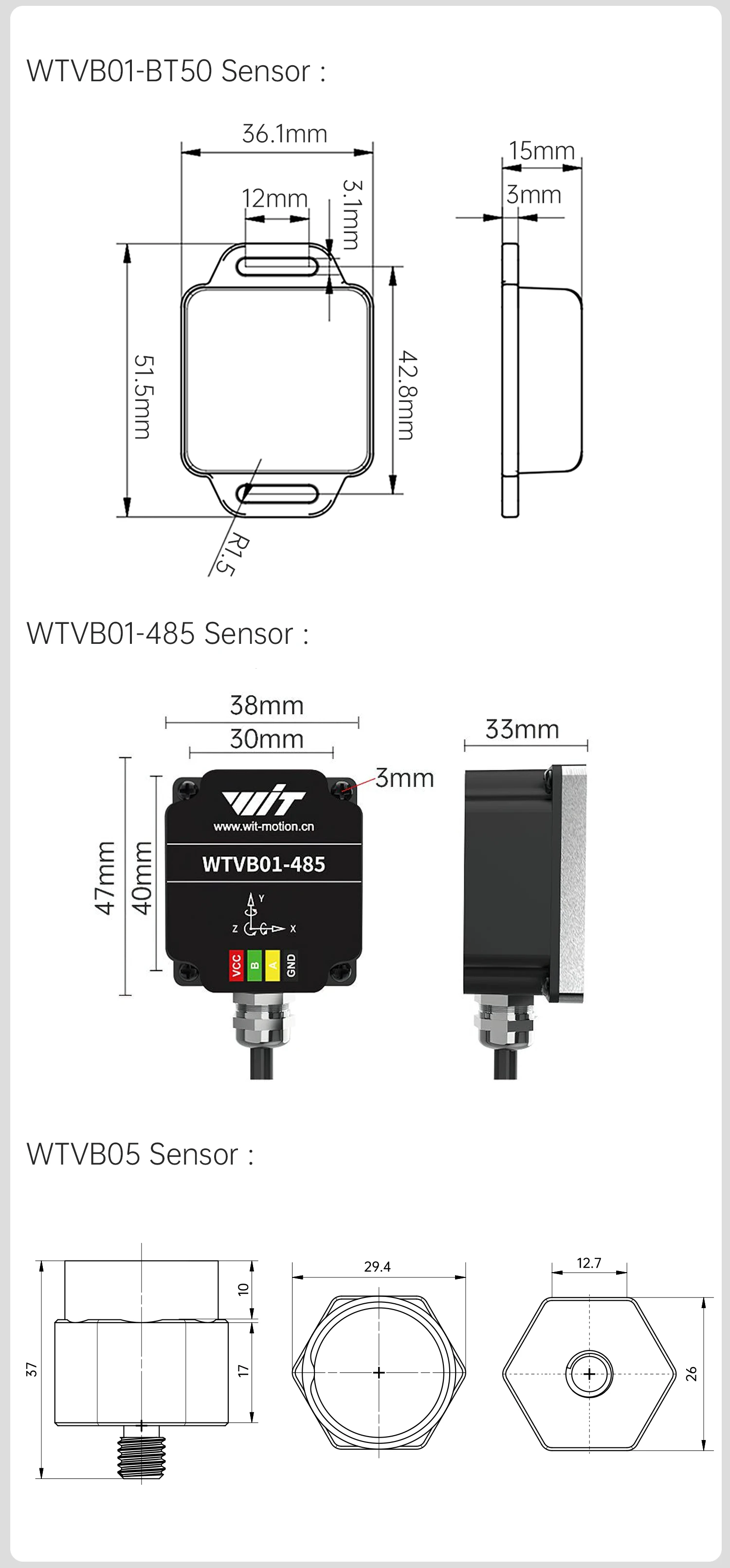

Size: 38*47*33mm

Type: vibration sensor

Use: vibration sensor

WTVB01-485 Vibration Sensor: WTVB02-485 Vibration Sensor

is_customized: Yes

semi_Choice: yes

triaxial displacement speed Sensor: amplitude amplitude vibration sensor

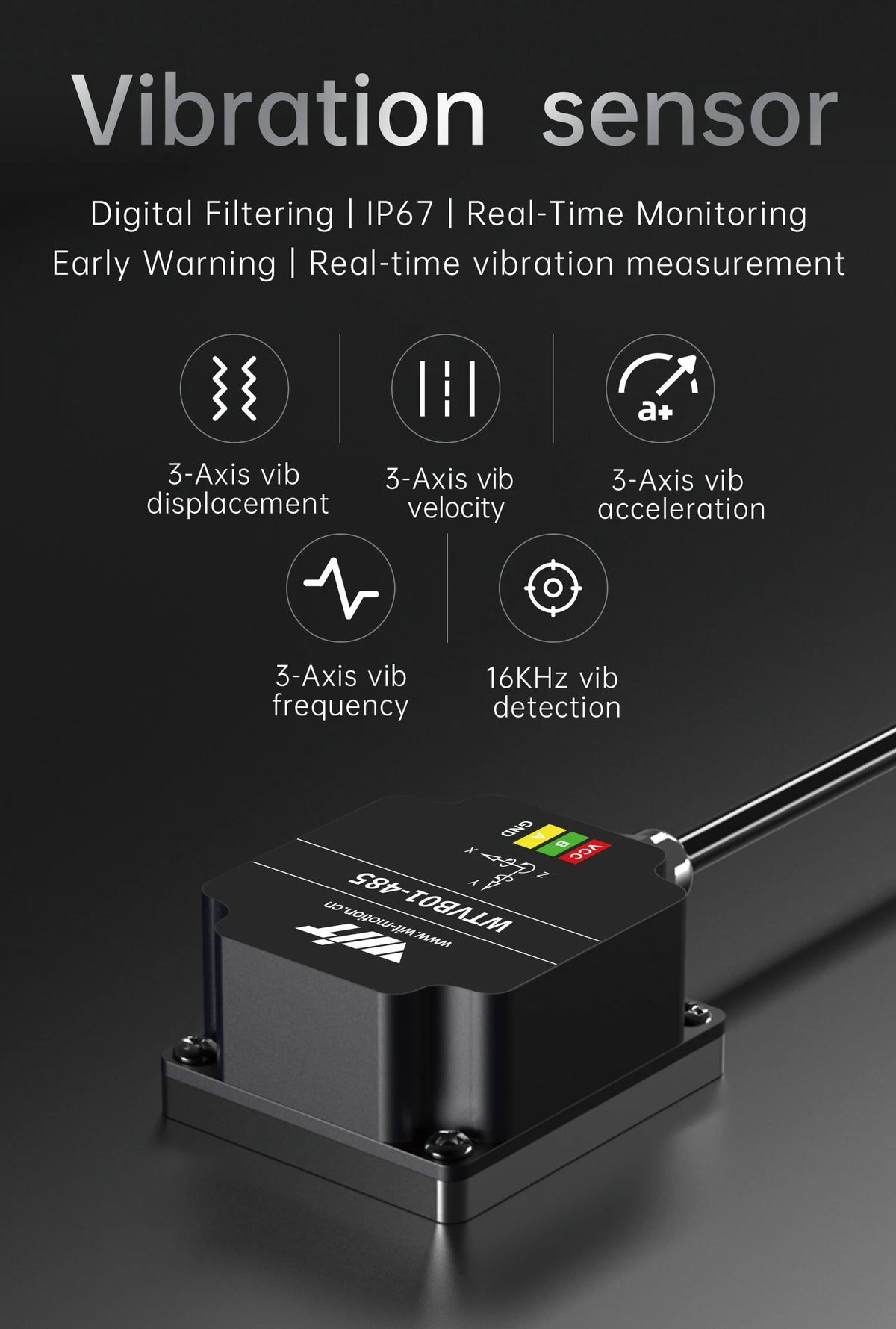

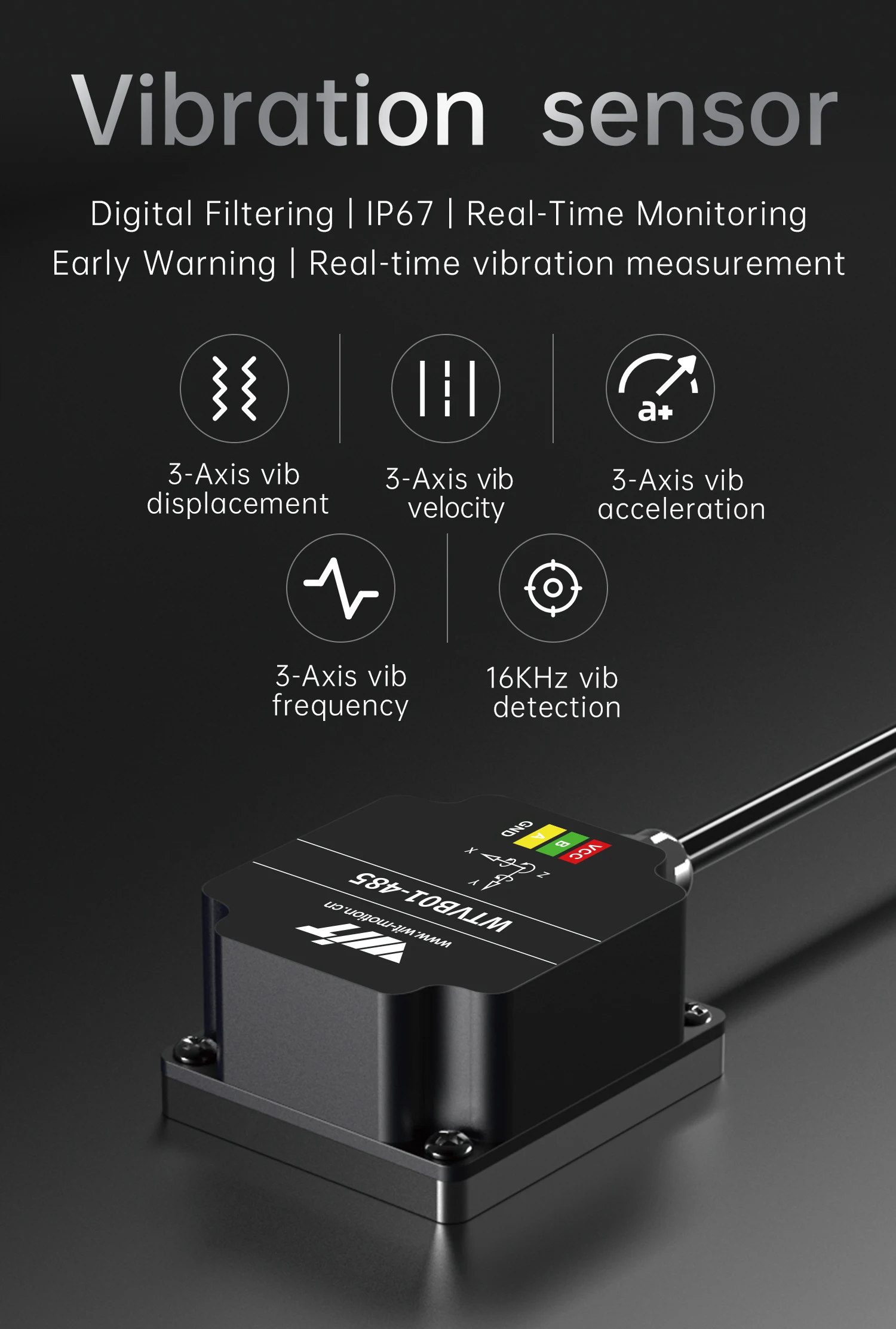

Vibration Monitoring Sensor Product Information

This series of vibration monitoring sensors uses advanced high-performance "MEMS" chips, deeply integrates cutting-edge embedded technologies, and carefully creates a high-precision, low-power, and excellent anti-interference composite vibration monitoring solution, which is perfectly adapted to the complex and changeable vibration monitoring environment. Whether it is heavy machinery in industrial production or the operation monitoring of precision instruments, it can be easily handled to ensure accurate data acquisition and reliable transmission.

Product features

All-round measurement, no dead angle coverage:

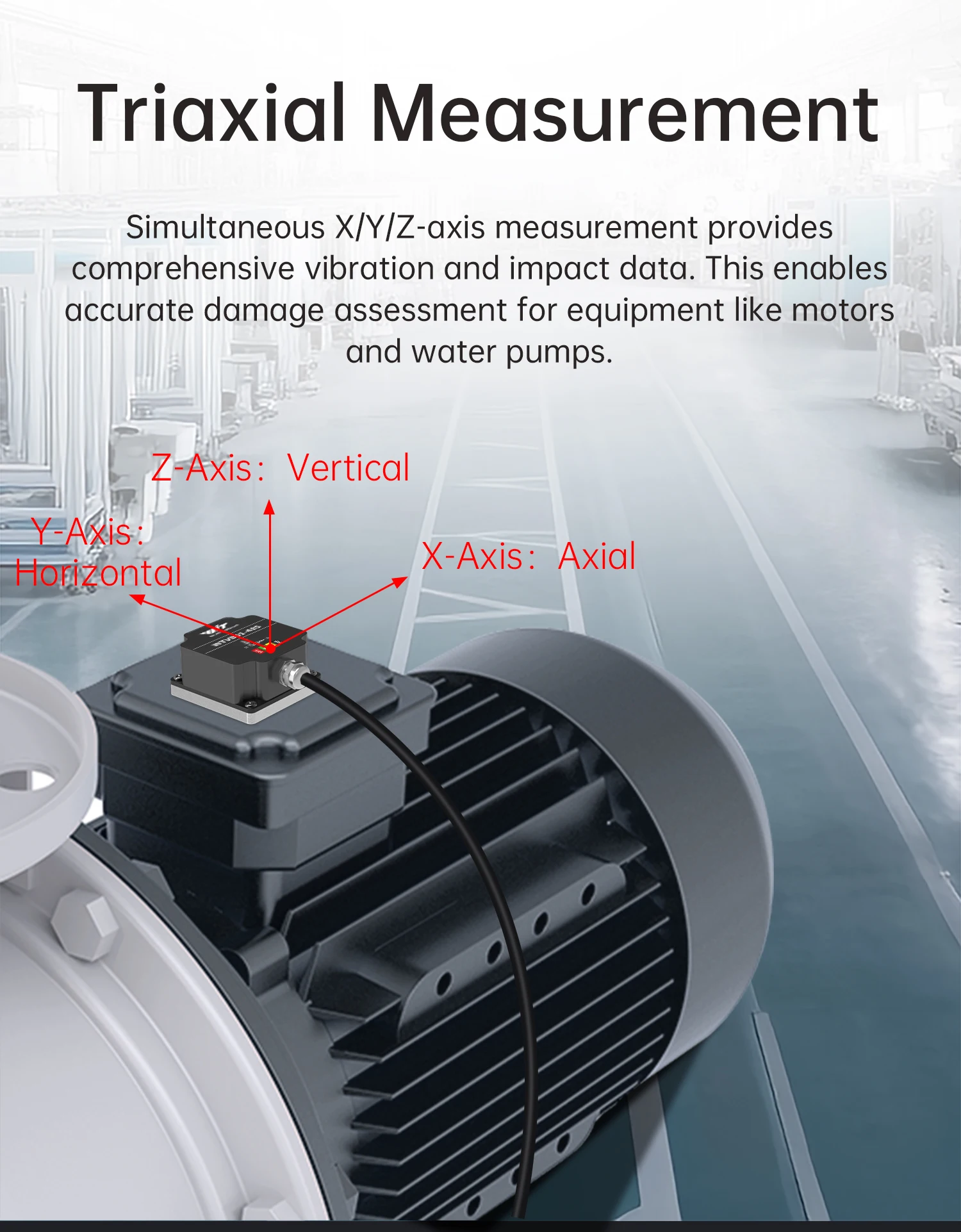

Supports high-precision measurement of X, Y, and Z axes simultaneously, covering key parameters such as vibration speed, acceleration, angular velocity, angle, displacement, and frequency. This comprehensive measurement capability can meet users' needs for full-dimensional monitoring of vibration and shock. For example, by monitoring vibration speed (0-50mm/s to 0-30000mm/s, depending on the model), abnormal fluctuations in equipment operation can be detected in time; vibration acceleration (± 16G) monitoring helps to determine whether the equipment withstands excessive impact. The comprehensive analysis of these parameters can accurately determine the operating status of motors, pumps, and other equipment, detect whether there are signs of damage in advance, and provide a scientific basis for the maintenance and maintenance of equipment.

Specifications:

Measuring Capabilities: Triaxial displacement speed amplitude

Output Data: Triaxial displacement speed amplitude

Consumption Current: <25mA

Interface: 485 interface

Usage: Vibration Sensor

Output: Digital Output

Customization: Yes

Features:

**Advanced Vibration Monitoring**

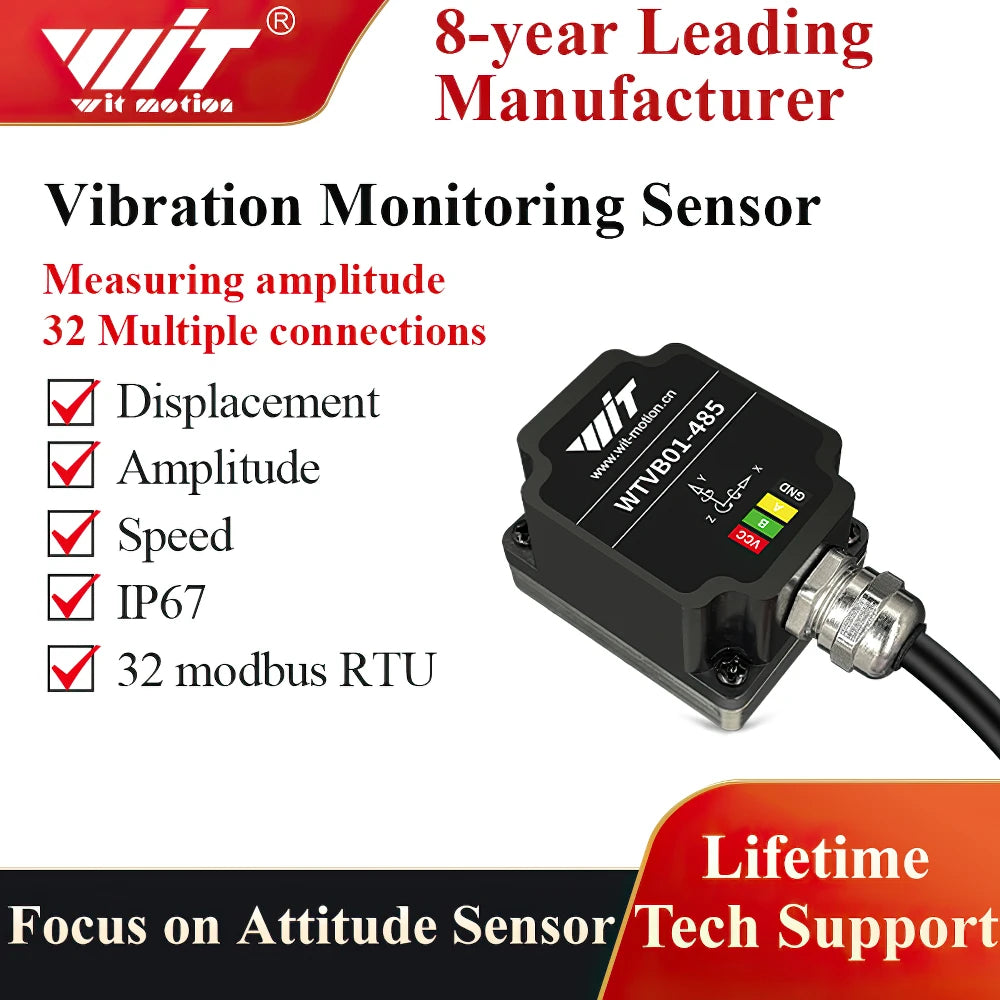

The WitMotion WTVB01-485 triaxial displacement speed amplitude sensor is a cutting-edge solution for vibration monitoring in a variety of applications. Designed for precision, this sensor is capable of measuring triaxial displacement speed amplitude, providing valuable data for engineers and technicians to assess the health and performance of their equipment. With a consumption current of less than 25mA, it ensures efficient operation without draining power resources. The sensor's 485 interface ensures compatibility with a wide range of data acquisition systems, making it a versatile tool for monitoring vibrations in motors, pumps, and other machinery.

High precision and reliability, with guaranteed quality:

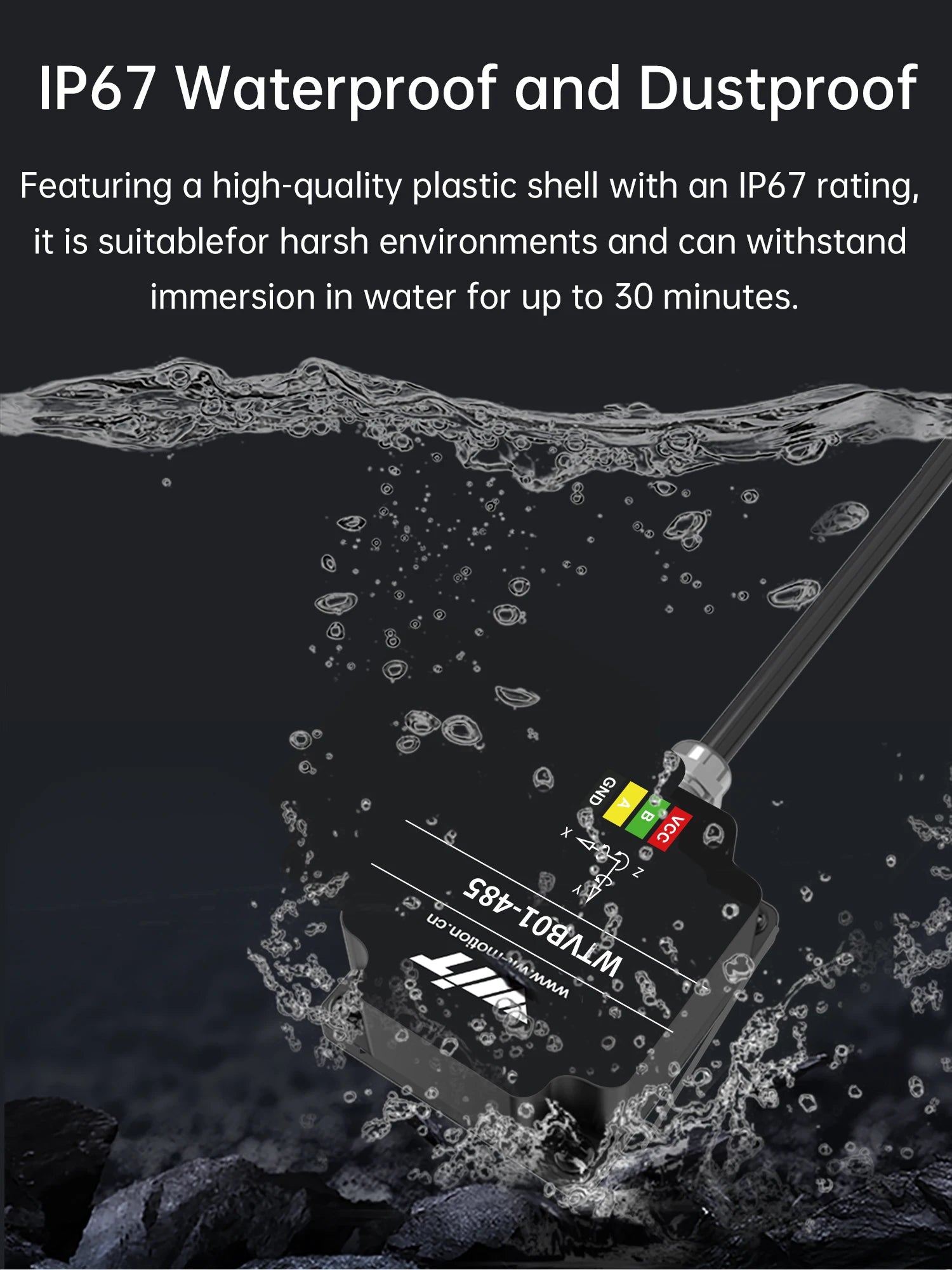

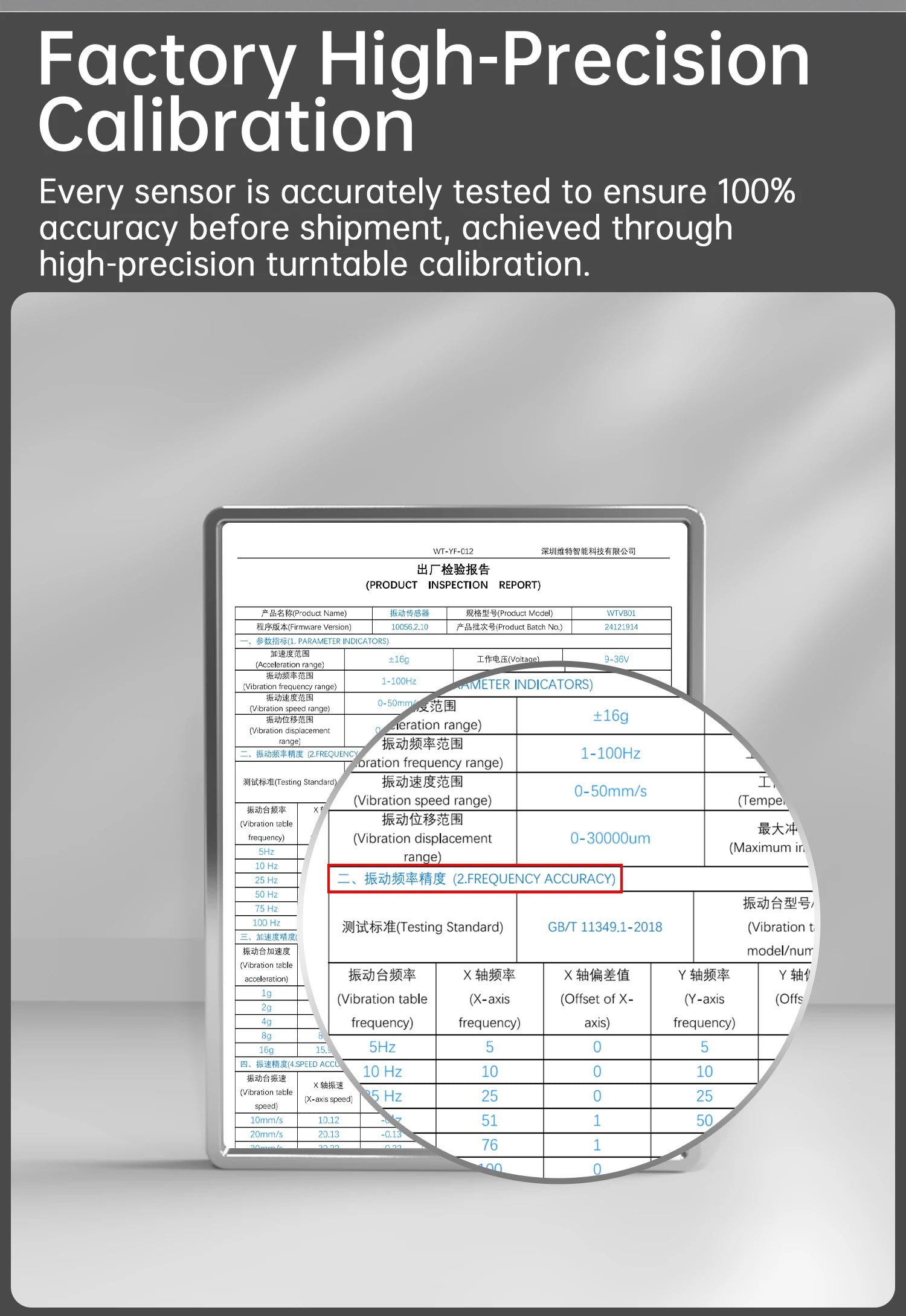

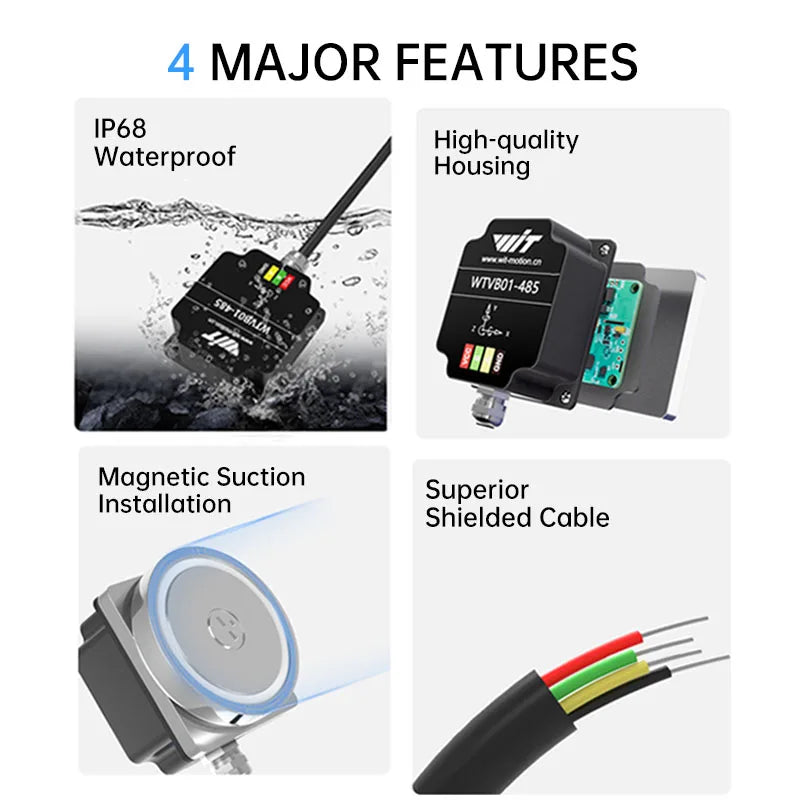

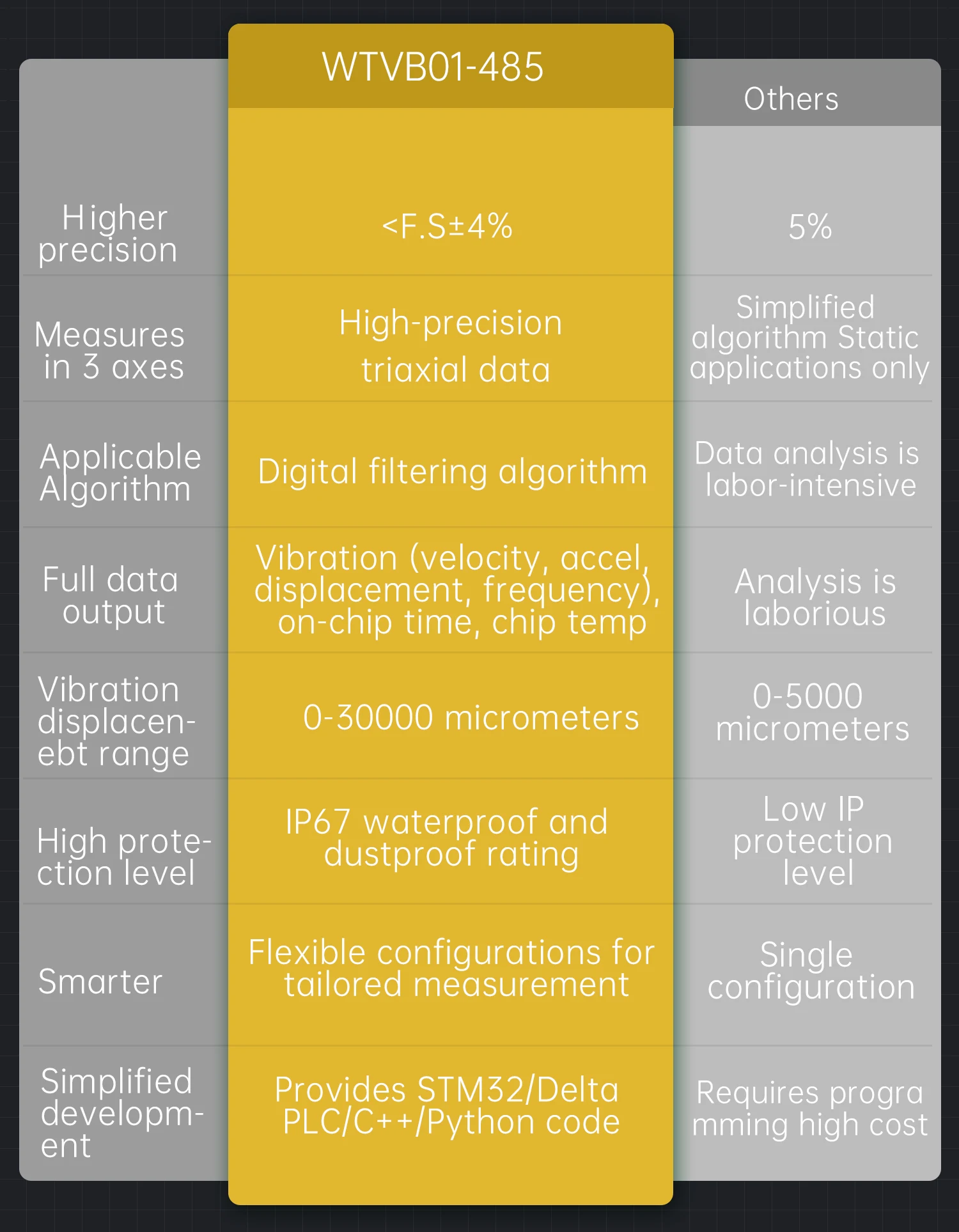

Measurement accuracy is better than < F.S ± 5% (some models such as WT - VB02 can reach ± 4%), such a high accuracy thanks to advanced digital filtering technology, effectively eliminate noise interference, reduce measurement error. At the same time, it has the super characteristics of impact resistance up to 20000g, which can withstand sudden shocks in industrial environments. IP67 waterproof and dustproof design, using high-quality plastic shell, adapt to various harsh testing environments. Whether it is daily splashing, rainy day operation, or short soaking in water (up to 30 minutes), it can ensure the normal operation of the sensor, stable output data, and provide a solid guarantee for long-term reliable monitoring.

**Versatile Application Scenarios**

Whether you're monitoring the performance of a valvetronic servo motor position sensor or seeking to adjust the transmission range sensor in a whirlpool washer, the WitMotion sensor is an indispensable tool. It's also ideal for detecting earth vibrational frequencies, ensuring the stability and safety of structures. The sensor's digital output format makes it easy to integrate with existing monitoring systems, and its customization options allow for tailored solutions to meet specific requirements.

**Reliable and User-Friendly Design**

The WitMotion WTVB01-485 triaxial displacement speed amplitude sensor is not only a reliable piece of equipment but also a user-friendly one. Its compact design and lightweight construction make it easy to install in various settings, while its robust construction ensures long-term performance. The sensor's ability to measure vibrations accurately and consistently makes it a valuable asset for professionals in industries such as automotive, aerospace, and manufacturing. With its dualbrite motion sensor capabilities, it can detect even the slightest vibrations, providing real-time data for preventive maintenance and troubleshooting.

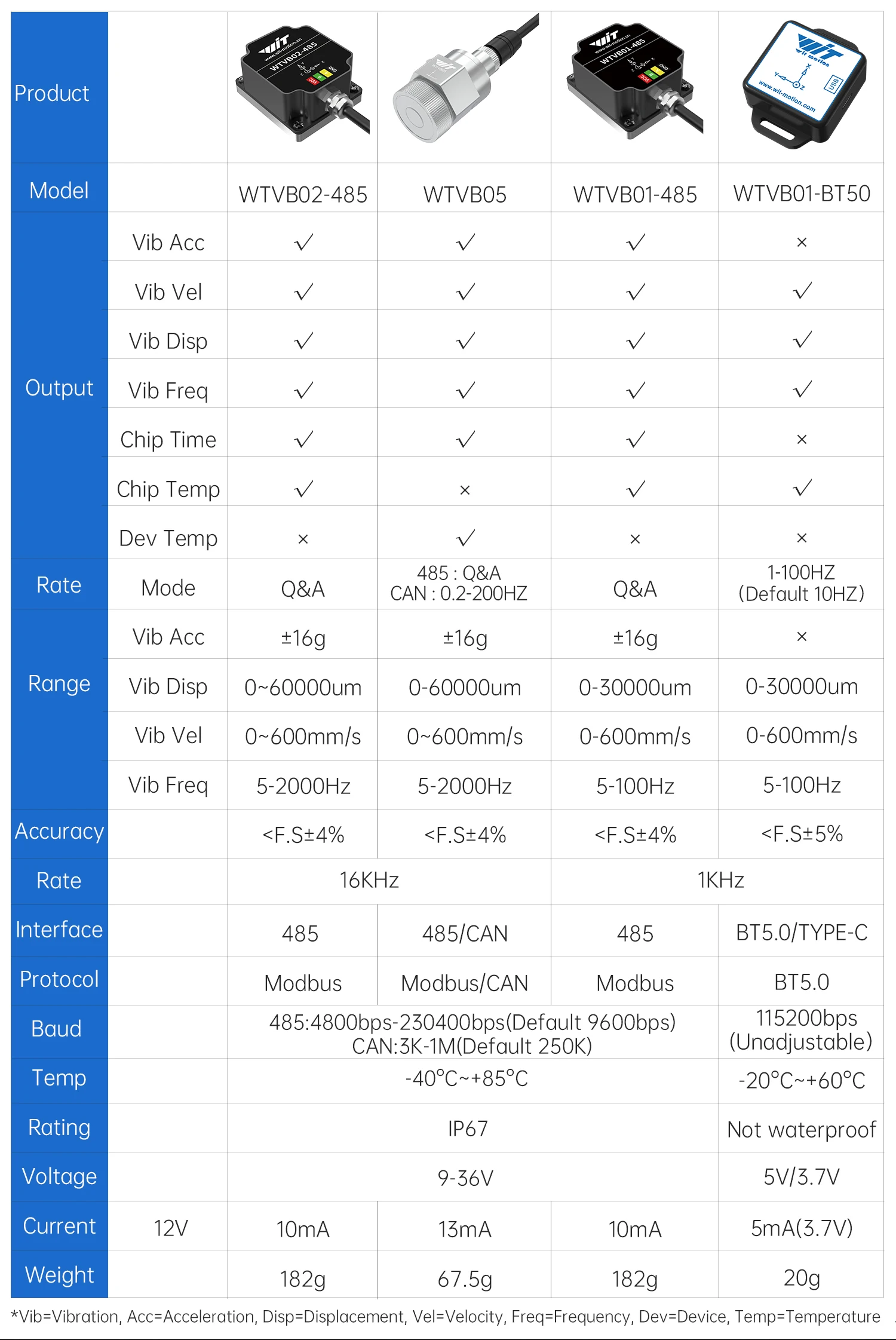

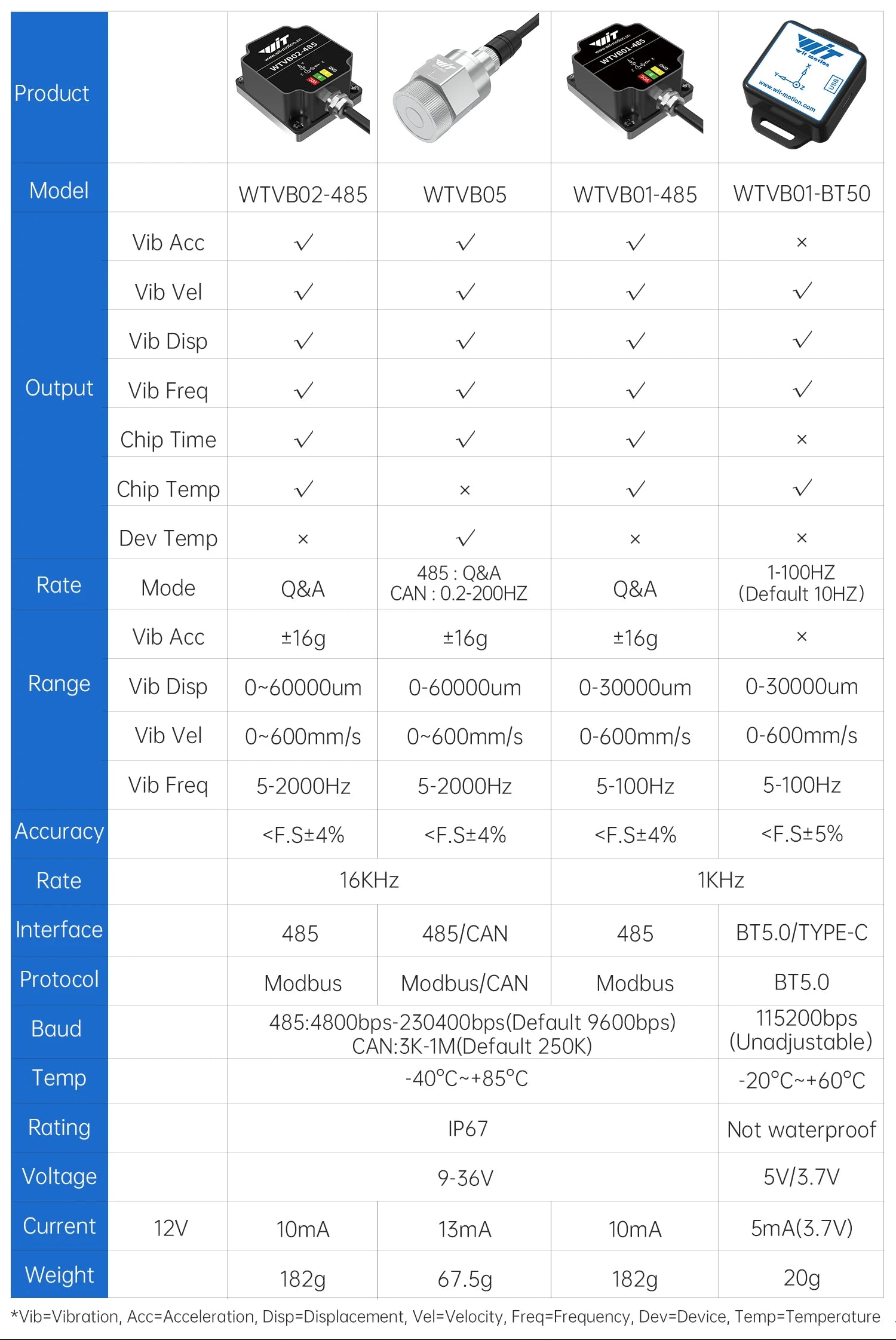

A variety of models are suitable to meet diverse needs.

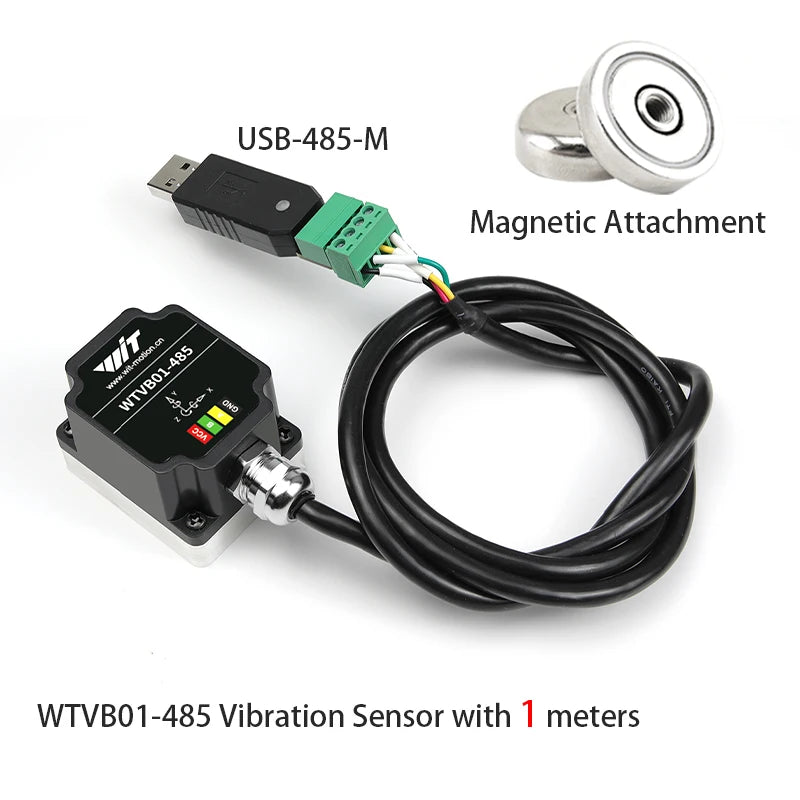

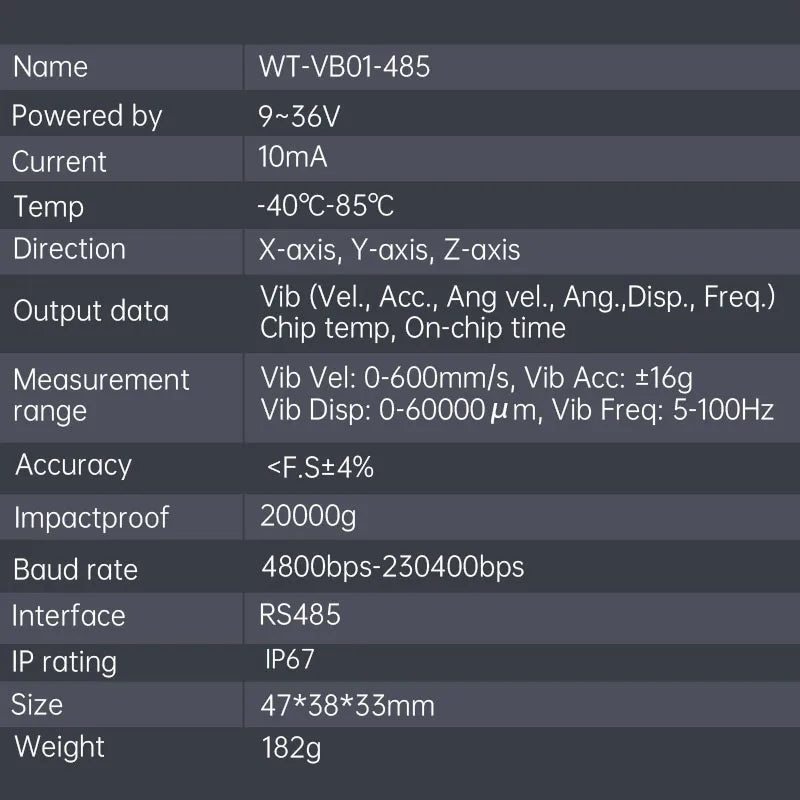

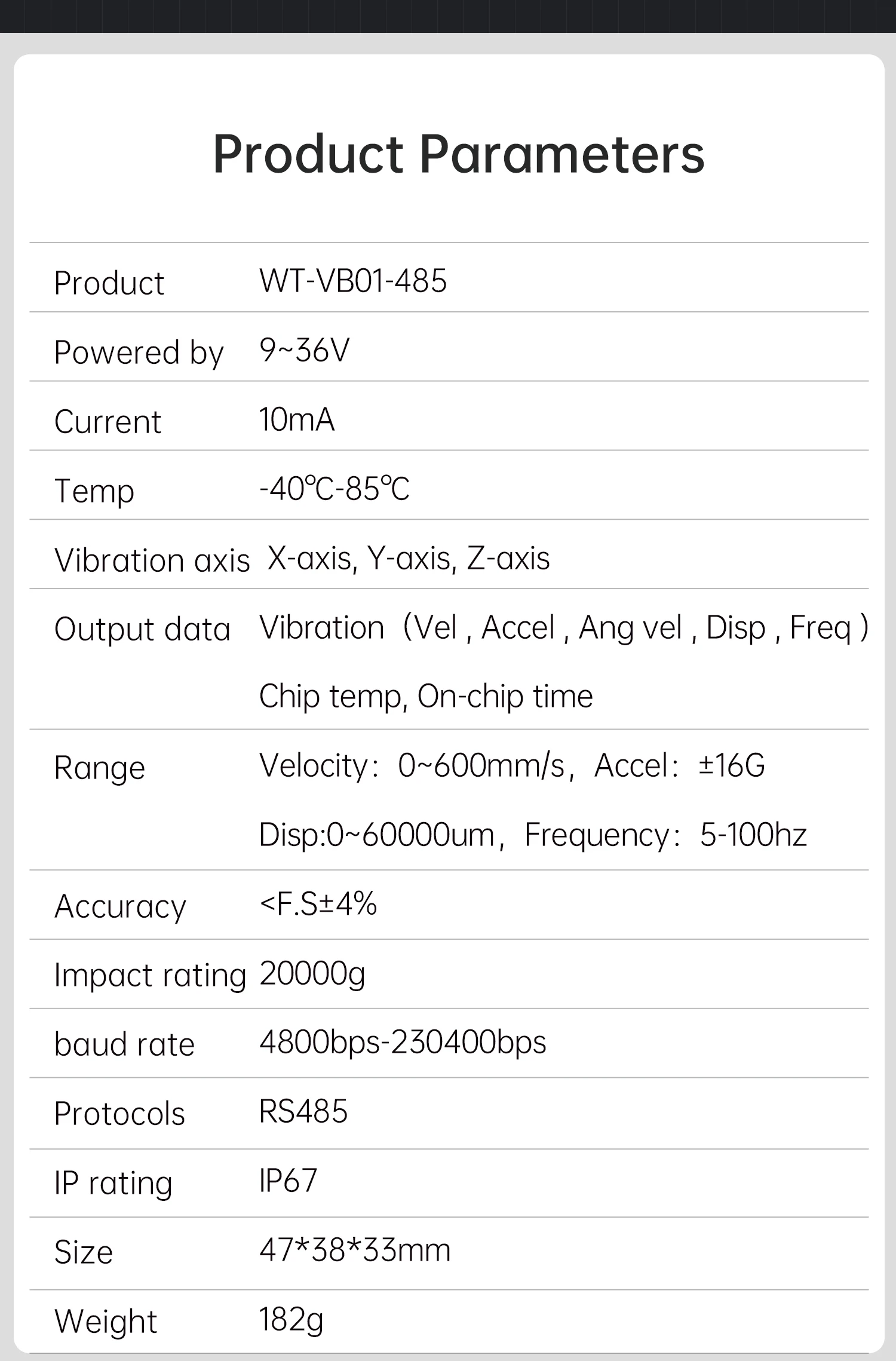

WT - VB01 - 485: Power supply range is 5 - 36V, using RS485 communication mode, output parameters are rich, including vibration speed (0 - 50mm/s), acceleration (± 16G), angular velocity (± 2000 °/s), angle (0 - 180 °), displacement (0 - 30000um), frequency (1 - 100Hz), etc., accuracy < F. S ± 5%, suitable for industrial scenarios that require communication distance and stability, such as equipment cluster monitoring in large factories.

WT-VB01: Default 12V power supply, output includes multi-dimensional data such as speed, acceleration, angular velocity, angle, displacement, frequency, etc., cutoff frequency 1-100Hz (default 100Hz), sampling rate 1KHz, suitable for equipment vibration monitoring in conventional industrial environments, capable of real-time feedback on equipment operation status.

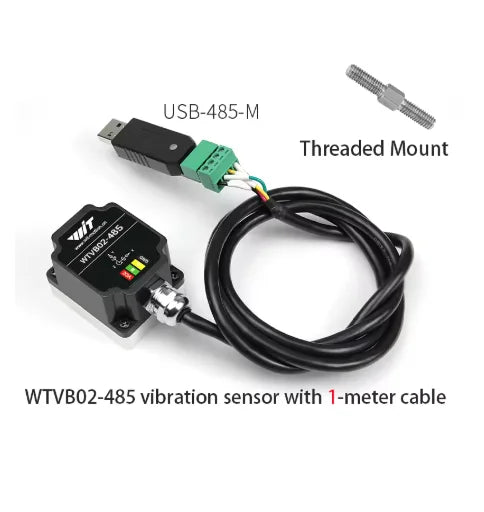

WT-VB02: output vibration speed (0 - 100mm/s), acceleration (± 16G), displacement (0 - 30000um), frequency (1 - 2000Hz), accuracy < FS ± 4%, sampling rate increased to 16KHz, suitable for high-frequency vibration monitoring scenarios, such as vibration analysis of high-speed rotating machinery.

WTVB01E - IOT - LTE/WTVB02E - IOT - LTE: 4G network communication, wireless data transmission, low power consumption design (working 50mA, sleeping 10uA) with 3.6V - 8500mAh battery, upload frequency can be flexibly adjusted in 10 - 1440 minutes, real-time monitoring through cloud platform. This design is especially suitable for remote monitoring scenarios, such as wind turbine vibration monitoring in remote areas, waterproof rating IP67 ensures stable operation in outdoor harsh environments.

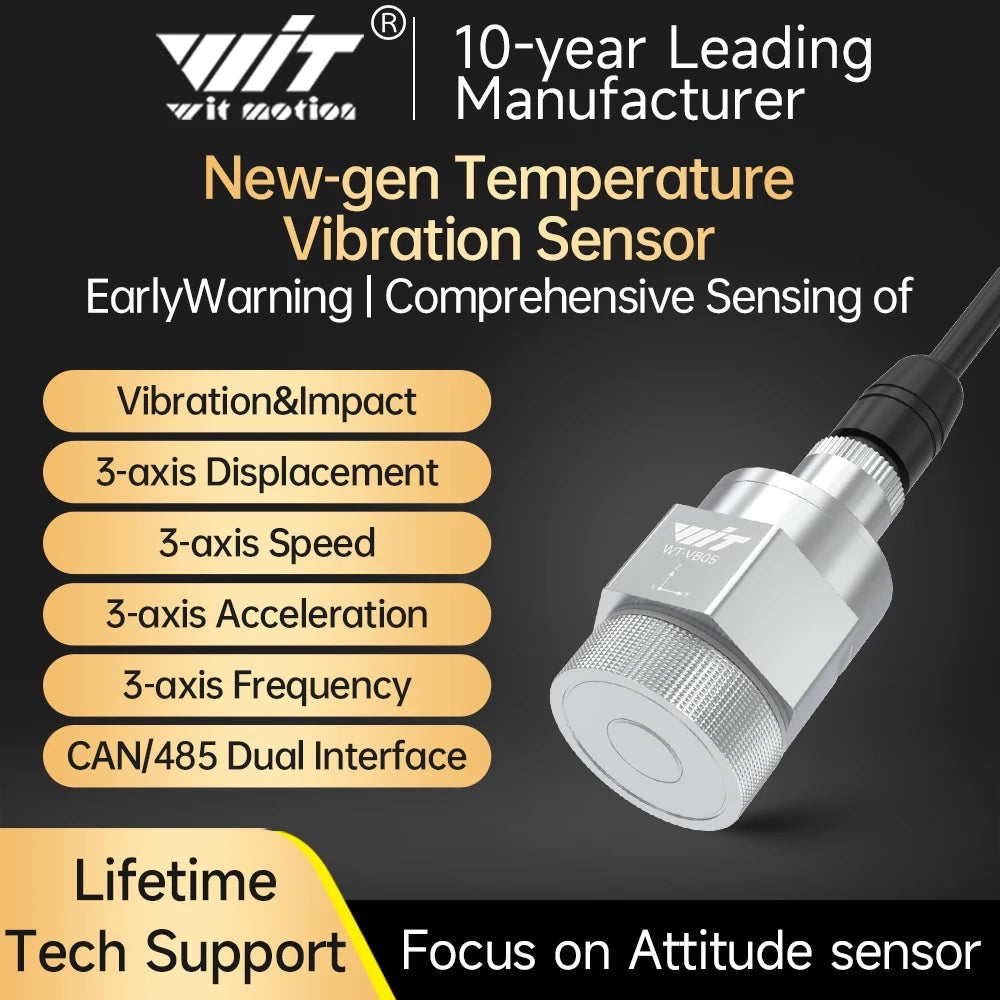

WTVB05 - 485/CAN: Support 485/CAN dual interface, vibration speed range extended to 0 - 30000mm/s, temperature measurement range - 20 ° C - 85 ° C, output rate high-speed mode up to 1000Hz. The dual interface design makes it flexible to adapt to different industrial control systems, suitable for occasions with special requirements for communication interfaces, such as equipment monitoring on automobile production lines.

Easy development and configuration:

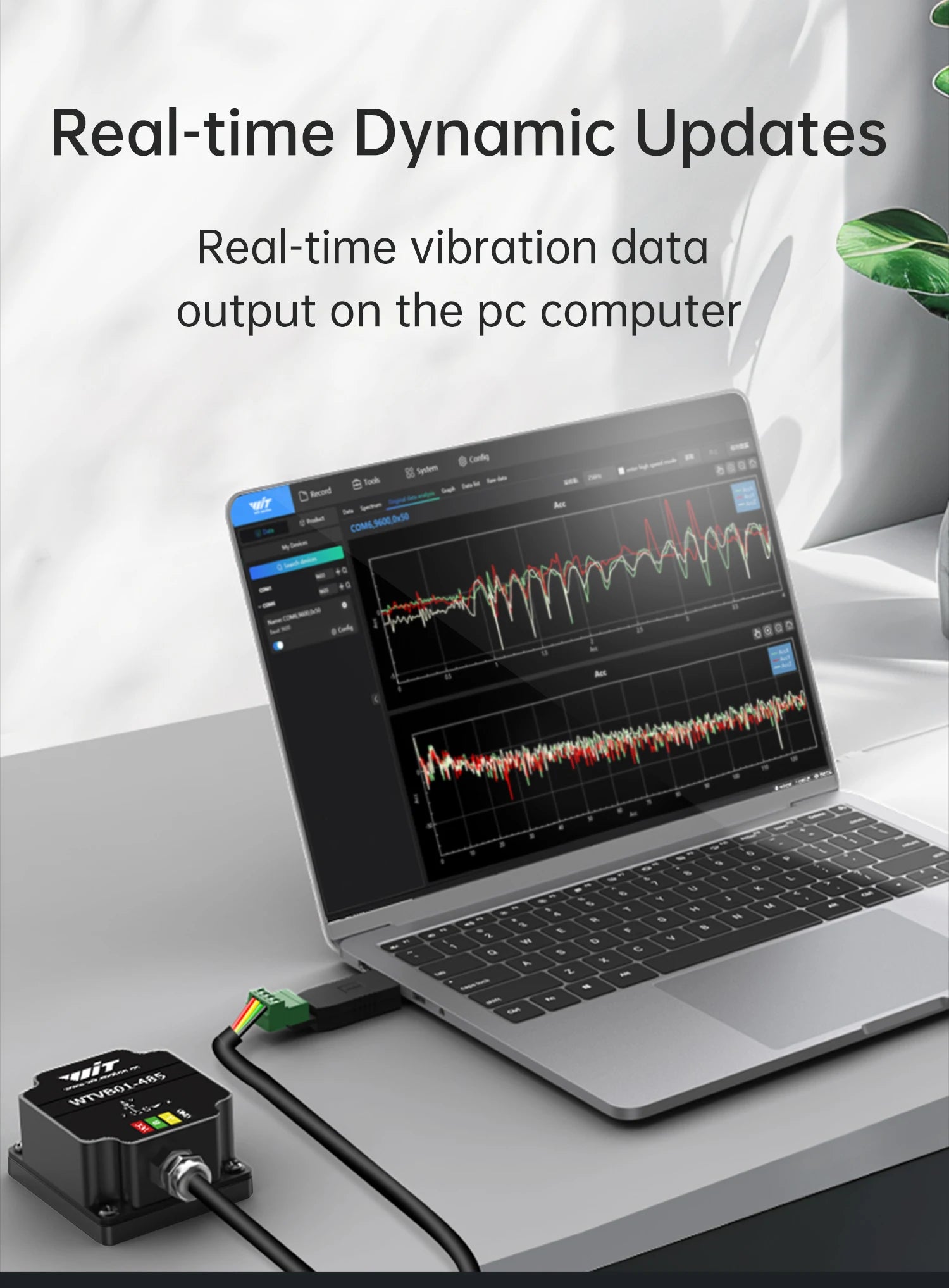

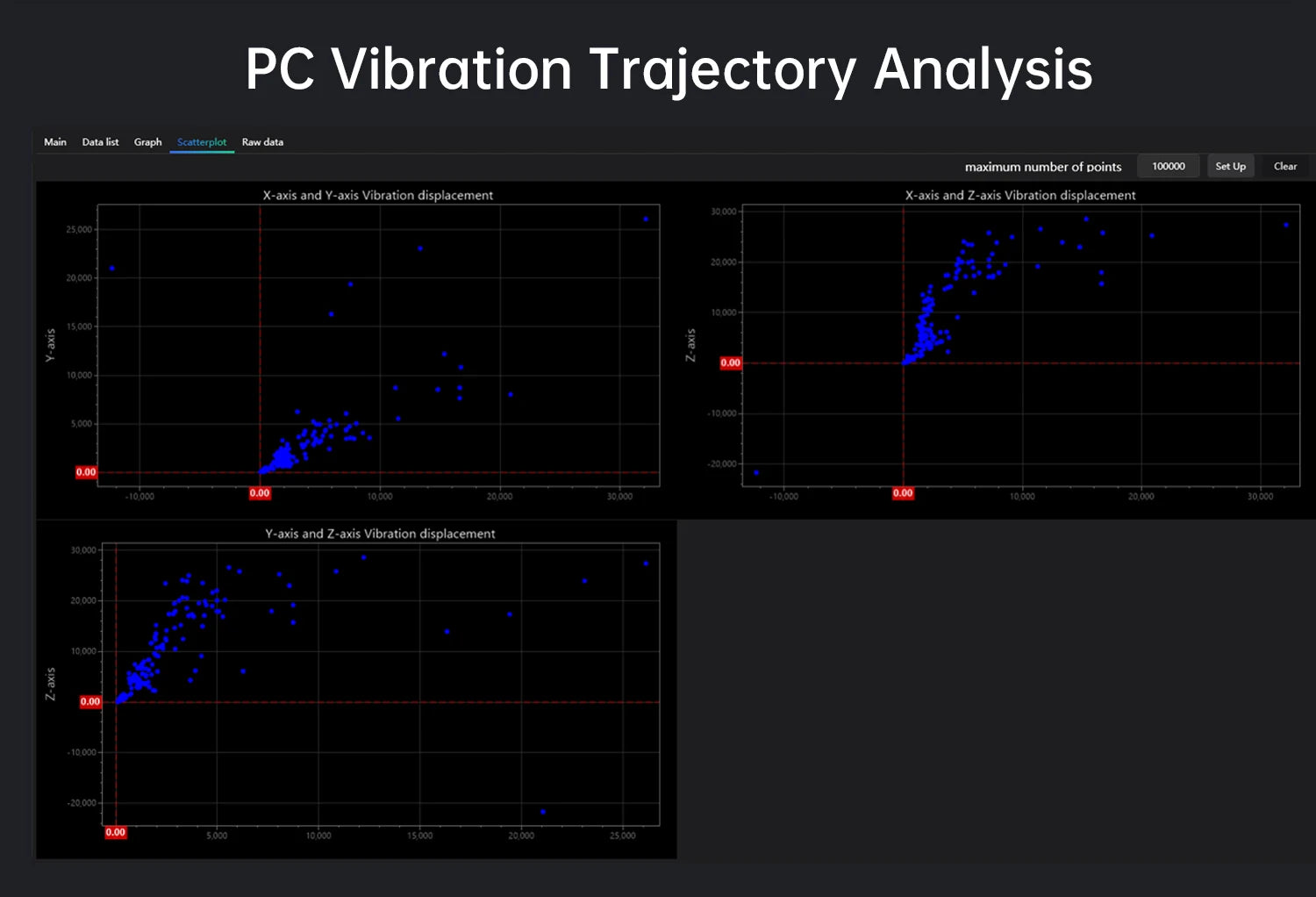

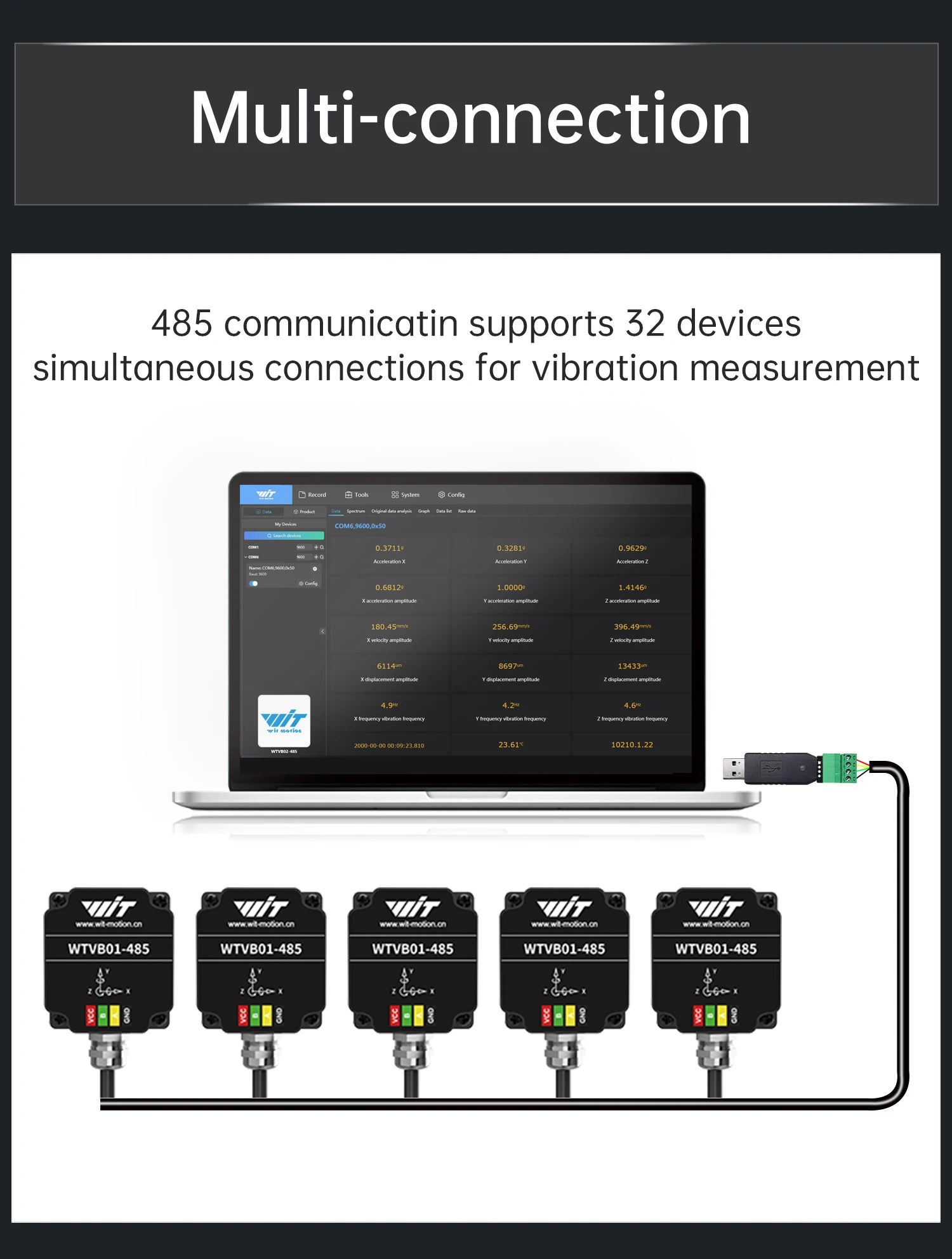

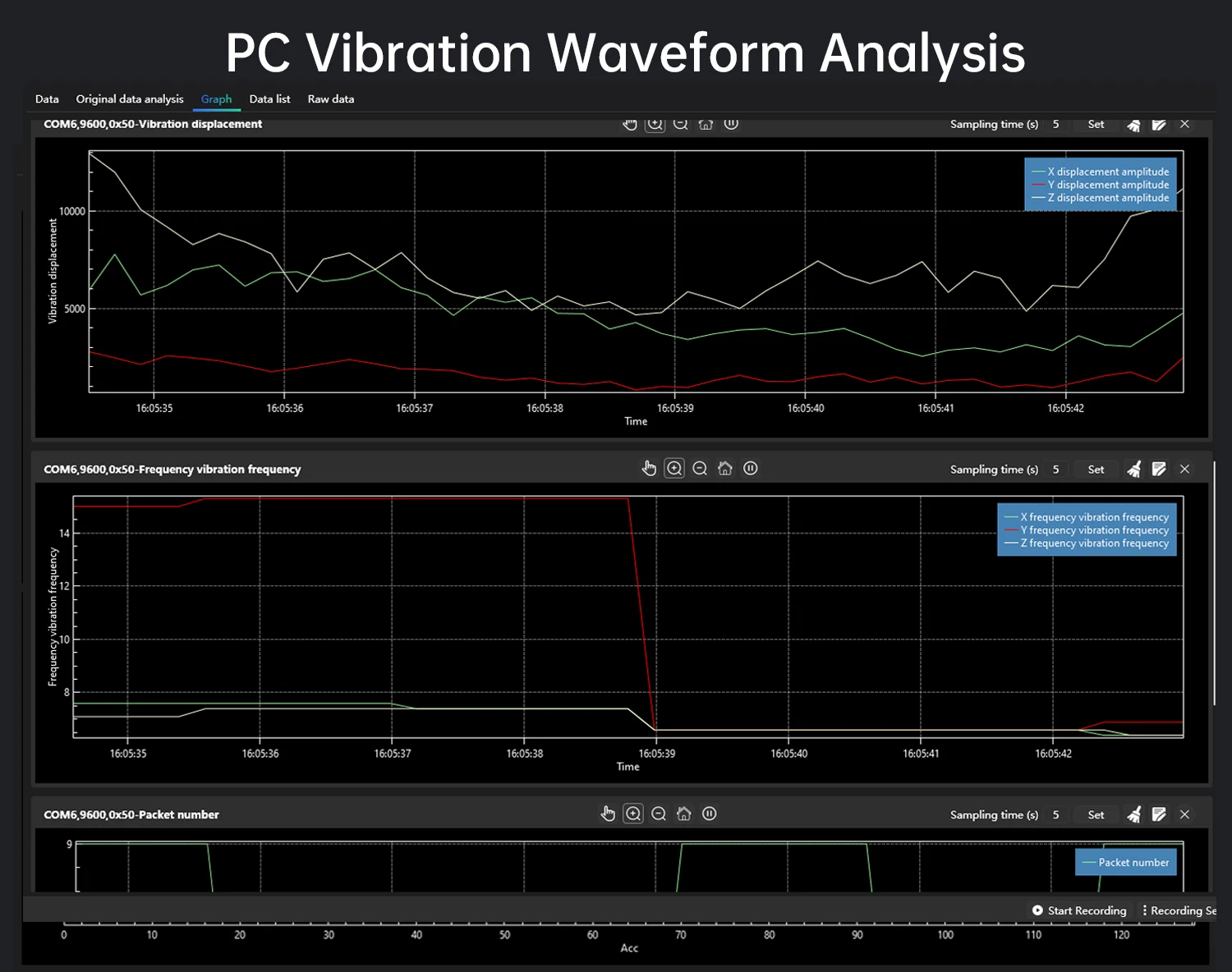

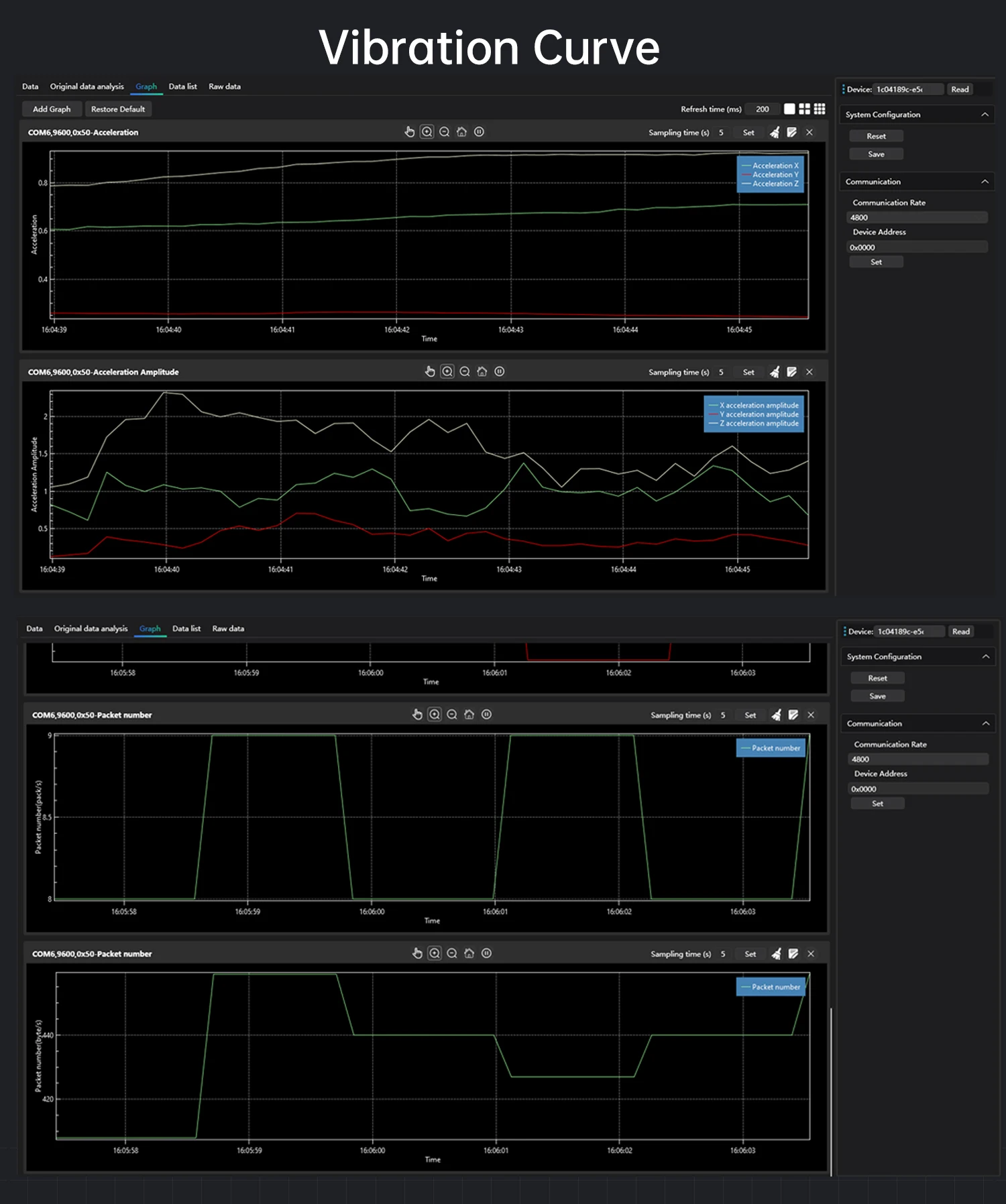

Support STM32, Delta PLC, C++, Python and other development environments, whether professional software developers or industrial automation engineers, can quickly get started. A variety of configuration options meet personalized measurement needs, users can flexibly adjust parameters according to actual application scenarios. The host computer dynamically updates vibration data in real time, which is convenient for remote monitoring and management, greatly shortens the project development cycle and reduces integration costs.

application value

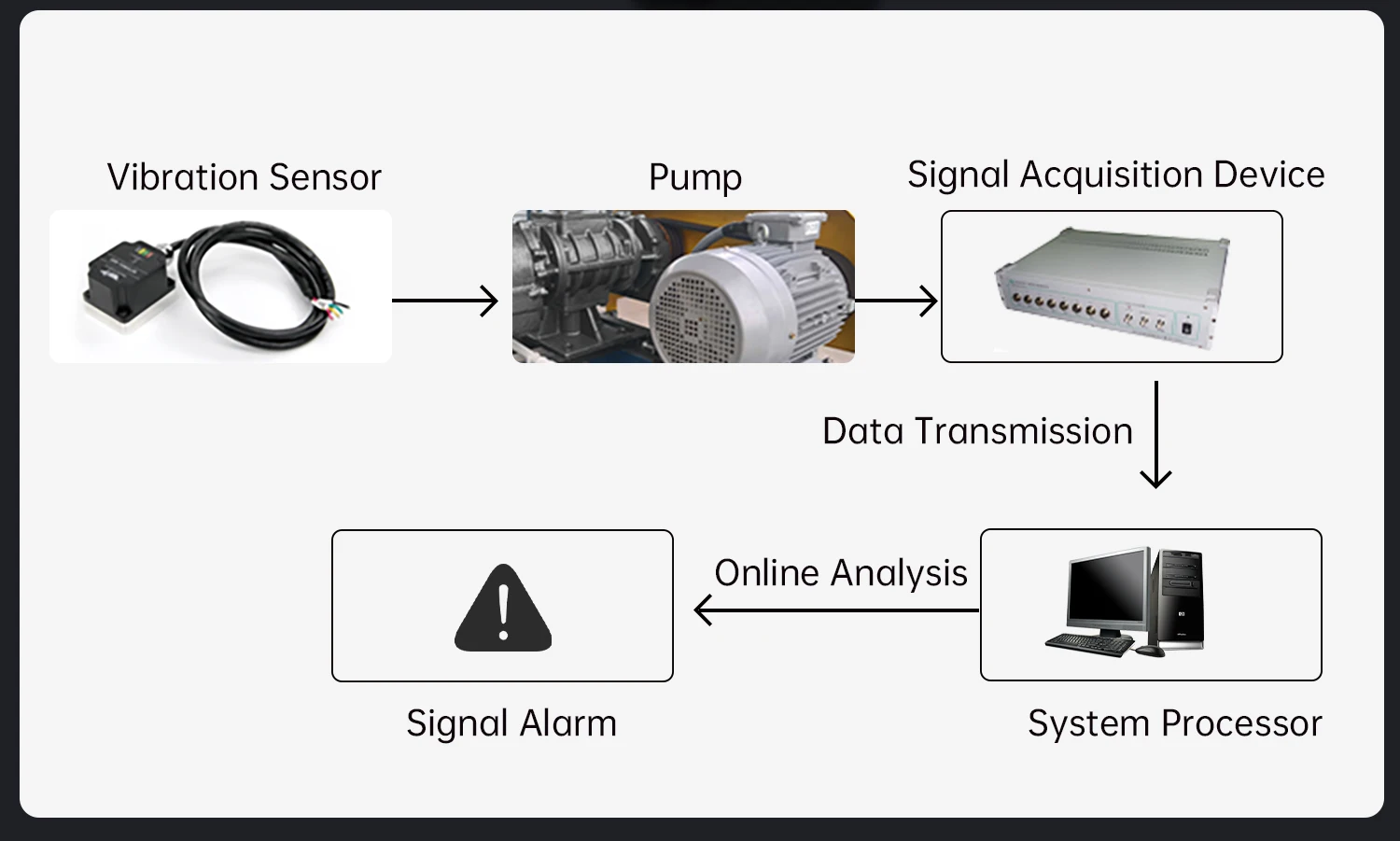

Through real-time and accurate monitoring of vibration data, this series of sensors can help users detect abnormal conditions in equipment operation in a timely manner. For example, in factory production, abnormal vibrations of motors can be detected in advance to avoid production stagnation due to equipment failure. In the energy industry, vibration monitoring of pumps can effectively reduce vibration amplitude and frequency, prolong equipment life, and reduce maintenance costs. Avoid serious damage caused by continuous operation of machines in poor conditions, thereby significantly reducing economic losses. It is widely used in industrial equipment monitoring, mechanical failure warning, bridge health monitoring, building structure vibration analysis, and other scenarios, providing strong support for the safe operation and preventive maintenance of equipment in various industries.

This series of vibration monitoring sensors provides an efficient, reliable and flexible solution for the vibration monitoring field with its accurate monitoring ability, excellent protection level, rich model selection and convenient development configuration, helping various industries to improve the level of Facility Management and ensure production safety and stability.
