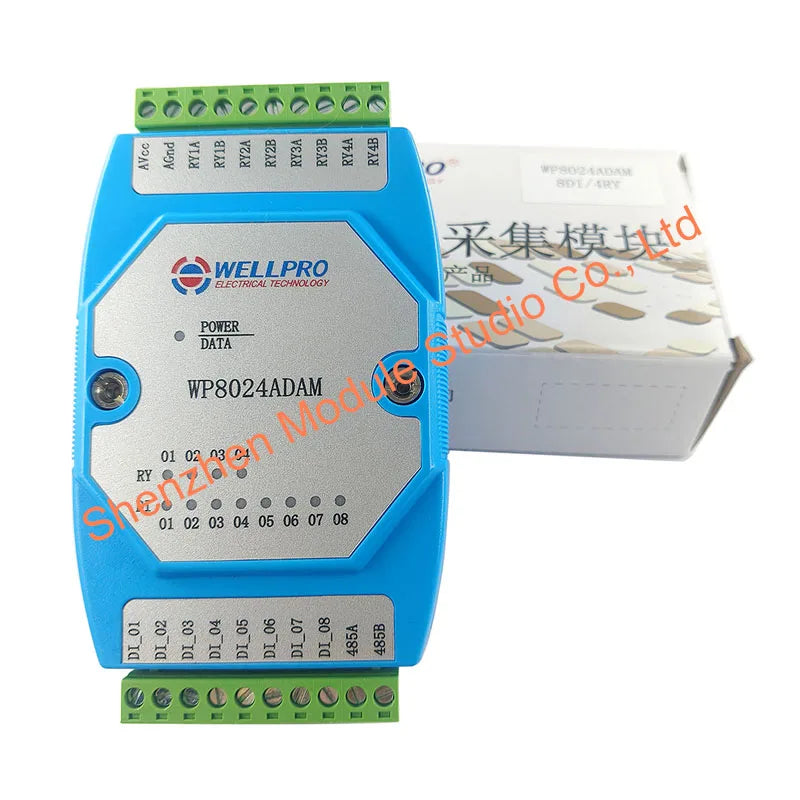

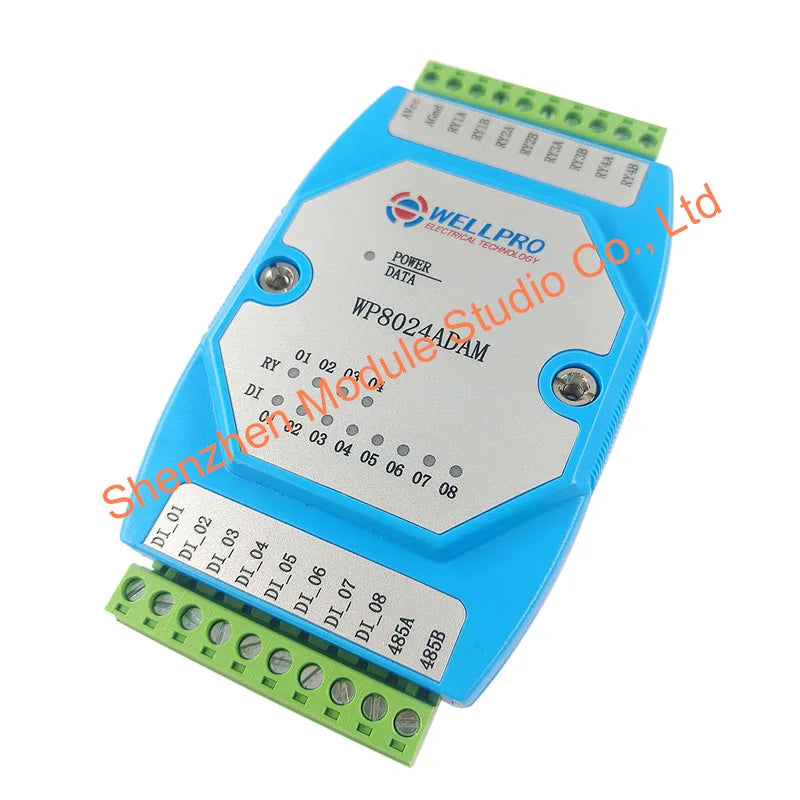

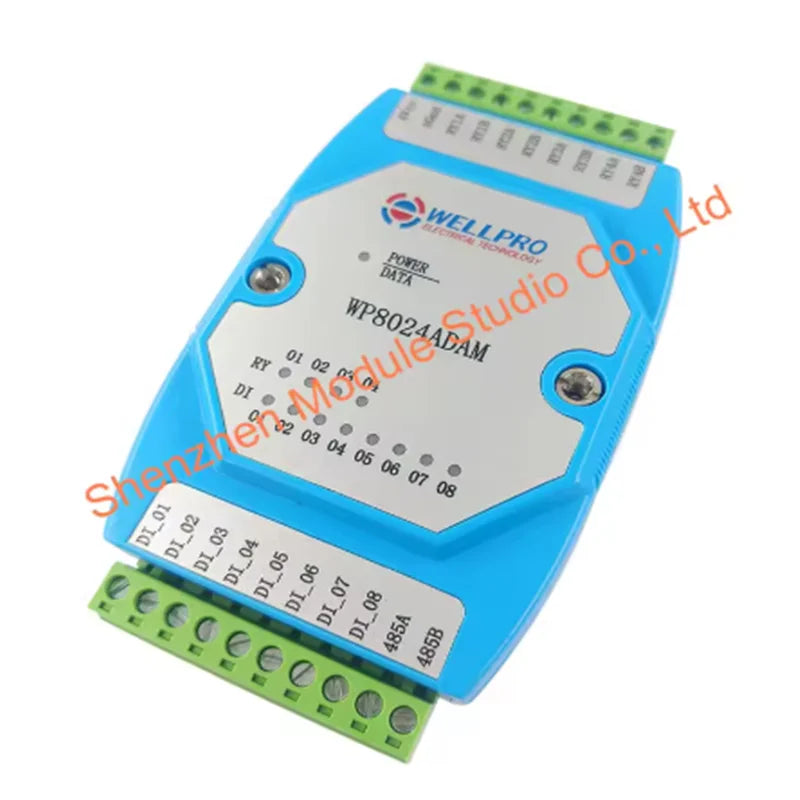

WP8024ADAM 8DI 4RO Digital Input and Relay Output Modules Optocoupler Isolated RS485 MODBUS RTU Communications

WP8024ADAM 8DI 4RO Digital Input and Relay Output Modules Optocoupler Isolated RS485 MODBUS RTU Communications

$127.72

$127.72 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

is_customized: Yes

Product details:

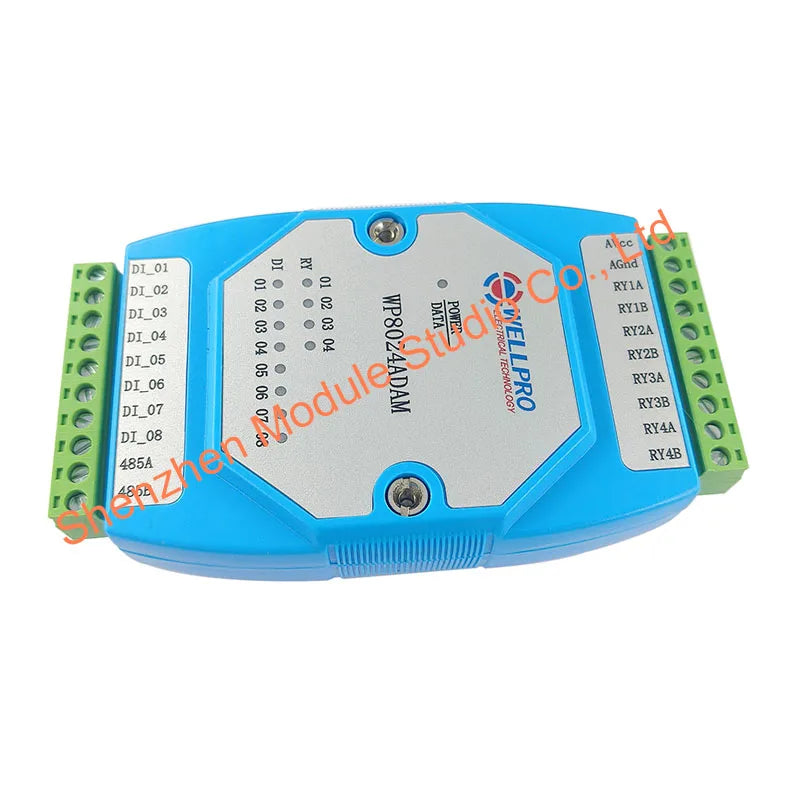

WP8024ADAM 8DI 4RO Digital input and Relay output modules Optocoupler isolated RS485 MODBUS RTU communications

1.Product description

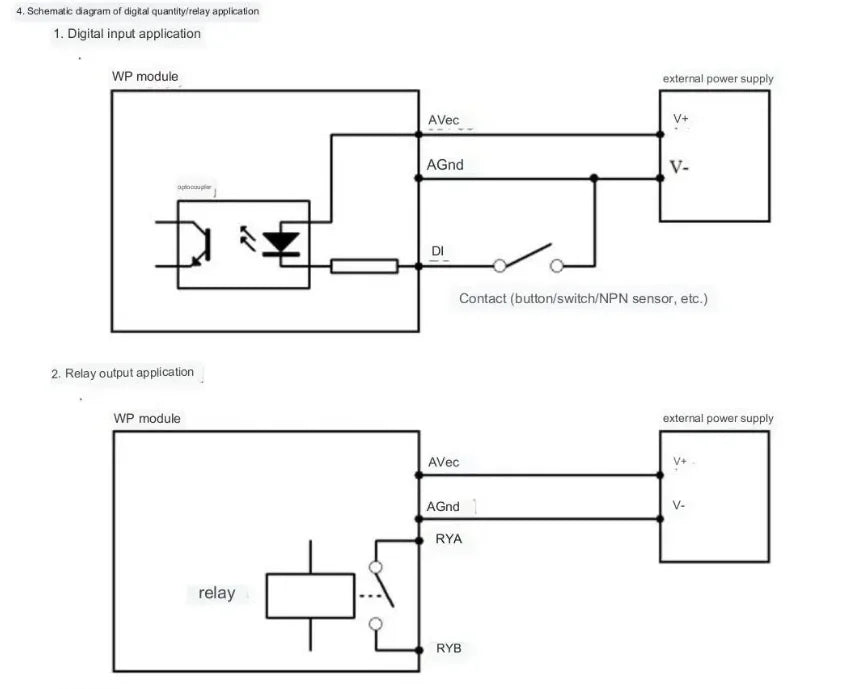

Eight optoelectronic isolation digital input channel (Low level input)

Four relay output channel (SPST)

RS485 MODBUS RTU standard communication protocol

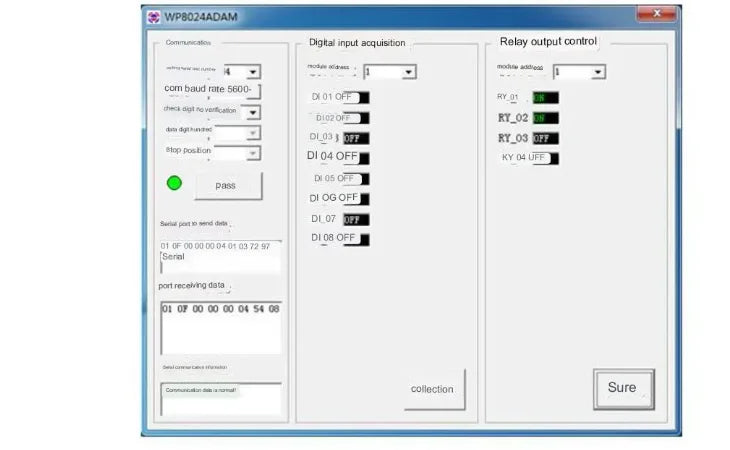

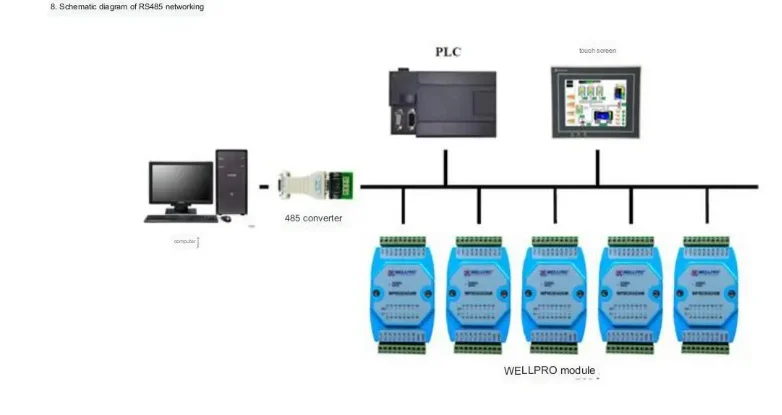

Netted with configuration software, PLC or industry touch panel

Communication, digital input and digital output status LED

Communication circuit designed for thunder protection and interference immunity

Used for signal collection and control in industrial field

2.Specification

Digital input channel 8ch (Low level input)

Relay output channel 4ch (SPST)

Relay contact capacity 2A/250VAC 2A/30VDC

Working temperature -20~70℃

External power supply DC9V~30V/5W

Isolation protection DC1500V

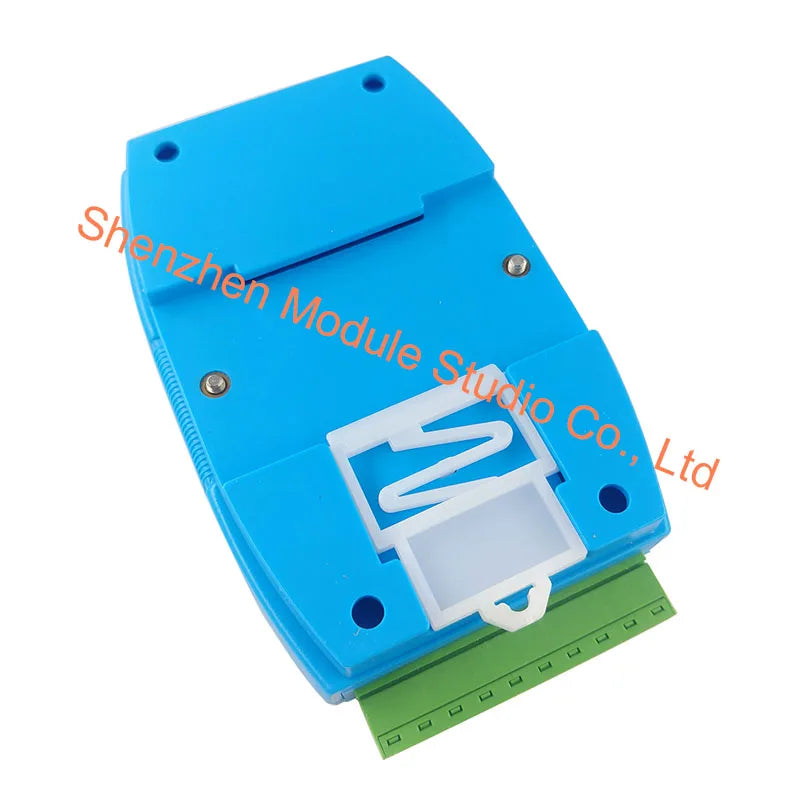

Installation method Standard DIN slide rail or screw

Dimension 125×73×35mm
