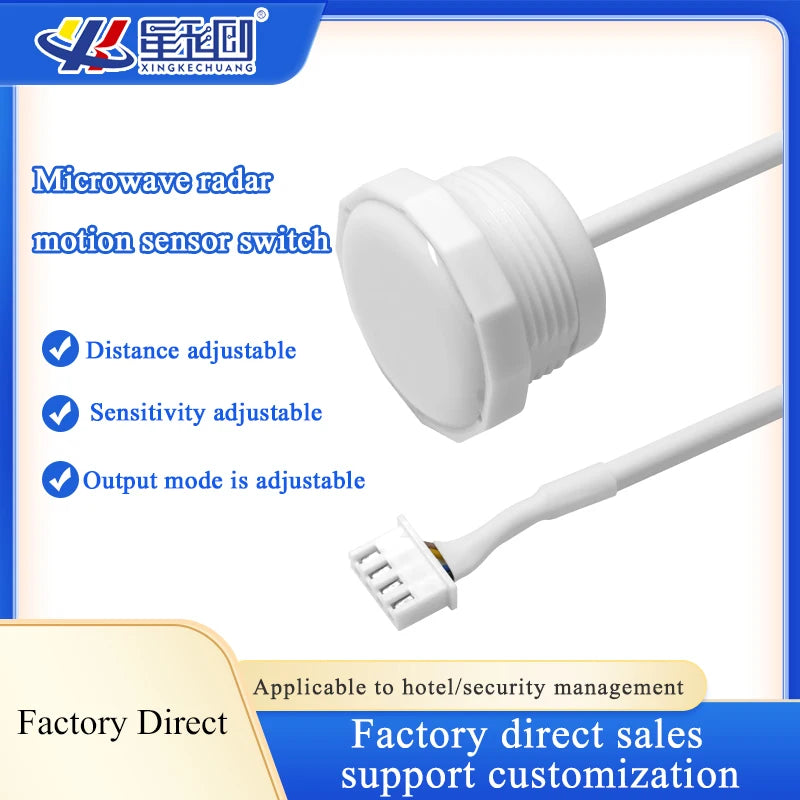

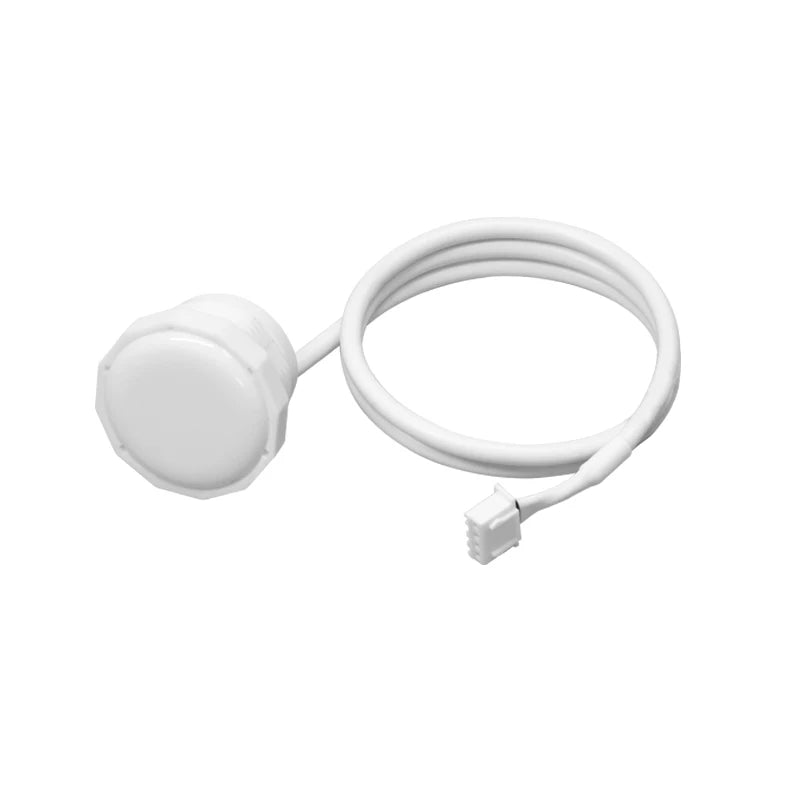

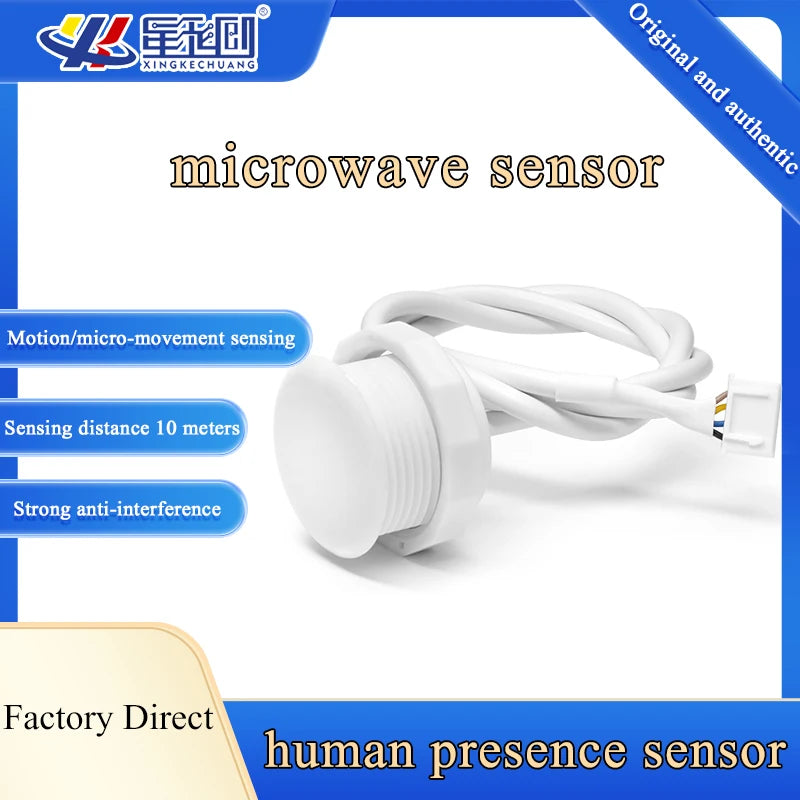

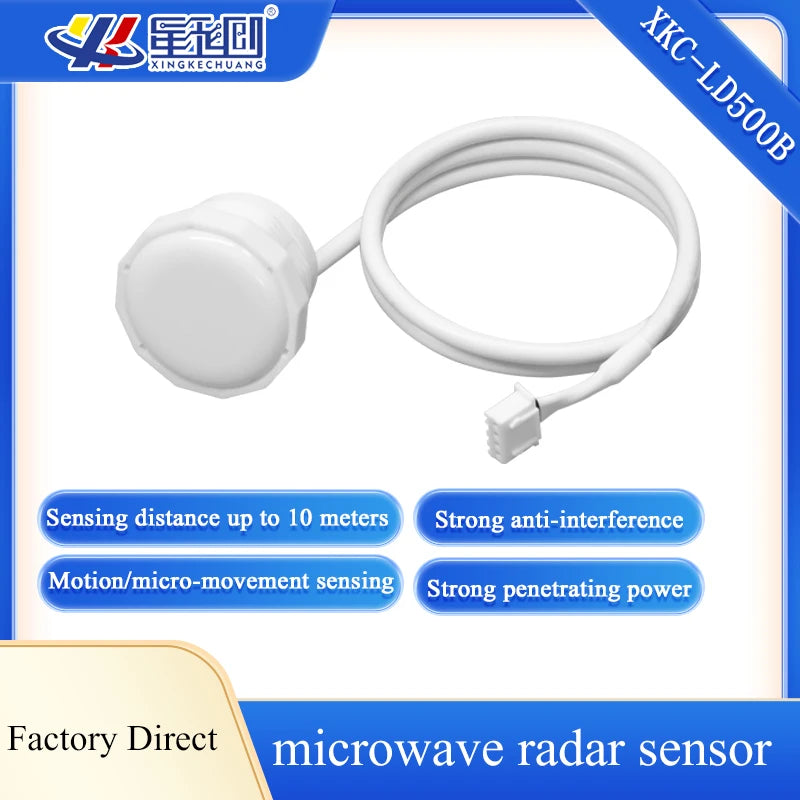

XKC-LD500B 5.8GHz Microwave Radar Motion Sensor 10m Distance Human Existence Body Presence Switch
XKC-LD500B-NPN
$36.68
Sale price
$36.68
Regular price
$0.00
Skip to product information
XKC-LD500B 5.8GHz Microwave Radar Motion Sensor 10m Distance Human Existence Body Presence Switch
$36.68
Sale price
$36.68
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: XINGKECHUANG
Choice: yes
High-concerned chemical: none
Material: Mixture
Origin: Mainland China
Output: Switching Transducer
Theory: Ultrasonic Sensor
Use: 24GHz Radar Sensor
is_customized: Yes
semi_Choice: yes
Product overview :
XKC-LD500B is mainly used in indoor scenes to perceive whether there is movement or micro human body in the
area, and output the detection results in real time. The maximum induction distance can reach 10 meters (the detection
distance is related to the direction of the sensor installation). Can be widely used in various scenarios of AIoT, often used
in human induction light control, advertising screen and other devices human induction wake, life safety protection,
intelligent home appliances, intelligent security, etc.
product features :
1. In addition to the movement of the human body induction sensitive, for the traditional scheme can not identify the
micro human body can also be sensitive induction;
2. Have good environmental adaptability, the induction effect is not affected by the temperature, brightness, humidity
and light fluctuations and other surrounding environment;
3. Not easy to be affected by dirt, dust and other cover interference;
4. Can pass through the glass, plastic, ceramic, acrylic, rubber, wood board and other non-metallic materials;

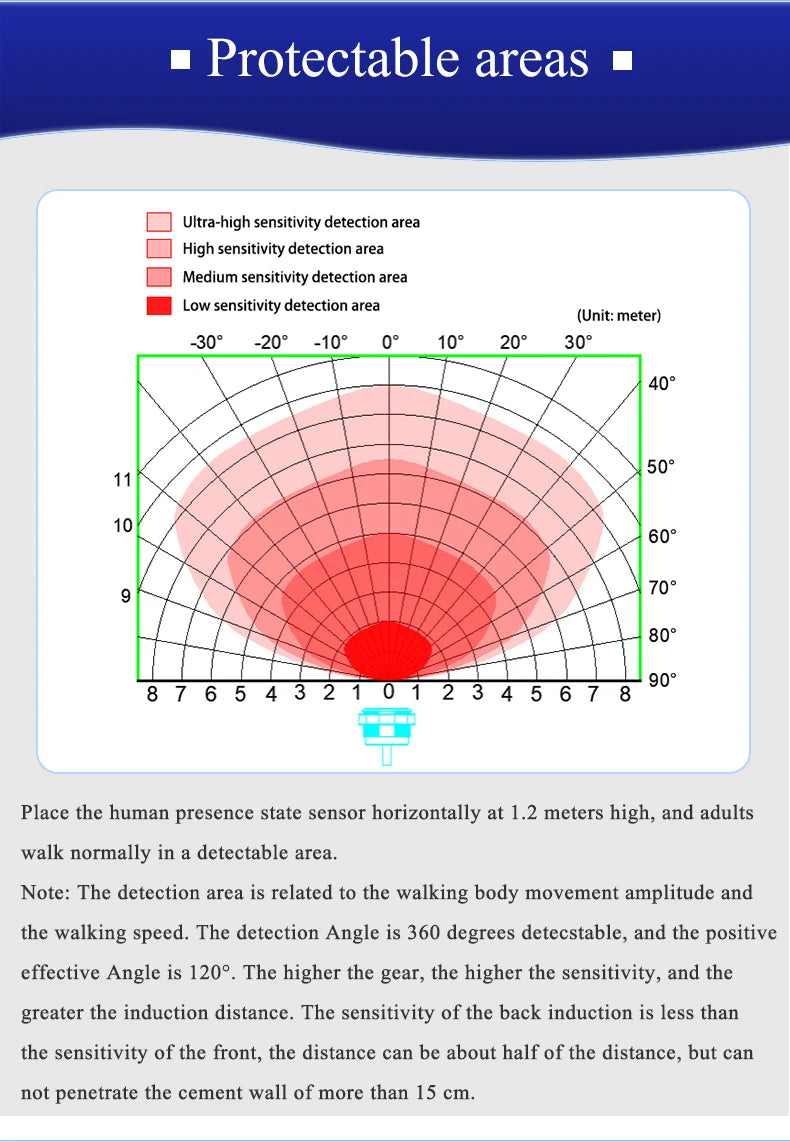

5. The maximum induction distance is up to 10 meters;

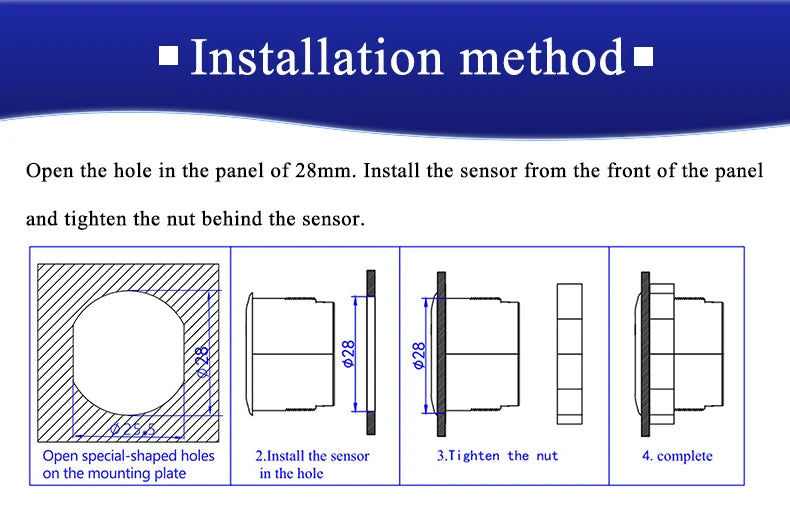

6. Support the hanging roof, hanging the wall and other installation methods;

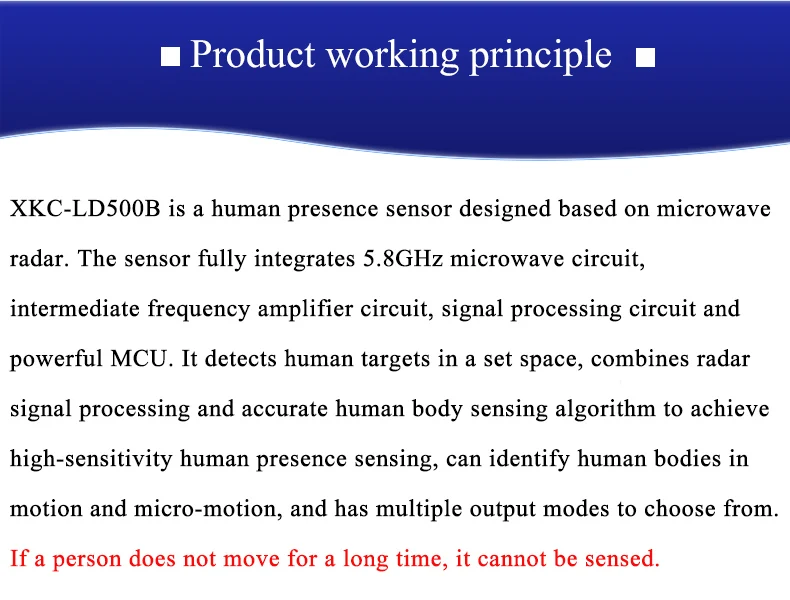

operational principle :
The XKC-LD500B is a human presence state sensor designed based on microwave radar. The sensor is fully
integrated with a 5.8GHz microwave circuit, an IF amplifier circuit, a signal processing circuit, and a powerful MCU. To
detect the human body target in the set space, combined with radar signal processing and accurate human body sensing
algorithm, to realize the highly sensitive human existence state sensing, can identify the human body in the motion and
micromotion state, and there are a variety of output ways to choose from.
