YHDC SCT036TS Input 100A/200A/300A/400A/500A/600A Output 50mA/0.1A Accuracy 0.5%Split Core Current Sensor AC Current Transformer

500A-50mA 0.5

$96.30

Sale price $96.30 Regular price $0.00

Skip to product information

YHDC SCT036TS Input 100A/200A/300A/400A/500A/600A Output 50mA/0.1A Accuracy 0.5%Split Core Current Sensor AC Current Transformer

YHDC SCT036TS Input 100A/200A/300A/400A/500A/600A Output 50mA/0.1A Accuracy 0.5%Split Core Current Sensor AC Current Transformer

$96.30

Sale price $96.30 Regular price $0.00

Color 500A-50mA 0.5 500A-0.1A 0.5 600A-0.1A 0.5 300A-0.1A 0.5 100A-0.1A 0.5 200A-0.1A 0.5 400A-0.1A 0.5 200A-50mA 0.5 100A-50mA 0.5 400A-50mA 0.5 300A-50mA 0.5

Description

SPECIFICATIONS

Brand Name: YHDC

Certification: CE

Coil Number: current transformer

Coil Structure: Split core current transformer

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: SCT036TS

Origin: Mainland China

Phase: SINGLE

Use: Current

is_customized: Yes

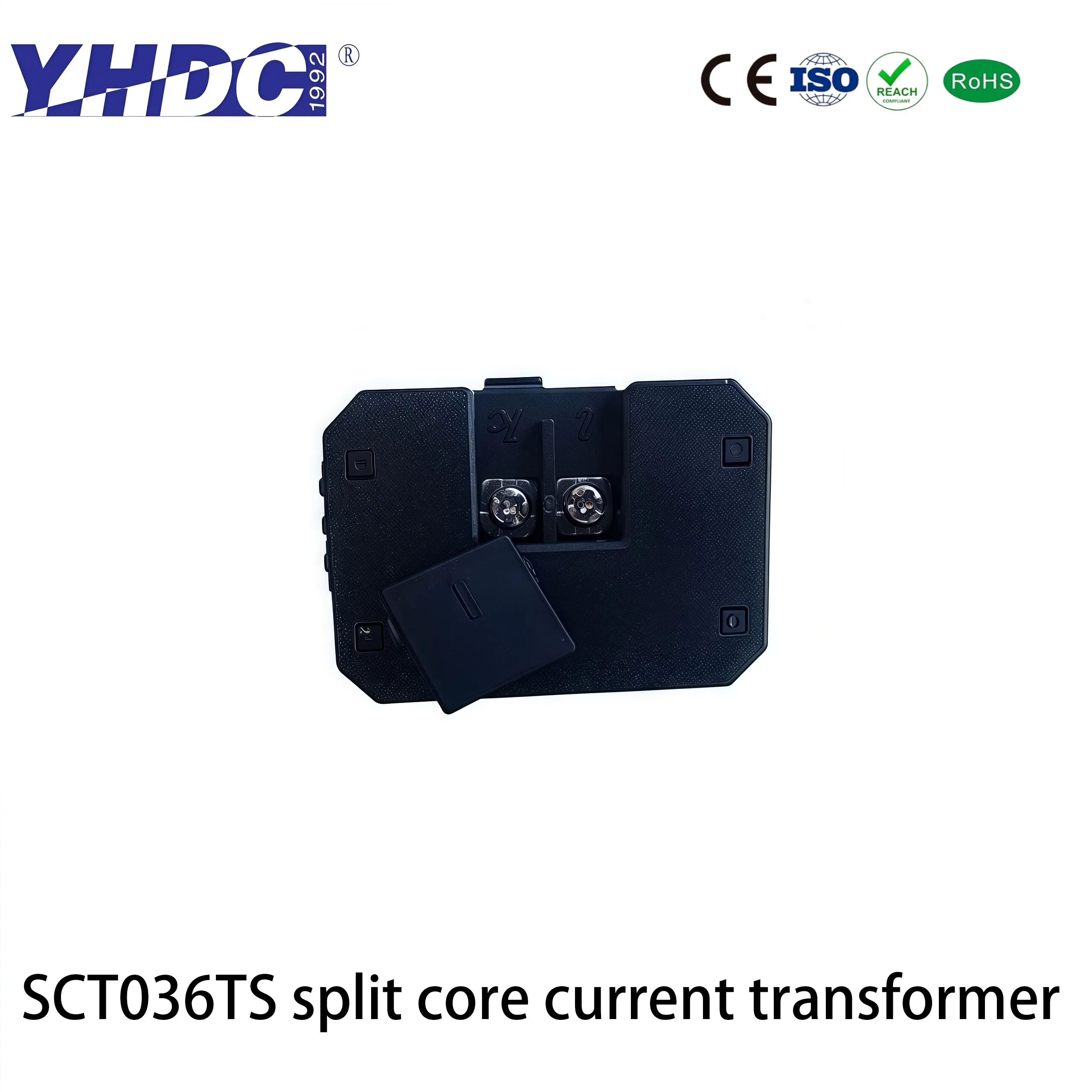

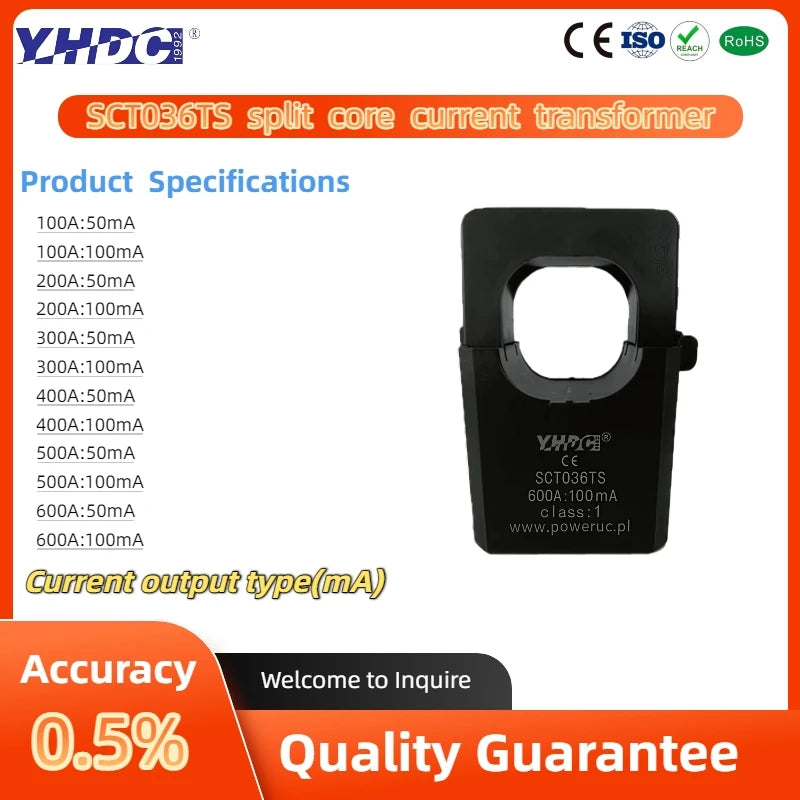

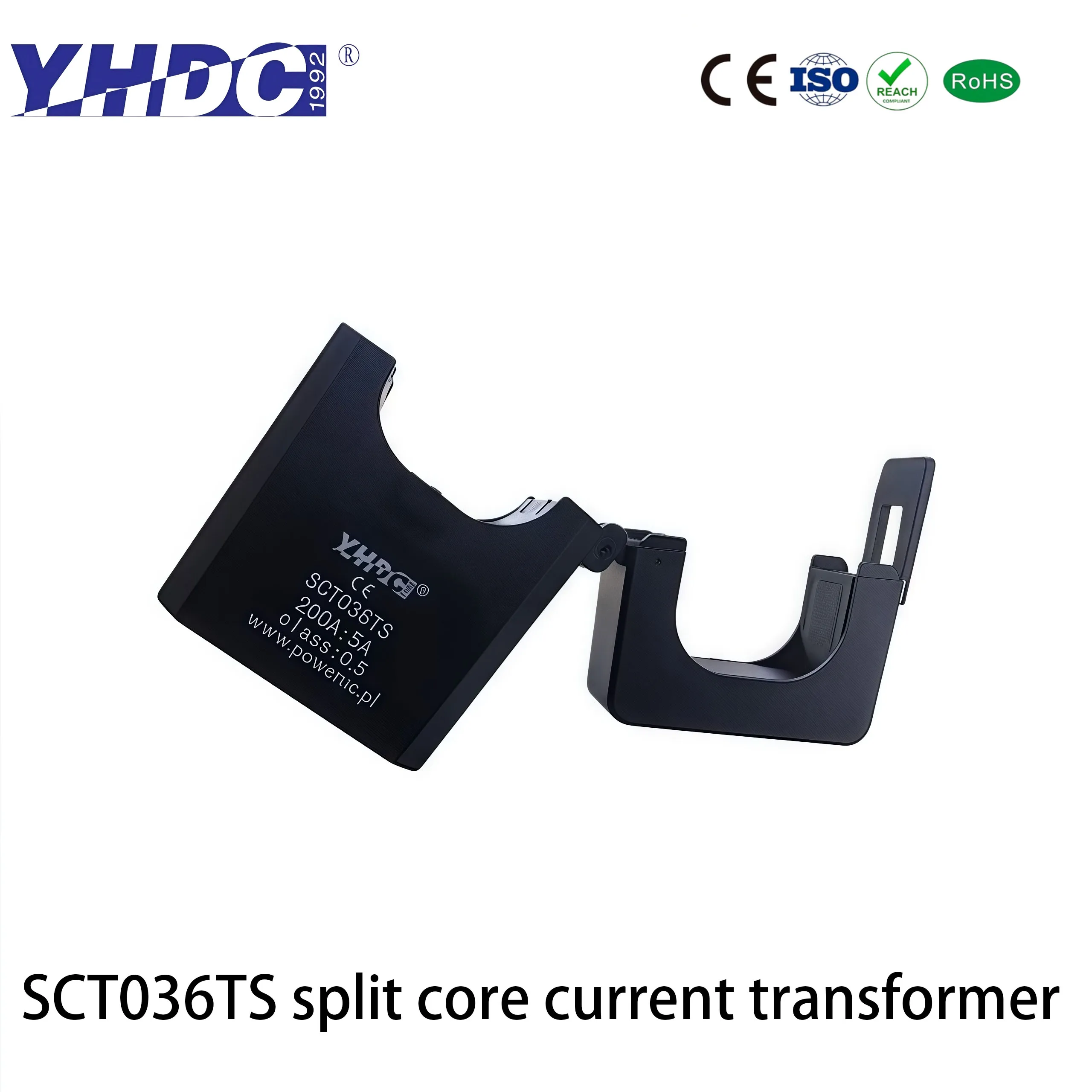

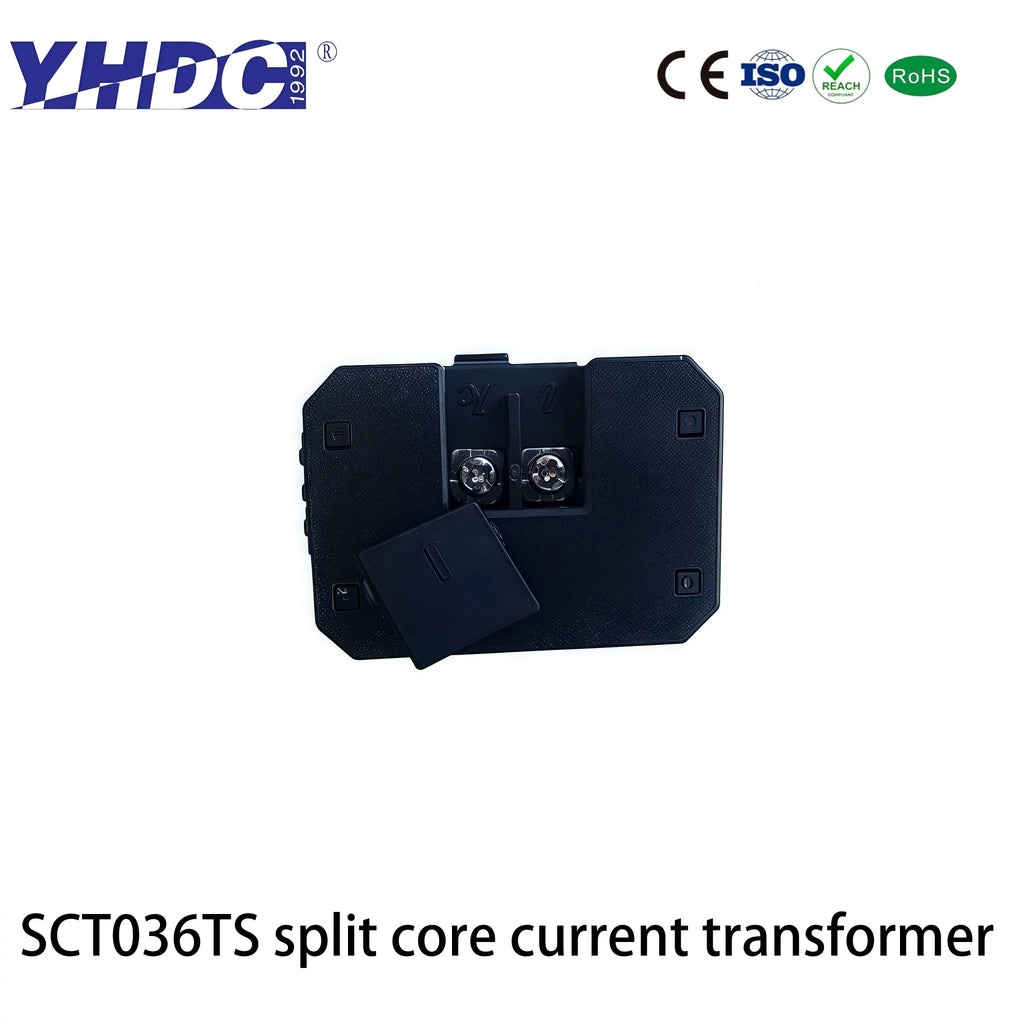

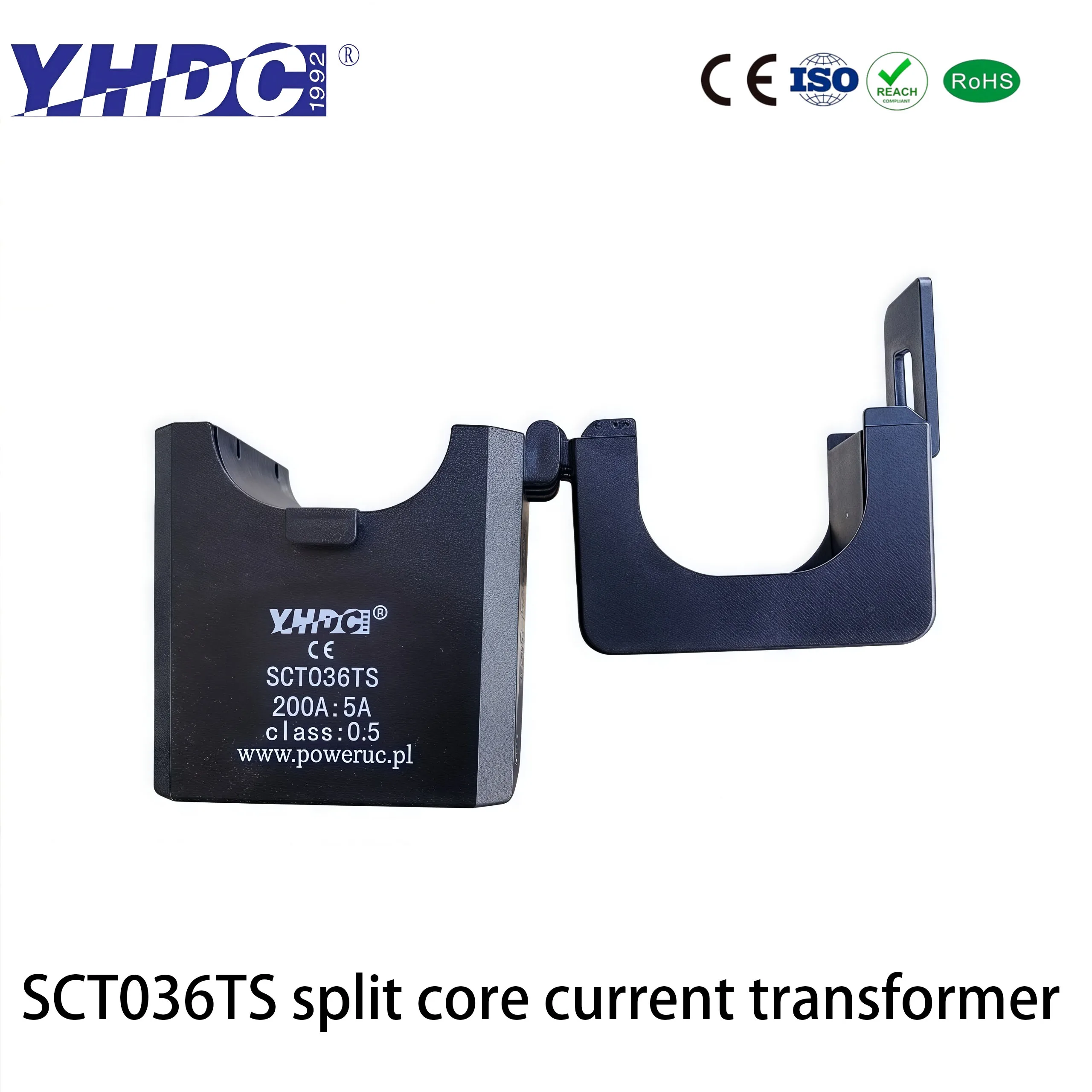

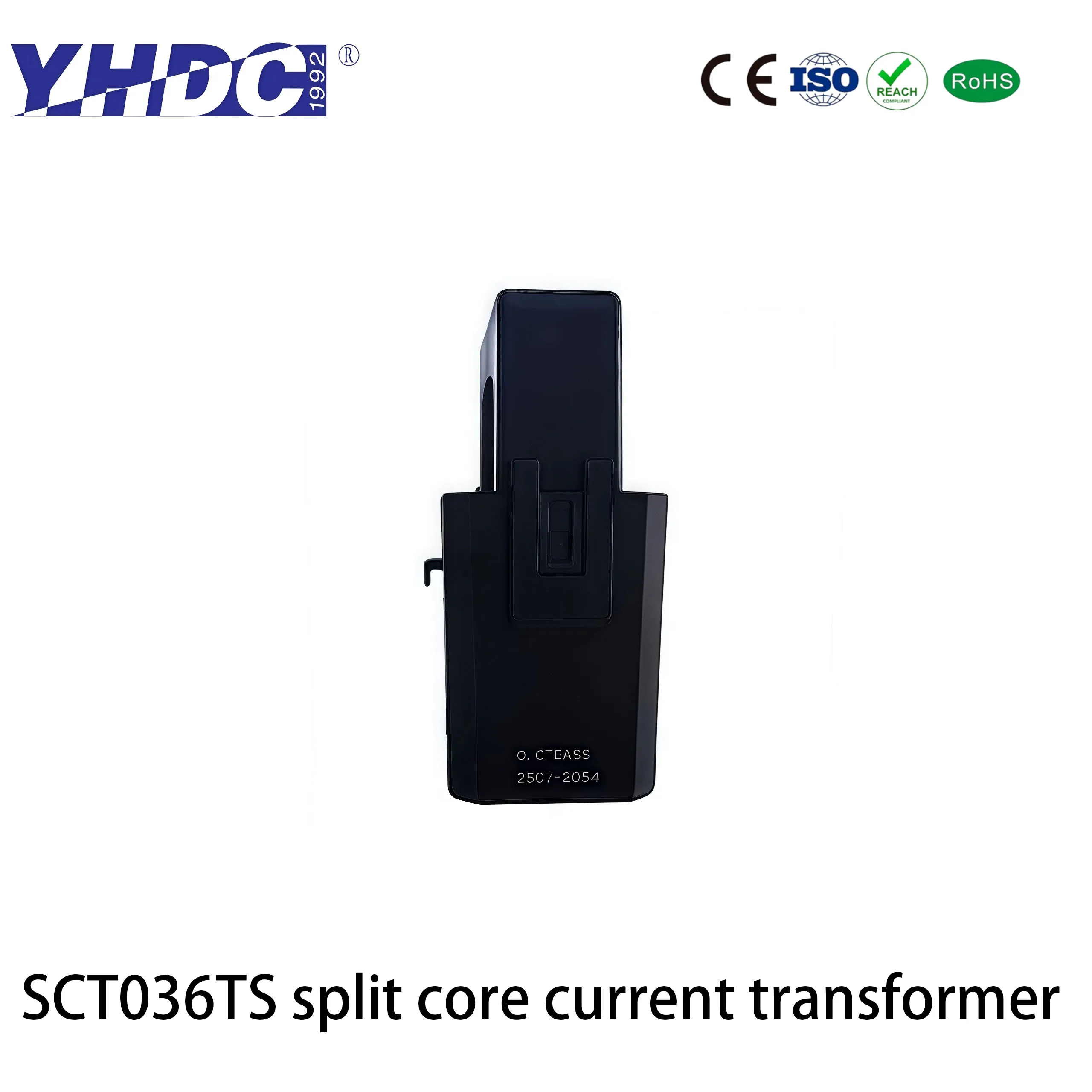

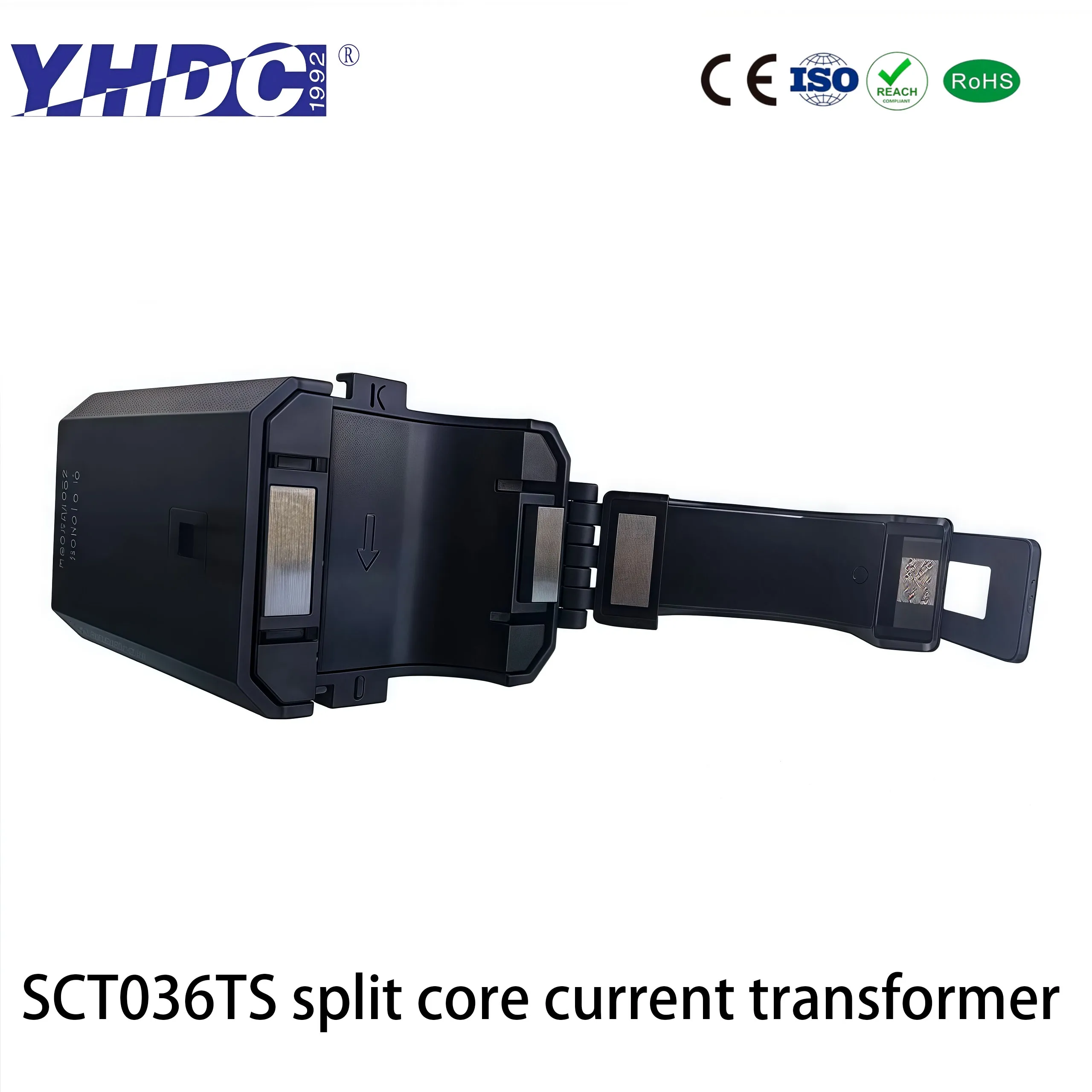

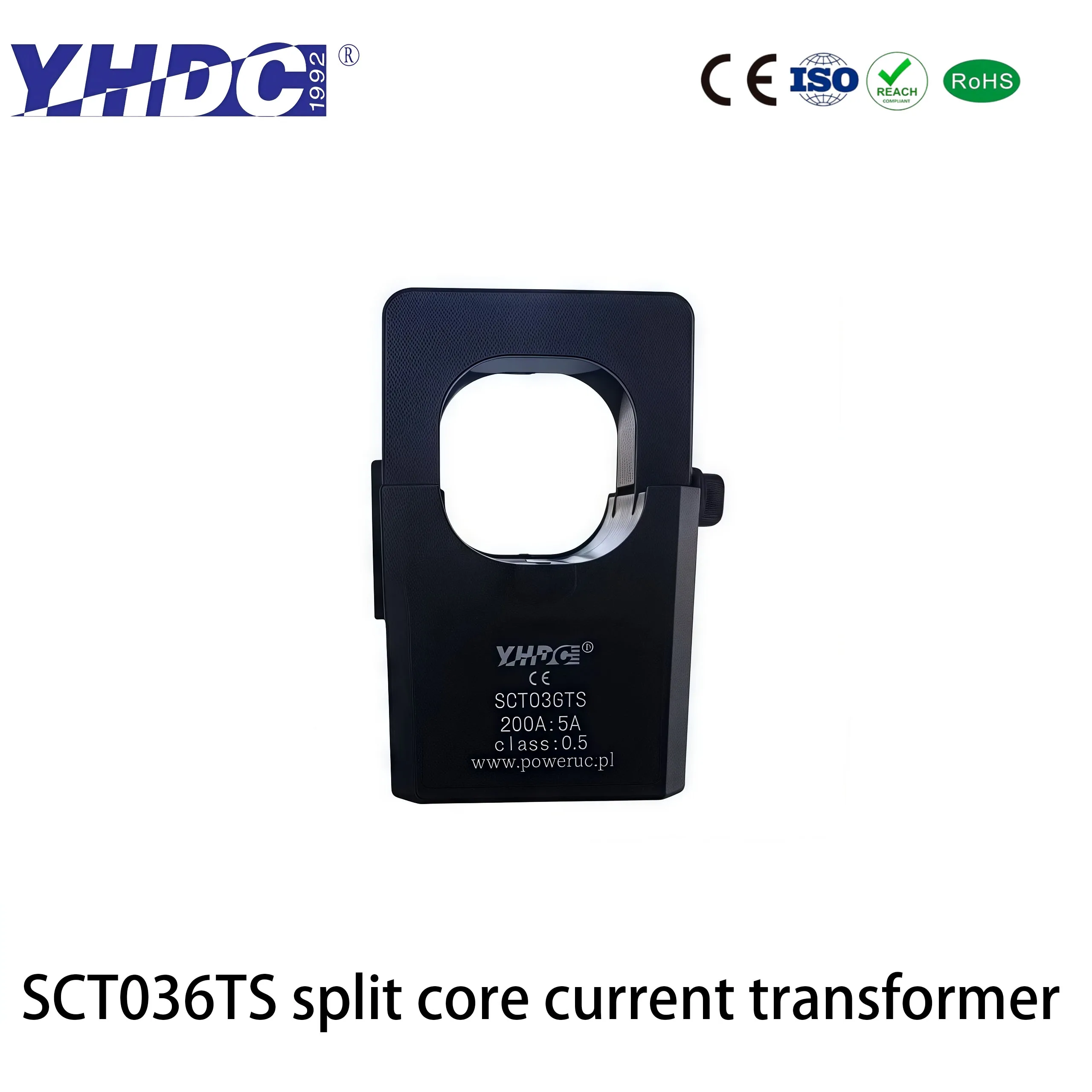

YHDC 100A-600A Split Core Current Transformer SCT036TS

Split core current transformers are usually installed on current intensive power lines or equipment, and output the measured current signals to users for monitor measurement or protection.

Characteristic:

Opening size is 36mm,safety lock buckle, easy installation, screw terminal output.

Application:

Current measurement, monitoring and piotection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system,air-condition equipment and automation-control system.
Current, power and energy monitoring device.
Relay protection device.
Charging pile and data center

Technical data:

Brand : YHDC

Mounting type: Free hanging (In-Line)

Material of core：Laminated silicon steel

Applicable standards：GB20840-2014

Operating temperature：-25℃～+60℃

Storage temperature：-30℃～+90℃

Frequency range：50Hz-60Hz

Waterproof grade: IP00

Dielectric strength：Input (bare conductor)/Output AC 800V/1min 50Hz

Output/housing AC 3.5KV/1min 50Hz

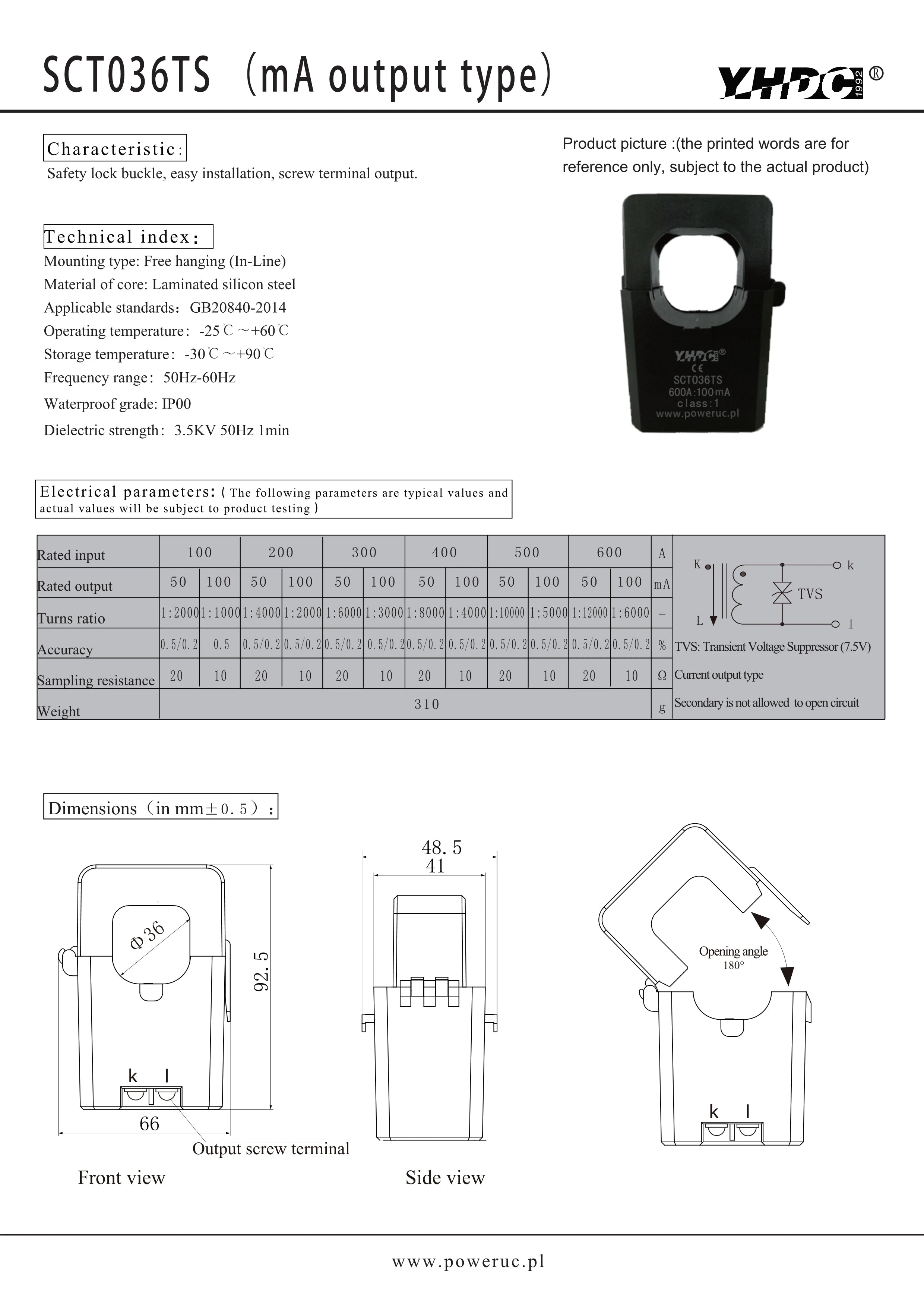

Product Description:

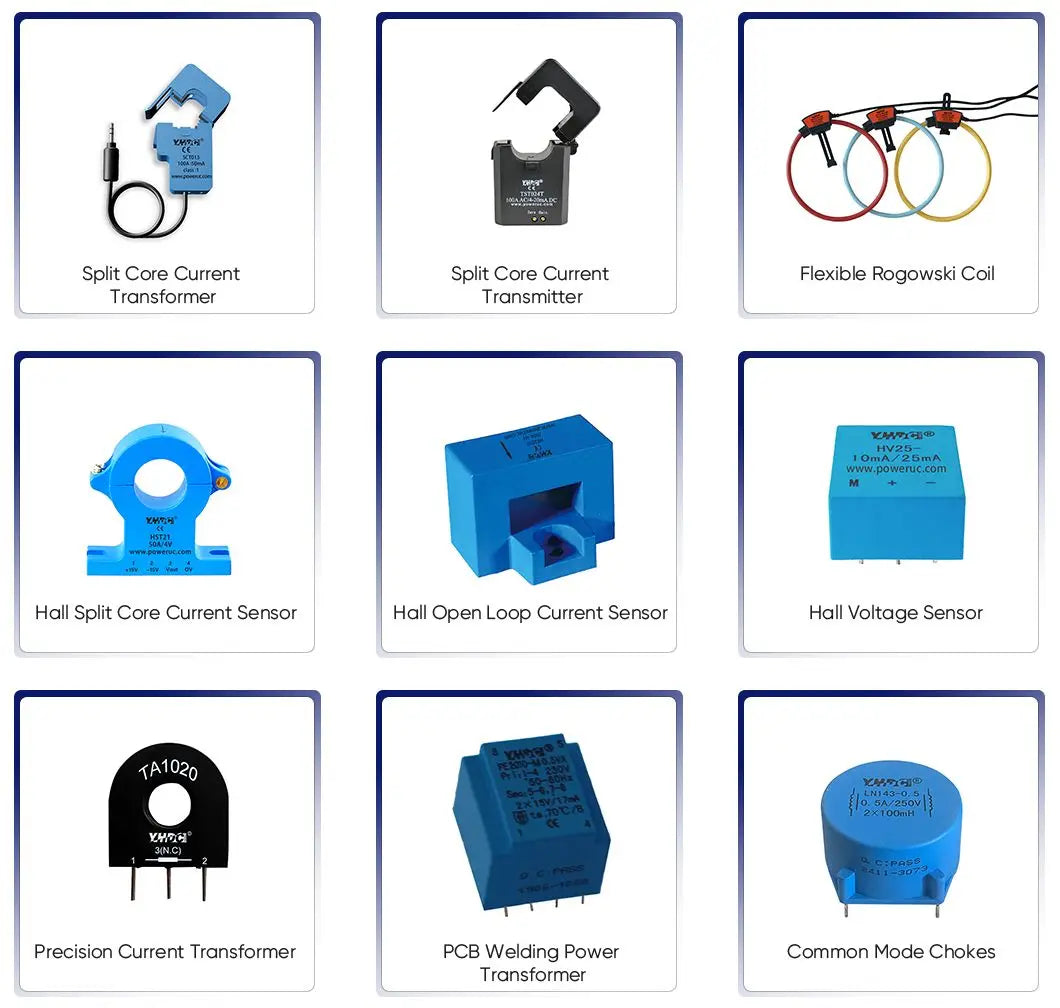

Main Product:

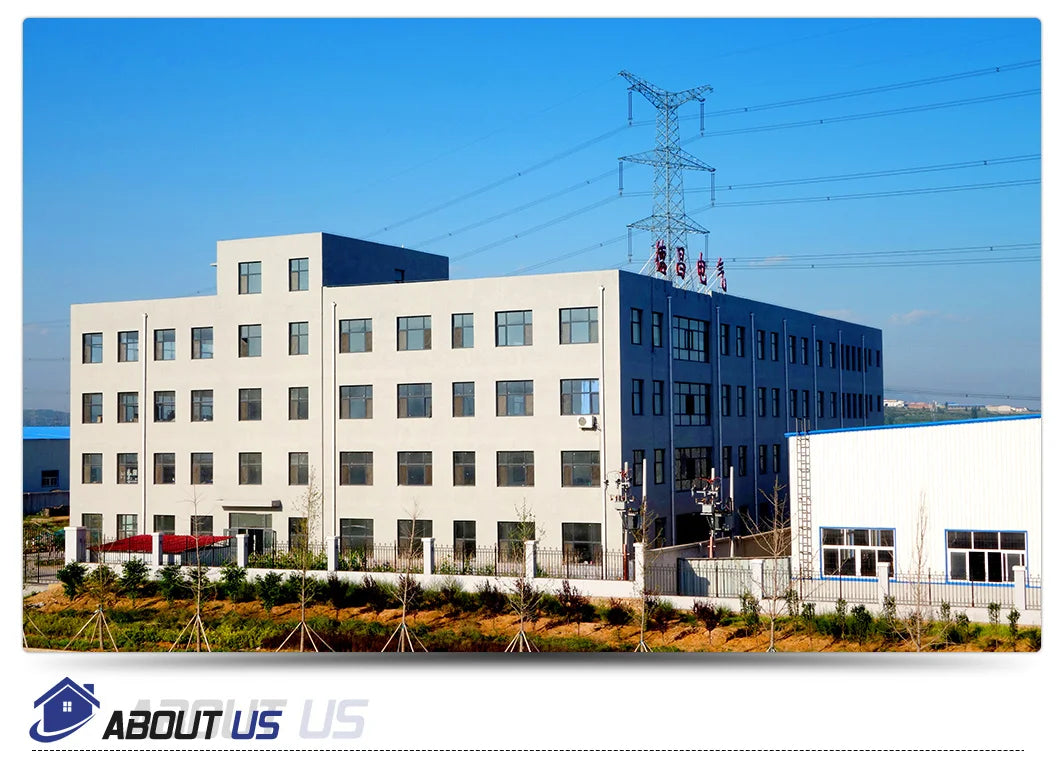

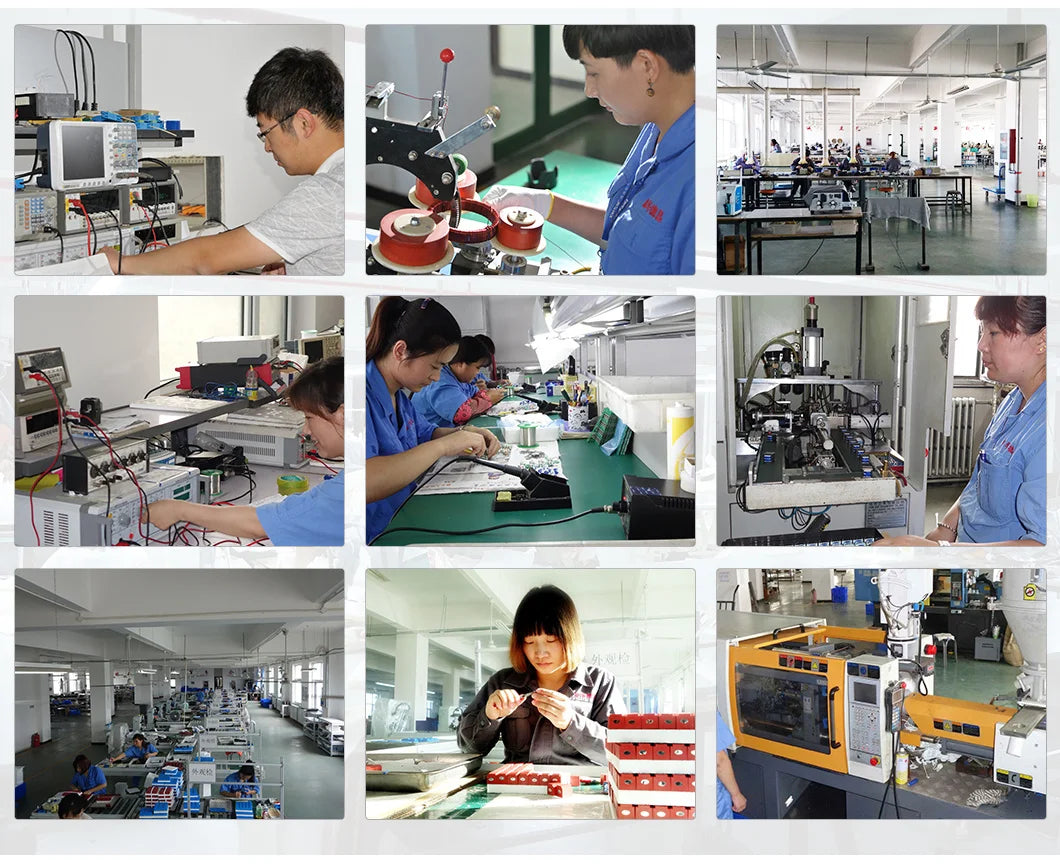

Company Profile:

YHDC was established in 1992 and is a leading manufacturer of electromagnetic components and devices. Our products are widely used in industrial equipment, precision instruments and meters, aerospace, medical, railway, electric power, wind power and other high end industries that require high performance and reliability. The product range includes power transformers, current transformers, SCR trigger transformers, DC current sensors, residual/leakage current transformers and sensors, and Rogowski coils. YHDC's R&D team is constantly developing new high performance devices every year . The company is equipped with mold manufacturing and injection molding workshops . Over the years , we have designed and developed hundreds of products, including non standard products according to customer requirements. Focus on the design and manufacture of high-quality products, adapt to severe environments, long term reliable operation , and a service life of up to 20 years. YHDC has a number of patents, which are widely used in power, Internet of Things and other industries.

Our Advantages:

We value our customers Timing Reply in 24 hours, showcasing our passion and patience. According customers' require- ment recommend the suitable product. We provide 1 year warranty, If you have any problems during use, our technical team will provide technical support.

Certifications:

Exhibition:

Packaging & Shipping:

Package:

· All our CT will be well packed with box in a carton.
· You can design your own label and package
· Can be netural packing or OEM. Shipping
· Products are shipped via DHL/ FedEx /UPS /TNT, etc. (door to door), or air & sea shipment for larger qty.
